6-01 — FRONT BUMPER (#36310) — 25 parça

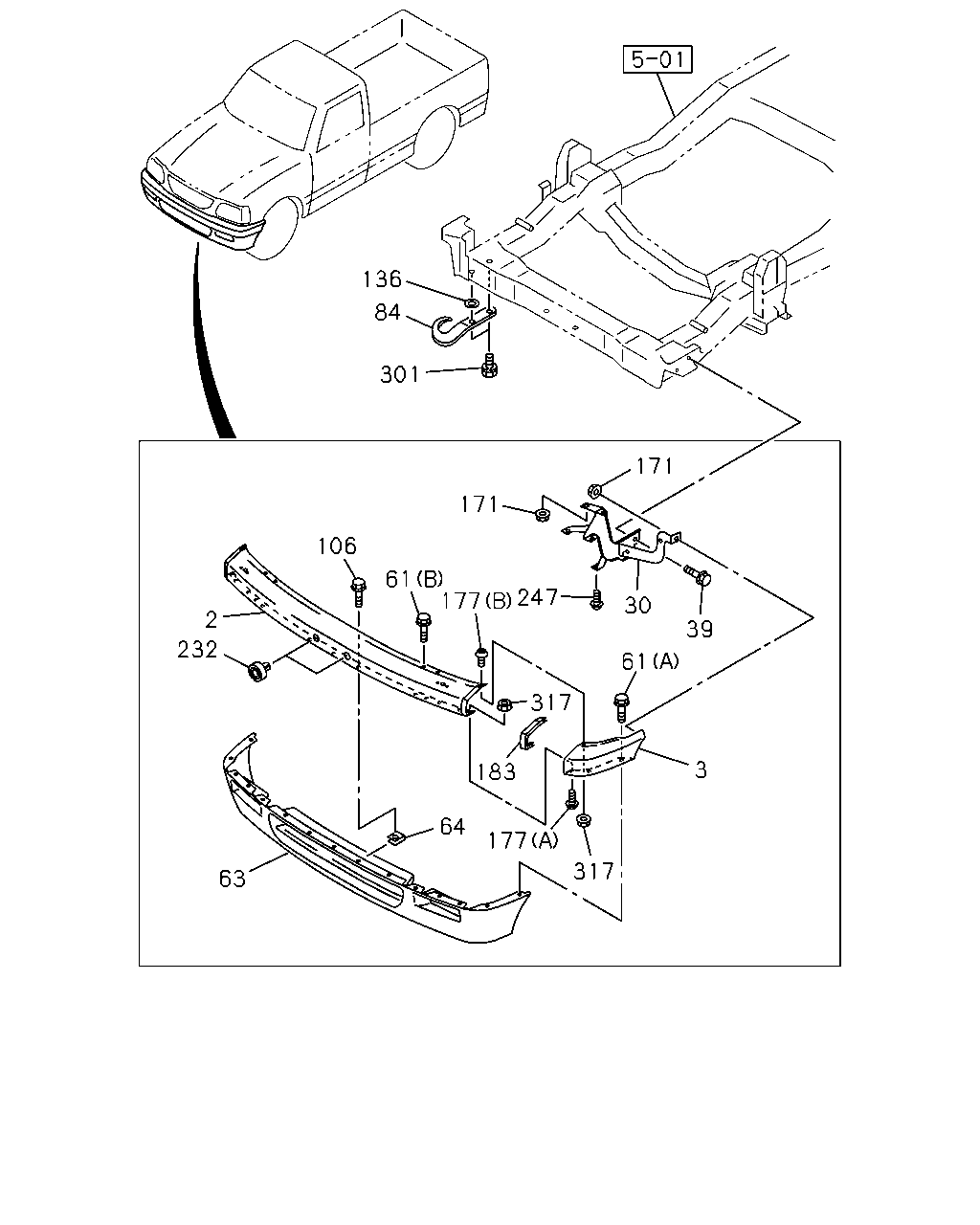

çizim 67168
136 84 301 171 171 106 61 177 247 30 2 39 232 61 317 3 183 64 177 317 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.831 BUMPER; FRT,CENTER
HEADLAMP WASHER<CE3> 		8-97111-502-0 01 1 9611- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. HEADLAMP WASHER<CE3> 		8-97111-500-0 01 1 9611- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-559-1 01 1 9611- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-556-1 01 1 9611- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97111-876-1 01 1 9611- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97111-875-1 01 1 9611- ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 9611- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 04 1 9611- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 04 1 9611- ● ● ● ● ● ●
63 07.831 AIR DAM; FRT BUMPER 8-97110-314-0 01 1 9611- ● ● ● ● ● ●
64 07.829 NUT; CLIP 8-94471-330-2 15 1 9611- ● ● ● ● ● ●
84 07.068 HOOK
TOW HOOK FRT & RR<V70> 		8-94361-852-0 01 1 9611-9706 ● ● ● ● ● ●
84 07.068 HOOK
TOW HOOK FRT & RR<V70>,TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 9707- ● ● ● ● ● ●
106 07.829 BOLT; AIR DAM
12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 9611- ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT & RR<V70> ID=12.5 		1-09503-021-0 01 1 9611-9706 ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT & RR<V70>,TOW HOOK FRT ONLY<7TJ> ID=12.5 		1-09503-021-0 01 1 9707- ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
07.833 M8 W/LK WASHER 		8-94327-073-0 10 1 9611- ● ● ● ● ● ●
177 07.869 BOLT
07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9611- ● ● ● ● ● ●
177 07.869 BOLT
07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9611- ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER 8-97111-562-0 02 1 9611- ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 9611- ● ● ● ● ● ●
247 07.874 SCREW; BUMPER TO AIR DAM
08.155 		8-97032-653-0 02 1 9611- ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9611-9706 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70>,TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9707- ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 9611- ● ● ● ● ● ●
