Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

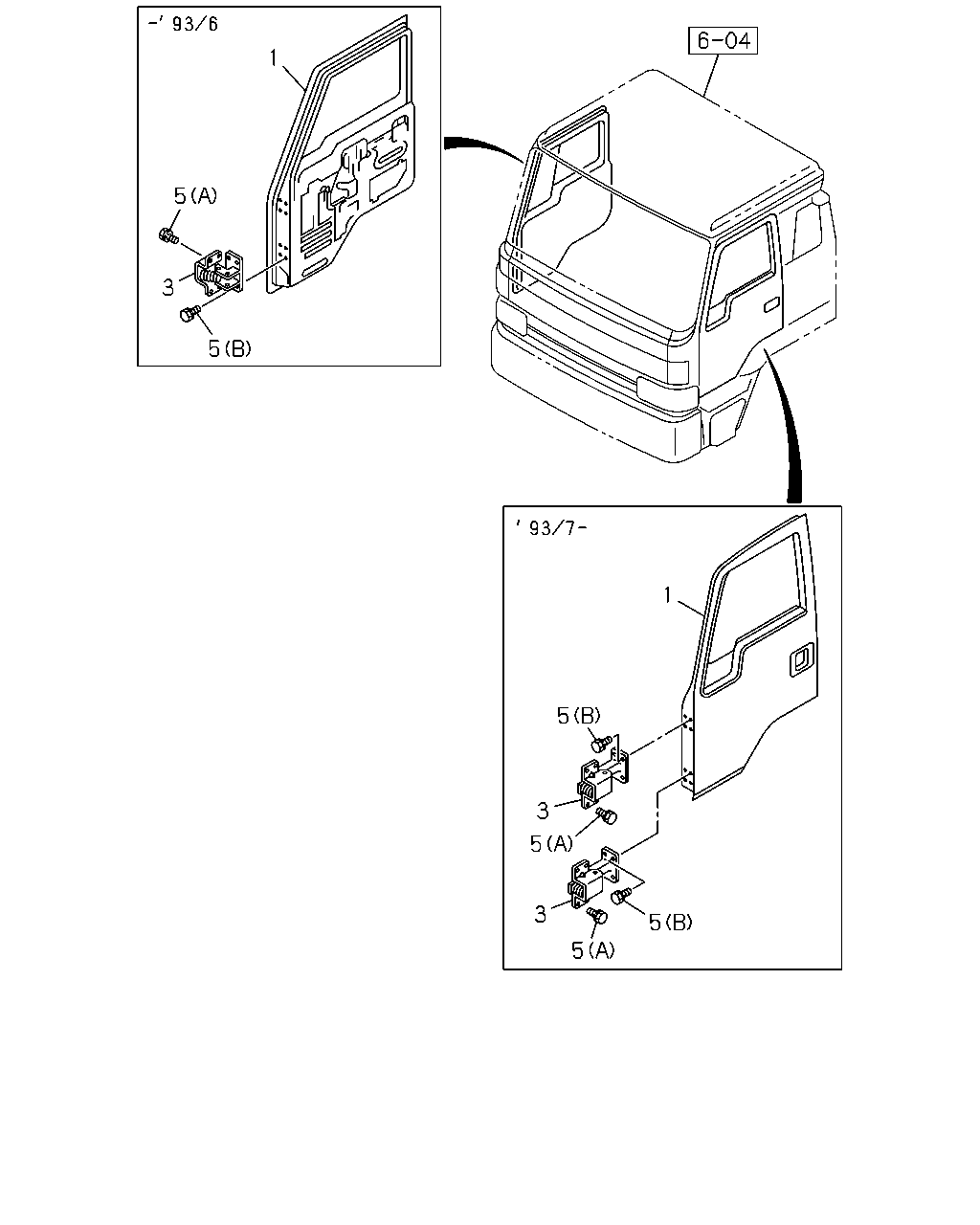

6-30 — FRONT DOOR AND HINGE
(#3631) — 14 parça
1
5
3
5
1
5
3
5
3
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-251-2
01
1
9002-9205
1
DOOR ASM; FRT,WO/TRIM
1-64070-240-1
01
1
9206-9306
1
DOOR ASM; FRT,WO/TRIM
1-64070-236-2
01
1
9307-
1
DOOR ASM; FRT,WO/TRIM
1-64070-197-2
01
1
9002-9205
1
DOOR ASM; FRT,WO/TRIM
1-64070-234-3
01
1
9206-
3
HINGE; DOOR FRT
UPPER
1-64770-038-4
02
1
9002-9002
3
HINGE; DOOR FRT
UPPER
1-64770-044-0
02
1
9003-9306
3
HINGE; DOOR FRT
UPPER
1-64770-041-1
02
1
9307-
3
HINGE; DOOR FRT
LOWER
1-64770-039-5
02
1
9002-9002
3
HINGE; DOOR FRT
LOWER
1-64770-045-0
02
1
9003-9306
3
HINGE; DOOR FRT
LOWER
1-64770-042-2
02
1
9307-
5
BOLT; HINGE
(A) M8X25 W/LK&PL WASHER
1-09980-526-0
16
1
9002-
5
BOLT; HINGE
(B) M8X25 W/LK&PL WASHER
9-01970-825-0
16
1
9002-9005
5
BOLT; HINGE
(B) M8X25 W/LK&PL WASHER
0-50140-825-0
16
1
9006-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
