5-01 — FRAME AND OTHER PARTS (#36304) — 124 parça

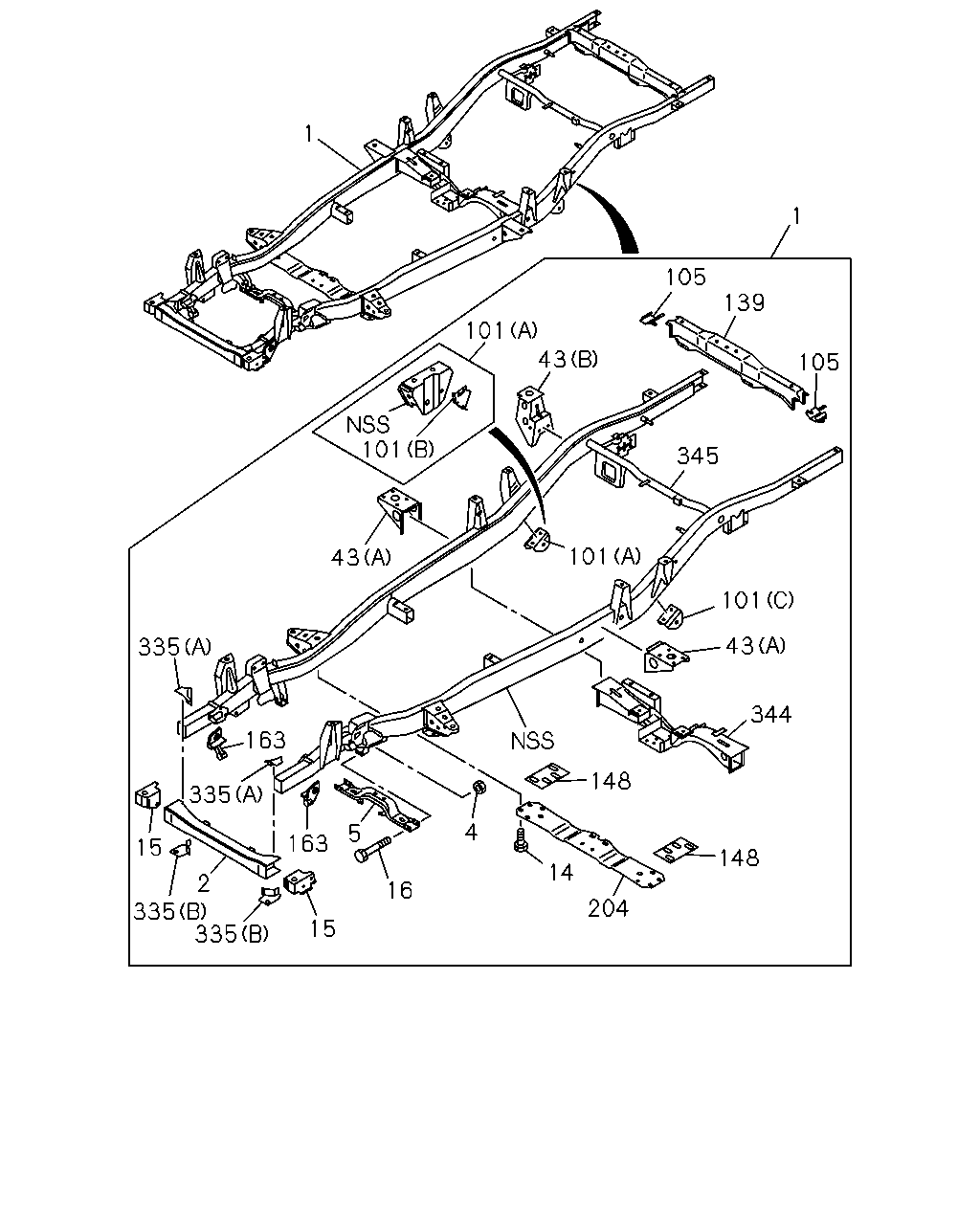

1 1 105 139 101 43 105 101 345 101 43 101 43 335 344 163 148 335 4 5 163 15 148 14 2 335 335 16 204 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97124-448-1	01	1	9611-	●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97124-444-2	01	1	9611-	●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97124-447-1	01	1	9611-		●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97124-443-2	01	1	9611-		●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97117-741-0	01	1	9611-			●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97112-694-0	01	1	9611-			●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97117-743-1	01	1	9611-				●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97112-696-1	01	1	9611-				●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97117-742-1	01	1	9611-					●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97112-695-1	01	1	9611-					●
1	07.003 FRAME ASM 4JA1 ENG(RLE) ISRAEL EQUIPMENT(7LX)	8-97149-114-0	01	1	9611-						●
1	07.003 FRAME ASM 4JA1 ENG(RLE) EXC. ISRAEL EQUIPMENT(7LX)	8-97117-744-0	01	1	9611-						●
1	07.003 FRAME ASM 4JG2 ENG(RJC) ISRAEL EQUIPMENT(7LX)	8-97149-113-0	01	1	9611-						●
1	07.003 FRAME ASM 4JG2 ENG(RJC) EXC. ISRAEL EQUIPMENT(7LX)	8-97112-697-0	01	1	9611-						●
2	07.010 MEMBER; CROSS,1ST	8-94436-856-4	01	1	9611-	●	●	●
2	07.010 MEMBER; CROSS,1ST	8-94436-857-4	01	1	9611-				●	●	●
4	07.039 NUT; 1ST C/MBR TO S/MBR M10 FLANGE	8-94383-595-0	02	1	9611-				●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-97134-403-0	01	1	9611-				●	●	●
14	07.039 BOLT; TRANS MTG MBR,FRAME M12X25	8-97166-861-0	08	1	9611-				●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-367-4	01	1	9702-9703	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-97170-725-0	01	1	9704-	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-366-4	01	1	9702-9703	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-97170-724-0	01	1	9704-	●	●	●	●	●	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR M10X83 FLANGE	8-97805-841-0	02	1	9611-				●	●	●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-272-2	01	1	9611-9611	●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97142-658-1	01	1	9611-	●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97142-657-2	01	1	9611-	●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-275-0	02	1	9611-9611		●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97142-659-1	02	1	9611-9711		●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94158-629-0	02	1	9611-			●			●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94332-800-0	01	1	9712-			●			●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94332-799-0	01	1	9611-			●			●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	02	1	9611-	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94362-621-0	01	1	9611-	●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	01	1	9611-		●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94493-563-0	01	1	9611-		●	●
101	07.112 BRACKET; RR SPR,FRT (C)	8-94363-179-0	01	1	9611-				●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97020-318-0	01	1	9611-				●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-624-0	01	1	9611-				●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-573-1	01	1	9611-	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-572-0	01	1	9611-	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-575-1	01	1	9611-				●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-574-0	01	1	9611-				●	●	●
139	07.012 MEMBER; CROSS,6TH	8-97126-554-0	01	1	9611-	●	●	●	●	●	●
148	07.105 SPACER; C/MBR 4JG2 ENG(RJC) 04.083	8-94325-131-0	02	1	9611-				●	●	●
163	07.105 BRACKET; LINK ARM	8-97142-704-1	01	1	9611-				●	●	●
163	07.105 BRACKET; LINK ARM	8-97142-703-1	01	1	9611-				●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JA1 ENG(RLE)	8-97802-396-4	01	1	9611-				●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JG2 ENG(RJC)	8-97806-767-1	01	1	9611-				●	●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-97122-707-0	01	1	9611-				●	●	●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-97122-709-0	01	1	9611-				●	●	●
335	07.039 PATCH; 1ST C/MBR (A) UPPER	8-97122-706-0	01	1	9611-				●	●	●
335	07.039 PATCH; 1ST C/MBR (B) LOWER	8-97122-708-0	01	1	9611-				●	●	●
344	07.012 MEMBER; CROSS,4TH 4JA1 ENG(RLE)	8-97117-927-3	01	1	9611-				●	●
344	07.012 MEMBER; CROSS,4TH 4JG2 ENG(RJC)	8-97117-929-3	01	1	9611-				●	●
344	07.012 MEMBER; CROSS,4TH 4JA1 ENG(RLE)	8-97117-928-3	01	1	9611-						●
344	07.012 MEMBER; CROSS,4TH 4JG2 ENG(RJC)	8-97117-930-3	01	1	9611-						●
345	07.012 MEMBER; CROSS,5TH 4JG2 ENG(RJC)	8-97081-515-0	01	1	9611-			●			●

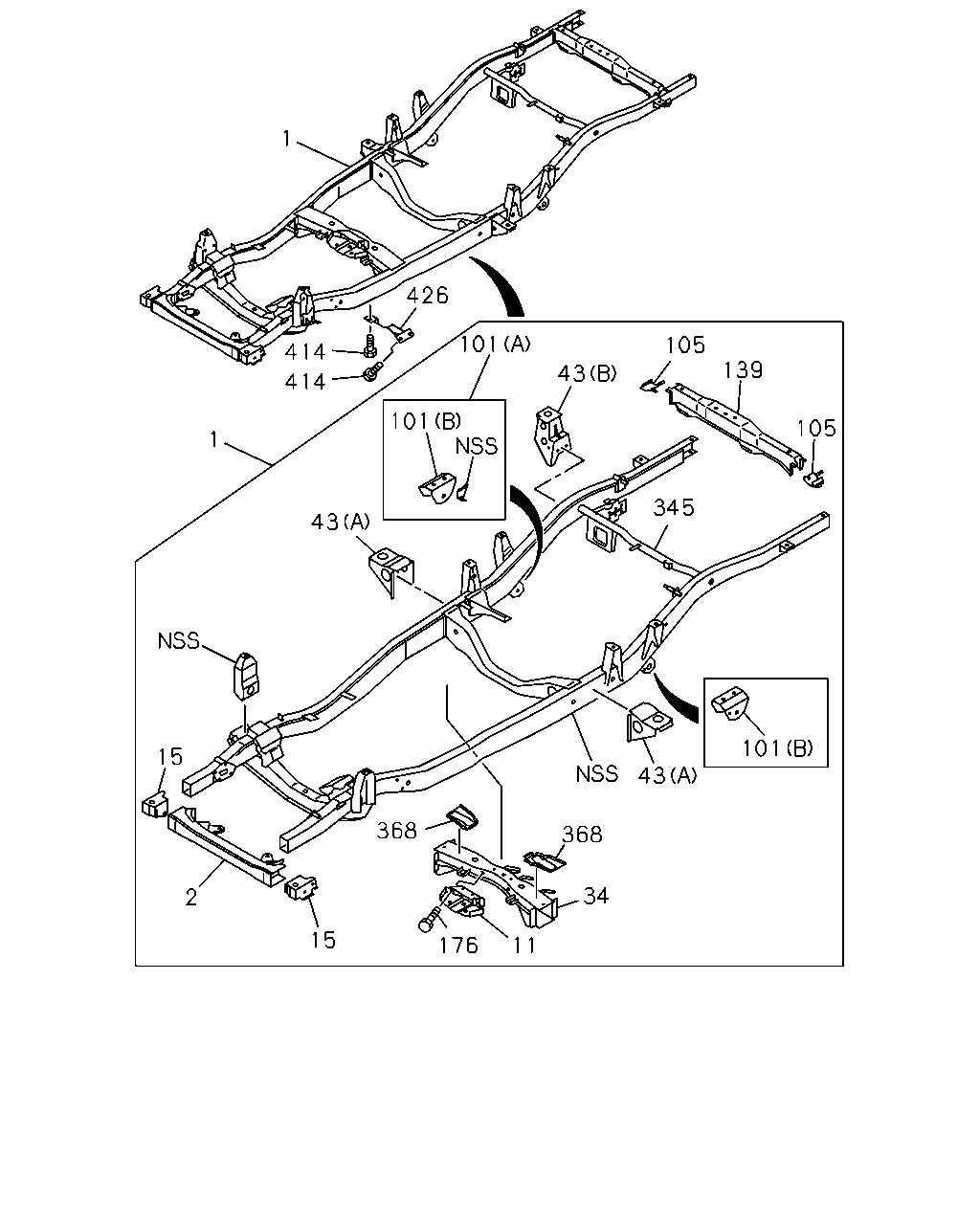

1 426 101 105 414 139 43 414 101 105 345 43 101 15 43 368 368 34 2 15 176 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97124-448-1	01	1	9611-	●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97124-444-2	01	1	9611-	●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97124-447-1	01	1	9611-		●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97124-443-2	01	1	9611-		●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97117-741-0	01	1	9611-			●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97112-694-0	01	1	9611-			●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97117-743-1	01	1	9611-				●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97112-696-1	01	1	9611-				●
1	07.003 FRAME ASM 4JA1 ENG(RLE)	8-97117-742-1	01	1	9611-					●
1	07.003 FRAME ASM 4JG2 ENG(RJC)	8-97112-695-1	01	1	9611-					●
1	07.003 FRAME ASM 4JA1 ENG(RLE) ISRAEL EQUIPMENT(7LX)	8-97149-114-0	01	1	9611-						●
1	07.003 FRAME ASM 4JA1 ENG(RLE) EXC. ISRAEL EQUIPMENT(7LX)	8-97117-744-0	01	1	9611-						●
1	07.003 FRAME ASM 4JG2 ENG(RJC) ISRAEL EQUIPMENT(7LX)	8-97149-113-0	01	1	9611-						●
1	07.003 FRAME ASM 4JG2 ENG(RJC) EXC. ISRAEL EQUIPMENT(7LX)	8-97112-697-0	01	1	9611-						●
2	07.010 MEMBER; CROSS,1ST	8-94436-856-4	01	1	9611-	●	●	●
2	07.010 MEMBER; CROSS,1ST	8-94436-857-4	01	1	9611-				●	●	●
11	00.029 BRACKET; ENG MTG 04.083	8-94493-727-0	01	1	9611-	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-367-4	01	1	9702-9703	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-97170-725-0	01	1	9704-	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-94472-366-4	01	1	9702-9703	●	●	●	●	●	●
15	07.039 BRACKET; BODY MTG,FRT	8-97170-724-0	01	1	9704-	●	●	●	●	●	●
34	07.012 MEMBER; CROSS,3RD	8-97126-206-2	01	1	9611-	●	●	●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-272-2	01	1	9611-9611	●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97142-658-1	01	1	9611-	●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97142-657-2	01	1	9611-	●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94476-275-0	02	1	9611-9611		●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97142-659-1	02	1	9611-9711		●			●
43	09.003 BRACKET; CAB MTG,RR (A)	8-94158-629-0	02	1	9611-			●			●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94332-800-0	01	1	9712-			●			●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94332-799-0	01	1	9611-			●			●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	02	1	9611-	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94362-621-0	01	1	9611-	●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-622-0	01	1	9611-		●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94493-563-0	01	1	9611-		●	●
101	07.112 BRACKET; RR SPR,FRT (C)	8-94363-179-0	01	1	9611-				●	●	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97020-318-0	01	1	9611-				●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94362-624-0	01	1	9611-				●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-573-1	01	1	9611-	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-572-0	01	1	9611-	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-575-1	01	1	9611-				●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94438-574-0	01	1	9611-				●	●	●
139	07.012 MEMBER; CROSS,6TH	8-97126-554-0	01	1	9611-	●	●	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9611-	●	●	●
345	07.012 MEMBER; CROSS,5TH 4JG2 ENG(RJC)	8-97081-515-0	01	1	9611-			●			●
368	07.039 SEAT; TORSION BAR	8-94476-268-1	01	1	9611-	●	●	●
368	07.039 SEAT; TORSION BAR	8-94476-267-1	01	1	9611-	●	●	●
414	07.011 BOLT HEIGHT CONTROL ARM PROTECTOR<7KV> 03.690 M10X28 W/LK&PL WASHER	8-97104-788-0	06	1	9611-	●	●	●
426	07.006 COVER; HEIGHT CONT HEIGHT CONTROL ARM PROTECTOR<7KV>	8-97129-924-1	01	1	9611-	●	●	●
426	07.006 COVER; HEIGHT CONT HEIGHT CONTROL ARM PROTECTOR<7KV>	8-97129-925-1	01	1	9611-	●	●	●

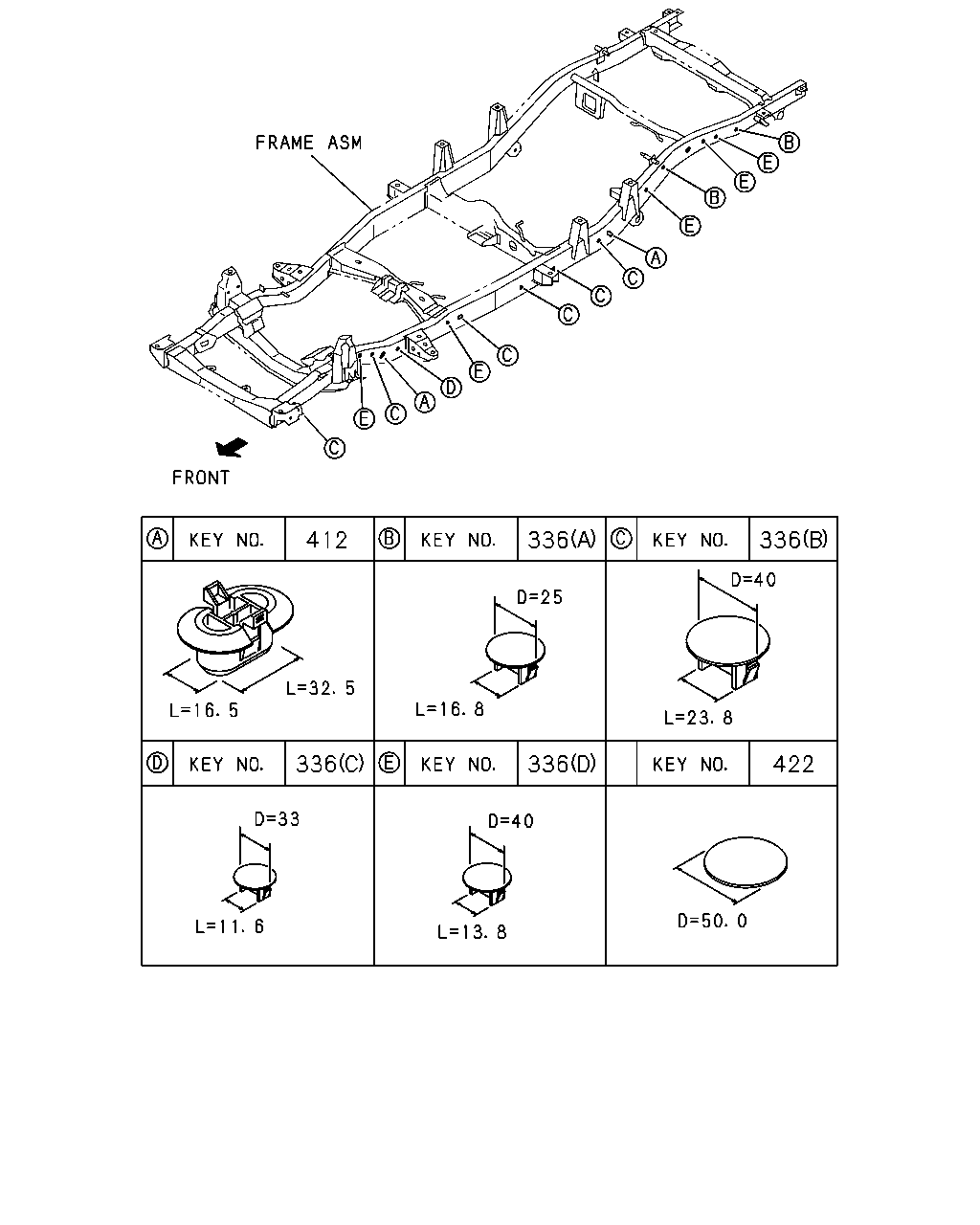

412 336 336 336 336 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
336	07.068 PLUG; HOLE (A) OD=33 BLUE	8-97806-919-0	04	1	9611-9710	●	●	●
336	07.068 PLUG; HOLE EXC. KD PREPARATORY PACK<6HF> (A) OD=33 BLUE	8-97806-919-0	04	1	9711-	●	●	●
336	07.068 PLUG; HOLE 07.070 (C) OD=27 GRAY	8-97071-775-0	02	1	9611-9710	●	●	●	●	●	●
336	07.068 PLUG; HOLE EXC. KD PREPARATORY PACK<6HF> 07.070 (C) OD=27 GRAY	8-97071-775-0	02	1	9711-	●	●	●	●	●	●
336	07.068 PLUG; HOLE (B) OD=40 BLACK	8-97806-918-0	10	1	9611-9710	●	●	●	●	●	●
336	07.068 PLUG; HOLE EXC. KD PREPARATORY PACK<6HF> (B) OD=40 BLACK	8-97806-918-0	12	1	9711-	●	●	●	●	●	●
336	07.068 PLUG; HOLE (D) OD=30 BLACK	8-97806-920-0	09	1	9611-9710	●	●	●	●	●	●
336	07.068 PLUG; HOLE EXC. KD PREPARATORY PACK<6HF> (D) OD=30 BLACK	8-97806-920-0	07	1	9711-	●	●	●
336	07.068 PLUG; HOLE (A) OD=33 BLUE	8-97806-919-0	02	1	9611-9710				●	●	●
336	07.068 PLUG; HOLE EXC. KD PREPARATORY PACK<6HF> (A) OD=33 BLUE	8-97806-919-0	02	1	9711-				●	●	●
336	07.068 PLUG; HOLE EXC. KD PREPARATORY PACK<6HF> (D) OD=30 BLACK	8-97806-920-0	08	1	9711-				●	●	●
412	07.039 PLUG; TIE DOWN HOLE	8-97071-716-0	04	1	9611-9710	●	●	●	●	●	●
412	07.039 PLUG; TIE DOWN HOLE EXC. KD PREPARATORY PACK<6HF>	8-97071-716-0	04	1	9711-	●	●	●	●	●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	33	1	9611-9710	●	●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	29	1	9711-	●	●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	27	1	9611-9710				●	●	●
422	07.068 SEAL; HOLE KD PREPARATORY PACK<6HF> OD=50	8-94241-235-0	28	1	9711-				●	●	●
