◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#36300) — 24 parça

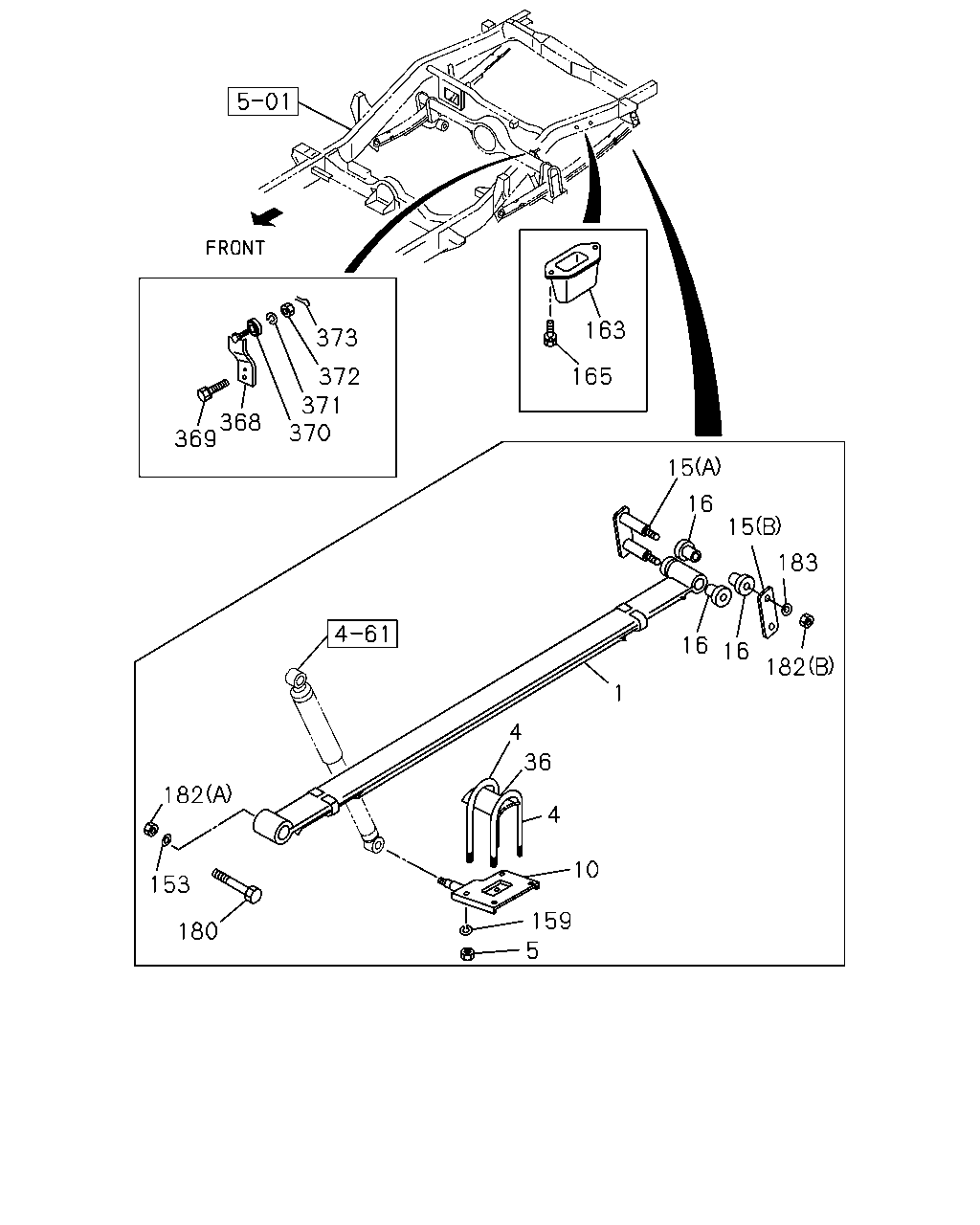

çizim 67207
163 373 372 371 370 165 368 369 15 16 15 183 16 16 182 1 4 36 182 4 10 153 159 180 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97061-938-0 02 1 9611- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97061-933-0 02 1 9611- ● ● ●
4 07.516 U-BOLT; RR SPR
L=160 		8-94318-381-1 04 1 9611- ● ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
M14 		9-99110-514-0 08 1 9611- ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-94455-238-0 02 1 9611- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94450-310-3 02 1 9611- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94450-311-2 02 1 9611- ● ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94234-319-0 08 1 9611- ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR 8-94454-478-0 02 1 9611- ● ● ● ● ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-94476-635-0 02 1 9611- ● ● ● ● ● ●
159 07.529 WASHER; LK,RR SPR
05.387 ID=14.2 		9-09150-614-0 08 1 9611- ● ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR 8-94459-452-2 02 1 9611- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
07.535 		8-94234-897-3 02 1 9611- ● ● ●
165 07.529 BOLT; HELPER RUBBER
11.377 M10X20 W/LK WASHER 		0-50041-020-0 04 1 9611- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
M14X106 		8-94438-834-1 02 1 9611- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 		8-94232-849-0 02 1 9611- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
06.232 (B) M14 		9-99110-414-0 04 1 9611- ● ● ● ● ● ●
183 07.529 WASHER; LK,PIN,RR SPR
05.387 ID=14.2 		9-09150-614-0 04 1 9611- ● ● ● ● ● ●
368 07.526 BRACKET; SHACKLE TO RR AXLE 8-94446-917-0 01 1 9611- ● ● ● ● ● ●
369 07.526 BOLT; BRKT TO RR AXLE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ● ● ● ●
370 07.529 RETAINER; SHACKLE
04.710 		8-94241-364-0 01 1 9611- ● ● ● ● ● ●
371 07.529 WASHER; LK,SHACKLE
00.002 ID=8.2 		9-09150-508-0 01 1 9611- ● ● ● ● ● ●
372 07.529 NUT; SHACKLE
M8 		9-09117-408-0 01 1 9611- ● ● ● ● ● ●
373 07.529 PIN; SPLIT,SHACKLE
00.793 OD=1.8 L=15 		9-08112-015-0 01 1 9611- ● ● ● ● ● ●
