1 |

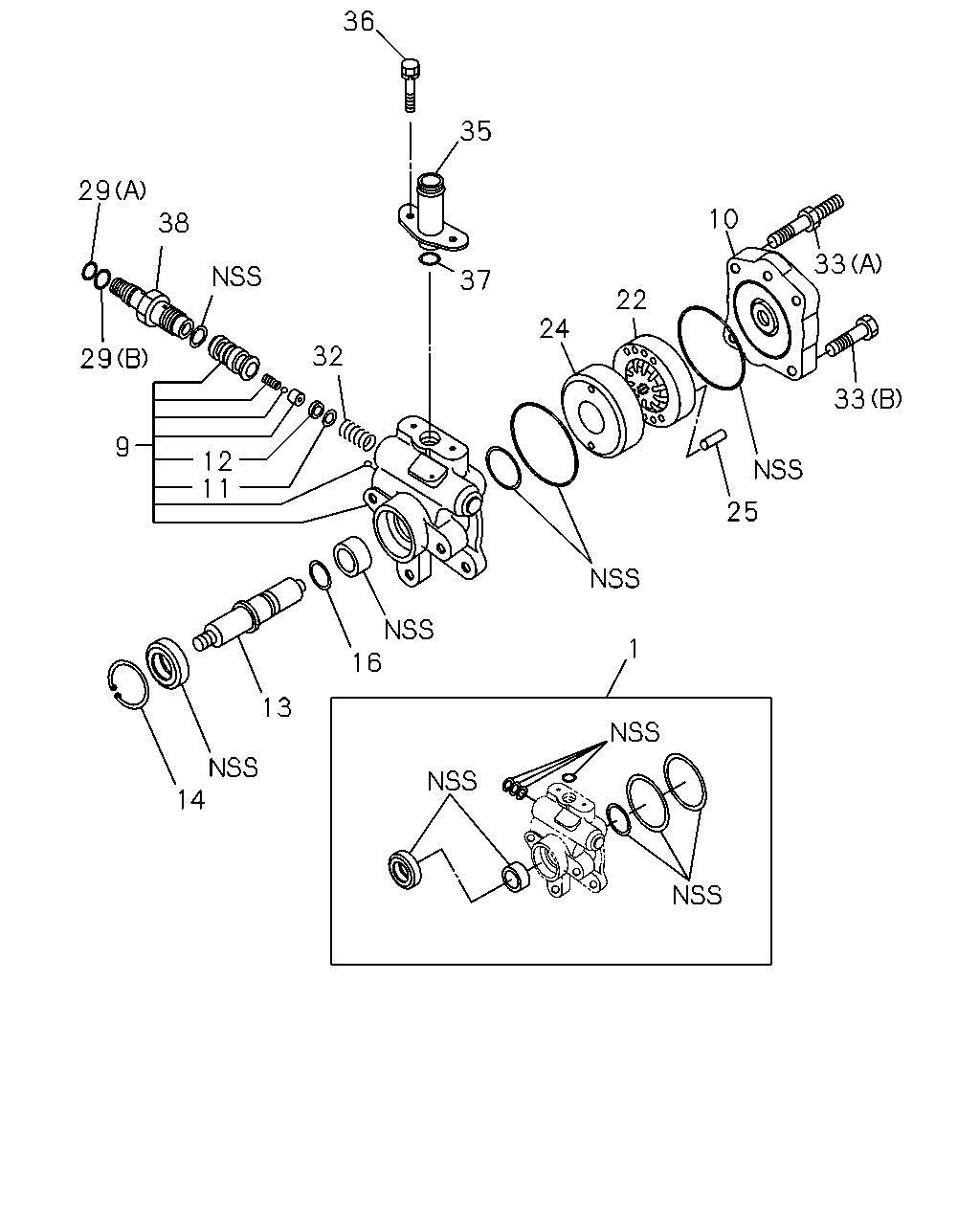

06.609 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-97131-341-0 |
01 |
1 |
- |
| |
9 |
06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-97061-642-0 |
01 |
1 |
- |
| |
10 |
06.608 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-97061-638-0 |
01 |
1 |
- |
| |
11 |
06.616 RING; RET,OIL TANK
ASM PART: A = 8-97129-593-3, 97129593
|
8-94175-185-0 |
01 |
1 |
- |
| |
12 |
06.616 FILTER; OIL PUMP
06.630
ASM PART: A = 8-97129-593-3, 97129593
|
8-94175-184-0 |
01 |
1 |
- |
| |
13 |
06.605 SHAFT KIT; RET
06.614
ASM PART: A = 8-97129-593-3, 97129593
|
8-97061-633-0 |
01 |
1 |
- |
| |
14 |
06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-97061-636-0 |
01 |
1 |
- |
| |
16 |
06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-97061-637-0 |
01 |
1 |
- |
| |
22 |
06.610 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-97110-274-0 |
01 |
1 |
- |
| |
24 |
06.612 PLATE ASM; THRUST
06.609
ASM PART: A = 8-97129-593-3, 97129593
|
8-97063-133-0 |
01 |
1 |
- |
| |
25 |
06.608 PIN; HSG,P/S
ASM PART: A = 8-97129-593-3, 97129593
|
8-94475-371-0 |
02 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(A), ID=11.0
ASM PART: A = 8-97129-593-3, 97129593
|
9-09561-111-0 |
01 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(B), ID=13.0
ASM PART: A = 8-97129-593-3, 97129593
|
9-09561-113-0 |
01 |
1 |
- |
| |
32 |
06.606 SPRING; OIL PUMP
06.612
ASM PART: A = 8-97129-593-3, 97129593
|
8-94475-376-0 |
01 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
06.608, (B)
ASM PART: A = 8-97129-593-3, 97129593
|
8-94475-381-1 |
03 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
(A) ASM PART: A = 8-97129-593-3, 97129593
|
8-97131-502-0 |
01 |
1 |
- |
| |
35 |
06.602 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-94461-138-2 |
01 |
1 |
- |
| |
36 |
06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97129-593-3, 97129593
|
8-94461-139-1 |
02 |
1 |
- |
| |
37 |
06.635 GASKET; PIPE CONN,OIL PUMP
06.609, ID=11.0
ASM PART: A = 8-97129-593-3, 97129593
|
9-09561-111-0 |
01 |
1 |
- |
| |
38 |
06.624 CONNECTOR; OIL PUMP
ASM PART: A = 8-97129-593-3, 97129593
|
8-94311-981-0 |
01 |
1 |
- |
