4-36 — POWER STEERING CONTROL; ENGINE SIDE (#36296) — 36 parça

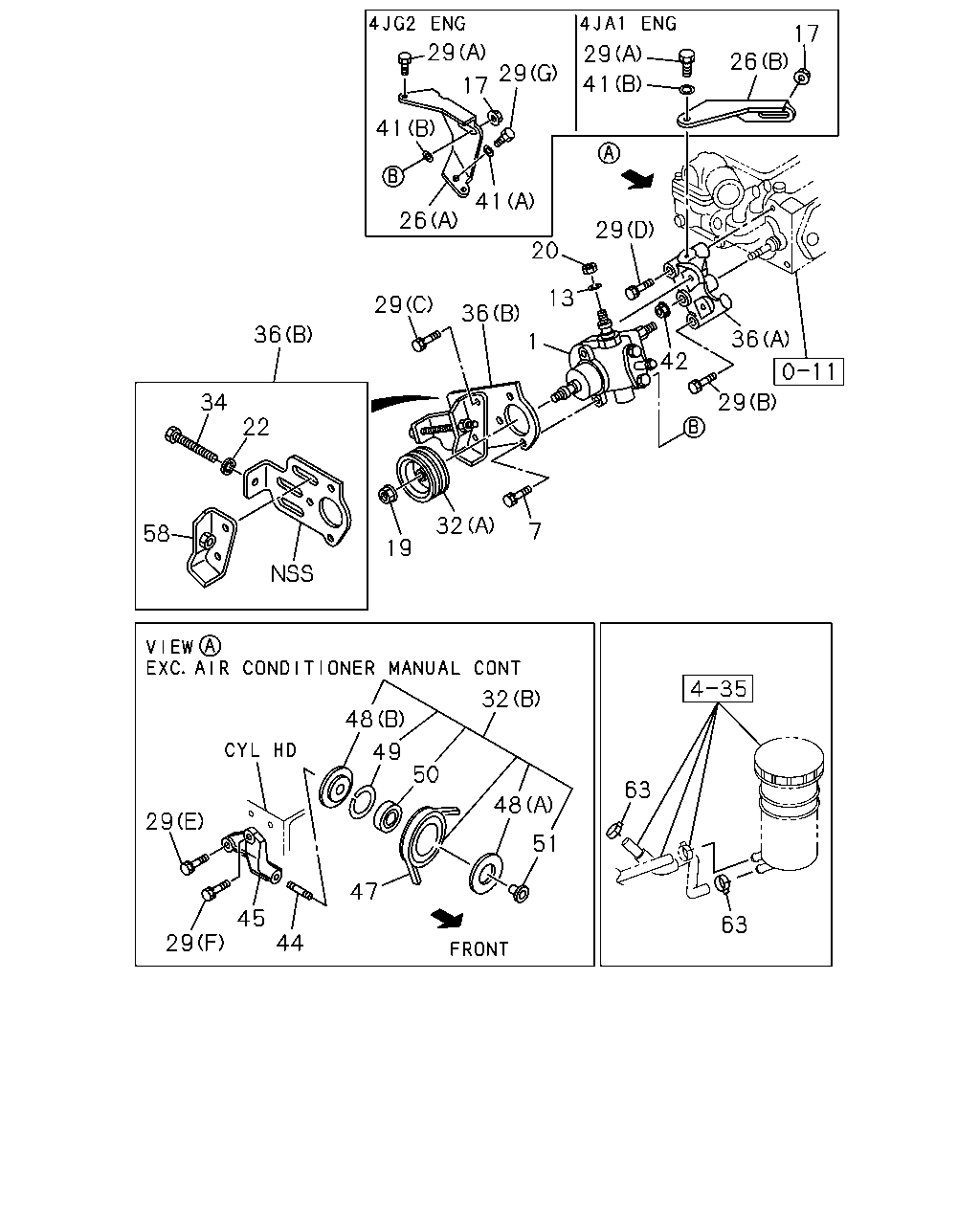

çizim 18464
17 26 29 29 29 41 17 41 41 26 29 20 13 29 36 1 36 36 42 29 34 22 32 7 58 19 32 48 49 50 63 48 29 51 47 45 63 29 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97129-593-3 01 1 9611- ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 06.606 M10X20 W/LK WASHER 		8-97033-053-1 03 1 9611- ● ● ● ● ● ●
13 06.673 WASHER; LK,FLEX HOSE,P/S
POWER STEERING<N40> 04.634 ID=12.2 		9-09150-512-0 01 1 9611- ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
POWER STEERING<N40> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9611- ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9611- ● ● ● ● ● ●
20 06.673 NUT; HOSE TO PUMP
POWER STEERING<N40> 07.347 M12 		9-99111-412-0 01 1 9611- ● ● ● ● ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
POWER STEERING<N40> 00.002 ID=10.2 		9-09150-510-0 01 1 9611- ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JA1 ENG(RLE) POWER STEERING<N40> (B) 		8-97134-259-0 01 1 9611- ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JG2 ENG(RJC) POWER STEERING<N40> (A) 		8-97134-149-0 01 1 9611- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9611- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.252 (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 9611- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 00.029 (C) M10X28 W/LK WASHER 		0-50041-028-0 02 1 9611-9803 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9804- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 04.104 (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9611- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9611- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 03.415 (G) M8X35 FLANGE 		0-28080-835-0 01 1 9611- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> 06.655 (A) 		8-97042-266-1 01 1 9611- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-740-0 01 1 9611- ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 9611- ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (A) 		8-94478-880-1 01 1 9611- ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (B) 		8-97066-758-1 01 1 9611- ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
POWER STEERING<N40> 00.029 (B) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9611- ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JG2 ENG(RJC) POWER STEERING<N40> 00.206 (A) ID=8.4 		9-09164-508-0 01 1 9611- ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 01.540 M8 FLANGE 		0-91150-208-0 01 1 9611- ● ● ● ● ● ●
44 06.665 STUD; IDLER PULLEY
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.275 M10X25 L=40 		9-04411-025-0 01 1 9611- ● ● ● ● ● ●
45 06.655 BRACKET; IDLE PULLEY,P/S
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94449-652-0 01 1 9611- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 9611- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1399 		5-13671-111-0 01 1 9611- ● ● ● ● ● ●
48 06.665 COVER; IDLER
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97092-819-0 01 1 9611- ● ● ● ● ● ●
48 06.665 COVER; IDLER
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.181 (A) 		9-13669-603-0 01 1 9611- ● ● ● ● ● ●
49 06.665 RING; SNAP,IDLER
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94175-036-0 01 1 9611- ● ● ● ● ● ●
50 06.665 BEARING; IDLER
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94251-052-0 01 1 9611- ● ● ● ● ● ●
51 06.665 NUT; IDLER
POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97092-813-0 01 1 9611- ● ● ● ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
POWER STEERING<N40> 		8-94479-122-0 01 1 9611- ● ● ● ● ● ●
63 01.762 CLIP; HOSE,P/S
POWER STEERING<N40> 06.672 ID=21 		8-94242-034-0 02 1 9611- ● ● ● ● ● ●
