4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#36295) — 31 parça

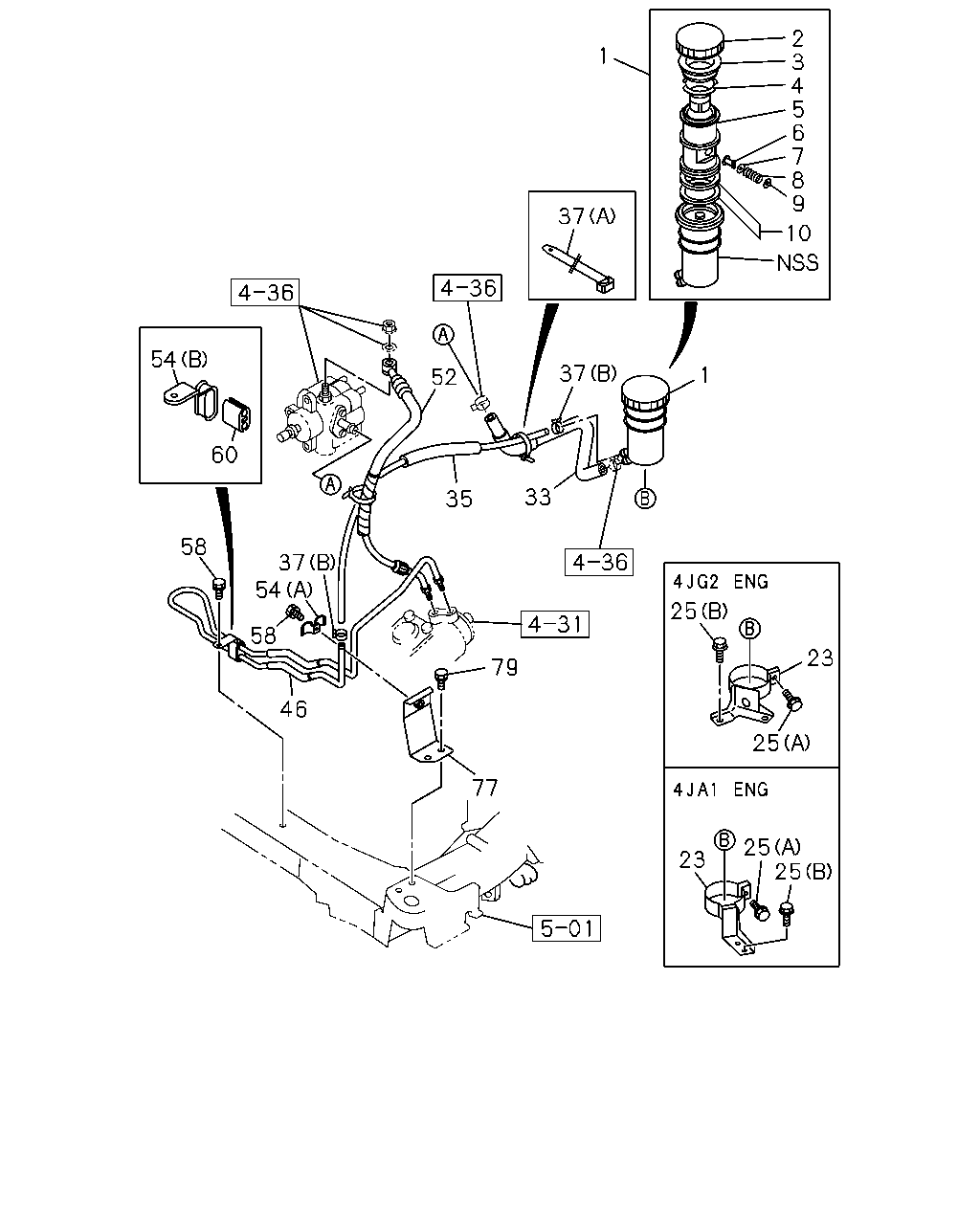

çizim 72322
2 3 4 5 6 7 8 9 1 37 10 54 37 1 52 60 33 35 58 37 54 25 58 23 79 46 25 77 25 25 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.635 TANK ASM; OIL,P/S
POWER STEERING<N40> 		8-94105-282-7 01 1 9611- ● ● ● ● ● ●
2 06.672 CAP; OIL TANK,P/S
POWER STEERING<N40> 06.635 		5-21241-001-2 01 1 9611- ● ● ● ● ● ●
3 06.673 GASKET; OIL TANK,P/S
POWER STEERING<N40> 06.635 		8-94246-510-0 01 1 9611- ● ● ● ● ● ●
4 06.635 FILTER; OIL TANK,P/S
POWER STEERING<N40> 		8-94204-441-1 01 1 9611- ● ● ● ● ● ●
5 06.600 STRAINER; OIL TANK,P/S
POWER STEERING<N40> 		8-94405-458-1 01 1 9611- ● ● ● ● ● ●
6 06.672 HOLDER; GASKET,OIL TANK,P/S
POWER STEERING<N40> 06.635 		5-21219-005-0 01 1 9611- ● ● ● ● ● ●
7 06.672 RING; GASKET,OIL TANK,P/S
POWER STEERING<N40> 06.635 		5-21219-007-0 01 1 9611- ● ● ● ● ● ●
8 06.672 SPRING; OIL TANK,P/S
POWER STEERING<N40> 06.635 		5-09580-088-1 01 1 9611- ● ● ● ● ● ●
9 06.672 COVER; SPR,OIL TANK,P/S
POWER STEERING<N40> 06.635 		5-21219-006-0 01 1 9611- ● ● ● ● ● ●
10 06.672 SEAL; OIL TANK,P/S
POWER STEERING<N40> 06.635 		8-94405-457-0 02 1 9611- ● ● ● ● ● ●
23 06.672 BRACKET; OIL TANK,P/S
4JA1 ENG(RLE) POWER STEERING<N40> 		8-94440-403-1 01 1 9611- ● ● ● ● ● ●
23 06.672 BRACKET; OIL TANK,P/S
4JG2 ENG(RJC) POWER STEERING<N40> 		8-97049-050-1 01 1 9611- ● ● ● ● ● ●
25 06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40> 08.155 (B) M8X16 FLANGE 		0-28480-816-0 02 1 9611- ● ● ● ● ● ●
25 06.635 BOLT; OIL TANK BRKT
4JA1 ENG(RLE) POWER STEERING<N40> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9611- ● ● ● ● ● ●
25 06.635 BOLT; OIL TANK BRKT
4JG2 ENG(RJC) POWER STEERING<N40> (A) M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ●
33 06.672 HOSE; RUBBER,POWER STRG
4JA1 ENG(RLE) POWER STEERING<N40> 06.673 		8-97021-234-1 01 1 9611- ● ● ● ● ● ●
33 06.672 HOSE; RUBBER,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 06.670 		8-97071-155-2 01 1 9611- ● ● ● ● ● ●
35 06.671 HOSE; RETURN,P/S TANK
4JA1 ENG(RLE) POWER STEERING<N40> 		8-94329-645-2 01 1 9611- ● ● ● ● ● ●
35 06.671 HOSE; RETURN,P/S TANK
4JG2 ENG(RJC) POWER STEERING<N40> 		8-97071-156-2 01 1 9611- ● ● ● ● ● ●
37 01.762 CLIP; HOSE,P/S
POWER STEERING<N40> 03.162 (A) L=170 		5-09707-054-0 01 1 9611- ● ● ● ● ● ●
37 01.762 CLIP; HOSE,P/S
POWER STEERING<N40> 04.930 (B) ID=16 		8-94238-568-0 02 1 9611-9712 ● ● ● ● ● ●
37 01.762 CLIP; HOSE,P/S
POWER STEERING<N40> 04.681 (B) ID=16 		8-97173-222-0 02 1 9801- ● ● ● ● ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40> 		8-94326-034-1 01 1 9611- ● ● ● ● ● ●
52 06.673 HOSE; FLEX,P/S CONT VLV
POWER STEERING<N40> 		8-97165-976-0 01 1 9611- ● ● ● ● ● ●
54 06.672 CLIP; OIL PIPE
POWER STEERING<N40> 04.342 (A) 		8-94222-795-1 01 1 9611- ● ● ● ● ● ●
54 06.672 CLIP; OIL PIPE
POWER STEERING<N40> (B) 		8-94451-983-0 01 1 9611- ● ● ● ● ● ●
58 06.672 BOLT; CLIP
POWER STEERING<N40> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ●
58 06.672 BOLT; CLIP
POWER STEERING<N40> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ●
60 06.672 CLAMP; PIPE,RETURN
POWER STEERING<N40> ID=10X2 H=22 		8-94252-455-2 01 1 9611- ● ● ● ● ● ●
77 06.672 BRACKET; POWER STEERING HOSE
POWER STEERING<N40> 		8-97120-708-0 01 1 9611- ● ● ● ● ● ●
79 06.672 BOLT; BRKT
POWER STEERING<N40> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ●
