Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#36292) — 21 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
◀

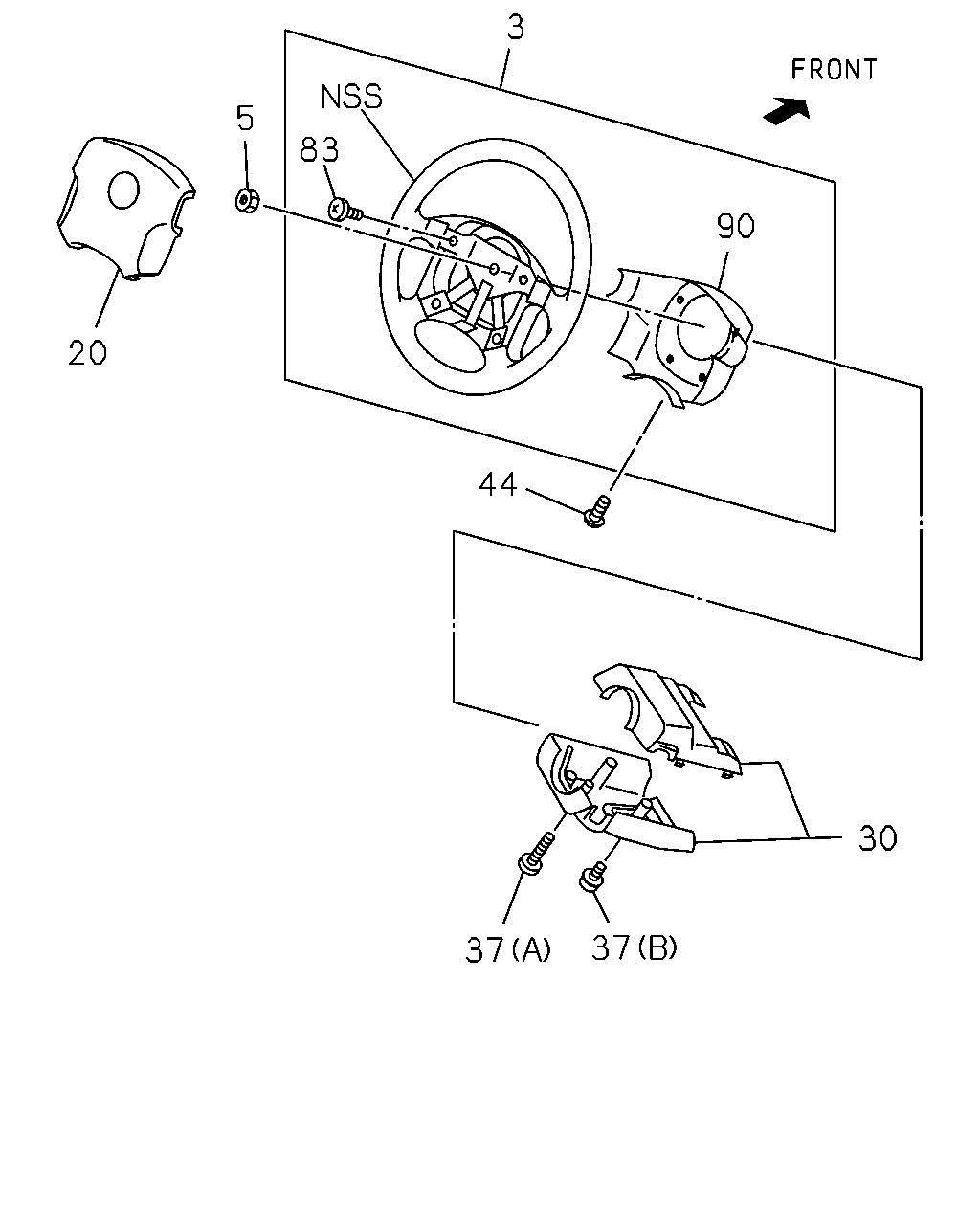

[430A] SPORTY TYPE (11 parça)

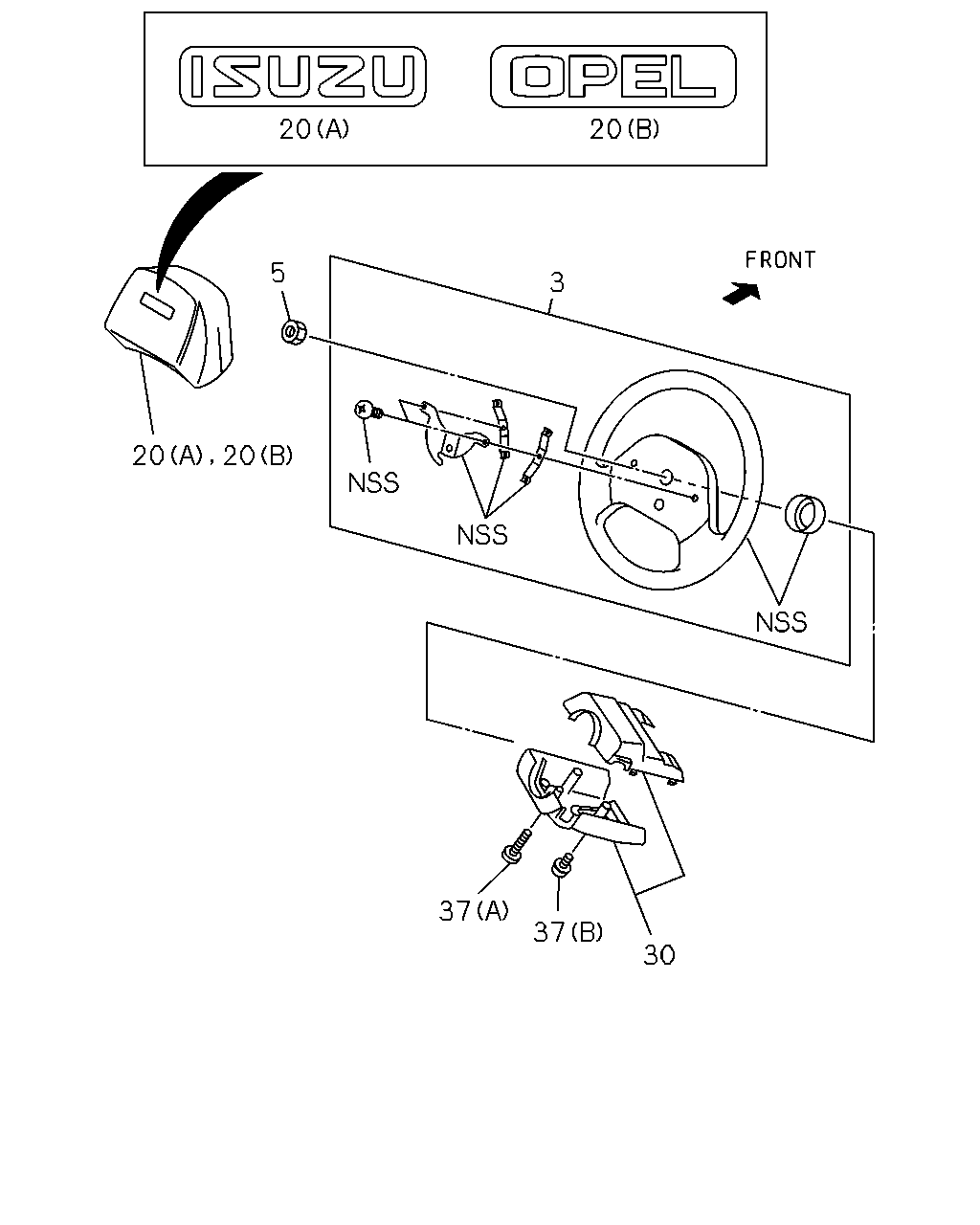

[430A] EXC.SPORTY TYPE (10 parça)
▶
5
83
90
20
44
30
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
5
06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
9611-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> (A) BLACK
8-97154-757-1
01
1
9611-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> ISRAEL EQUIPMENT(7LX) BLACK
8-97155-241-1
01
1
9611-9701
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> ISRAEL EQUIPMENT(7LX) BLACK
8-97159-161-0
01
1
9702-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4>,CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (B) BLACK
8-97154-759-1
01
1
9611-
●
●
●
●
●
●
30
06.518 COWL; STEERING
BLACK
8-97098-330-6
01
1
9611-
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
16.085 (A) M5X16
5-09981-053-0
04
1
9611-
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER
9-03900-412-0
03
1
9611-
●
●
●
●
●
●
44
06.514 SCREW; STRG COWL
SPORTY TYPE STRG WHEEL LEATHER<NK4> 06.512 M5X19 W/LK&PL WASHER
8-94104-815-1
01
1
9611-
●
●
●
●
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4>
8-97164-606-0
04
1
9611-
●
●
●
●
●
●
90
06.578 COVER ASM; STRG WHEEL,LWR
SPORTY TYPE STRG WHEEL LEATHER<NK4> 06.514 BLACK
8-97158-297-0
01
1
9611-
●
●
●
●
●
●
20
20
5
3
20
20
37
37
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
3
06.513 WHEEL; STRG
SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK
8-97155-240-0
01
1
9611-
●
●
●
●
●
●
3
06.513 WHEEL; STRG
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK
8-97154-756-3
01
1
9611-
●
●
●
●
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
9611-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> (A) BLACK
8-97154-757-1
01
1
9611-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> ISRAEL EQUIPMENT(7LX) BLACK
8-97155-241-1
01
1
9611-9701
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> ISRAEL EQUIPMENT(7LX) BLACK
8-97159-161-0
01
1
9702-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4>,CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (B) BLACK
8-97154-759-1
01
1
9611-
●
●
●
●
●
●
30
06.518 COWL; STEERING
BLACK
8-97098-330-6
01
1
9611-
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
16.085 (A) M5X16
5-09981-053-0
04
1
9611-
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER
9-03900-412-0
03
1
9611-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
