4-20 — REAR AXLE CASE AND SHAFT (#36290) — 52 parça

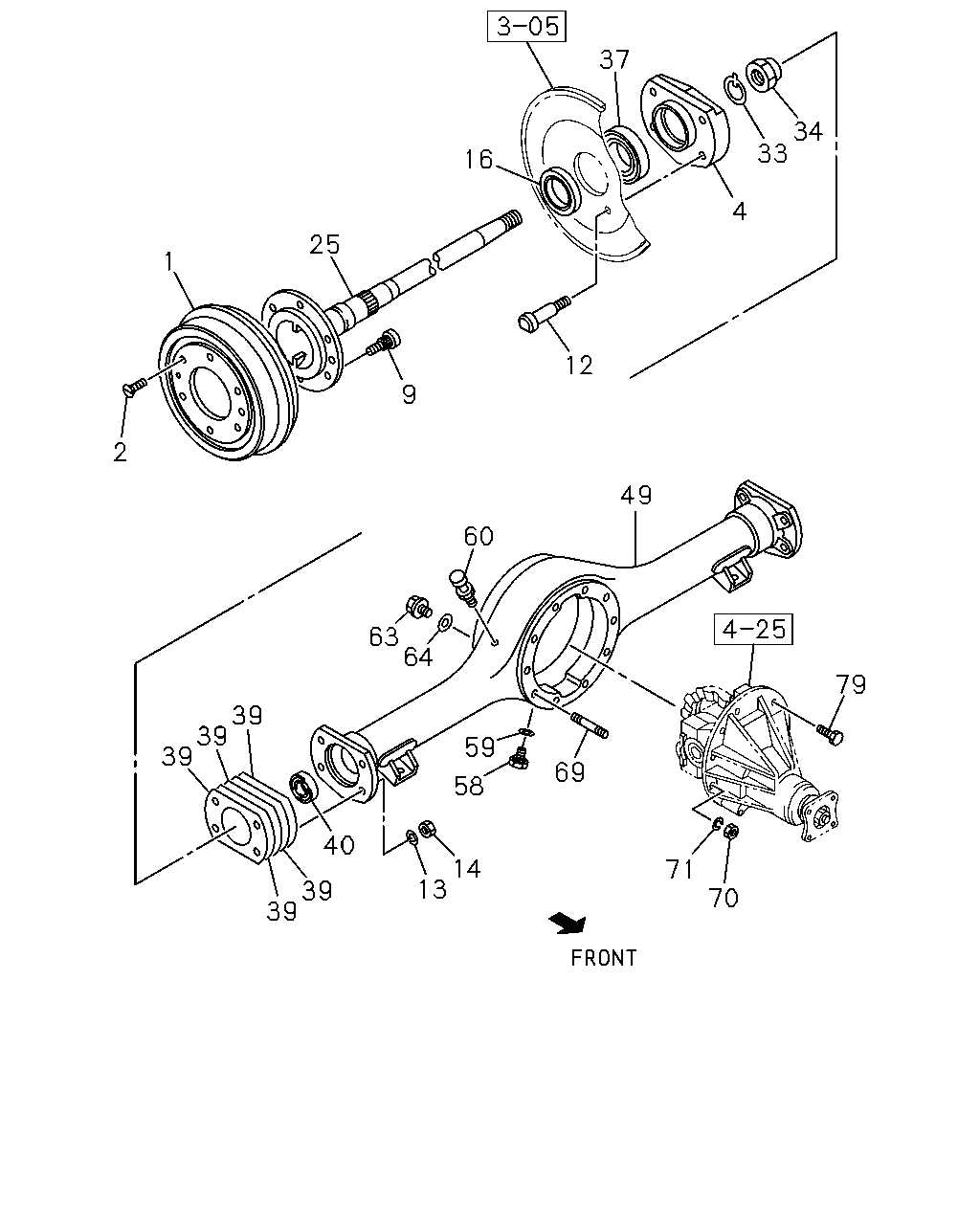

çizim 71173
37 34 33 16 4 25 1 12 9 2 49 60 63 64 79 39 39 39 59 69 58 40 14 13 71 39 39 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR 8-94226-829-1 02 1 9611- ● ● ●
1 05.809 DRUM; BRK,RR 8-97113-020-0 02 1 9611- ● ● ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 9611- ● ● ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
4JA1 ENG(RLE) 		8-94223-079-3 02 1 9611- ● ● ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
4JG2 ENG(RJC) 		8-94469-695-1 02 1 9611- ● ● ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		9-42331-601-2 12 1 9611- ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
4JA1 ENG(RLE) M12X72 		8-94477-674-1 04 1 9611- ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
4JA1 ENG(RLE) M12X69 REAMER 		9-42119-603-2 04 1 9611- ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
4JG2 ENG(RJC) M12X83 		8-94471-384-2 04 1 9611- ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
4JG2 ENG(RJC) M12X83 		8-94471-385-2 04 1 9611- ● ● ● ● ● ●
13 05.816 WASHER; LK,BRG HOLDER TO CASE
04.634 ID=12.2 		9-09150-512-0 08 1 9611- ● ● ● ● ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 		8-97138-934-0 08 1 9611- ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JA1 ENG(RLE) ID=47 OD=70 		8-94318-909-0 02 1 9611- ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC) ID=50.5 OD=72 		9-09724-022-1 02 1 9611- ● ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR
4JA1 ENG(RLE) 		8-94178-143-3 02 1 9611- ● ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC) 		8-94319-326-4 02 1 9611- ● ● ● ● ● ●
33 05.422 WASHER; AXLE SHAFT
4JA1 ENG(RLE) 		8-97086-473-0 02 1 9611- ● ● ● ● ● ●
33 05.422 WASHER; AXLE SHAFT
4JG2 ENG(RJC) 		8-97086-472-0 02 1 9611- ● ● ● ● ● ●
34 05.387 NUT; AXLE SHAFT
4JA1 ENG(RLE) 05.830 		8-94177-815-0 02 1 9611- ● ● ● ● ● ●
34 05.387 NUT; AXLE SHAFT
4JG2 ENG(RJC) M45 		8-94178-278-0 02 1 9611- ● ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4JA1 ENG(RLE) NSK 		9-00093-627-2 02 1 9611- ● ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC) ID=45 OD=85 		9-00032-209-0 02 1 9611- ● ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=1.000 		8-94469-775-0 AR 1 9611- ● ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.500 		8-94469-776-0 AR 1 9611- ● ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.130 		8-94469-777-0 AR 1 9611- ● ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.076 		8-94469-778-0 AR 1 9611- ● ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.050 		8-94469-779-0 AR 1 9611- ● ● ● ● ● ●
40 05.387 SEAL; OIL,REAR AXLE
4JA1 ENG(RLE) 		8-94318-910-0 02 1 9611- ● ● ● ● ● ●
40 05.387 SEAL; OIL,REAR AXLE
4JG2 ENG(RJC) ID=37.5 OD=60 		5-09625-092-0 02 1 9611- ● ● ● ● ● ●
49 05.387 CASE; RR AXLE
4JA1 ENG(RLE) 		8-94434-913-7 01 1 9611- ● ● ● ● ● ●
49 05.387 CASE; RR AXLE
4JG2 ENG(RJC) 		8-94337-224-4 01 1 9611- ● ● ● ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9611- ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9611- ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9611- ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9611- ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9611- ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
4JA1 ENG(RLE) M8X25 L=36 		5-09300-037-0 02 1 9611- ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
4JG2 ENG(RJC) 05.398 M10X31 L=43 		9-09630-011-1 02 1 9611- ● ● ● ● ● ●
70 05.387 NUT; CARRIER
4JA1 ENG(RLE) M8 		5-09400-020-0 02 1 9611- ● ● ● ● ● ●
70 05.387 NUT; CARRIER
4JG2 ENG(RJC) 00.002 M10 		9-09110-510-0 02 1 9611- ● ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1 ENG(RLE) 04.046 ID=8.2 		9-09150-808-0 02 1 9611- ● ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
4JG2 ENG(RJC) 00.002 ID=10.2 		9-09150-610-0 10 1 9611-9612 ● ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
4JG2 ENG(RJC) 00.002 ID=10.2 		9-09150-610-0 02 1 9701- ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE) 06.156 M8X25 W/LK WASHER 		8-97093-664-0 04 1 9611- ● ● ●
79 05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE) 06.156 M8X30 W/LK WASHER 		8-97093-665-0 02 1 9611- ● ● ●
79 05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE) 06.156 M8X90 W/LK WASHER 		8-97093-666-0 02 1 9611- ● ● ●
79 05.387 BOLT; COVER TO CASE
4JG2 ENG(RJC) M10X90 		9-01061-090-0 01 1 9611-9612 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
4JG2 ENG(RJC) M10X90 		0-50061-090-0 01 1 9701- ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
4JG2 ENG(RJC) 09.008 M10X32 		9-02061-032-0 07 1 9611-9612 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
4JG2 ENG(RJC) M10X30 		0-50061-030-0 07 1 9701- ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE) 06.156 M8X25 W/LK WASHER 		8-97093-664-0 05 1 9611- ● ● ●
79 05.387 BOLT; COVER TO CASE
4JA1 ENG(RLE) 06.156 M8X30 W/LK WASHER 		8-97093-665-0 03 1 9611- ● ● ●
