4-16 — FREE WHEEL HUB (#36289) — 22 parça

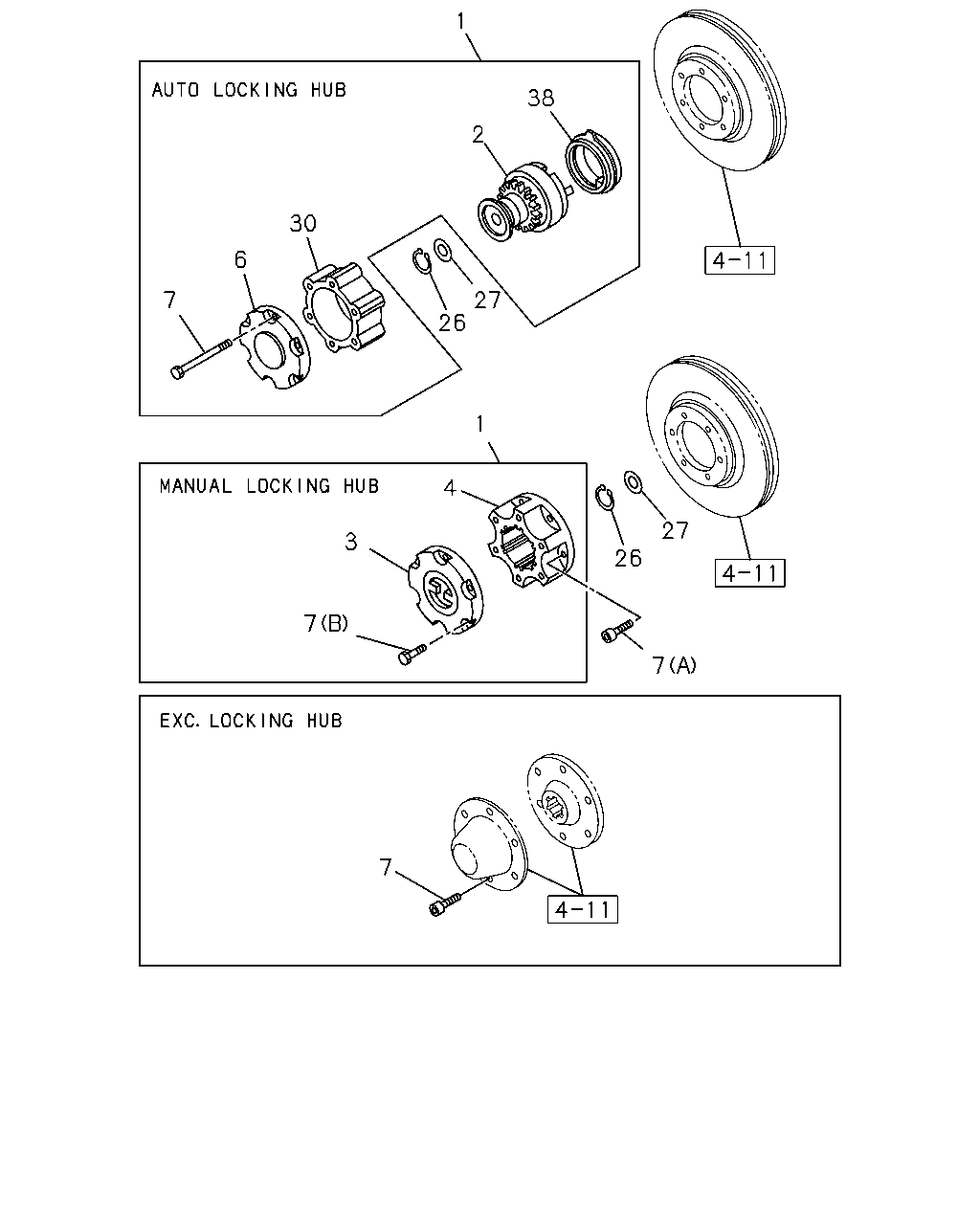

çizim 71107
1 38 2 30 6 27 26 7 1 4 27 3 26 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.308 HUB ASM; FREE WHEEL
AUTO LOCKING HUB(S1Y) 		8-97119-362-0 02 1 9611- ● ● ●
1 06.308 HUB ASM; FREE WHEEL
MANUAL LOCKING HUB(ED2) 		8-97113-446-0 02 1 9611- ● ● ●
2 06.308 CLUTCH; DRIVE,AUTO HUB
AUTO LOCKING HUB(S1Y) 		8-97118-960-0 02 1 9611- ● ● ●
3 06.308 COVER SUB ASM; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) 		8-97113-447-0 02 1 9611- ● ● ●
4 06.308 BODY SUB ASM; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) 		8-97116-313-0 02 1 9611- ● ● ●
6 06.308 CAP; HUB,AUTO LOCKING HUB
AUTO LOCKING HUB(S1Y) 		8-97119-066-0 02 1 9611- ● ● ●
7 06.308 BOLT; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) M10X63 		8-97120-682-0 12 1 9611- ● ● ●
7 06.308 BOLT; FREE WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) M10X33 		8-94176-987-1 12 1 9611- ● ● ●
7 06.308 BOLT; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) (A) M10X33 		8-94176-987-1 24 1 9611- ● ● ●
7 06.308 BOLT; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) (B) M6X16 W/PL WASHER 		8-97021-822-0 12 1 9611- ● ● ●
26 06.323 RING; SNAP,HUB
AUTO LOCKING HUB(S1Y) 06.061 ID=18.7 		8-94453-778-0 02 1 9611- ● ● ●
26 06.323 RING; SNAP,HUB
EXC. AUTO LOCKING HUB(S1Y) 08.934 ID=25.9 		9-09180-028-0 02 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
AUTO LOCKING HUB(S1Y) 06.323 T=0.20 		8-94178-933-1 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
AUTO LOCKING HUB(S1Y) 06.323 T=0.30 		8-94178-934-1 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
AUTO LOCKING HUB(S1Y) 06.323 T=0.50 		8-94178-935-1 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
AUTO LOCKING HUB(S1Y) 06.323 T=1.00 		8-94178-936-1 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
EXC. AUTO LOCKING HUB(S1Y) 06.323 T=0.20 		8-94178-929-0 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
EXC. AUTO LOCKING HUB(S1Y) 06.323 T=0.30 		8-94178-930-0 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
EXC. AUTO LOCKING HUB(S1Y) 06.323 T=0.50 		8-94178-931-0 AR 1 9611- ● ● ●
27 06.308 SHIM; AXLE SHAFT
EXC. AUTO LOCKING HUB(S1Y) 06.323 T=1.00 		8-94178-932-0 AR 1 9611- ● ● ●
30 06.308 HOUSING; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) 		8-97119-064-0 02 1 9611- ● ● ●
38 06.308 CAM; INNER,AUTO HUB
AUTO LOCKING HUB(S1Y) 		8-97037-210-1 02 1 9611- ● ● ●
