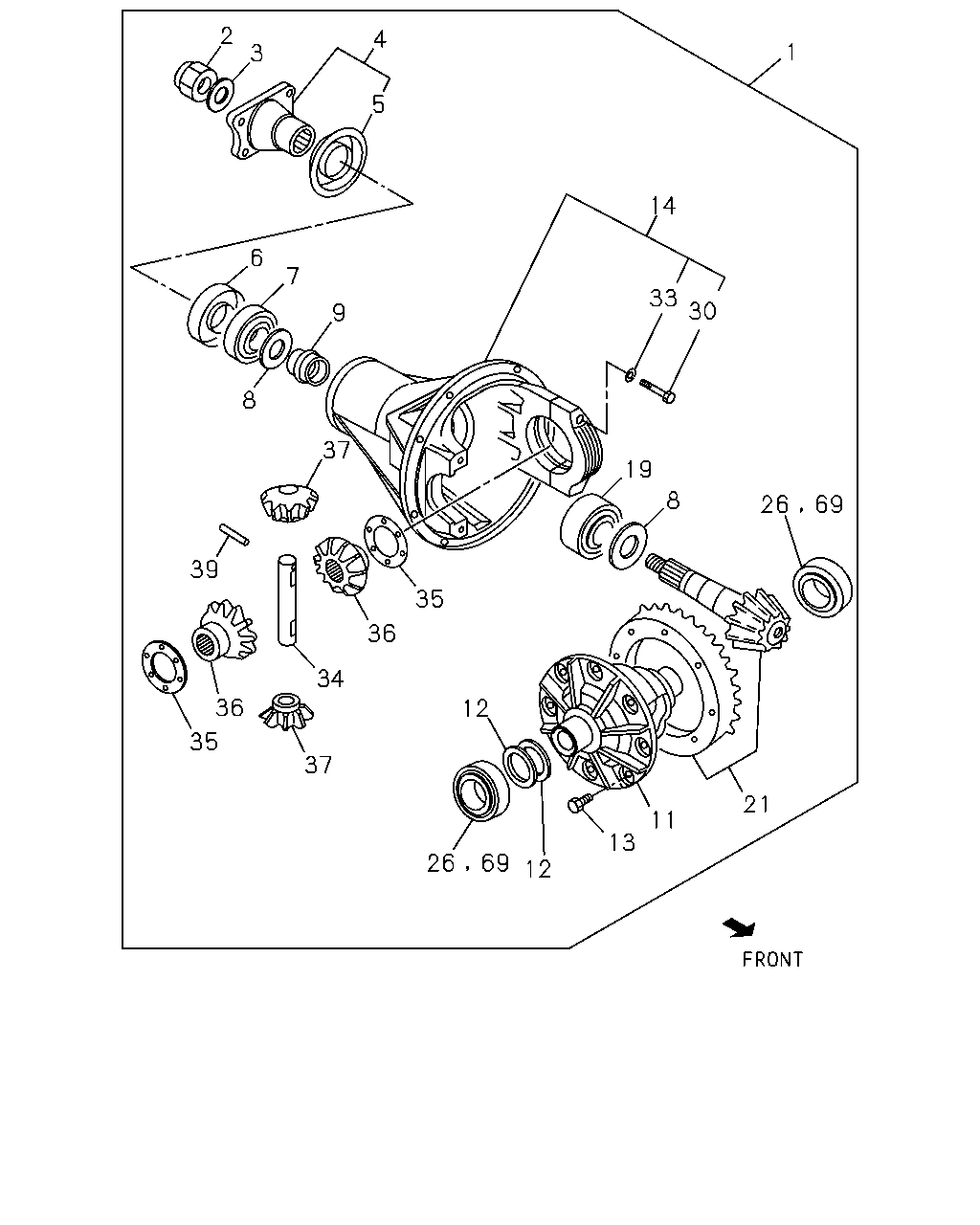

4-15 — FRONT FINAL DRIVE (#36288) — 102 parça

2 4 1 3 5 14 6 7 33 30 9 8 37 19 8 26 69 39 35 36 34 36 12 35 37 21 11 13 26 69 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,FRT 4JA1 ENG(RLE) 41/9	8-94171-966-0	01	1	9611-	●	●	●
1	05.505 DRIVE ASM; FINAL,FRT 4JG2 ENG(RJC) 43/10	8-97039-250-0	01	1	9611-	●	●	●
2	05.595 NUT; FINAL DRIVE PINION 4JA1 ENG(RLE) M18 SELF LOCK	9-09644-026-1	01	1	9611-	●	●	●
2	05.595 NUT; FINAL DRIVE PINION 4JG2 ENG(RJC) M18 LOCK NUT	8-94376-262-0	01	1	9611-	●	●	●
3	05.595 WASHER; LK,FINAL DRIVE PINION 4JA1 ENG(RLE) ID=18.5 OD=35	8-03431-198-0	01	1	9611-	●	●	●
4	05.545 COUPLING; FINAL DRIVE PINION 4JA1 ENG(RLE)	5-37245-007-4	01	1	9611-	●	●	●
4	05.545 COUPLING; FINAL DRIVE PINION 4JG2 ENG(RJC)	8-94318-527-5	01	1	9611-	●	●	●
5	05.545 COVER; DUST,PINION,FINAL DRIVE 4JA1 ENG(RLE)	9-37249-072-0	01	1	9611-	●	●	●
5	05.545 COVER; DUST,PINION,FINAL DRIVE 4JG2 ENG(RJC)	8-94318-409-0	01	1	9611-	●	●	●
6	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE)	5-09625-002-2	01	1	9611-	●	●	●
6	05.469 SEAL; OIL,FINAL PINION 4JG2 ENG(RJC)	8-94318-520-2	01	1	9611-	●	●	●
7	05.447 BEARING; PINION,OUTER 4JA1 ENG(RLE)	9-00093-622-0	01	1	9611-	●	●	●
7	05.447 BEARING; PINION,OUTER 4JG2 ENG(RJC) 05.484 NSK	8-94472-099-0	01	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.39	5-41519-001-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.41	5-41519-002-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.43	5-41519-003-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.45	5-41519-004-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.47	5-41519-005-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.49	5-41519-006-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.51	5-41519-007-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.53	5-41519-008-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.55	5-41519-009-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.57	5-41519-010-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.59	5-41519-011-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.61	5-41519-012-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.63	5-41519-013-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.65	5-41519-014-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.67	5-41519-015-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.69	5-41519-016-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.71	5-41519-017-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.73	5-41519-018-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.75	5-41519-019-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.77	5-41519-020-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.79	8-94168-482-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.81	8-94168-483-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.83	8-94168-484-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.85	8-94168-485-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.87	8-94168-486-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.89	8-94168-487-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.91	8-94168-488-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.93	8-94168-489-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) T=1.95	8-94168-490-0	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.18	9-41519-153-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.20	9-41519-154-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.22	9-41519-155-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.24	9-41519-156-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.26	9-41519-157-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.28	9-41519-158-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.30	9-41519-159-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.32	9-41519-160-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.34	9-41519-161-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.36	9-41519-162-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.38	9-41519-163-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.40	9-41519-164-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.42	9-41519-165-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.44	9-41519-166-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.46	9-41519-167-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.48	9-41519-168-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.50	9-41519-169-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.52	9-41519-170-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.54	9-41519-171-1	AR	1	9611-	●	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.56	9-41519-172-1	AR	1	9611-	●	●	●
9	05.453 COLLAR; DIST,PINION 4JA1 ENG(RLE)	8-94329-969-0	01	1	9611-	●	●	●
9	05.453 COLLAR; DIST,PINION 4JG2 ENG(RJC)	8-94472-118-0	01	1	9611-	●	●	●
11	05.453 CAGE; FINAL PINION 4JA1 ENG(RLE) 05.510	5-41511-007-0	01	1	9611-	●	●	●
11	05.453 CAGE; FINAL PINION 4JG2 ENG(RJC)	8-97038-515-1	01	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JA1 ENG(RLE) T=0.10	9-41519-103-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JA1 ENG(RLE) T=0.13	9-41519-104-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JA1 ENG(RLE) T=0.16	9-41519-105-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JA1 ENG(RLE) T=0.40	9-41519-106-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JG2 ENG(RJC) T=0.10	8-97130-386-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JG2 ENG(RJC) T=0.50	8-97130-387-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JG2 ENG(RJC) T=0.24	9-41519-109-0	AR	1	9611-	●	●	●
12	05.537 SHIM; FINAL PINION CAGE 4JG2 ENG(RJC) T=0.15	9-41519-111-0	AR	1	9611-	●	●	●
13	05.531 BOLT; FINAL PINION CAGE 4JA1 ENG(RLE)	9-09602-050-0	08	1	9611-	●	●	●
13	05.531 BOLT; FINAL PINION CAGE 4JG2 ENG(RJC) M10X17	8-97038-065-0	10	1	9611-	●	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 4JA1 ENG(RLE)	8-94171-970-1	01	1	9611-	●	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 4JG2 ENG(RJC)	8-94376-231-3	01	1	9611-	●	●	●
19	05.484 BEARING; PINION,INNER 4JA1 ENG(RLE) NSK	9-00093-127-0	01	1	9611-	●	●	●
19	05.484 BEARING; PINION,INNER 4JG2 ENG(RJC) NSK	9-00093-621-0	01	1	9611-	●	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT 4JA1 ENG(RLE) 41/9	8-94226-876-1	01	1	9611-	●	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT 4JG2 ENG(RJC) 43/10	8-97039-251-1	01	1	9611-	●	●	●
26	05.536 BEARING; DIFF CAGE 4JA1 ENG(RLE) NSK	9-00093-101-0	02	1	9611-9711	●	●	●
26	05.536 BEARING; DIFF CAGE 4JG2 ENG(RJC) NSK	9-00093-074-0	02	1	9611-9711	●	●	●
30	05.506 BOLT; DIFF CAGE SETTING 4JA1 ENG(RLE) M12X50	5-09000-143-0	04	1	9611-	●	●	●
30	05.506 BOLT; DIFF CAGE SETTING 4JG2 ENG(RJC) 05.387 M12X62	8-94376-322-0	04	1	9611-	●	●	●
33	04.634 WASHER; LK,DIFF CAGE 4JA1 ENG(RLE) ID=12.2	9-09150-512-0	04	1	9611-	●	●	●
34	05.520 PIN; CROSS,DIFF PINION 4JA1 ENG(RLE) 05.517	5-41521-005-2	01	1	9611-	●	●	●
34	05.520 PIN; CROSS,DIFF PINION 4JG2 ENG(RJC) 05.517	9-41521-044-1	01	1	9611-	●	●	●
35	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) T=1.05	9-41562-614-0	02	1	9611-	●	●	●
35	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) T=1.15	9-41562-615-0	02	1	9611-	●	●	●
35	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) T=1.25	9-41562-616-0	02	1	9611-	●	●	●
35	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) T=1.00	5-41562-005-1	02	1	9611-	●	●	●
35	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) T=1.05	5-41562-006-1	02	1	9611-	●	●	●
35	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) T=1.10	5-41562-007-1	02	1	9611-	●	●	●
36	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE)	8-94233-414-0	02	1	9611-	●	●	●
36	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) Z=17	8-97079-519-1	02	1	9611-	●	●	●
37	05.527 GEAR; PINION DIFF 4JA1 ENG(RLE) 05.526	8-94226-880-1	02	1	9611-	●	●	●
37	05.527 GEAR; PINION DIFF 4JG2 ENG(RJC) Z=10	8-97079-518-0	02	1	9611-	●	●	●
39	05.518 PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	9611-	●	●	●
69	05.453 BEARING; DIFF SIDE 4JA1 ENG(RLE) 05.536 NSK	9-00093-101-0	02	1	9712-	●	●	●
69	05.453 BEARING; DIFF SIDE 4JG2 ENG(RJC) 05.536 NSK	9-00093-074-0	02	1	9712-	●	●	●
