4-12 — FRONT DRIVE SHAFT (#36287) — 58 parça

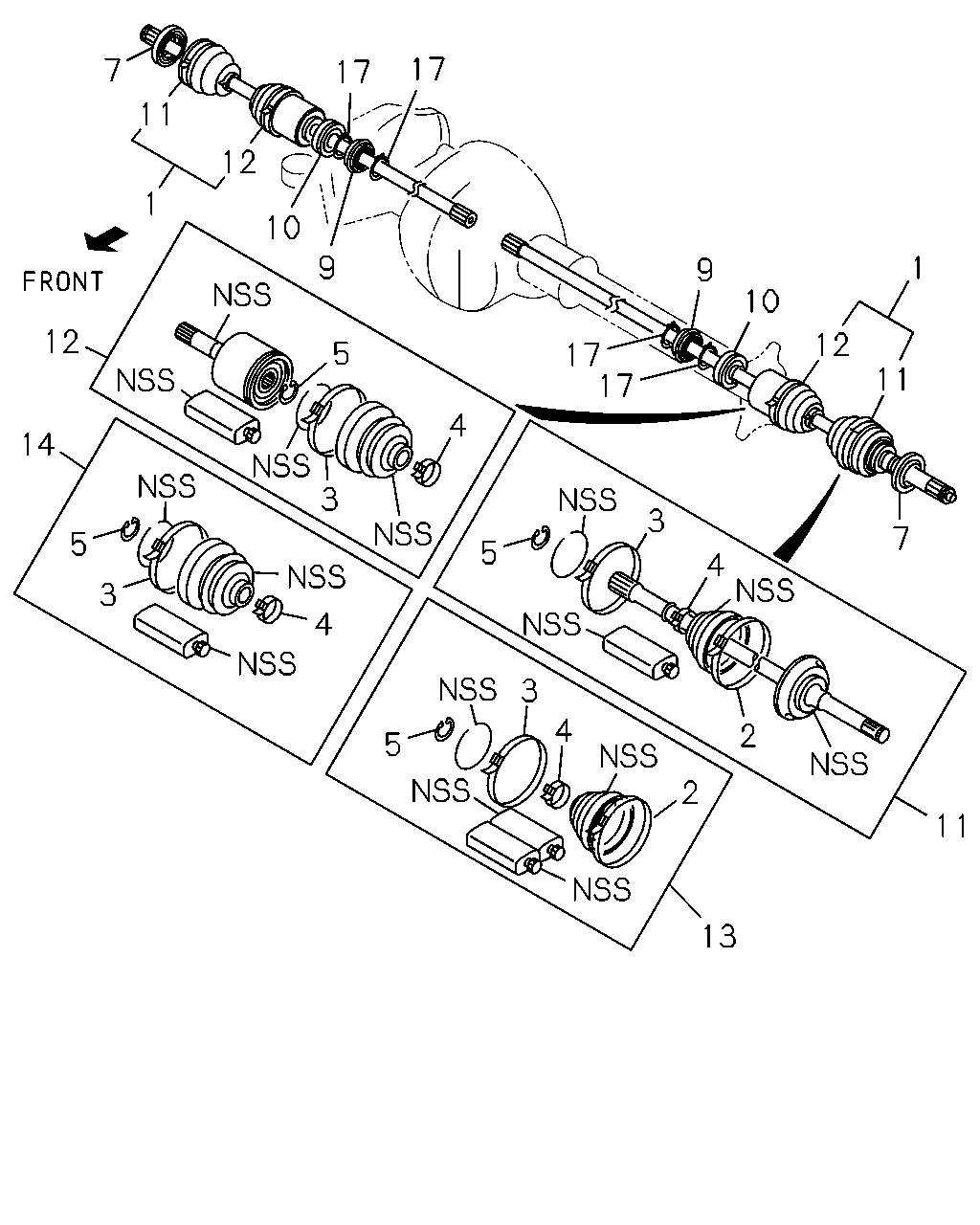

çizim 67672
17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 3 3 7 5 5 4 3 4 3 4 2 5 2 11 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) 		8-94423-038-1 01 1 9611- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) 		8-94423-037-1 01 1 9611- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97139-096-0 01 1 9611- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97139-095-0 01 1 9611- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) 		8-94312-682-0 02 1 9611- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-97131-401-0 02 1 9611- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) 		8-94462-593-0 02 1 9611- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-94312-929-0 02 1 9611- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) 		8-94462-597-0 04 1 9611- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JG2 ENG(RJC) OUTSIDE 		8-94312-931-0 02 1 9611- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JG2 ENG(RJC) INSIDE 		8-97138-938-0 02 1 9611- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JA1 ENG(RLE) ID=24.2 		9-09180-026-0 02 1 9611- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-97131-402-0 02 1 9611- ● ● ●
7 06.061 SEAL; DUST,DRIVE SHAFT 8-97123-692-0 02 1 9611- ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JA1 ENG(RLE) 06.061 NSK 		5-09800-045-1 02 1 9611- ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JG2 ENG(RJC) 		8-94407-724-0 02 1 9611- ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
4JA1 ENG(RLE) 		8-94366-611-0 02 1 9611- ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
4JG2 ENG(RJC) 		8-94366-610-0 02 1 9611- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) 		8-94312-673-0 01 1 9611- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) 		8-94312-672-0 01 1 9611- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JG2 ENG(RJC) 		8-97131-396-0 02 1 9611- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) 		8-94313-103-0 01 1 9611- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) 		8-94312-676-0 01 1 9611- ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97138-979-0 01 1 9611- ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97138-978-0 01 1 9611- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) 		8-94312-678-0 02 1 9611- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97138-981-0 02 1 9611- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) 		8-94312-680-0 02 1 9611- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97138-980-0 02 1 9611- ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
4JA1 ENG(RLE) 08.934 ID=25.9 		9-09180-028-0 04 1 9611- ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
4JG2 ENG(RJC) 04.416 ID=27.9 		9-09180-030-0 04 1 9611- ● ● ●

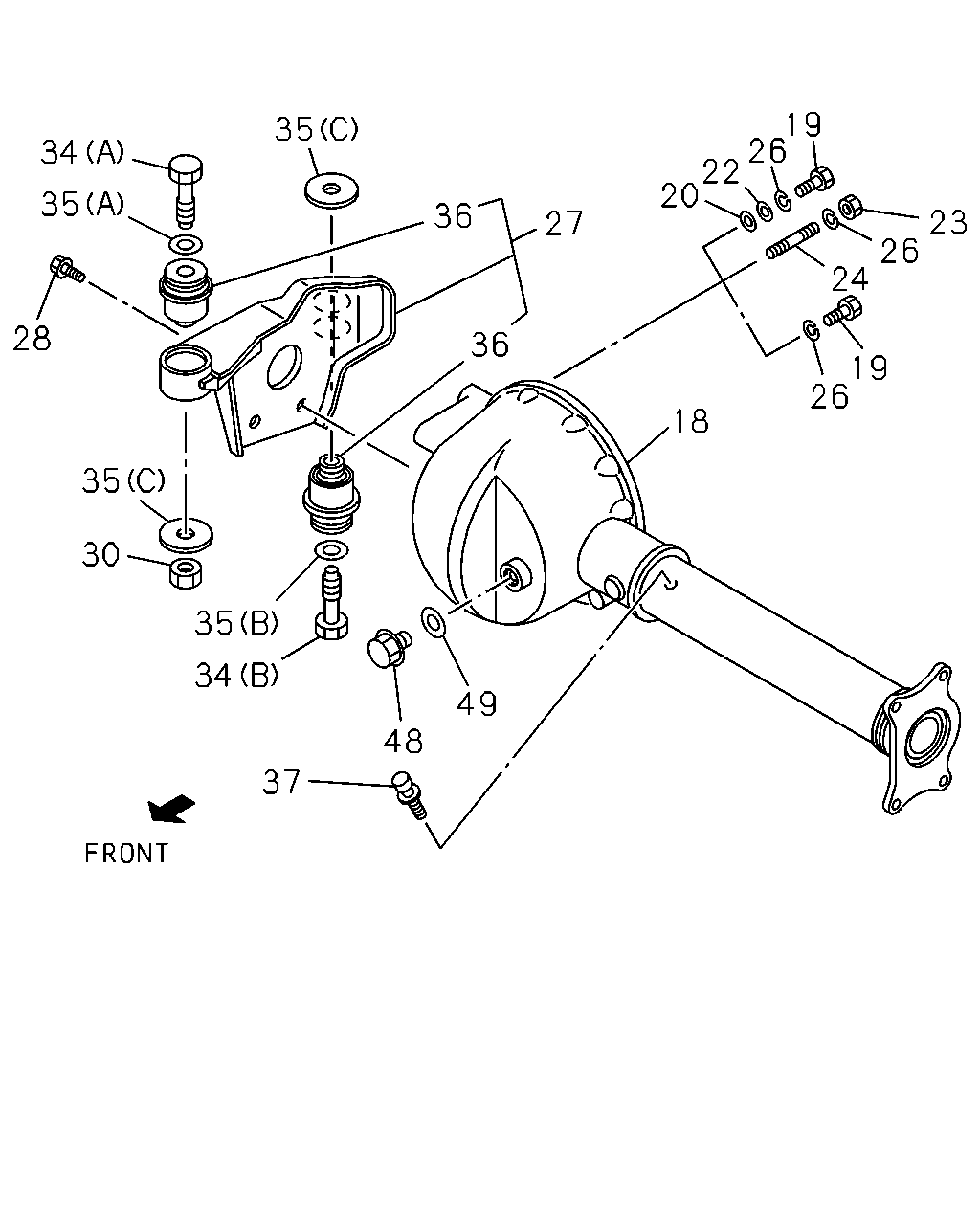

çizim 67886
19 26 22 20 35 34 35 36 23 26 24 27 28 36 19 26 18 35 30 35 34 49 48 37
BalonParca AdiParca NoAdetTipApplied Date A B C
18 06.008 CASE; FRT AXLE
4JA1 ENG(RLE) 		5-43212-001-1 01 1 9611- ● ● ●
18 06.008 CASE; FRT AXLE
4JG2 ENG(RJC) 		8-97018-230-0 01 1 9611- ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) 01.428 M8X18 W/LK&PL WASHER 		1-09030-004-0 06 1 9611- ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9611- ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9611- ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9611- ● ● ●
20 06.156 GASKET; AXLE CASE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9611- ● ● ●
22 06.056 WASHER; PL,AXLE CASE
00.206 ID=8.4 		9-09164-508-0 01 1 9611- ● ● ●
23 06.056 NUT; FRT AXLE
00.002 M8 		9-09110-508-0 02 1 9611- ● ● ●
24 06.056 STUD; CASE,FRT AXLE
03.901 M8X25 L=37 		9-04110-825-0 02 1 9611- ● ● ●
26 06.056 WASHER; LK,CASE,FRT AXLE
00.002 ID=8.2 		9-09150-608-0 02 1 9611- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JA1 ENG(RLE) 		8-94462-172-1 01 1 9611- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JA1 ENG(RLE) 		8-94462-171-1 01 1 9611- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JG2 ENG(RJC) 		8-97113-948-1 01 1 9611- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JG2 ENG(RJC) 		8-94382-042-1 01 1 9611- ● ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9611- ● ● ●
30 06.008 NUT; FRT AXLE MTG
07.529 M14 		9-99110-514-0 02 1 9611- ● ● ●
34 06.008 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9611- ● ● ●
34 06.008 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9611- ● ● ●
35 06.008 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9611- ● ● ●
35 06.008 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9611- ● ● ●
35 06.008 WASHER; FRT AXLE MTG
08.929 (B) ID=15 OD=36 		9-09164-714-0 02 1 9611- ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
4JA1 ENG(RLE) ID=15 L=49.3 		8-94481-466-0 04 1 9611- ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
4JG2 ENG(RJC) 		8-97018-240-0 04 1 9611- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE 8-94311-349-0 01 1 9611- ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9611- ● ● ●
49 05.400 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9611- ● ● ●
