◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#36285) — 74 parça
çizim 18462
268
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
268 01.152 CLIP; HARNESS
04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9611- ● ● ● ● ● ●

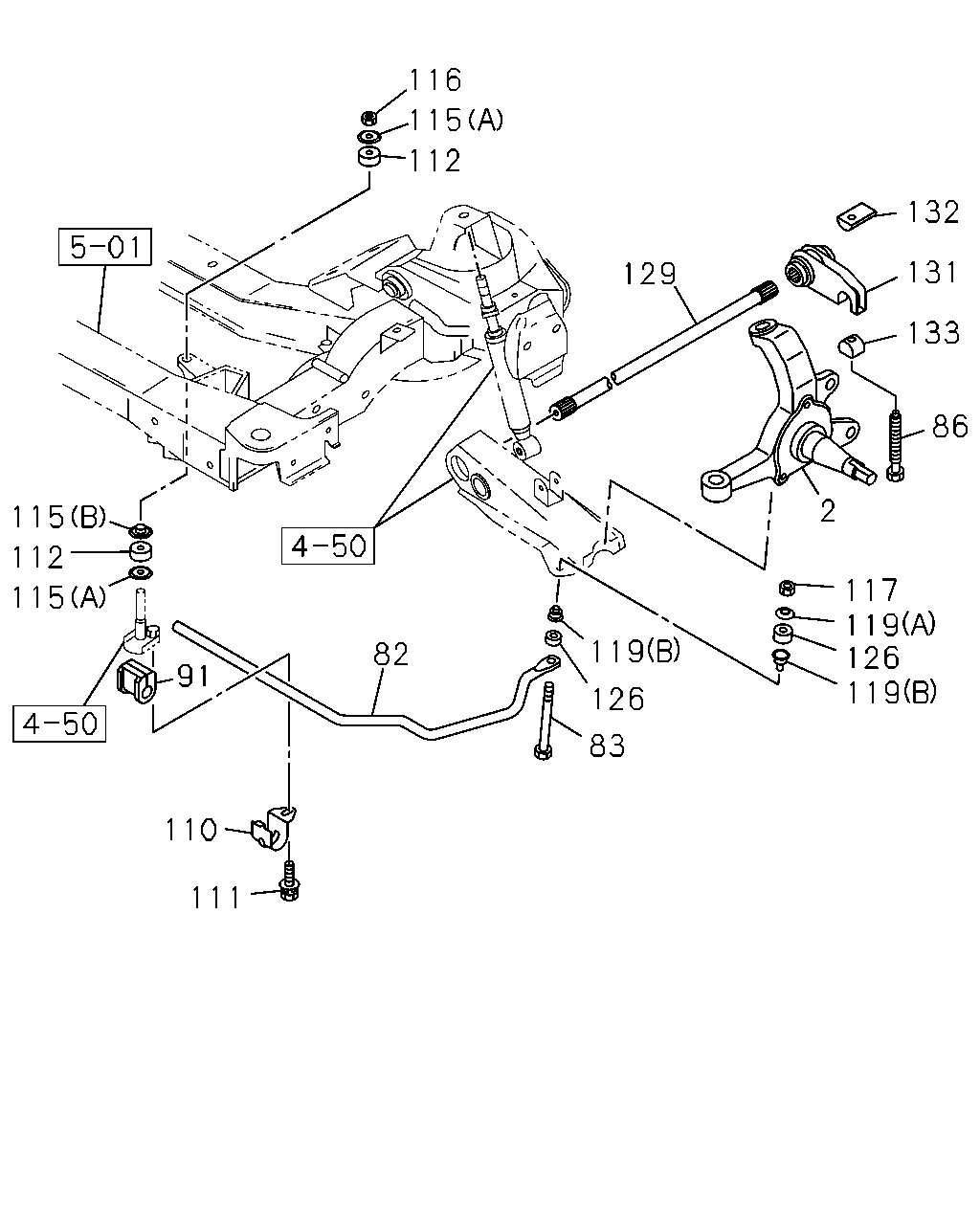

çizim 71063
116 115 112 132 131 129 133 86 2 115 112 117 119 126 119 115 119 82 91 126 83 110 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.020 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 9611- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 9611- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-341-5 01 1 9611- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-340-5 01 1 9611- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94472-311-0 01 1 9611- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 9611- ● ● ●
83 07.242 BOLT; STAB BAR TO CONT ARM 8-94478-868-0 02 1 9611- ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M14X130 		8-94101-707-0 02 1 9611- ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9611- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 9611- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-94322-472-0 02 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9611- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9611- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9611- ● ● ●
112 07.243 BUSHING; ROD
07.244 		8-94143-210-0 04 1 9611- ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
07.245 (A) ID=10.5 OD=32 		9-51631-048-0 04 1 9611- ● ● ●
115 07.242 WASHER; CENTER,STAB TO FRAME
07.245 (B) ID=15.0 OD=32 		9-51631-049-0 02 1 9611- ● ● ●
116 07.242 NUT; LK,STAB TO FRAME
09.011 M10 		9-09110-410-0 02 1 9611- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
09.011 M10 		9-09110-410-0 02 1 9611- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9611- ● ● ●
119 07.245 WASHER; CTR,STAB BAR
(A) ID=10.5 OD=32 		9-51631-048-0 02 1 9611- ● ● ●
119 07.245 WASHER; CTR,STAB BAR
(B) ID=15.0 OD=32 		9-51631-049-0 04 1 9611- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 9611- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97138-656-0 01 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97138-655-0 01 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 9611- ● ● ●
131 07.436 ARM; HEIGHT CONT 8-94468-001-1 02 1 9611- ● ● ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 9611- ● ● ●
132 07.436 COLLAR; TORSION BAR 8-94468-556-2 02 1 9611- ● ● ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9611- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 9611- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9611- ● ● ●

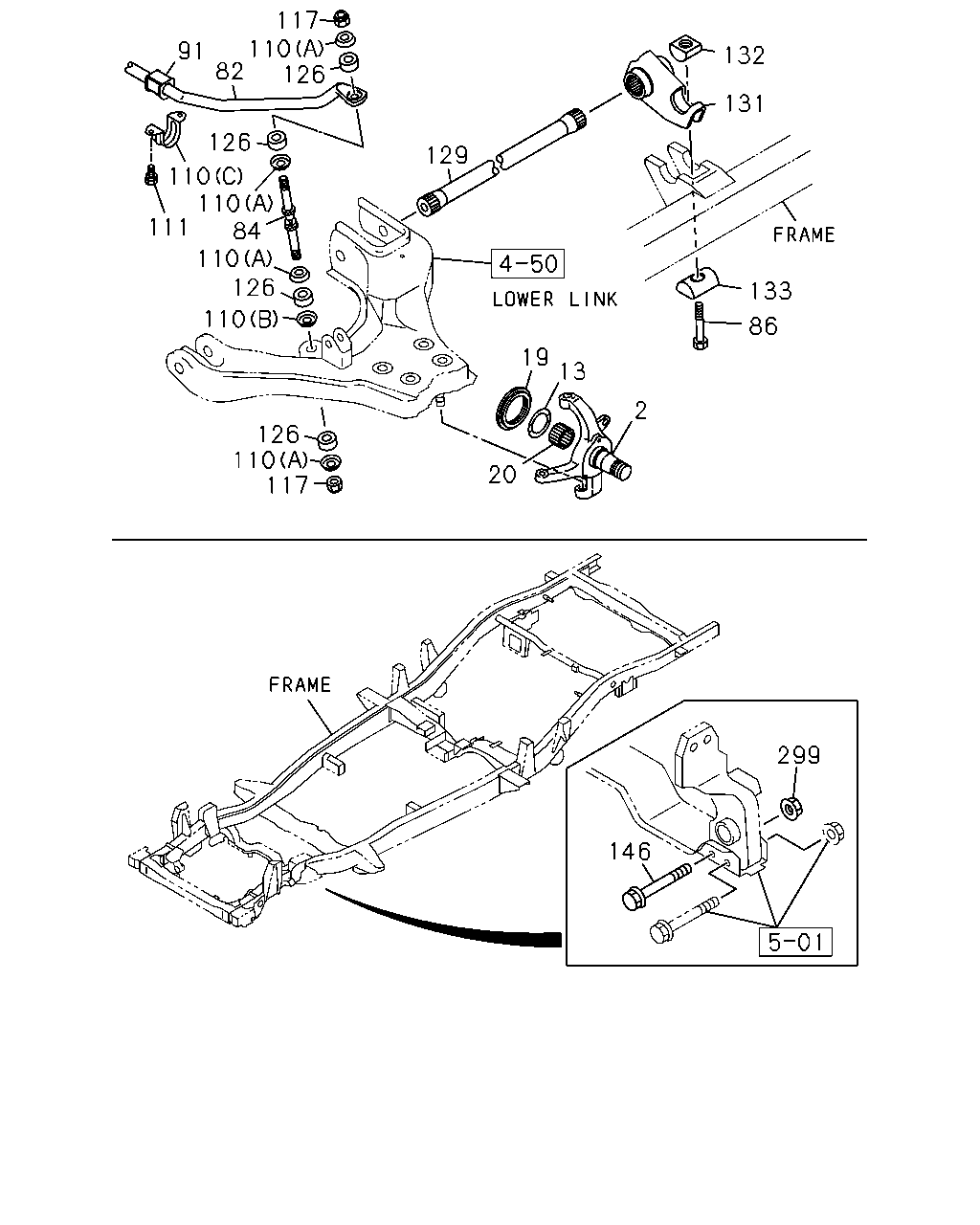

çizim 71128
117 110 82 126 91 132 131 126 129 110 110 84 110 126 111 133 110 86 19 13 2 126 110 117 20 299 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.020 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 9611- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 9611- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-341-5 01 1 9611- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94173-340-5 01 1 9611- ● ● ●
13 06.104 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 9611- ● ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 9611- ● ● ●
20 06.104 BEARING; KNUCKLE 8-94407-708-0 02 1 9611- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94472-311-0 01 1 9611- ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94459-458-1 01 1 9611- ● ● ●
84 07.242 BOLT; STAB SHAFT TO CONT LINK 8-94408-853-1 02 1 9611- ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M14X130 		8-94101-707-0 02 1 9611- ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9611- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 9611- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94318-777-1 02 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-94322-472-0 02 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(B) ID=18 OD=39 		8-94227-049-1 02 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(A) OD=32 		8-94342-383-0 08 1 9611- ● ● ●
110 07.242 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 9611- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9611- ● ● ●
111 07.242 BOLT; CLAMP TO ROD
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9611- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
09.011 M10 		9-09110-410-0 02 1 9611- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M8 FLANGE 		8-94342-381-0 04 1 9611- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 9611- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		8-94227-138-0 08 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97138-656-0 01 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97138-655-0 01 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-445-0 01 1 9611- ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-94459-444-0 01 1 9611- ● ● ●
131 07.436 ARM; HEIGHT CONT 8-94468-001-1 02 1 9611- ● ● ●
131 07.436 ARM; HEIGHT CONT 8-94360-802-2 02 1 9611- ● ● ●
132 07.436 COLLAR; TORSION BAR 8-94468-556-2 02 1 9611- ● ● ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 9611- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 9611- ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9611- ● ● ●
146 07.039 BOLT; SUPPORT
M10X83 FLANGE 		8-97805-841-0 02 1 9611- ● ● ●
299 07.039 NUT; SUPPORT BAR
M10 FLANGE 		8-94383-595-0 02 1 9611- ● ● ●
