◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#36284) — 138 parça

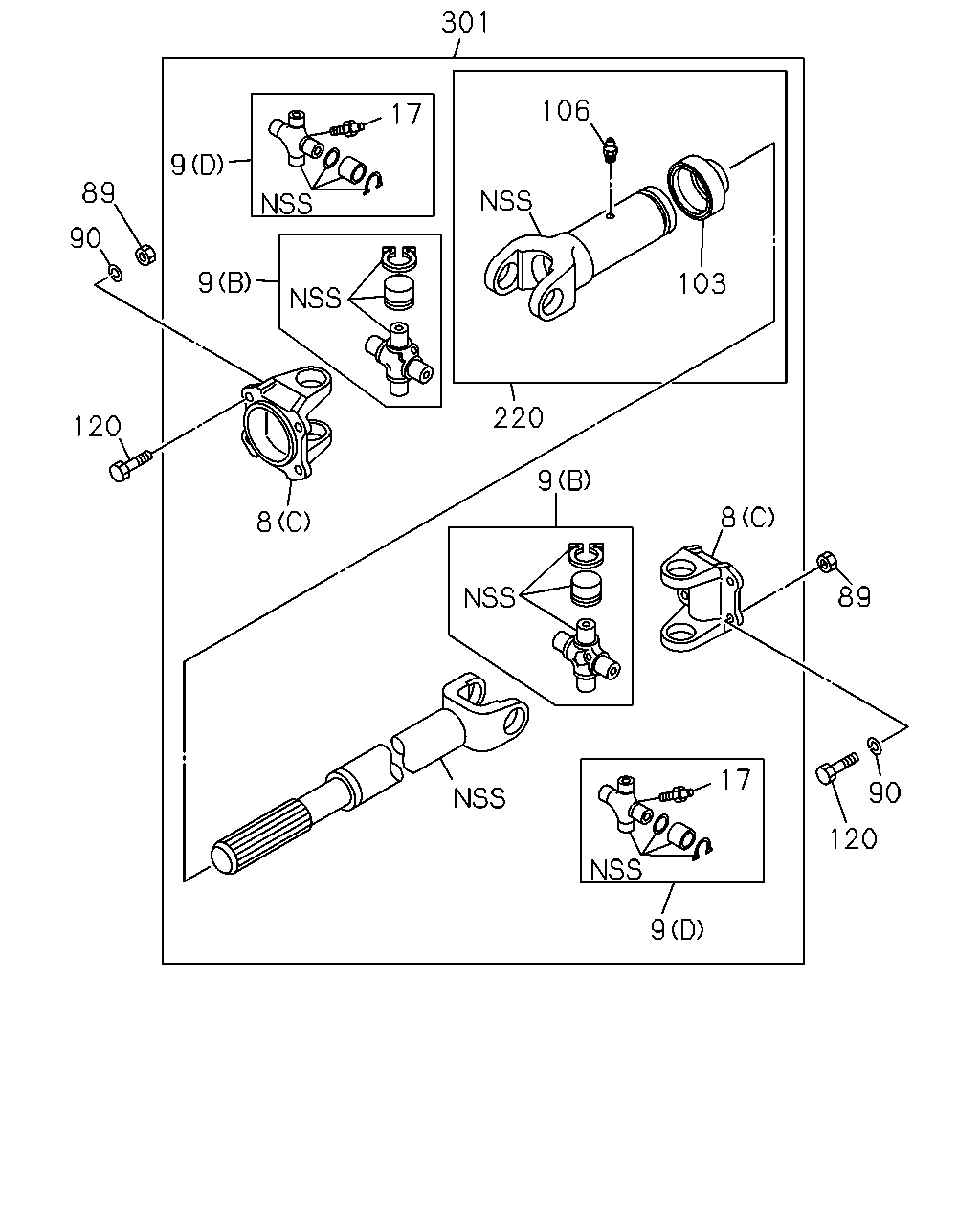

çizim 67325
301 106 17 9 89 90 9 103 220 120 9 8 8 89 17 90 120 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (A) FRONT 		5-37211-001-0 01 1 9701- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (D) FRONT 		8-94171-858-1 01 1 9701- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT T/F SIDE 		8-97080-897-1 01 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (D) FRONT T/F SIDE 		8-97029-526-1 01 1 9706- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) DIFF SIDE 		8-97033-932-0 01 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (E) DIFF SIDE 		8-94479-053-0 01 1 9706- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (D) FRONT 		8-97029-526-1 02 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9803 ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT T/F SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10 		8-94159-009-1 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 FRONT M8 		9-09110-508-0 08 1 9611- ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10 		8-94159-009-1 08 1 9611- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 FRONT ID=8.2 		9-09150-608-0 08 1 9611- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 FRONT ID=10.2 		9-09150-610-0 08 1 9611- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MSG 5 SPEED(M75) 05.586 		5-37249-004-0 01 1 9611- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 		8-97020-597-1 01 1 9611- ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9611- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9711- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) FRONT M8X26 		8-94437-365-1 08 1 9611- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10X29 		8-97168-458-1 08 1 9711- ● ● ●
220 05.544 YOKE; SPLINED
M/T MSG 5 SPEED(M75) 05.555 		8-94462-760-0 01 1 9611- ● ● ●
220 05.544 YOKE; SPLINED
M/T MUA 5 SPEED(RMN) 05.545 L=177 		8-97049-301-1 01 1 9611- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-94341-903-3 01 1 9611-9705 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-97180-427-0 01 1 9706- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=396 		8-94376-304-4 01 1 9611-9705 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=396 		8-97180-425-0 01 1 9706- ● ● ●

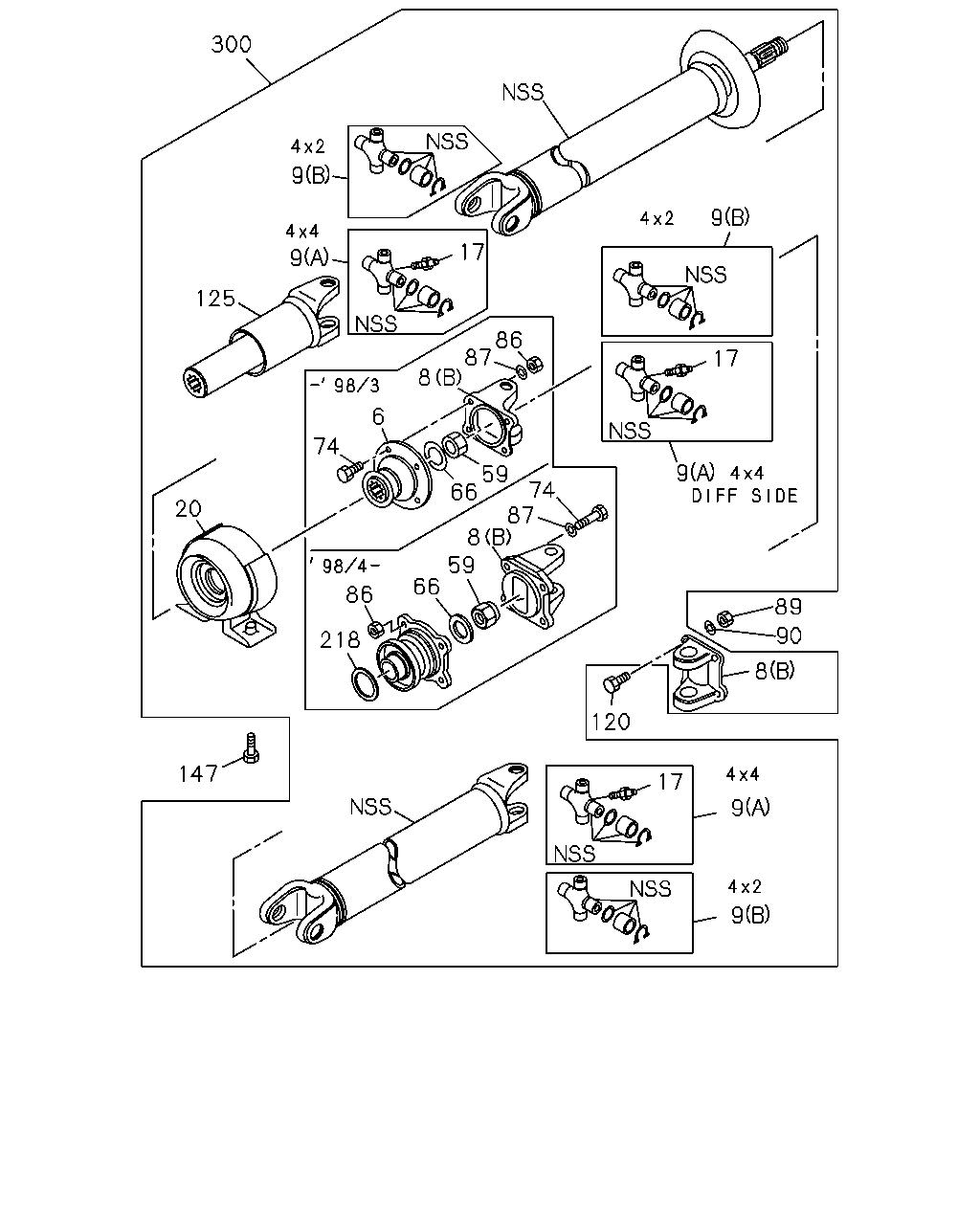

çizim 68197
300 9 9 9 17 125 86 87 8 17 6 74 9 59 66 74 87 8 59 66 20 86 89 90 218 8 120 147 17 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9803 ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MSG 5 SPEED(M75) 		8-97192-631-0 01 1 9804- ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9611-9803 ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-97202-891-0 01 1 9804- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (A) FRONT 		5-37211-001-0 01 1 9701- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (D) FRONT 		8-94171-858-1 01 1 9701- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT T/F SIDE 		8-97080-897-1 01 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (D) FRONT T/F SIDE 		8-97029-526-1 01 1 9706- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) DIFF SIDE 		8-97033-932-0 01 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (E) DIFF SIDE 		8-94479-053-0 01 1 9706- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (D) FRONT 		8-97029-526-1 02 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9803 ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT T/F SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT 8-94328-800-0 01 1 9611- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT 8-94328-799-0 01 1 9611- ● ● ●
59 05.586 NUT; RET TO SUPPORT
05.595 M18 		8-08937-737-0 01 1 9611- ● ● ● ● ● ●
66 05.595 WASHER
ID=18.5 OD=35 		8-03431-198-0 01 1 9611- ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MSG 5 SPEED(M75) M8X26 		8-94437-365-0 04 1 9611- ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) M10X29 		8-97168-458-1 04 1 9711- ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MSG 5 SPEED(M75) 00.002 M8 		9-09110-508-0 04 1 9611- ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 M10 		9-09110-510-0 04 1 9611- ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MSG 5 SPEED(M75) 00.002 ID=8.2 		9-09150-608-0 04 1 9611- ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 ID=10.2 		9-09150-610-0 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10 		8-94159-009-1 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 FRONT M8 		9-09110-508-0 08 1 9611- ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10 		8-94159-009-1 08 1 9611- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 FRONT ID=8.2 		9-09150-608-0 08 1 9611- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 FRONT ID=10.2 		9-09150-610-0 08 1 9611- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9711- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) FRONT M8X26 		8-94437-365-1 08 1 9611- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10X29 		8-97168-458-1 08 1 9711- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9611-9803 ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=163 		8-97202-890-0 01 1 9804- ● ● ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
06.225 M12X20 W/LK WASHER 		0-50041-220-0 02 1 9611-9711 ● ● ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
06.056 M12X20 FLANGE 		0-28081-220-0 02 1 9712- ● ● ● ● ● ●
218 05.586 WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 		8-97192-641-0 01 1 9804- ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MSG 5 SPEED(M75) 		8-94328-804-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED(RMN) 		8-94381-418-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MSG 5 SPEED(M75) 		8-94328-812-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED(RMN) 		8-94381-417-4 01 1 9611- ● ● ●

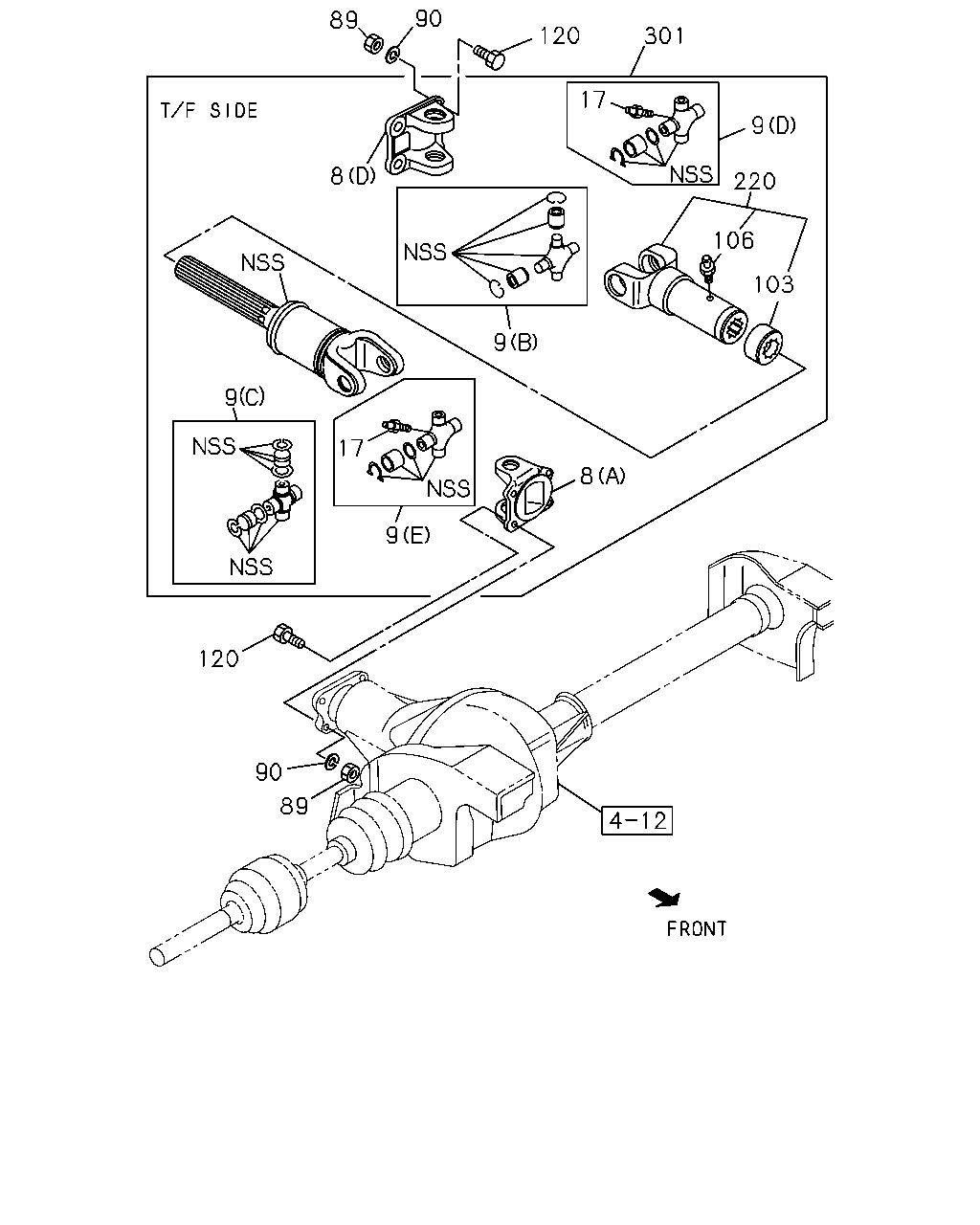

çizim 71214
90 89 120 301 17 9 8 220 106 103 9 9 17 8 9 120 90 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (A) FRONT 		5-37211-001-0 01 1 9701- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (D) FRONT 		8-94171-858-1 01 1 9701- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT T/F SIDE 		8-97080-897-1 01 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (D) FRONT T/F SIDE 		8-97029-526-1 01 1 9706- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) DIFF SIDE 		8-97033-932-0 01 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (E) DIFF SIDE 		8-94479-053-0 01 1 9706- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (D) FRONT 		8-97029-526-1 02 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9803 ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT T/F SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10 		8-94159-009-1 04 1 9611- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 FRONT M8 		9-09110-508-0 08 1 9611- ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10 		8-94159-009-1 08 1 9611- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 FRONT ID=8.2 		9-09150-608-0 08 1 9611- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 FRONT ID=10.2 		9-09150-610-0 08 1 9611- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MSG 5 SPEED(M75) 05.586 		5-37249-004-0 01 1 9611- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 		8-97020-597-1 01 1 9611- ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9611- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9711- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) FRONT M8X26 		8-94437-365-1 08 1 9611- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) FRONT M10X29 		8-97168-458-1 08 1 9711- ● ● ●
220 05.544 YOKE; SPLINED
M/T MSG 5 SPEED(M75) 05.555 		8-94462-760-0 01 1 9611- ● ● ●
220 05.544 YOKE; SPLINED
M/T MUA 5 SPEED(RMN) 05.545 L=177 		8-97049-301-1 01 1 9611- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-94341-903-3 01 1 9611-9705 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-97180-427-0 01 1 9706- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=396 		8-94376-304-4 01 1 9611-9705 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=396 		8-97180-425-0 01 1 9706- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
