◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#36282) — 22 parça

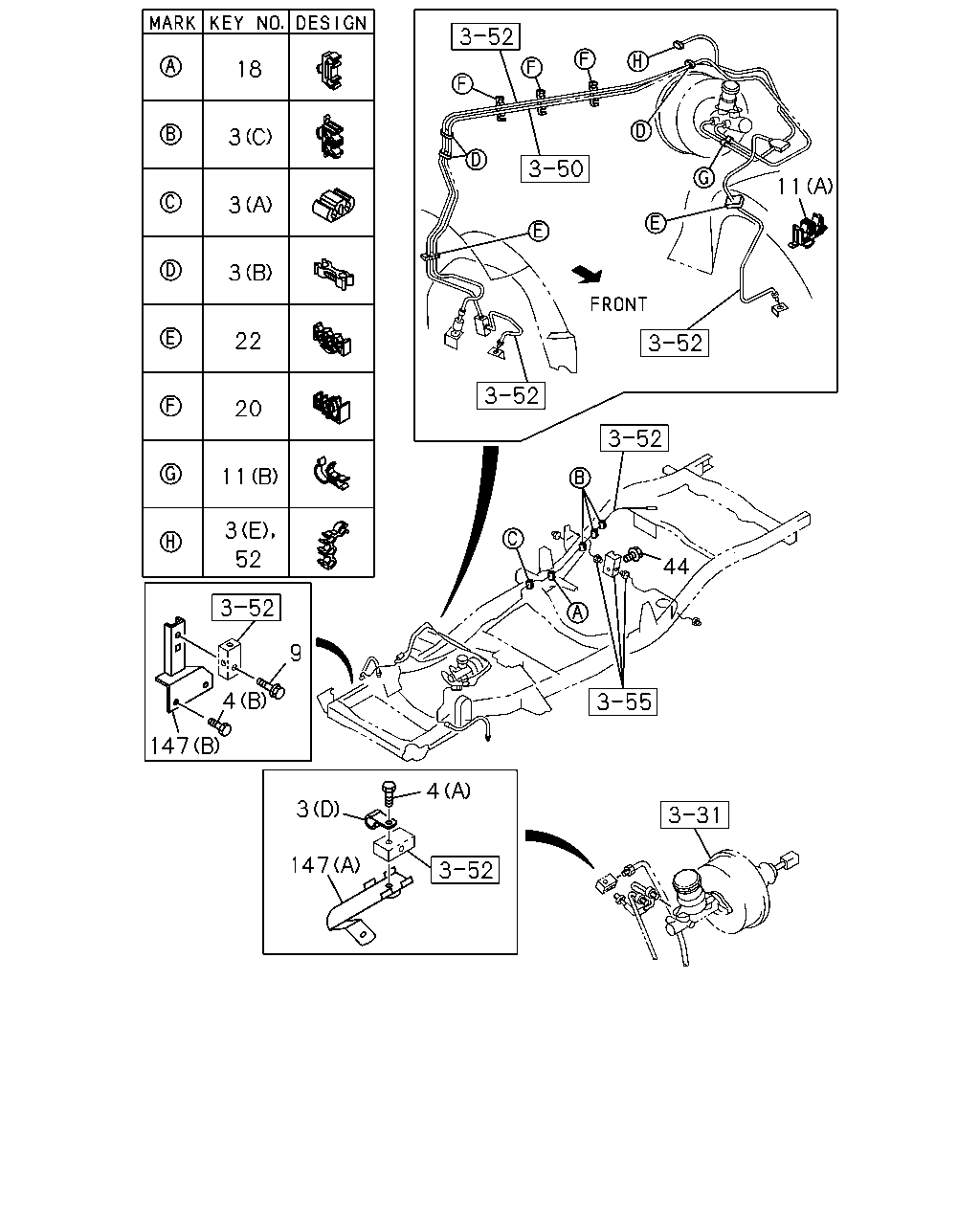

çizim 71136
18 3 11 3 3 22 20 11 3 44 52 9 4 147 4 3 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9611- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 03.162 (E) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97035-565-2 01 1 9611- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 04.686 (D) 		9-09524-562-0 01 1 9611-9612 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (D) 		9-09524-562-0 01 1 9701- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9611- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9701- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (A) ID=4.8X2 		8-94389-060-0 01 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9611- ● ●
4 04.686 BOLT; BRKT
4JA1 ENG(RLE) 03.163 (A) M6X40 FLANGE 		0-28680-640-0 01 1 9611- ● ● ● ● ● ●
4 04.686 BOLT; BRKT
02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9611- ● ● ●
9 04.686 BOLT; BRKT
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9611- ● ● ●
11 04.686 CLIP; OIL PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9611- ● ● ●
11 04.686 CLIP; OIL PIPE
4JA1 ENG(RLE) (B) 		8-97084-569-0 01 1 9611- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE 8-94389-586-0 01 1 9611- ● ●
20 04.686 CLIP; BRK PIPE 8-97102-873-0 03 1 9611- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 9611- ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 02 1 9611- ● ● ●
44 04.686 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28680-830-0 01 1 9611- ● ● ● ● ● ●
52 04.686 CLIP; BRK PIPE
4JG2 ENG(RJC) 03.162 ID=6.4 & 4.8 & 4.8 & 4.8 		8-97035-565-2 01 1 9611- ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
4JA1 ENG(RLE) (A) 		8-94331-701-1 01 1 9611- ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
(B) 		8-94333-040-1 01 1 9611- ● ● ●
