◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#36280) — 31 parça

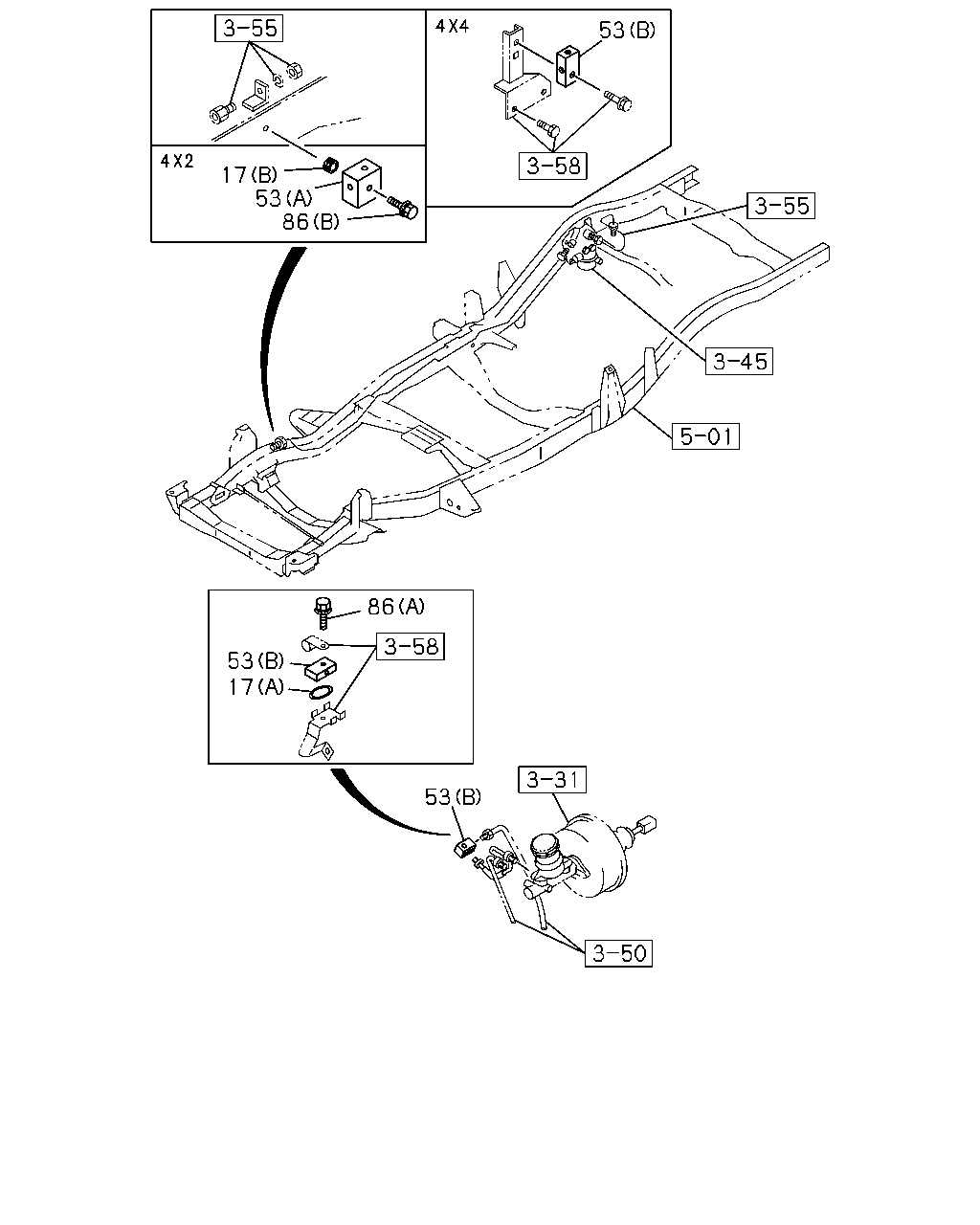

çizim 18922
53 17 53 86 86 53 17 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
17 04.686 WASHER; PL,3 WAY CONNECTOR
(B) ID=8.2 		8-94312-733-0 01 1 9611- ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
4JG2 ENG(RJC) (A) ID=6.4 		1-09985-038-0 01 1 9701- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94328-125-0 01 1 9611- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(B) 		8-94406-895-0 01 1 9611- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(B) 		8-94406-895-0 01 1 9611- ● ● ●
86 04.686 BOLT; BRK PIPE
02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9611- ● ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC) 03.163 (A) M6X40 FLANGE 		0-28680-640-0 01 1 9611-9612 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC) 03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9701- ● ● ● ● ● ●

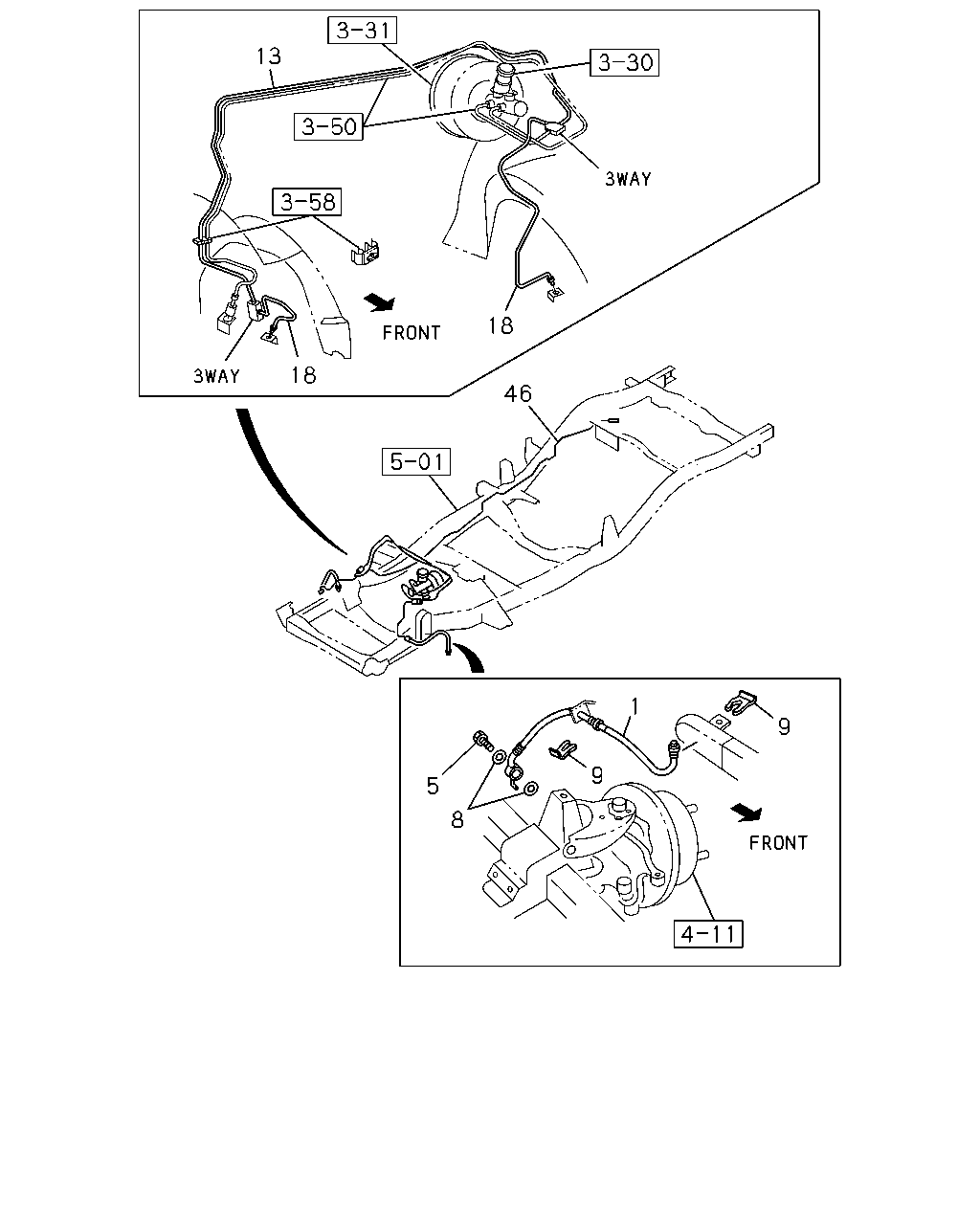

çizim 72242
13 18 18 46 1 9 9 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 9611- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-830-0 02 1 9611- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9611- ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9611- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9611- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97081-807-1 01 1 9611-9612 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) 		8-97081-807-2 01 1 9701- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC) 		8-97174-482-3 01 1 9701- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97081-808-1 01 1 9611-9612 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) 		8-97081-808-2 01 1 9701- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC) 		8-97174-483-3 01 1 9701- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97109-877-0 01 1 9611-9612 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97109-877-1 01 1 9701- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97086-043-0 01 1 9611- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) 		8-97174-484-1 01 1 9701- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97110-223-0 01 1 9611-9612 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97110-223-1 01 1 9701- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97115-645-0 01 1 9611- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) 		8-97174-485-1 01 1 9701- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97117-623-0 01 1 9611- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97117-624-0 01 1 9611- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
EXC. ISRAEL EQUIPMENT(7LX) 		8-97117-624-0 01 1 9611- ●
46 04.685 PIPE; BRK,JOINT TO VLV
ISRAEL EQUIPMENT(7LX) 		8-97160-370-0 01 1 9611- ●
