Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#3628) — 234 parça

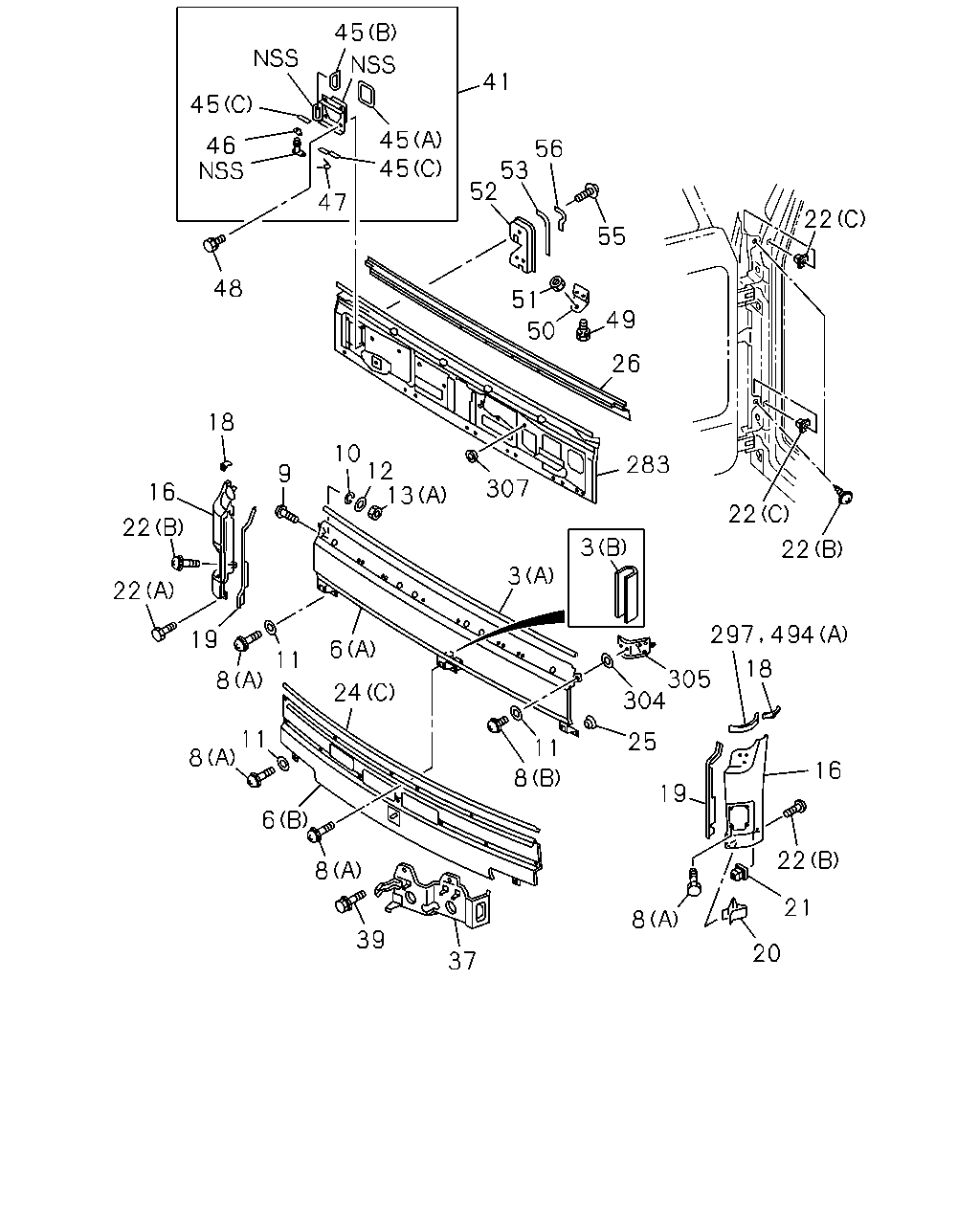

45 41 45 45 45 46 56 53 52 47 22 55 48 51 49 50 26 18 10 12 13 283 9 307 16 22 22 3 22 3 22 19 6 11 18 305 304 8 24 11 25 11 8 16 8 19 6 22 8 21 8 39 20 37 297 494

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	FINISHER; FRT PANEL UPR (A) SERVICED BY L=2040	1-71997-513-1	01	1	9002-9008
3	FINISHER; FRT PANEL UPR (A) L=2040	1-71907-013-0	01	1	9009-9012
3	FINISHER; FRT PANEL UPR (A) L=2100	1-71907-093-0	01	1	9101-
3	FINISHER; FRT PANEL UPR AIR CON MANUAL CONTROL(C60) EXC. DECAL ISUZU FRONT PANEL<TAM> (B) L=50	8-94270-377-1	01	1	9312-
6	PANEL; FRONT CHINA EQUIPMENT(YT2) (A)	1-65470-961-2	01	1	9002-
6	PANEL; FRONT EXC. CHINA EQUIPMENT(YT2) (A)	1-65470-695-9	01	1	9002-9202
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM>,CHINA EQUIPMENT(YT2) (A)	1-65471-727-0	01	1	9203-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-707-0	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-383-0	01	1	9002-
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-709-0	01	1	9307-
8	SCREW; FRT PANEL (A)	1-09980-574-0	05	1	9002-
8	SCREW; FRT PANEL DECAL ISUZU FRONT PANEL<TAM> (B)	1-09140-012-0	02	1	9307-
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-09981-438-0	07	1	9002-
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-
11	WASHER; NYLON,FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-734-0	05	1	9307-
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A)	1-09984-122-0	02	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A)	1-09984-122-0	01	1	9002-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9002-
16	PANEL; FRONT,SIDE DOOR MIRROR<D32>	1-65471-473-0	01	1	9002-9306
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>	1-65470-939-3	01	1	9002-9306
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65470-937-2	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9002-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9002-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-164-1	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-163-1	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9002-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9002-
20	CLIP; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-71997-793-1	04	1	9002-9306
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=8 M6	1-09983-119-0	02	1	9002-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-
22	SCREW; FRT PANEL SIDE (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9002-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-
22	SCREW; FRT PANEL SIDE (C) D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (A) M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (C)	1-65570-159-0	01	1	9002-
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-570-1	01	1	9002-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-595-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-594-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-004-4	01	1	9002-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-003-4	01	1	9002-
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9002-9306
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9307-
41	VENTILATOR ASM; DASH	1-76337-285-2	01	1	9002-
45	SEAL; VENT (A)	1-76337-290-0	01	1	9002-
45	SEAL; VENT (B)	1-76337-291-0	01	1	9002-
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-
46	CLIP; VENT	1-76337-243-0	02	1	9002-
47	SPRING; VENT	1-76337-244-0	01	1	9002-
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-
50	BRACKET; CABLE,DASH VENT	1-76337-234-3	01	1	9002-
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-451-0	01	1	9307-
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-286-3	01	1	9002-
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-2	01	1	9002-
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=270	1-76337-454-1	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9002-
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-683-2	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-607-7	01	1	9002-
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=2040	1-71907-013-0	02	1	9009-9012
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=190	1-71998-300-0	02	1	9101-9205
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=170	1-71907-124-1	02	1	9206-
304	SPACER; FRT PANEL	1-09985-144-0	01	1	9002-
304	SPACER; FRT PANEL DOOR MIRROR<D32>	1-09985-144-0	01	1	9002-
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-165-0	01	1	9002-
307	GROMMET; FRT PANEL OD=20.0	5-09983-020-0	02	1	9002-9210
307	GROMMET; FRT PANEL	1-09983-101-0	02	1	9211-
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-

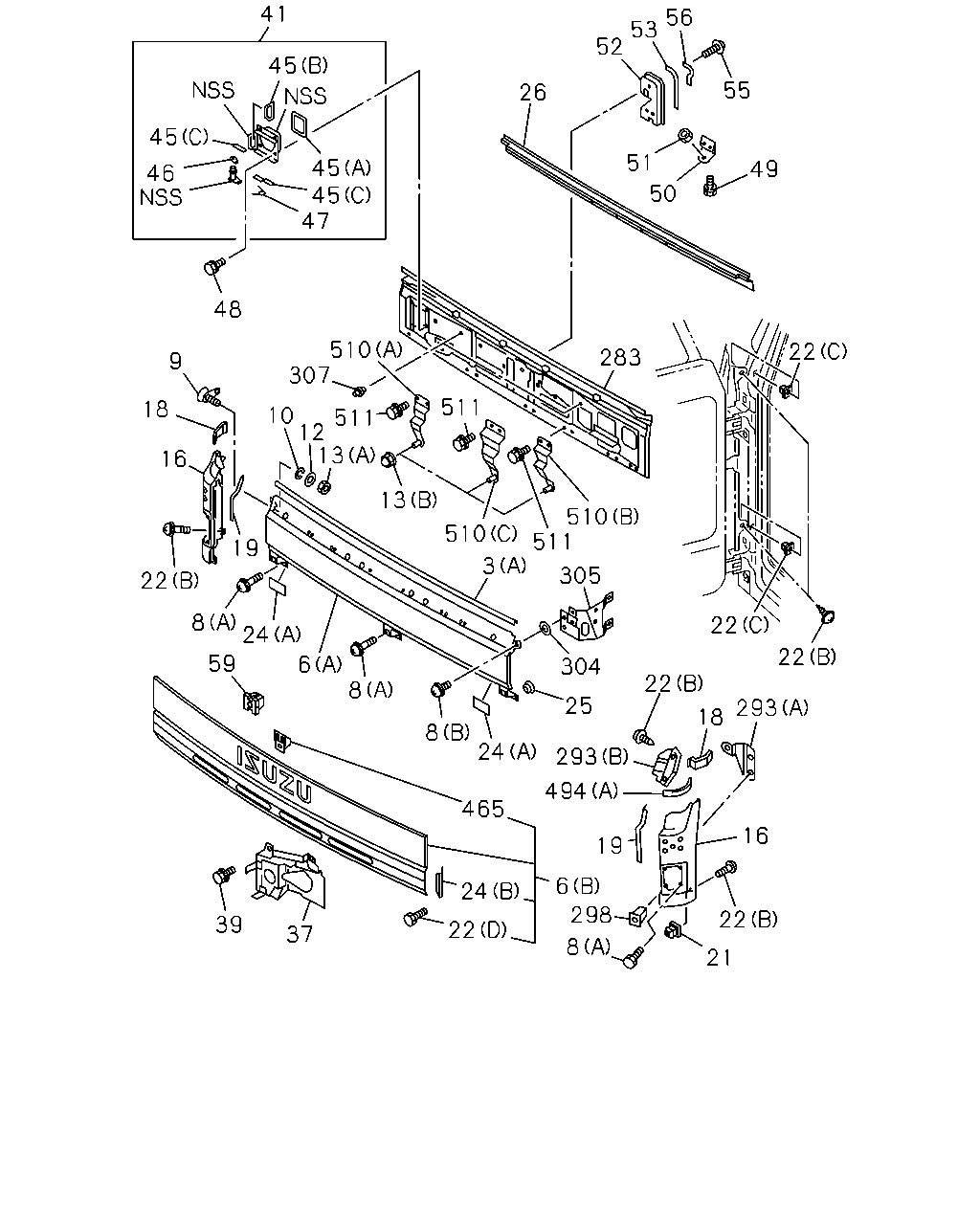

41 56 53 52 45 55 26 45 51 45 45 47 49 46 50 48 22 510 307 283 9 511 18 10 12 13 511 16 13 510 511 510 19 3 305 22 8 24 22 22 59 6 8 304 22 25 293 18 8 24 293 494 465 16 19 6 24 298 22 39 22 37 8 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	FINISHER; FRT PANEL UPR (A) SERVICED BY L=2040	1-71997-513-1	01	1	9002-9008
3	FINISHER; FRT PANEL UPR (A) L=2040	1-71907-013-0	01	1	9009-9012
3	FINISHER; FRT PANEL UPR (A) L=2100	1-71907-093-0	01	1	9101-
3	FINISHER; FRT PANEL UPR AIR CON MANUAL CONTROL(C60) EXC. DECAL ISUZU FRONT PANEL<TAM> (B) L=50	8-94270-377-1	01	1	9312-
6	PANEL; FRONT CHINA EQUIPMENT(YT2) (A)	1-65470-961-2	01	1	9002-
6	PANEL; FRONT EXC. CHINA EQUIPMENT(YT2) (A)	1-65470-695-9	01	1	9002-9202
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM>,CHINA EQUIPMENT(YT2) (A)	1-65471-727-0	01	1	9203-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-707-0	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-383-0	01	1	9002-
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-709-0	01	1	9307-
8	SCREW; FRT PANEL (A)	1-09980-574-0	05	1	9002-
8	SCREW; FRT PANEL DECAL ISUZU FRONT PANEL<TAM> (B)	1-09140-012-0	02	1	9307-
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-09981-438-0	07	1	9002-
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-734-0	05	1	9307-
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A)	1-09984-122-0	02	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A)	1-09984-122-0	01	1	9002-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9002-
16	PANEL; FRONT,SIDE DOOR MIRROR<D32>	1-65471-473-0	01	1	9002-9306
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>	1-65470-939-3	01	1	9002-9306
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65470-937-2	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9002-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9002-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-164-1	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-163-1	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9002-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9002-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=8 M6	1-09983-119-0	02	1	9002-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-
22	SCREW; FRT PANEL SIDE (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9002-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-
22	SCREW; FRT PANEL SIDE (C) D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (A) M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (C)	1-65570-159-0	01	1	9002-
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-570-1	01	1	9002-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-595-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-594-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-004-4	01	1	9002-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65671-003-4	01	1	9002-
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9002-9306
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9307-
41	VENTILATOR ASM; DASH	1-76337-285-2	01	1	9002-
45	SEAL; VENT (A)	1-76337-290-0	01	1	9002-
45	SEAL; VENT (B)	1-76337-291-0	01	1	9002-
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-
46	CLIP; VENT	1-76337-243-0	02	1	9002-
47	SPRING; VENT	1-76337-244-0	01	1	9002-
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-
50	BRACKET; CABLE,DASH VENT	1-76337-234-3	01	1	9002-
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-451-0	01	1	9307-
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-286-3	01	1	9002-
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-2	01	1	9002-
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=270	1-76337-454-1	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9002-
59	GROMMET; SCREW DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9307-
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-683-2	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-607-7	01	1	9002-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-689-2	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-043-3	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-688-2	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) LOWER	1-65481-042-3	01	1	9307-
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	08	1	9307-
304	SPACER; FRT PANEL	1-09985-144-0	01	1	9002-
304	SPACER; FRT PANEL DOOR MIRROR<D32>	1-09985-144-0	01	1	9002-
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-165-0	01	1	9002-
307	GROMMET; FRT PANEL OD=20.0	5-09983-020-0	02	1	9002-9210
307	GROMMET; FRT PANEL	1-09983-101-0	02	1	9211-
465	CLIP; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM>	1-65471-500-0	07	1	9307-
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-729-1	01	1	9307-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-730-0	01	1	9307-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (C)	1-65471-728-0	01	1	9307-
511	BOLT; SET,BRKT DECAL ISUZU FRONT PANEL<TAM> M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9307-

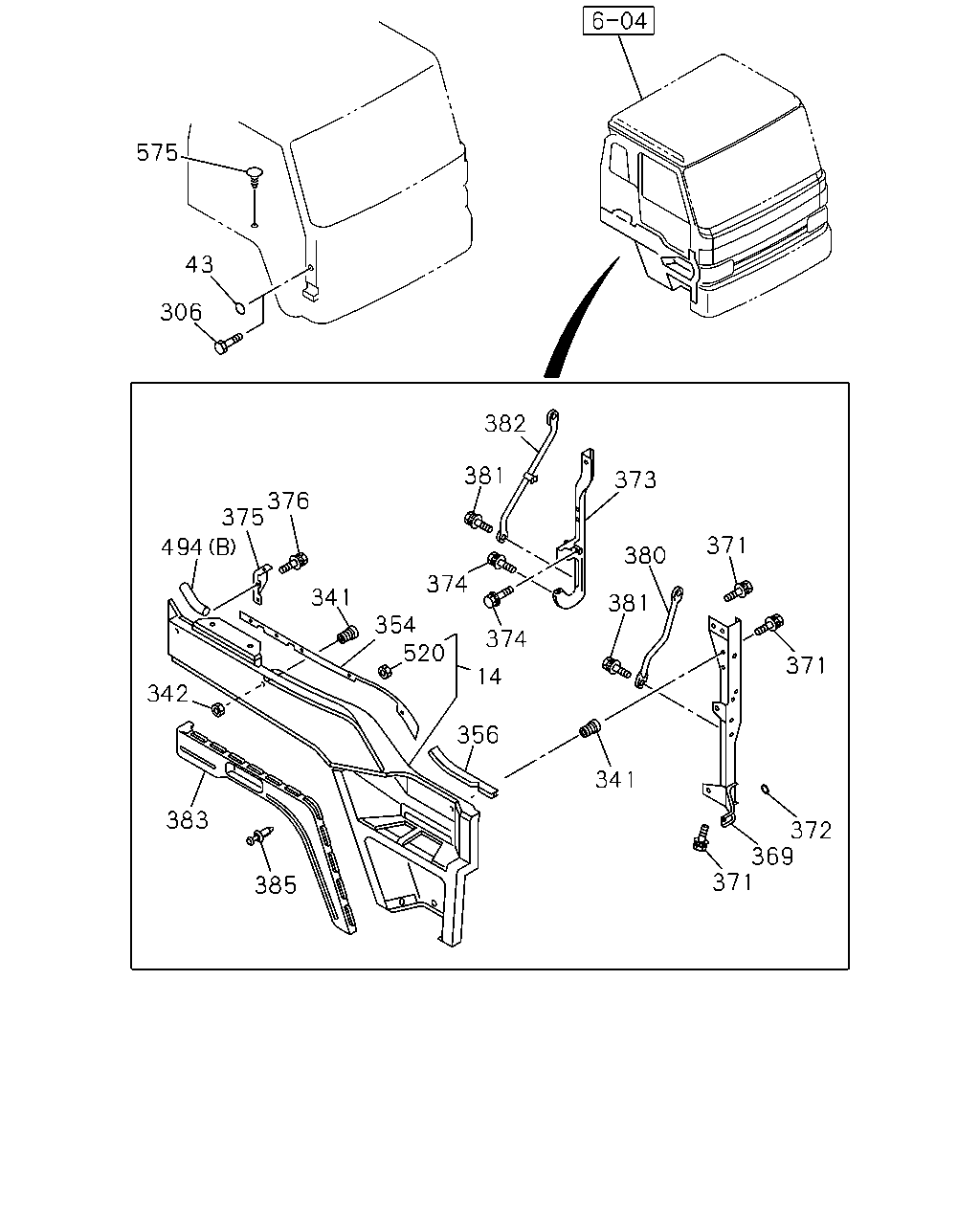

575 43 306 382 381 373 376 375 371 494 380 374 341 381 354 520 374 371 14 342 356 341 383 372 369 371 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-171-0	01	1	9002-
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-170-0	01	1	9002-
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-169-0	01	1	9002-
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-168-0	01	1	9002-
43	GROMMET; LOCATION HOLE,A-POST OD=36	1-76778-007-0	02	1	9002-9306
43	GROMMET; LOCATION HOLE,A-POST OD=36	5-76777-035-0	02	1	9307-
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9209
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9505-
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	15	1	9002-
342	NUT; FENDER TO COWL M6 FLANGE	1-09984-141-0	02	1	9002-
354	SEAL; FENDER SIDE	1-76777-080-1	01	1	9002-
354	SEAL; FENDER SIDE	1-76777-079-1	01	1	9002-
356	FINISHER; STEP CLOSING,FENDER	1-76777-074-0	01	1	9002-
356	FINISHER; STEP CLOSING,FENDER	1-76777-071-2	01	1	9002-
369	SUPPORT; FENDER STEP FRT	1-65670-834-0	01	1	9002-
369	SUPPORT; FENDER STEP FRT	1-65670-833-0	01	1	9002-
371	BOLT; SUPPORT,FENDER STEP FRT M8X25	1-09980-491-0	05	1	9002-9201
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-
372	SEAL; SUPPORT OD=20	1-76797-006-0	04	1	9002-9508
373	SUPPORT; FENDER STEP REAR	1-65670-842-2	01	1	9002-
373	SUPPORT; FENDER STEP REAR	1-65670-841-2	01	1	9002-
374	BOLT; SUPPORT,FENDER STEP REAR M8X25	1-09980-491-0	04	1	9002-9201
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-9301
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9302-
375	SUPPORT; FENDER REAR	1-65670-627-2	02	1	9002-
376	BOLT; SUPPORT,FENDER RR M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9306
376	BOLT; SUPPORT,FENDER RR M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9307-
380	STAY ASM; FENDER STEP FRT	1-65670-716-2	01	1	9002-
380	STAY ASM; FENDER STEP FRT	1-65670-715-2	01	1	9002-
381	BOLT; STAY,FENDER STEP M8X25	1-09980-491-0	08	1	9002-9301
381	BOLT; STAY,FENDER STEP M8X20 W/LK&PL WASHER	1-09980-512-0	08	1	9302-
382	STAY ASM; FENDER STEP RR	1-65670-641-6	01	1	9002-
382	STAY ASM; FENDER STEP RR	1-65670-640-6	01	1	9002-
383	GUARD; MUD,FENDER LWR TAIWAN EQUIPMENT(WW5)	1-71997-638-1	01	1	9002-
383	GUARD; MUD,FENDER LWR TAIWAN EQUIPMENT(WW5)	1-71997-637-1	01	1	9002-
385	SCREW; FENDER LWR TAIWAN EQUIPMENT(WW5) D6X16 PUSH RIVET	1-09983-105-0	24	1	9002-
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-
520	NUT; FENDER M6	9-09114-046-0	08	1	9307-
575	PLUG; STAY EXC. DECAL ISUZU FRONT PANEL<TAM> OD=15 L=14.5	1-76378-157-0	04	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
