3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#36279) — 11 parça

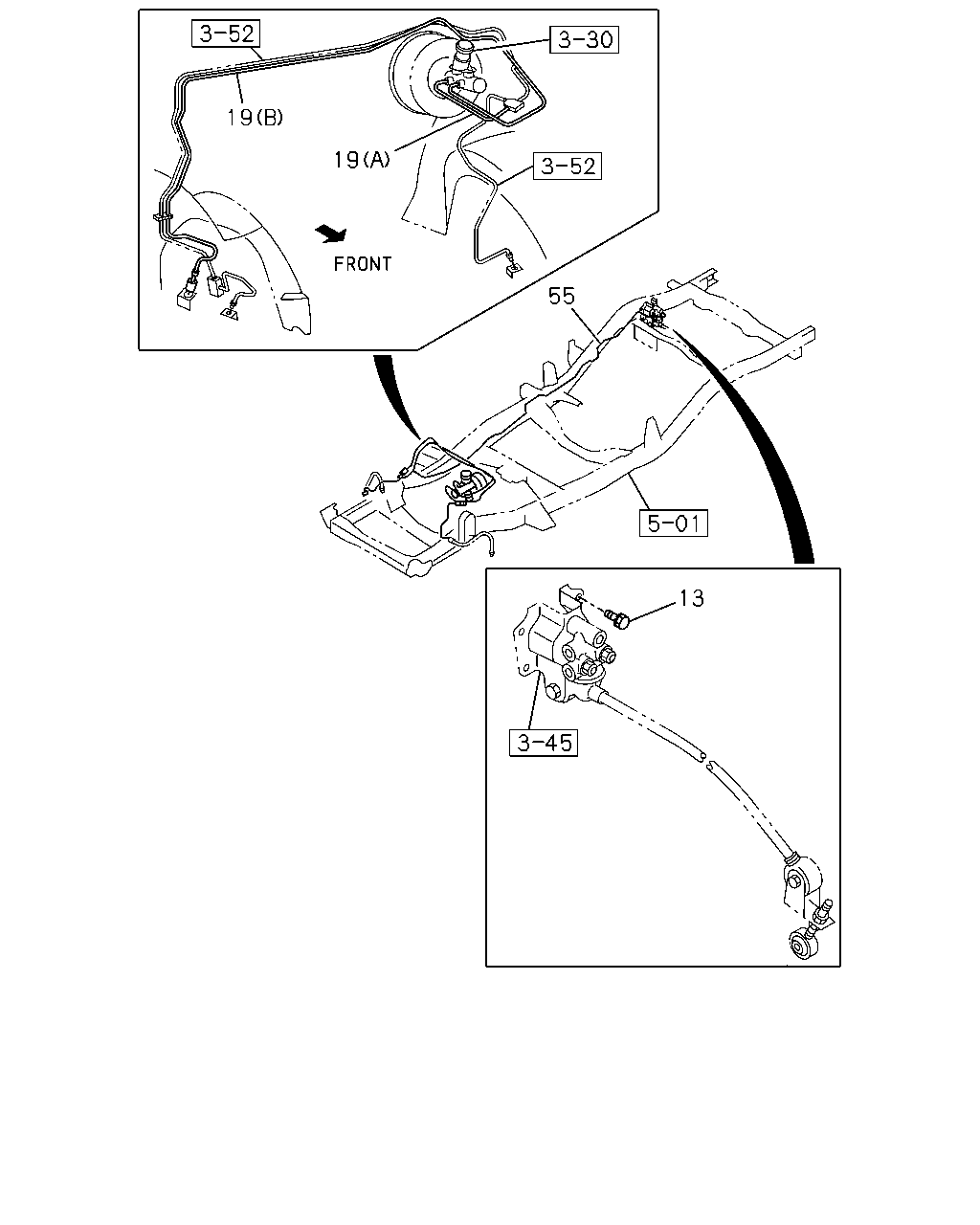

çizim 70619
19 19 55 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.686 BOLT; VLV TO BRKT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9611- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-94435-233-2 01 1 9611-9612 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) (A) 		8-94435-233-3 01 1 9701- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) (B) 		8-97109-381-1 01 1 9611- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC) (B) 		8-97117-613-0 01 1 9611-9612 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC) (A) 		8-97174-478-2 01 1 9701- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC) (B) 		8-97174-480-1 01 1 9701- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97117-616-0 01 1 9611- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97117-617-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. ISRAEL EQUIPMENT(7LX) 		8-97117-617-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION
ISRAEL EQUIPMENT(7LX) 		8-97160-373-0 01 1 9611- ●
