Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#36271) — 455 parça

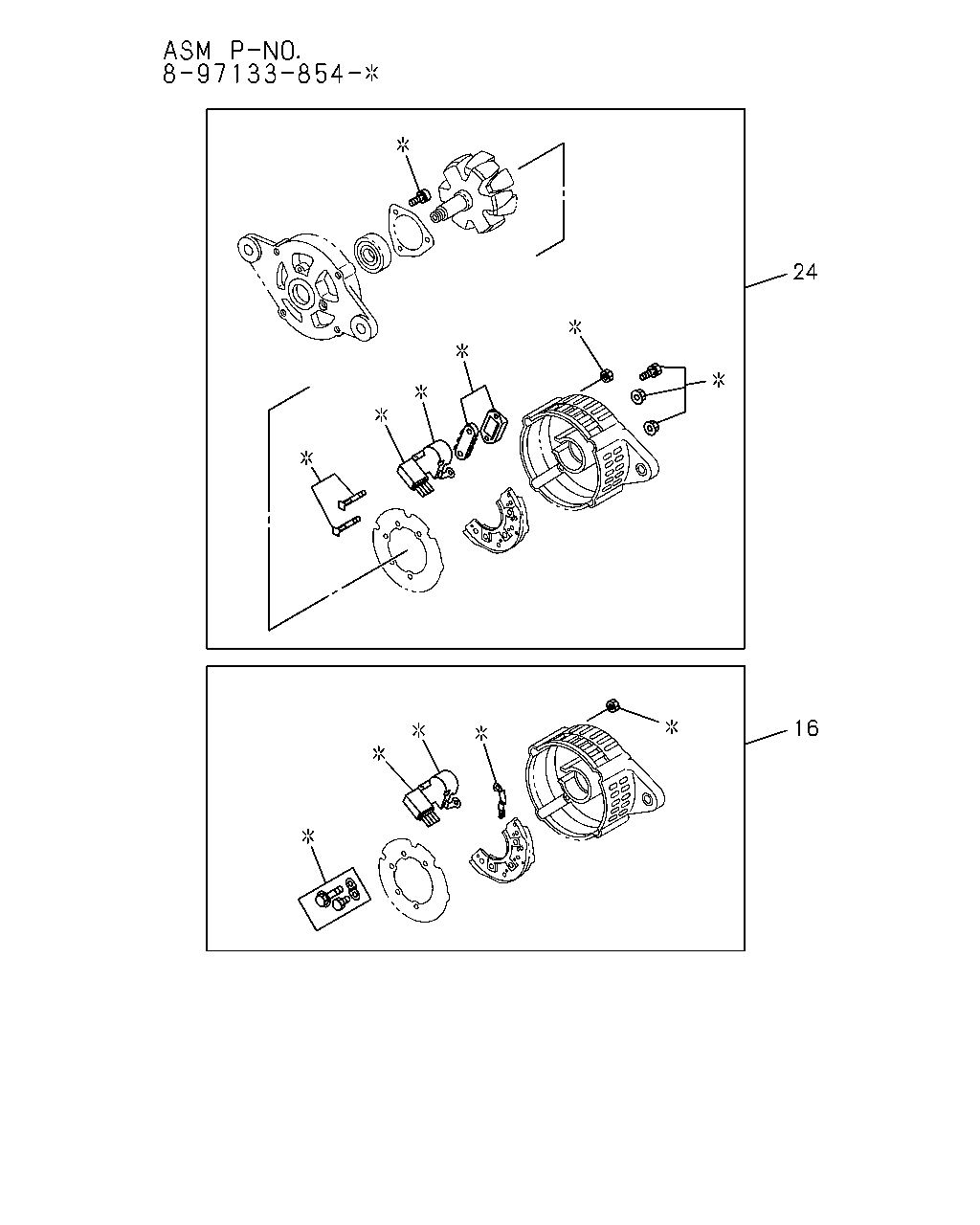

24 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: D = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: H = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-

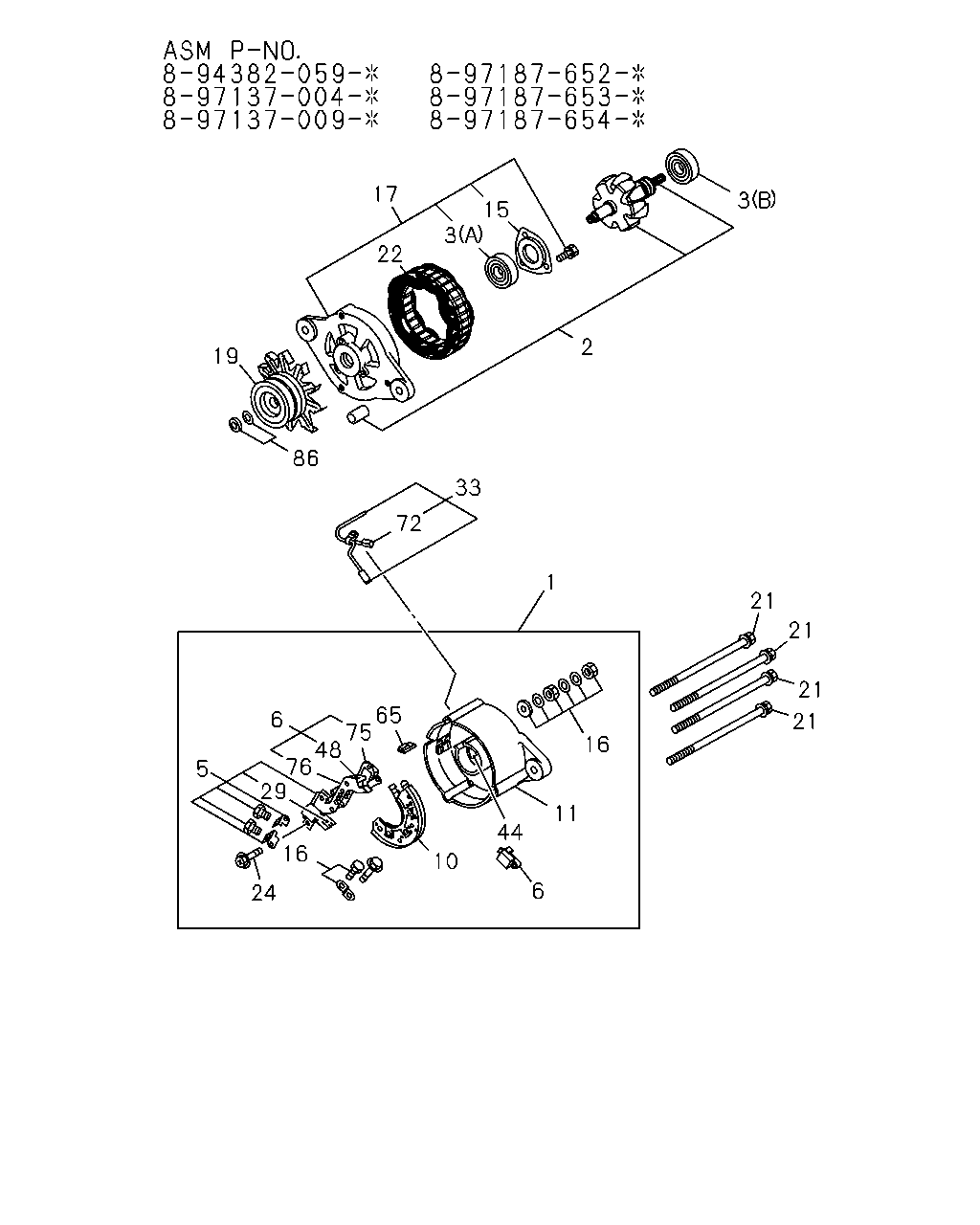

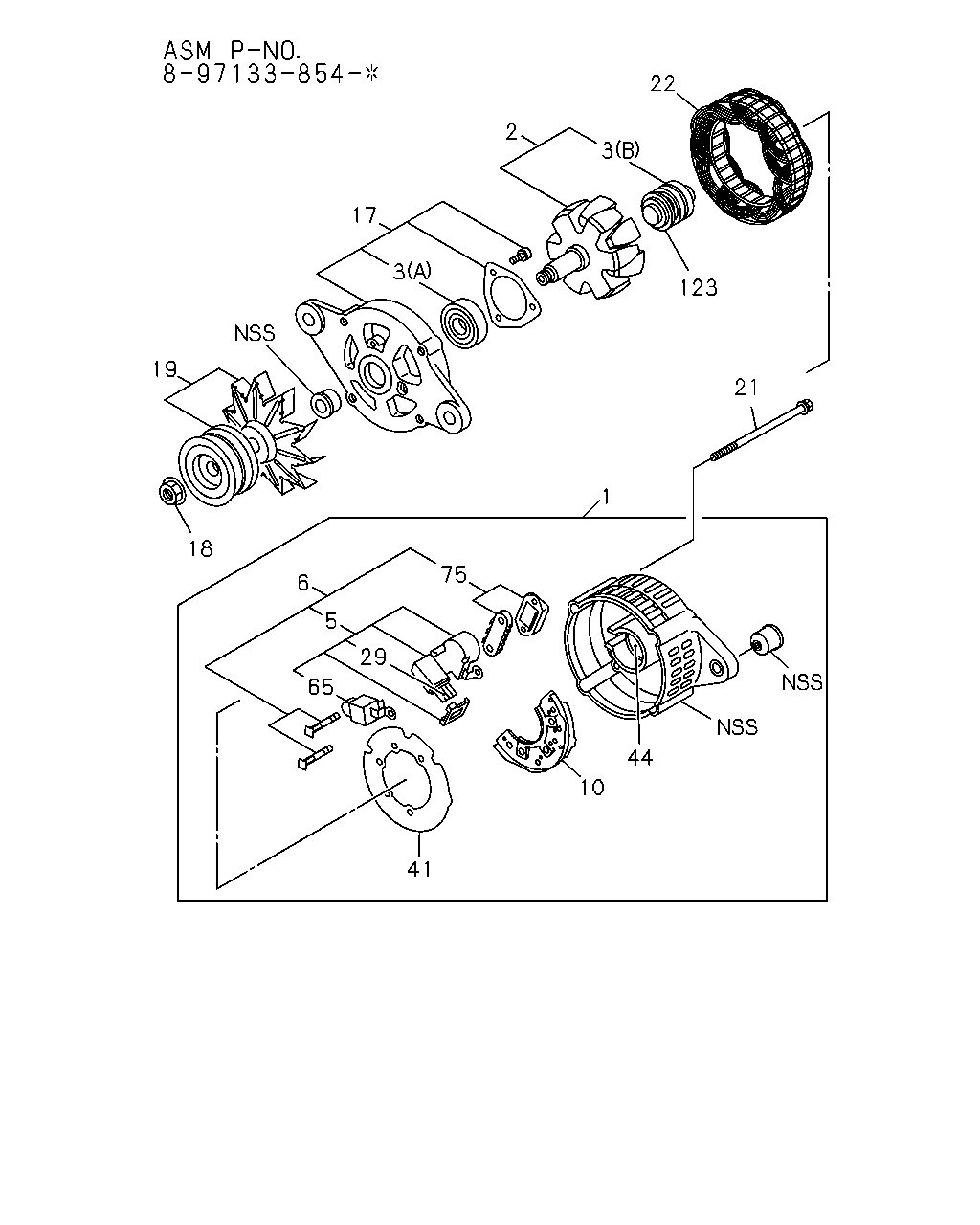

44 10 41 29 75 6 65 5 18 19 17 3 123 21 1 3 2 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-594-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97137-004-0, 97137004, I = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94382-059-1, 94382059	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: E = 8-97133-854-0, 97133854	8-97016-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-597-0	04	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-707-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-257-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-598-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: E = 8-97133-854-0, 97133854	8-97062-644-0	01	1	-

17 22 15 3 2 3 19 86 33 72 1 21 21 21 21 16 11 44 6 10 65 75 48 76 29 16 24 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-594-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97137-004-0, 97137004, I = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94382-059-1, 94382059	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-2, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94455-369-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94382-059-1, 94382059, J = 8-97187-653-0, 97187653	8-97083-008-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-597-0	04	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-707-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97203-864-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: D = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: H = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
33	02.500 WIRE; LEAD,GEN UPPER ASM PART: G = 8-97137-009-0, 97137009, K = 8-97187-654-0, 97187654	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: F = 8-97137-004-0, 97137004, I = 8-97187-652-0, 97187652	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LOWER ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-598-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653	8-94310-267-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-591-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-97016-301-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN 02.274 ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97203-880-0	01	1	-

100 91 90 106 99 96 99 93 99 93 94 108 109 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

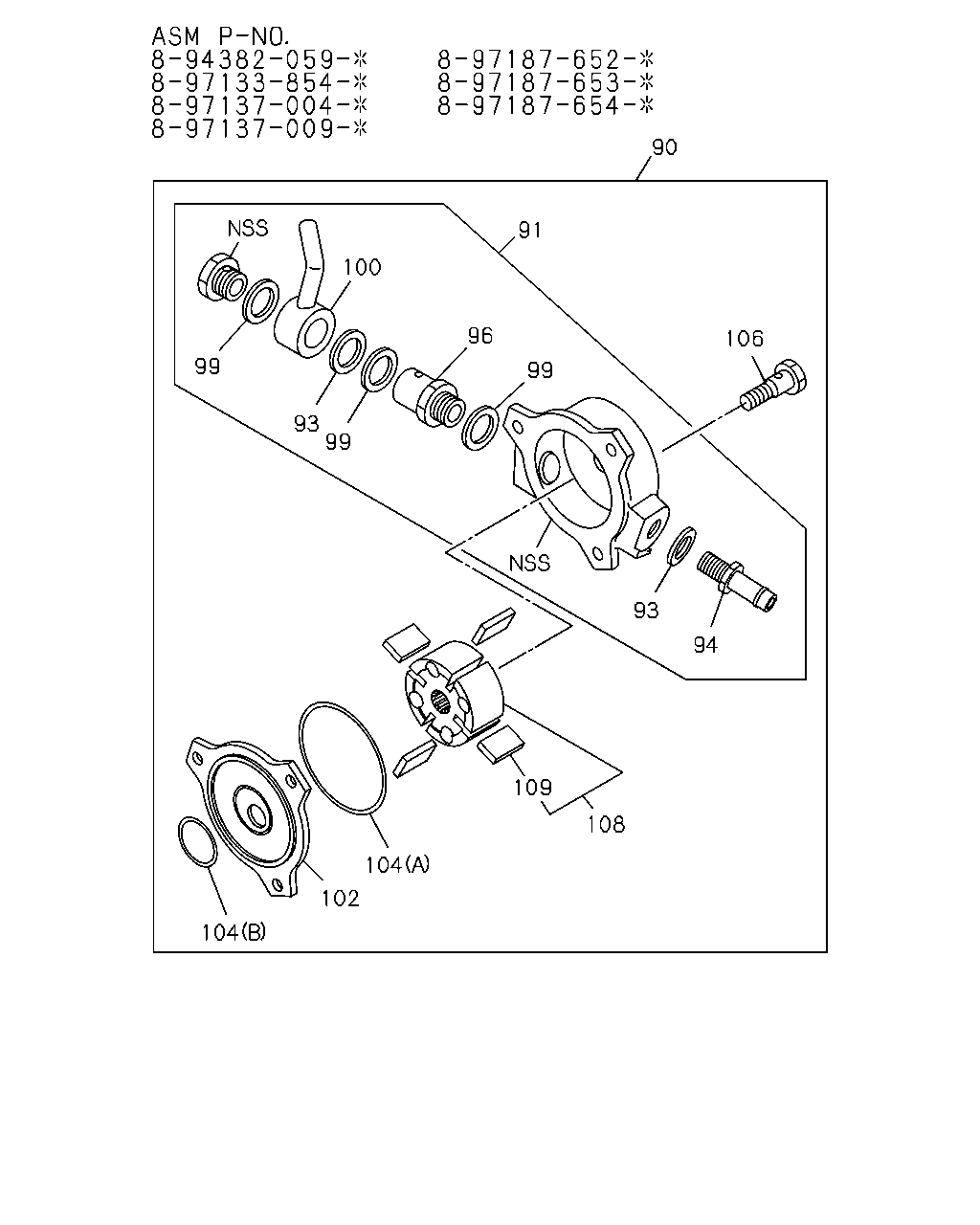

90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-94382-059-1, 94382059	8-97109-654-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, K = 8-97187-654-0, 97187654	8-97137-332-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: J = 8-97187-653-0, 97187653	8-97203-865-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: E = 8-97133-854-0, 97133854	8-97062-660-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: E = 8-97133-854-0, 97133854	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: E = 8-97133-854-0, 97133854	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: E = 8-97133-854-0, 97133854	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94382-059-1, 94382059, J = 8-97187-653-0, 97187653	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, K = 8-97187-654-0, 97187654	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-94382-059-1, 94382059	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: E = 8-97133-854-0, 97133854	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: E = 8-97133-854-0, 97133854	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-94382-059-1, 94382059	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: E = 8-97133-854-0, 97133854	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: E = 8-97133-854-0, 97133854	8-94462-883-0	04	1	-

39 24 24 27 24 31 30 29 5 27 24 25 27 6 24 10 11 18 19 3 17 36 54 15 2 45 9 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

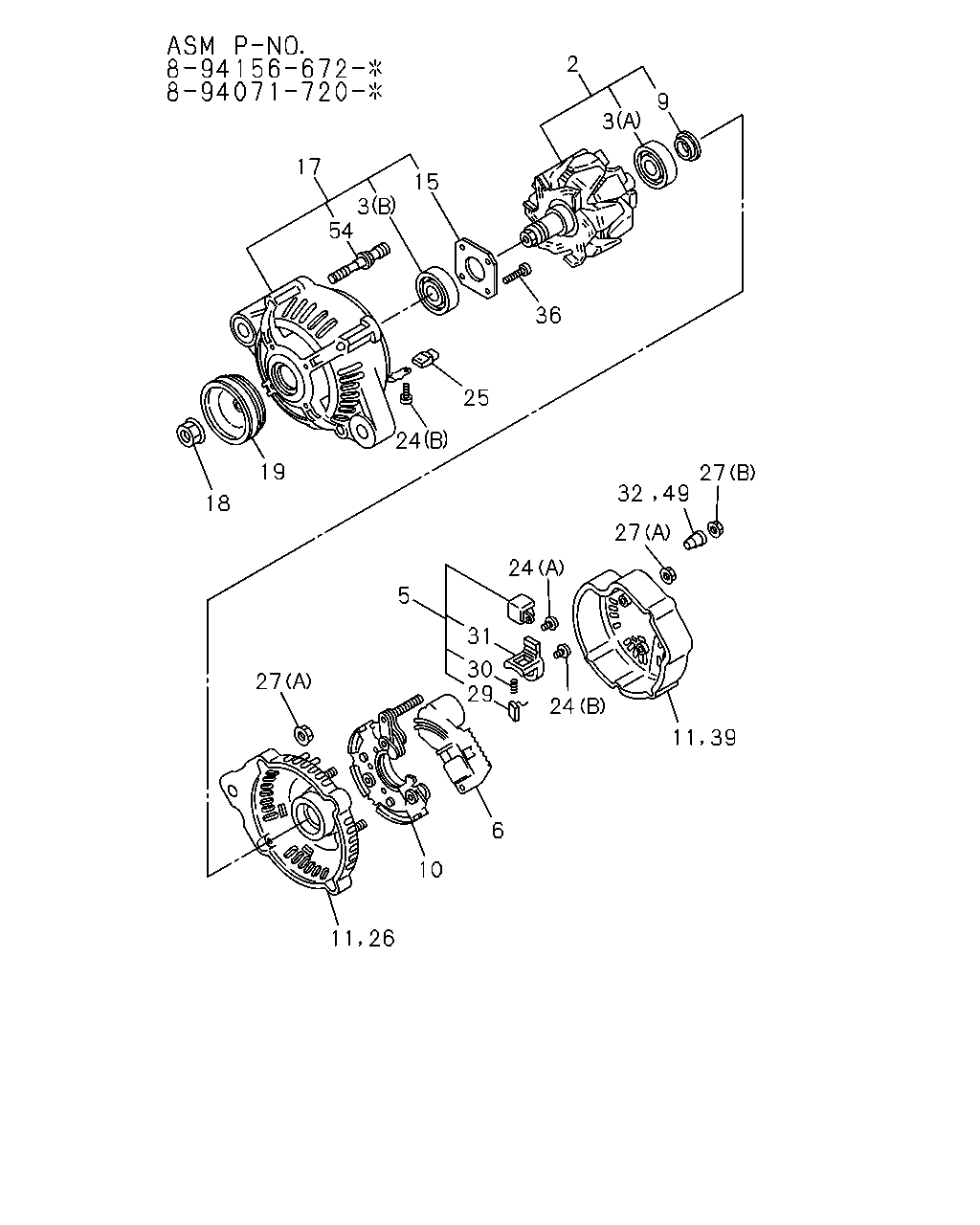

2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97137-004-0, 97137004, I = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94382-059-1, 94382059	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-2, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94455-369-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94382-059-1, 94382059, J = 8-97187-653-0, 97187653	8-97083-008-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: E = 8-97133-854-0, 97133854	8-97016-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: D = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: H = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-059-0	04	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: H = 8-97187-304-0, 97187304	8-94135-760-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: D = 8-97071-720-0, 97071720	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97187-304-0, 97187304	8-94206-186-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-605-0	01	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-014-2	01	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97040-495-0	01	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: D = 8-97071-720-0, 97071720	8-94123-047-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: H = 8-97187-304-0, 97187304	8-97142-562-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: A = 8-94156-672-2, 94156672	8-97148-282-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN 02.305 ASM PART: D = 8-97071-720-0, 97071720	8-94125-886-0	01	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-366-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97142-570-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-048-0	04	1	-

11 39 27 32 49 27 24 31 30 24 29 5 27 10 11 6 26 19 18 24 25 36 3 9 2 15 3 54 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

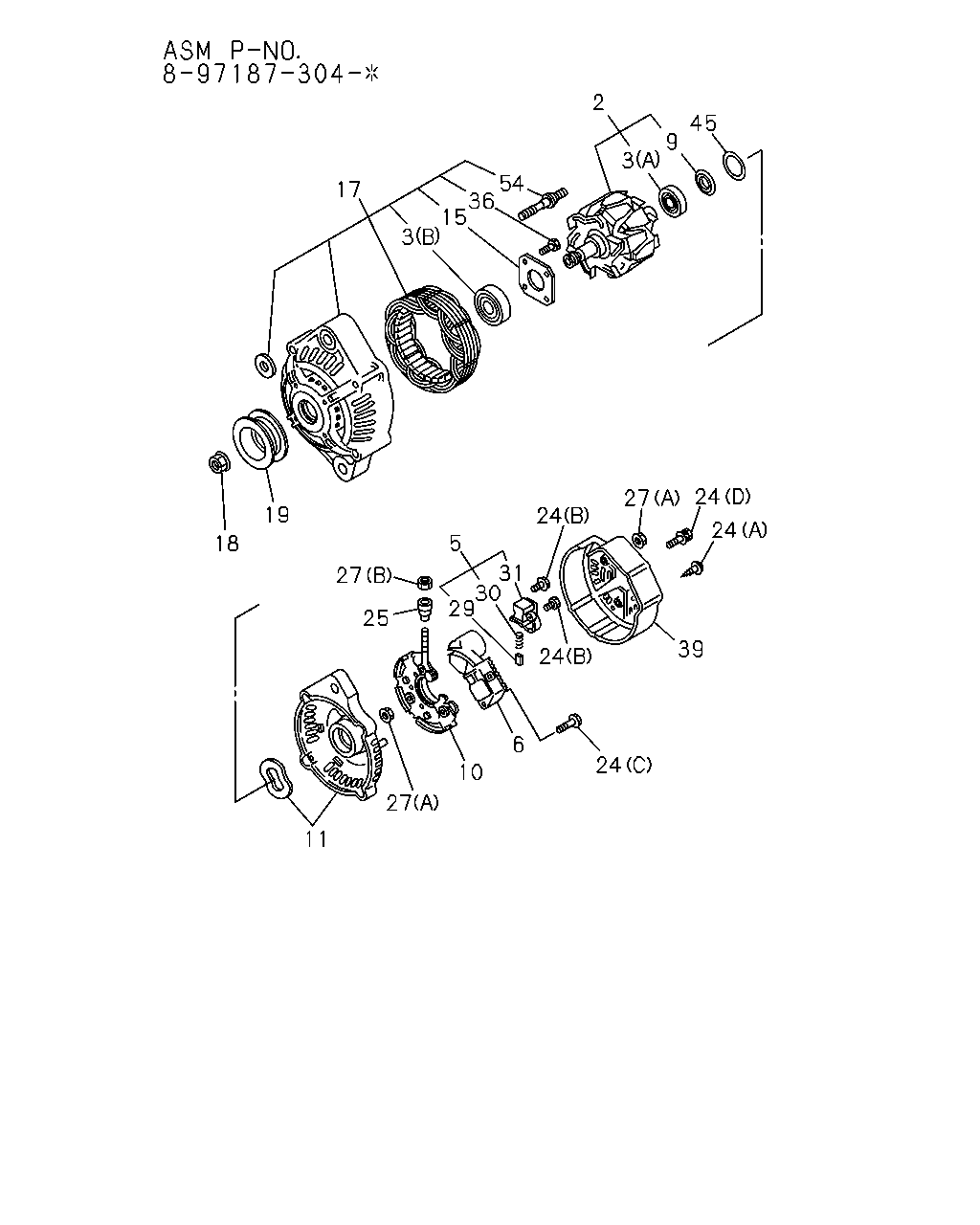

2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97137-004-0, 97137004, I = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94382-059-1, 94382059	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-2, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94455-369-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94382-059-1, 94382059, J = 8-97187-653-0, 97187653	8-97083-008-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: E = 8-97133-854-0, 97133854	8-97016-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: D = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: H = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-059-0	04	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: H = 8-97187-304-0, 97187304	8-94135-760-0	01	1	-
26	02.297 COVER; RR END,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94178-603-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: D = 8-97071-720-0, 97071720	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97187-304-0, 97187304	8-94206-186-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-605-0	01	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-014-2	01	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97040-495-0	01	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.298 ASM PART: D = 8-97071-720-0, 97071720	8-94123-059-0	01	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: D = 8-97071-720-0, 97071720	8-94123-047-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: H = 8-97187-304-0, 97187304	8-97142-562-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: A = 8-94156-672-2, 94156672	8-97148-282-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN 02.305 ASM PART: D = 8-97071-720-0, 97071720	8-94125-886-0	01	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-366-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672	8-94123-063-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-048-0	04	1	-

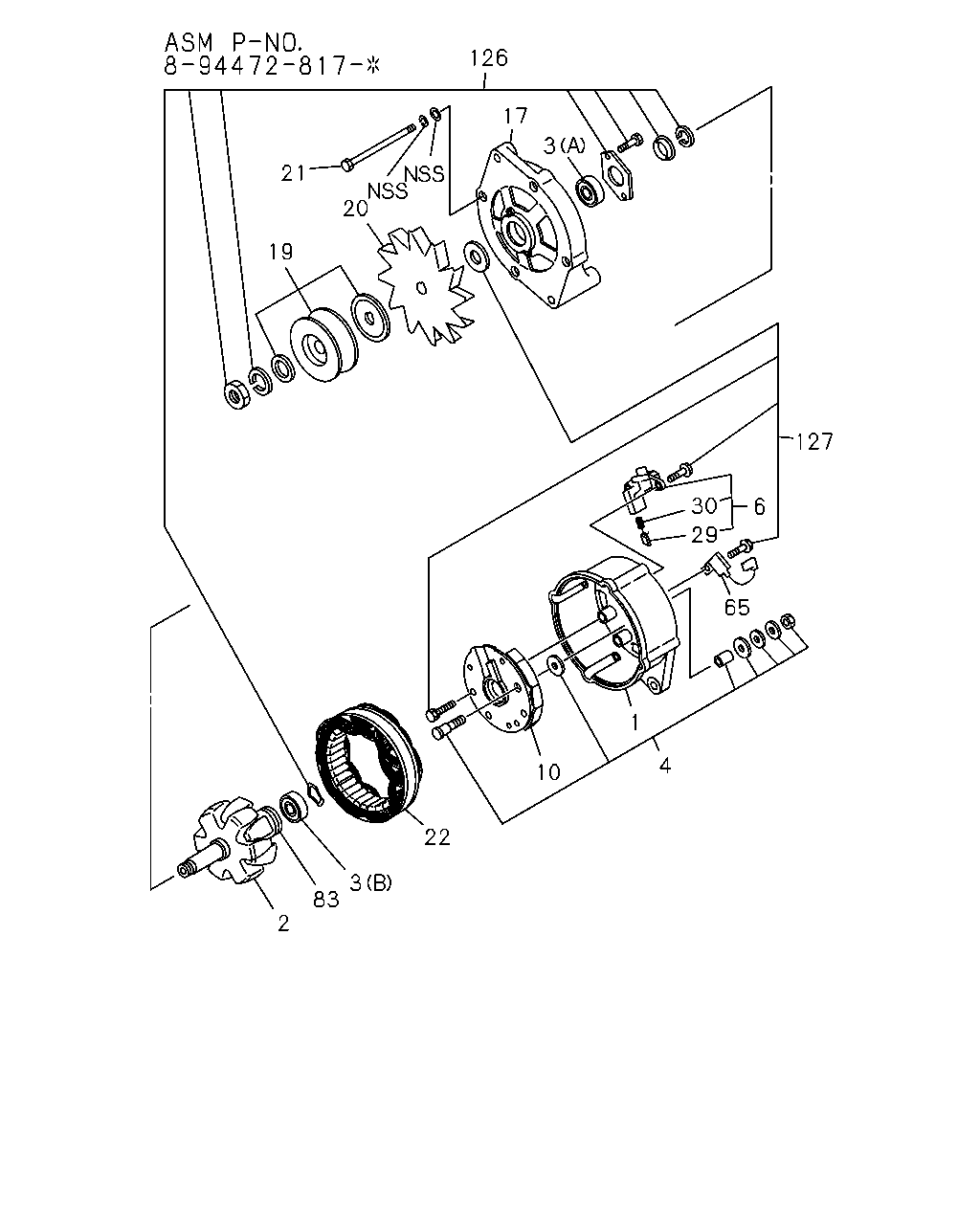

126 21 17 20 19 3 127 29 30 6 65 1 4 10 22 3 83 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-594-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97137-004-0, 97137004, I = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94382-059-1, 94382059, E = 8-97133-854-0, 97133854, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: H = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
4	02.291 TERMINAL; BRUSH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-602-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-94382-059-1, 94382059	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
20	02.274 FAN; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-597-0	04	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-94382-059-1, 94382059, G = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-707-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672, D = 8-97071-720-0, 97071720, H = 8-97187-304-0, 97187304	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-605-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-94382-059-1, 94382059, F = 8-97137-004-0, 97137004, G = 8-97137-009-0, 97137009, I = 8-97187-652-0, 97187652, J = 8-97187-653-0, 97187653, K = 8-97187-654-0, 97187654	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-598-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: E = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-701-0	01	1	-
126	02.279 RETAINER KIT; ROTOR,GEN ASM PART: C = 8-94472-817-4, 94472817	8-97130-600-0	01	1	-
127	02.277 BOLT SET; GEN ASM PART: C = 8-94472-817-4, 94472817	8-97161-598-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
