0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#36269) — 89 parça

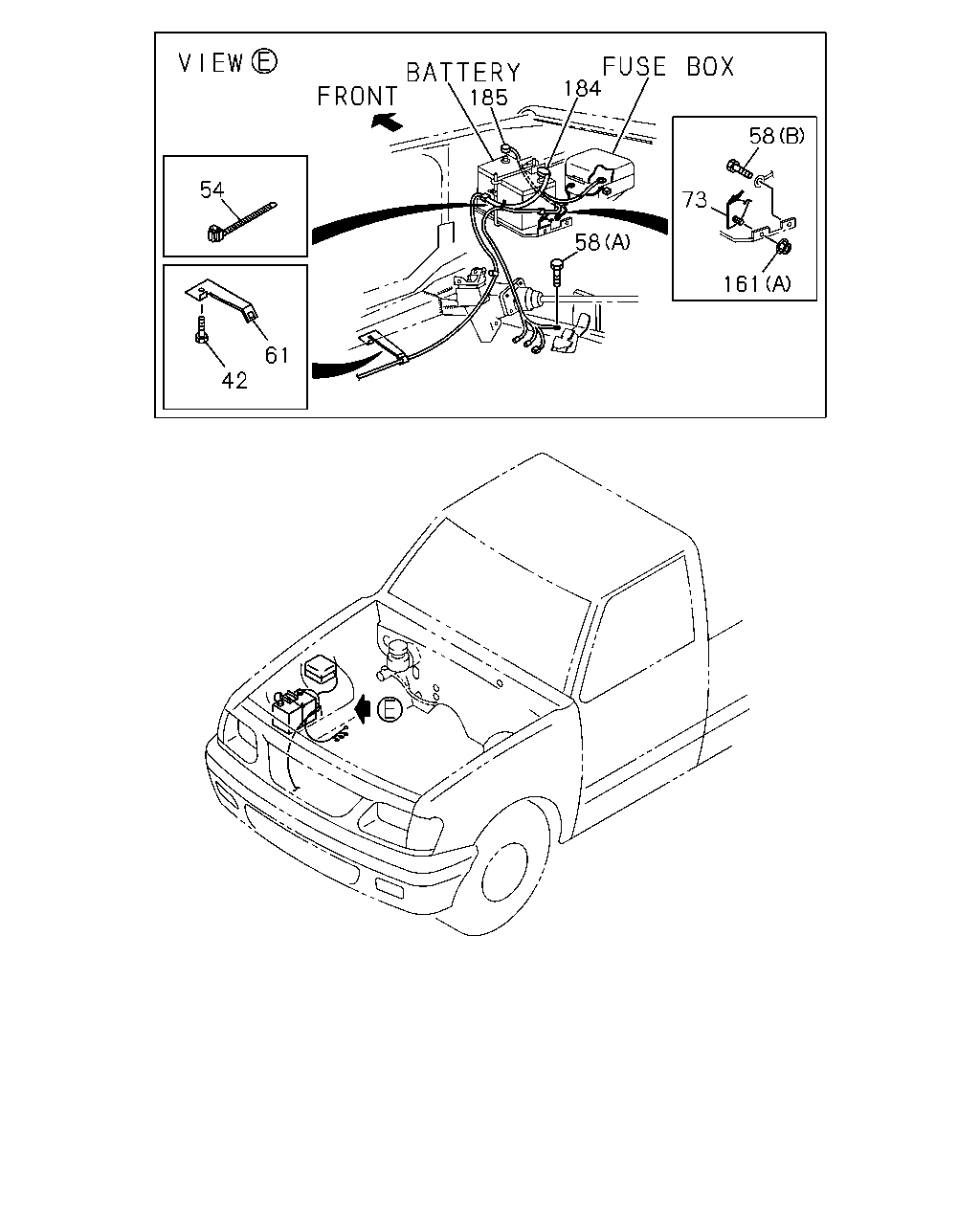

61 42 54 58 73 161 58 184 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
42	02.343 BOLT; BRKT,BATTERY CABLE 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9611-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-			●
54	02.587 CLIP; BAND,BATTERY CABLE 03.430 L=200	8-94464-835-0	01	1	9712-			●
58	02.343 BOLT; CABLE,BATTERY 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	9611-	●	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (D) M8X12 FLANGE	0-28080-812-0	01	1	9712-9712			●
58	02.343 BOLT; CABLE,BATTERY 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9801-			●
61	02.333 BRACKET; BATTERY CABLE (C)	8-94389-953-1	01	1	9611-				●	●	●
61	02.333 BRACKET; BATTERY CABLE 02.343 (A)	8-94315-286-0	01	1	9611-	●	●
61	02.333 BRACKET; BATTERY CABLE (B)	8-97077-656-0	01	1	9611-	●	●
61	02.333 BRACKET; BATTERY CABLE	8-97066-913-3	02	1	9712-			●
73	02.333 BRACKET; BATTERY CABLE	8-97803-308-0	01	1	9712-			●
161	02.343 NUT; BATTERY CABLE 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9712-			●
161	02.343 NUT; BATTERY CABLE (B) M6 W/LK WASHER	8-94424-179-0	01	1	9712-			●
184	02.525 HARNESS; CABLE,BATTERY (+)	8-97186-414-1	01	1	9712-			●
185	02.525 HARNESS; CABLE,BATTERY (-) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU)	8-97135-207-0	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU)	8-97149-914-1	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97143-375-3	01	1	9611-	●	●
185	02.525 HARNESS; CABLE,BATTERY (-)	8-97177-475-3	01	1	9712-			●

75 75 87 147 55 58 185 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	02.334 BOLT; CLIP,BATTERY CABLE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9712-			●
58	02.343 BOLT; CABLE,BATTERY 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	9611-	●	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (D) M8X12 FLANGE	0-28080-812-0	01	1	9712-9712			●
58	02.343 BOLT; CABLE,BATTERY 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9801-			●
75	02.333 BOLT; BRKT 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9611-	●	●
75	02.333 BOLT; BRKT 03.604 (A) M10X16 FLANGE	0-28181-016-0	01	1	9712-			●
75	02.333 BOLT; BRKT 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9712-			●
87	02.343 BRACKET; HARNESS	8-97130-483-1	01	1	9712-			●
147	02.559 CLIP; HARNESS 03.162	5-09709-095-0	01	1	9712-			●
161	02.343 NUT; BATTERY CABLE 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9712-			●
161	02.343 NUT; BATTERY CABLE (B) M6 W/LK WASHER	8-94424-179-0	01	1	9712-			●
185	02.525 HARNESS; CABLE,BATTERY (-) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU)	8-97135-207-0	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU)	8-97149-914-1	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97143-375-3	01	1	9611-	●	●
185	02.525 HARNESS; CABLE,BATTERY (-)	8-97177-475-3	01	1	9712-			●

9 61 3 46 50 58 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 34B19R S MF(6QV)	8-94341-263-1	01	1	9611-				●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 34B19R S MF(6QV)	8-94317-843-3	01	1	9611-				●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE ELECTRIC FUEL INJECTION<6GG>	8-94386-293-1	01	1	9611-						●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. ELECTRIC FUEL INJECTION<6GG>	8-97015-329-1	01	1	9611-						●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97079-137-3	01	1	9611-9612	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97079-137-4	01	1	9701-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. EAST MALAYSIA EQUIPMENT(PM6)	8-97079-137-4	01	1	9701-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EAST MALAYSIA EQUIPMENT(PM6)	8-97079-138-2	01	1	9701-		●
9	02.343 CLIP; BATTERY CABLE 02.559 ID=20.5 H=21 L=23	8-94389-952-0	01	1	9611-				●	●	●
46	02.341 CABLE; BATTERY TO FUSE BOX	8-94317-787-2	01	1	9611-	●	●		●	●	●
50	02.341 CABLE; BATTERY TO BODY (-) BATTERY 34B19R S MF(6QV)	8-94434-683-4	01	1	9611-				●	●
50	02.341 CABLE; BATTERY TO BODY (-)	8-94434-683-4	01	1	9611-						●
50	02.341 CABLE; BATTERY TO BODY (-) EXC. BATTERY 34B19R S MF(6QV)	8-94435-269-3	01	1	9611-				●	●
58	02.343 BOLT; CABLE,BATTERY 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	9611-	●	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (D) M8X12 FLANGE	0-28080-812-0	01	1	9712-9712			●
58	02.343 BOLT; CABLE,BATTERY 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9801-			●
61	02.333 BRACKET; BATTERY CABLE (C)	8-94389-953-1	01	1	9611-				●	●	●
61	02.333 BRACKET; BATTERY CABLE 02.343 (A)	8-94315-286-0	01	1	9611-	●	●
61	02.333 BRACKET; BATTERY CABLE (B)	8-97077-656-0	01	1	9611-	●	●
61	02.333 BRACKET; BATTERY CABLE	8-97066-913-3	02	1	9712-			●

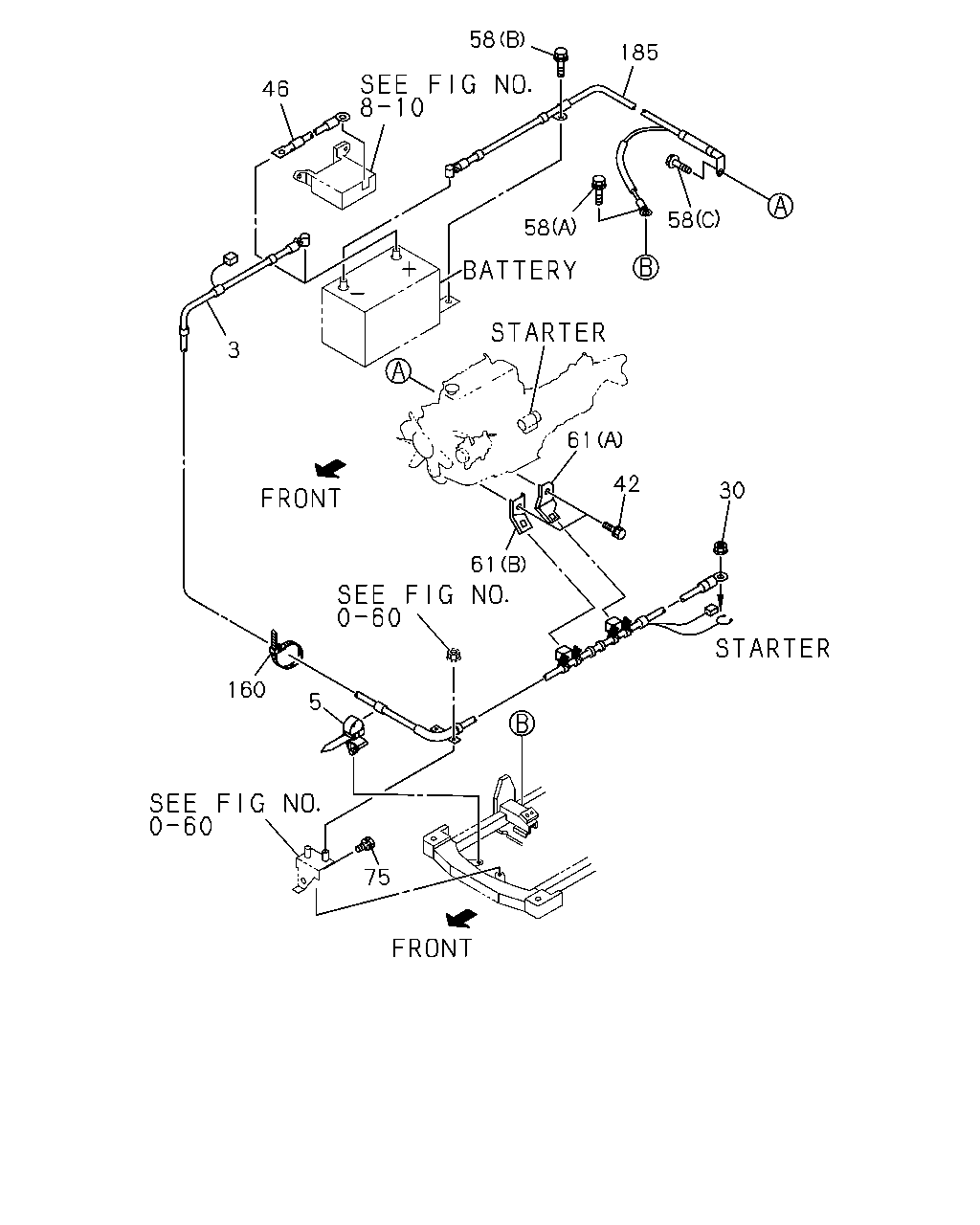

75 5 160 61 42 61 30 58 58 185 58 46 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 34B19R S MF(6QV)	8-94341-263-1	01	1	9611-				●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 34B19R S MF(6QV)	8-94317-843-3	01	1	9611-				●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE ELECTRIC FUEL INJECTION<6GG>	8-94386-293-1	01	1	9611-						●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. ELECTRIC FUEL INJECTION<6GG>	8-97015-329-1	01	1	9611-						●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97079-137-3	01	1	9611-9612	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97079-137-4	01	1	9701-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. EAST MALAYSIA EQUIPMENT(PM6)	8-97079-137-4	01	1	9701-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EAST MALAYSIA EQUIPMENT(PM6)	8-97079-138-2	01	1	9701-		●
5	02.559 CLIP; BATTERY CABLE TO BODY 02.587 L=172	8-94232-620-0	01	1	9611-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9611-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9611-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-			●
46	02.341 CABLE; BATTERY TO FUSE BOX	8-94317-787-2	01	1	9611-	●	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	9611-	●	●		●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9611-	●	●	●	●	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (D) M8X12 FLANGE	0-28080-812-0	01	1	9712-9712			●
58	02.343 BOLT; CABLE,BATTERY 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9801-			●
61	02.333 BRACKET; BATTERY CABLE (C)	8-94389-953-1	01	1	9611-				●	●	●
61	02.333 BRACKET; BATTERY CABLE 02.343 (A)	8-94315-286-0	01	1	9611-	●	●
61	02.333 BRACKET; BATTERY CABLE (B)	8-97077-656-0	01	1	9611-	●	●
61	02.333 BRACKET; BATTERY CABLE	8-97066-913-3	02	1	9712-			●
75	02.333 BOLT; BRKT 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9611-	●	●
75	02.333 BOLT; BRKT 03.604 (A) M10X16 FLANGE	0-28181-016-0	01	1	9712-			●
75	02.333 BOLT; BRKT 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9712-			●
160	02.343 CLIP; BATTERY CABLE UNITED KINGDOM EQUIPMENT(EK3) 03.162 L=140	5-09707-031-1	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU)	8-97135-207-0	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU)	8-97149-914-1	01	1	9611-	●
185	02.525 HARNESS; CABLE,BATTERY (-) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97143-375-3	01	1	9611-	●	●
185	02.525 HARNESS; CABLE,BATTERY (-)	8-97177-475-3	01	1	9712-			●
