0-60 — ENGINE ELECTRICAL CONTROL PARTS (#36268) — 248 parça

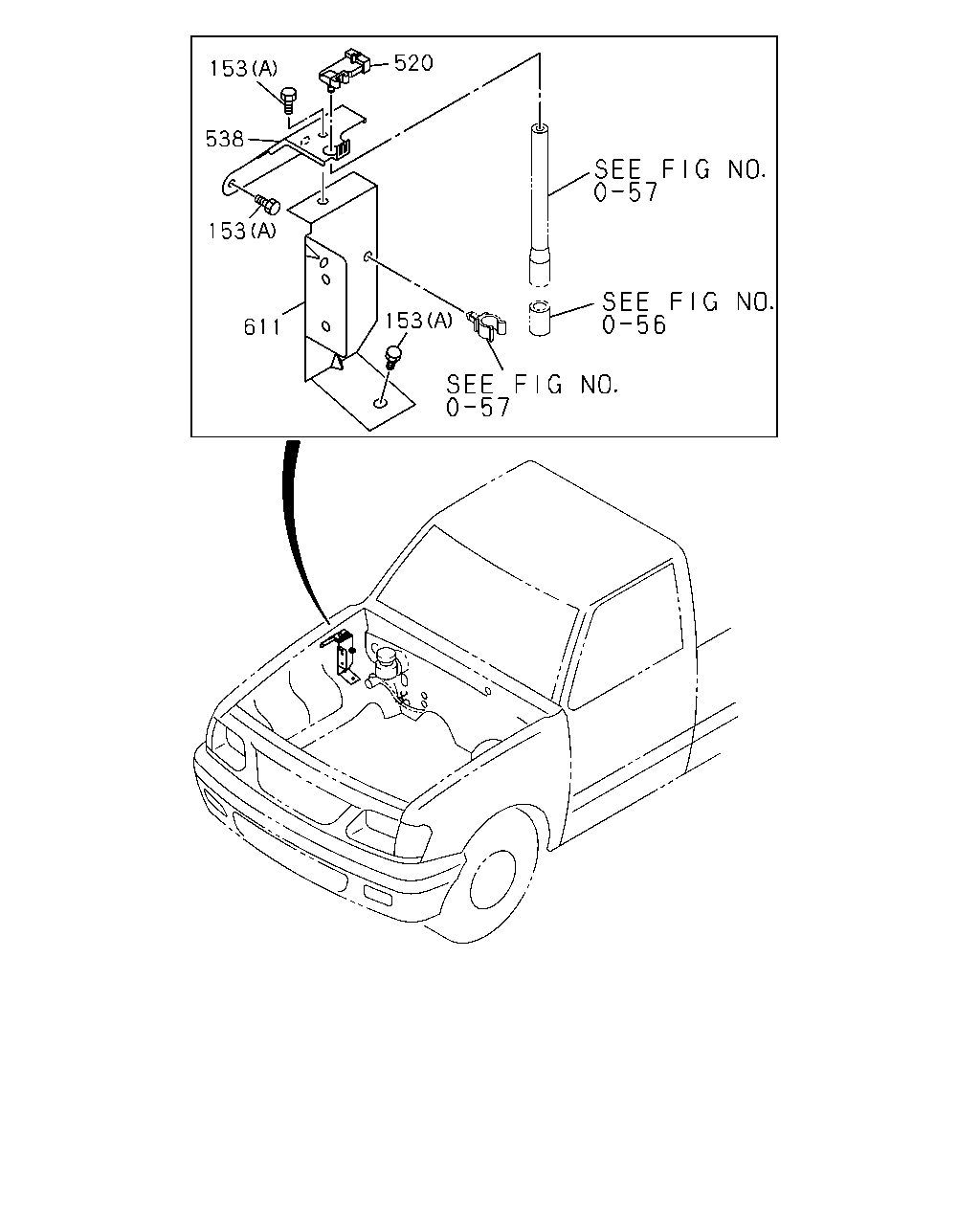

çizim 17570
153 611 153 538 153 520
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
153 02.510 BOLT; BRKT FIX
01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
153 02.510 BOLT; BRKT FIX
02.500 (B) M6X10 FLANGE 		0-28080-610-0 05 1 9712- ●
520 01.800 SENSOR; PRESSURE 8-16258-659-0 01 1 9712- ●
538 03.670 BRACKET; PRESSURE SENSOR 8-97180-218-0 01 1 9712- ●
611 01.150 BRACKET; SENSOR
03.671 		8-94475-021-2 01 1 9712- ●
çizim 17868
124 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ● ●
10 02.100 RELAY; STARTER
ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A 		8-97060-926-1 01 1 9611- ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9712- ●
124 01.150 SENSOR; OXYGEN
AUSTRALIA EQUIPMENT(RR3) 		8-97172-293-0 01 1 9712- ●

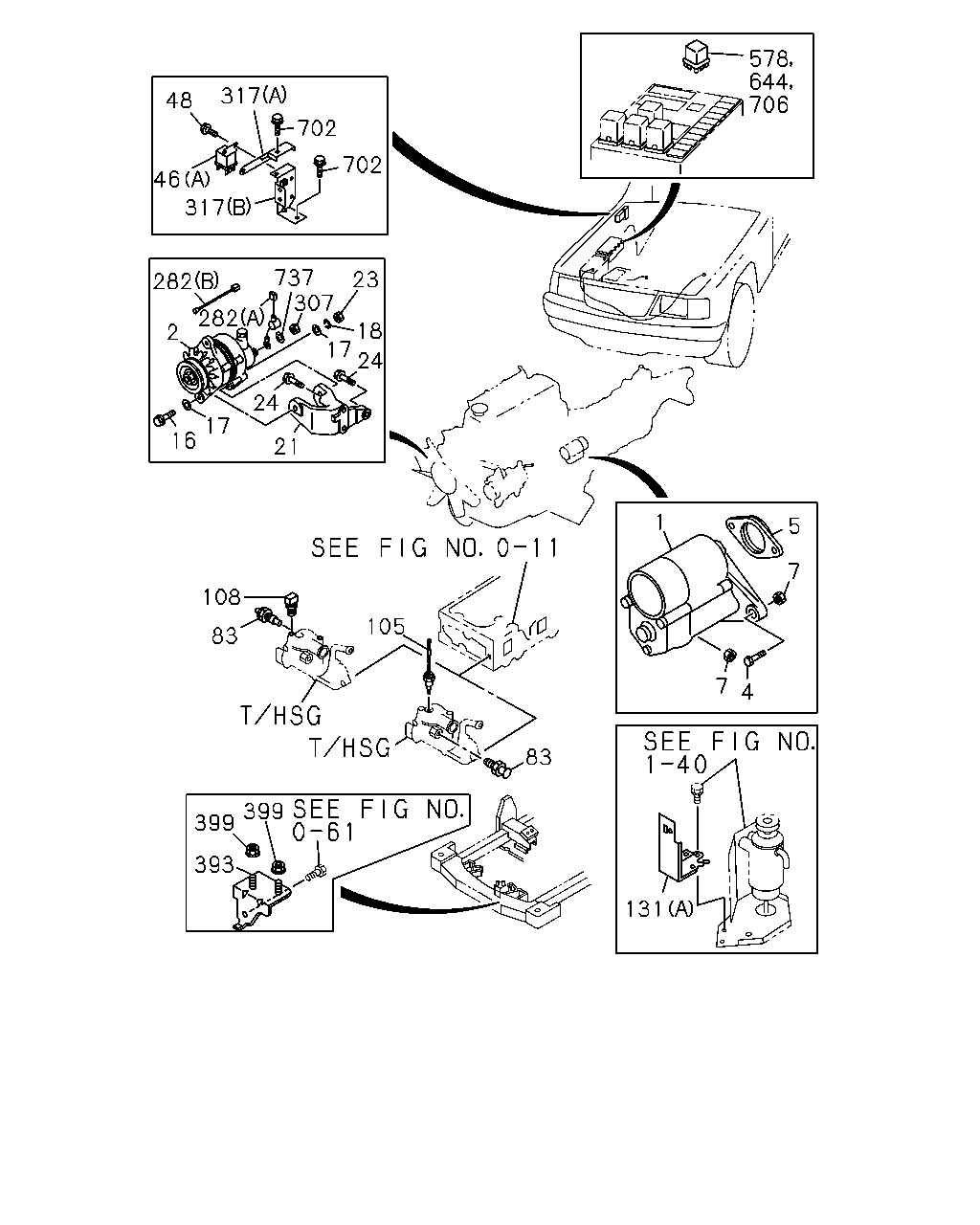

çizim 18448
48 46 317 317 702 702 282 2 282 737 307 23 18 17 24 24 21 17 16 578 644 706 1 5 7 7 4 131 399 393 83 105 83 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9611- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.3KW 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.0KW 		8-94448-959-3 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-94472-817-4 01 1 9611- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG> 12V 55A 		8-94472-817-4 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) ELECTRIC FUEL INJECTION<6GG> 12V 55A 		8-94156-672-2 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) 12V 75A 		8-97071-720-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. GENERATOR 80A(K97) 12V 50A 		8-97187-653-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 40A 		8-97137-004-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 40A 		8-97187-652-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97137-009-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97187-654-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9611- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9712- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9712- ●
5 02.042 DISTANCE; STARTER
EAST MALAYSIA EQUIPMENT(PM6) 		8-97045-783-0 01 1 9611- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9611- ● ● ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9611- ● ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9611- ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9712- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9611-9701 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9611-9612 ● ● ● ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9701-9703 ● ● ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9611- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97160-605-1 01 1 9712- ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9611-9701 ● ● ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9701-9703 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ●
46 02.510 RELAY; GLOW PLUG
COLD START DEVICE<7LY> (B) 		8-97068-785-0 01 1 9611-9711 ●
46 02.510 RELAY; GLOW PLUG
LONG(TF***F) COLD START DEVICE<7LY> (B) 		8-97068-785-0 01 1 9611-9711 ●
46 02.510 RELAY; GLOW PLUG
(A) 		8-94459-495-0 01 1 9611- ● ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9611-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
105 01.150 SWITCH; THERMO,QOS
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94457-511-0 01 1 9611- ● ●
108 01.150 SWITCH; THERMO
UNITED KINGDOM EQUIPMENT(EK3) 		8-97069-786-1 01 1 9611- ●
131 03.670 BRACKET; EGR
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97143-001-0 01 1 9611- ●
131 03.670 BRACKET; EGR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97136-159-1 01 1 9701- ●
282 02.480 HARNESS; EXT,GEN
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97069-208-0 01 1 9611- ●
282 02.480 HARNESS; EXT,GEN
(B) 		8-94457-269-2 01 1 9611- ●
307 02.483 NUT; EXT HARNESS
AUSTRALIA EQUIPMENT(RR3) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9611- ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9611- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9611- ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9611- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9611- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. ELECTRIC FUEL INJECTION<6GG> 12V 		8-97063-441-1 01 1 9611- ●
644 02.510 RELAY; COLD START DEVICE
EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY> 08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9611- ●
702 02.500 BOLT; RELAY
LONG(TF***F) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9611- ●
706 02.510 RELAY; QWS
UNITED KINGDOM EQUIPMENT(EK3) 08.852 12V 20A 		8-97060-926-1 01 1 9611- ●
737 03.901 WASHER; PL
AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.4 		9-09160-506-0 01 1 9611- ●

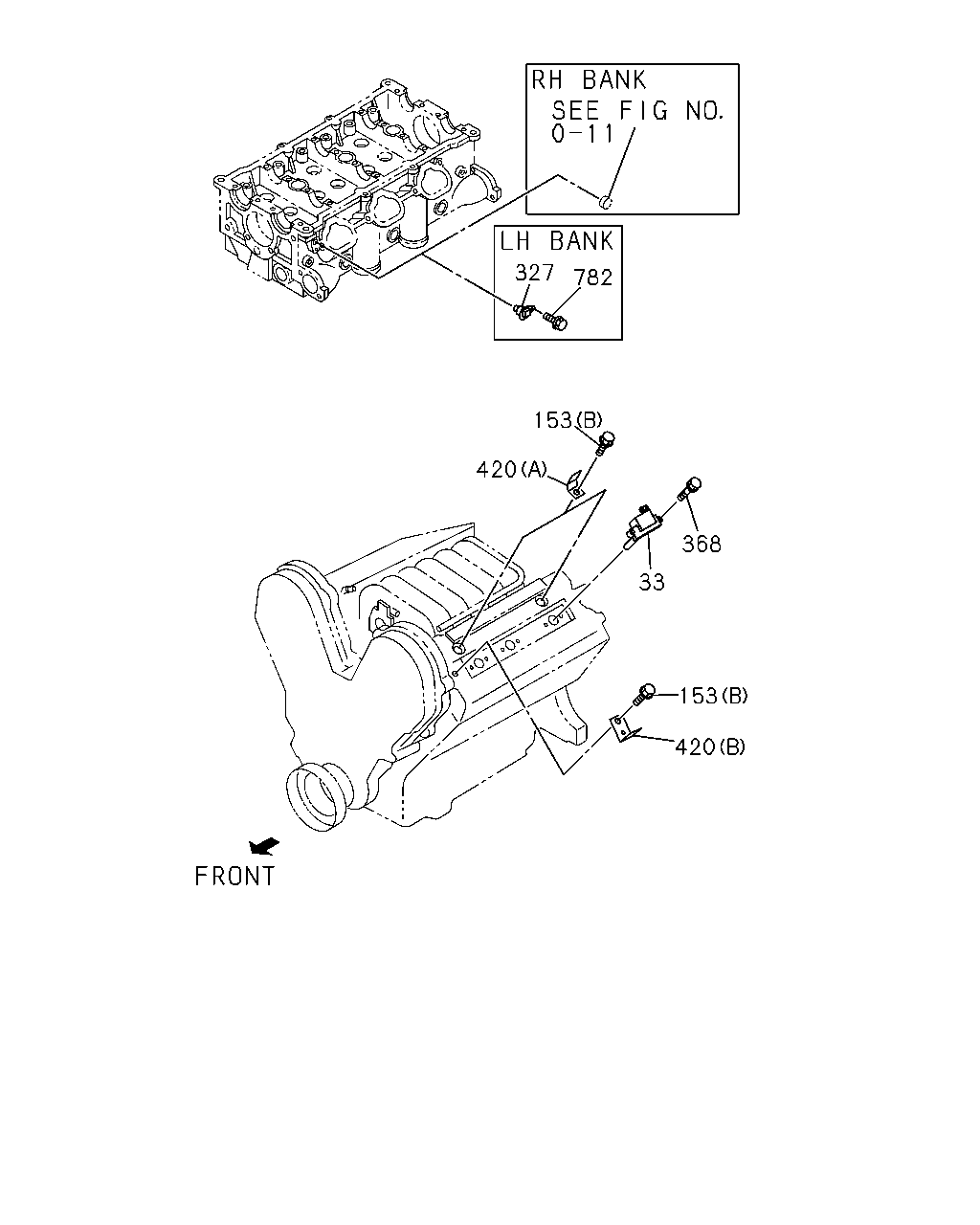

çizim 19275
420 153 33 368 153 420 327 782
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 02.170 COIL ASM; IGN 8-94416-513-0 01 1 9611- ● ●
33 02.170 COIL ASM; IGN
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94416-513-0 01 1 9611- ●
33 02.170 COIL ASM; IGN
ELECTRIC FUEL INJECTION<6GG> 		8-94338-923-0 01 1 9611- ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9712- ●
153 02.510 BOLT; BRKT FIX
01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
153 02.510 BOLT; BRKT FIX
02.500 (B) M6X10 FLANGE 		0-28080-610-0 05 1 9712- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 9712- ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 9712- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9712- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9712- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●

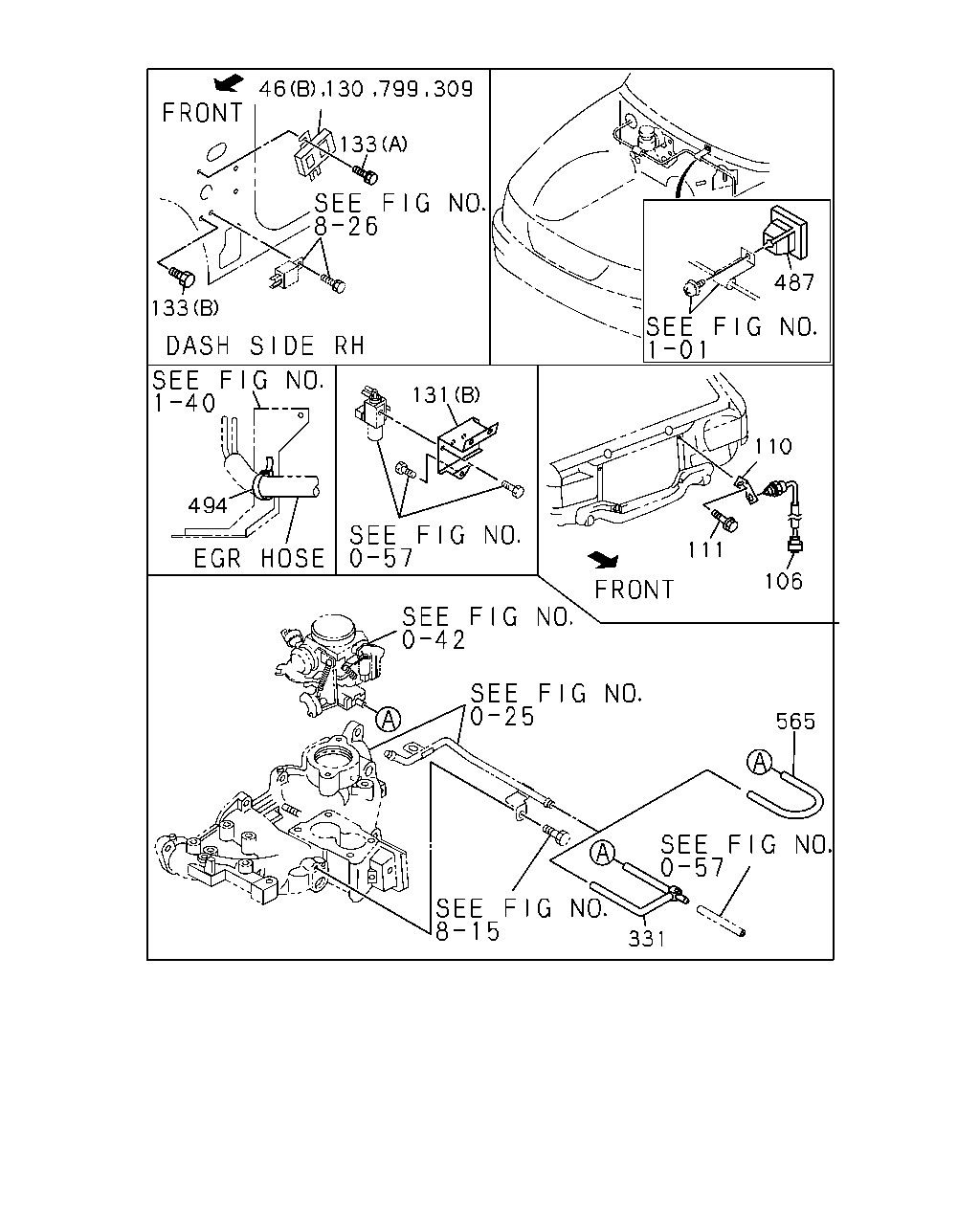

çizim 69671
46 130 799 309 133 133 487 110 111 106 131 494 331 565
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 02.510 RELAY; GLOW PLUG
COLD START DEVICE<7LY> (B) 		8-97068-785-0 01 1 9611-9711 ●
46 02.510 RELAY; GLOW PLUG
LONG(TF***F) COLD START DEVICE<7LY> (B) 		8-97068-785-0 01 1 9611-9711 ●
46 02.510 RELAY; GLOW PLUG
(A) 		8-94459-495-0 01 1 9611- ● ●
106 01.150 SWITCH; THERMO,AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97019-773-0 01 1 9611- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97079-795-0 01 1 9611- ●
111 01.251 BOLT; SWITCH BRKT
UNITED KINGDOM EQUIPMENT(EK3) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9711 ●
111 01.251 BOLT; SWITCH BRKT
UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ●
130 02.510 CONTROLLER; EGR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97161-781-1 01 1 9701- ●
131 03.670 BRACKET; EGR
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97143-001-0 01 1 9611- ●
131 03.670 BRACKET; EGR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97136-159-1 01 1 9701- ●
133 02.500 BOLT; EGR CONTROLLER
UNITED KINGDOM EQUIPMENT(EK3) 06.635 (A) M6X16 FLANGE 		0-28480-616-0 02 1 9611-9612 ●
133 02.500 BOLT; EGR CONTROLLER
UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 06.635 (A) M6X16 FLANGE 		0-28480-616-0 02 1 9701- ● ●
133 02.500 BOLT; EGR CONTROLLER
03.342 (B) M6X16 		8-97012-496-0 02 1 9611- ● ●
309 02.510 TIMER; AFTER GLOW,QOS
COLD START DEVICE<7LY> 		8-97068-785-0 01 1 9712- ●
309 02.510 TIMER; AFTER GLOW,QOS
LONG(TF***F) COLD START DEVICE<7LY> 		8-97068-785-0 01 1 9712- ●
331 03.726 HOSE; CARB TO 3 WAY
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94372-343-1 01 1 9611-9711 ●
487 02.343 NUT
09.190 D=9.7X9.7 L=8 		8-94222-314-0 01 1 9611- ●
487 02.343 NUT
LONG(TF***F) 09.190 D=9.7X9.7 L=8 		8-94222-314-0 01 1 9611- ●
494 02.420 CLIP; BAND
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 02.587 L=172 		8-94232-620-0 01 1 9701- ●
565 03.672 HOSE; RUBBER
08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9611- ● ●
799 02.510 CONTROLLER; EGR/QOS
UNITED KINGDOM EQUIPMENT(EK3) 		8-97116-503-2 01 1 9611- ●
799 02.510 CONTROLLER; EGR/QOS
EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY> 		8-97068-786-0 01 1 9611- ● ●

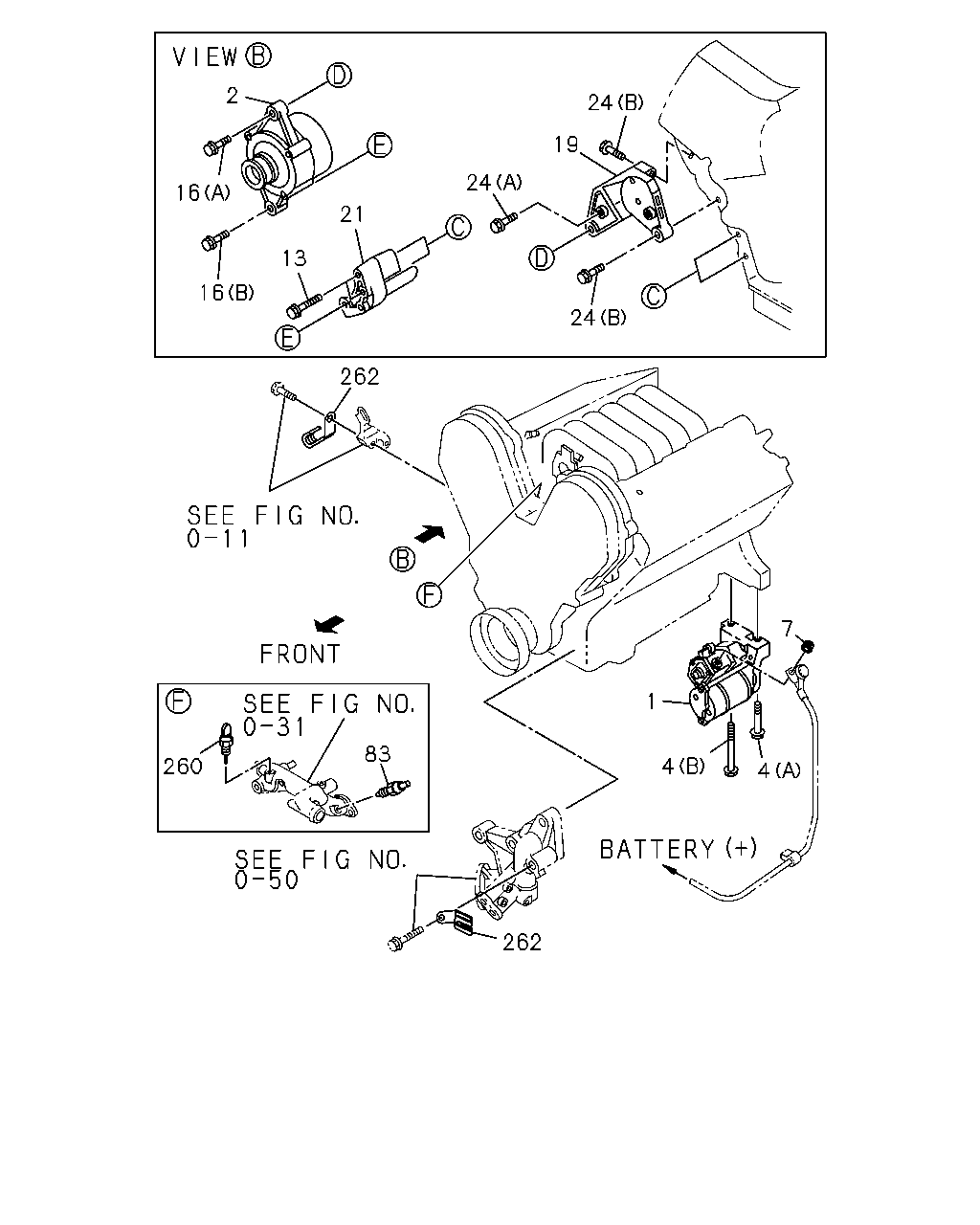

çizim 70009
2 16 16 13 21 24 19 24 24 262 260 83 262 1 4 4 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9611- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.3KW 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.0KW 		8-94448-959-3 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-94472-817-4 01 1 9611- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG> 12V 55A 		8-94472-817-4 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) ELECTRIC FUEL INJECTION<6GG> 12V 55A 		8-94156-672-2 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) 12V 75A 		8-97071-720-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. GENERATOR 80A(K97) 12V 50A 		8-97187-653-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 40A 		8-97137-004-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 40A 		8-97187-652-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97137-009-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97187-654-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9611- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9712- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9712- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9611- ● ● ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9611- ● ●
13 02.100 BOLT; BRKT
09.171 M8X90 FLANGE 		0-28080-890-0 02 1 9712- ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9611- ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9712- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
19 02.277 BRACKET; GEN 8-97160-604-1 01 1 9712- ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9611- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97160-605-1 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9611-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
260 01.150 SENSOR; WATER TEMP
ELECTRIC FUEL INJECTION<6GG> 03.682 		8-94205-866-0 01 1 9611- ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9712- ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 02 1 9712- ●

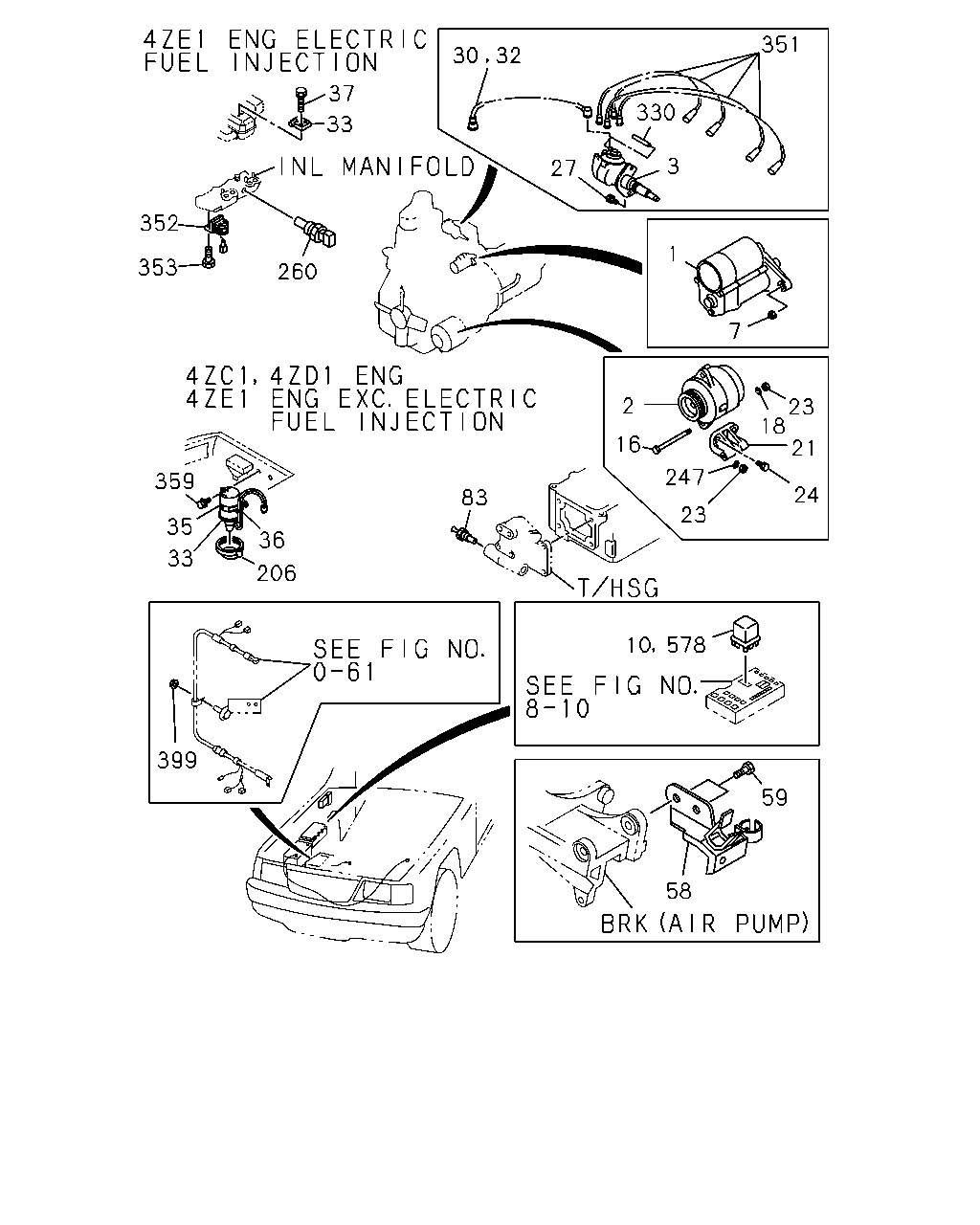

çizim 70014
352 353 260 359 35 33 36 206 399 58 59 578 10 83 2 16 247 23 24 21 18 23 1 7 3 27 330 351 32 30 37 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9611- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.3KW 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.0KW 		8-94448-959-3 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-94472-817-4 01 1 9611- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG> 12V 55A 		8-94472-817-4 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) ELECTRIC FUEL INJECTION<6GG> 12V 55A 		8-94156-672-2 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) 12V 75A 		8-97071-720-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9611- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. GENERATOR 80A(K97) 12V 50A 		8-97187-653-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 40A 		8-97137-004-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 40A 		8-97187-652-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97137-009-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97187-654-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9611- ● ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94476-142-1 01 1 9611- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. ELECTRIC FUEL INJECTION<6GG> 		8-97040-454-0 01 1 9611- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9611- ● ● ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9611- ● ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ● ●
10 02.100 RELAY; STARTER
ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A 		8-97060-926-1 01 1 9611- ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9712- ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9611- ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9712- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9611-9612 ● ● ● ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9701-9703 ● ● ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9611- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97160-605-1 01 1 9712- ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9611-9701 ● ● ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9701-9703 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ●
27 02.363 BOLT; DISTR
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9611-9612 ● ● ●
27 02.363 BOLT; DISTR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9701- ● ● ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9611- ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94329-908-0 01 1 9611- ●
32 02.525 CABLE; DISTR TO IGN COIL
ELECTRIC FUEL INJECTION<6GG> 		8-94449-496-1 01 1 9611- ●
33 02.170 COIL ASM; IGN 8-94416-513-0 01 1 9611- ● ●
33 02.170 COIL ASM; IGN
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94416-513-0 01 1 9611- ●
33 02.170 COIL ASM; IGN
ELECTRIC FUEL INJECTION<6GG> 		8-94338-923-0 01 1 9611- ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9712- ●
35 02.183 BRACKET; IGN COIL 8-94109-761-0 01 1 9611- ● ●
35 02.183 BRACKET; IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94109-761-0 01 1 9611- ●
36 02.239 WIRE; IGN COIL 8-94416-512-0 01 1 9611- ● ●
36 02.239 WIRE; IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94416-512-0 01 1 9611- ●
37 02.559 BOLT; IGN COIL
ELECTRIC FUEL INJECTION<6GG> M6X28 		0-28080-628-0 02 1 9611- ●
58 02.343 BRACKET; CLIP
POWER STEERING<N40> 		8-94386-240-0 01 1 9611- ● ● ●
59 02.343 BOLT; BRKT,HARNESS CLIP
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9611-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
206 02.183 CAP; IGN COIL 8-94235-010-0 01 1 9611- ● ●
206 02.183 CAP; IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94235-010-0 01 1 9611- ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9611- ● ● ●
260 01.150 SENSOR; WATER TEMP
ELECTRIC FUEL INJECTION<6GG> 03.682 		8-94205-866-0 01 1 9611- ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9712- ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9611- ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9611- ●
351 02.239 CABLE KIT; HIGH TENSION 8-94433-364-1 01 1 9611- ● ● ●
352 02.188 SWITCH ASM; POWER,IGN COIL
ELECTRIC FUEL INJECTION<6GG> 		8-97094-755-0 01 1 9611- ●
353 02.195 BOLT; POWER SW,IGN COIL
ELECTRIC FUEL INJECTION<6GG> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9611- ●
359 02.393 SCREW; COIL TO BODY 8-94457-204-0 02 1 9611- ● ●
359 02.393 SCREW; COIL TO BODY
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94457-204-0 02 1 9611- ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9611- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. ELECTRIC FUEL INJECTION<6GG> 12V 		8-97063-441-1 01 1 9611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
