Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#36267) — 161 parça

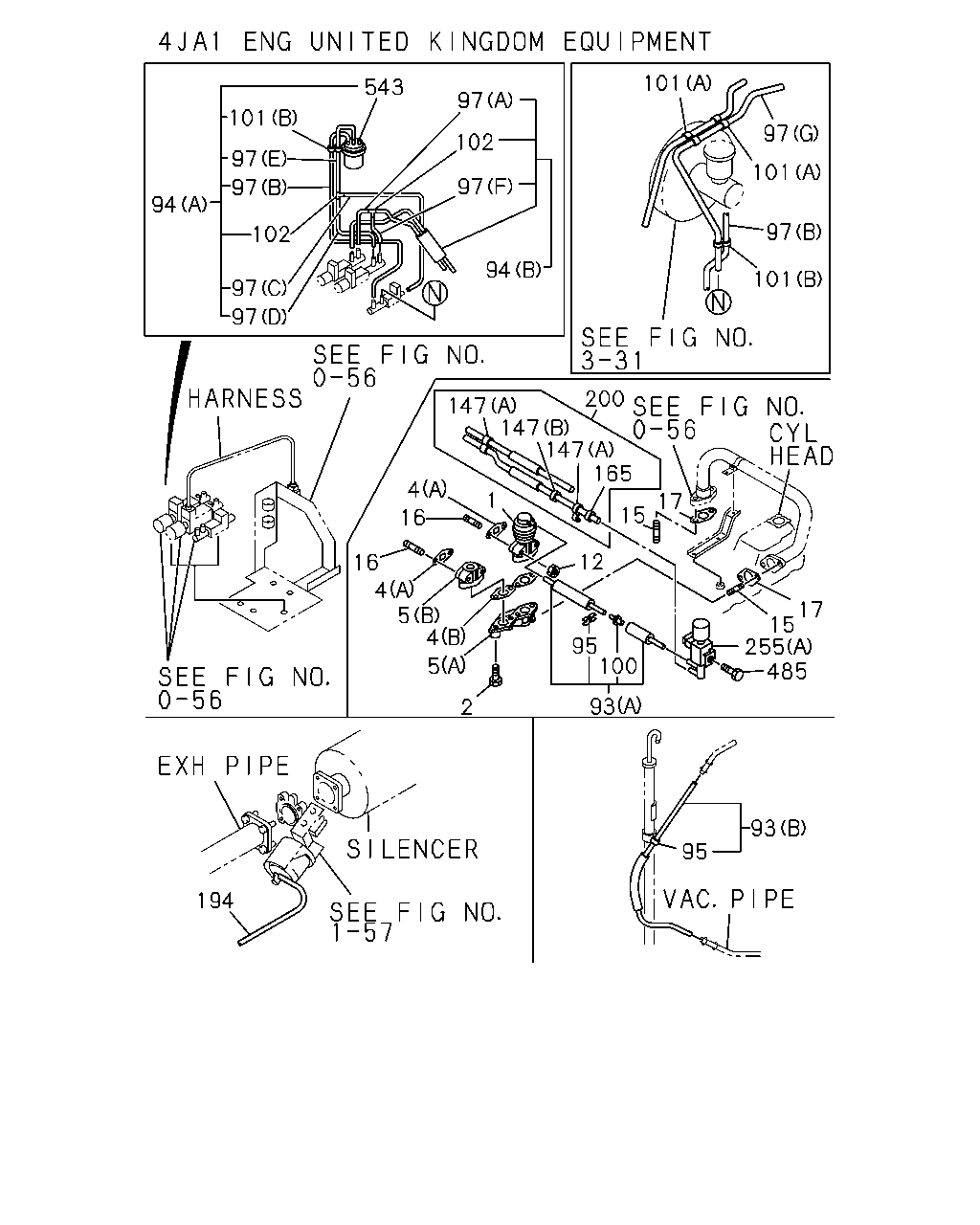

543 97 102 97 94 101 97 97 94 102 97 97 101 97 101 97 101 200 147 147 147 165 17 15 12 4 1 16 16 4 5 4 5 2 95 100 93 17 15 255 485 93 95 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97135-674-2	01	1	9611-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9701-		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9611-9612	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9701-	●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-				●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-			●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97117-260-0	01	1	9611-	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97136-007-0	01	1	9611-	●
5	03.670 ADAPTER ASM EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97117-259-0	01	1	9701-		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	04	1	9611-9612	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	04	1	9701-	●	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-9612	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9701-	●	●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9611-9612	●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9701-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9611-9612	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9701-	●	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97164-874-0	01	1	9611-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9611-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9611-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9611-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=610 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) 2WAY	8-97165-694-0	01	1	9611-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9611-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9611-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9611-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) 3WAY	8-94208-695-0	02	1	9611-	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9611-	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
165	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) 2WAY	8-94313-805-0	01	1	9611-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9611-	●
200	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3)	8-97142-689-2	01	1	9611-	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670 (A)	8-97043-750-0	01	1	9611-9612	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9701-	●	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9701-		●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9611-	●
485	03.671 BOLT; VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9701-		●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9611-	●

2 4 179 82 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9611-9612	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9701-	●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-				●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-			●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI	8-97136-220-0	01	1	9712-			●
82	03.680 JOINT; 3 WAY 03.163	8-97061-674-0	01	1	9712-			●
179	03.675 CLIP; PIPE CLAMP 03.163 ID=11	8-94238-570-0	01	1	9712-			●

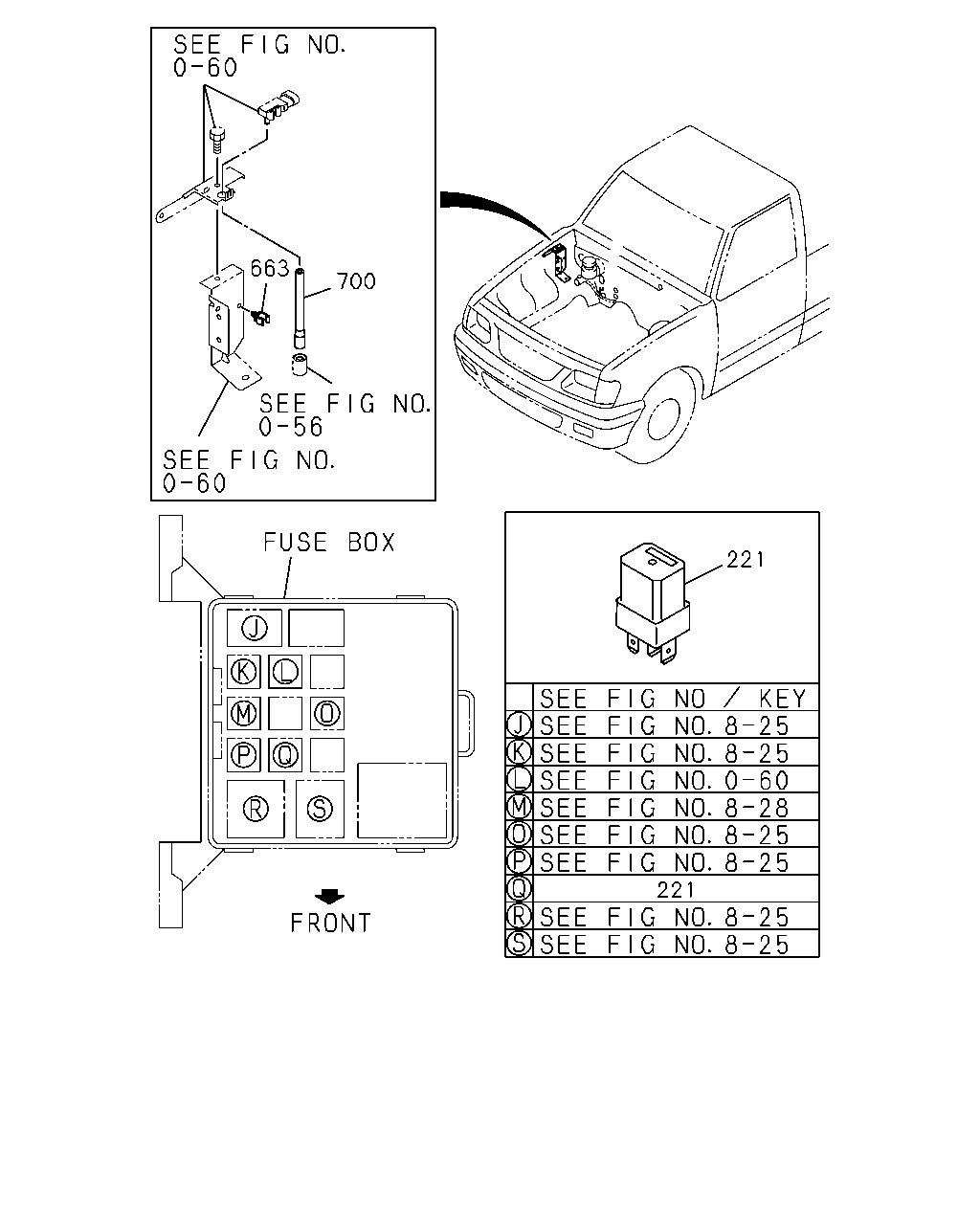

700 663 221 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	F
221	03.670 RELAY; MAIN ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A	8-97060-926-1	01	1	9611-		●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	9712-	●
663	03.417 CLIP; HOSE 03.003	8-97022-315-0	01	1	9712-	●
700	03.675 HOSE; SENSOR TO FILTER	8-97144-592-0	01	1	9712-	●

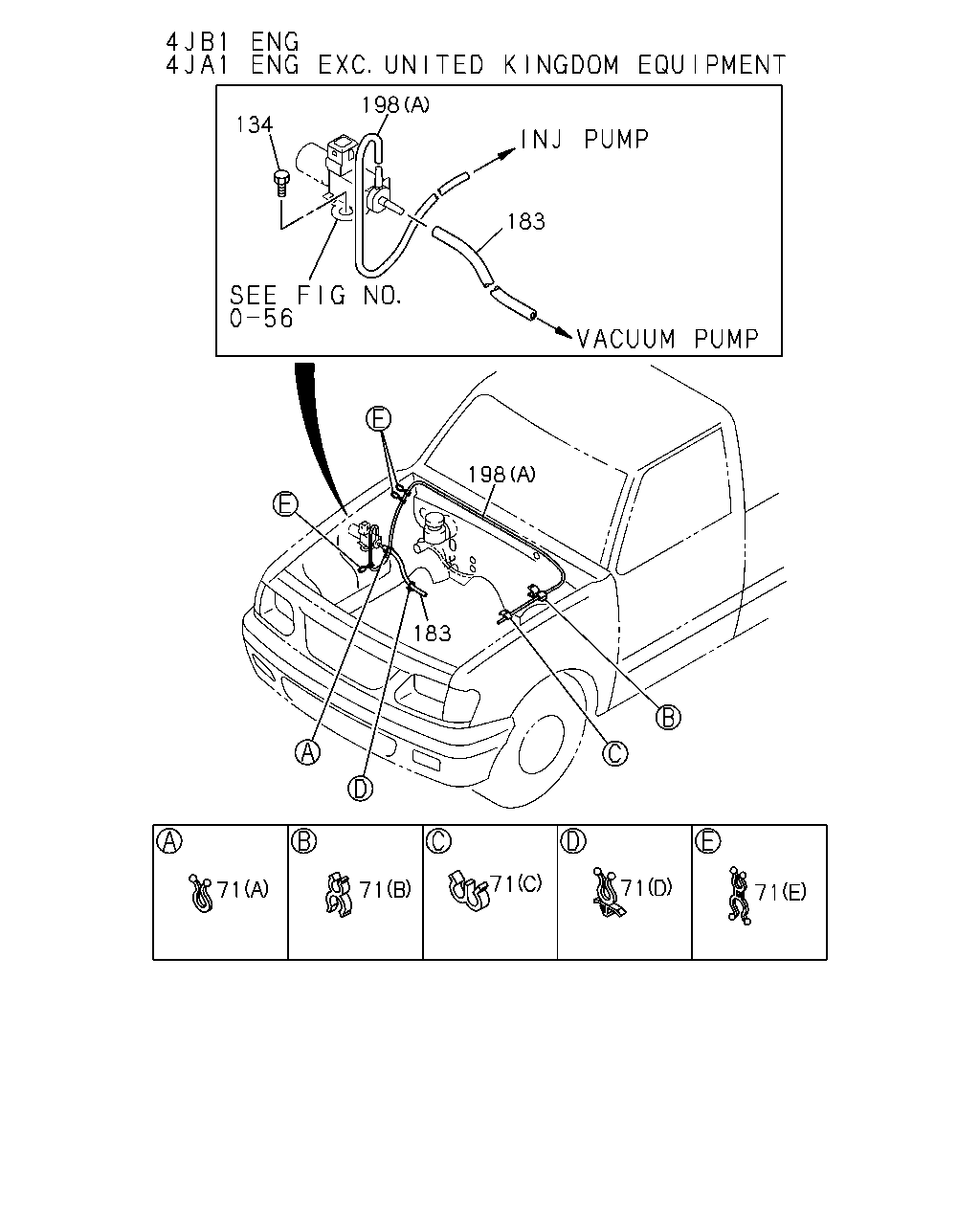

134 198 183 198 183 71 71 71 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	F
71	03.680 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 (F) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 23	5-09707-002-0	02	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 16	5-09707-032-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) ID=7.2 & 10	5-09707-056-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (D) ID=8	8-94154-795-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.663 (A) ID=15	1-09709-003-0	01	1	9611-		●
134	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9611-9711	●	●
134	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9712-	●	●
183	03.675 HOSE; RUBBER,VAC PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.680 L=300 SERVICED BY L=3000	0-04733-300-0	01	1	9611-	●	●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9611-	●	●
198	03.675 HOSE; VAC,VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97163-982-2	01	1	9701-		●

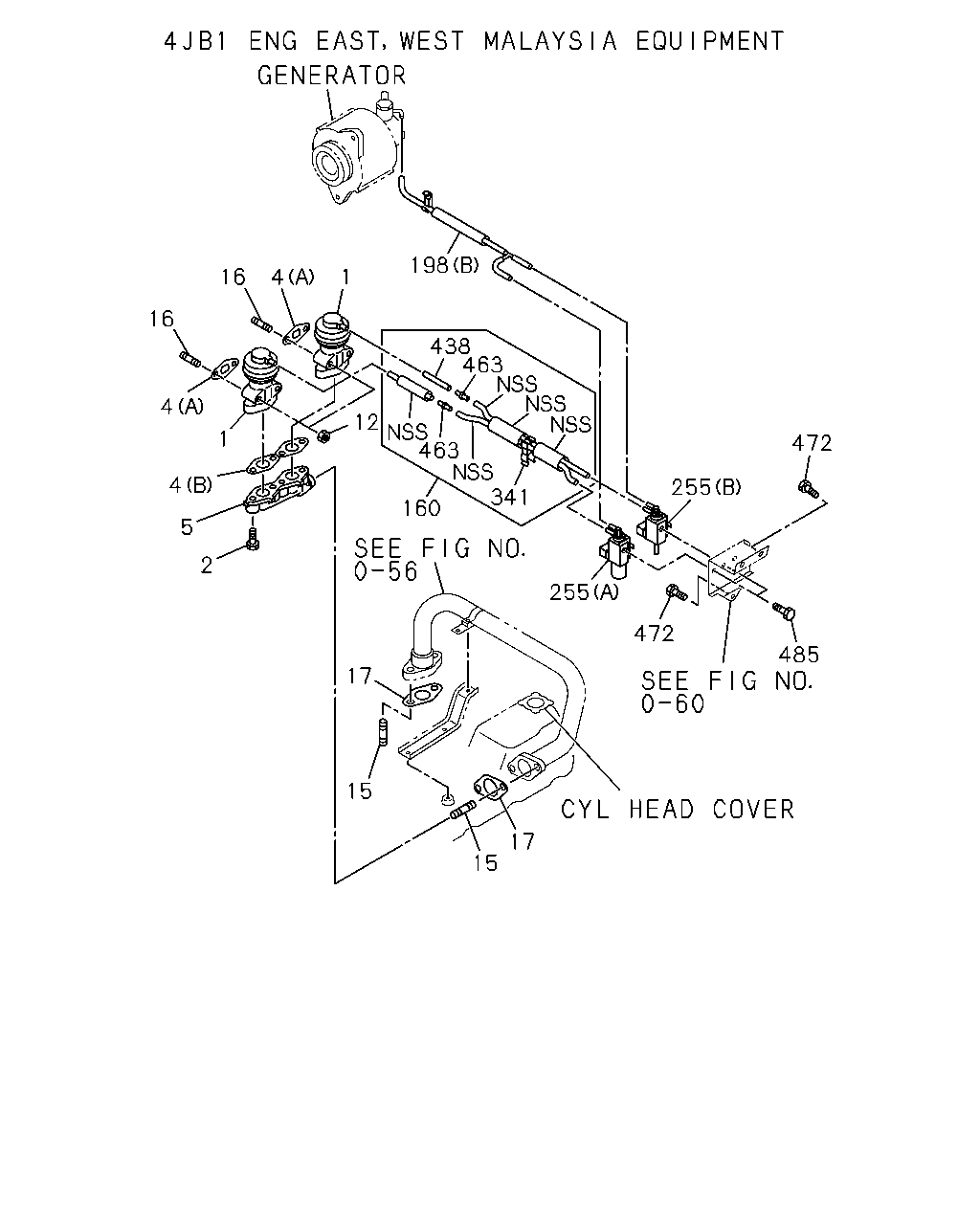

16 16 4 1 4 5 2 4 1 198 438 463 12 463 341 160 17 15 15 17 255 255 472 485 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97135-674-2	01	1	9611-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9701-		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9611-9612	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9701-	●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-				●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-			●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97117-260-0	01	1	9611-	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97136-007-0	01	1	9611-	●
5	03.670 ADAPTER ASM EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97117-259-0	01	1	9701-		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	04	1	9611-9612	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	04	1	9701-	●	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-9612	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9701-	●	●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9611-9612	●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9701-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9611-9612	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9701-	●	●
160	03.675 HOSE; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97163-996-1	01	1	9701-		●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9611-	●	●
198	03.675 HOSE; VAC,VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97163-982-2	01	1	9701-		●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670 (A)	8-97043-750-0	01	1	9611-9612	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9701-	●	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9701-		●
341	03.680 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94366-035-0	01	1	9701-		●
438	03.675 HOSE; RUBBER,VSV,EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=100 SERVICED BY L=3000	0-04830-300-0	01	1	9701-		●
463	03.680 JOINT; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 2WAY	8-97165-694-0	02	1	9701-		●
472	03.671 BOLT; BRKT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9701-		●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9611-	●
485	03.671 BOLT; VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9701-		●

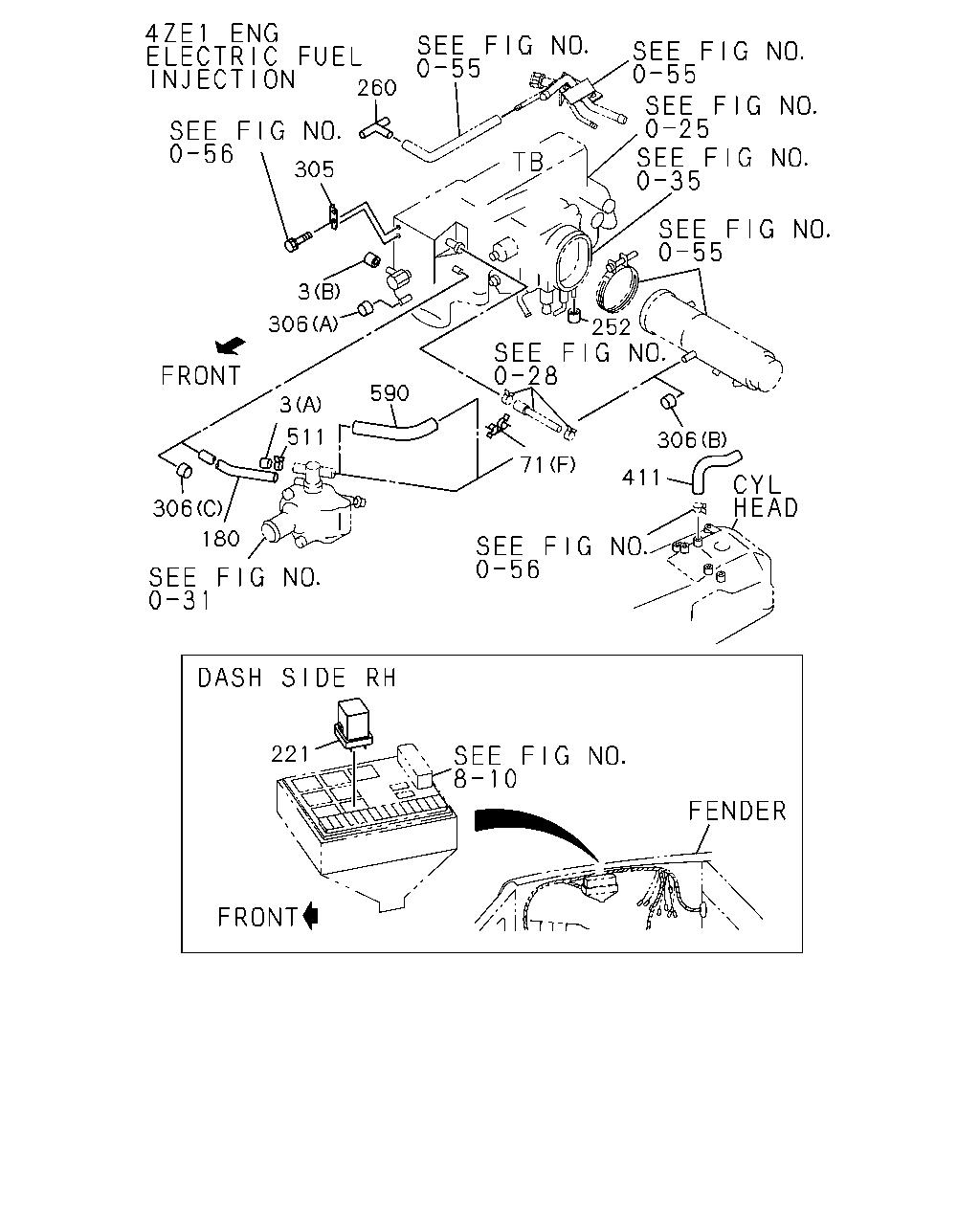

305 260 252 3 306 590 3 511 306 180 71 411 306 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	F
3	03.680 CAP; RUBBER A/T AISIN(RMD) 03.407 (A) ID=12	8-94173-731-0	01	1	9611-				●
3	03.680 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=6	8-94203-788-1	01	1	9611-				●
71	03.680 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 (F) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 23	5-09707-002-0	02	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 16	5-09707-032-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) ID=7.2 & 10	5-09707-056-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (D) ID=8	8-94154-795-0	01	1	9611-	●	●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.663 (A) ID=15	1-09709-003-0	01	1	9611-		●
180	03.675 HOSE; RUBBER,TERMINAL VLV TO CON A/T AISIN(RMD) 01.762 L=110 SERVICED BY L=3000	0-04870-300-0	01	1	9611-				●
221	03.670 RELAY; MAIN ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A	8-97060-926-1	01	1	9611-				●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	9712-			●
252	03.670 CAP; RUBBER,EGR VLV ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9611-				●
260	03.680 JOINT; 3 WAY LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 3WAY	8-94210-631-0	01	1	9611-				●
305	03.675 BRACKET; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG>	8-97084-971-2	01	1	9611-				●
306	03.672 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.780 (A) ID=4	8-94217-809-0	01	1	9611-				●
306	03.672 CAP; RUBBER M/T MUA 5 SPEED(RMN) ELECTRIC FUEL INJECTION<6GG> 03.407 (B) ID=12	8-94173-731-0	01	1	9611-				●
306	03.672 CAP; RUBBER M/T MUA 5 SPEED(RMN) 01.762 (C) ID=6	8-94203-788-1	01	1	9611-				●
411	03.417 HOSE; RUBBER,CYL HD COVER ELECTRIC FUEL INJECTION<6GG>	8-94344-593-0	01	1	9611-				●
511	03.680 CLIP; RUBBER CAP A/T AISIN(RMD) 04.930 ID=16	8-94238-568-0	01	1	9611-				●
590	03.675 HOSE; RUBBER A/T AISIN(RMD) ELECTRIC FUEL INJECTION<6GG> 03.417 L=150 SERVICED BY L=3000	0-04710-300-0	01	1	9611-				●

116 116 228 117 118 4 20 226 133 262 205 638 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-				●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9611-9612	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9701-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-			●
20	01.780 CAP; RUBBER ID=4	8-94217-809-0	01	1	9611-				●	●
20	01.780 CAP; RUBBER EXC. ELECTRIC FUEL INJECTION<6GG> ID=4	8-94217-809-0	01	1	9611-						●
116	03.444 BOLT; BRKT,FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M8X14 W/LK WASHERT	8-94208-228-0	02	1	9611-				●	●
116	03.444 BOLT; BRKT,FAST IDLE SOLENOID EXC. ELECTRIC FUEL INJECTION<6GG> M8X14 W/LK WASHERT	8-94208-228-0	02	1	9611-						●
117	03.444 BRACKET; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94367-869-1	01	1	9611-				●	●
117	03.444 BRACKET; FAST IDLE SOLENOID EXC. ELECTRIC FUEL INJECTION<6GG>	8-94367-869-1	01	1	9611-						●
118	03.425 NUT; SOLENOID VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-				●	●
118	03.425 NUT; SOLENOID VLV EXC. ELECTRIC FUEL INJECTION<6GG> 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-						●
133	03.417 BOLT; VAC SWITCH EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9611-9711						●
133	03.417 BOLT; VAC SWITCH EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-						●
205	03.675 HOSE; VSV TO 3 WAY CONN EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04742-300-0	01	1	9611-						●
226	03.670 SWITCH; VAC,EMISSION CONT LONG(TF***F) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97022-879-0	01	1	9611-9711						●
226	03.670 SWITCH; VAC,EMISSION CONT EXC. ELECTRIC FUEL INJECTION<6GG>	8-97022-879-0	01	1	9712-						●
228	03.440 VALVE; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	5-81910-005-0	01	1	9611-				●	●
228	03.440 VALVE; FAST IDLE SOLENOID EXC. ELECTRIC FUEL INJECTION<6GG>	5-81910-005-0	01	1	9611-						●
262	03.675 BRACKET; VAC SWITCH CONNECTOR EXC. ELECTRIC FUEL INJECTION<6GG>	8-94372-006-0	01	1	9611-						●
265	03.671 BOLT; ENG SPD SENSOR 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711				●	●
265	03.671 BOLT; ENG SPD SENSOR EXC. ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711						●
265	03.671 BOLT; ENG SPD SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-				●	●
265	03.671 BOLT; ENG SPD SENSOR EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-						●
638	03.675 HOSE; CARB TO JOINT EXC. ELECTRIC FUEL INJECTION<6GG> 03.726	8-94372-343-1	01	1	9712-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
