0-56 — EMISSION SYSTEM (#36266) — 63 parça

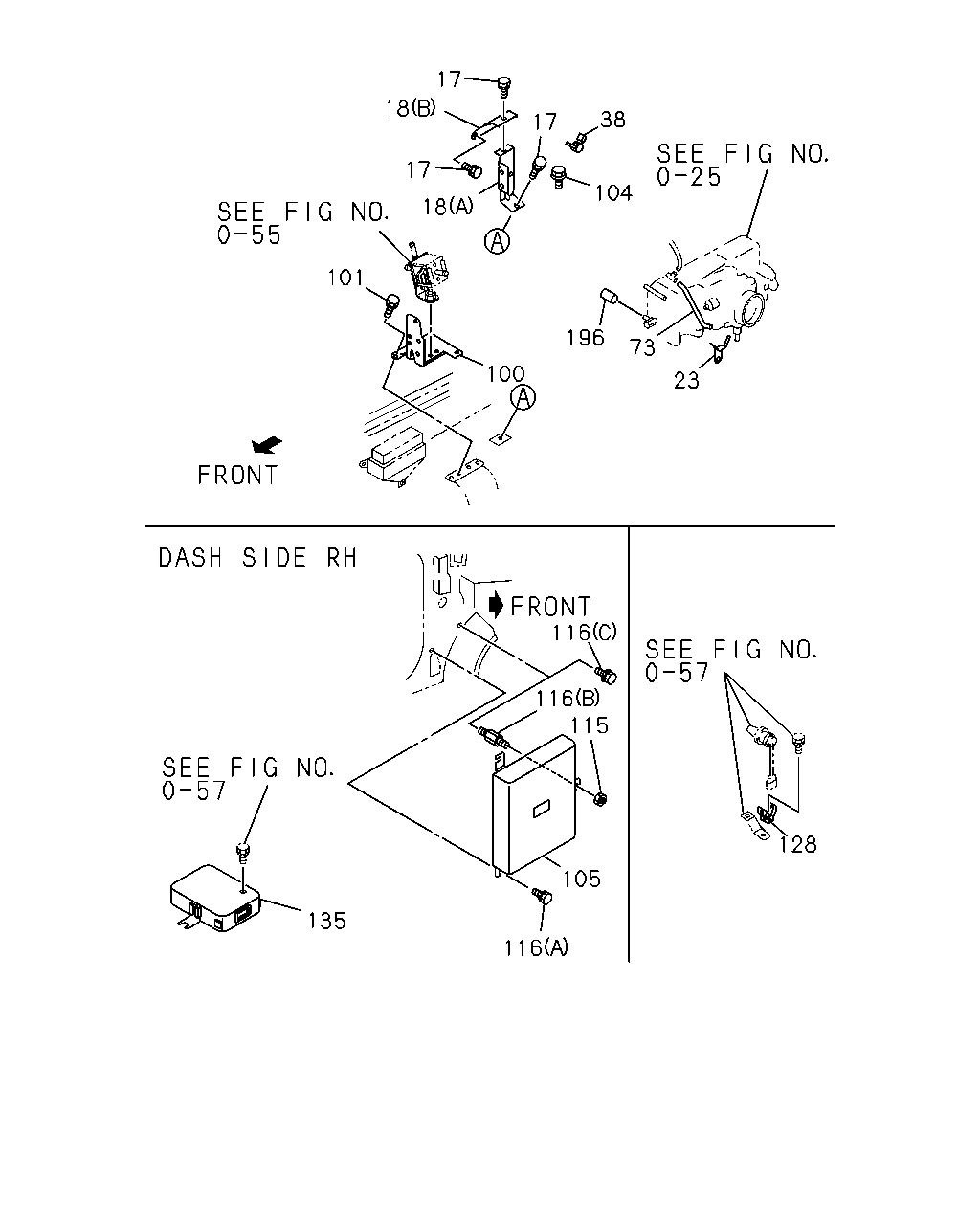

17 18 17 18 17 38 104 196 73 23 101 100 135 116 105 115 116 116 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	04	1	9611-9711	●
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9712-	●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> (A)	8-94475-021-2	01	1	9611-	●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 02.510 (B)	8-94479-552-2	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9712-		●
38	03.417 CLIP; VAC HOSE ELECTRIC FUEL INJECTION<6GG> 06.672 ID=21	8-94242-034-0	01	1	9611-	●
73	03.417 HOSE; RUBBER,THROTTLE BODY TO CA ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
100	03.675 BRACKET; VLV ELECTRIC FUEL INJECTION<6GG>	8-97104-740-1	01	1	9611-	●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9611-			●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97161-592-0	01	1	9611-			●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711	●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9611-			●
104	03.675 BOLT; CLIP,HOSE ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) AUSTRALIA EQUIPMENT(RR3)	8-97112-749-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-153-2	01	1	9712-		●
115	03.415 NUT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE	0-91150-106-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE 03.342 (C) M6X16	8-97012-496-0	02	1	9611-				●	●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (C) M6X16	8-97012-496-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (B)	8-97165-458-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9712-		●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 03.342 (C) M6X16	8-97012-496-0	01	1	9611-	●
128	03.672 BRACKET; VAC SW EXC. ELECTRIC FUEL INJECTION<6GG> 03.671	8-94209-610-0	01	1	9611-	●
135	03.670 SENSOR; ENG SPD	8-97026-162-0	01	1	9611-				●	●
135	03.670 SENSOR; ENG SPD EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-634-1	01	1	9611-	●
196	03.417 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9611-	●

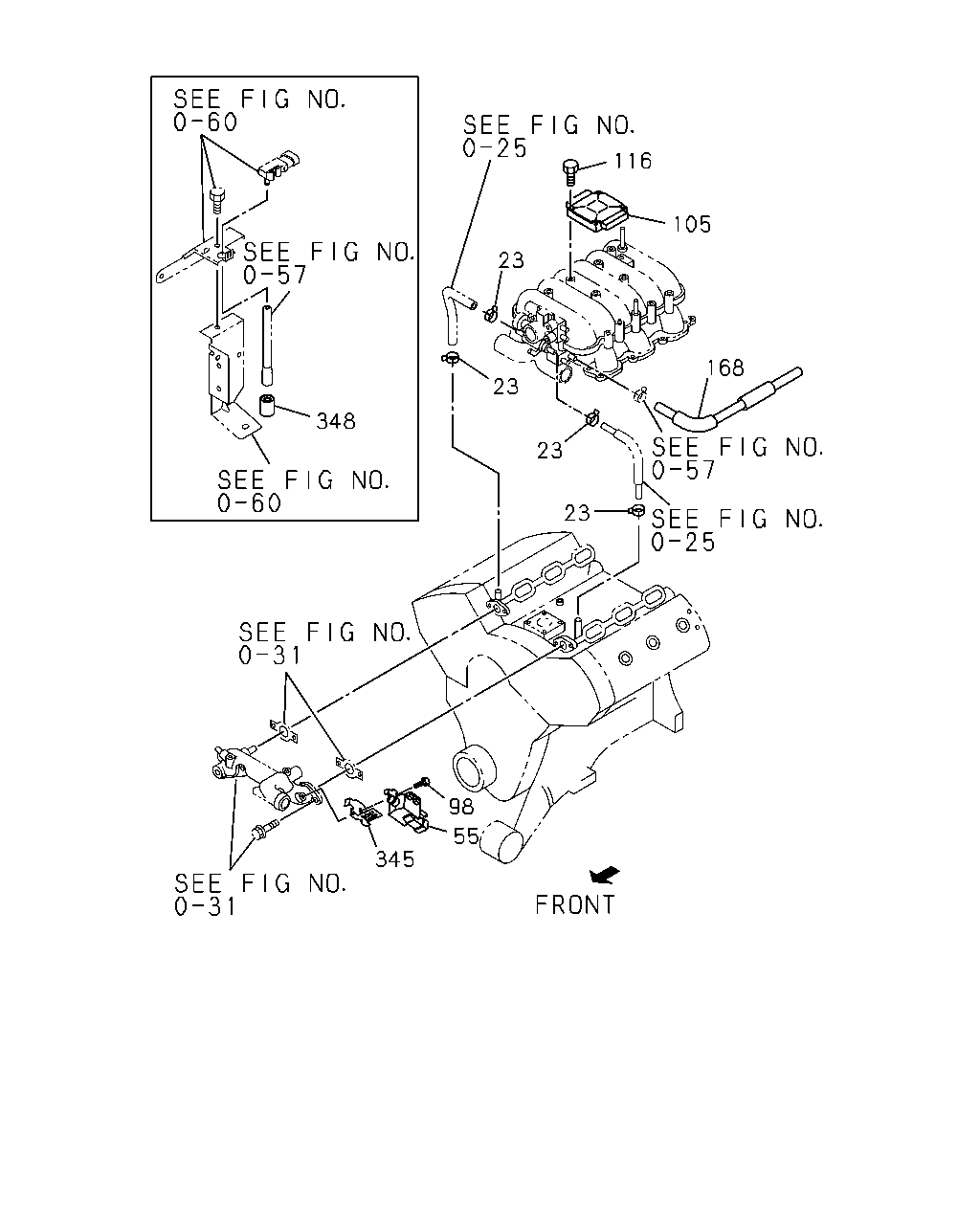

348 116 105 23 23 23 23 168 345 55 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
23	03.162 CLIP; RUBBER HOSE,THROTTLE ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9712-		●
55	03.670 SOLENOID; VAC CONT	8-01997-201-0	01	1	9712-		●
98	03.671 BOLT; SOLENOID 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) AUSTRALIA EQUIPMENT(RR3)	8-97112-749-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-153-2	01	1	9712-		●
116	03.415 BOLT; ENG CONT MODULE 03.342 (C) M6X16	8-97012-496-0	02	1	9611-			●	●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (C) M6X16	8-97012-496-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (B)	8-97165-458-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9712-		●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 03.342 (C) M6X16	8-97012-496-0	01	1	9611-	●
168	03.675 HOSE; RUBBER	8-97145-369-3	01	1	9712-		●
345	03.675 BRACKET; SOLENOID	8-10475-356-0	01	1	9712-		●
348	03.675 FILTER; SENSOR 06.061	8-97101-779-0	01	1	9712-		●

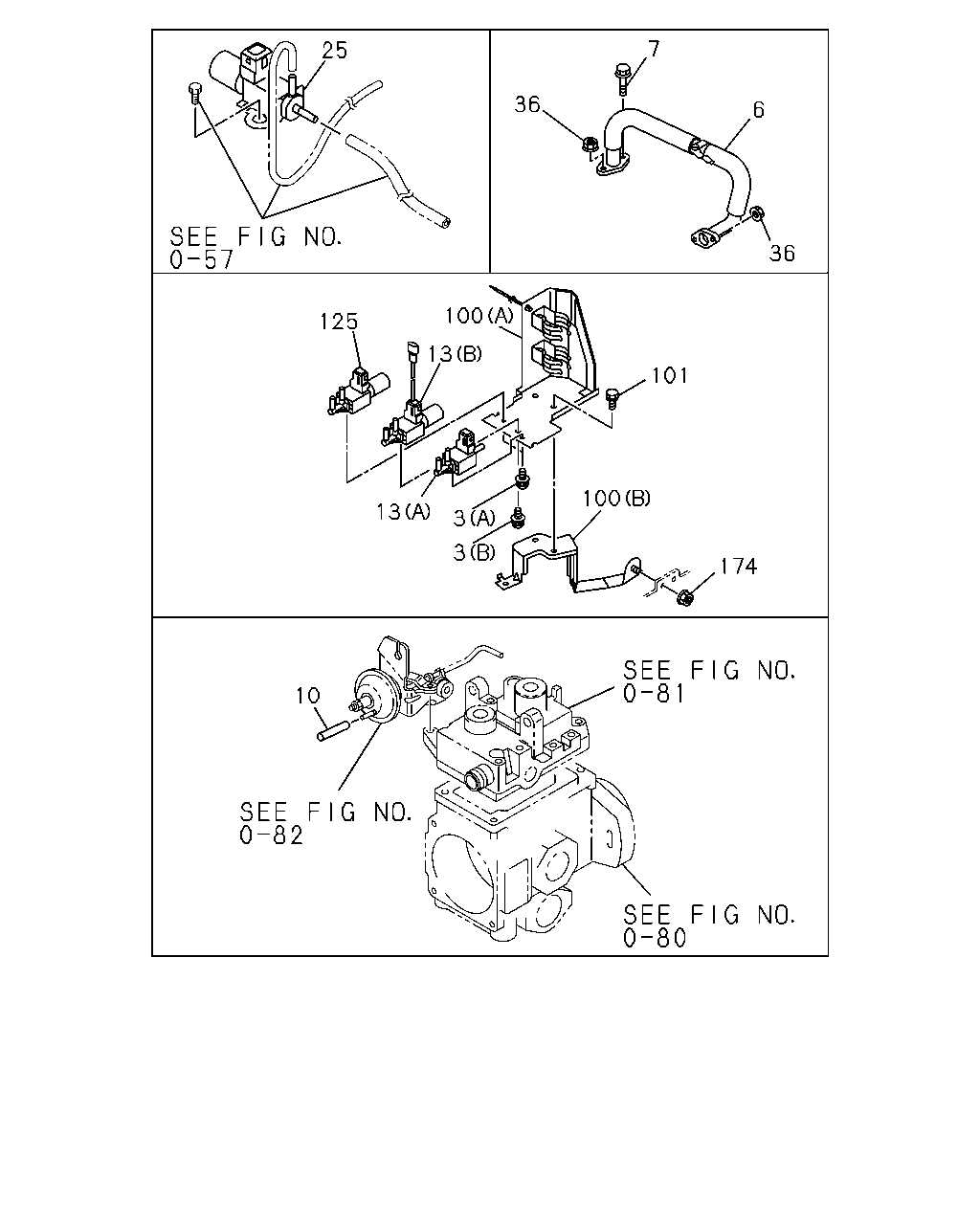

25 36 7 6 36 100 125 13 101 13 3 3 100 174 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	F
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9611-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9611-		●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9611-9612		●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9701-		●	●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X23 FLANGE	8-94103-629-2	02	1	9611-9612		●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	9701-		●	●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9611-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9611-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97070-554-0	01	1	9611-		●
25	03.670 SWITCH; VAC,FUEL CONT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94144-597-1	01	1	9611-		●	●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	02	1	9611-9612		●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9701-		●	●
100	03.675 BRACKET; VLV ELECTRIC FUEL INJECTION<6GG>	8-97104-740-1	01	1	9611-	●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9611-		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97161-592-0	01	1	9611-		●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711	●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9611-		●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3)	8-97069-778-0	01	1	9611-		●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	01	1	9611-		●
