0-52 — OIL AND VACUUM PIPING; ENGINE (#36264) — 89 parça
çizim 18554
47 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 01.519 PIPE; OIL,OIL PUMP 8-94381-146-3 01 1 9712- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0 		9-09571-410-0 03 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 80A(K97) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2 		8-94329-964-0 02 1 9712- ●

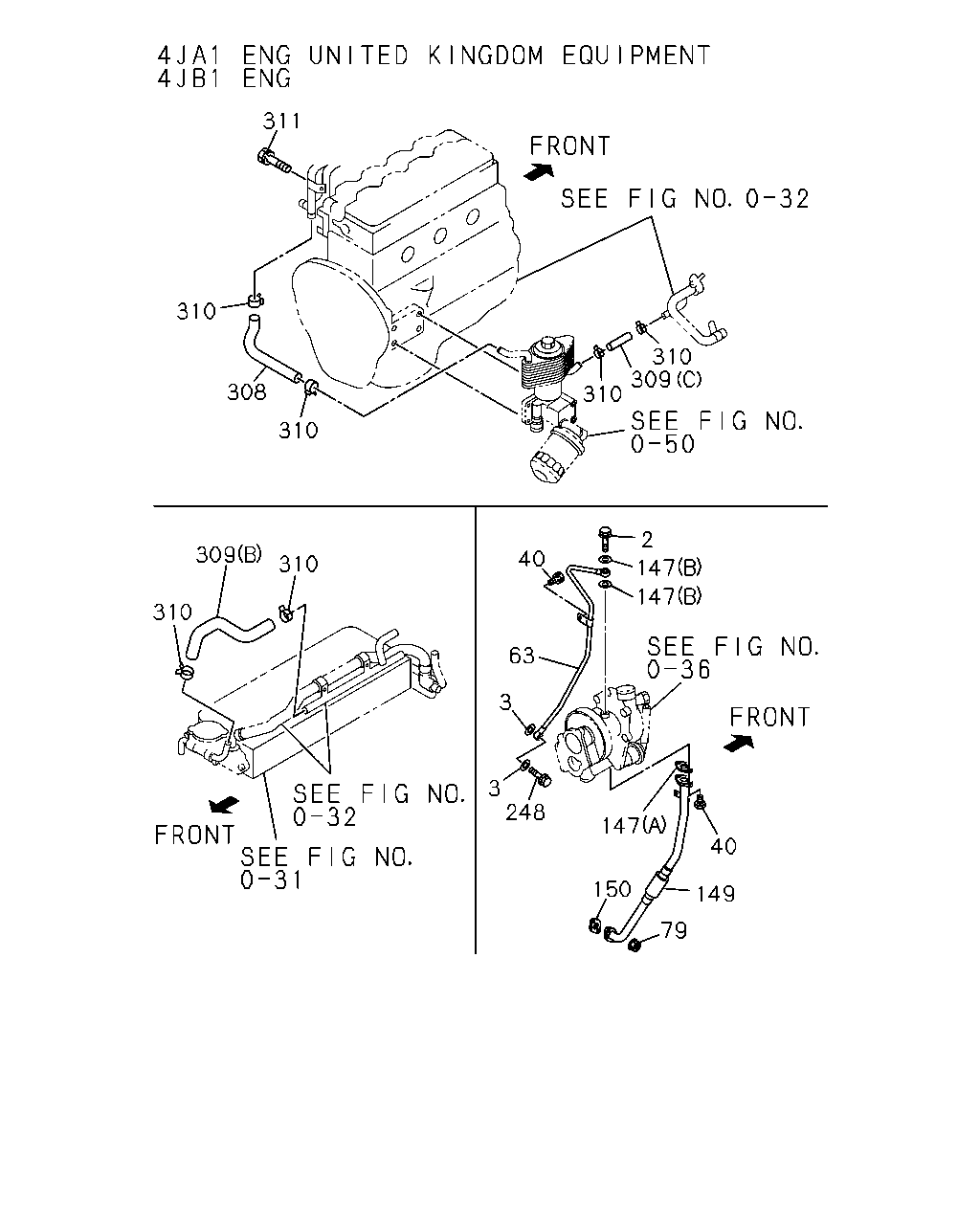

çizim 67311
310 308 310 310 309 310 2 147 147 40 63 3 3 248 147 40 149 79 150 310 309 310 311
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE 		8-94443-535-0 01 1 9611- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 9611- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9611- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9611- ●
40 01.531 BOLT; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9611- ●
40 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9611- ●
40 01.531 BOLT; OIL PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611- ●
40 01.531 BOLT; OIL PIPE
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.206 M8X10 FLANGE 		0-28080-810-0 01 1 9706- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
UNITED KINGDOM EQUIPMENT(EK3) 		8-97162-317-0 01 1 9611- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97161-201-0 01 1 9611- ●
79 01.531 NUT; OIL DRAIN PIPE
UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9611- ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 9611- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A) ID=14 		8-97041-638-0 01 1 9611- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9611- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9611- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A) 		8-94362-672-0 01 1 9611- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97162-106-0 01 1 9611- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97162-108-0 01 1 9611- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 		8-97045-326-0 01 1 9611- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97045-326-0 01 1 9611- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
UNITED KINGDOM EQUIPMENT(EK3) M14X25 		8-94315-336-1 01 1 9611- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED
UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED
EXC. UNITED KINGDOM EQUIPMENT(EK3) L=220 		8-97119-575-0 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED 8-97039-414-0 01 1 9611- ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94442-162-1 01 1 9611- ●
309 01.540 HOSE; OIL COOLER RETURN
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97039-199-2 01 1 9611-9612 ●
309 01.540 HOSE; OIL COOLER RETURN
(C) 		8-97039-199-2 01 1 9611-9612 ●
309 01.540 HOSE; OIL COOLER RETURN
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97168-220-0 01 1 9701- ●
309 01.540 HOSE; OIL COOLER RETURN
(C) 		8-97168-220-0 01 1 9701- ●
309 01.540 HOSE; OIL COOLER RETURN
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97049-285-0 01 1 9611- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97049-285-0 01 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 08 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
UNITED KINGDOM EQUIPMENT(EK3) 01.150 ID=24 		8-97010-605-0 02 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 ID=24 		8-97010-605-0 02 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) 08.846 ID=22 		8-94382-401-0 02 1 9611-9702 ●
310 01.540 CLIP; WATER HOSE FIX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 ID=22 		8-94382-401-0 02 1 9703- ●
311 01.531 BOLT; PIPE FIX
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611- ● ●

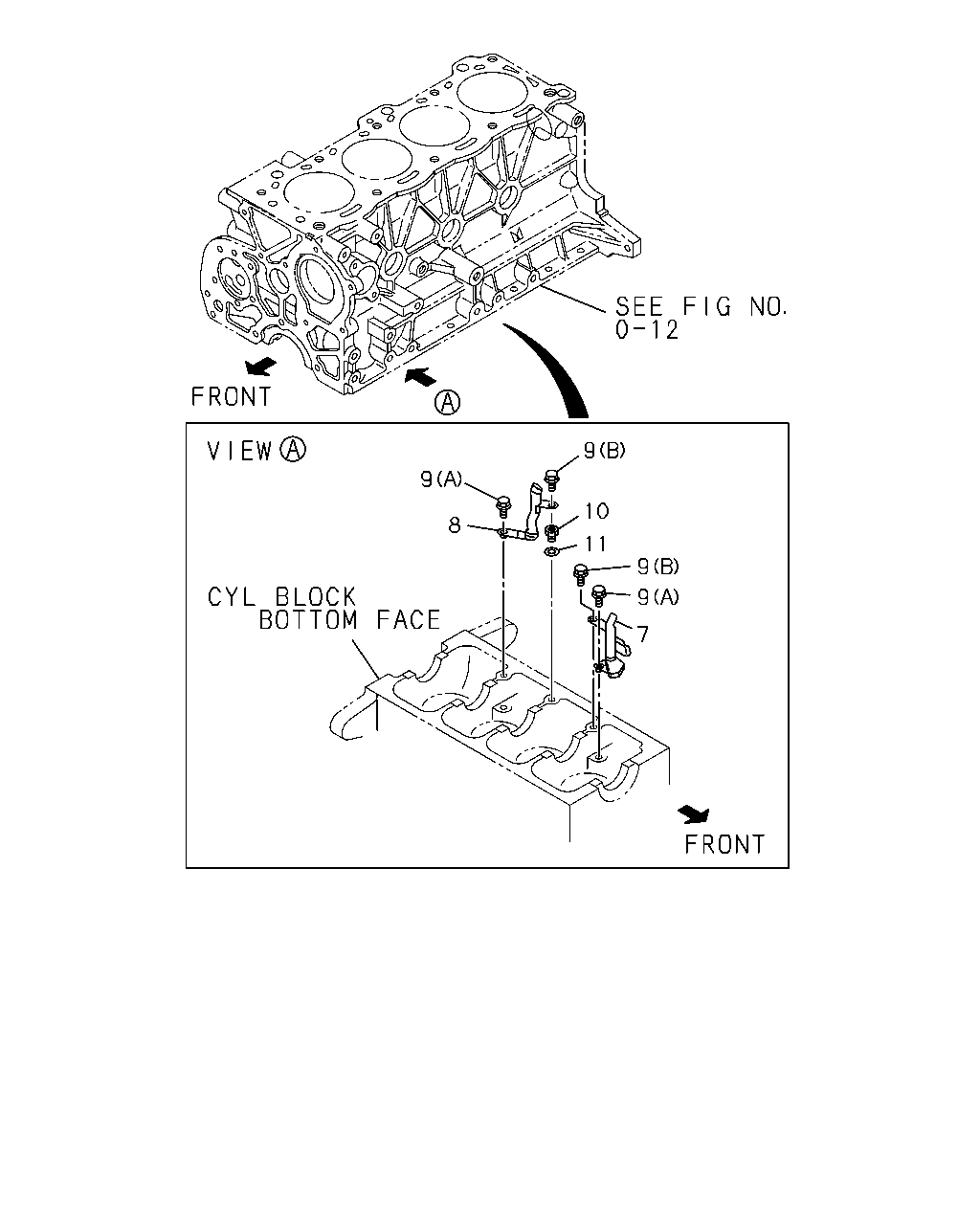

çizim 71053
9 9 11 10 7 9 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 01.656 PIPE; OIL PASSAGE,FRT 8-94475-324-2 01 1 9611- ●
8 01.656 PIPE; OIL PASSAGE,CTR 8-94475-325-2 01 1 9611- ●
9 01.656 BOLT; OIL PASSAGE
(A) M6X14 		8-94479-695-1 02 1 9611- ●
9 01.656 BOLT; OIL PASSAGE
(B) M8X12 FLANGE 		8-94479-696-1 02 1 9611- ●
10 01.656 PLUG; OIL PASSAGE PIPE 8-94474-942-0 01 1 9611- ●
11 01.657 GASKET; PLUG,OIL PIPE
08.955 ID=20.5 OD=28.0 		9-09571-420-0 01 1 9611- ●
çizim 72154
310 310 288 310 310 309 310 310 308 310 310 311
BalonParca AdiParca NoAdetTipApplied Date A B C D
288 01.540 CLIP; HOSE,OIL COOLER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.846 		5-83574-006-0 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED
UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED
EXC. UNITED KINGDOM EQUIPMENT(EK3) L=220 		8-97119-575-0 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED 8-97039-414-0 01 1 9611- ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94442-162-1 01 1 9611- ●
309 01.540 HOSE; OIL COOLER RETURN
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97039-199-2 01 1 9611-9612 ●
309 01.540 HOSE; OIL COOLER RETURN
(C) 		8-97039-199-2 01 1 9611-9612 ●
309 01.540 HOSE; OIL COOLER RETURN
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97168-220-0 01 1 9701- ●
309 01.540 HOSE; OIL COOLER RETURN
(C) 		8-97168-220-0 01 1 9701- ●
309 01.540 HOSE; OIL COOLER RETURN
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97049-285-0 01 1 9611- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97049-285-0 01 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 08 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
UNITED KINGDOM EQUIPMENT(EK3) 01.150 ID=24 		8-97010-605-0 02 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 ID=24 		8-97010-605-0 02 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) 08.846 ID=22 		8-94382-401-0 02 1 9611-9702 ●
310 01.540 CLIP; WATER HOSE FIX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 ID=22 		8-94382-401-0 02 1 9703- ●
311 01.531 BOLT; PIPE FIX
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611- ● ●

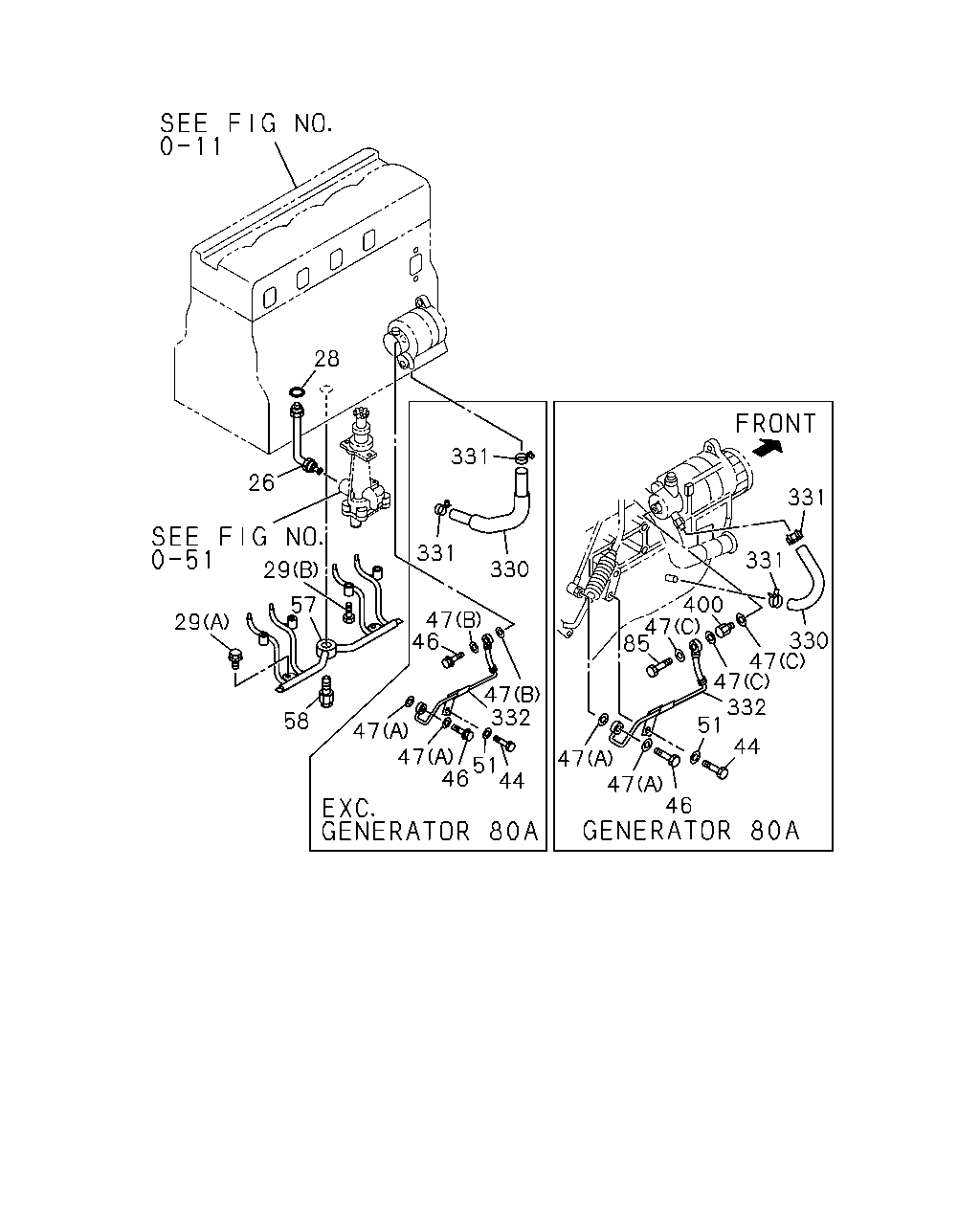

çizim 72159
331 331 330 47 46 47 47 46 51 44 332 47 57 58 29 29 26 28 331 331 400 47 85 47 332 44 51 47 47 46 47 330
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94434-828-2 01 1 9611- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 ID=11 		5-09623-002-0 01 1 9611- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9706- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9611- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9611- ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 80A(K97) 08.955 (C) ID=10.2 OD=16.0 		9-09571-410-0 03 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 80A(K97) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2 		8-94329-964-0 02 1 9712- ●
51 01.531 WASHER; PL,OIL PIPE,VAC PUMP
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 9611- ● ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-0 01 1 9611- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-1 01 1 9611- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97145-612-0 01 1 9611- ● ●
85 01.531 BOLT; EYE,OIL PIPE FIX
GENERATOR 80A(K97) M10X21 FLANGE 		1-09675-078-0 01 1 9611- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97063-052-0 01 1 9611- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9611- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
GENERATOR 80A(K97) 		8-97042-697-0 01 1 9611- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR 80A(K97) 		8-94468-522-1 01 1 9611- ● ●
400 01.531 NIPPLE; VAC PUMP,OIL
GENERATOR 80A(K97) 		8-97061-857-0 01 1 9611- ● ●
