0-50 — OIL COOLER AND OIL FILTER (#36262) — 106 parça

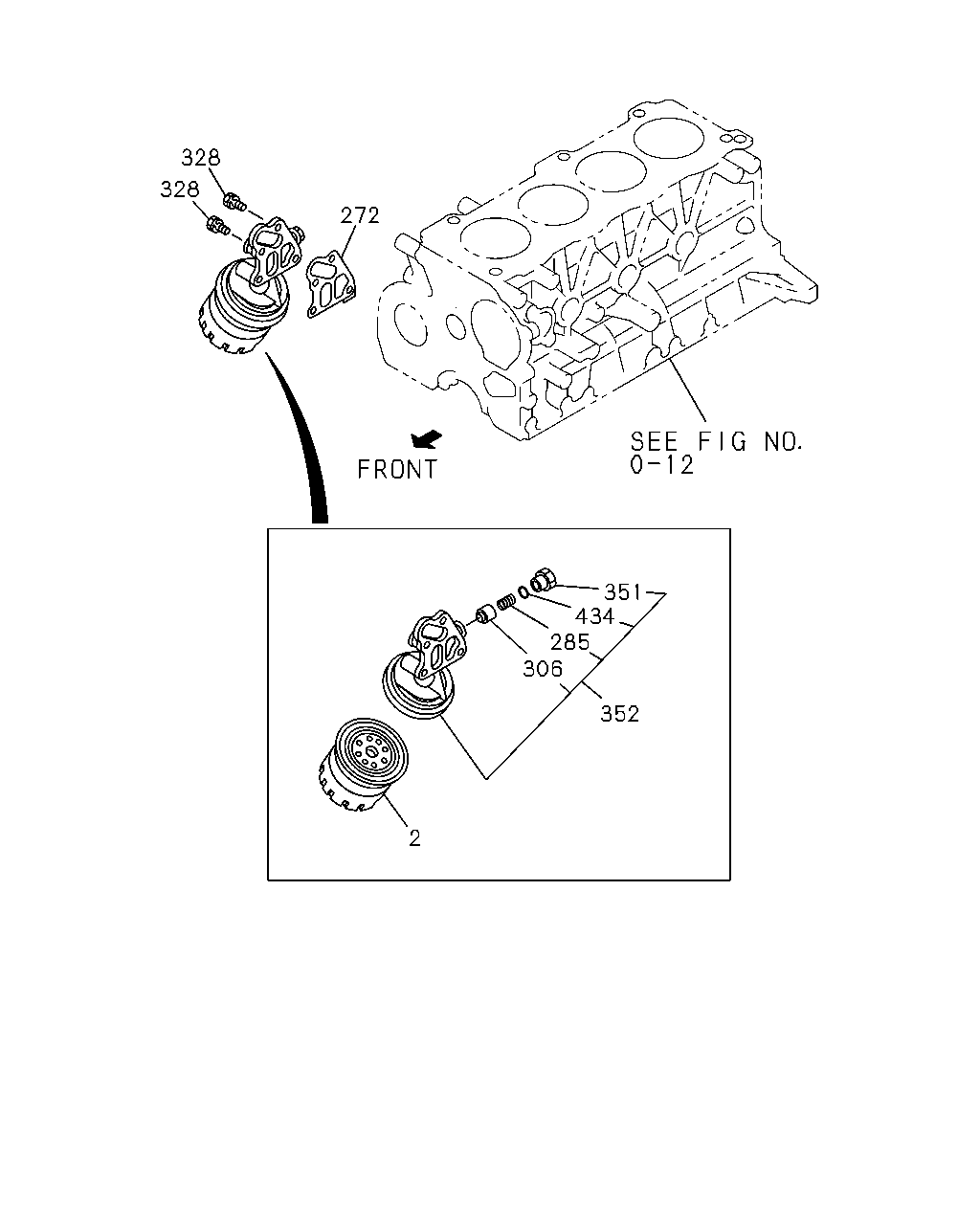

çizim 18930
352 306 285 434 351 2 272 328 328
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94360-427-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97049-708-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-199-0 01 1 9611- ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2 		8-94329-964-0 02 1 9712- ●
285 01.837 SPRING; OIL FILTER 8-94114-512-0 01 1 9611- ● ● ●
306 01.837 VALVE; OIL FILTER 8-94235-567-1 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
M8X70 W/LK WASHER 		0-50040-870-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ●
328 01.840 BOLT; OIL FILTER
01.540 (B) M8X45 FLANGE 		0-28080-845-0 02 1 9712- ●
328 01.840 BOLT; OIL FILTER
(C) M8X70 FLANGE 		0-28080-870-0 01 1 9712- ●
351 01.837 PLUG; OIL FILTER 8-94244-655-0 01 1 9611- ● ● ●
352 01.840 ADAPTER; OIL FILTER 8-94476-127-0 01 1 9611- ● ● ●
352 01.840 ADAPTER; OIL FILTER 8-97149-343-2 01 1 9712- ●
434 01.844 GASKET; PLUG,OIL FILTER
01.837 		8-94244-656-0 01 1 9611- ● ● ●
çizim 67238
469 64 1 2 62 63 70 70 70 69 329 374 362 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.540 FILTER & COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97096-622-0 01 1 9611-9612 ●
1 01.540 FILTER & COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97169-038-1 01 1 9701- ●
1 01.540 FILTER & COOLER ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-255-1 01 1 9611- ●
1 01.540 FILTER & COOLER ASM; OIL 8-97161-304-0 01 1 9611-9612 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97169-037-1 01 1 9701- ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94360-427-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97049-708-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ●
30 01.540 PIPE ASM; OIL COOLER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),UNITED KINGDOM EQUIPMENT(EK3),COLD START DEVICE<7LY> 		8-94475-204-1 01 1 9611- ●
62 01.540 COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97100-312-0 01 1 9611-9612 ●
62 01.540 COOLER ASM; OIL 8-97100-312-0 01 1 9611-9612 ●
62 01.540 COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97169-043-1 01 1 9701- ●
62 01.540 COOLER ASM; OIL 8-97169-043-1 01 1 9701- ●
62 01.540 COOLER ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-254-1 01 1 9611- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9611- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97046-992-0 01 1 9611-9612 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-377-0 01 1 9701- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97135-351-0 01 1 9611- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97161-713-0 01 1 9611- ●
69 01.837 PLUG; BODY,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94167-883-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		9-09921-193-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) ID=13.6 		8-94167-884-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.8 		8-94167-885-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) ID=6.8 		8-94167-886-0 01 1 9611- ●
329 01.840 BOLT; OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611- ●
329 01.840 BOLT; OIL FILTER
01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611- ●
329 01.840 BOLT; OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9611- ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 9611- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 		8-97065-983-0 01 1 9611- ● ●

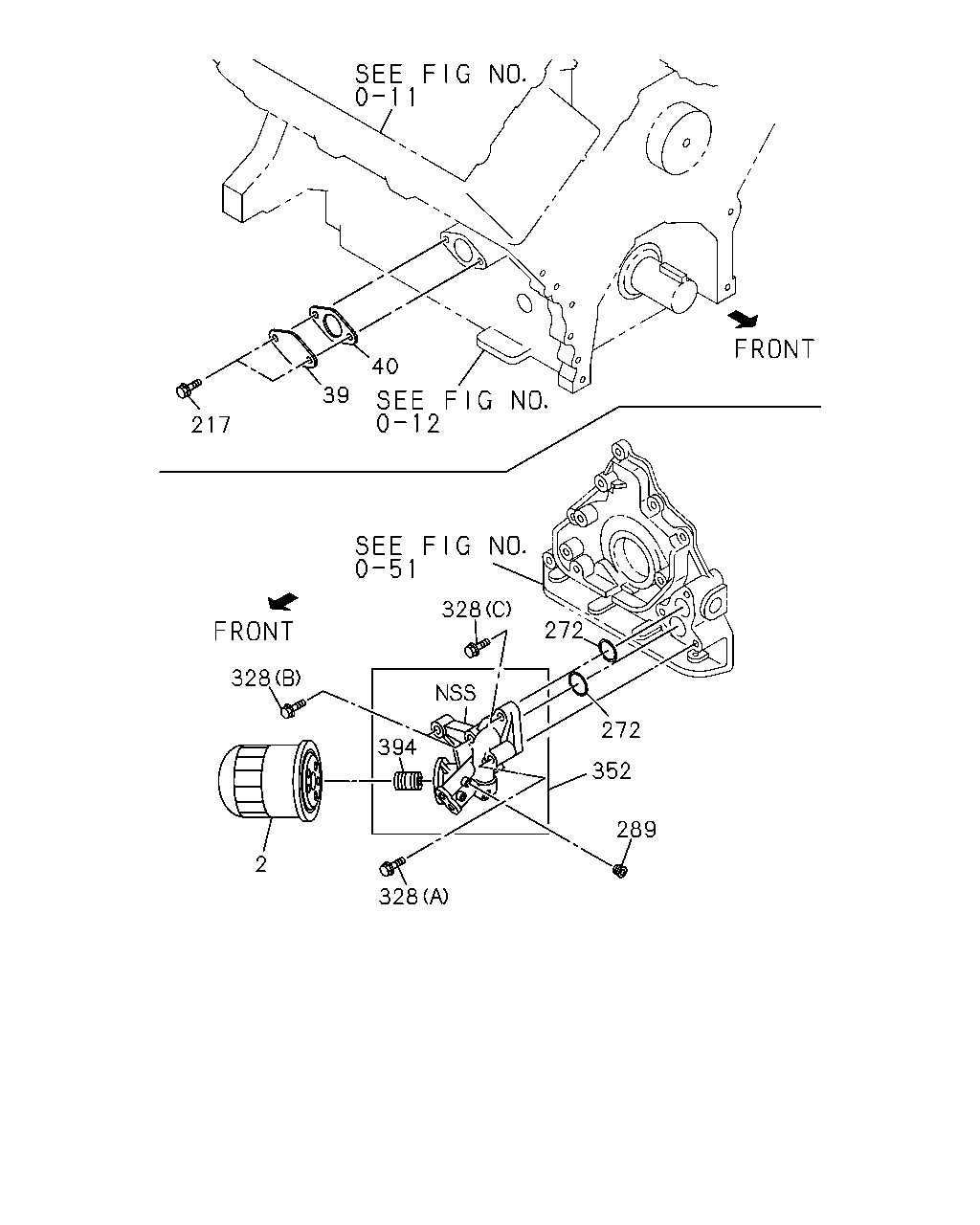

çizim 69849
40 39 217 328 272 272 352 289 328 2 328 394
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94360-427-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97049-708-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ●
39 01.540 COVER; OIL COOLER 8-97031-507-1 01 1 9712- ●
40 01.550 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97031-084-0 01 1 9712- ●
217 01.540 BOLT; CONNECTOR
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9712- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-199-0 01 1 9611- ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2 		8-94329-964-0 02 1 9712- ●
289 01.840 PLUG; ADAPTER
01.531 PT1/8 		1-09605-050-0 01 1 9712- ●
328 01.840 BOLT; OIL FILTER
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
M8X70 W/LK WASHER 		0-50040-870-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ●
328 01.840 BOLT; OIL FILTER
01.540 (B) M8X45 FLANGE 		0-28080-845-0 02 1 9712- ●
328 01.840 BOLT; OIL FILTER
(C) M8X70 FLANGE 		0-28080-870-0 01 1 9712- ●
352 01.840 ADAPTER; OIL FILTER 8-94476-127-0 01 1 9611- ● ● ●
352 01.840 ADAPTER; OIL FILTER 8-97149-343-2 01 1 9712- ●
394 01.837 STUD; OIL FILTER 8-97022-473-0 01 1 9712- ●

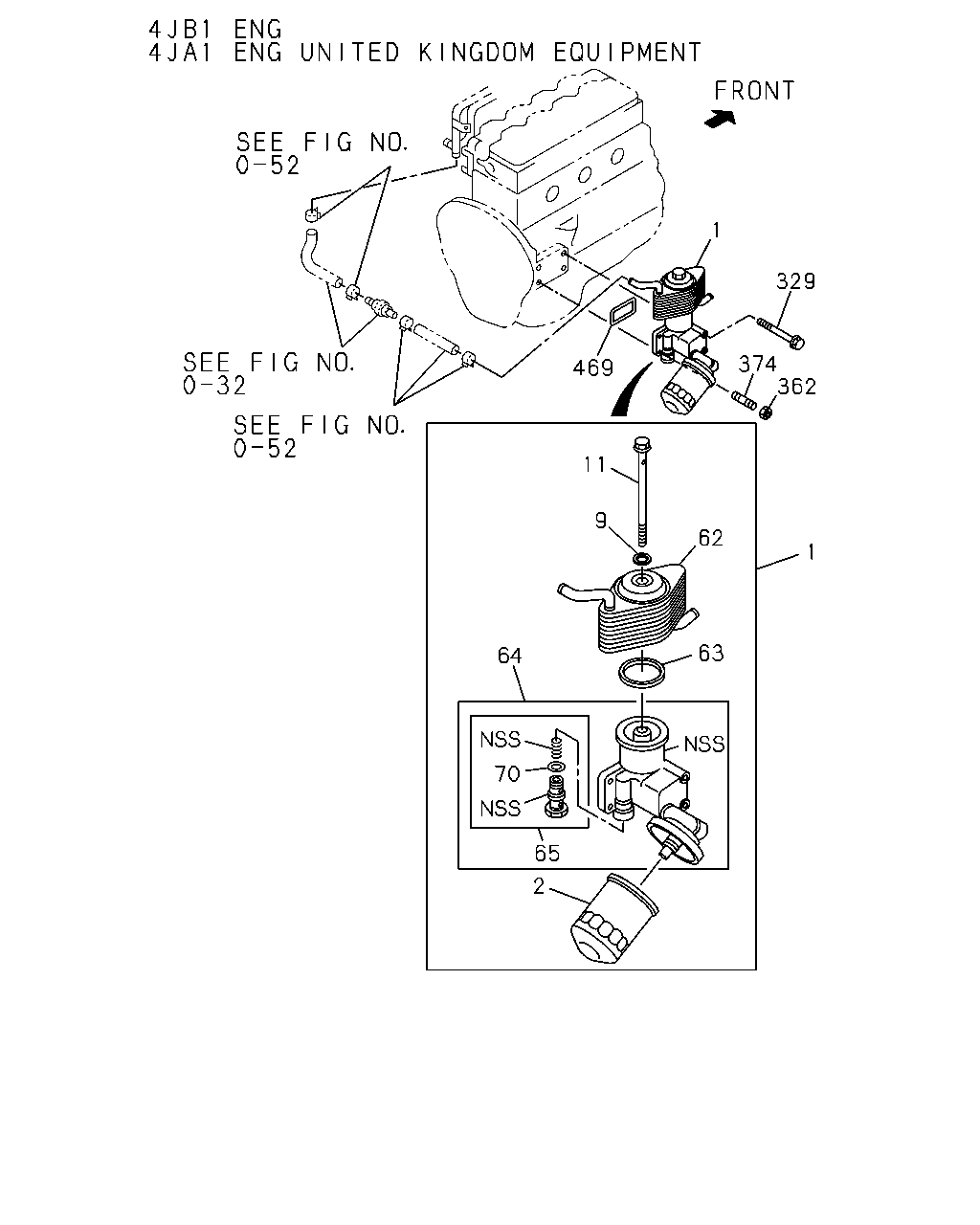

çizim 71284
64 63 62 9 11 469 374 362 329 1 1 2 65 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.540 FILTER & COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97096-622-0 01 1 9611-9612 ●
1 01.540 FILTER & COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97169-038-1 01 1 9701- ●
1 01.540 FILTER & COOLER ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-255-1 01 1 9611- ●
1 01.540 FILTER & COOLER ASM; OIL 8-97161-304-0 01 1 9611-9612 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97169-037-1 01 1 9701- ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94360-427-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97049-708-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 		8-97047-000-0 01 1 9611- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9611- ●
11 01.840 BOLT; CENTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-966-0 01 1 9611- ●
11 01.840 BOLT; CENTER 8-97117-966-0 01 1 9611- ●
62 01.540 COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97100-312-0 01 1 9611-9612 ●
62 01.540 COOLER ASM; OIL 8-97100-312-0 01 1 9611-9612 ●
62 01.540 COOLER ASM; OIL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97169-043-1 01 1 9701- ●
62 01.540 COOLER ASM; OIL 8-97169-043-1 01 1 9701- ●
62 01.540 COOLER ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-254-1 01 1 9611- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9611- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97046-992-0 01 1 9611-9612 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-377-0 01 1 9701- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97135-351-0 01 1 9611- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97161-713-0 01 1 9611- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9611- ● ●
70 01.844 GASKET; PLUG,OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		9-09921-193-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) ID=13.6 		8-94167-884-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.8 		8-94167-885-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) ID=6.8 		8-94167-886-0 01 1 9611- ●
329 01.840 BOLT; OIL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611- ●
329 01.840 BOLT; OIL FILTER
01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611- ●
329 01.840 BOLT; OIL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9611- ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 9611- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 		8-97065-983-0 01 1 9611- ● ●
