1 |

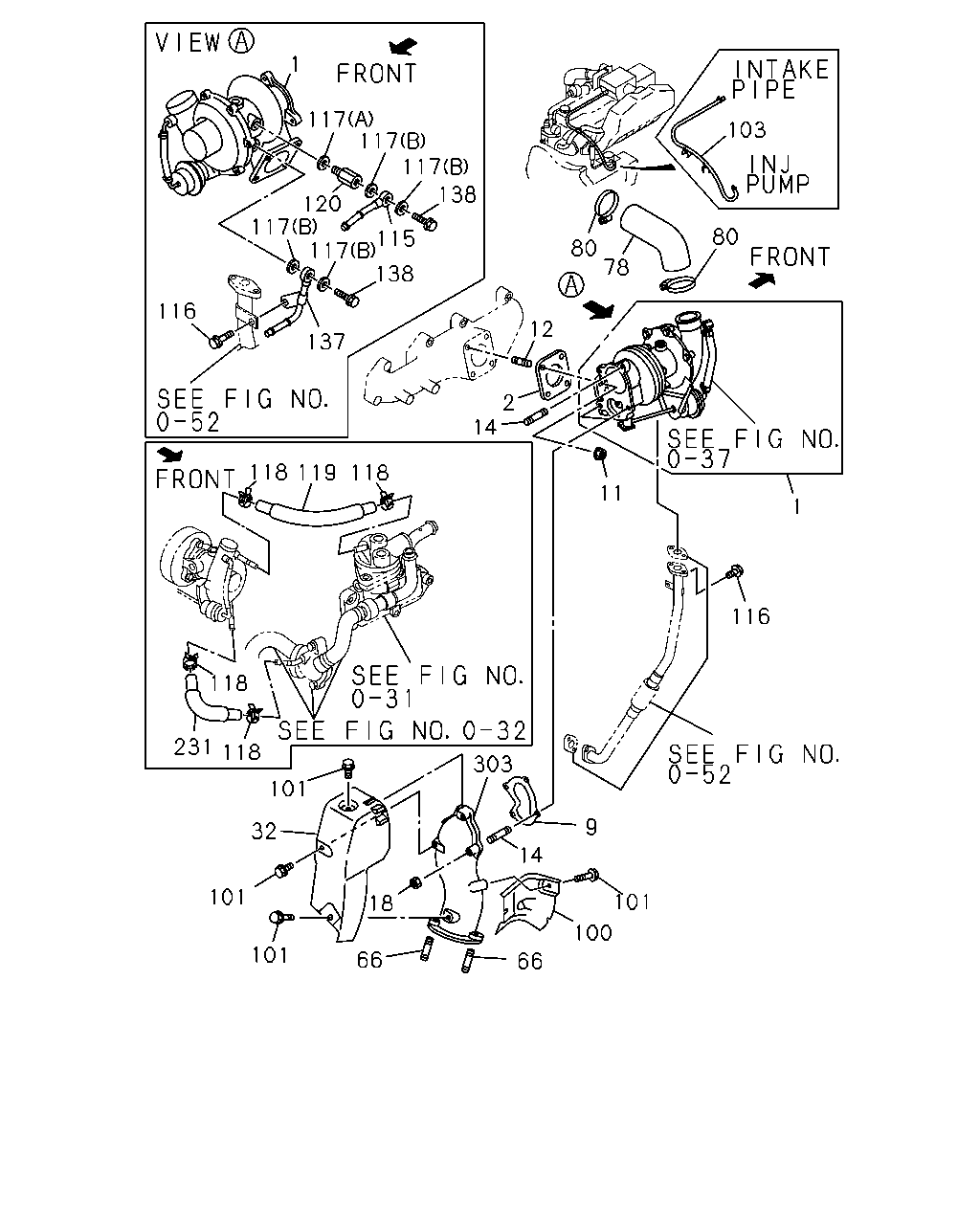

03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
UNITED KINGDOM EQUIPMENT(EK3)
|
8-97095-880-5 |
01 |
1 |
9611- |
● |
|
| |
1 |
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-97139-724-2 |
01 |
1 |
9611- |
|
● |
| |
2 |
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HE
AD)
UNITED KINGDOM EQUIPMENT(EK3)
|
8-94433-605-0 |
01 |
1 |
9611- |
● |
|
| |
2 |
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HE
AD)
|
8-94481-980-0 |
01 |
1 |
9611- |
|
● |
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HE
AD)
UNITED KINGDOM EQUIPMENT(EK3)
|
8-94433-604-0 |
01 |
1 |
9611- |
● |
|
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HE
AD)
|
8-97139-726-0 |
01 |
1 |
9611- |
|
● |
| |
11 |
03.342 NUT; TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3)
03.613
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
9611- |
● |
|
| |
11 |
03.342 NUT; TURBOCHARGER
03.613
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
9611- |
|
● |
| |
12 |
03.342 STUD; TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3)
M8X20 L=31
|
8-97104-508-1 |
04 |
1 |
9611- |
● |
|
| |
12 |
03.342 STUD; TURBOCHARGER
M8X20 L=31
|
8-97104-508-1 |
04 |
1 |
9611- |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
UNITED KINGDOM EQUIPMENT(EK3)
M8X43 L=54
|
8-97104-507-1 |
04 |
1 |
9611-9711 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54
|
8-97104-507-1 |
04 |
1 |
9611-9711 |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
UNITED KINGDOM EQUIPMENT(EK3)
M8X41 L=52
|
8-97188-452-0 |
04 |
1 |
9712- |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52
|
8-97188-452-0 |
04 |
1 |
9712- |
|
● |
| |
18 |
03.613 NUT; EXH PIPE
UNITED KINGDOM EQUIPMENT(EK3)
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
9611- |
● |
|
| |
18 |
03.613 NUT; EXH PIPE
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
9611- |
|
● |
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3)
|
8-97087-029-0 |
01 |
1 |
9611- |
● |
|
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
|
8-97087-029-0 |
01 |
1 |
9611- |
|
● |
| |
66 |
03.342 STUD; EXH PIPE
UNITED KINGDOM EQUIPMENT(EK3)
03.613
M10X38 L=53
|
5-09302-007-0 |
02 |
1 |
9611- |
● |
|
| |
66 |
03.342 STUD; EXH PIPE
03.613
M10X38 L=53
|
5-09302-007-0 |
02 |
1 |
9611- |
|
● |
| |
78 |
03.342 HOSE; INL PIPE,TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3)
|
8-97096-628-2 |
01 |
1 |
9611- |
● |
|
| |
78 |
03.342 HOSE; INL PIPE,TURBOCHARGER
|
8-97120-727-0 |
01 |
1 |
9611- |
|
● |
| |
80 |
03.407 CLIP; CONN HOSE,TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3)
ID=45.5-56.5
|
8-97131-943-0 |
02 |
1 |
9611- |
● |
|
| |
80 |
03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5
|
8-97131-943-0 |
02 |
1 |
9611- |
|
● |
| |
100 |
03.417 PROTECTOR; HEAT,EXH MANIF
UNITED KINGDOM EQUIPMENT(EK3)
|
8-97038-109-1 |
01 |
1 |
9611- |
● |
|
| |
100 |
03.417 PROTECTOR; HEAT,EXH MANIF
|
8-97038-109-1 |
01 |
1 |
9611- |
|
● |
| |
101 |
03.602 BOLT; HEAT PROTECTOR
UNITED KINGDOM EQUIPMENT(EK3)
08.900
M8X12 FLANGE
|
0-28080-812-0 |
06 |
1 |
9611- |
● |
|
| |
101 |
03.602 BOLT; HEAT PROTECTOR
08.900
M8X12 FLANGE
|
0-28080-812-0 |
06 |
1 |
9611- |
|
● |
| |
103 |
03.374 HOSE; TURBOCHARGER
|
8-97026-816-0 |
01 |
1 |
9611- |
|
● |
| |
115 |
03.342 PIPE; WATER,TURBOCHARGER OUT
UNITED KINGDOM EQUIPMENT(EK3)
01.097
|
8-97063-234-0 |
01 |
1 |
9611- |
● |
|
| |
115 |
03.342 PIPE; WATER,TURBOCHARGER OUT
|
8-97149-127-1 |
01 |
1 |
9611- |
|
● |
| |
116 |
03.342 BOLT; WATER PIPE
UNITED KINGDOM EQUIPMENT(EK3)
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
9611- |
● |
|
| |
116 |
03.342 BOLT; WATER PIPE
01.428
M6X12 FLANGE
|
0-28080-612-0 |
01 |
1 |
9611- |
|
● |
| |
116 |
03.342 BOLT; WATER PIPE
04.930
M6X20 FLANGE
|
0-28680-620-0 |
02 |
1 |
9710- |
|
● |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
UNITED KINGDOM EQUIPMENT(EK3)
(A)
T=2.5
|
8-94472-584-1 |
01 |
1 |
9611- |
● |
|
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
UNITED KINGDOM EQUIPMENT(EK3)
08.955
(B)
ID=12.2
|
9-09571-412-0 |
04 |
1 |
9611- |
● |
|
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.374
(A)
|
8-94321-135-1 |
01 |
1 |
9611- |
|
● |
| |
118 |
03.342 CLIP; WATER HOSE
UNITED KINGDOM EQUIPMENT(EK3)
03.162
ID=15.5
|
8-94221-519-0 |
04 |
1 |
9611- |
● |
|
| |
118 |
03.342 CLIP; WATER HOSE
03.162
ID=15.5
|
8-94221-519-0 |
04 |
1 |
9611- |
|
● |
| |
119 |
03.342 HOSE; WATER,TURBOCHARGER
UNITED KINGDOM EQUIPMENT(EK3)
L=250 W/INSULATOR
|
8-94340-669-1 |
01 |
1 |
9611- |
● |
|
| |
119 |
03.342 HOSE; WATER,TURBOCHARGER
L=250 W/INSULATOR
|
8-94340-669-1 |
01 |
1 |
9611- |
|
● |
| |
120 |
01.097 ADAPTER; WATER
UNITED KINGDOM EQUIPMENT(EK3)
|
8-94472-583-0 |
01 |
1 |
9611- |
● |
|
| |
137 |
01.097 PIPE; WATER,TURBOCHARGER IN
UNITED KINGDOM EQUIPMENT(EK3)
|
8-97086-342-0 |
01 |
1 |
9611- |
● |
|
| |
138 |
03.342 BOLT; EYE,WATER PIPE
UNITED KINGDOM EQUIPMENT(EK3)
01.531
M12X24 EYE-BOLT
|
1-09675-081-0 |
02 |
1 |
9611- |
● |
|
| |
138 |
03.342 BOLT; EYE,WATER PIPE
04.930
M6X20 FLANGE
|
0-28680-620-0 |
02 |
1 |
9611-9709 |
|
● |
| |
231 |
03.342 HOSE; RUBBER,TURBOCHARGER OUT
UNITED KINGDOM EQUIPMENT(EK3)
L=160 W/INSULATOR
|
8-94325-255-0 |
01 |
1 |
9611- |
● |
|
| |
231 |
03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR
|
8-94325-255-0 |
01 |
1 |
9611- |
|
● |
| |
303 |
03.440 ADAPTER; THROTTLE BODY,EXH
UNITED KINGDOM EQUIPMENT(EK3)
|
8-97087-028-1 |
01 |
1 |
9611- |
● |
|
| |
303 |
03.440 ADAPTER; THROTTLE BODY,EXH
|
8-97139-725-0 |
01 |
1 |
9611- |
|
● |
