0-33 — FAN AND FAN BELT (#36254) — 109 parça

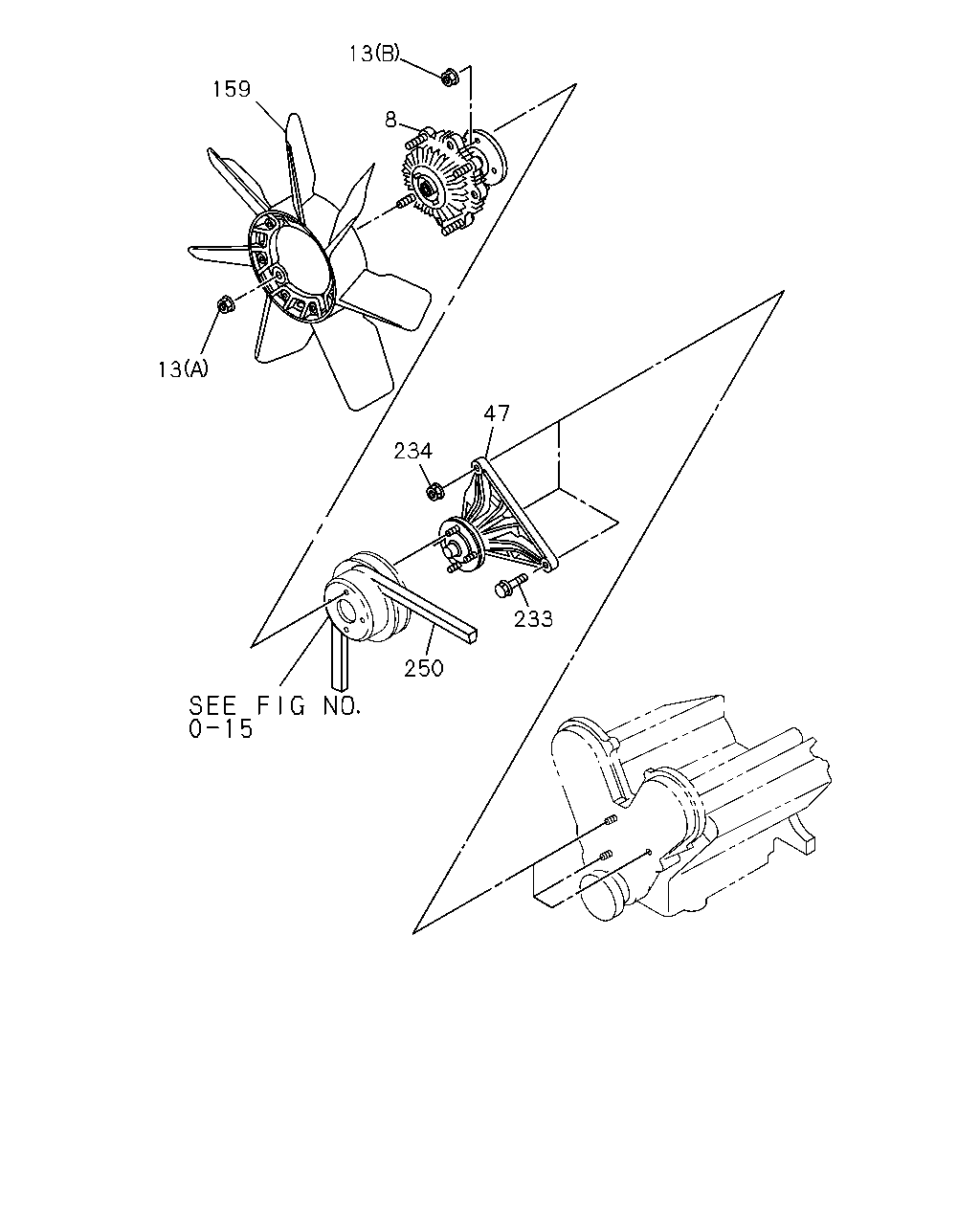

çizim 17075
159 13 8 13 234 47 233 250
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9611- ● ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9712- ●
13 01.062 NUT; COOLING FAN
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
07.633 (B) M8 FLANGE 		0-91150-108-0 04 1 9712- ●
47 01.060 BRACKET; FAN 8-97148-675-1 01 1 9712- ●
159 01.064 BLADE; COOLING FAN 8-97130-757-1 01 1 9712- ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 9712- ●
234 01.060 NUT; FAN BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ●
250 01.066 BELT; SERPENTINE DRIVE
AIR CONDITIONER MANUAL CONT(C60) L=2288 		8-97130-560-0 01 1 9712- ●
250 01.066 BELT; SERPENTINE DRIVE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038 		8-97130-561-0 01 1 9712- ●

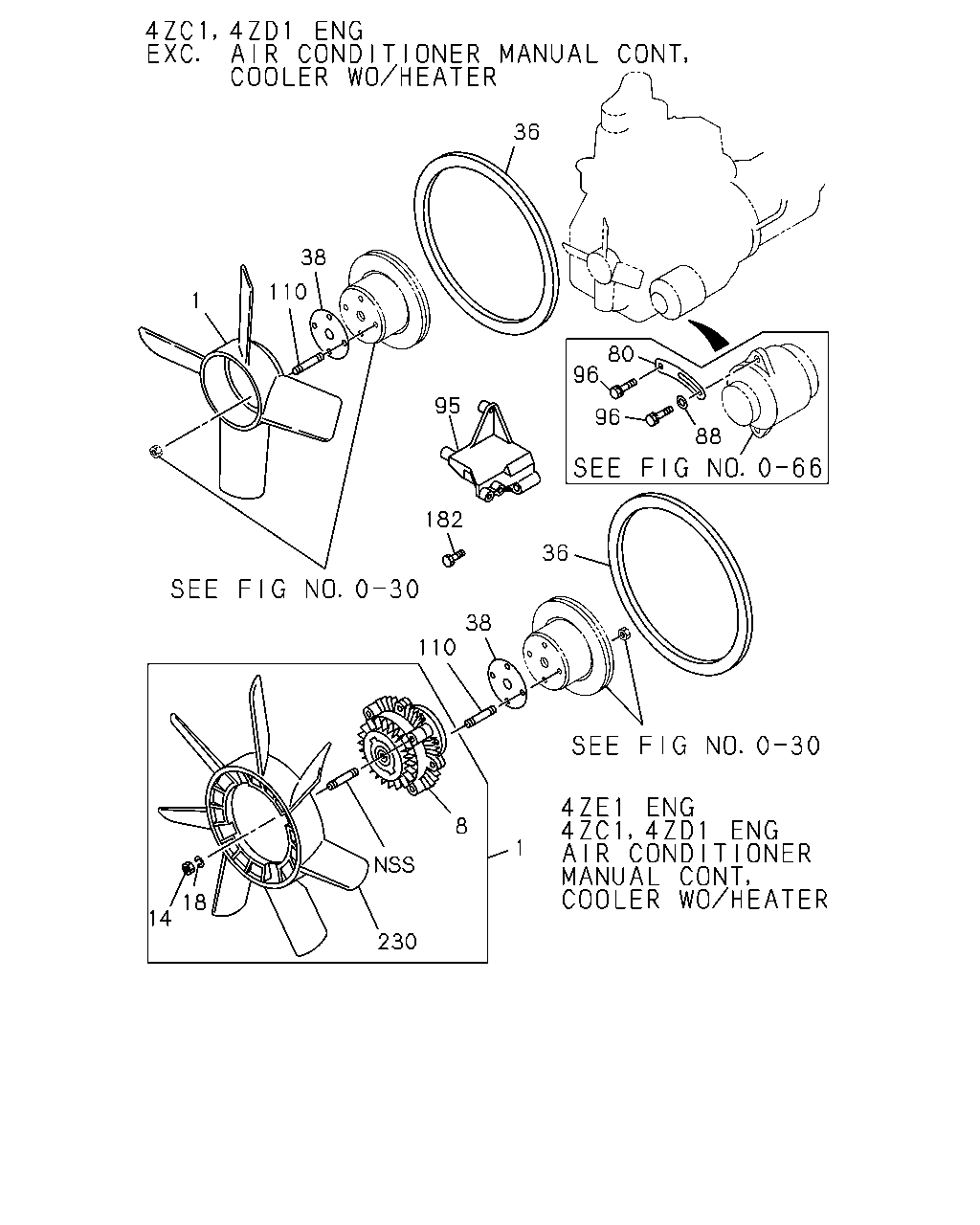

çizim 70089
38 110 1 36 95 182 36 38 110 8 1 230 18 14 96 96 80 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) OD=390 		8-94171-813-0 01 1 9611- ● ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) OD=330 		8-94158-764-1 01 1 9611- ● ●
1 01.064 FAN; COOLING
LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9611- ●
1 01.064 FAN; COOLING
LONG(TF***F) EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9611- ●
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9611- ●
1 01.064 FAN; COOLING
OD=410 		8-94103-469-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9611- ● ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9712- ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.413 M6 		9-09110-506-0 04 1 9611- ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9611- ●
14 01.062 NUT; FAN TO CLU
LONG(TF***F) TURBOCHARGER<K51> 00.413 M6 		9-09110-506-0 04 1 9611- ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9611- ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 ID=6.1 		9-09150-506-0 04 1 9611- ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9611- ●
18 01.062 WASHER; FAN TO CLU
LONG(TF***F) TURBOCHARGER<K51> 00.206 ID=6.1 		9-09150-506-0 04 1 9611- ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9611- ●
36 01.066 BELT; COOLING FAN
L=894 		8-94175-170-0 01 1 9611- ● ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9611- ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9611- ● ●
38 01.062 SPACER; FAN
01.060 		8-94438-717-0 01 1 9611- ● ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> 		8-97115-746-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
EXC. POWER STEERING<N40> 		8-94475-025-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
ELECTRIC FUEL INJECTION<6GG> EXC. POWER STEERING<N40> 		8-94436-178-2 01 1 9611- ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> ELECTRIC FUEL INJECTION<6GG> 		8-97104-718-0 01 1 9611- ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97134-600-0 01 1 9611- ●
80 02.317 PLATE; ADJ
EXC. POWER STEERING<N40>,ELECTRIC FUEL INJECTION<6GG> 		8-97135-379-0 01 1 9611- ●
80 02.317 PLATE; ADJ
(A) 		8-97132-049-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) 		8-97132-048-0 01 1 9611- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9611- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9611- ● ●
95 02.317 BRACKET; ADJ PLATE
POWER STEERING<N40> 		8-97115-745-0 01 1 9611- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ● ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9611- ● ● ●
96 02.317 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
96 02.317 BOLT; ADJ PLATE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
110 01.064 SCREW; PULLEY
01.428 M8X20 L=32 		9-04110-820-0 04 1 9611- ● ● ●
182 01.062 BOLT; BRKT
POWER STEERING<N40> 00.685 M10X50 FLANGE 		0-28081-050-0 02 1 9611- ● ● ●
230 01.055 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.064 		8-94412-033-0 01 1 9611- ● ●
230 01.055 FAN; COOLING
LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94310-517-0 01 1 9611- ●
230 01.055 FAN; COOLING
LONG(TF***F) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94311-255-0 01 1 9611- ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9611- ●
230 01.055 FAN; COOLING
01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9611- ●

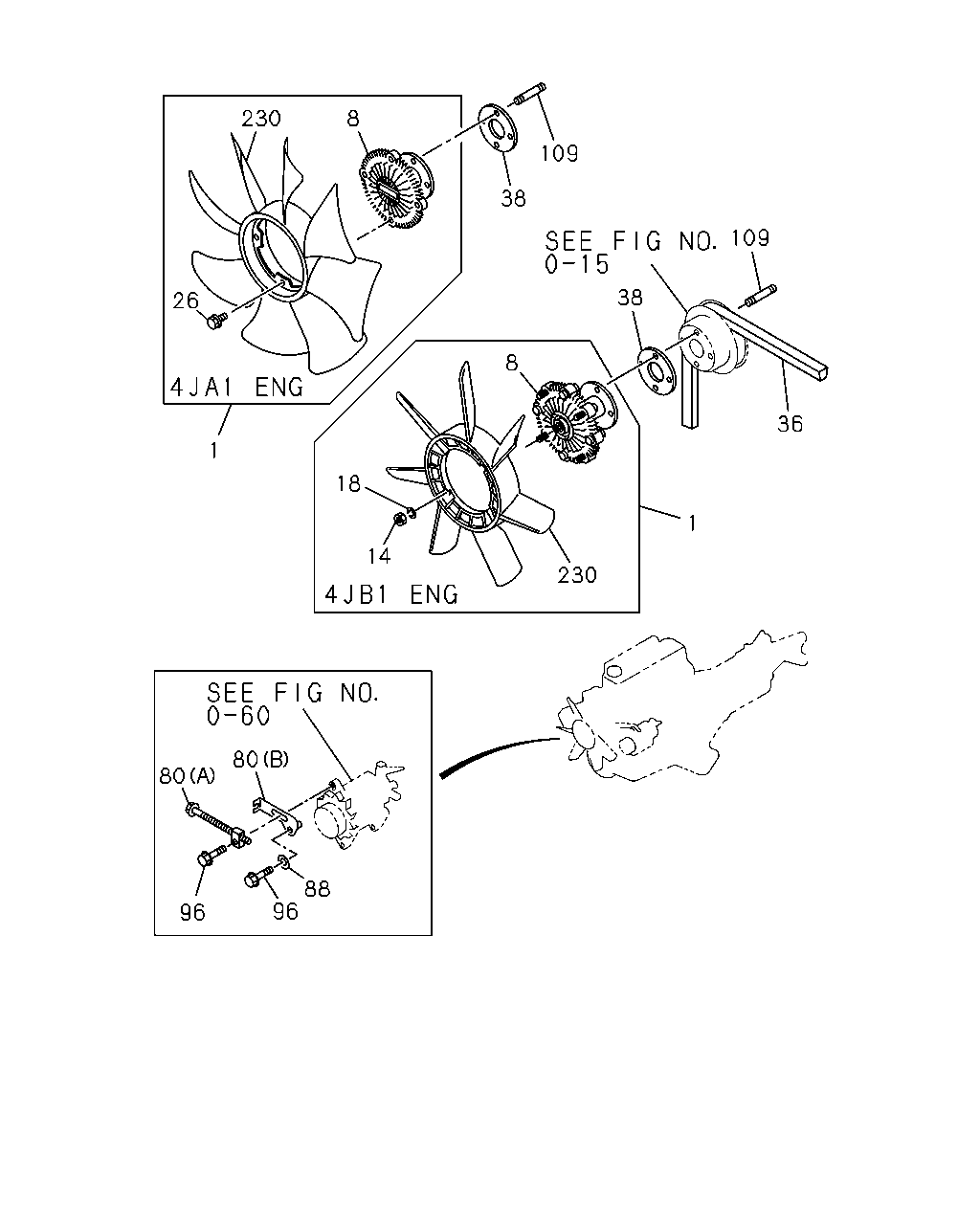

çizim 71283
230 8 38 109 38 109 36 1 230 14 18 8 26 80 80 96 96 88 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) OD=390 		8-94171-813-0 01 1 9611- ● ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) OD=330 		8-94158-764-1 01 1 9611- ● ●
1 01.064 FAN; COOLING
LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9611- ●
1 01.064 FAN; COOLING
LONG(TF***F) EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9611- ●
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9611- ●
1 01.064 FAN; COOLING
OD=410 		8-94103-469-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9611- ● ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9611- ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9712- ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.413 M6 		9-09110-506-0 04 1 9611- ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9611- ●
14 01.062 NUT; FAN TO CLU
LONG(TF***F) TURBOCHARGER<K51> 00.413 M6 		9-09110-506-0 04 1 9611- ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9611- ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 ID=6.1 		9-09150-506-0 04 1 9611- ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9611- ●
18 01.062 WASHER; FAN TO CLU
LONG(TF***F) TURBOCHARGER<K51> 00.206 ID=6.1 		9-09150-506-0 04 1 9611- ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9611- ●
26 01.062 BOLT; FAN TO CLU
03.671 M6X20 		0-28020-620-0 04 1 9611- ●
36 01.066 BELT; COOLING FAN
L=894 		8-94175-170-0 01 1 9611- ● ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9611- ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9611- ● ●
38 01.062 SPACER; FAN
01.060 		8-94438-717-0 01 1 9611- ● ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> 		8-97115-746-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
EXC. POWER STEERING<N40> 		8-94475-025-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
ELECTRIC FUEL INJECTION<6GG> EXC. POWER STEERING<N40> 		8-94436-178-2 01 1 9611- ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> ELECTRIC FUEL INJECTION<6GG> 		8-97104-718-0 01 1 9611- ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97134-600-0 01 1 9611- ●
80 02.317 PLATE; ADJ
EXC. POWER STEERING<N40>,ELECTRIC FUEL INJECTION<6GG> 		8-97135-379-0 01 1 9611- ●
80 02.317 PLATE; ADJ
(A) 		8-97132-049-0 01 1 9611- ● ●
80 02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) 		8-97132-048-0 01 1 9611- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9611- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9611- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ● ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9611- ● ● ●
96 02.317 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
96 02.317 BOLT; ADJ PLATE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
109 01.062 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9611- ● ●
230 01.055 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.064 		8-94412-033-0 01 1 9611- ● ●
230 01.055 FAN; COOLING
LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94310-517-0 01 1 9611- ●
230 01.055 FAN; COOLING
LONG(TF***F) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94311-255-0 01 1 9611- ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9611- ●
230 01.055 FAN; COOLING
01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9611- ●
