◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶

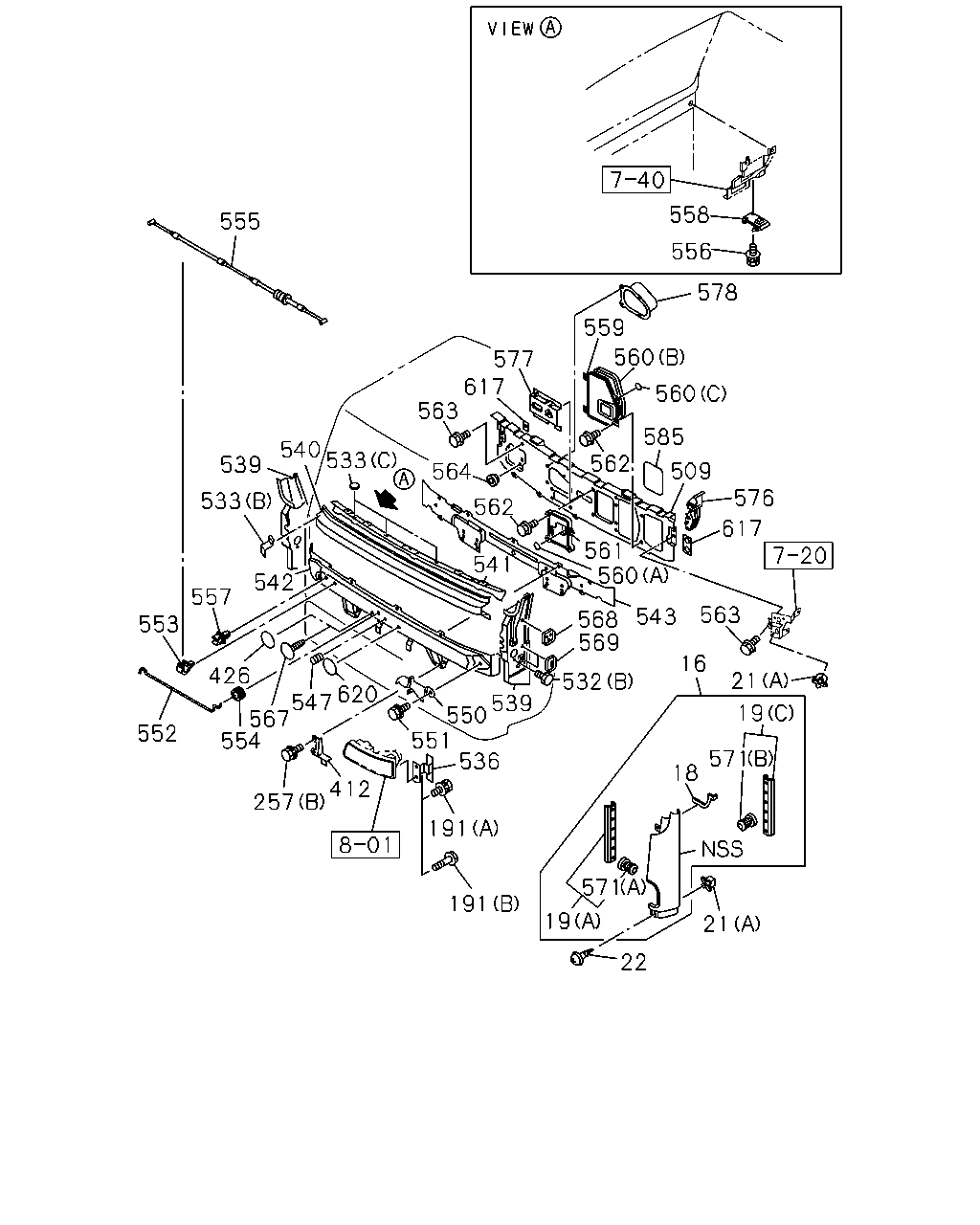

6-05 — FRONT PANEL (#36253) — 484 parça
çizim 152124
555 558 556 578 577 617 559 560 560 509 585 563 540 539 533 557 553 552 542 533 564 562 576 563 21 19 18 571 21 22 191 19 16 532 543 568 560 561 562 541 539 550 536 551 620 547 412 191 617 426 567 554 257 569 571
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PANEL; FRONT,SIDE
KENYA EQUIPMENT(PQ2) WHITE 		1-65481-562-2 01 1 9802-9803 ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-562-3 01 1 9804- ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-2 01 1 9510-9803 ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-2 01 1 9804-0004 ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 0005-0104 ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 0005-0104 ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 0105- ● ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-1 01 1 9510-9803 ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-1 01 1 9510-9803 ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-1 01 1 9804-0004 ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-1 01 1 9804-0004 ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-2 01 1 0005-0104 ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-2 01 1 0005-0104 ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-2 01 1 0105- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9510-9801 ● ● ●
16 PANEL; FRONT,SIDE
EXC. KENYA EQUIPMENT(PQ2) WHITE 		1-65481-590-1 01 1 9802-9803 ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9802-9803 ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-590-2 01 1 9804- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 9804- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9510- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510- ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9510-0003 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0004 ● ●
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0004 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0601 ● ●
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0601 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0602-0708 ● ●
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0602-0708 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
191 BOLT; HINGE
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0601 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0601 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0602-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0602-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510- ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9510-0004 ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 9510-0004 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0005-0601 ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005-0601 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0602- ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0602- ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9510-0004 ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 9510-0004 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0005-0601 ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005-0601 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0602- ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0602- ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0112 ● ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0112 ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0201-0210 ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0211- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 9805-0210 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 9805-0210 ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0211- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0211- ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9510-9802 ● ●
509 PANEL; DASH 1-62280-213-1 01 1 9510-9802 ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9803-0210 ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9803-0210 ●
509 PANEL; DASH 1-62280-213-1 01 1 9803-0210 ●
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 0211-0604 ● ●
509 PANEL; DASH 1-62280-213-1 01 1 0211-0604 ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 9510-9802 ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 9803-0004 ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 0005-0210 ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 0005-0210 ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-1 01 1 0211-0604 ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510- ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9510-9806 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807- ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510- ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9510-0004 ● ●
536 HINGE 1-86830-004-5 01 1 9510-0004 ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0005-0601 ● ●
536 HINGE 1-86830-004-5 01 1 0005-0601 ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0602- ● ●
536 HINGE 1-86830-004-5 01 1 0602- ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9510-0004 ● ●
536 HINGE 1-86830-003-5 01 1 9510-0004 ●
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0005-0601 ● ●
536 HINGE 1-86830-003-5 01 1 0005-0601 ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0602- ● ●
536 HINGE 1-86830-003-5 01 1 0602- ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 9510- ● ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 9510- ● ● ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 9510- ● ● ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9510- ● ● ●
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 9510- ● ● ●
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 9510- ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9510- ● ● ●
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 9510- ● ● ●
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 9510- ● ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510- ● ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 9510-0205 ● ● ●
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706 ● ● ●
552 STAY; FRT LID 1-71996-352-0 01 1 0707- ● ● ●
553 CLIP; STAY 8-97031-428-0 01 1 9510- ● ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9510- ● ● ●
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 9510- ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9510-9611 ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9612- ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9510- ● ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 9510-0212 ● ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 0301- ● ● ●
559 COVER; EVAPOLATOR 1-71998-831-3 01 1 9510-9603 ● ● ●
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608 ● ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 9609- ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 BLACK 		1-76798-018-0 02 1 9510-9802 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 BLACK 		1-76798-018-0 02 1 9803-9806 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807- ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9510- ● ● ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9510-9802 ● ● ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9803-9806 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9803-9806 ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0004 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0004 ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005-0210 ●
560 SEAL; COVER
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005-0210 ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211- ●
560 SEAL; COVER
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211- ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 9510- ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510- ● ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9510-9707 ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807 ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202 ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203- ● ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9510-9707 ● ● ●
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807 ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9510- ● ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9510-9803 ● ● ●
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9510- ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9510- ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9510- ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 9510-9803 ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804- ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804- ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 14 1 9510-0207 ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208- ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208- ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 9510-0604 ● ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 9510-0604 ● ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 9510-0604 ● ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9510-0604 ● ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9510-9802 ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9803-0210 ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9803-0210 ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 0211- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 9510-0604 ● ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 9803- ● ● ●

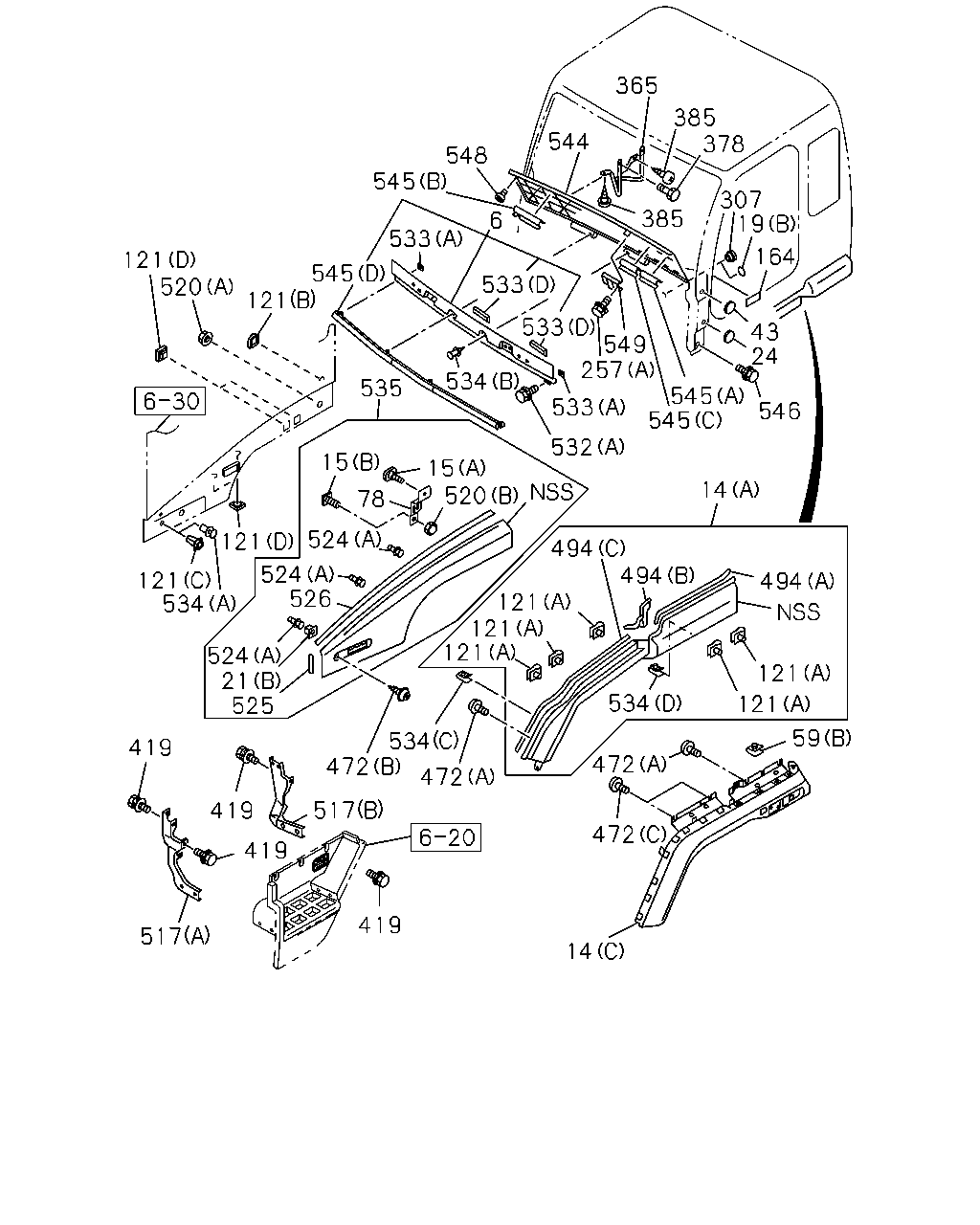

çizim 152130
365 385 378 544 548 545 307 19 385 6 533 164 121 520 545 533 121 533 549 257 534 43 24 535 545 545 533 546 532 15 15 520 14 78 524 121 494 494 524 526 121 534 494 121 121 121 524 21 525 121 534 121 59 534 472 419 472 472 517 419 419 472 419 517 14
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PANEL; FRONT 1-65481-556-2 01 1 9510-9807 ● ● ●
6 PANEL; FRONT 1-65481-744-2 01 1 9808- ● ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9510-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210- ● ●
14 FENDER; FRT
(C) 		1-71996-149-5 01 1 9510-9703 ● ●
14 FENDER; FRT
(C) GRAY 		1-71996-178-1 01 1 9704- ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9510-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210- ● ●
14 FENDER; FRT
(C) 		1-71996-148-4 01 1 9510-9703 ● ●
14 FENDER; FRT
(C) GRAY 		1-71996-177-1 01 1 9704- ● ●
14 FENDER; FRT
(B) 		1-65481-547-2 01 1 9510-9708 ●
14 FENDER; FRT
(B) 		1-65481-782-0 01 1 9709-0008 ●
14 FENDER; FRT
(B) 		1-65481-900-1 01 1 0009- ●
14 FENDER; FRT
(A) 		1-65481-668-0 01 1 9510-0209 ●
14 FENDER; FRT
(A) 		1-65482-057-1 01 1 0210- ●
14 FENDER; FRT
(B) 		1-65481-546-2 01 1 9510-9708 ●
14 FENDER; FRT
(B) 		1-65481-781-0 01 1 9709-0008 ●
14 FENDER; FRT
(B) 		1-65481-899-1 01 1 0009- ●
14 FENDER; FRT
(A) 		1-65481-667-0 01 1 9510-0209 ●
14 FENDER; FRT
(A) 		1-65482-056-1 01 1 0210- ●
14 FENDER; FRT
(C) 		1-71996-164-0 01 1 9607-9703 ●
14 FENDER; FRT
(C) 		1-71996-182-2 01 1 9704- ●
14 FENDER; FRT
(C) 		1-71996-163-0 01 1 9607-9703 ●
14 FENDER; FRT
(C) 		1-71996-181-2 01 1 9704- ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9510- ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510- ● ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9510-9601 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9510-9601 ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9602-9811 ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 08 1 9812- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9812- ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9510-9903 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9602-9811 ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9510- ● ● ●
59 GROMMET; SCREW
(B) 		8-94279-723-0 03 1 9510-9705 ● ●
59 GROMMET; SCREW
(B) 		8-94279-723-0 02 1 9706- ● ●
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9510-9604 ●
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 9605- ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9510- ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9510- ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9510- ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9510-1009 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-9601 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9602-9603 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0304 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0304 ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 9510- ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9510-9605 ● ● ●
164 SEAL; FRT PILLAR
EXC. THAILAND EQUIPMENT(PM9) 		1-71907-414-0 02 1 9606-9802 ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9606-9802 ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9803- ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0601 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0601 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0602-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0602-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510- ● ● ●
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9510-9703 ● ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9510- ● ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9510- ● ●
385 SCREW; FENDER LWR
M6X22 		1-65481-386-0 02 1 9510-9601 ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 02 1 9510-9601 ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9602- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9510-0009 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 21 1 9510-9601 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 06 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 16 1 9510-9601 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 27 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 36 1 9607-9607 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 32 1 9608-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9805- ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9607- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9607-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805- ● ●
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9510-9706 ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 20 1 9510-9606 ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 12 1 9607- ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9510- ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9510-0610 ● ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9510- ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9510- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 9510- ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71998-782-2 01 1 9510-9512 ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9601- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9510- ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71998-781-2 01 1 9510-9512 ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9601- ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510- ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9510- ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-174-0 08 1 9510-9803 ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-154-0 08 1 9804- ● ● ●
524 CLIP; FENDER COVER
(B) 		1-71997-509-2 02 1 9510-9809 ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9510-0409 ● ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ● ●
526 FINISHER; FENDER 1-71268-276-1 01 1 9510-0209 ● ● ●
526 FINISHER; FENDER 1-71268-275-1 01 1 9510-0209 ● ● ●
526 FINISHER; FENDER 1-71268-275-1 02 1 0210- ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510- ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9510-9806 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807- ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510- ● ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9510- ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 9510-9602 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 02 1 9603-9605 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9606-0404 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9510-9803 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9510- ● ● ●
534 FASTENER
(D) 		1-71996-035-1 10 1 9510- ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9510-0209 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9510-0209 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ● ●
544 LID; FRT 1-71108-073-3 01 1 9510-9703 ● ● ●
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9802 ● ● ●
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9803-0004 ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005- ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0007-0411 ● ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9510-0004 ● ● ●
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9510-9908 ● ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909- ● ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9510-9908 ● ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909- ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9510- ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9510- ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9510- ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9510-0301 ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302- ● ● ●

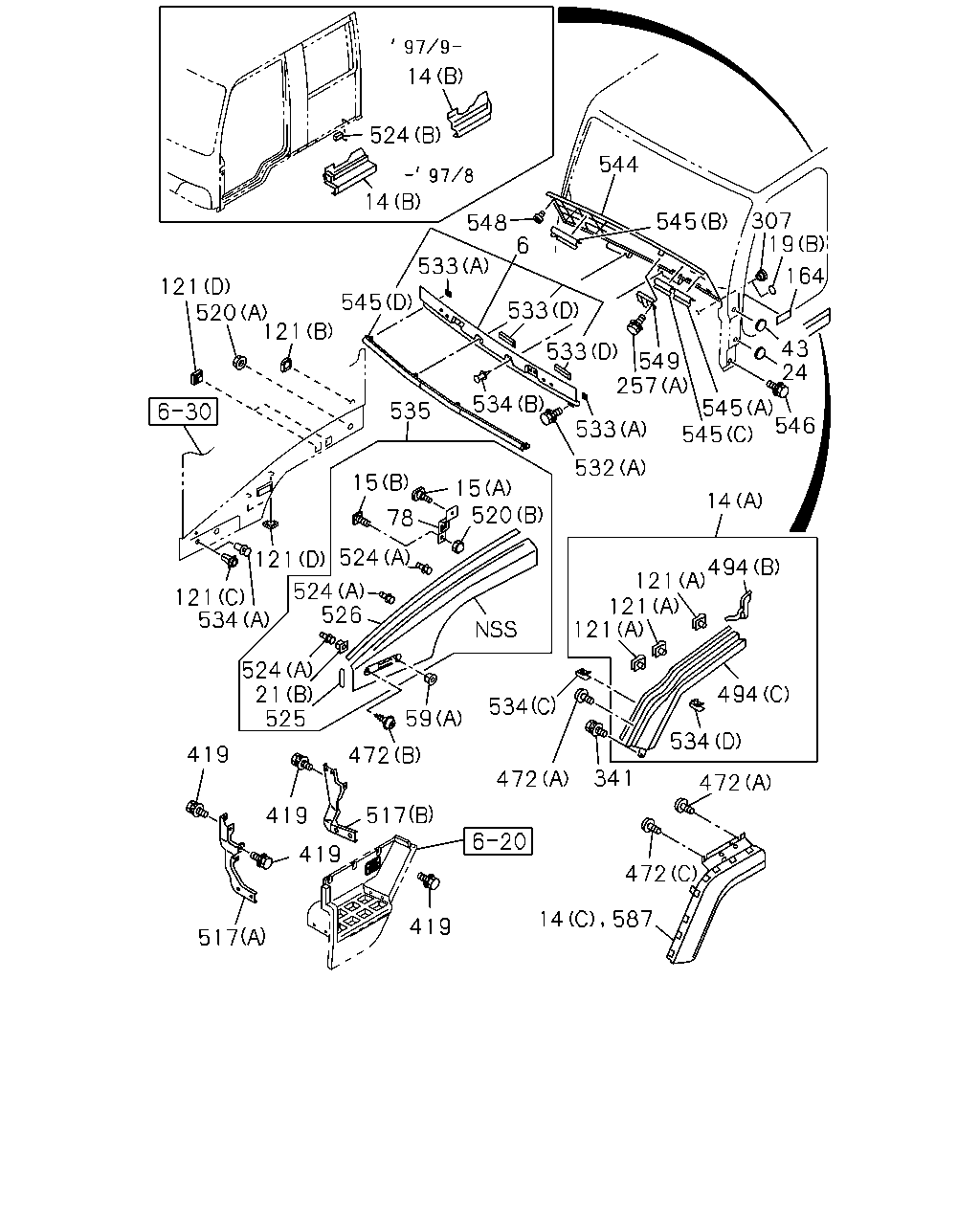

çizim 152334
14 524 544 78 14 307 19 545 548 6 533 164 121 520 545 533 121 533 43 24 549 257 534 545 545 546 535 533 532 15 15 520 14 524 121 494 121 121 121 524 526 121 534 524 21 525 494 534 59 534 419 472 341 472 472 517 419 419 472 419 517 14 587 78
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PANEL; FRONT 1-65481-556-2 01 1 9510-9807 ● ● ●
6 PANEL; FRONT 1-65481-744-2 01 1 9808- ● ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9510-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210- ● ●
14 FENDER; FRT
(C) 		1-71996-149-5 01 1 9510-9703 ● ●
14 FENDER; FRT
(C) GRAY 		1-71996-178-1 01 1 9704- ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9510-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210- ● ●
14 FENDER; FRT
(C) 		1-71996-148-4 01 1 9510-9703 ● ●
14 FENDER; FRT
(C) GRAY 		1-71996-177-1 01 1 9704- ● ●
14 FENDER; FRT
(B) 		1-65481-547-2 01 1 9510-9708 ●
14 FENDER; FRT
(B) 		1-65481-782-0 01 1 9709-0008 ●
14 FENDER; FRT
(B) 		1-65481-900-1 01 1 0009- ●
14 FENDER; FRT
(A) 		1-65481-668-0 01 1 9510-0209 ●
14 FENDER; FRT
(A) 		1-65482-057-1 01 1 0210- ●
14 FENDER; FRT
(B) 		1-65481-546-2 01 1 9510-9708 ●
14 FENDER; FRT
(B) 		1-65481-781-0 01 1 9709-0008 ●
14 FENDER; FRT
(B) 		1-65481-899-1 01 1 0009- ●
14 FENDER; FRT
(A) 		1-65481-667-0 01 1 9510-0209 ●
14 FENDER; FRT
(A) 		1-65482-056-1 01 1 0210- ●
14 FENDER; FRT
(C) 		1-71996-164-0 01 1 9607-9703 ●
14 FENDER; FRT
(C) 		1-71996-182-2 01 1 9704- ●
14 FENDER; FRT
(C) 		1-71996-163-0 01 1 9607-9703 ●
14 FENDER; FRT
(C) 		1-71996-181-2 01 1 9704- ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9510- ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510- ● ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9510-9601 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9510-9601 ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9602-9811 ● ●
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 08 1 9812- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9812- ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9510-9903 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9602-9811 ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9510- ● ● ●
59 GROMMET; SCREW
(B) 		8-94279-723-0 03 1 9510-9705 ● ●
59 GROMMET; SCREW
(B) 		8-94279-723-0 02 1 9706- ● ●
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9510-9604 ●
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 9605- ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9510- ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9510- ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9510- ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9510-1009 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-9601 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9602-9603 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0304 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0304 ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 9510- ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9510-9605 ● ● ●
164 SEAL; FRT PILLAR
EXC. THAILAND EQUIPMENT(PM9) 		1-71907-414-0 02 1 9606-9802 ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9606-9802 ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9803- ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0601 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0601 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0602-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0602-0904 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510- ● ● ●
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9510-9703 ● ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9510-9606 ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 9607-9708 ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 14 1 9709- ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9510-0009 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 21 1 9510-9601 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 06 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 16 1 9510-9601 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 27 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 36 1 9607-9607 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 32 1 9608-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9805- ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9602-9606 ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9607- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9607-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805- ● ●
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9510-9706 ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 20 1 9510-9606 ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 12 1 9607- ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9510- ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9510-0610 ● ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9510- ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9510- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 9510- ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71998-782-2 01 1 9510-9512 ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9601- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9510- ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71998-781-2 01 1 9510-9512 ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9601- ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510- ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9510- ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-174-0 08 1 9510-9803 ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-154-0 08 1 9804- ● ● ●
524 CLIP; FENDER COVER
(B) 		1-71997-509-2 02 1 9510-9809 ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9510-0409 ● ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ● ●
526 FINISHER; FENDER 1-71268-276-1 01 1 9510-0209 ● ● ●
526 FINISHER; FENDER 1-71268-275-1 01 1 9510-0209 ● ● ●
526 FINISHER; FENDER 1-71268-275-1 02 1 0210- ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510- ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9510-9806 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807- ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510- ● ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9510- ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 9510-9602 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 02 1 9603-9605 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9606-0404 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9510-9803 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9510- ● ● ●
534 FASTENER
(D) 		1-71996-035-1 10 1 9510- ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9510-0209 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9510-0209 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ● ●
544 LID; FRT 1-71108-073-3 01 1 9510-9703 ● ● ●
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9802 ● ● ●
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9803-0004 ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005- ● ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0007-0411 ● ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9510-0004 ● ● ●
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9510-9908 ● ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909- ● ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9510-9908 ● ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909- ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9510- ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9510- ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9510- ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9510-0301 ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302- ● ● ●
587 FENDER; WIDE 1-71996-098-1 01 1 9510-9606 ●
587 FENDER; WIDE 1-71996-097-1 01 1 9510-9606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
