6-01 — FRONT BUMPER (#36250) — 149 parça

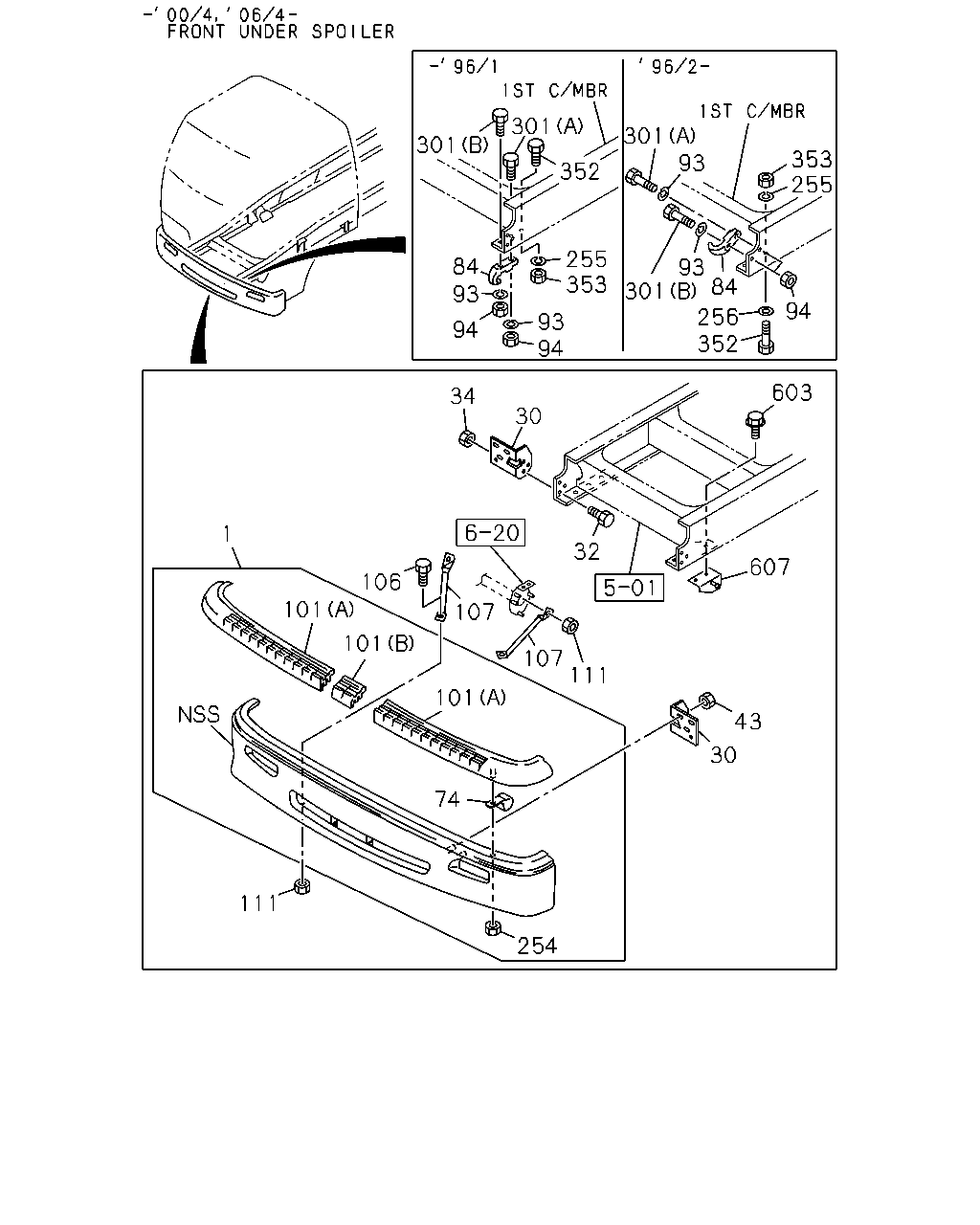

çizim 152119
1 301 93 301 301 353 255 352 84 93 255 353 93 84 301 256 352 94 93 94 94 603 34 30 1 32 607 106 107 101 101 107 111 101 43 30 74 111 254
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-2 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-2 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-2 01 1 0604- ●
1 BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-1 01 1 9510-0004 ● ● ●
1 BUMPER ASM; FRT
EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9510-0004 ● ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-4 01 1 0005-0603 ● ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) WHITE 		1-71210-583-4 01 1 0604- ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-4 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) WHITE 		1-71210-583-4 01 1 0604- ● ●
1 BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-4 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) WHITE 		1-71210-583-4 01 1 0604- ● ●
1 BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-4 01 1 0604- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510- ● ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0111 ● ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0112- ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0512 ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ● ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0602 ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-110-0 06 1 9510-9606 ● ● ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9607-9802 ● ● ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9803-0004 ● ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-110-0 04 1 9510-9606 ● ● ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510- ● ● ●
84 HOOK 1-57181-027-1 01 1 9510- ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9510-0603 ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9510-0206 ● ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0512 ● ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ● ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510- ● ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510- ● ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510- ● ● ●
106 BOLT; AIR DAM
FRONT UNDER SPOILER<VP1> M10X25 FLANGE 		0-28651-025-0 02 1 0604- ●
106 BOLT; AIR DAM
FRONT UNDER SPOILER<VP1> M10X16 FLANGE 		0-28081-016-0 02 1 9510-9602 ● ● ●
106 BOLT; AIR DAM
FRONT UNDER SPOILER<VP1> M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ● ● ●
106 BOLT; AIR DAM
FRONT UNDER SPOILER<VP1> M10X25 FLANGE 		0-28681-025-0 02 1 9607-9802 ● ● ●
106 BOLT; AIR DAM
FRONT UNDER SPOILER<VP1> M10X25 FLANGE 		0-28681-025-0 02 1 9803-0004 ● ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> CAB UP +50MM<W60> 		1-71260-131-1 01 1 0604- ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> CAB UP +50MM<W60> 		1-71260-132-1 01 1 0604- ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> EXC. CAB UP +50MM<W60> 		1-71260-129-1 01 1 0604- ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> EXC. CAB UP +50MM<W60> 		1-71260-130-1 01 1 0604- ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> 		1-71260-130-1 01 1 9510-9802 ● ● ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> 		1-71260-130-1 01 1 9803-0004 ● ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> 		1-71260-129-1 01 1 9510-9802 ● ● ●
107 STAY; AIR DAM
FRONT UNDER SPOILER<VP1> 		1-71260-129-1 01 1 9803-0004 ● ●
111 NUT; STAY
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91180-210-0 04 1 0604- ●
111 NUT; STAY
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-110-0 04 1 9510-9606 ● ● ●
111 NUT; STAY
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ● ● ●
111 NUT; STAY
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0602 ● ● ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ● ● ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> ID=16.2 		9-09150-516-0 01 1 0604-0604 ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> ID=16.2 		0-91510-516-0 01 1 0604-0609 ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> EXC. CAB UP +50MM<W60> ID=16.2 		0-91510-516-0 01 1 0610- ●
255 WASHER; LK
THAILAND EQUIPMENT(PM9) ID=16.2 		9-09150-616-0 01 1 9510-9601 ● ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> ID=16.2 		9-09150-616-0 01 1 9602-9802 ● ●
255 WASHER; LK
FRONT UNDER SPOILER<VP1> ID=16.2 		9-09150-616-0 01 1 9803-0004 ●
256 WASHER; PL
FRONT UNDER SPOILER<VP1> ID=16.2 		1-09503-223-0 01 1 0604-0609 ●
256 WASHER; PL
FRONT UNDER SPOILER<VP1> EXC. CAB UP +50MM<W60> ID=16.2 		1-09503-223-0 01 1 0610- ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 9510-0512 ● ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 0601- ● ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 9510-0512 ● ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 0601- ● ● ●
352 BOLT; FRAME
FRONT UNDER SPOILER<VP1> M16X40 		0-20851-640-0 01 1 0604-0609 ●
352 BOLT; FRAME
FRONT UNDER SPOILER<VP1> EXC. CAB UP +50MM<W60> M16X40 		0-20851-640-0 01 1 0610- ●
352 BOLT; FRAME
THAILAND EQUIPMENT(PM9) M16X40 		0-20801-640-0 01 1 9510-9601 ● ●
352 BOLT; FRAME
FRONT UNDER SPOILER<VP1> M16X40 		0-20801-640-0 01 1 9602-9802 ● ●
352 BOLT; FRAME
FRONT UNDER SPOILER<VP1> M16X40 		0-20801-640-0 01 1 9803-0004 ●
353 NUT; FRAME
FRONT UNDER SPOILER<VP1> M16 		0-91110-516-0 01 1 0604-0609 ●
353 NUT; FRAME
FRONT UNDER SPOILER<VP1> EXC. CAB UP +50MM<W60> M16 		0-91110-516-0 01 1 0610- ●
353 NUT; FRAME
THAILAND EQUIPMENT(PM9) M16 		9-99110-516-0 01 1 9510-9601 ● ●
353 NUT; FRAME
FRONT UNDER SPOILER<VP1> M16 		9-99110-516-0 01 1 9602-9802 ● ●
353 NUT; FRAME
FRONT UNDER SPOILER<VP1> M16 		9-99110-516-0 01 1 9803-0004 ●
603 BOLT; BRKT
FRONT UNDER SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X35 FLANGE 		0-28651-235-0 04 1 0604-0905 ●
603 BOLT; BRKT
FRONT UNDER SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X30 FLANGE 		0-28051-230-0 04 1 0906- ●
607 BRACKET
FRONT UNDER SPOILER<VP1> EXC. AUXILIARY STEPS<E29> 		1-47477-689-0 01 1 0604- ●
607 BRACKET
FRONT UNDER SPOILER<VP1> EXC. AUXILIARY STEPS<E29> 		1-47477-690-0 01 1 0604- ●

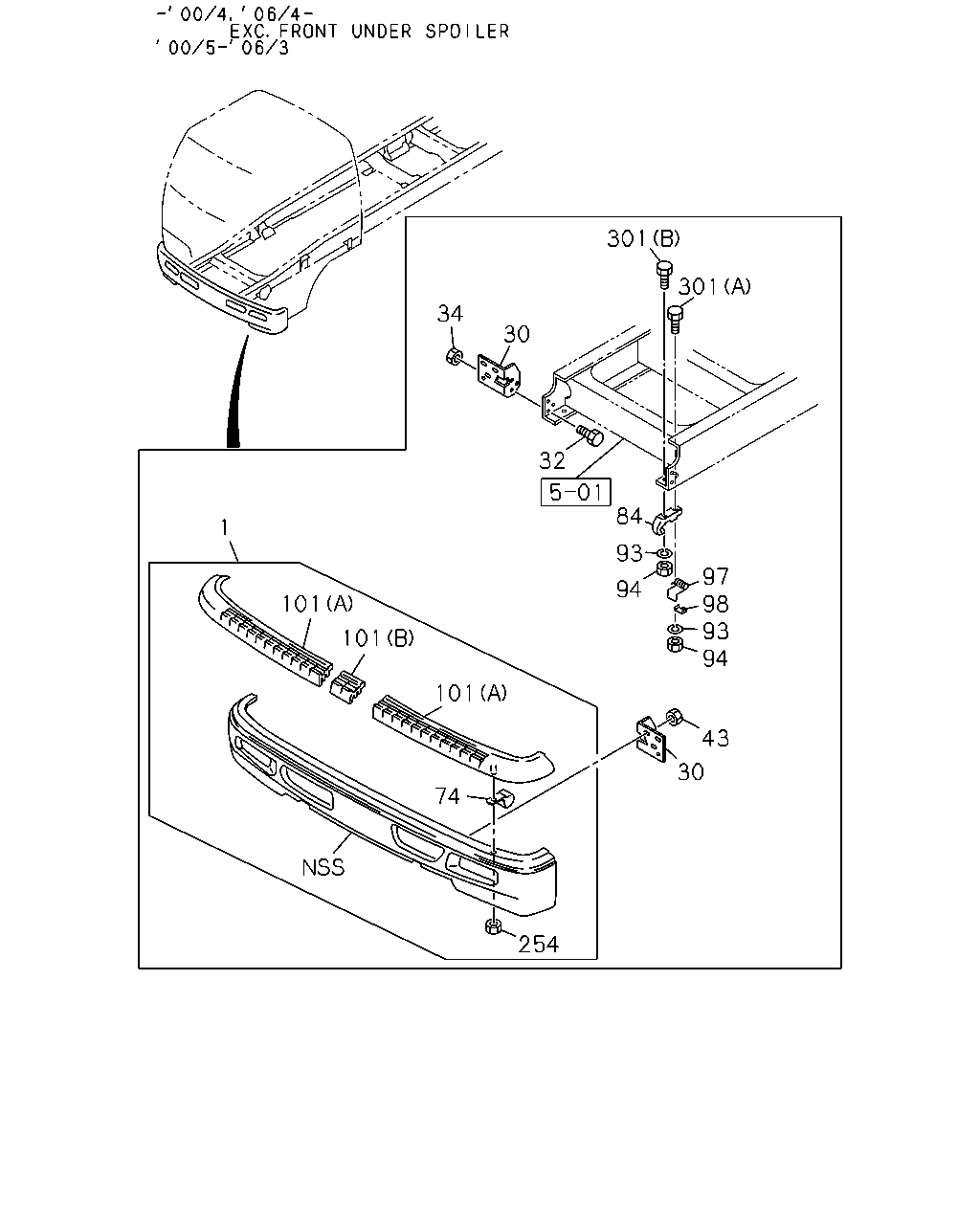

çizim 152126
301 301 34 30 32 84 93 1 97 98 93 94 94 101 101 101 43 30 74 254
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-2 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-2 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-2 01 1 0604- ●
1 BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> WHITE 		1-71210-661-1 01 1 9510-0004 ● ● ●
1 BUMPER ASM; FRT
EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-3 01 1 9510-0004 ● ● ●
1 BUMPER ASM; FRT
WHITE 		1-71210-583-4 01 1 0005-0603 ● ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) WHITE 		1-71210-583-4 01 1 0604- ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-4 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) WHITE 		1-71210-583-4 01 1 0604- ● ●
1 BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-4 01 1 0604- ●
1 BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) WHITE 		1-71210-583-4 01 1 0604- ● ●
1 BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) EXC. FRONT UNDER SPOILER<VP1> WHITE 		1-71210-583-4 01 1 0604- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510- ● ● ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0111 ● ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0112- ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0512 ● ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ● ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0602 ● ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-110-0 06 1 9510-9606 ● ● ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9607-9802 ● ● ●
43 NUT; BRKT TO BUMPER
FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 06 1 9803-0004 ● ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-110-0 04 1 9510-9606 ● ● ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
43 NUT; BRKT TO BUMPER
EXC. FRONT UNDER SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510- ● ● ●
84 HOOK 1-57181-027-1 01 1 9510- ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9510-0603 ● ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9510-0206 ● ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0512 ● ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ● ● ●
97 SPRING; FRT HOOK
EXC. THAILAND EQUIPMENT(PM9) 		9-53519-003-0 01 1 9510-9601 ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9510-9601 ●
97 SPRING; FRT HOOK
EXC. FRONT UNDER SPOILER<VP1> 		9-53519-003-0 01 1 9602-9802 ● ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9803-0004 ●
97 SPRING; FRT HOOK
EXC. FRONT UNDER SPOILER<VP1> 		9-53519-003-0 01 1 9803-0004 ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0005-0603 ● ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0604- ● ●
97 SPRING; FRT HOOK
EXC. FRONT UNDER SPOILER<VP1> 		9-53519-003-0 01 1 0604- ●
98 STOPPER; SPR,FRT HOOK
EXC. THAILAND EQUIPMENT(PM9) 		9-53519-006-0 01 1 9510-9601 ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9510-9601 ●
98 STOPPER; SPR,FRT HOOK
EXC. FRONT UNDER SPOILER<VP1> 		9-53519-006-0 01 1 9602-9802 ● ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9803-0004 ●
98 STOPPER; SPR,FRT HOOK
EXC. FRONT UNDER SPOILER<VP1> 		9-53519-006-0 01 1 9803-0004 ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0005-0603 ● ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0604- ● ●
98 STOPPER; SPR,FRT HOOK
EXC. FRONT UNDER SPOILER<VP1> 		9-53519-006-0 01 1 0604- ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510- ● ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510- ● ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510- ● ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0602 ● ● ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ● ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 9510-0512 ● ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 0601- ● ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 9510-0512 ● ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 0601- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
