6-01 — FRONT BUMPER (#3625) — 117 parça

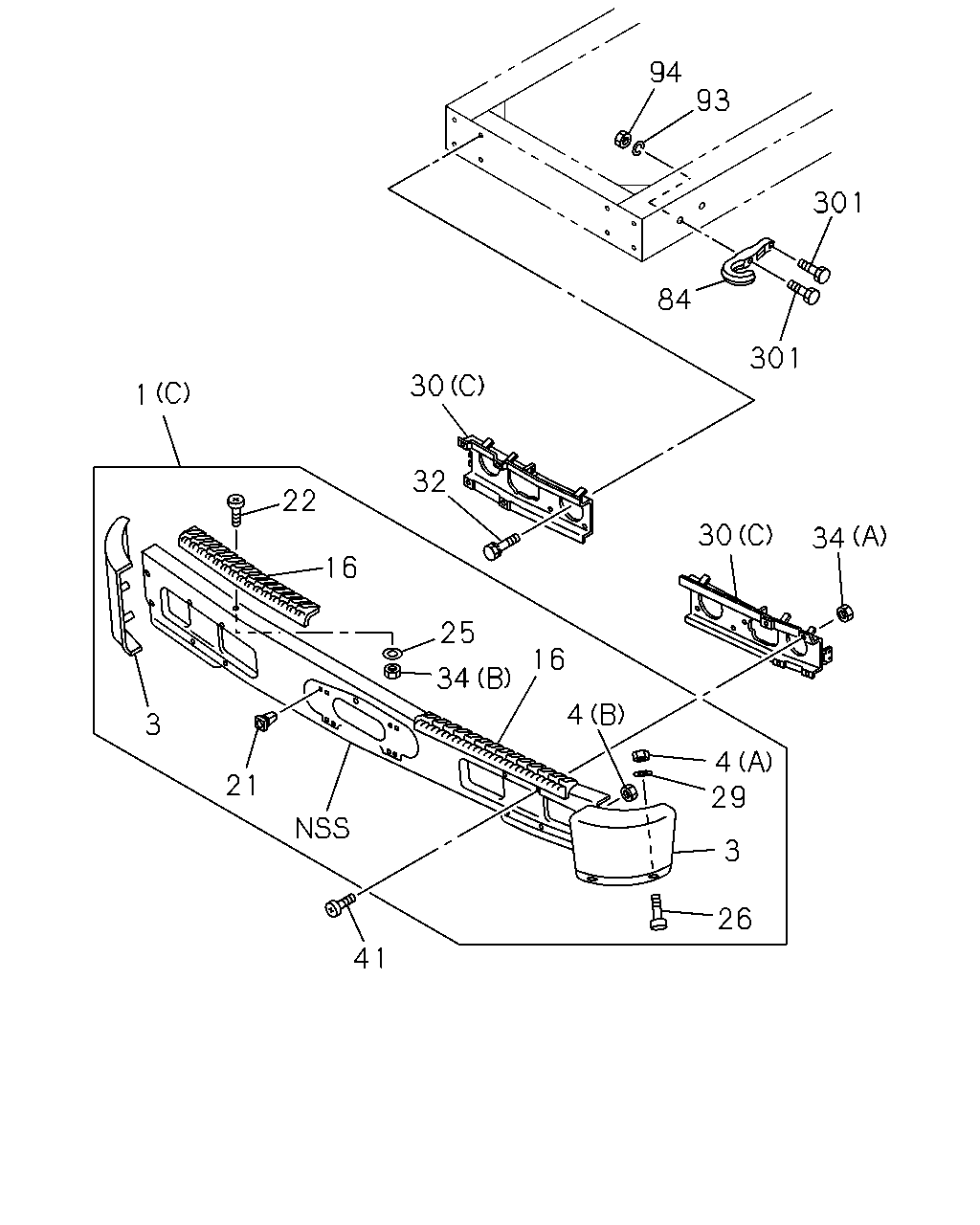

94 93 301 84 301 30 32 22 30 16 25 16 34 4 3 4 29 21 3 26 41 1 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7>	1-71210-431-1	01	1	9002-
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7>	1-71210-430-1	01	1	9002-
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> (A) M8 FLANGE	0-91150-108-0	02	1	9002-
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> (B) M10 FLANGE	5-09440-006-0	04	1	9002-
16	PLATFORM DELUXE BUMPER<VH7>	1-71260-035-2	01	1	9002-
16	PLATFORM DELUXE BUMPER<VH7>	1-71260-034-2	01	1	9002-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7>	1-09060-008-0	02	1	9002-
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> ID=12.5 OD=32	9-09160-712-0	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-169-0	01	1	9004-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7>	1-09122-020-0	08	1	9002-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-

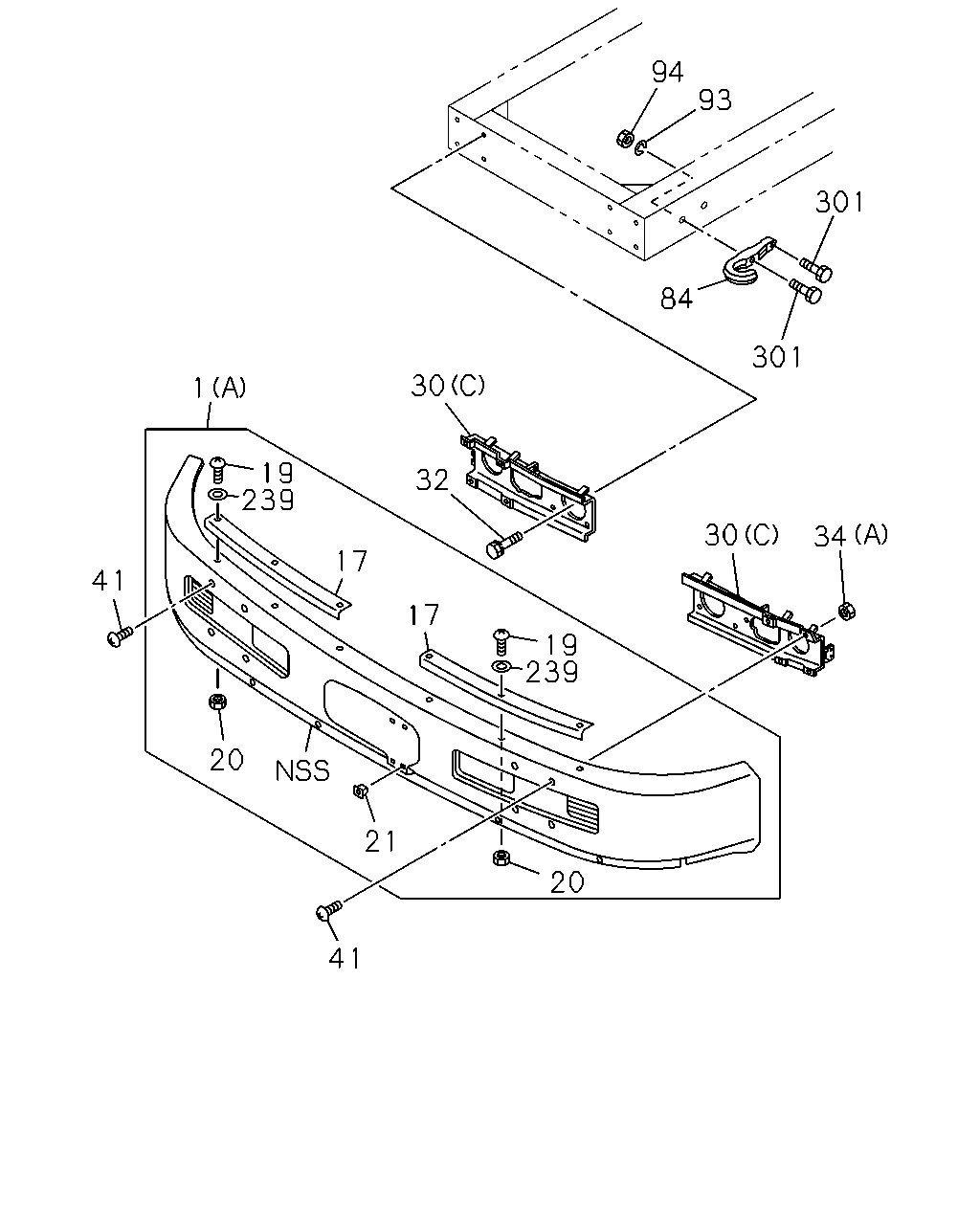

94 93 301 84 301 30 1 19 239 32 30 17 41 17 19 239 20 21 20 41 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
17	PROTECTOR; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	9002-
17	PROTECTOR; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	9002-
19	SCREW; BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	9002-9310
19	SCREW; BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	9-03486-410-0	06	1	9311-
20	NUT; BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	9002-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-169-0	01	1	9004-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7>	1-09122-020-0	08	1	9002-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-
239	WASHER; PL,BRKT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9002-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-

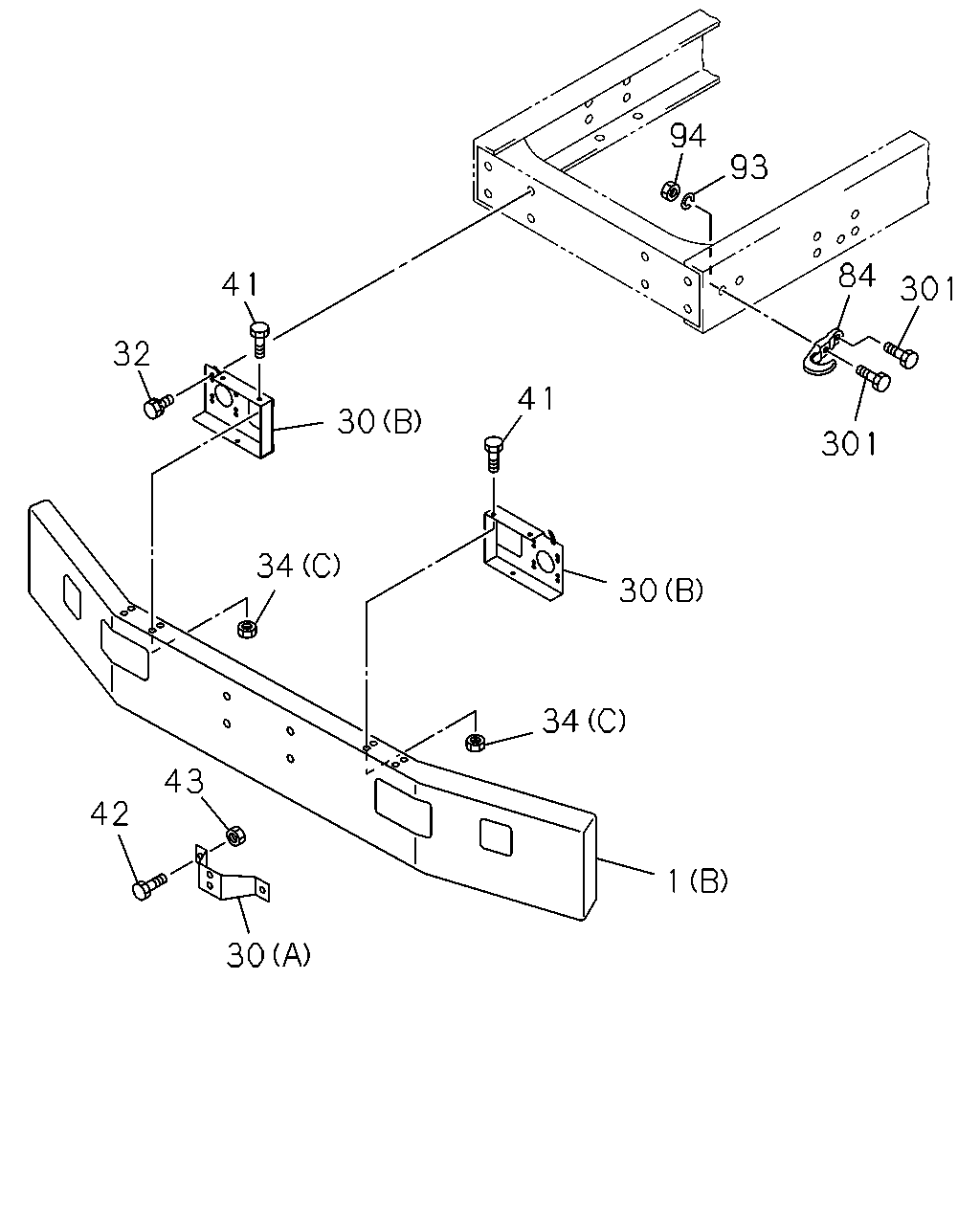

94 93 84 41 301 32 41 30 301 34 30 34 43 42 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-169-0	01	1	9004-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7>	1-09122-020-0	08	1	9002-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	04	1	9002-9002
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	04	1	9002-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	01	1	9002-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-
