◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#36249) — 75 parça

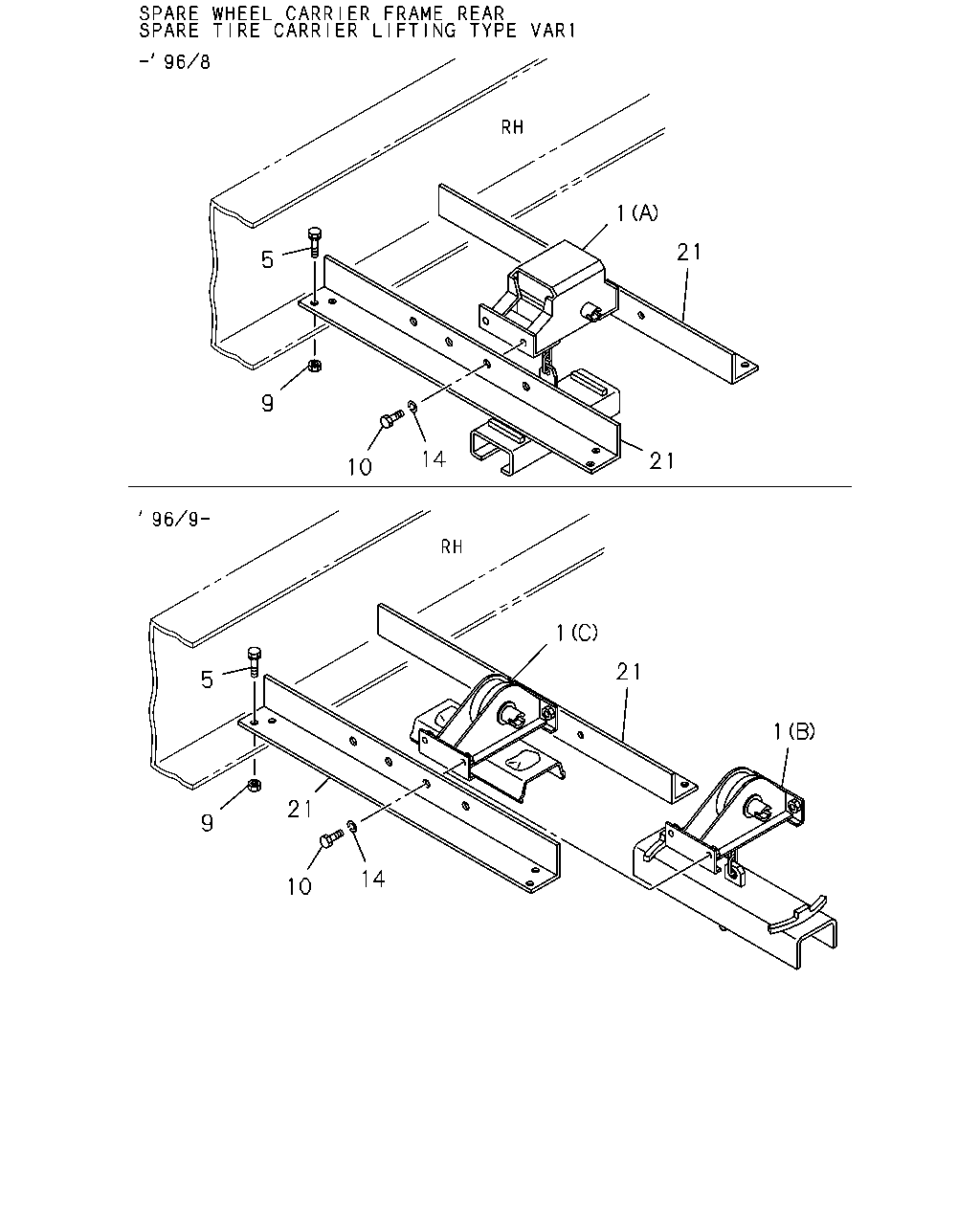

çizim 152105
1 21 5 9 14 21 10 1 21 5 1 21 9 14 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> (A) 		1-53630-146-1 01 1 9510-9608 ● ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> (B) 		1-53630-210-4 01 1 9609- ● ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7 .00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-147-2 01 1 9510-9608 ● ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7 .00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-3 01 1 9609- ● ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9510-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28681-030-0 08 1 9607-9608 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9609-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28081-235-0 06 1 9510-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M10X40 FLANGE 		0-28681-040-0 06 1 9607-9608 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9609-0004 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 0005-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 06 1 0601- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9510-9606 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-0602 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-412-0 06 1 9510-0004 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 0005-0512 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0601- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9510-9608 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0512 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9510-9608 ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9609-0006 ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE FRT 10.00-20-14 RIB RR 10.00-20-14 LUG(11X), TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R),TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-475-0 02 1 0408-0802 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00R-20-16 EXP LUG(5L8),TIRE FRT,RR 10.00R20-16 RIB(88N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-475-0 02 1 0803- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9510-9608 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 9609-0407 ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE 9.00-20-12 RIB(00T),TIRE 9.00-20-14 RIB(10T) ,TIRE FRT 9.00-20-14 RIB RR 9.00-20-14 LUG(10X), TIRE 9.00-20-14 LUG(21R),TIRE 9.00R-20-14 RIB(25R) ,TIRE 10R22.5-14 RIB(35N),TIRE 10R22.5-14 SPECIALAUSTRALIA(44P),TIRE 275/70R22.5 SPECIAL(45P),TIR E 11R22.5-16 SPECIAL AUSTRALIA(46P),TIRE 11.00R-22.5-16 RIB(55N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 0408-0802 ● ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N),TIRE 10R22.5-14 SPECIAL AUSTRALIA(44P),TIRE 275/70R22.5 SPECIAL(45P),TIRE 11R22.5-16 SPECIAL AUSTRALIA(46P),TIRE 9.00R-20-14 EXP LUG(5L7),TIRE 11.00R-22.5-16 RIB(55N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 0803- ●
21 BRACKET; SPARE TIRE HANGER
TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N),TIRE 10R22.5-14 SPECIAL AUSTRALIA(44P),TIRE 9.00R-20-14 EXP LUG(5L7) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 0803- ●

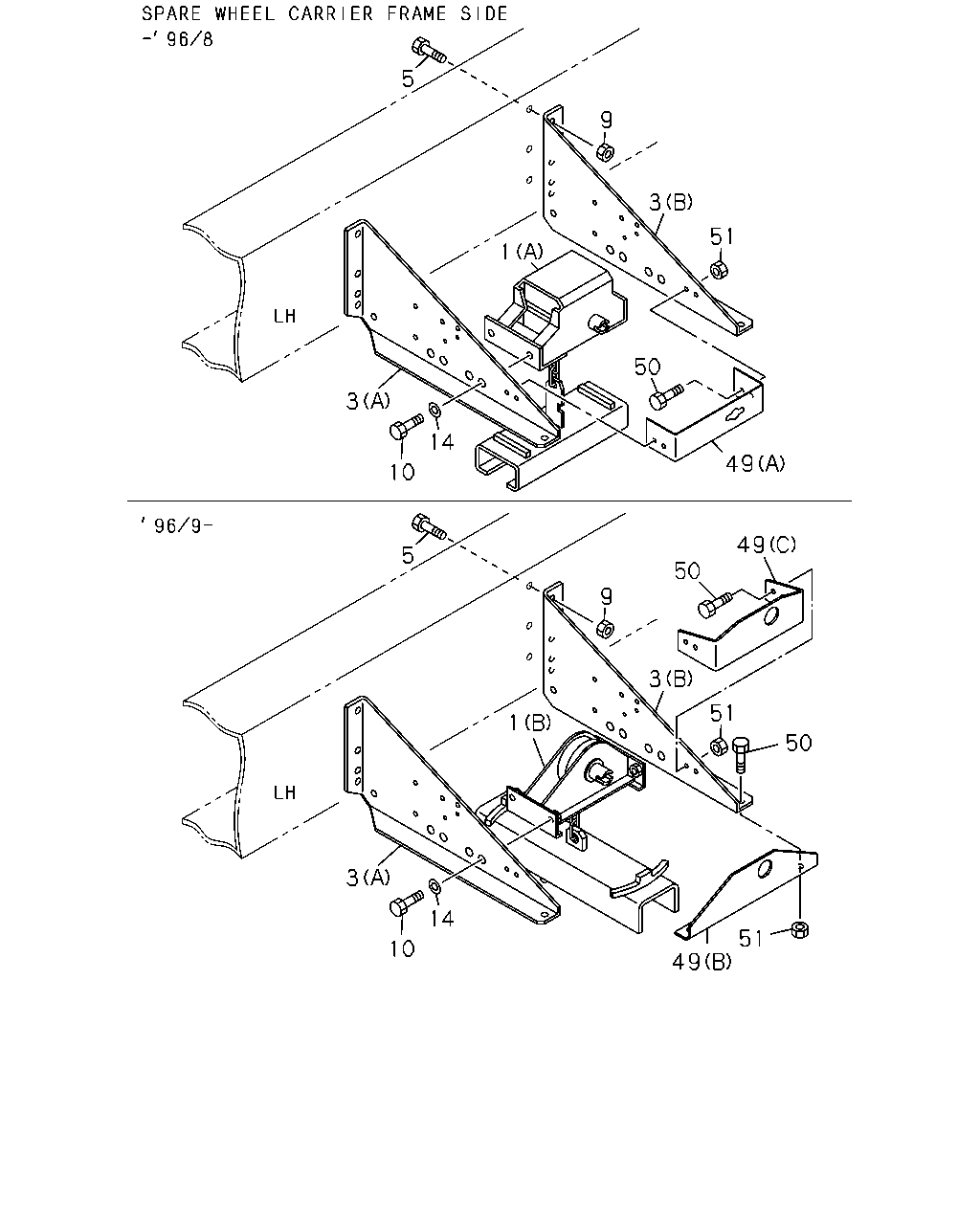

çizim 152476
5 9 3 51 1 50 3 14 49 10 49 5 50 9 3 51 1 50 3 14 51 49 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> (A) 		1-53630-146-1 01 1 9510-9608 ● ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> (B) 		1-53630-210-4 01 1 9609- ● ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7 .00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-147-2 01 1 9510-9608 ● ● ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7 .00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-3 01 1 9609- ● ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-180-2 01 1 9510-9608 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-391-0 01 1 9609- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-181-3 01 1 9510-9608 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-392-0 01 1 9609- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9510-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28681-030-0 08 1 9607-9608 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9609-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28081-235-0 06 1 9510-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M10X40 FLANGE 		0-28681-040-0 06 1 9607-9608 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9609-0004 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 0005-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 06 1 0601- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9510-9606 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-0602 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-412-0 06 1 9510-0004 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 0005-0512 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0601- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9510-9608 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0512 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9510-9608 ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9609-0006 ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-278-1 01 1 9510-9608 ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-376-0 01 1 9609-0410 ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (C) 		1-53631-466-1 01 1 0411- ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9606 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9608 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 02 1 9609-9702 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 02 1 9703-0410 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28680-830-0 04 1 0411-0512 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-408-0 04 1 9510-9606 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 04 1 9607-9608 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 02 1 9609-9710 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 02 1 9711-0410 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-508-0 04 1 0411-0512 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 0601-1203 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1204- ● ●
