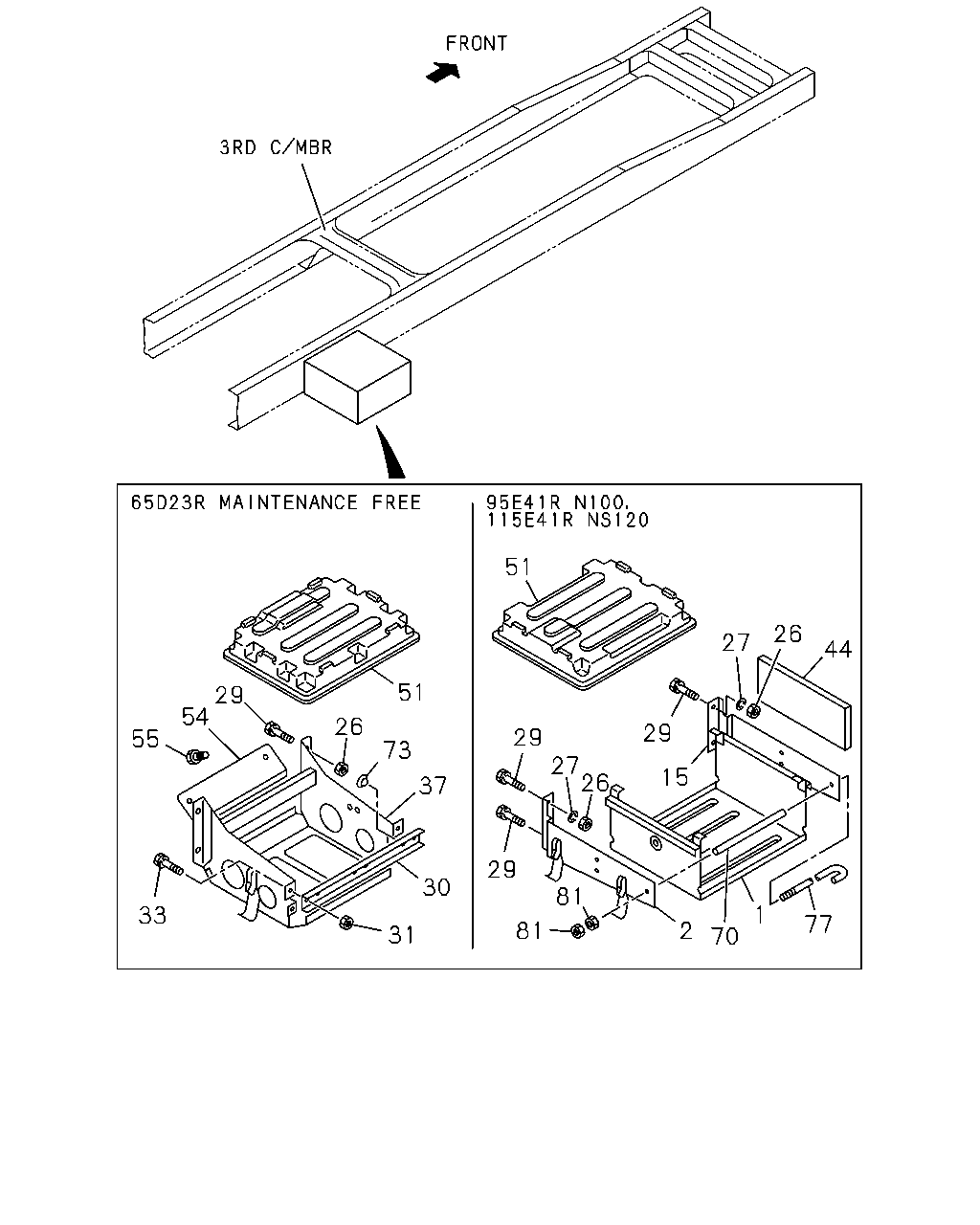

5-20 — BATTERY CARRIER (#36248) — 73 parça

51 26 27 44 51 29 54 26 29 29 27 26 55 73 15 37 29 30 81 1 33 77 81 2 31 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CARRIER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-53613-584-3	01	1	9510-	●	●
2	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-339-3	01	1	9510-	●	●
15	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-340-3	01	1	9510-	●	●
26	NUT; BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M10 FLANGE	0-91150-210-0	04	1	9510-9608	●	●
26	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9510-9608			●
26	NUT; BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M10	9-09110-510-0	04	1	9609-0211	●	●
26	NUT; BRKT M10	9-09110-510-0	04	1	9609-0211			●
26	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M10	9-09110-510-0	04	1	0212-0512	●	●
26	NUT; BRKT M10	9-09110-510-0	04	1	0212-0512			●
26	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M10	0-91110-510-0	04	1	0601-	●	●
26	NUT; BRKT M10	0-91110-510-0	04	1	0601-			●
26	NUT; BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	9-99110-414-0	04	1	9510-0211	●	●
26	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	9-99110-414-0	04	1	0212-0512	●	●
26	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	0-91110-514-0	04	1	0601-	●	●
27	WASHER; LK,BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	9-09150-514-0	04	1	9510-0211	●	●
27	WASHER; LK,BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	9-09150-514-0	04	1	0212-0603	●	●
27	WASHER; LK,BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	0-91510-514-0	04	1	0604-	●	●
29	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> M10X30 FLANGE	0-28081-030-0	04	1	9510-9606	●	●
29	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28081-030-0	04	1	9510-9606			●
29	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE	0-28681-035-0	04	1	9607-0512	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	9607-0512			●
29	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0601-			●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20801-435-0	04	1	9510-0512	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20851-435-0	04	1	0601-	●	●
30	PLATE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53616-046-3	01	1	9510-	●	●
30	PLATE; BATTERY	1-53616-046-3	01	1	9510-			●
31	NUT; PLATE BATTERY 65D23R MAINTENANCE FREE<WL4> M8 FLANGE	0-91150-108-0	02	1	9510-9608	●	●
31	NUT; PLATE M8 FLANGE	0-91150-108-0	02	1	9510-9608			●
31	NUT; PLATE BATTERY 65D23R MAINTENANCE FREE<WL4> M8	9-09110-408-0	02	1	9609-0512	●	●
31	NUT; PLATE M8	9-09110-408-0	02	1	9609-0512			●
31	NUT; PLATE BATTERY 65D23R MAINTENANCE FREE<WL4> M8	0-91110-508-0	02	1	0601-	●	●
31	NUT; PLATE M8	0-91110-508-0	02	1	0601-			●
33	BOLT; PLATE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606			●
33	BOLT; PLATE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 FLANGE	0-28680-825-0	02	1	9607-9709	●	●
33	BOLT; PLATE TO BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9709			●
33	BOLT; PLATE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28680-820-0	02	1	9710-0512	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28680-820-0	02	1	9710-0512			●
33	BOLT; PLATE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
37	BRACKET; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53613-354-3	01	1	9510-	●	●
37	BRACKET; BATTERY	1-53613-354-3	01	1	9510-			●
44	SPACER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-006-0	02	1	9510-	●	●
51	COVER; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53612-019-1	01	1	9510-	●	●
51	COVER; BATTERY	1-53612-019-1	01	1	9510-			●
51	COVER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-029-1	01	1	9510-	●	●
54	PROTECTOR; HEAT,BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53619-069-1	01	1	9510-0004	●
54	PROTECTOR; HEAT,BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53619-069-1	01	1	9510-0004		●
54	PROTECTOR; HEAT,BATTERY	1-53619-069-1	01	1	9510-0004			●
54	PROTECTOR; HEAT,BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53619-069-1	01	1	0005-0211	●	●
54	PROTECTOR; HEAT,BATTERY	1-53619-069-1	01	1	0005-0211			●
54	PROTECTOR; HEAT,BATTERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53619-069-1	01	1	0212-	●	●
54	PROTECTOR; HEAT,BATTERY	1-53619-069-1	01	1	0212-			●
55	BOLT; HEAT PROTECTOR BATTERY 65D23R MAINTENANCE FREE<WL4> M8X16 FLANGE	0-28280-816-0	02	1	9510-9606	●
55	BOLT; HEAT PROTECTOR BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28280-816-0	02	1	9510-9606		●
55	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28280-816-0	02	1	9510-9606			●
55	BOLT; HEAT PROTECTOR BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●
55	BOLT; HEAT PROTECTOR BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9607-0004			●
55	BOLT; HEAT PROTECTOR BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28680-820-0	02	1	0005-0211	●	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0005-0211			●
55	BOLT; HEAT PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28680-820-0	02	1	0212-0512	●	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0212-0512			●
55	BOLT; HEAT PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
70	SPACER; BATTERY CARRIER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-023-0	01	1	9609-	●	●
73	RUBBER; CUSHION,PLATE BATTERY 65D23R MAINTENANCE FREE<WL4>	1-09337-002-0	04	1	9510-	●	●
73	RUBBER; CUSHION,PLATE	1-09337-002-0	04	1	9510-			●
77	BOLT; BATTERY BRKT,FRT TO RR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-101-0	02	1	9510-	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE	0-91150-108-0	04	1	9510-9710	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	04	1	9711-0512	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	0-91110-508-0	04	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
