Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#36245) — 260 parça

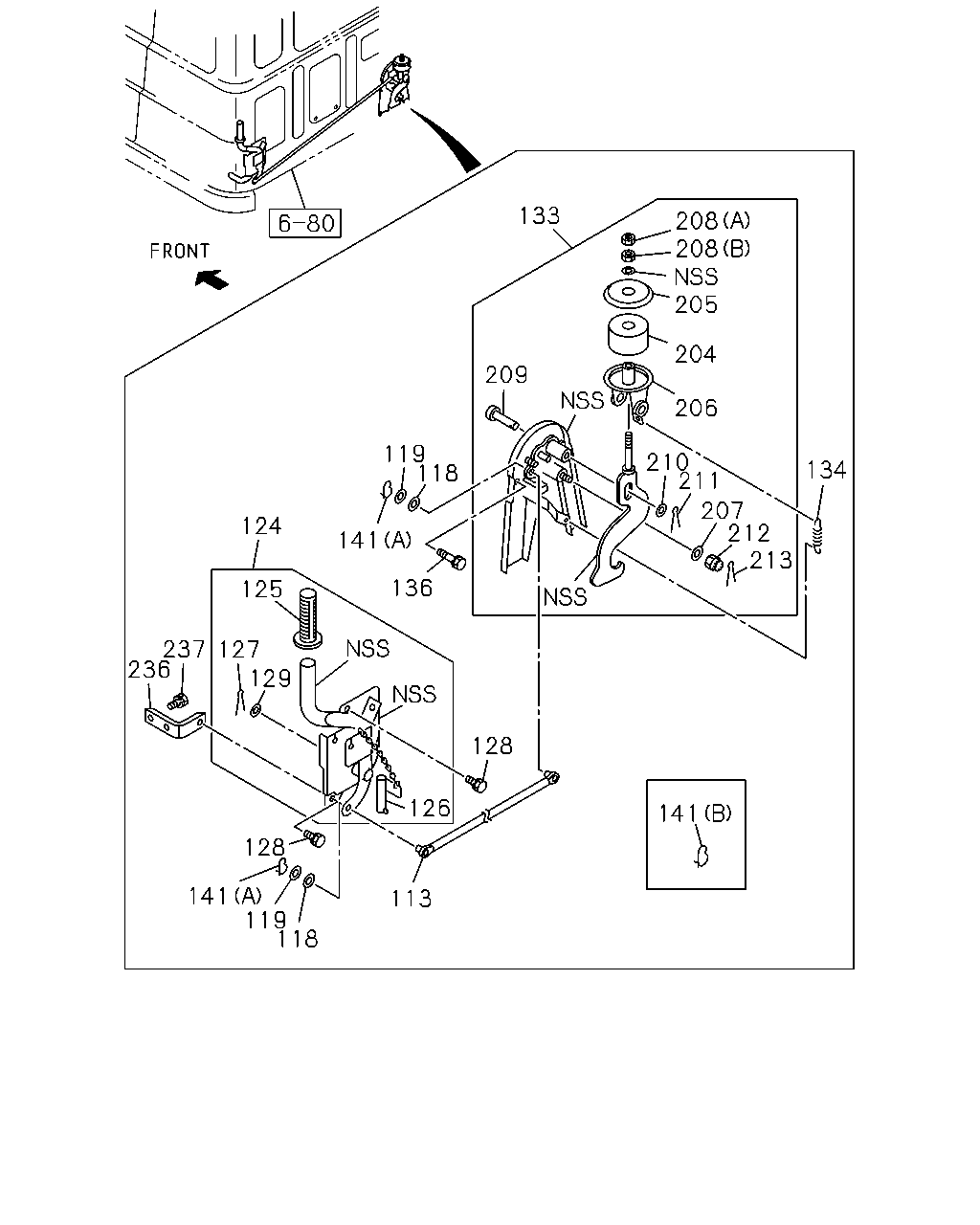

141 113 118 119 141 128 126 128 129 127 237 236 125 124 136 141 119 118 213 212 207 134 211 210 206 204 205 208 208 133 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	ROD; CONN,CAB LK	1-79718-583-0	01	1	9510-	●	●
113	ROD; CONN,CAB LK	1-79718-267-1	01	1	9510-			●
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	9510-	●	●	●
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	9510-	●	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-585-4	01	1	9510-1403	●	●
124	LEVER ASM; HAND,CAB LK	8-98268-403-0	01	1	1404-	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-586-4	01	1	9510-1403			●
124	LEVER ASM; HAND,CAB LK	8-98268-454-0	01	1	1404-			●
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	9510-	●	●	●
126	PIN; LK,HAND LEVER	1-79718-594-1	01	1	9510-1403	●	●	●
126	PIN; LK,HAND LEVER	8-98268-412-0	01	1	1404-	●	●	●
127	PIN; SPLIT,BRKT L=30	1-09987-080-0	01	1	1404-	●	●	●
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0904	●	●	●
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	9510-	●	●	●
133	LOCK ASM; CAB	1-79718-553-4	01	1	9510-9905	●	●
133	LOCK ASM; CAB	1-79718-656-0	01	1	9906-	●	●
133	LOCK ASM; CAB	1-79718-550-3	01	1	9510-			●
134	SPRING; CAB LK LEVER	1-79718-538-1	01	1	9510-	●	●	●
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	9510-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=27.7	1-09987-141-0	01	1	9510-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	02	1	9510-	●	●	●
204	RUBBER; REBOUND,CAB LK	1-79718-429-1	01	1	9510-	●	●	●
205	PLATE; SUPPORT,REBOUND RUBBER	1-79718-129-1	01	1	9510-	●	●	●
206	SUPPORT; REBOUND RUBBER	1-79718-434-0	01	1	9510-	●	●	●
207	WASHER; PL,SUPPORT PLATE ID=19 OD=44	1-09985-113-0	01	1	9510-	●	●	●
208	NUT; SUPPORT PLATE (C) M14 LOCK NUT W/FLANGE	1-79718-526-0	01	1	9510-	●	●
208	NUT; SUPPORT PLATE (A) M14	1-09984-066-0	01	1	9510-			●
208	NUT; SUPPORT PLATE (B) M14	1-09984-067-0	01	1	9510-			●
209	PIN; JOINT,SUPPORT	1-79718-523-0	01	1	9510-	●	●
209	PIN; JOINT,SUPPORT	1-09987-083-0	01	1	9510-			●
210	WASHER; PL,SUPPORT ID=17	1-09985-109-0	01	1	9510-			●
211	PIN; SPLIT,SUPPORT OD=3.7 L=28	9-08114-028-0	01	1	9510-			●
212	NUT; BRKT,CAB LOCK M18 SLOTTED	1-09984-079-0	01	1	9510-	●	●	●
213	PIN; SPLIT,BRKT,CAB LK OD=3.7 L=30	9-08114-030-0	01	1	9510-	●	●	●
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-493-0	01	1	9510-	●	●
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-286-3	01	1	9510-			●
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9510-	●	●	●

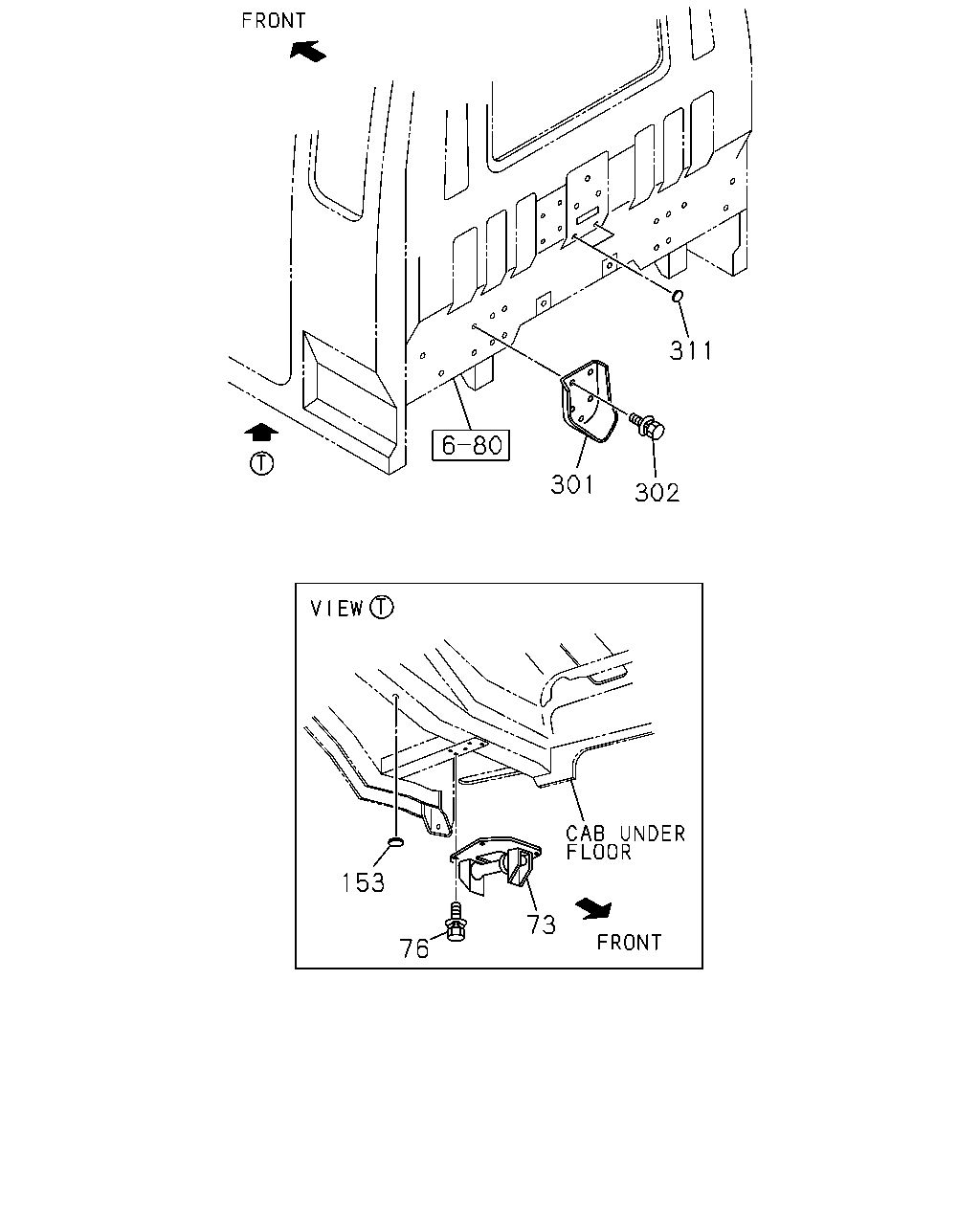

311 301 302 153 73 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	PAD; TORSION BAR	1-53459-790-1	02	1	9510-	●	●
76	BOLT; PAD M10X30 W/LK&PL WASHER	8-94279-213-0	06	1	9510-	●	●
153	PLUG; DUMMY,GRIP TILT D4.7X11	1-76378-154-0	02	1	9510-			●
301	BRACKET; RR MTG,CAB CAB SUSPENSION RIGID<W71>	1-62580-236-1	01	1	9510-	●	●
301	BRACKET; RR MTG,CAB CAB SUSPENSION RIGID<W71>	1-62580-235-1	01	1	9510-	●	●
301	BRACKET; RR MTG,CAB EXC. CAB SUSPENSION RIGID<W71>	1-62580-283-3	01	1	9510-	●	●
301	BRACKET; RR MTG,CAB EXC. CAB SUSPENSION RIGID<W71>	1-62580-282-3	01	1	9510-	●	●
301	BRACKET; RR MTG,CAB	1-62580-189-1	01	1	9510-			●
301	BRACKET; RR MTG,CAB	1-62580-188-0	01	1	9510-			●
302	BOLT; BRKT,CAB CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER	1-09980-526-0	12	1	9510-	●	●
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	12	1	9510-			●
302	BOLT; BRKT,CAB EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	9510-	●	●
302	BOLT; BRKT,CAB EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER	1-09980-526-0	08	1	9510-	●	●
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	04	1	9610-			●
311	SEAL; CAB LOCK OD=30 BLACK	1-76798-035-0	02	1	9510-	●	●	●

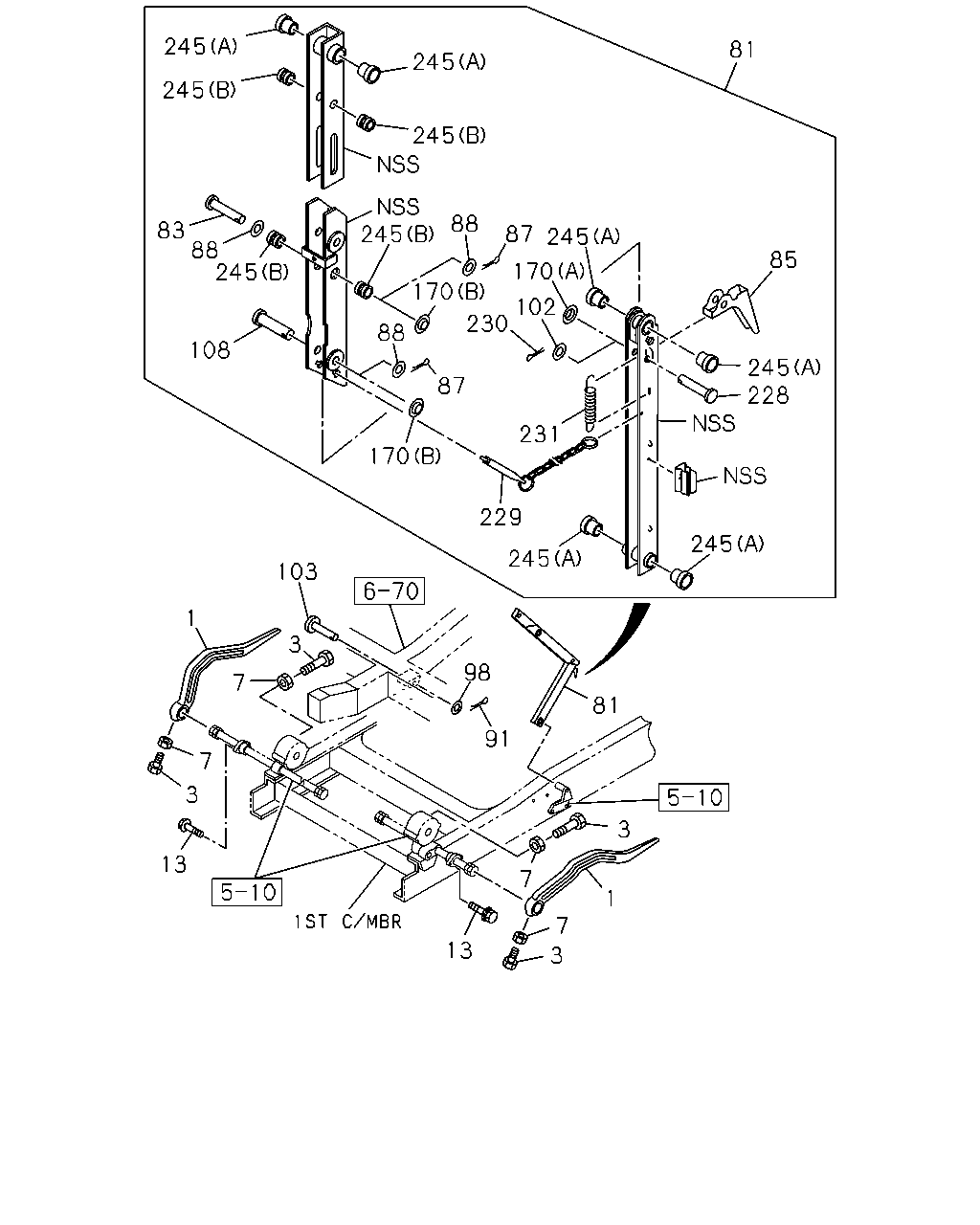

245 81 245 245 245 245 88 83 88 245 87 245 85 170 170 102 230 88 108 245 228 87 231 170 229 245 245 103 1 3 98 7 81 91 7 3 3 13 7 1 7 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR	1-53458-284-0	01	1	9510-	●	●
1	LEVER; TORSION BAR	1-53458-283-0	01	1	9510-	●	●
3	BOLT; LEVER M10X32	1-09000-435-0	04	1	9510-	●	●
7	NUT; LK,LEVER M10	9-09110-510-0	04	1	9510-0512	●	●
7	NUT; LK,LEVER M10	0-91110-510-0	04	1	0601-	●	●
13	BOLT; BUSHING,TORSION BAR M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9510-9709	●	●
13	BOLT; BUSHING,TORSION BAR M6X12 FLANGE	0-28080-612-0	02	1	9710-0512	●	●
13	BOLT; BUSHING,TORSION BAR M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
81	STAY ASM; CAB TILT	1-62500-646-2	01	1	9510-9811	●	●
81	STAY ASM; CAB TILT	1-62500-720-1	01	1	9812-0405	●	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	0406-1406	●	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-	●	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9510-	●	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	9510-	●	●
87	PIN; SPLIT,CAB STAY PIN	1-09746-021-0	02	1	9510-9708	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	03	1	9510-9708	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	9709-	●	●
91	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	9510-	●	●
102	WASHER; PL,CAB STAY ID=8.4 OD=16	1-09985-174-0	01	1	9510-9708	●	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	9510-	●	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9510-	●	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9709-	●	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	9709-	●	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	9510-	●	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	9812-	●	●
230	PIN; SPLIT CAB STAY	1-09746-019-0	01	1	9510-9708	●	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	9510-	●	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	9510-	●	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	9510-	●	●

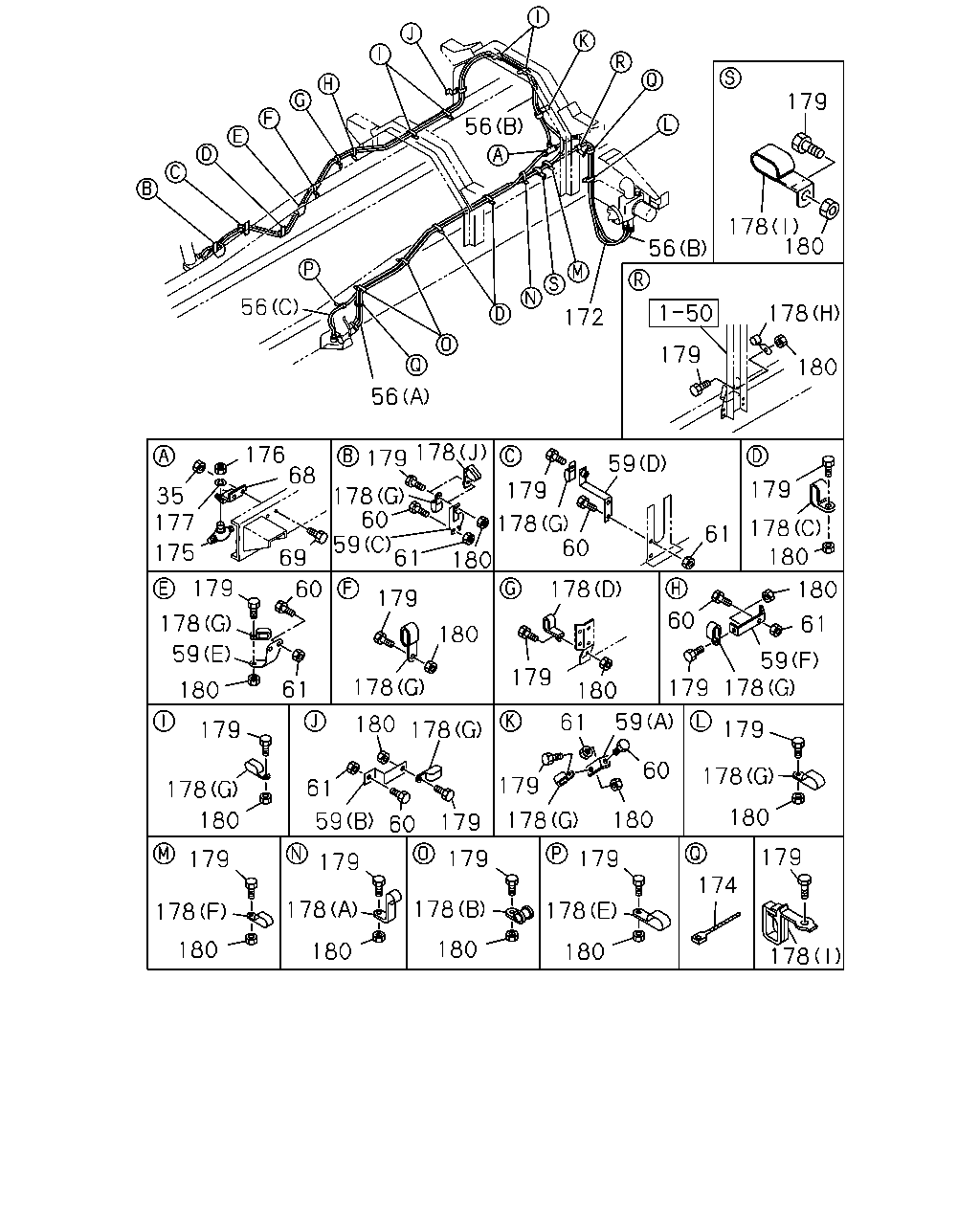

179 56 178 180 56 56 178 172 179 180 56 178 176 68 179 59 179 179 35 177 178 60 59 61 178 178 60 180 61 175 180 69 179 60 178 180 179 60 178 61 180 59 59 178 179 178 179 61 180 180 59 61 180 179 179 178 60 178 179 61 178 180 180 180 178 59 179 60 179 179 179 179 179 174 178 178 178 178 180 180 180 180 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
35	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
56	HOSE; FLEX,OIL PIPE (B) L=3230	1-09364-634-3	02	1	9510-0001	●
56	HOSE; FLEX,OIL PIPE (B) L=3230	1-09364-634-4	01	1	0002-	●
56	HOSE; FLEX,OIL PIPE (A) L=1900	1-09364-576-5	01	1	9510-	●
56	HOSE; FLEX,OIL PIPE (C) L=5450	1-09364-836-2	01	1	9510-0001	●
56	HOSE; FLEX,OIL PIPE (C) L=5450	1-09365-132-1	01	1	0002-	●
56	HOSE; FLEX,OIL PIPE (B) L=3230	1-09365-131-1	01	1	0002-	●
59	BRACKET; CLIP (A)	1-47475-519-0	01	1	9510-	●
59	BRACKET; CLIP (B)	1-47475-654-2	01	1	9510-	●
59	BRACKET; CLIP (C)	1-47476-954-0	01	1	9510-	●
59	BRACKET; CLIP (D)	1-47476-955-0	01	1	9510-9511	●
59	BRACKET; CLIP (E)	1-47476-956-0	01	1	9510-	●
59	BRACKET; CLIP (F)	1-47476-957-0	01	1	9510-	●
59	BRACKET; CLIP (D)	1-47476-955-0	01	1	0104-0105	●
60	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	07	1	9510-9606	●
60	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	07	1	9607-0103	●
60	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	09	1	0104-0105	●
60	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	08	1	0106-0112	●
60	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	07	1	0201-0512	●
60	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-	●
61	NUT; BRKT M8	9-09110-408-0	07	1	9510-9606	●
61	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9607-0103	●
61	NUT; BRKT M8 FLANGE	0-91150-108-0	09	1	0104-0105	●
61	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	0106-0112	●
61	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0201-0602	●
61	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●
68	BRACKET; UNION	1-47475-749-0	01	1	9510-	●
69	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●
69	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-0512	●
69	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
172	HOSE; FLEX,OIL TILT L=1350	1-09364-712-3	01	1	9510-	●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	03	1	9510-0105	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	03	1	0106-	●
175	UNION; FLEX HOSE	9-09228-608-1	01	1	9510-0607	●
175	UNION; FLEX HOSE	0-92138-608-0	01	1	0608-	●
176	NUT; UNION M14	9-99111-414-0	01	1	9510-0512	●
176	NUT; UNION M14	0-91111-514-0	01	1	0601-	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-0603	●
177	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●
178	CLIP; FLEX HOSE (A) ID=13 H=40 L=25	1-09700-620-0	01	1	9510-0103	●
178	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-944-0	01	1	0104-	●
178	CLIP; FLEX HOSE (H) ID=20 L=50	1-09700-679-1	01	1	9510-0004	●
178	CLIP; FLEX HOSE (I) ID=11X2 H=35 L=20	1-09700-847-0	01	1	0005-	●
178	CLIP; FLEX HOSE (B) ID=24 L=27	1-09700-809-0	04	1	9510-	●
178	CLIP; FLEX HOSE (C) ID=11X2 L=20	1-09700-871-0	01	1	9510-	●
178	CLIP; FLEX HOSE (D) ID=5.5X2 L=35	1-09700-974-0	02	1	9510-0103	●
178	CLIP; FLEX HOSE (D) ID=5.5X2 L=35	1-09700-974-0	01	1	0104-0105	●
178	CLIP; FLEX HOSE (D) ID=5.5X2 L=35	1-09700-974-0	02	1	0106-	●
178	CLIP; FLEX HOSE (E) ID=11 L=50	9-09525-085-0	01	1	9510-0606	●
178	CLIP; FLEX HOSE (E) ID=11 L=50	0-95235-085-0	01	1	0607-	●
178	CLIP; FLEX HOSE (F) ID=11X2 L=50	9-09535-085-0	01	1	9510-0606	●
178	CLIP; FLEX HOSE (F) ID=11X2 L=50	0-95325-085-0	01	1	0607-	●
178	CLIP; FLEX HOSE (G) ID=13X2 L=16	9-09535-225-0	13	1	9510-0105	●
178	CLIP; FLEX HOSE (G) ID=13X2 L=16	9-09535-225-0	12	1	0106-0606	●
178	CLIP; FLEX HOSE (G) ID=13X2 L=16	0-95325-225-0	12	1	0607-	●
178	CLIP; FLEX HOSE (J) ID=10 & 10 M8	1-09701-220-0	01	1	0104-	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	24	1	9510-9809	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	16	1	9810-0004	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	15	1	0005-0103	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	11	1	0104-0512	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	11	1	0601-	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28080-820-0	08	1	9810-0004	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28080-820-0	09	1	0005-0103	●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28080-825-0	10	1	0104-0512	●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28050-825-0	10	1	0601-	●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28680-825-0	03	1	0104-0512	●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
180	NUT; CLIP M8	9-09110-408-0	24	1	9510-9606	●
180	NUT; CLIP M8 FLANGE	0-91150-108-0	24	1	9607-0004	●
180	NUT; CLIP M8 FLANGE	0-91150-108-0	23	1	0005-0103	●
180	NUT; CLIP M8 FLANGE	0-91150-108-0	22	1	0104-0602	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	22	1	0603-	●

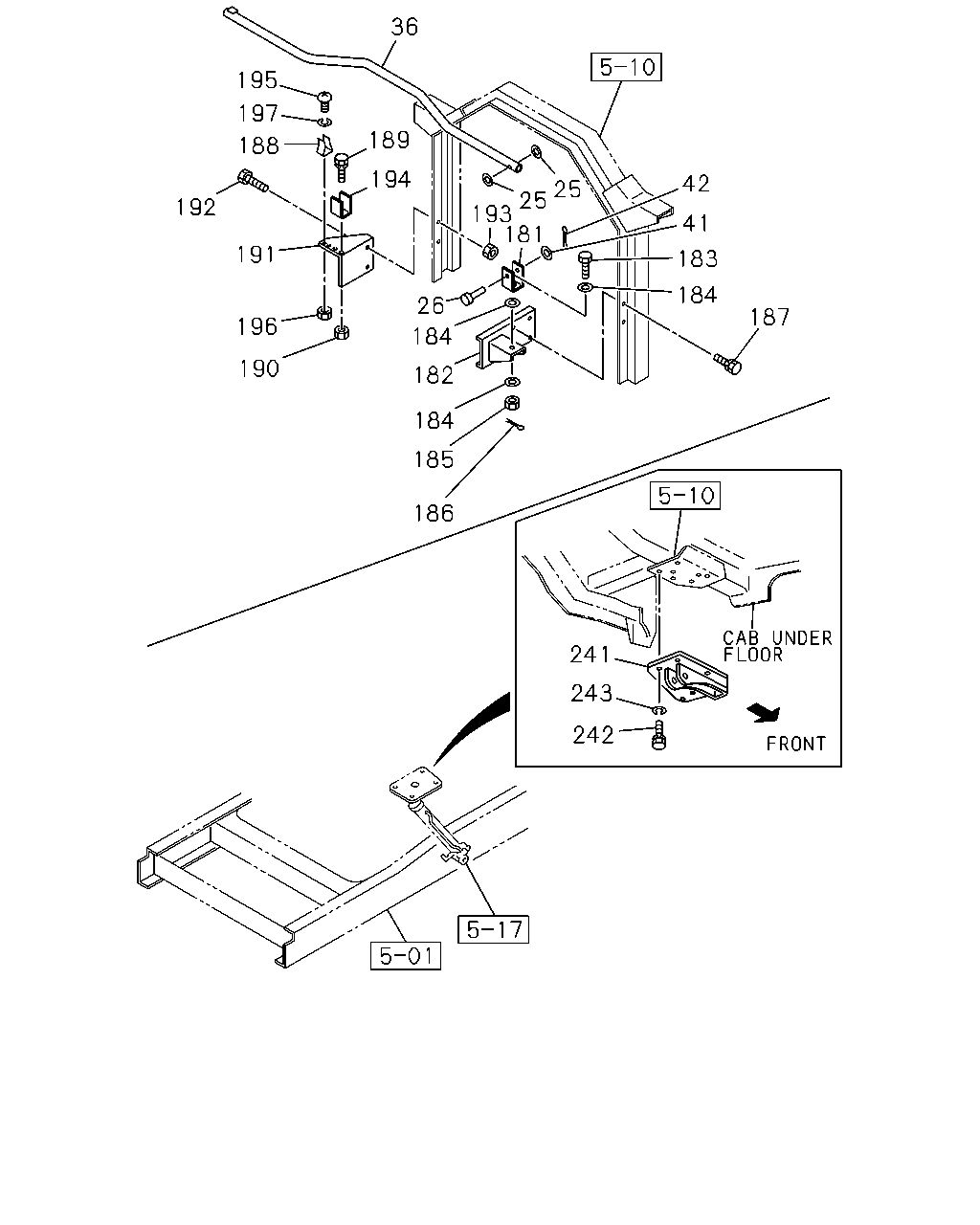

36 195 197 189 188 194 42 25 25 193 181 192 41 191 183 184 26 187 196 184 190 182 184 185 186 241 243 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
25	WASHER; PL,STAY ID=15 OD=30	9-09164-614-0	02	1	9510-	●
26	PIN; STAY OD=14 L=62	9-08234-462-0	01	1	9510-0606	●
26	PIN; STAY OD=14 L=62	0-82354-462-0	01	1	0607-	●
36	STAY; OIL TILT	1-53719-029-0	01	1	9510-	●
41	WASHER; PL,STAY ID=15	9-09160-514-0	01	1	9510-0605	●
41	WASHER; PL,STAY ID=15	0-91610-514-0	01	1	0606-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	9-08114-025-0	01	1	9510-0606	●
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	0607-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	9510-	●
182	BRACKET; STAY BRKT,OIL TILT	1-53719-022-7	01	1	9510-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	9510-	●
184	WASHER; PL,BRKT ID=17	9-09160-516-0	03	1	9510-0605	●
184	WASHER; PL,BRKT ID=17 OD=30	0-91610-516-0	03	1	0606-	●
185	NUT; BRKT M16 SLOTTED	9-99116-516-0	01	1	9510-0605	●
185	NUT; BRKT M16 SLOTTED	0-91116-516-0	01	1	0606-1204	●
185	NUT; BRKT M16 SLOTTED	8-98049-689-0	01	1	1205-	●
186	PIN; BRKT OD=3.7 L=25	9-08114-025-0	01	1	9510-0606	●
186	PIN; BRKT OD=3.7 L=25	0-81124-025-0	01	1	0607-	●
187	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9510-0512	●
187	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	0601-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	9510-	●
189	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	02	1	9510-0512	●
189	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
190	NUT; CLIP M6	9-09110-406-0	02	1	9510-9606	●
190	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9607-0602	●
190	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-	●
191	BRACKET; CLIP,STAY	1-53719-028-1	01	1	9510-	●
192	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●
192	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-0512	●
192	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
193	NUT; BRKT M8	9-09110-408-0	02	1	9510-9609	●
193	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9610-0602	●
193	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
194	GUIDE; STAY	1-53719-020-0	01	1	9510-	●
195	SCREW; GUIDE M4X12	9-93497-412-0	02	1	9510-0604	●
195	SCREW; GUIDE M4X12	0-34218-412-0	02	1	0605-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	9510-	●
197	WASHER; LK,GUIDE ID=4.1	9-09150-504-0	02	1	9510-0603	●
197	WASHER; LK,GUIDE ID=4.1	0-91510-504-0	02	1	0604-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53739-014-0	01	1	9510-0703	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98043-361-0	01	1	0704-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53739-013-0	01	1	9510-0703	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98043-360-0	01	1	0704-	●
242	BOLT; POWER CYL BRKT,CAB TILT M12X35	1-09980-530-0	08	1	9510-9908	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28681-030-0	08	1	9909-0512	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28651-030-0	08	1	0601-	●
243	WASHER; LK,POWER CYL BRKT	1-09985-189-0	08	1	9510-9908	●

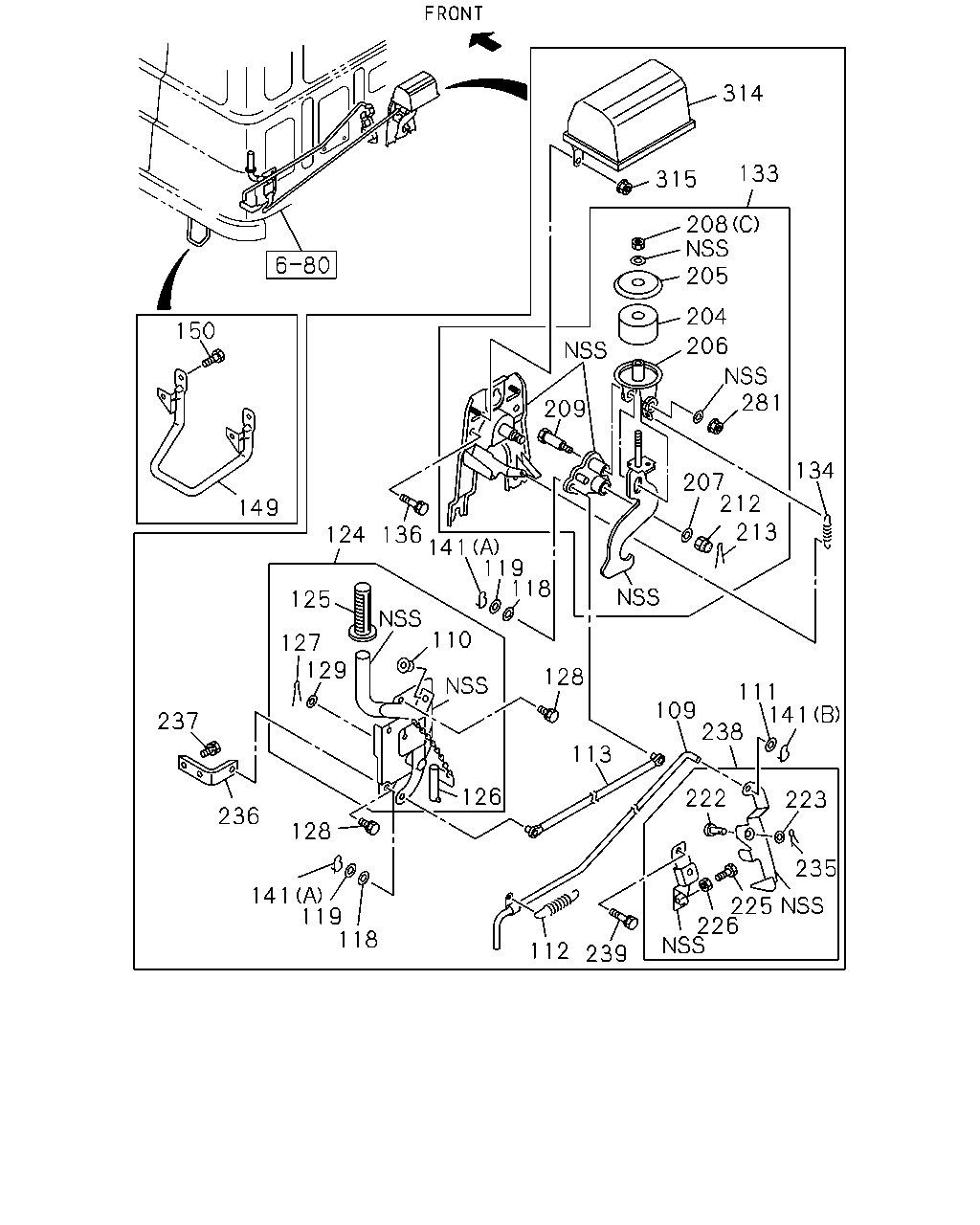

150 149 125 127 129 237 236 128 141 119 118 126 110 124 136 141 118 119 128 113 109 111 141 238 222 223 235 225 226 239 112 213 212 207 209 281 206 204 205 208 133 315 314 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
109	ROD; SAFETY,CAB LK	1-79718-606-0	01	1	9510-9709	●	●
109	ROD; SAFETY,CAB LK	1-79718-642-1	01	1	9710-	●	●
110	BUSHING; SAFETY ROD,CAB LOCK	1-79718-319-1	01	1	9510-	●	●
111	WASHER; PL,SAFETY ROD	1-09985-137-0	01	1	9510-	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-539-0	01	1	9510-9901	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	9902-	●	●
113	ROD; CONN,CAB LK	1-79718-583-0	01	1	9510-	●	●
113	ROD; CONN,CAB LK	1-79718-267-1	01	1	9510-			●
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	9510-	●	●	●
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	9510-	●	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-585-4	01	1	9510-1403	●	●
124	LEVER ASM; HAND,CAB LK	8-98268-403-0	01	1	1404-	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-586-4	01	1	9510-1403			●
124	LEVER ASM; HAND,CAB LK	8-98268-454-0	01	1	1404-			●
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	9510-	●	●	●
126	PIN; LK,HAND LEVER	1-79718-594-1	01	1	9510-1403	●	●	●
126	PIN; LK,HAND LEVER	8-98268-412-0	01	1	1404-	●	●	●
127	PIN; SPLIT,BRKT L=30	1-09987-080-0	01	1	1404-	●	●	●
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0904	●	●	●
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	9510-	●	●	●
133	LOCK ASM; CAB	1-79718-553-4	01	1	9510-9905	●	●
133	LOCK ASM; CAB	1-79718-656-0	01	1	9906-	●	●
133	LOCK ASM; CAB	1-79718-550-3	01	1	9510-			●
134	SPRING; CAB LK LEVER	1-79718-538-1	01	1	9510-	●	●	●
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	9510-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=27.7	1-09987-141-0	01	1	9510-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	02	1	9510-	●	●	●
149	HANDLE; TILT	1-71996-146-1	01	1	9510-	●	●
150	BOLT; TILT HANDLE M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-	●	●
204	RUBBER; REBOUND,CAB LK	1-79718-429-1	01	1	9510-	●	●	●
205	PLATE; SUPPORT,REBOUND RUBBER	1-79718-129-1	01	1	9510-	●	●	●
206	SUPPORT; REBOUND RUBBER	1-79718-434-0	01	1	9510-	●	●	●
207	WASHER; PL,SUPPORT PLATE ID=19 OD=44	1-09985-113-0	01	1	9510-	●	●	●
208	NUT; SUPPORT PLATE (C) M14 LOCK NUT W/FLANGE	1-79718-526-0	01	1	9510-	●	●
208	NUT; SUPPORT PLATE (A) M14	1-09984-066-0	01	1	9510-			●
208	NUT; SUPPORT PLATE (B) M14	1-09984-067-0	01	1	9510-			●
209	PIN; JOINT,SUPPORT	1-79718-523-0	01	1	9510-	●	●
209	PIN; JOINT,SUPPORT	1-09987-083-0	01	1	9510-			●
212	NUT; BRKT,CAB LOCK M18 SLOTTED	1-09984-079-0	01	1	9510-	●	●	●
213	PIN; SPLIT,BRKT,CAB LK OD=3.7 L=30	9-08114-030-0	01	1	9510-	●	●	●
222	PIN; JOINT,SAFETY LK	1-09987-159-0	01	1	9510-	●	●
223	WASHER; PL,SAFETY LK ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	9510-	●	●
225	BOLT; SAFETY LK M8X30	1-09980-277-0	01	1	9510-	●	●
226	NUT; SAFETY LK M8	1-09984-065-0	01	1	9510-	●	●
235	PIN; SNAP	1-09987-158-1	01	1	9510-	●	●
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-493-0	01	1	9510-	●	●
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-286-3	01	1	9510-			●
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9510-	●	●	●
238	LOCK ASM; SAFETY,CAB TILT	1-79718-612-1	01	1	9510-	●	●
239	BOLT; SAFETY LK M8X25 W/PL WASHER	8-94279-166-0	02	1	9510-0304	●	●
239	BOLT; SAFETY LK M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0305-	●	●
281	NUT; SUPPORT M12 LOCK NUT W/FLANGE	1-79718-524-1	01	1	9510-	●	●
314	COVER; CAB LOCK	1-79718-575-1	01	1	9510-	●	●
315	NUT; COVER M8 FLANGE	8-94279-517-0	02	1	9510-9611	●	●
315	NUT; COVER M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
