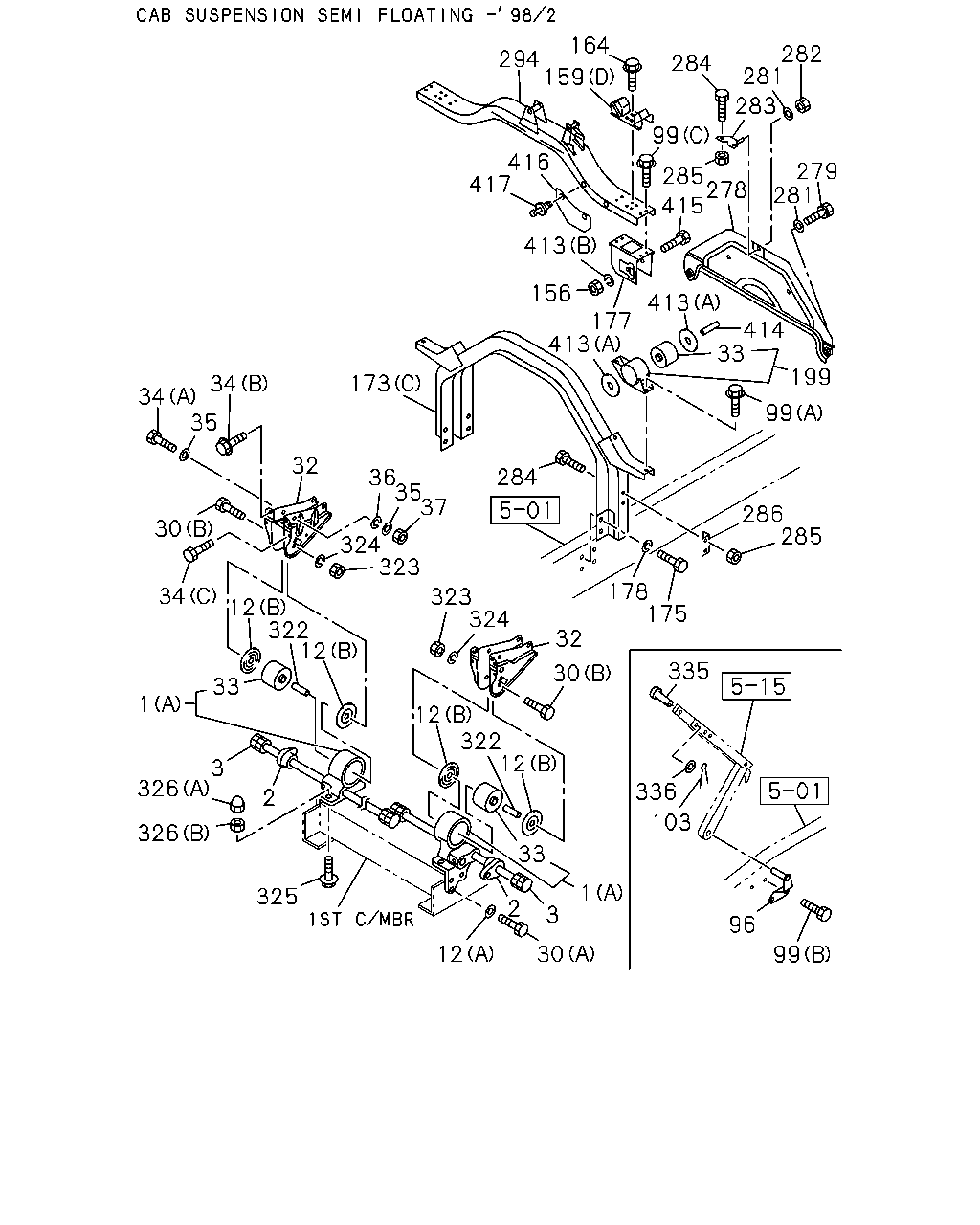

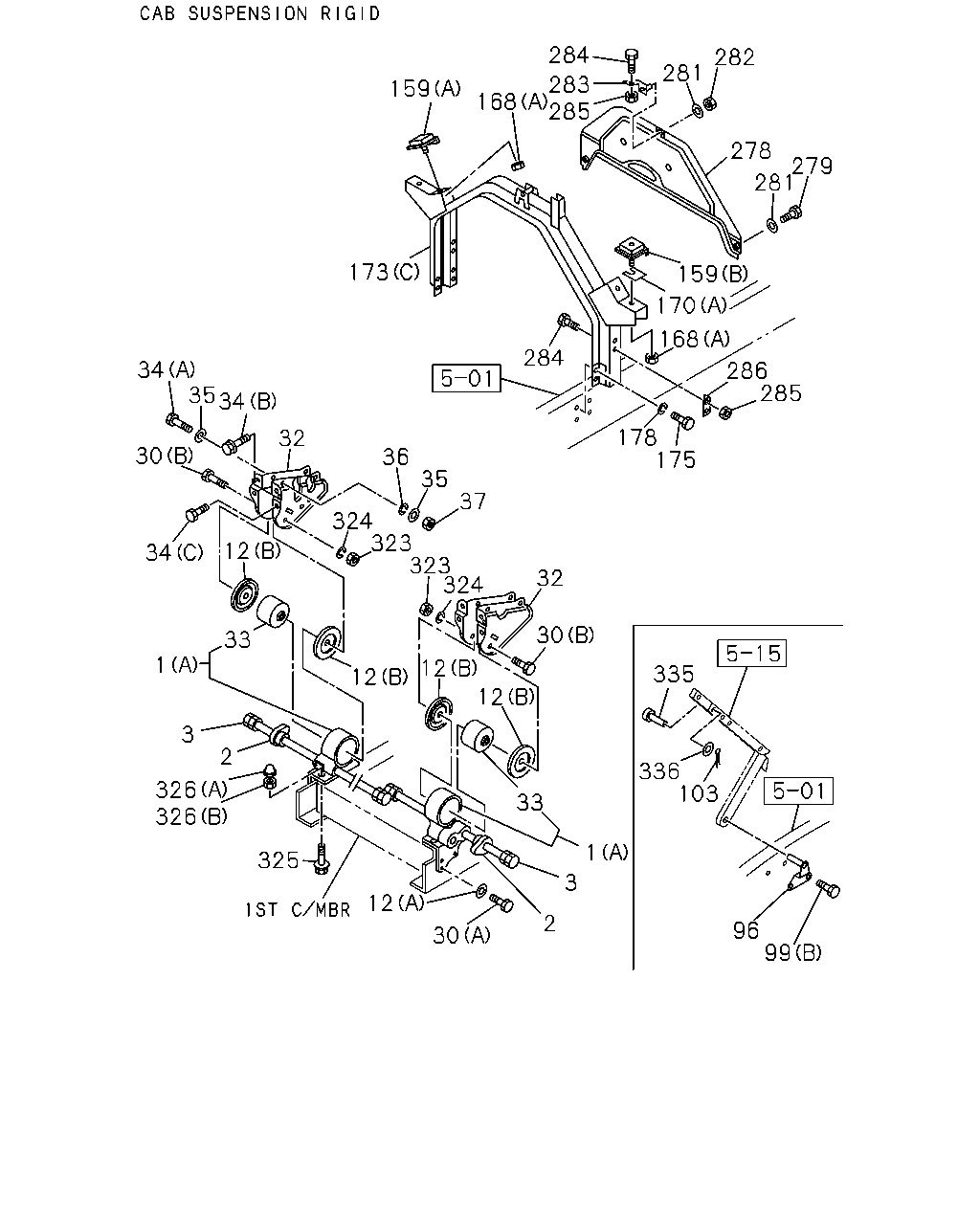

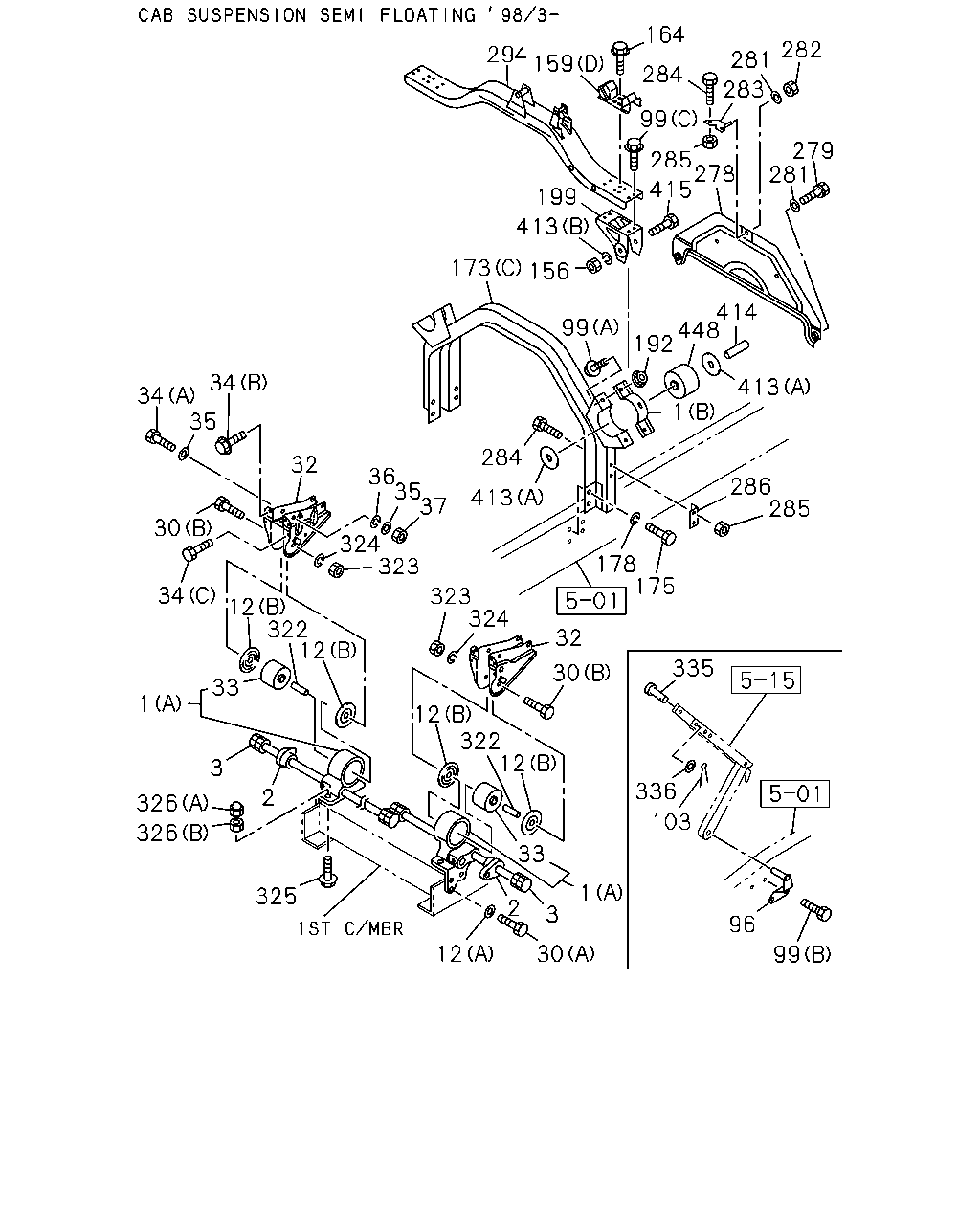

5-10 — CAB MOUNTING; FRAME SIDE (#36244) — 967 parça

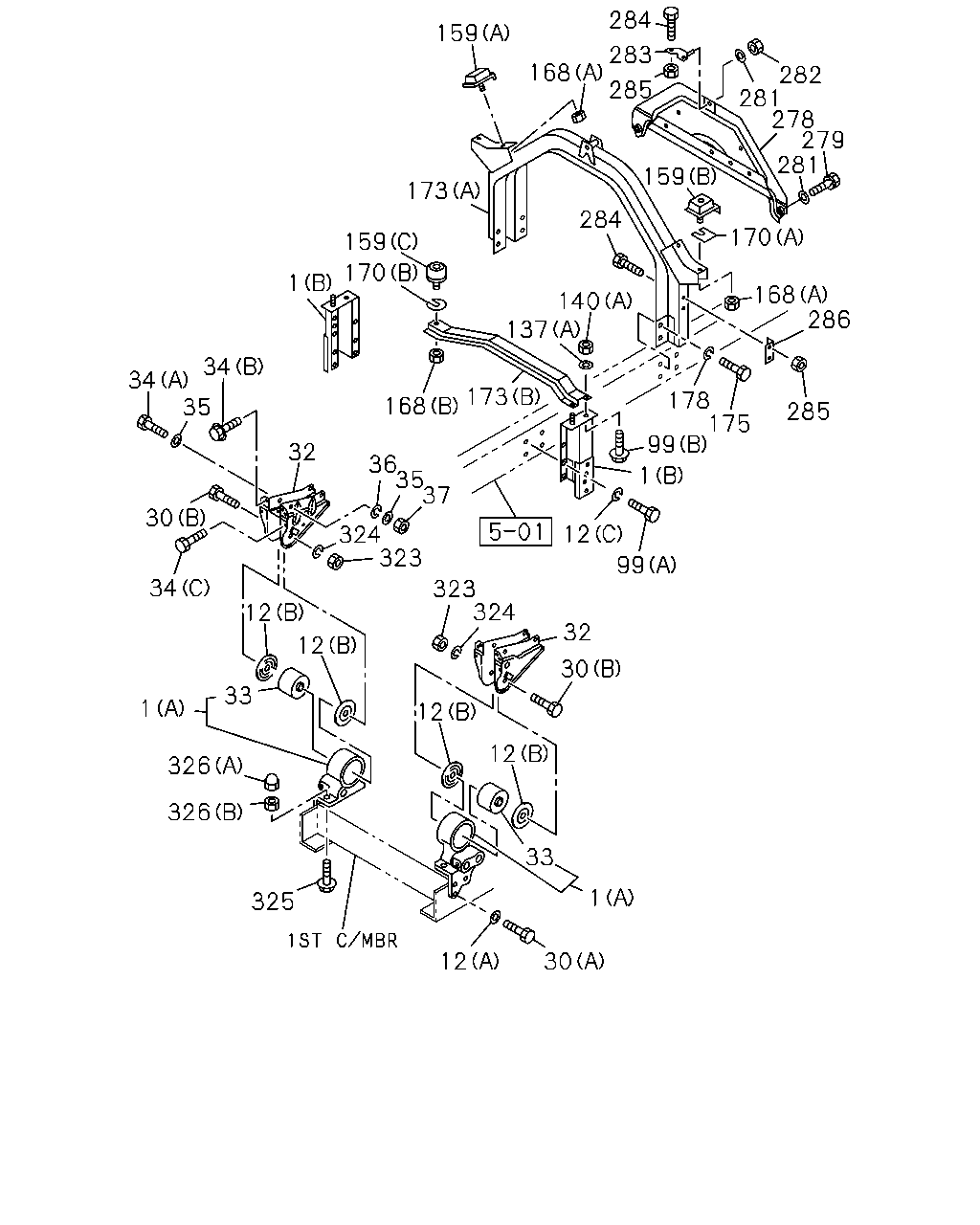

çizim 152100
284 159 283 285 168 282 281 278 279 281 159 173 284 170 159 170 1 168 286 140 137 178 2 175 99 34 34 35 173 168 285 32 36 35 37 1 30 324 323 12 99 34 323 324 12 32 2 33 30 1 12 12 326 326 33 1 325 12 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-267-0 01 1 0107- ●
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-268-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-53454-648-1 02 1 9803- ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-666-1 02 1 9510- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9510- ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION RIGID<W71> (B) ID=34.5 		1-53458-281-1 04 1 9510- ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9510- ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53458-693-1 04 1 9510-0306 ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9510-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9510-0603 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		0-91510-612-0 08 1 0604- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9510- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9510-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> 		1-62580-233-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. CAB SUSPENSION RIGID<W71> 		1-62580-231-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> CAB SUSPENSION RIGID<W71> 		1-62580-291-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. CAB SUSPENSION RIGID<W71> 		1-62580-290-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> 		1-62580-230-4 01 1 9510- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> 		1-53458-634-0 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 9510-0106 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-2 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-3 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53459-836-3 02 1 0107- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9802 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9510- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9510- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9510- ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9510-9606 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-0512 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28080-820-0 08 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28081-225-0 04 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 02 1 9510-0512 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 0601- ●
99 BOLT; BRKT
(A) M12X35 		9-92061-235-0 08 1 9510-0512 ●
99 BOLT; BRKT
(A) M12X35 		0-20951-235-0 08 1 0601- ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		9-09160-612-0 04 1 9510-0605 ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
137 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 9510-1201 ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 16 1 1202- ●
140 NUT; BRKT
(A) M12 		9-99110-512-0 04 1 9510-0512 ●
140 NUT; BRKT
(A) M12 		0-91110-512-0 04 1 0601- ●
140 NUT; BRKT
(B) M14 		9-99110-514-0 08 1 9510-0512 ●
140 NUT; BRKT
(B) M14 		0-91110-514-0 08 1 0601- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53459-619-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		1-53459-620-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (D) 		1-53458-285-0 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9510- ●
168 NUT; CUSHION RUBBER,BODY MTG
CAB SUSPENSION RIGID<W71> (A) M12 FLANGE 		0-91150-112-0 04 1 9510-9606 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-112-0 04 1 9510-9606 ●
168 NUT; CUSHION RUBBER,BODY MTG
CAB SUSPENSION RIGID<W71> (A) M12 FLANGE 		0-91150-212-0 04 1 9607-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-212-0 04 1 9607-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
CAB SUSPENSION RIGID<W71> (A) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 9510-9606 ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ●
170 SHIM; CUSHION RUBBER
CAB SUSPENSION RIGID<W71> (A) T=1.6 		1-53459-621-0 AR 1 9510- ● ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 9510- ●
170 SHIM; CUSHION RUBBER
(B) T=1.6 		9-54347-136-1 AR 1 9510- ●
173 MEMBER; CAB MTG RR
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-861-2 01 1 0604- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-542-2 01 1 9510-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-852-0 01 1 0005- ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-598-2 01 1 9510-9802 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-730-0 01 1 9803-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0005-0010 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-53454-849-1 01 1 0011- ● ●
173 MEMBER; CAB MTG RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0011- ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-871-0 01 1 0011- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9510- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 9510-0006 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-867-0 01 1 0007-0012 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 0101- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9510-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9510-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
278 COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9510-9510 ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9511-9802 ●
278 COVER
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9803-0004 ●
278 COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 0005- ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9510-9701 ● ●
278 COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ● ●
279 BOLT
ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0605 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9510-9510 ● ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9510-9510 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9511-9701 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9511-9701 ●
283 BRACKET; UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9702-9802 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9702-9802 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. A/T<X9D> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 0005- ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 0005-0512 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9510 ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9510-9510 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9511-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9511-9606 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-631-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 0005- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-632-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 0005- ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9510-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9510-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9510-9606 ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9612 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9510-9612 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9510-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
çizim 152109
164 282 294 159 281 284 283 99 279 281 285 278 415 199 413 173 156 414 448 192 99 34 413 34 35 1 284 32 36 35 37 286 285 413 30 324 323 178 175 34 323 324 12 322 2 32 33 335 30 1 12 322 12 3 336 2 326 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-267-0 01 1 0107- ●
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-268-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-53454-648-1 02 1 9803- ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-666-1 02 1 9510- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9510- ● ●
3 TORSION BAR 1-09585-130-0 01 1 9510- ● ●
3 TORSION BAR 1-09585-129-0 01 1 9510- ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION RIGID<W71> (B) ID=34.5 		1-53458-281-1 04 1 9510- ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9510- ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53458-693-1 04 1 9510-0306 ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9510-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9510-0603 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		0-91510-612-0 08 1 0604- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9510- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9510-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> 		1-62580-233-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. CAB SUSPENSION RIGID<W71> 		1-62580-231-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> CAB SUSPENSION RIGID<W71> 		1-62580-291-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. CAB SUSPENSION RIGID<W71> 		1-62580-290-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> 		1-62580-230-4 01 1 9510- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> 		1-53458-634-0 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 9510-0106 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-2 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-3 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53459-836-3 02 1 0107- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9802 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9510- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9510- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9510- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9510- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9510-9606 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-0512 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28080-820-0 08 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28081-225-0 04 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 02 1 9510-0512 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 0601- ●
99 BOLT; BRKT
(A) M12X35 		9-92061-235-0 08 1 9510-0512 ●
99 BOLT; BRKT
(A) M12X35 		0-20951-235-0 08 1 0601- ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9510- ● ●
156 NUT; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> M16 		9-99110-516-0 02 1 9510-0512 ● ●
156 NUT; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> M16 		0-91110-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53459-619-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		1-53459-620-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (D) 		1-53458-285-0 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9510- ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9606 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-861-2 01 1 0604- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-542-2 01 1 9510-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-852-0 01 1 0005- ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-598-2 01 1 9510-9802 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-730-0 01 1 9803-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0005-0010 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-53454-849-1 01 1 0011- ● ●
173 MEMBER; CAB MTG RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0011- ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-871-0 01 1 0011- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9510- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 9510-0006 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-867-0 01 1 0007-0012 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 0101- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9510-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9510-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
192 NUT; BRKT FIX
CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE 		0-91150-212-0 04 1 9803-0602 ● ●
192 NUT; BRKT FIX
CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-526-1 02 1 9510-9802 ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-644-2 02 1 9803-0207 ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-911-0 02 1 0208-1403 ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98269-637-0 02 1 1404- ● ●
278 COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9510-9510 ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9511-9802 ●
278 COVER
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9803-0004 ●
278 COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 0005- ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9510-9701 ● ●
278 COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ● ●
279 BOLT
ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0605 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9510-9510 ● ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9510-9510 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9511-9701 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9511-9701 ●
283 BRACKET; UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9702-9802 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9702-9802 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. A/T<X9D> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 0005- ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 0005-0512 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9510 ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9510-9510 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9511-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9511-9606 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-631-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 0005- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-632-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 0005- ●
294 MEMBER; FLOATING
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-530-1 01 1 9510- ● ●
322 COLLAR; CAB FRT FOOT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-941-1 02 1 9510- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9510-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9510-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9510-9606 ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9612 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9510-9612 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9510-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9510- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9510- ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23 		1-53458-693-1 04 1 9510-0306 ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23 		1-53457-076-1 04 1 0307- ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2 		9-09150-816-0 02 1 9510-0603 ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2 		0-91510-816-0 02 1 0604- ● ●
414 COLLAR; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-941-1 02 1 9510- ● ●
415 PIN; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> M16X115 		5-51361-002-1 02 1 9510- ● ●
448 BUSHING; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> 		1-53458-635-0 02 1 0107- ●
448 BUSHING; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-2 02 1 9803-0106 ● ●
448 BUSHING; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-3 02 1 0107- ●
448 BUSHING; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53459-836-3 02 1 0107- ●
çizim 152110
164 282 281 294 159 284 283 99 416 417 279 281 285 278 415 413 156 413 177 413 414 33 199 173 34 34 35 99 32 284 36 35 37 286 285 30 324 323 178 175 34 323 324 12 322 2 32 33 335 30 1 12 322 12 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-267-0 01 1 0107- ●
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-268-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-53454-648-1 02 1 9803- ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-666-1 02 1 9510- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9510- ● ●
3 TORSION BAR 1-09585-130-0 01 1 9510- ● ●
3 TORSION BAR 1-09585-129-0 01 1 9510- ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION RIGID<W71> (B) ID=34.5 		1-53458-281-1 04 1 9510- ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9510- ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53458-693-1 04 1 9510-0306 ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9510-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9510-0603 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		0-91510-612-0 08 1 0604- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9510- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9510-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> 		1-62580-233-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. CAB SUSPENSION RIGID<W71> 		1-62580-231-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> CAB SUSPENSION RIGID<W71> 		1-62580-291-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. CAB SUSPENSION RIGID<W71> 		1-62580-290-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> 		1-62580-230-4 01 1 9510- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> 		1-53458-634-0 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 9510-0106 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-2 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-3 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53459-836-3 02 1 0107- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9802 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9510- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9510- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9510- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9510- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9510-9606 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-0512 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28080-820-0 08 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28081-225-0 04 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 02 1 9510-0512 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 0601- ●
99 BOLT; BRKT
(A) M12X35 		9-92061-235-0 08 1 9510-0512 ●
99 BOLT; BRKT
(A) M12X35 		0-20951-235-0 08 1 0601- ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9510- ● ●
156 NUT; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> M16 		9-99110-516-0 02 1 9510-0512 ● ●
156 NUT; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> M16 		0-91110-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53459-619-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		1-53459-620-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (D) 		1-53458-285-0 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9510- ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9606 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-861-2 01 1 0604- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-542-2 01 1 9510-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-852-0 01 1 0005- ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-598-2 01 1 9510-9802 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-730-0 01 1 9803-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0005-0010 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-53454-849-1 01 1 0011- ● ●
173 MEMBER; CAB MTG RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0011- ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-871-0 01 1 0011- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9510- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 9510-0006 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-867-0 01 1 0007-0012 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 0101- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9510-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
177 BRACKET; MEMBER
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-529-1 01 1 9510-9802 ● ●
177 BRACKET; MEMBER
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-528-1 01 1 9510-9802 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9510-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-526-1 02 1 9510-9802 ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-644-2 02 1 9803-0207 ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-911-0 02 1 0208-1403 ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98269-637-0 02 1 1404- ● ●
278 COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9510-9510 ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9511-9802 ●
278 COVER
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9803-0004 ●
278 COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 0005- ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9510-9701 ● ●
278 COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ● ●
279 BOLT
ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0605 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9510-9510 ● ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9510-9510 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9511-9701 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9511-9701 ●
283 BRACKET; UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9702-9802 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9702-9802 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. A/T<X9D> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 0005- ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 0005-0512 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9510 ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9510-9510 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9511-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9511-9606 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-631-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 0005- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-632-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 0005- ●
294 MEMBER; FLOATING
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53454-530-1 01 1 9510- ● ●
322 COLLAR; CAB FRT FOOT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-941-1 02 1 9510- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9510-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9510-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9510-9606 ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9612 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9510-9612 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9510-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9510- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9510- ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23 		1-53458-693-1 04 1 9510-0306 ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23 		1-53457-076-1 04 1 0307- ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2 		9-09150-816-0 02 1 9510-0603 ● ●
413 WASHER; LK,CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2 		0-91510-816-0 02 1 0604- ● ●
414 COLLAR; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-941-1 02 1 9510- ● ●
415 PIN; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> M16X115 		5-51361-002-1 02 1 9510- ● ●
416 RUBBER; SHUTTER
AUSTRALIA EQUIPMENT(RR3) 		1-53446-730-0 02 1 9510-9701 ●
416 RUBBER; SHUTTER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. CAB SUSPENSION RIGID<W71> 		1-53446-730-0 02 1 9510-9701 ●
416 RUBBER; SHUTTER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53446-730-0 02 1 9702-9802 ●
416 RUBBER; SHUTTER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. CAB SUSPENSION RIGID<W71> 		1-53446-730-0 02 1 9702-9802 ●
417 RIVET
AUSTRALIA EQUIPMENT(RR3) 		1-09470-001-0 04 1 9510-9701 ●
417 RIVET
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. CAB SUSPENSION RIGID<W71> 		1-09470-001-0 04 1 9510-9701 ●
417 RIVET
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-09470-001-0 04 1 9702-9802 ●
417 RIVET
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. CAB SUSPENSION RIGID<W71> 		1-09470-001-0 04 1 9702-9802 ●
çizim 152114
284 282 281 283 285 159 168 278 279 281 173 159 170 168 284 34 35 34 286 285 178 175 32 30 36 35 37 324 323 323 324 12 12 34 32 30 33 1 335 12 12 3 2 336 103 326 326 33 325 1 3 12 2 96 99 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-267-0 01 1 0107- ●
1 BRACKET; CAB MTG
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-268-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9510-0106 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-227-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 9510-0106 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53453-226-0 01 1 0107- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-53454-648-1 02 1 9803- ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-666-1 02 1 9510- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9510- ● ●
3 TORSION BAR 1-09585-130-0 01 1 9510- ● ●
3 TORSION BAR 1-09585-129-0 01 1 9510- ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION RIGID<W71> (B) ID=34.5 		1-53458-281-1 04 1 9510- ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9510- ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53458-693-1 04 1 9510-0306 ● ●
12 WASHER; LK,BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23 		1-53457-076-1 04 1 0307- ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9510-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9510-0603 ●
12 WASHER; LK,BRKT
(C) ID=12.2 		0-91510-612-0 08 1 0604- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9510- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9510-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> 		1-62580-233-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. CAB SUSPENSION RIGID<W71> 		1-62580-231-4 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> CAB SUSPENSION RIGID<W71> 		1-62580-291-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9510- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. CAB SUSPENSION RIGID<W71> 		1-62580-290-1 01 1 9510- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> 		1-62580-230-4 01 1 9510- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> 		1-53458-634-0 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 9510-0106 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-2 02 1 9510-0106 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> 		1-53459-836-3 02 1 0107- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53459-836-3 02 1 0107- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9802 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0211-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9510- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9803-0210 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0211-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9510- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9510- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9510- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9510- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9510-9606 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-0512 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28080-820-0 08 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28081-225-0 04 1 9510-9606 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-0512 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28081-225-0 02 1 9510-0512 ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 0601- ●
99 BOLT; BRKT
(A) M12X35 		9-92061-235-0 08 1 9510-0512 ●
99 BOLT; BRKT
(A) M12X35 		0-20951-235-0 08 1 0601- ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (A) 		1-53459-619-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		1-53459-620-3 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9510- ●
159 RUBBER; CUSHION,CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (D) 		1-53458-285-0 02 1 9510- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9510- ●
168 NUT; CUSHION RUBBER,BODY MTG
CAB SUSPENSION RIGID<W71> (A) M12 FLANGE 		0-91150-112-0 04 1 9510-9606 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-112-0 04 1 9510-9606 ●
168 NUT; CUSHION RUBBER,BODY MTG
CAB SUSPENSION RIGID<W71> (A) M12 FLANGE 		0-91150-212-0 04 1 9607-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-212-0 04 1 9607-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
CAB SUSPENSION RIGID<W71> (A) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 9510-9606 ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ●
170 SHIM; CUSHION RUBBER
CAB SUSPENSION RIGID<W71> (A) T=1.6 		1-53459-621-0 AR 1 9510- ● ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 9510- ●
170 SHIM; CUSHION RUBBER
(B) T=1.6 		9-54347-136-1 AR 1 9510- ●
173 MEMBER; CAB MTG RR
6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-861-2 01 1 0604- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-542-2 01 1 9510-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION RIGID<W71> (C) 		1-53454-852-0 01 1 0005- ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-598-2 01 1 9510-9802 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-730-0 01 1 9803-0004 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0005-0010 ● ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-53454-849-1 01 1 0011- ● ●
173 MEMBER; CAB MTG RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-849-1 01 1 0011- ●
173 MEMBER; CAB MTG RR
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) CAB SUSPENSION SEMI FLOATING<SDK> (C) 		1-53454-871-0 01 1 0011- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9510- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 9510-0006 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-867-0 01 1 0007-0012 ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-671-0 01 1 0101- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9510-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9510-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
278 COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9510-9510 ●
278 COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9511-9802 ●
278 COVER
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 9803-0004 ●
278 COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53192-204-0 01 1 0005- ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9510-9701 ● ●
278 COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-932-1 01 1 9702-0004 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ● ●
279 BOLT
ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9510-9510 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28280-825-0 02 1 9511-9606 ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9701 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 9702-9802 ●
279 BOLT
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ● ●
279 BOLT
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
279 BOLT
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ● ●
281 WASHER; PL,BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9510-9510 ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9701 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 9702-9802 ●
281 WASHER; PL,BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ● ●
281 WASHER; PL,BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=26 		9-09164-808-0 03 1 9803-0004 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0605 ●
281 WASHER; PL,BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ● ●
282 NUT; BACK COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9510-9510 ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9511-9701 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 9702-9802 ●
282 NUT; BACK COVER
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
282 NUT; BACK COVER
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
282 NUT; BACK COVER
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9510-9510 ● ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9510-9510 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9511-9701 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9511-9701 ●
283 BRACKET; UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9702-9802 ● ●
283 BRACKET; UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9702-9802 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. A/T<X9D> 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9803-0004 ●
283 BRACKET; UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-630-2 01 1 0005- ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 04 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 04 1 9702-9802 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ● ●
284 BOLT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9510 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 02 1 9511-9606 ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9607-9701 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 02 1 9702-9802 ●
284 BOLT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ● ●
284 BOLT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 06 1 9803-0004 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28680-820-0 06 1 0005-0512 ●
284 BOLT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9510 ● ●
285 NUT; BRKT UPR
ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9510-9510 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9511-9606 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 		9-09110-408-0 06 1 9511-9606 ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9607-9701 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 9702-9802 ●
285 NUT; BRKT UPR
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ● ●
285 NUT; BRKT UPR
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 06 1 9803-0004 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 06 1 0005-0602 ●
285 NUT; BRKT UPR
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 06 1 0603- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-631-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-631-3 01 1 0005- ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9510-9510 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9510-9510 ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9511-9701 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9511-9701 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9702-9802 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 9702-9802 ●
286 BRACKET; LOW
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9803-0004 ● ●
286 BRACKET; LOW
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) 		1-53459-632-3 01 1 9803-0004 ●
286 BRACKET; LOW
6HH1 STD 4VALVE ENG(1A6) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR2<TAK> 		1-53459-632-3 01 1 0005- ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9510-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9510-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9510-9606 ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9612 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9510-9612 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9510-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9510- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9510- ● ●
çizim 152128
411 410 447 141 143 137 141 143 137 137 140 137 139 136 140
BalonParca AdiParca NoAdetTipApplied Date A B C
136 BRACKET; OIL CYL 1-53459-649-1 01 1 9510- ●
136 BRACKET; OIL CYL 1-53459-648-2 01 1 9510- ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		9-09160-612-0 04 1 9510-0605 ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
137 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 9510-1201 ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 16 1 1202- ●
139 PIN; OIL CYL,LWR 1-53459-490-3 02 1 9510- ●
140 NUT; BRKT
(A) M12 		9-99110-512-0 04 1 9510-0512 ●
140 NUT; BRKT
(A) M12 		0-91110-512-0 04 1 0601- ●
140 NUT; BRKT
(B) M14 		9-99110-514-0 08 1 9510-0512 ●
140 NUT; BRKT
(B) M14 		0-91110-514-0 08 1 0601- ●
141 BOLT; BRKT
M14X40 		9-92061-440-0 08 1 9510-0512 ●
141 BOLT; BRKT
M14X40 		0-20951-440-0 08 1 0601- ●
143 SPACER; OIL CYL,LWR 1-53459-491-2 04 1 9510- ●
410 REINFORCEMENT; CAB TILT 1-62580-238-2 01 1 9510- ●
410 REINFORCEMENT; CAB TILT 1-62580-241-2 01 1 9510- ●
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9510-0904 ●
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0905- ●
447 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
