◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#36243) — 403 parça

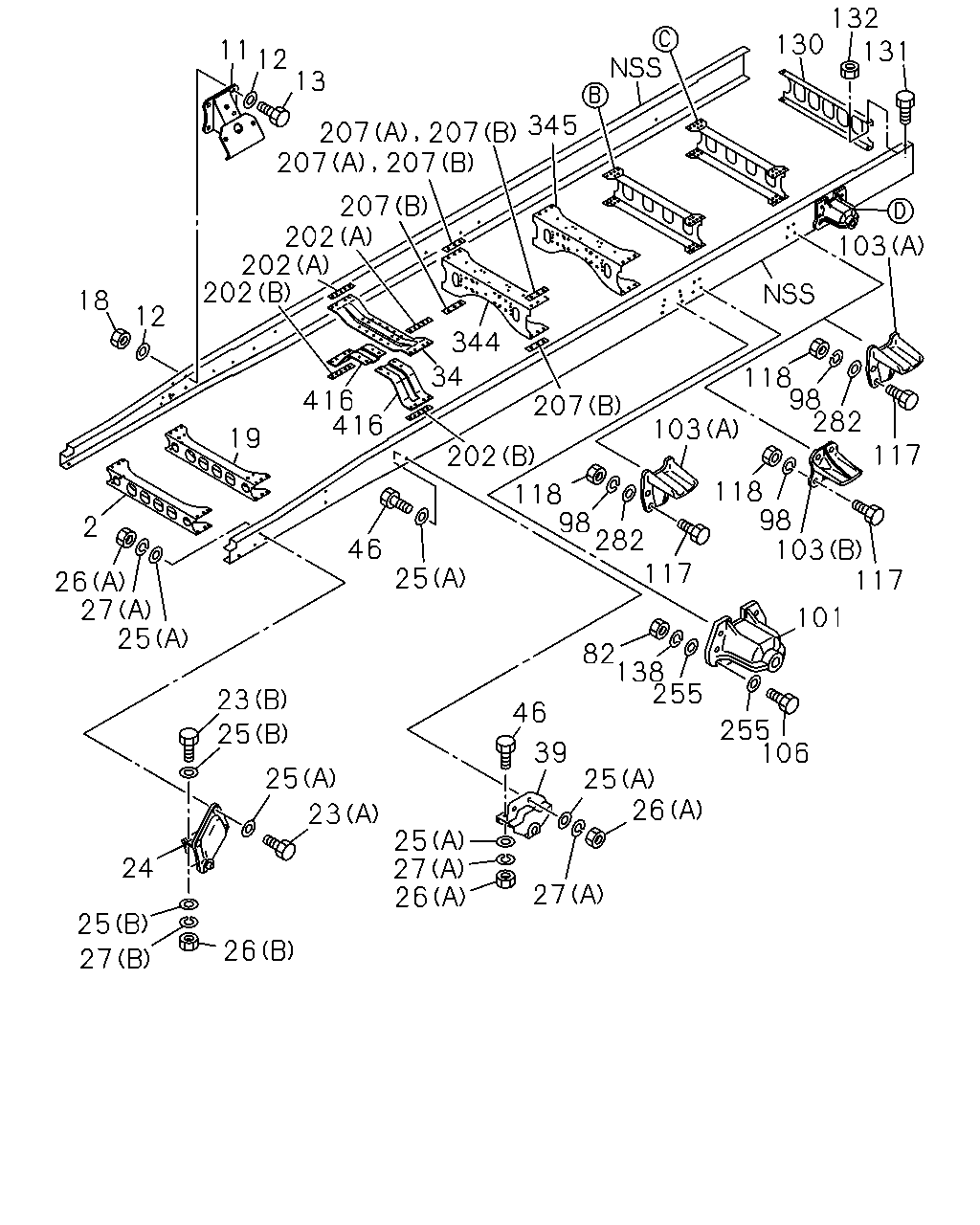

çizim 152104
132 130 131 345 11 12 13 207 202 202 202 103 344 34 416 416 18 12 118 98 282 207 103 19 117 202 118 98 103 117 118 98 282 117 2 46 25 26 27 25 101 82 138 255 23 25 46 255 106 39 25 25 26 23 25 27 26 24 27 25 26 27 207 207 207 207
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST
6HK1 TCC ENG(81L) 		1-53181-991-2 01 1 0603- ●
2 MEMBER; CROSS,1ST 1-53181-696-6 01 1 9510-0106 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0107-0601 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0602- ● ● ● ● ●
2 MEMBER; CROSS,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-696-7 01 1 0602- ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 9510-0106 ● ● ● ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0107- ● ● ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 9803-0106 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0107-0512 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0106 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0107-0602 ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HK1 TCC ENG(81L) 		1-53181-992-3 01 1 0603- ●
19 MEMBER; CROSS,2ND 1-53181-714-7 01 1 9510-0106 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0107-0601 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0602- ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-714-8 01 1 0602- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 9510-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0107- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9510-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0107-0512 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9510-0106 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0107- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9510-0106 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0107- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 9510-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0107- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 9510-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0107-1201 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9510-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0107-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9510-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-614-0 14 1 9510-9802 ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-616-0 04 1 9510-9802 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9510-0106 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0107- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9510-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0107- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9510-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0107- ● ● ● ● ● ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0107-0107 ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0107-0512 ● ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 04 1 0601- ● ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 04 1 0107-0107 ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 04 1 0107- ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9510-9802 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 9803-0106 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0512 ● ● ● ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 08 1 0107-0512 ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ● ● ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 08 1 0601- ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9510-0004 ● ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 0005-0512 ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0005-0512 ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601- ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 20 1 0601- ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0005-0106 ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0107-0512 ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 24 1 0601- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-0004 ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0005-0603 ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 16 1 0005-0603 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 16 1 0604- ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9510-0004 ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0005- ● ● ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 0005- ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0005-0106 ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0107- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9510-0004 ● ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0005- ● ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 0005- ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9510-0004 ● ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0005- ● ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 0005- ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0005-0106 ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0107- ● ●
106 BOLT; BRKT
M14X45 		9-92061-445-0 24 1 0107- ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9510-0004 ● ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 0005- ● ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 0005- ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0005-0512 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 24 1 0601- ●
117 BOLT; STOPPER
M14X45 		9-92061-445-0 16 1 0107- ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510-0004 ● ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0005- ● ● ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 0005- ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0005-0305 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 16 1 0306-0512 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 16 1 0601- ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9510-0106 ● ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0107-0512 ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 9510-0106 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0107- ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9510-9802 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 9803-0106 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		9-99110-412-0 04 1 9510-9802 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 9803-0106 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0107-0602 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) ID=14.2 		9-09150-614-0 20 1 9803-0004 ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 0005-0603 ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 0005-0603 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604- ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 20 1 0604- ●
138 WASHER; LK,BRKT
AUSTRALIA EQUIPMENT(RR3) ID=14.2 		9-09150-614-0 10 1 9803-0004 ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-351-1 02 1 9510-0106 ● ● ● ● ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-351-1 02 1 0107- ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53168-102-0 02 1 9809-0004 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 9510-0004 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 0005-0106 ● ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53168-163-1 02 1 0005-0106 ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 0107-0107 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 0107- ● ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 9510-9808 ● ●
207 SPACER; 4TH C/MBR
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53168-162-2 02 1 9809-0004 ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 9809-0004 ● ●
207 SPACER; 4TH C/MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53168-162-2 02 1 0005-0106 ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 0005-0106 ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 0107- ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 64 1 0107-1201 ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 64 1 1202- ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 0005-1201 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 48 1 1202- ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 16 1 0005-1201 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 16 1 1202- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9510-0106 ● ● ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0107- ● ● ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 9510- ●
345 MEMBER; CROSS,5TH 1-53171-953-2 01 1 0107- ●
345 MEMBER; CROSS,5TH 1-53171-738-7 01 1 9510- ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9510-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0107- ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9510-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0107- ● ● ● ● ● ●

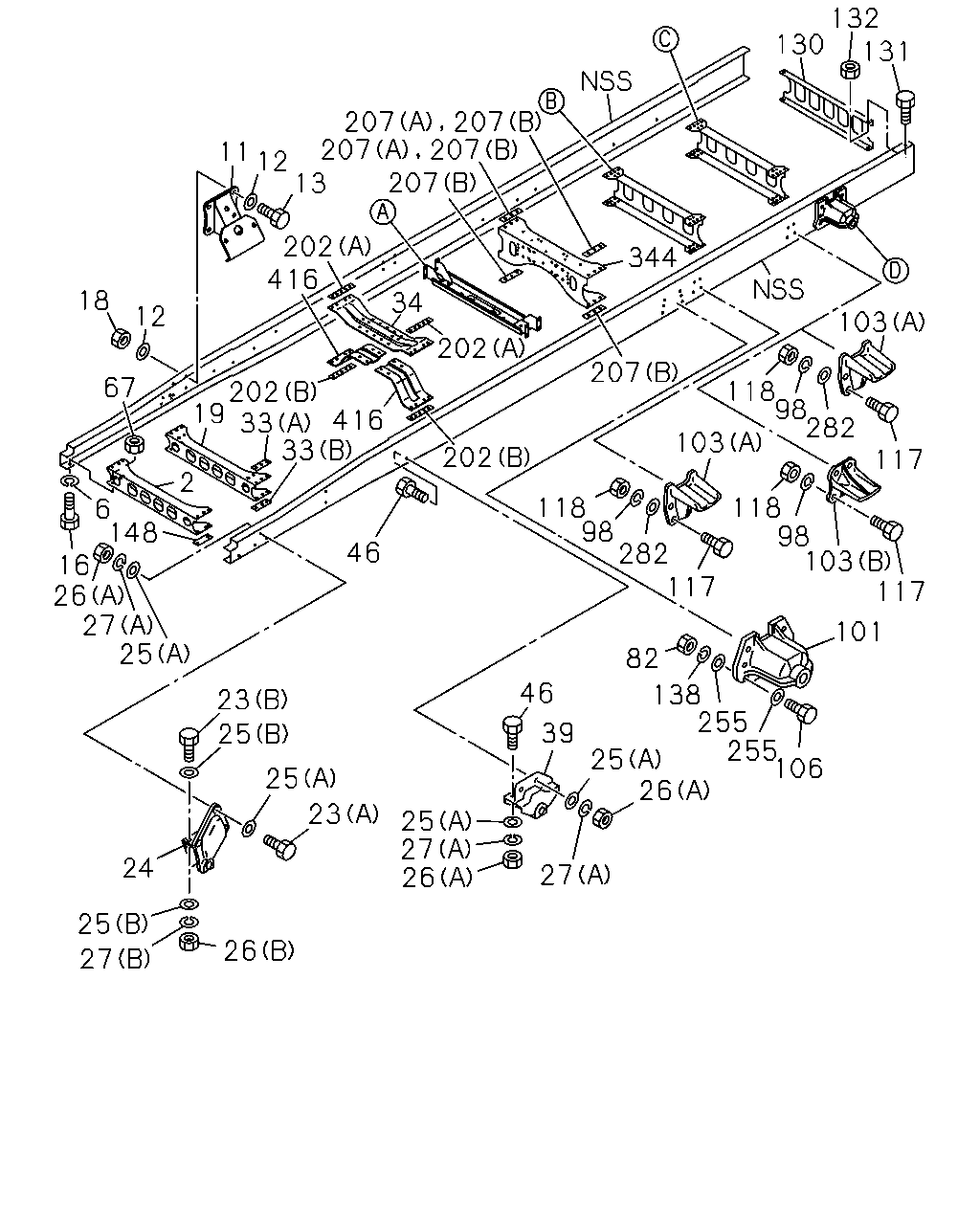

çizim 152118
132 130 131 12 13 207 11 202 416 34 202 344 18 12 103 207 67 118 98 282 202 19 33 416 33 2 6 148 103 202 117 118 98 282 117 118 98 103 117 46 16 26 27 25 101 82 46 138 255 255 106 23 25 39 25 26 25 23 25 27 26 24 27 25 26 27 207 207 207 207
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST
6HK1 TCC ENG(81L) 		1-53181-991-2 01 1 0603- ●
2 MEMBER; CROSS,1ST 1-53181-696-6 01 1 9510-0106 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0107-0601 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0602- ● ● ● ● ●
2 MEMBER; CROSS,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-696-7 01 1 0602- ●
6 WASHER; LK,1ST C/MBR
6HK1 TCC ENG(81L) ID=16.2 		9-09150-616-0 02 1 0603-0603 ●
6 WASHER; LK,1ST C/MBR
6HK1 TCC ENG(81L) ID=16.2 		0-91510-616-0 02 1 0604- ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 9510-0106 ● ● ● ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0107- ● ● ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 9803-0106 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0107-0512 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
6HK1 TCC ENG(81L) M16X40 		0-20851-640-0 02 1 0603- ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0106 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0107-0602 ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HK1 TCC ENG(81L) 		1-53181-992-3 01 1 0603- ●
19 MEMBER; CROSS,2ND 1-53181-714-7 01 1 9510-0106 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0107-0601 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0602- ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-714-8 01 1 0602- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 9510-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0107- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9510-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0107-0512 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9510-0106 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0107- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9510-0106 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0107- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 9510-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0107- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 9510-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0107-1201 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9510-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0107-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9510-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-614-0 14 1 9510-9802 ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-616-0 04 1 9510-9802 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
6HK1 TCC ENG(81L) (A) 		1-53168-276-0 02 1 0603- ●
33 SPACER; 2ND C/MBR,UPR
6HK1 TCC ENG(81L) (B) 		1-53168-287-0 02 1 0603- ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9510-0106 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0107- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9510-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0107- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9510-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0107- ● ● ● ● ● ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0107-0107 ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0107-0512 ● ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 04 1 0601- ● ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 04 1 0107-0107 ●
46 BOLT; BRKT FIX
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 04 1 0107- ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9510-9802 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 9803-0106 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0512 ● ● ● ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 08 1 0107-0512 ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ● ● ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 08 1 0601- ●
67 NUT; C/MBR
6HK1 TCC ENG(81L) M16 		0-91110-516-0 02 1 0603- ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9510-0004 ● ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 0005-0512 ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0005-0512 ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601- ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 20 1 0601- ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0005-0106 ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0107-0512 ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 24 1 0601- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-0004 ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0005-0603 ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 16 1 0005-0603 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 16 1 0604- ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9510-0004 ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0005- ● ● ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 0005- ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0005-0106 ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0107- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9510-0004 ● ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0005- ● ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 0005- ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9510-0004 ● ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0005- ● ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 0005- ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0005-0106 ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0107- ● ●
106 BOLT; BRKT
M14X45 		9-92061-445-0 24 1 0107- ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9510-0004 ● ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 0005- ● ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 0005- ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0005-0512 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 24 1 0601- ●
117 BOLT; STOPPER
M14X45 		9-92061-445-0 16 1 0107- ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510-0004 ● ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0005- ● ● ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 0005- ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0005-0305 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 16 1 0306-0512 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 16 1 0601- ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9510-0106 ● ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0107-0512 ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 9510-0106 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0107- ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9510-9802 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 9803-0106 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		9-99110-412-0 04 1 9510-9802 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 9803-0106 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0107-0602 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) ID=14.2 		9-09150-614-0 20 1 9803-0004 ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 0005-0603 ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 0005-0603 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604- ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 20 1 0604- ●
138 WASHER; LK,BRKT
AUSTRALIA EQUIPMENT(RR3) ID=14.2 		9-09150-614-0 10 1 9803-0004 ●
148 SPACER; C/MBR
6HK1 TCC ENG(81L) 		1-53168-341-0 02 1 0603- ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-351-1 02 1 9510-0106 ● ● ● ● ●
202 SPACER; 3RD C/MBR
(A) 		1-53168-351-1 02 1 0107- ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53168-102-0 02 1 9809-0004 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 9510-0004 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 0005-0106 ● ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53168-163-1 02 1 0005-0106 ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 0107-0107 ● ●
207 SPACER; 4TH C/MBR
(A) 		1-53168-163-1 02 1 0107- ● ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 9510-9808 ● ●
207 SPACER; 4TH C/MBR
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53168-162-2 02 1 9809-0004 ● ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 9809-0004 ● ●
207 SPACER; 4TH C/MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53168-162-2 02 1 0005-0106 ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 0005-0106 ●
207 SPACER; 4TH C/MBR
(B) 		1-53168-162-2 02 1 0107- ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 64 1 0107-1201 ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 64 1 1202- ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 0005-1201 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 48 1 1202- ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 16 1 0005-1201 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 16 1 1202- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9510-0106 ● ● ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0107- ● ● ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 9510- ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9510-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0107- ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9510-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0107- ● ● ● ● ● ●

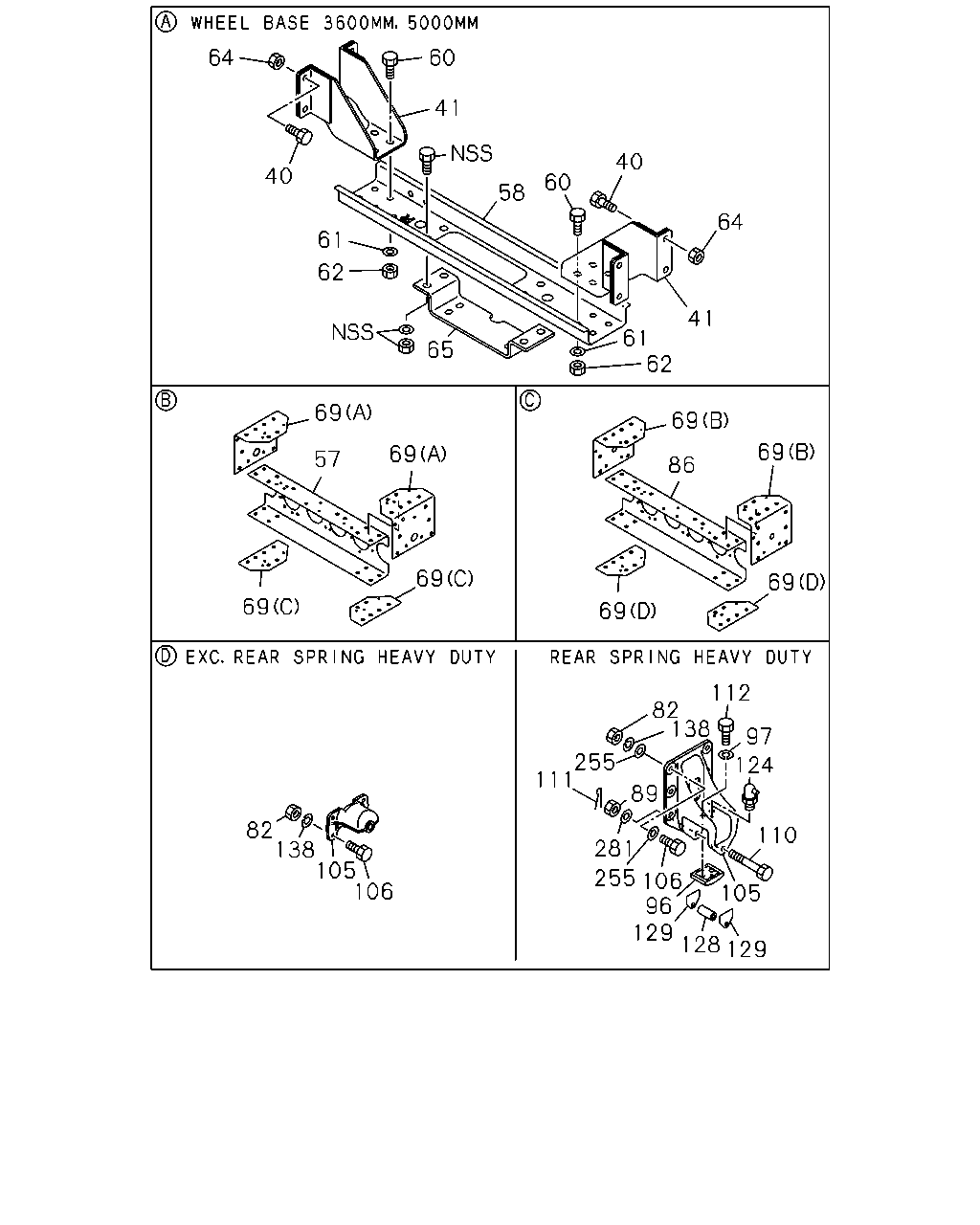

çizim 152120
64 60 41 40 40 60 58 64 61 62 41 61 62 65 69 69 69 69 57 86 69 69 69 69 112 82 138 97 255 111 124 89 281 255 106 105 96 129 82 138 105 106 110 128 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 08 1 9803-0512 ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0601- ● ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9510- ● ●
57 MEMBER; CROSS,RR SUSP FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53181-815-1 01 1 0212- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-692-4 01 1 9510- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 9510-0106 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0107-0211 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0212- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-53181-691-4 01 1 0212- ●
58 MEMBER; CENTER BRG 1-37529-088-1 01 1 9510- ●
58 MEMBER; CENTER BRG 1-37529-072-1 01 1 9510- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9510-9802 ● ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 9803-0512 ● ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ● ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9510-9802 ● ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9510-9802 ● ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ● ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0603- ● ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9510-9802 ● ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ● ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0603- ● ●
65 BRACKET; CENTER BRG 1-53271-334-1 01 1 9510- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 9510-0106 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 0107- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 9510-0106 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 0107- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-248-1 01 1 9510-0004 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-248-1 01 1 0005- ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-248-1 01 1 0005- ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-309-0 01 1 9510-0004 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-309-0 01 1 0005- ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-309-0 01 1 0005- ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-247-1 01 1 9510-0004 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-247-1 01 1 0005- ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-247-1 01 1 0005- ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-310-0 01 1 9510-0004 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-310-0 01 1 0005- ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-310-0 01 1 0005- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-095-4 01 1 0005-0106 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-095-5 01 1 0107- ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-098-5 01 1 0005-0106 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-098-5 01 1 0107- ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-096-4 01 1 0005-0106 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-096-4 01 1 0107- ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-097-5 01 1 0005-0106 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-097-5 01 1 0107- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9510-0004 ● ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 0005-0512 ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0005-0512 ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601- ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 20 1 0601- ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0005-0106 ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0107-0512 ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 24 1 0601- ● ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53181-815-1 01 1 0302- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-692-4 01 1 9510- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 9510-0106 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 0107-0301 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 0302- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-53181-691-4 01 1 0302- ●
89 NUT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) M14 		9-99116-414-0 02 1 0005-0604 ● ●
89 NUT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) M14 SLOTTED 		0-91116-514-0 02 1 0605- ● ●
96 PAD; RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-53359-047-0 02 1 0005- ● ●
97 WASHER; LK,PAD
REAR SPRING HEAVY DUTY(G51) ID=14.2 		9-09150-514-0 04 1 0005-0603 ● ●
97 WASHER; LK,PAD
REAR SPRING HEAVY DUTY(G51) ID=14.2 		0-91510-514-0 04 1 0604- ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 9510-0004 ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0005- ● ● ● ●
105 BRACKET; RR SPR,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 0005- ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 0005-0106 ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 0107- ● ●
106 BOLT; BRKT
M14X45 		9-92061-445-0 24 1 0107- ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9510-0004 ● ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 0005- ● ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 0005- ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0005-0512 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 24 1 0601- ●
110 BOLT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) 		1-09000-007-0 02 1 0005- ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) OD=2.8 L=28 		9-08113-028-0 02 1 0005-0606 ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) OD=2.8 L=28 		0-81123-028-0 02 1 0607- ● ●
112 BOLT; PAD
REAR SPRING HEAVY DUTY(G51) M14X35 		0-20801-435-0 04 1 0005-0512 ● ●
112 BOLT; PAD
REAR SPRING HEAVY DUTY(G51) M14X35 		0-20851-435-0 04 1 0601- ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0005-0512 ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
128 COLLAR; RUBBER
REAR SPRING HEAVY DUTY(G51) 		1-53359-004-0 02 1 0005- ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=4.5 		1-53359-061-1 02 1 0005- ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=3.2 		1-53359-062-1 02 1 0005- ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) ID=14.2 		9-09150-614-0 20 1 9803-0004 ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 0005-0603 ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 0005-0603 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604- ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 20 1 0604- ●
138 WASHER; LK,BRKT
AUSTRALIA EQUIPMENT(RR3) ID=14.2 		9-09150-614-0 10 1 9803-0004 ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 64 1 0107-1201 ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 64 1 1202- ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 0005-1201 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 48 1 1202- ●
281 WASHER; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) ID=15 OD=30 		9-09160-614-0 04 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
