4-65 — REAR LEAF SPRING (#36241) — 122 parça

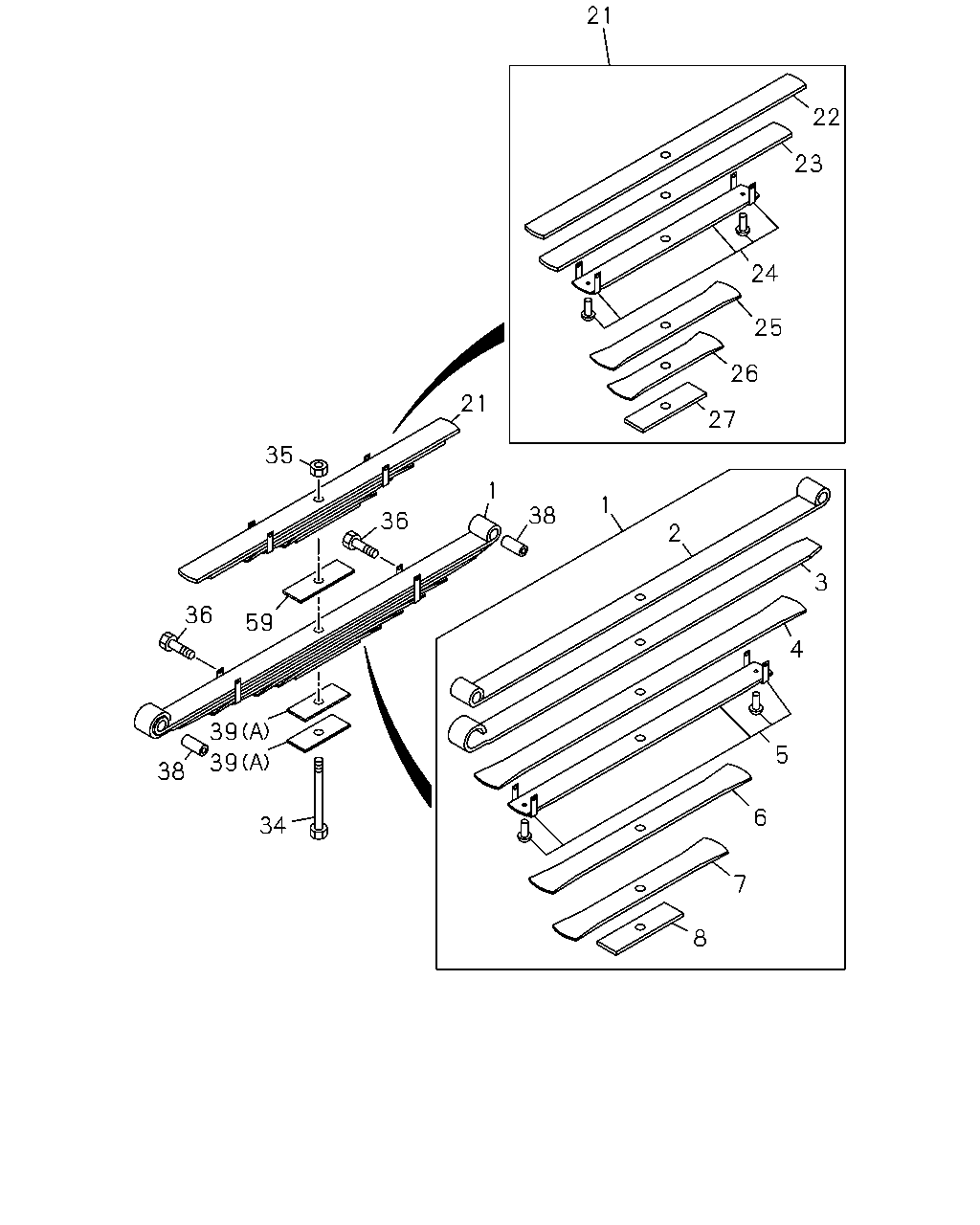

21 22 23 24 25 26 21 27 35 1 1 38 36 2 3 36 59 4 39 39 5 38 6 34 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51310-716-1	01	1	-
1	SPRING ASM; LEAF,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51310-717-2	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51310-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51311-716-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51311-717-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51311-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51312-716-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51312-717-2	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51312-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51313-716-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51313-717-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51313-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 13 LEAF, W/CLIP ASM PART: A = 1-51300-333-2	1-51314-716-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 13 LEAF, W/CLIP ASM PART: B = 1-51300-334-3	1-51314-717-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51314-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51315-716-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51315-717-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14 LEAF, W/CLIP ASM PART: C = 1-51300-352-0	1-51315-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51316-716-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51316-717-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51316-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51317-716-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51317-717-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51317-721-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51340-444-1	01	1	-
21	SPRING ASM; LEAF,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51340-445-1	01	1	-
21	SPRING ASM; LEAF,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51340-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51341-444-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51341-445-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51341-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51342-444-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51342-445-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51342-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 13 LEAF, W/CLIP ASM PART: A = 1-51300-333-2	1-51343-444-1	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 13 LEAF, W/CLIP ASM PART: B = 1-51300-334-3	1-51343-445-1	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51343-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51344-444-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51344-445-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14 LEAF, W/CLIP ASM PART: C = 1-51300-352-0	1-51344-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51345-444-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51345-445-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51345-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51346-444-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51346-445-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51346-450-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: C = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=215 ASM PART: A = 1-51300-333-2	1-51356-190-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: B = 1-51300-334-3	1-51356-233-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: C = 1-51300-352-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X99 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	1-09000-328-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: C = 1-51300-352-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51300-352-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: C = 1-51300-352-0	1-87610-164-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	9-51351-019-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=10 ASM PART: C = 1-51300-352-0	1-51377-118-0	05	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=12 ASM PART: B = 1-51300-334-3	1-51377-175-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=12 ASM PART: A = 1-51300-333-2	1-51377-175-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: C = 1-51300-352-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	1-51377-171-0	01	1	-

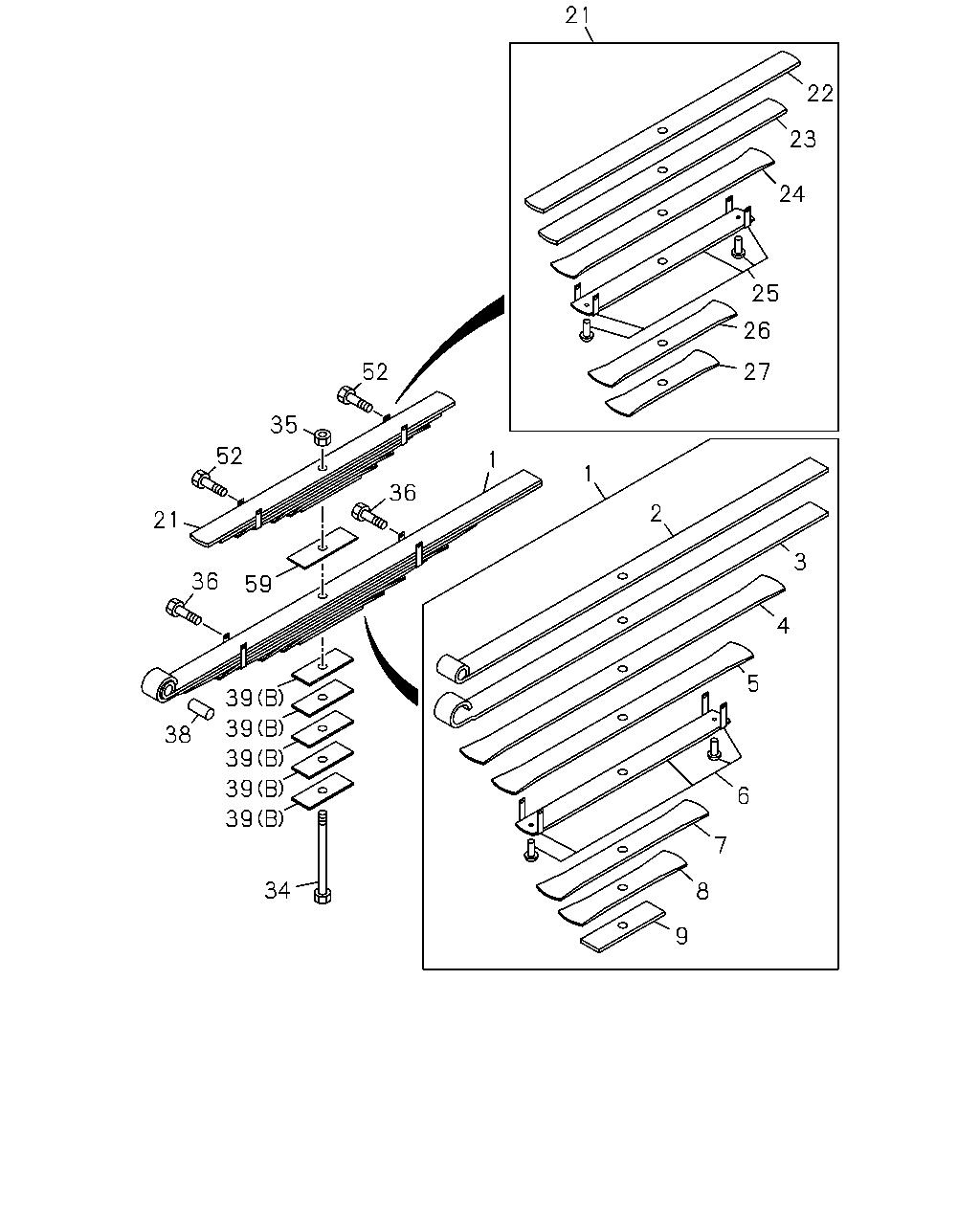

21 22 23 24 25 26 27 52 35 52 1 1 36 2 21 3 36 59 4 5 39 39 38 39 39 6 39 7 34 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51310-716-1	01	1	-
1	SPRING ASM; LEAF,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51310-717-2	01	1	-
1	SPRING ASM; LEAF,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51310-721-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51311-716-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51311-717-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51311-721-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51312-716-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51312-717-2	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51312-721-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51313-716-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51313-717-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51313-721-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 13 LEAF, W/CLIP ASM PART: A = 1-51300-333-2	1-51314-716-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 13 LEAF, W/CLIP ASM PART: B = 1-51300-334-3	1-51314-717-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51314-721-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51315-716-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51315-717-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN 14 LEAF, W/CLIP ASM PART: C = 1-51300-352-0	1-51315-721-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51316-716-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51316-717-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51316-721-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 13 LEAF ASM PART: A = 1-51300-333-2	1-51317-716-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 13 LEAF ASM PART: B = 1-51300-334-3	1-51317-717-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51317-721-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN 14 LEAF ASM PART: C = 1-51300-352-0	1-51318-721-0	01	1	-
21	SPRING ASM; LEAF,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51340-444-1	01	1	-
21	SPRING ASM; LEAF,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51340-445-1	01	1	-
21	SPRING ASM; LEAF,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51340-450-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51341-444-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51341-445-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51341-450-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51342-444-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51342-445-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51342-450-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 13 LEAF, W/CLIP ASM PART: A = 1-51300-333-2	1-51343-444-1	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 13 LEAF, W/CLIP ASM PART: B = 1-51300-334-3	1-51343-445-1	01	1	-
24	SPRING; LEAF,NO 3,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51343-450-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51344-444-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51344-445-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB 14 LEAF, W/CLIP ASM PART: C = 1-51300-352-0	1-51344-450-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51345-444-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51345-445-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51345-450-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 13 LEAF ASM PART: A = 1-51300-333-2	1-51346-444-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 13 LEAF ASM PART: B = 1-51300-334-3	1-51346-445-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB 14 LEAF ASM PART: C = 1-51300-352-0	1-51346-450-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: C = 1-51300-352-0	1-51356-131-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=215 ASM PART: A = 1-51300-333-2	1-51356-190-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: B = 1-51300-334-3	1-51356-233-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: C = 1-51300-352-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X99 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	1-09000-328-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: C = 1-51300-352-0	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51300-352-0	1-51351-010-0	01	1	-
38	BUSHING; LEAF SPR,RR BEST VALUE PARTS ASM PART: C = 1-51300-352-0	1-87610-164-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	9-51351-019-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=10 ASM PART: C = 1-51300-352-0	1-51377-118-0	05	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=12 ASM PART: B = 1-51300-334-3	1-51377-175-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=12 ASM PART: A = 1-51300-333-2	1-51377-175-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: C = 1-51300-352-0	1-09000-334-0	02	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: C = 1-51300-352-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3	1-51377-171-0	01	1	-
