4-60 — REAR SUSPENSION (#36240) — 109 parça

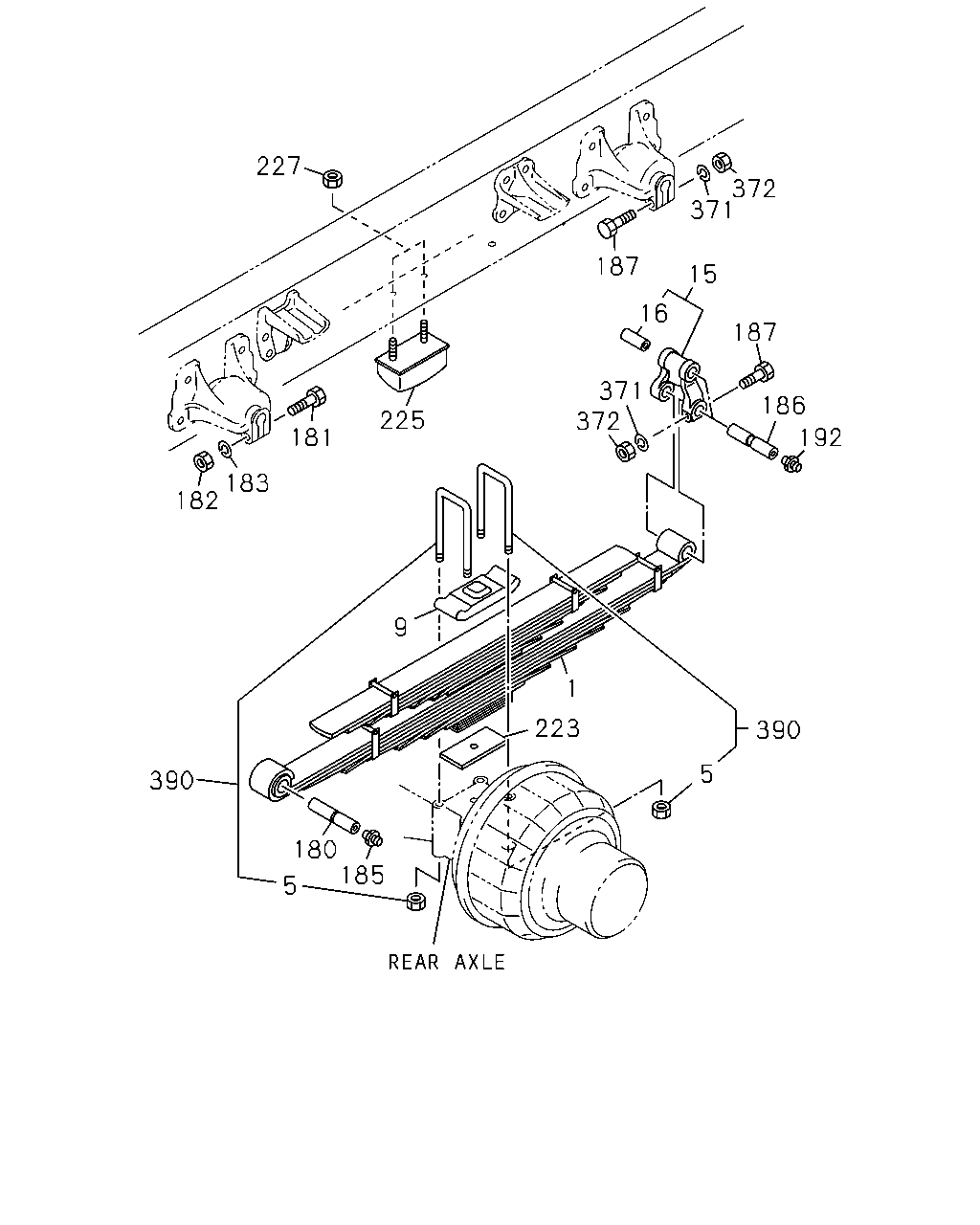

çizim 152099
227 372 371 187 15 16 187 371 372 186 225 181 192 183 182 9 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-334-3 02 1 9510-0004 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR STABILIZER SHAFT<F61> 13-LEAF 		1-51300-334-3 02 1 9510-0004 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-334-3 02 1 0005- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF 		1-51300-334-3 02 1 0005- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR STABILIZER SHAFT<F61> 13-LEAF 		1-51300-333-2 02 1 9510-0004 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G51) 14-LEAF 		1-51300-352-0 02 1 0005- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9510-0512 ● ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 9510-0004 ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) 		1-51372-048-1 02 1 0005- ●
9 PAD; U BOLT,RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-51372-030-0 02 1 0005- ●
15 SHACKLE; RR SPR 1-51362-049-1 02 1 9510-0004 ● ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 0005- ● ●
15 SHACKLE; RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) 		1-51362-049-2 02 1 0005- ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-0 02 1 9510-0004 ● ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 0005-0902 ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) 		9-51351-019-2 02 1 0005-0902 ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903- ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) 		8-98081-830-0 02 1 0903- ●
16 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		1-87610-163-0 02 1 0903- ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) BEST VALUE PARTS 		1-87610-163-0 02 1 0903- ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9510-0004 ● ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0005- ● ●
180 PIN; RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0005- ●
180 PIN; RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-51361-020-0 02 1 0005- ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 9510-0004 ● ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 0005- ● ●
181 BOLT; SPR & SHACKLE
EXC. REAR SPRING HEAVY DUTY(G51) M14X65 		0-10811-465-0 02 1 0005- ●
181 BOLT; SPR & SHACKLE
REAR SPRING HEAVY DUTY(G51) M14X80 		0-10806-480-0 02 1 0005-0512 ●
181 BOLT; SPR & SHACKLE
REAR SPRING HEAVY DUTY(G51) M14X80 		0-10856-480-0 02 1 0601- ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9510-0512 ● ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9510-0603 ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9510-0512 ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9510-0004 ● ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0005- ● ●
186 PIN; SHACKLE,RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0005- ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 9510-0004 ● ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 0005- ● ●
187 BOLT; SPR & SHACKLE
EXC. REAR SPRING HEAVY DUTY(G51) M14X65 		0-10811-465-0 04 1 0005- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-0004 ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ●
192 NIPPLE; GREASE,SHACKLE PIN
EXC. REAR SPRING HEAVY DUTY(G51) PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
EXC. REAR SPRING HEAVY DUTY(G51) PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) REAR SPRING HEAVY DUTY(G51) 		1-51377-370-0 02 1 0107-1306 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) REAR SPRING HEAVY DUTY(G51) 		8-98220-147-0 02 1 1307- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) REAR SPRING HEAVY DUTY(G51) 		1-51377-368-1 02 1 0107-1212 ●
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 9510-0004 ● ● ●
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 0005- ● ●
223 SPACER; U BOLT,RR SPR
EXC. REAR SPRING HEAVY DUTY(G51) 		1-51377-166-0 02 1 0005- ●
223 SPACER; U BOLT,RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-51377-371-0 02 1 0005-0106 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) REAR SPRING HEAVY DUTY(G51) 		1-51377-371-1 02 1 0107-1212 ●
225 RUBBER; CUSHION,RR SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53366-067-3 02 1 0212-0212 ●
225 RUBBER; CUSHION,RR SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-53366-067-4 02 1 0301- ●
225 RUBBER; CUSHION,RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-53366-045-1 02 1 0005-0211 ●
225 RUBBER; CUSHION,RR SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) 		1-53366-045-1 02 1 0212- ●
227 NUT; CUSHION RUBBER
REAR SPRING HEAVY DUTY(G51) M12 FLANGE 		0-91150-212-0 04 1 0005-0211 ●
227 NUT; CUSHION RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 04 1 0212-0212 ●
227 NUT; CUSHION RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE 		0-91150-212-0 04 1 0212-0212 ●
227 NUT; CUSHION RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) M12 FLANGE 		0-91150-212-0 04 1 0301-0602 ●
227 NUT; CUSHION RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE 		0-91150-212-0 04 1 0301-0602 ●
227 NUT; CUSHION RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
227 NUT; CUSHION RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 9510-0004 ● ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0005-0603 ● ●
371 WASHER; LK,SHACKLE
EXC. REAR SPRING HEAVY DUTY(G51) ID=14.2 		9-09150-514-0 04 1 0005-0603 ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
371 WASHER; LK,SHACKLE
EXC. REAR SPRING HEAVY DUTY(G51) ID=14.2 		0-91510-514-0 04 1 0604- ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 9510-0004 ● ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 0005-0512 ● ●
372 NUT; SHACKLE
EXC. REAR SPRING HEAVY DUTY(G51) M14 		9-99110-414-0 04 1 0005-0512 ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0601- ● ●
372 NUT; SHACKLE
EXC. REAR SPRING HEAVY DUTY(G51) M14 		0-91110-514-0 04 1 0601- ●
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-0 04 1 9510-9810 ● ● ●
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-0 04 1 9811-0004 ● ●
390 U-BOLT SET; RR SPRING
EXC. FINAL GEAR 16.5"<B2Y> L=455 		1-87870-268-0 04 1 9811-0004 ●
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-1 04 1 0005- ● ●
390 U-BOLT SET; RR SPRING
EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455 		1-87870-268-1 04 1 0005- ●
390 U-BOLT SET; RR SPRING
FINAL GEAR 16.5"<B2Y> L=470 		1-87870-267-0 04 1 9811-0004 ●
390 U-BOLT SET; RR SPRING
FINAL GEAR 16.5"<B2Y> EXC. REAR SPRING HEAVY DUTY(G51) L=470 		1-87870-267-1 04 1 0005- ●
390 U-BOLT SET; RR SPRING
FINAL GEAR 16.5"<B2Y> REAR SPRING HEAVY DUTY(G51) L=490 		1-87870-036-4 04 1 0005- ●

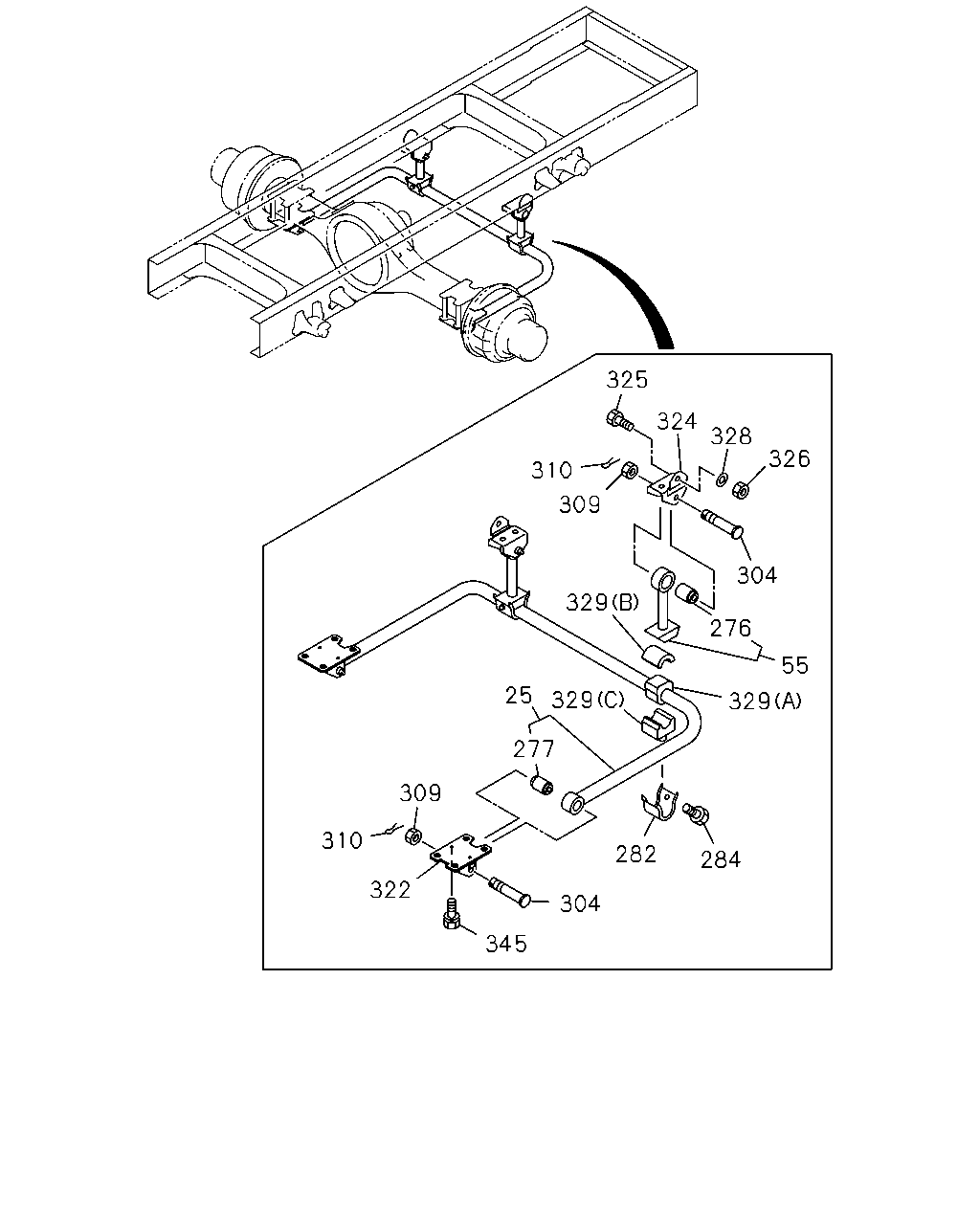

çizim 152101
325 324 328 326 310 309 304 329 276 55 25 329 329 277 309 310 282 284 322 304 345
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-029-1 01 1 9510-0004 ● ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-024-1 02 1 9510-0004 ● ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 9510-0004 ● ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9510-0004 ● ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9510-0004 ● ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9510-0004 ● ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-1 04 1 9510-0004 ● ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9510-0004 ● ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9510-0004 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-038-1 02 1 9510-9802 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-038-1 01 1 9803-0004 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-128-0 01 1 9803-0004 ● ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 9510-0004 ● ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 06 1 9510-9802 ● ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 04 1 9803-0004 ● ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 02 1 9803-0004 ● ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9510-0004 ● ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 9510-0004 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A) 		1-51789-016-0 02 1 9510-9602 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-051-1 02 1 9603-0004 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (C) 		1-51789-052-0 02 1 9603-0004 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9510-9606 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 02 1 9607-9702 ● ●
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 04 1 9703-0004 ● ●
