Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#36237) — 280 parça

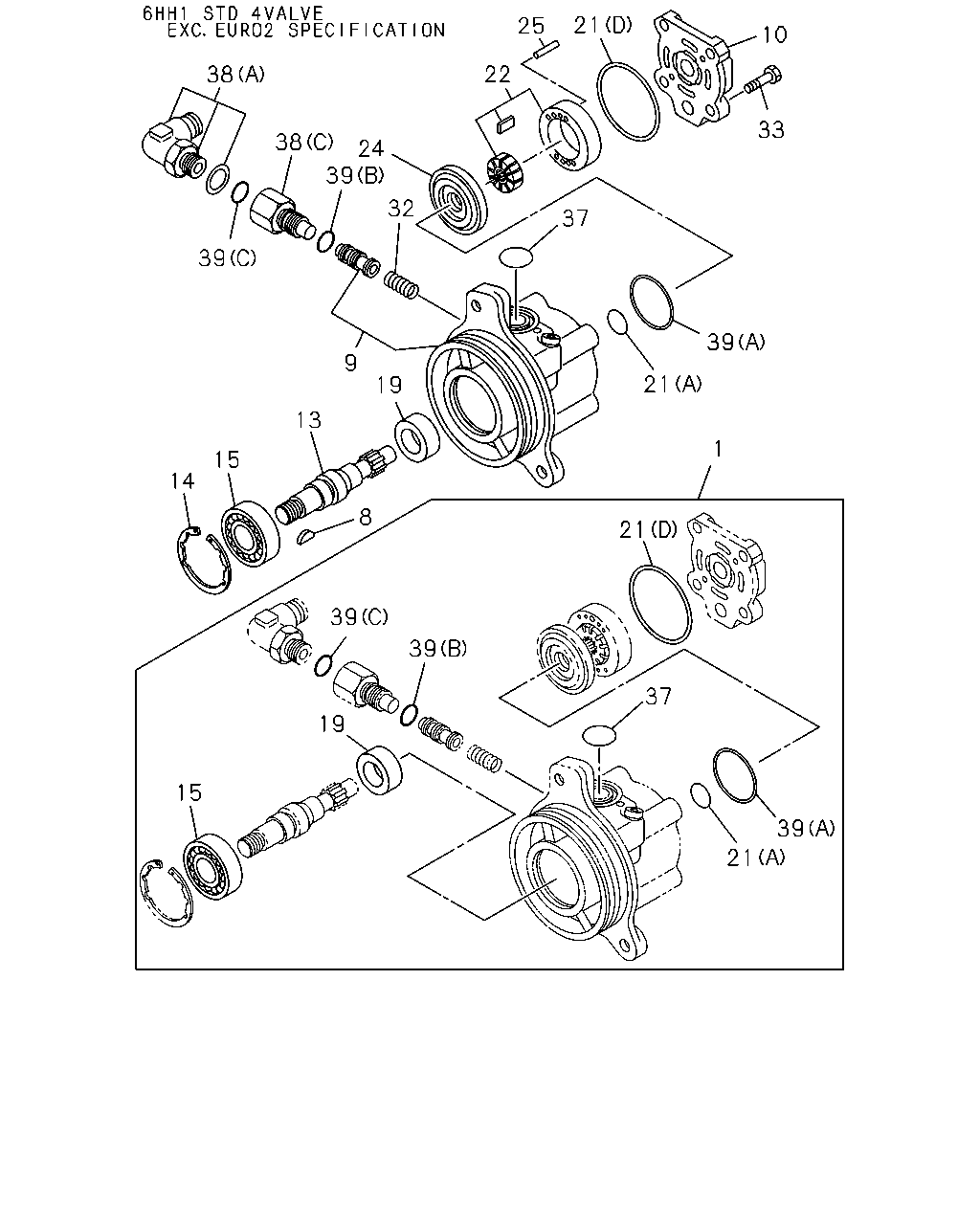

21 25 22 24 39 21 33 10 35 37 36 9 8 38 39 38 32 19 13 39 1 15 14 39 21 37 19 39 21 15 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-530-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-060-0	01	1	-0812
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-064-0	01	1	0901-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-595-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, D = 1-19500-595-1, E = 8-98202-668-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: C = 1-19500-580-2	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-143-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-149-0	01	1	-0812
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-151-0	01	1	0901-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-580-2	1-19511-177-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-595-1	1-19511-186-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98202-668-0	8-98202-782-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-150-0	01	1	-0812
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-152-0	01	1	0901-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-595-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-530-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-034-0	01	1	-0812
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-035-0	01	1	0901-
13	SHAFT KIT; RET ASM PART: C = 1-19500-580-2	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-135-0	01	1	0901-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-172-0	01	1	-0812
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-314-0	01	1	0901-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-321-0	01	1	-0812
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-530-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-530-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-580-2	1-19519-341-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-530-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-548-1	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-580-2	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-530-0, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-548-1	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-548-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-244-0	04	1	0901-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-331-0	04	1	-0812
33	BOLT; COVER ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, D = 1-19500-595-1, E = 8-98202-668-0	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: E = 8-98202-668-0	1-19519-124-1	02	1	-
36	BOLT; CONN,PIPE ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-306-0	01	1	-9510
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 1-19500-595-1	1-19519-324-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-324-0	01	1	9511-
38	CONNECTOR; OIL PUMP (C) ASM PART: C = 1-19500-580-2	1-19519-355-1	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98202-668-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, E = 8-98202-668-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-313-0	01	1	0901-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-320-0	01	1	-0812
39	GASKET; OIL PUMP (A) ASM PART: D = 1-19500-595-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	9-48429-028-0	01	1	-

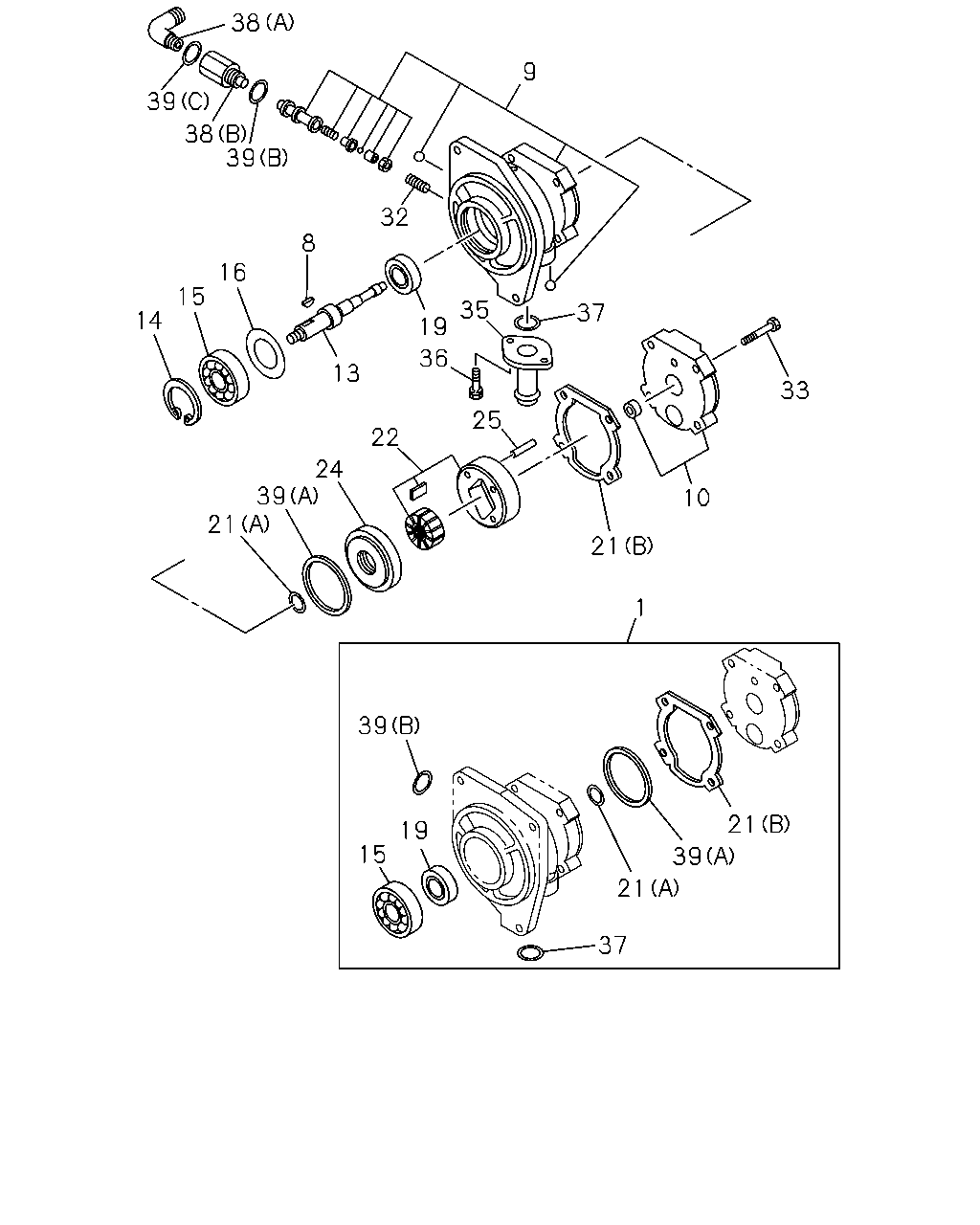

38 9 39 38 39 32 8 16 15 35 37 14 19 36 13 33 25 22 24 39 21 10 21 1 39 21 19 15 39 21 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-530-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-060-0	01	1	-0812
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-064-0	01	1	0901-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-595-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, D = 1-19500-595-1, E = 8-98202-668-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: C = 1-19500-580-2	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-143-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-149-0	01	1	-0812
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-151-0	01	1	0901-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-580-2	1-19511-177-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-595-1	1-19511-186-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98202-668-0	8-98202-782-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-150-0	01	1	-0812
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-152-0	01	1	0901-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-595-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-530-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-034-0	01	1	-0812
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-035-0	01	1	0901-
13	SHAFT KIT; RET ASM PART: C = 1-19500-580-2	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-135-0	01	1	0901-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-172-0	01	1	-0812
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	9-19519-078-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-314-0	01	1	0901-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-321-0	01	1	-0812
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-530-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-530-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-580-2	1-19519-341-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-530-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-548-1	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-580-2	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-530-0, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-548-1	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-548-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-244-0	04	1	0901-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-331-0	04	1	-0812
33	BOLT; COVER ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, D = 1-19500-595-1, E = 8-98202-668-0	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: E = 8-98202-668-0	1-19519-124-1	02	1	-
36	BOLT; CONN,PIPE ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-306-0	01	1	-9510
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 1-19500-595-1	1-19519-324-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-324-0	01	1	9511-
38	CONNECTOR; OIL PUMP (C) ASM PART: C = 1-19500-580-2	1-19519-355-1	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98202-668-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, E = 8-98202-668-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-313-0	01	1	0901-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-320-0	01	1	-0812
39	GASKET; OIL PUMP (A) ASM PART: D = 1-19500-595-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	9-48429-028-0	01	1	-

39 9 19 17 16 21 15 14 8 13 28 29 38 37 39 27 32 33 25 24 22 1 23 10 26 37 39 19 29 15 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-530-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-060-0	01	1	-0812
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-064-0	01	1	0901-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-595-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, D = 1-19500-595-1, E = 8-98202-668-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: C = 1-19500-580-2	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-143-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-149-0	01	1	-0812
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-151-0	01	1	0901-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-580-2	1-19511-177-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-595-1	1-19511-186-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98202-668-0	8-98202-782-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-150-0	01	1	-0812
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-152-0	01	1	0901-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-595-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-530-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-034-0	01	1	-0812
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-035-0	01	1	0901-
13	SHAFT KIT; RET ASM PART: C = 1-19500-580-2	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-135-0	01	1	0901-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-172-0	01	1	-0812
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	9-19519-078-0	01	1	-
17	RING; RET ASM PART: B = 1-19500-548-1	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-314-0	01	1	0901-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-321-0	01	1	-0812
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-530-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-530-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-580-2	1-19519-341-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19519-342-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-133-1	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-530-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-548-1	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-580-2	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-530-0, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-548-1	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: B = 1-19500-548-1	1-19519-076-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: B = 1-19500-548-1	8-94242-528-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-548-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-244-0	04	1	0901-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-331-0	04	1	-0812
33	BOLT; COVER ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-306-0	01	1	-9510
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 1-19500-595-1	1-19519-324-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-324-0	01	1	9511-
38	CONNECTOR; OIL PUMP (C) ASM PART: C = 1-19500-580-2	1-19519-355-1	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98202-668-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, E = 8-98202-668-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-313-0	01	1	0901-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-320-0	01	1	-0812
39	GASKET; OIL PUMP (A) ASM PART: D = 1-19500-595-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	9-48429-028-0	01	1	-

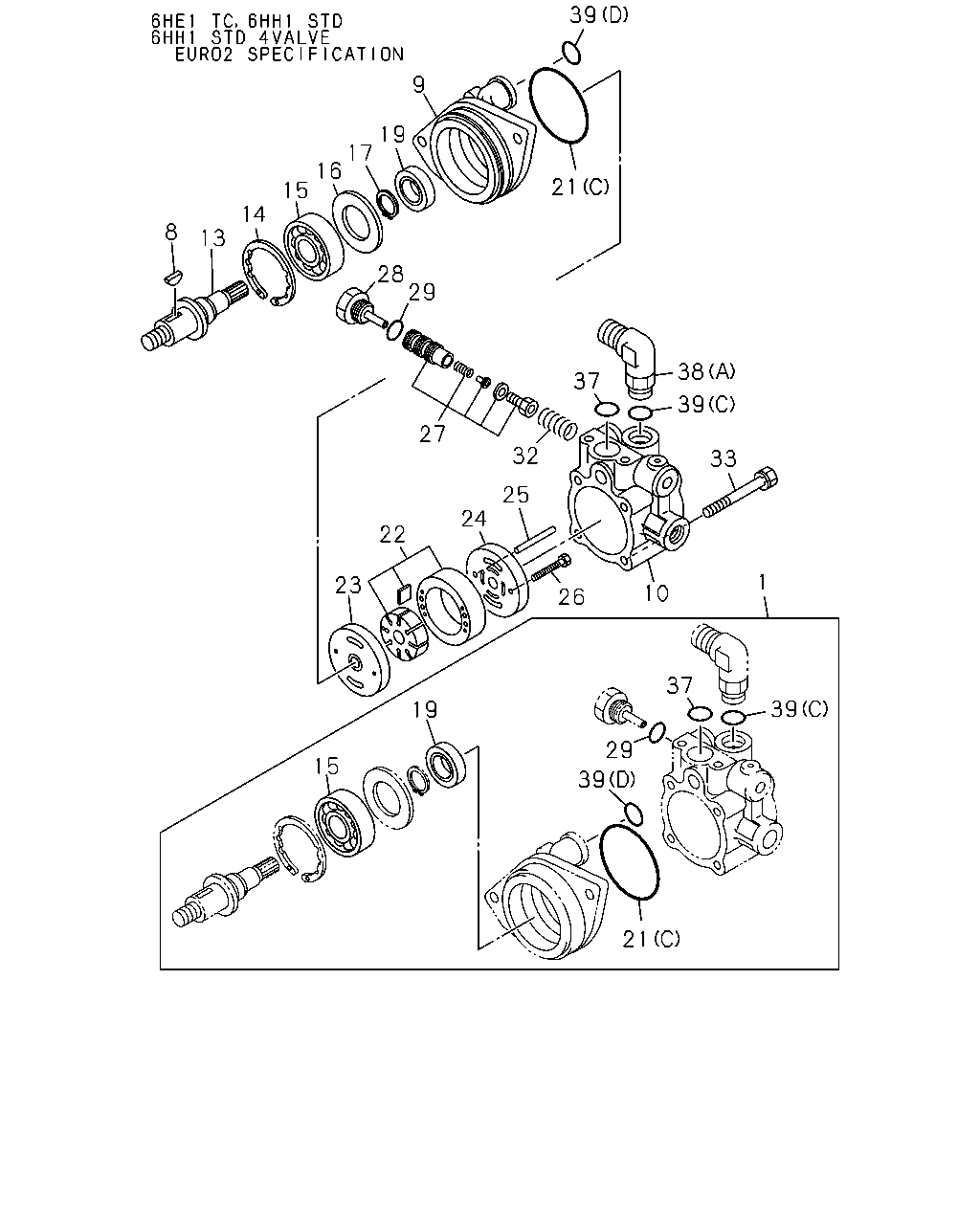

21 25 10 22 38 33 38 24 39 32 37 39 39 9 21 19 13 1 15 14 8 21 39 39 37 19 15 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-530-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-060-0	01	1	-0812
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-548-1	1-85574-064-0	01	1	0901-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-595-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, D = 1-19500-595-1, E = 8-98202-668-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: C = 1-19500-580-2	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-143-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-149-0	01	1	-0812
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-151-0	01	1	0901-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-580-2	1-19511-177-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-595-1	1-19511-186-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98202-668-0	8-98202-782-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-530-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-150-0	01	1	-0812
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-548-1	1-19511-152-0	01	1	0901-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-595-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-530-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-034-0	01	1	-0812
13	SHAFT KIT; RET ASM PART: B = 1-19500-548-1	1-19521-035-0	01	1	0901-
13	SHAFT KIT; RET ASM PART: C = 1-19500-580-2	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-135-0	01	1	0901-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-172-0	01	1	-0812
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-314-0	01	1	0901-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-548-1	1-19519-321-0	01	1	-0812
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-530-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-530-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-580-2	1-19519-341-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-595-1, E = 8-98202-668-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-530-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-548-1	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-580-2	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-530-0, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-548-1	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-548-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-244-0	04	1	0901-
33	BOLT; COVER ASM PART: B = 1-19500-548-1	1-19519-331-0	04	1	-0812
33	BOLT; COVER ASM PART: C = 1-19500-580-2, E = 8-98202-668-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-530-0, D = 1-19500-595-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-548-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-306-0	01	1	-9510
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 1-19500-595-1	1-19519-324-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0	1-19519-324-0	01	1	9511-
38	CONNECTOR; OIL PUMP (C) ASM PART: C = 1-19500-580-2	1-19519-355-1	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98202-668-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, E = 8-98202-668-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-313-0	01	1	0901-
39	GASKET; OIL PUMP (D) ASM PART: B = 1-19500-548-1	1-19519-320-0	01	1	-0812
39	GASKET; OIL PUMP (A) ASM PART: D = 1-19500-595-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-530-0, C = 1-19500-580-2, D = 1-19500-595-1, E = 8-98202-668-0	9-48429-028-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
