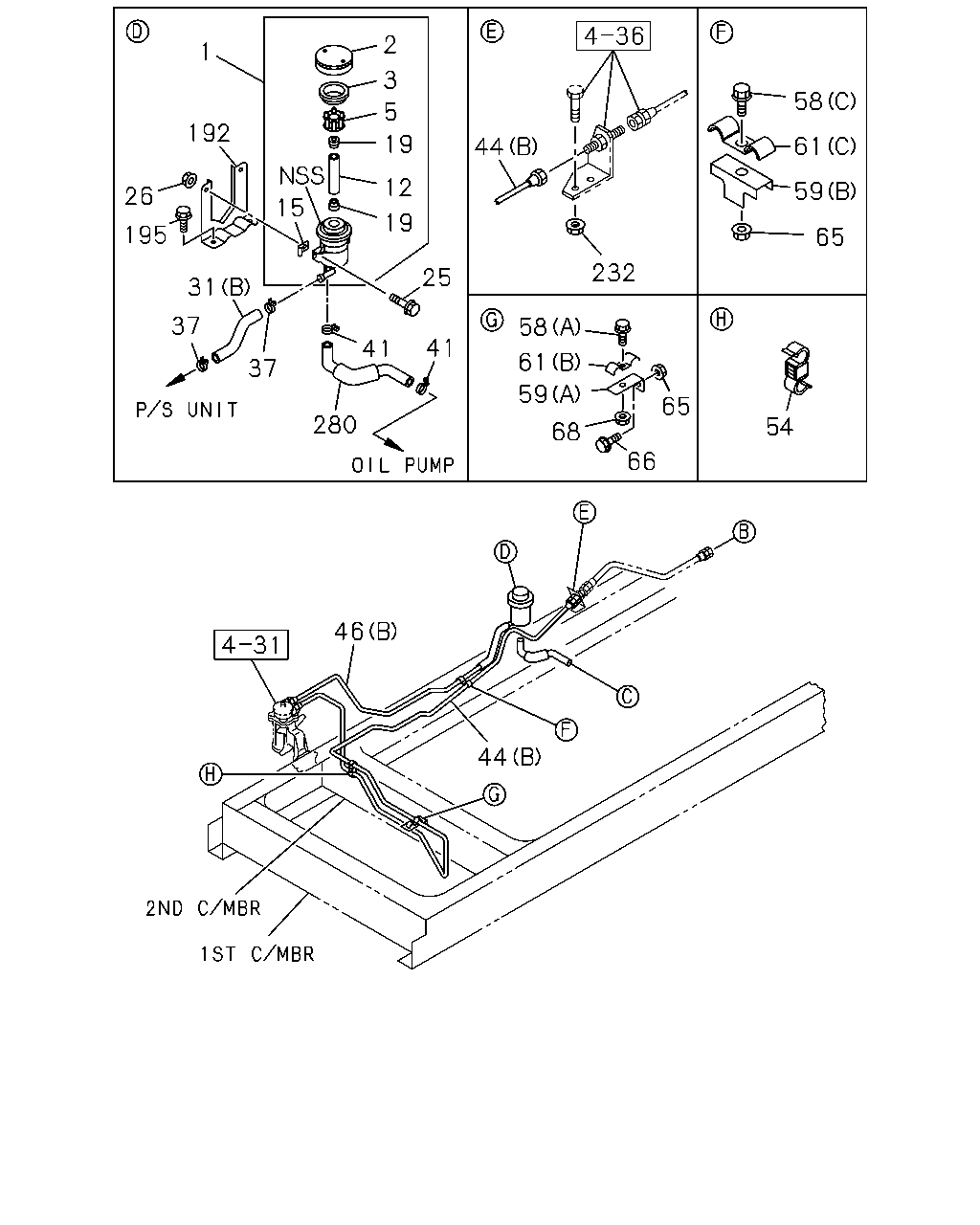

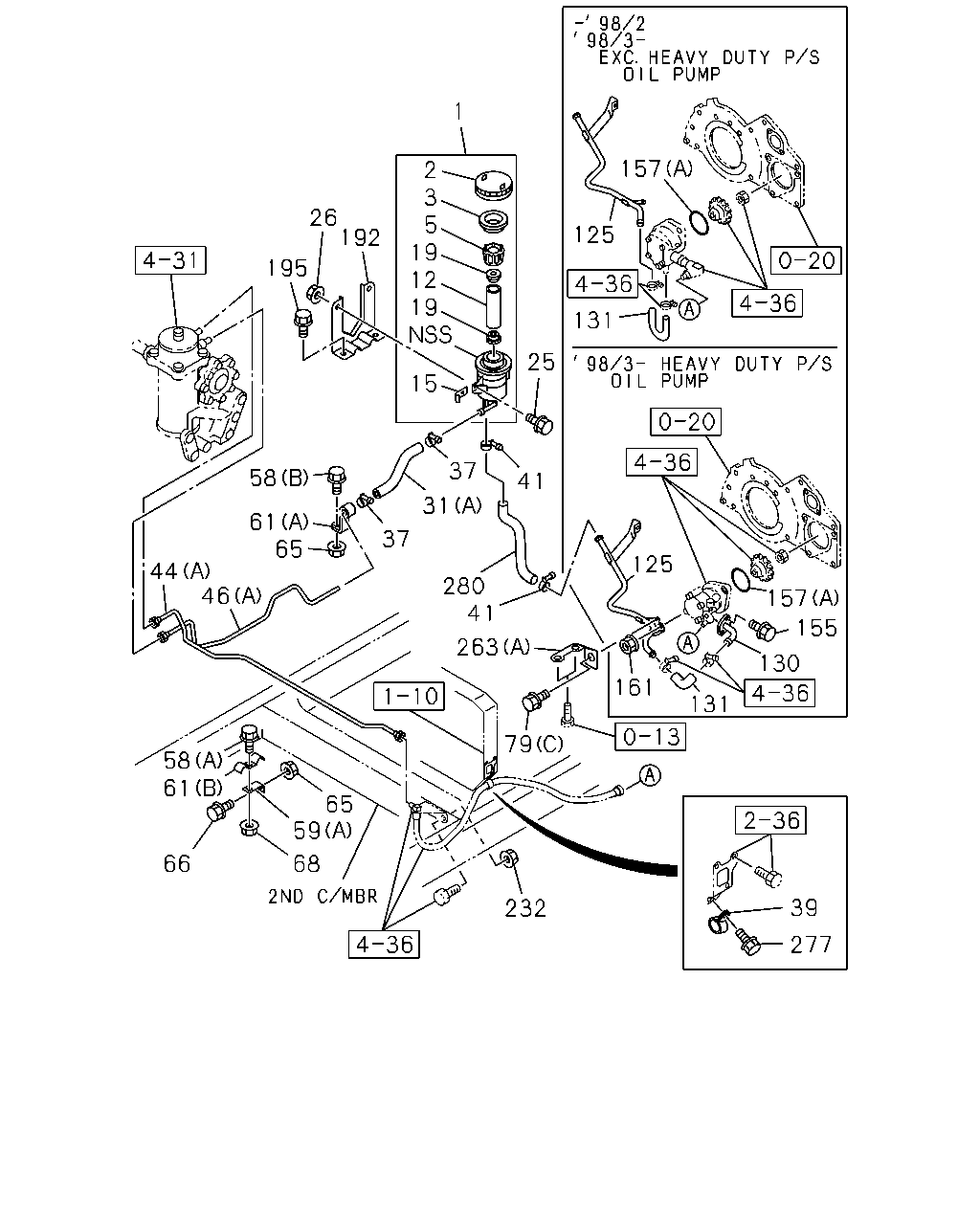

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#36234) — 369 parça

1 157 2 3 5 19 12 19 26 192 125 195 131 25 15 37 58 41 31 61 65 37 125 44 46 280 41 157 155 263 130 161 131 79 58 61 65 59 66 68 39 232 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9510-0508	●	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-1006	●	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9510-1006	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9510-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9510-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9510-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9510-0508	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0509-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9510-	●	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	02	1	9510-9606	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
31	HOSE; P/S OIL TANK,INL 6HK1 TCC ENG(81L) (A)	1-21113-590-0	01	1	0603-		●
31	HOSE; P/S OIL TANK,INL (A)	1-21113-591-1	01	1	9510-0010	●	●	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0011-0607	●	●	●
31	HOSE; P/S OIL TANK,INL EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0011-0607		●
31	HOSE; P/S OIL TANK,INL (A)	1-21113-591-1	01	1	0608-	●		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0608-		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0608-		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-21116-130-0	01	1	0011-0111		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-21117-186-0	01	1	0112-		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9510-	●	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9510-0010	●	●	●
39	CLIP; FLEX HOSE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0011-0602	●	●	●
39	CLIP; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0011-0602		●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0603-	●		●
39	CLIP; FLEX HOSE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0603-		●
39	CLIP; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5) ID=40	8-94226-553-0	01	1	0603-		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9510-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCC ENG(81L) (A) L=965	1-21117-226-0	01	1	0603-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1024	1-21115-263-0	01	1	9510-9802	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1039	1-21116-044-0	01	1	9803-9804	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1039	1-21116-044-0	01	1	9805-9805	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1035	1-21116-108-0	01	1	9806-0010	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=1035	1-21116-108-0	01	1	0011-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=1035	1-21116-108-0	01	1	0011-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) L=2482	1-21116-913-0	01	1	0011-0301		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) L=2575	1-21117-360-0	01	1	0302-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1020	1-21115-496-0	01	1	9510-9802			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1022	1-21115-887-0	01	1	9805-9805			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1018	1-21116-105-0	01	1	9806-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCC ENG(81L) (A) L=786	1-21115-336-0	01	1	0603-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=731	1-21115-265-0	01	1	9510-9802	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=743	1-21115-891-0	01	1	9803-0010	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=743	1-21115-891-0	01	1	0011-0210	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=743	1-21115-891-0	01	1	0011-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=748	1-21117-080-0	01	1	0211-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=748	1-21117-080-0	01	1	0211-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) L=721	1-21116-912-0	01	1	0011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=806	1-21115-497-0	01	1	9510-9802			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=833	1-21115-892-0	01	1	9803-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9702	●	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-0512	●	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9803-0010	●	●	●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0512	●	●	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0512		●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0602	●	●	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0602		●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0603-	●		●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0603-		●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0603-		●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28680-840-0	01	1	0011-0512		●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
59	BRACKET; CLIP,OIL PIPE (A) L=60	1-47475-455-0	01	1	9510-	●	●	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47475-427-1	01	1	0011-		●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-0010	●	●	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0602	●	●	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0602		●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-	●		●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-		●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9510-	●	●	●
61	CLIP; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0011-		●
65	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	9802-0512	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9510-9606	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-0602	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28181-016-0	01	1	0011-0512	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28881-420-0	01	1	0011-0512	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	9510-0010	●	●	●
79	BOLT; BRKT 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE	0-28080-812-0	02	1	0011-0012	●	●	●
79	BOLT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE	0-28080-812-0	02	1	0011-0012		●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0101-0111	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0101-0111	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0101-0111			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0112-0112	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0112-0112	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0112-0112			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0201-0510	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0201-0510	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0201-0510			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0511-0512	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0511-0512	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0511-0512			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0602	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0602	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0602			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (C) M8X12 FLANGE	0-28050-812-0	02	1	0603-	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28050-812-0	02	1	0603-	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	0603-			●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-584-1	01	1	9803-0004	●	●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-584-1	01	1	0005-0602	●	●
125	CONNECTOR; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN>	8-94390-584-1	01	1	0005-0602	●	●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-584-1	01	1	0603-	●	●
125	CONNECTOR; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN>	8-94390-584-1	01	1	0603-	●	●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. HEAVY DUTY P/S OIL PUMP<E1N>,AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94390-310-0	01	1	9803-9901	●	●
125	CONNECTOR; P/S PUMP 6HE1 TCC ENG(76L)	8-94390-310-0	01	1	9803-9901		●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. HEAVY DUTY P/S OIL PUMP<E1N>,AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-97600-113-0	01	1	9902-0004	●	●
125	CONNECTOR; P/S PUMP 6HE1 TCC ENG(76L)	8-97600-113-0	01	1	9902-0004		●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-97600-113-0	01	1	0005-	●	●
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L) EXC. HEAVY DUTY P/S OIL PUMP<E1N>,ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-113-0	01	1	0005-	●	●
125	CONNECTOR; P/S PUMP	8-94394-319-0	01	1	9510-9605	●	●	●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9606-9611	●	●	●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9612-9802	●
125	CONNECTOR; P/S PUMP EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94390-310-0	01	1	9612-9802		●
125	CONNECTOR; P/S PUMP AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-319-1	01	1	9612-9802		●
125	CONNECTOR; P/S PUMP	8-94394-319-1	01	1	9612-9802			●
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-94394-319-1	01	1	9803-9901		●
125	CONNECTOR; P/S PUMP	8-94394-319-1	01	1	9803-9901			●
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-97600-115-0	01	1	9902-0004		●
125	CONNECTOR; P/S PUMP	8-97600-115-0	01	1	9902-0004			●
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-97600-115-0	01	1	0005-		●
125	CONNECTOR; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> EXC. HEAVY DUTY P/S OIL PUMP<E1N>	8-97600-115-0	01	1	0005-		●
125	CONNECTOR; P/S PUMP	8-97600-115-0	01	1	0005-			●
130	ADAPTER; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-583-0	01	1	9803-0004	●	●
130	ADAPTER; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-583-0	01	1	0005-0602	●	●
130	ADAPTER; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-583-0	01	1	0005-0602	●	●
130	ADAPTER; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-583-0	01	1	0603-	●	●
130	ADAPTER; P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> HEAVY DUTY P/S OIL PUMP<E1N>	8-94390-583-0	01	1	0603-	●	●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9510-0510	●	●	●
131	HOSE; RUBBER,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L)	8-94396-331-1	01	1	0511-0602	●	●
131	HOSE; RUBBER,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94396-331-1	01	1	0511-0602	●	●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0511-0602			●
131	HOSE; RUBBER,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L)	8-94396-331-1	01	1	0603-	●	●
131	HOSE; RUBBER,P/S 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94396-331-1	01	1	0603-	●	●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0603-			●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE	0-28080-816-0	02	1	9803-0004	●	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●
155	BOLT; CONNECTOR 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE	0-28050-816-0	02	1	0601-0602	●	●
155	BOLT; CONNECTOR 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28050-816-0	02	1	0601-0602	●	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
155	BOLT; CONNECTOR 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) ID=105.6	1-09623-247-0	01	1	0011-0412	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) ID=105.6	8-97386-295-0	01	1	0501-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	9510-0012	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L). (A) ID=96.4	1-09623-178-0	01	1	0101-0510	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN>. (A) ID=96.4	1-09623-178-0	01	1	0101-0510	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	0101-0510			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L). (A) ID=96.4	1-09623-178-0	01	1	0511-0602	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>. (A) ID=96.4	1-09623-178-0	01	1	0511-0602	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	0511-0602			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L). (A) ID=96.4	1-09623-178-0	01	1	0603-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>. (A) ID=96.4	1-09623-178-0	01	1	0603-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	0603-			●
161	NUT; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91150-110-0	01	1	9803-0004	●	●
161	NUT; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91150-110-0	01	1	0005-0602	●	●
161	NUT; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91150-110-0	01	1	0005-0602	●	●
161	NUT; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91150-110-0	01	1	0603-0603	●	●
161	NUT; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91150-110-0	01	1	0603-0603	●	●
161	NUT; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
161	NUT; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
192	BRACKET; P/S OIL TANK 6HK1 TCC ENG(81L)	1-21119-142-1	01	1	0603-		●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	9510-0601	●	●	●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	0602-	●		●
192	BRACKET; P/S OIL TANK 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L)	1-21119-129-0	01	1	0602-		●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9607-0512	●	●	●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
232	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-076-0	01	1	0011-	●	●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9510-9901	●	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-0010	●	●	●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A)	8-97600-117-0	01	1	0011-0602	●	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-117-0	01	1	0011-0602	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	0011-0602			●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A)	8-97600-117-0	01	1	0603-	●	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-117-0	01	1	0603-	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	0603-			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0010	●	●	●
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	0011-0512	●	●	●
277	BOLT; HOSE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	0011-0512		●
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28050-816-0	01	1	0601-0602	●	●	●
277	BOLT; HOSE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28050-816-0	01	1	0601-0602		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0603-	●		●
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28050-816-0	01	1	0603-		●
277	BOLT; HOSE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28050-816-0	01	1	0603-		●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCC ENG(81L)	1-21116-721-0	01	1	0603-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9510-0004	●	●	●
280	HOSE; P/S OIL PUMP,INL	1-21116-695-0	01	1	0005-0010	●	●	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0607	●	●	●
280	HOSE; P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0607		●
280	HOSE; P/S OIL PUMP,INL	1-21116-695-0	01	1	0608-	●		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0608-		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0608-		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-371-0	01	1	0011-0304		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21117-384-0	01	1	0305-		●

2 1 3 58 5 192 19 61 44 12 59 26 15 19 195 65 232 25 31 37 58 41 41 61 37 59 65 280 54 68 66 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9510-0508	●	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-1006	●	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9510-1006	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9510-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9510-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9510-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9510-0508	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0509-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9510-	●	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	02	1	9510-9606	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
31	HOSE; P/S OIL TANK,INL 6HK1 TCC ENG(81L) (A)	1-21113-590-0	01	1	0603-		●
31	HOSE; P/S OIL TANK,INL (A)	1-21113-591-1	01	1	9510-0010	●	●	●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0011-0607	●	●	●
31	HOSE; P/S OIL TANK,INL EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0011-0607		●
31	HOSE; P/S OIL TANK,INL (A)	1-21113-591-1	01	1	0608-	●		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0608-		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21113-591-1	01	1	0608-		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-21116-130-0	01	1	0011-0111		●
31	HOSE; P/S OIL TANK,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-21117-186-0	01	1	0112-		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9510-	●	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9510-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCC ENG(81L) (A) L=965	1-21117-226-0	01	1	0603-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1024	1-21115-263-0	01	1	9510-9802	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1039	1-21116-044-0	01	1	9803-9804	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1039	1-21116-044-0	01	1	9805-9805	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1035	1-21116-108-0	01	1	9806-0010	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=1035	1-21116-108-0	01	1	0011-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=1035	1-21116-108-0	01	1	0011-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) L=2482	1-21116-913-0	01	1	0011-0301		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) L=2575	1-21117-360-0	01	1	0302-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1020	1-21115-496-0	01	1	9510-9802			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1022	1-21115-887-0	01	1	9805-9805			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=1018	1-21116-105-0	01	1	9806-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCC ENG(81L) (A) L=786	1-21115-336-0	01	1	0603-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=731	1-21115-265-0	01	1	9510-9802	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=743	1-21115-891-0	01	1	9803-0010	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=743	1-21115-891-0	01	1	0011-0210	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=743	1-21115-891-0	01	1	0011-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) L=748	1-21117-080-0	01	1	0211-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=748	1-21117-080-0	01	1	0211-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B) L=721	1-21116-912-0	01	1	0011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=806	1-21115-497-0	01	1	9510-9802			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=833	1-21115-892-0	01	1	9803-			●
54	CLIP; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) ID=12 & 12	1-09709-280-1	01	1	0011-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9702	●	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-0512	●	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	9803-0010	●	●	●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0512	●	●	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28680-825-0	01	1	0011-0512		●
58	BOLT; CLIP 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0602	●	●	●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0602		●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0603-	●		●
58	BOLT; CLIP 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0603-		●
58	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	0603-		●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28680-840-0	01	1	0011-0512		●
58	BOLT; CLIP 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
59	BRACKET; CLIP,OIL PIPE (A) L=60	1-47475-455-0	01	1	9510-	●	●	●
59	BRACKET; CLIP,OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47475-427-1	01	1	0011-		●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-0010	●	●	●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0602	●	●	●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-0602		●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-	●		●
61	CLIP; OIL PIPE 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-		●
61	CLIP; OIL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9510-	●	●	●
61	CLIP; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0011-		●
65	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	9802-0512	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9510-9606	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-0602	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
192	BRACKET; P/S OIL TANK 6HK1 TCC ENG(81L)	1-21119-142-1	01	1	0603-		●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	9510-0601	●	●	●
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	0602-	●		●
192	BRACKET; P/S OIL TANK 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L)	1-21119-129-0	01	1	0602-		●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9607-0512	●	●	●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
232	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCC ENG(81L)	1-21116-721-0	01	1	0603-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9510-0004	●	●	●
280	HOSE; P/S OIL PUMP,INL	1-21116-695-0	01	1	0005-0010	●	●	●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0607	●	●	●
280	HOSE; P/S OIL PUMP,INL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0011-0607		●
280	HOSE; P/S OIL PUMP,INL	1-21116-695-0	01	1	0608-	●		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0608-		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21116-695-0	01	1	0608-		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21116-371-0	01	1	0011-0304		●
280	HOSE; P/S OIL PUMP,INL 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5)	1-21117-384-0	01	1	0305-		●

263 79 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28181-016-0	01	1	0011-0512	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28881-420-0	01	1	0011-0512	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	9510-0010	●	●	●
79	BOLT; BRKT 6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE	0-28080-812-0	02	1	0011-0012	●	●	●
79	BOLT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8X12 FLANGE	0-28080-812-0	02	1	0011-0012		●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0101-0111	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0101-0111	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0101-0111			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0112-0112	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0112-0112	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0112-0112			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0201-0510	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0201-0510	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0201-0510			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (C) M8X12 FLANGE	0-28080-812-0	02	1	0511-0512	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28080-812-0	02	1	0511-0512	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28080-812-0	02	1	0511-0512			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0602	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0602	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0602			●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (C) M8X12 FLANGE	0-28050-812-0	02	1	0603-	●	●
79	BOLT; BRKT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) M8X12 FLANGE	0-28050-812-0	02	1	0603-	●	●
79	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	0603-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) ID=105.6	1-09623-247-0	01	1	0011-0412	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) ID=105.6	8-97386-295-0	01	1	0501-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	9510-0012	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L). (A) ID=96.4	1-09623-178-0	01	1	0101-0510	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN>. (A) ID=96.4	1-09623-178-0	01	1	0101-0510	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	0101-0510			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L). (A) ID=96.4	1-09623-178-0	01	1	0511-0602	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>. (A) ID=96.4	1-09623-178-0	01	1	0511-0602	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	0511-0602			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L). (A) ID=96.4	1-09623-178-0	01	1	0603-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>. (A) ID=96.4	1-09623-178-0	01	1	0603-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-178-0	01	1	0603-			●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-076-0	01	1	0011-	●	●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9510-9901	●	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-0010	●	●	●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A)	8-97600-117-0	01	1	0011-0602	●	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-117-0	01	1	0011-0602	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	0011-0602			●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A)	8-97600-117-0	01	1	0603-	●	●
263	BRACKET; P/S PIPE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-117-0	01	1	0603-	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	0603-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
