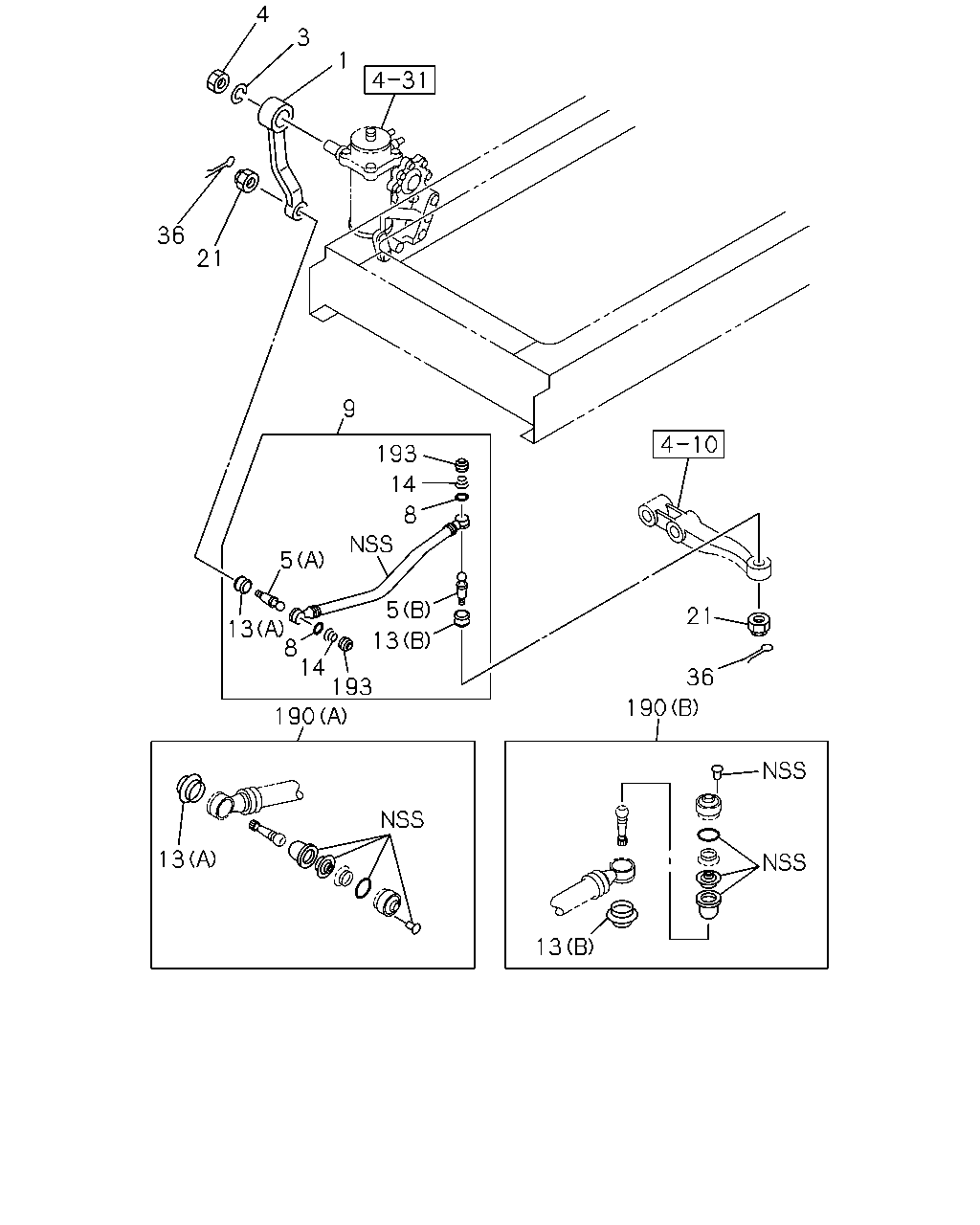

4-33 — STEERING LINKAGE (#36233) — 122 parça

4 3 1 36 21 9 193 14 8 5 5 21 13 8 14 193 13 36 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; PITMAN,STRG FRONT AXLE F063(FS7)	1-44341-409-1	01	1	9803-	●	●
1	ARM; PITMAN,STRG	1-44341-389-0	01	1	9510-9802	●	●	●
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-389-1	01	1	9803-	●	●
1	ARM; PITMAN,STRG	1-44341-389-1	01	1	9803-			●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	9510-	●	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	9510-0805	●	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-	●	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F063(FS7) (C)	1-44361-105-1	02	1	9803-1103	●	●
5	BALL; JOINT,DRAG LINK (A)	1-44361-098-0	01	1	9510-9802	●	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4) (A)	1-44361-098-0	01	1	9803-	●	●
5	BALL; JOINT,DRAG LINK (A)	1-44361-098-0	01	1	9803-			●
5	BALL; JOINT,DRAG LINK (B)	1-44361-105-1	01	1	9510-9802	●	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4) (B)	1-44361-105-1	01	1	9803-	●	●
5	BALL; JOINT,DRAG LINK (B)	1-44361-105-1	01	1	9803-			●
8	SEAT; SPR,ROD END	1-43159-075-0	02	1	9510-1103	●	●	●
8	SEAT; SPR,ROD END FRONT AXLE F049(FS4)	1-43159-075-0	02	1	1104-	●	●
8	SEAT; SPR,ROD END	1-43159-075-0	02	1	1104-			●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-100-3	01	1	9803-0301	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-283-1	01	1	0302-1103	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	8-98181-401-0	01	1	1104-	●	●
9	LINK; DRAG	1-44380-073-0	01	1	9510-9802	●	●	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-073-2	01	1	9803-	●	●
9	LINK; DRAG	1-44380-073-2	01	1	9803-			●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) (C)	1-43159-107-0	02	1	9803-1103	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) (D)	1-43159-131-0	02	1	1104-	●	●
13	BOOT; DRAG LINK (A)	1-43159-078-0	01	1	9510-9802	●	●	●
13	BOOT; DRAG LINK FRONT AXLE F049(FS4) (A)	1-43159-078-0	01	1	9803-	●	●
13	BOOT; DRAG LINK (A)	1-43159-078-0	01	1	9803-			●
13	BOOT; DRAG LINK (B)	1-43159-081-0	01	1	9510-9802	●	●	●
13	BOOT; DRAG LINK FRONT AXLE F049(FS4) (B)	1-43159-081-0	01	1	9803-	●	●
13	BOOT; DRAG LINK (B)	1-43159-081-0	01	1	9803-			●
14	SPRING; COIL,DRAG LINK	1-43159-074-0	02	1	9510-1103	●	●	●
14	SPRING; COIL,DRAG LINK FRONT AXLE F049(FS4)	1-43159-074-0	02	1	1104-	●	●
14	SPRING; COIL,DRAG LINK	1-43159-074-0	02	1	1104-			●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9510-0805	●	●	●
21	NUT; LK,JOINT BALL M24	1-09442-032-0	02	1	0806-	●	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9510-0606	●	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F063(FS7) (C)	1-85574-041-0	02	1	9803-1103	●	●
190	REPAIR KIT; DRAG LINK (B)	1-85574-040-0	01	1	9510-9802	●	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F049(FS4) (B)	1-85574-040-0	01	1	9803-	●	●
190	REPAIR KIT; DRAG LINK (B)	1-85574-040-0	01	1	9803-			●
190	REPAIR KIT; DRAG LINK (A)	1-85574-041-0	01	1	9510-9802	●	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F049(FS4) (A)	1-85574-041-0	01	1	9803-	●	●
190	REPAIR KIT; DRAG LINK (A)	1-85574-041-0	01	1	9803-			●
193	PLUG; END,DRAG LINK	1-43159-093-0	02	1	9510-1103	●	●	●
193	PLUG; END,DRAG LINK FRONT AXLE F049(FS4)	1-43159-093-0	02	1	1104-	●	●
193	PLUG; END,DRAG LINK	1-43159-093-0	02	1	1104-			●

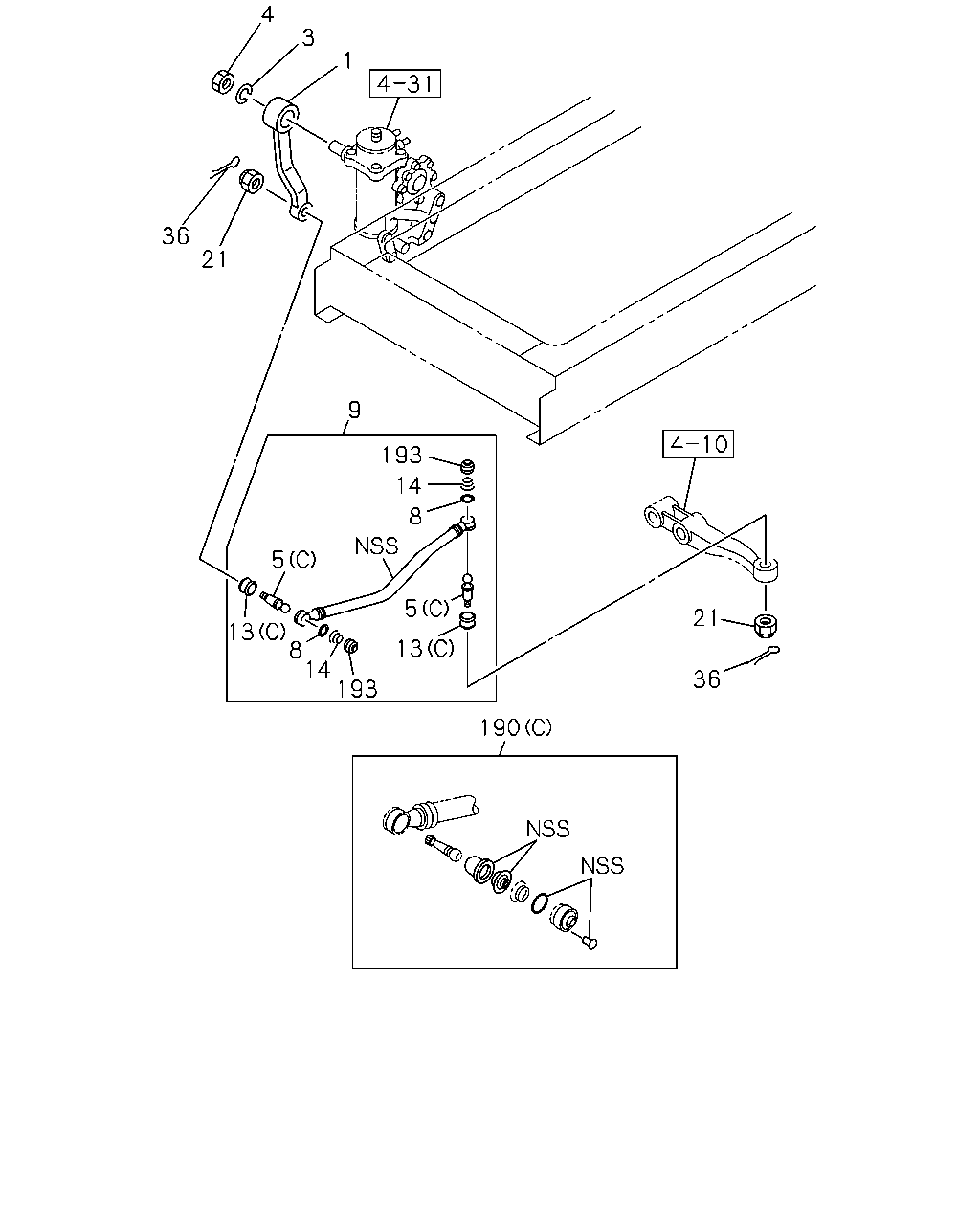

4 3 1 36 21 9 193 14 8 5 5 21 13 8 14 193 13 36 190 190 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; PITMAN,STRG FRONT AXLE F063(FS7)	1-44341-409-1	01	1	9803-	●	●
1	ARM; PITMAN,STRG	1-44341-389-0	01	1	9510-9802	●	●	●
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-389-1	01	1	9803-	●	●
1	ARM; PITMAN,STRG	1-44341-389-1	01	1	9803-			●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	9510-	●	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	9510-0805	●	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-	●	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F063(FS7) (C)	1-44361-105-1	02	1	9803-1103	●	●
5	BALL; JOINT,DRAG LINK (A)	1-44361-098-0	01	1	9510-9802	●	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4) (A)	1-44361-098-0	01	1	9803-	●	●
5	BALL; JOINT,DRAG LINK (A)	1-44361-098-0	01	1	9803-			●
5	BALL; JOINT,DRAG LINK (B)	1-44361-105-1	01	1	9510-9802	●	●	●
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4) (B)	1-44361-105-1	01	1	9803-	●	●
5	BALL; JOINT,DRAG LINK (B)	1-44361-105-1	01	1	9803-			●
8	SEAT; SPR,ROD END	1-43159-075-0	02	1	9510-1103	●	●	●
8	SEAT; SPR,ROD END FRONT AXLE F049(FS4)	1-43159-075-0	02	1	1104-	●	●
8	SEAT; SPR,ROD END	1-43159-075-0	02	1	1104-			●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-100-3	01	1	9803-0301	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-283-1	01	1	0302-1103	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	8-98181-401-0	01	1	1104-	●	●
9	LINK; DRAG	1-44380-073-0	01	1	9510-9802	●	●	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-073-2	01	1	9803-	●	●
9	LINK; DRAG	1-44380-073-2	01	1	9803-			●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) (C)	1-43159-107-0	02	1	9803-1103	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) (D)	1-43159-131-0	02	1	1104-	●	●
13	BOOT; DRAG LINK (A)	1-43159-078-0	01	1	9510-9802	●	●	●
13	BOOT; DRAG LINK FRONT AXLE F049(FS4) (A)	1-43159-078-0	01	1	9803-	●	●
13	BOOT; DRAG LINK (A)	1-43159-078-0	01	1	9803-			●
13	BOOT; DRAG LINK (B)	1-43159-081-0	01	1	9510-9802	●	●	●
13	BOOT; DRAG LINK FRONT AXLE F049(FS4) (B)	1-43159-081-0	01	1	9803-	●	●
13	BOOT; DRAG LINK (B)	1-43159-081-0	01	1	9803-			●
14	SPRING; COIL,DRAG LINK	1-43159-074-0	02	1	9510-1103	●	●	●
14	SPRING; COIL,DRAG LINK FRONT AXLE F049(FS4)	1-43159-074-0	02	1	1104-	●	●
14	SPRING; COIL,DRAG LINK	1-43159-074-0	02	1	1104-			●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9510-0805	●	●	●
21	NUT; LK,JOINT BALL M24	1-09442-032-0	02	1	0806-	●	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9510-0606	●	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F063(FS7) (C)	1-85574-041-0	02	1	9803-1103	●	●
190	REPAIR KIT; DRAG LINK (B)	1-85574-040-0	01	1	9510-9802	●	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F049(FS4) (B)	1-85574-040-0	01	1	9803-	●	●
190	REPAIR KIT; DRAG LINK (B)	1-85574-040-0	01	1	9803-			●
190	REPAIR KIT; DRAG LINK (A)	1-85574-041-0	01	1	9510-9802	●	●	●
190	REPAIR KIT; DRAG LINK FRONT AXLE F049(FS4) (A)	1-85574-041-0	01	1	9803-	●	●
190	REPAIR KIT; DRAG LINK (A)	1-85574-041-0	01	1	9803-			●
193	PLUG; END,DRAG LINK	1-43159-093-0	02	1	9510-1103	●	●	●
193	PLUG; END,DRAG LINK FRONT AXLE F049(FS4)	1-43159-093-0	02	1	1104-	●	●
193	PLUG; END,DRAG LINK	1-43159-093-0	02	1	1104-			●

4 3 1 36 21 9 11 11 13 13 21 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; PITMAN,STRG FRONT AXLE F063(FS7)	1-44341-409-1	01	1	9803-	●	●
1	ARM; PITMAN,STRG	1-44341-389-0	01	1	9510-9802	●	●	●
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-389-1	01	1	9803-	●	●
1	ARM; PITMAN,STRG	1-44341-389-1	01	1	9803-			●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	9510-	●	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	9510-0805	●	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-	●	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-100-3	01	1	9803-0301	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	1-44380-283-1	01	1	0302-1103	●	●
9	LINK; DRAG FRONT AXLE F063(FS7)	8-98181-401-0	01	1	1104-	●	●
9	LINK; DRAG	1-44380-073-0	01	1	9510-9802	●	●	●
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-073-2	01	1	9803-	●	●
9	LINK; DRAG	1-44380-073-2	01	1	9803-			●
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F063(FS7)	8-98160-122-0	02	1	1104-	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) (C)	1-43159-107-0	02	1	9803-1103	●	●
13	BOOT; DRAG LINK FRONT AXLE F063(FS7) (D)	1-43159-131-0	02	1	1104-	●	●
13	BOOT; DRAG LINK (A)	1-43159-078-0	01	1	9510-9802	●	●	●
13	BOOT; DRAG LINK FRONT AXLE F049(FS4) (A)	1-43159-078-0	01	1	9803-	●	●
13	BOOT; DRAG LINK (A)	1-43159-078-0	01	1	9803-			●
13	BOOT; DRAG LINK (B)	1-43159-081-0	01	1	9510-9802	●	●	●
13	BOOT; DRAG LINK FRONT AXLE F049(FS4) (B)	1-43159-081-0	01	1	9803-	●	●
13	BOOT; DRAG LINK (B)	1-43159-081-0	01	1	9803-			●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9510-0805	●	●	●
21	NUT; LK,JOINT BALL M24	1-09442-032-0	02	1	0806-	●	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9510-0606	●	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●	●
