1 |

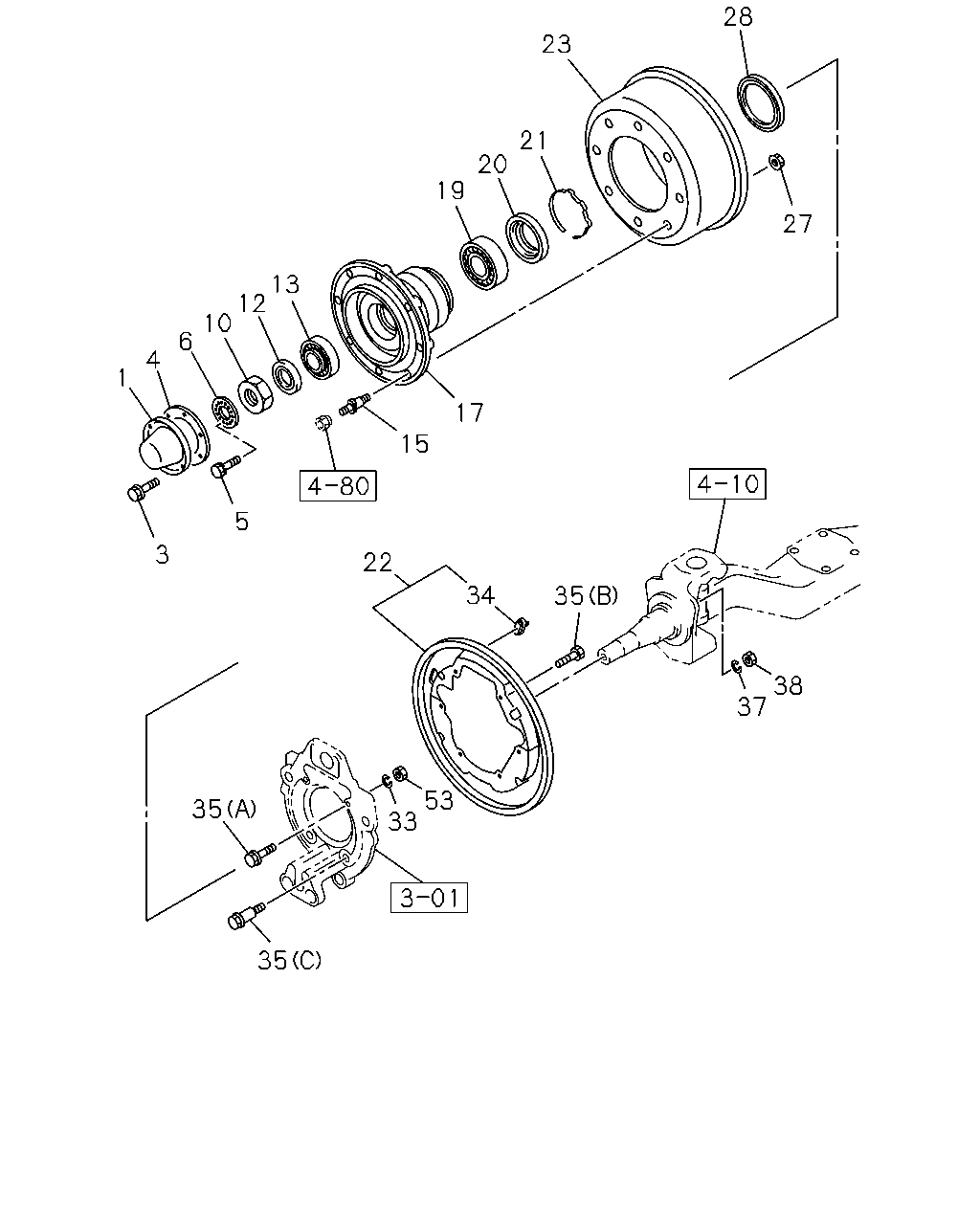

CAP; HUB,FRT AXLE
OD=136
|
1-42313-007-1 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
1 |
CAP; HUB,FRT AXLE
FRONT AXLE F049(FS4)
OD=136
|
1-42313-007-1 |
02 |
1 |
9803- |
● |
● |
|
| |
1 |
CAP; HUB,FRT AXLE
OD=136
|
1-42313-007-1 |
02 |
1 |
9803- |
|
|
● |
| |
1 |
CAP; HUB,FRT AXLE
FRONT AXLE F063(FS7)
OD=156
|
9-42313-123-2 |
02 |
1 |
9803- |
● |
● |
|
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28080-812-0 |
12 |
1 |
9510-0512 |
● |
● |
● |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
0601- |
● |
● |
● |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-028-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F049(FS4)
|
1-42319-028-0 |
02 |
1 |
9803- |
● |
● |
|
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-028-0 |
02 |
1 |
9803- |
|
|
● |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F063(FS7)
|
1-42319-029-0 |
02 |
1 |
9803-9906 |
● |
● |
|
| |
4 |
GASKET; HUB CAP,FRT WHEEL
FRONT AXLE F063(FS7)
|
1-42319-185-2 |
02 |
1 |
9907- |
● |
● |
|
| |
5 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
9510-9701 |
● |
● |
● |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
04 |
1 |
9702-0512 |
● |
● |
● |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
0601-0707 |
● |
● |
● |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98084-271-0 |
04 |
1 |
0708-1201 |
● |
● |
● |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1202- |
● |
● |
● |
| |
6 |
WASHER; LK,FRT HUB
ID=39
|
1-09841-003-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
6 |
WASHER; LK,FRT HUB
FRONT AXLE F049(FS4)
ID=39
|
1-09841-003-0 |
02 |
1 |
9803-0707 |
● |
● |
|
| |
6 |
WASHER; LK,FRT HUB
ID=39
|
1-09841-003-0 |
02 |
1 |
9803-0707 |
|
|
● |
| |
6 |
WASHER; LK,FRT HUB
FRONT AXLE F049(FS4)
ID=39
|
8-98086-313-0 |
02 |
1 |
0708- |
● |
● |
|
| |
6 |
WASHER; LK,FRT HUB
ID=39
|
8-98086-313-0 |
02 |
1 |
0708- |
|
|
● |
| |
6 |
WASHER; LK,FRT HUB
FRONT AXLE F063(FS7)
ID=48
|
1-09533-012-1 |
02 |
1 |
9803-0707 |
● |
● |
|
| |
6 |
WASHER; LK,FRT HUB
FRONT AXLE F063(FS7)
ID=48
|
8-98084-561-0 |
02 |
1 |
0708- |
● |
● |
|
| |
10 |
NUT; FRT HUB BRG
M39
|
1-09840-019-1 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
10 |
NUT; FRT HUB BRG
FRONT AXLE F049(FS4)
M39
|
1-09840-019-1 |
02 |
1 |
9803- |
● |
● |
|
| |
10 |
NUT; FRT HUB BRG
M39
|
1-09840-019-1 |
02 |
1 |
9803- |
|
|
● |
| |
10 |
NUT; FRT HUB BRG
FRONT AXLE F063(FS7)
M48
|
1-09840-012-5 |
02 |
1 |
9803- |
● |
● |
|
| |
12 |
WASHER; LK,FRT HUB BRG
FRONT AXLE F063(FS7)
ID=48
|
1-09533-016-0 |
02 |
1 |
9803-0911 |
● |
● |
|
| |
12 |
WASHER; LK,FRT HUB BRG
FRONT AXLE F063(FS7)
ID=48
|
8-98156-755-0 |
02 |
1 |
0912- |
● |
● |
|
| |
13 |
BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-146-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F049(FS4)
NSK
|
9-00093-146-0 |
02 |
1 |
9803- |
● |
● |
|
| |
13 |
BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-146-0 |
02 |
1 |
9803- |
|
|
● |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
9-00093-147-1 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F049(FS4)
JTEKT
|
9-00093-147-1 |
02 |
1 |
9803- |
● |
● |
|
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
9-00093-147-1 |
02 |
1 |
9803- |
|
|
● |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F063(FS7)
NSK
|
1-09812-084-0 |
02 |
1 |
9803-9809 |
● |
● |
|
| |
13 |
BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F063(FS7)
JTEKT
|
1-09812-234-0 |
02 |
1 |
9810- |
● |
● |
|
| |
13 |
BEARING; HUB OUTER,FRT AXLE
FRONT AXLE F063(FS7)
JTEKT
|
1-09812-085-0 |
02 |
1 |
9803-9809 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X55.5 RH THREAD
|
1-42337-044-0 |
20 |
1 |
9803-0210 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X55.5 RH THREAD
|
1-42337-067-1 |
20 |
1 |
0211- |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-0 |
08 |
1 |
9803-0211 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-0 |
08 |
1 |
0212-0610 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-150-1 |
08 |
1 |
0611-0701 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
0702- |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-0 |
08 |
1 |
9803-0211 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-0 |
08 |
1 |
0212-0610 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5,M22X57.5 RH THREAD
|
1-42331-150-1 |
08 |
1 |
0611-0701 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
0702- |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X61.5 RH THREAD
|
1-42337-039-0 |
20 |
1 |
9510-9802 |
● |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F049(FS4)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X61.5 RH THREAD
|
1-42337-039-0 |
20 |
1 |
9803-0211 |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X61.5 RH THREAD
|
1-42337-039-0 |
20 |
1 |
9803-0211 |
|
|
● |
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X61.5 RH THREAD
|
1-42337-039-1 |
20 |
1 |
0212- |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22X42.8,M22X61.5 RH THREAD
|
1-42337-039-1 |
20 |
1 |
0212- |
|
|
● |
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-112-0 |
08 |
1 |
9510-9802 |
● |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-112-0 |
08 |
1 |
9803-0211 |
● |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-112-1 |
08 |
1 |
0212- |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M24X37.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-112-1 |
08 |
1 |
0212- |
|
|
● |
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M24X37.5,M22X51.5 RH THREAD
|
1-42331-112-0 |
08 |
1 |
9510-9802 |
● |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5,M22X51.5 RH THREAD
|
1-42331-112-0 |
08 |
1 |
9803-0211 |
● |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M24X37.5,M22X51.5 RH THREAD
|
1-42331-112-1 |
08 |
1 |
0212- |
● |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M24X37.5,M22X51.5 RH THREAD
|
1-42331-112-1 |
08 |
1 |
0212- |
|
|
● |
| |
17 |
HUB; FRT AXLE
FRONT AXLE F063(FS7)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42312-100-1 |
02 |
1 |
9803- |
● |
● |
|
| |
17 |
HUB; FRT AXLE
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42312-128-2 |
02 |
1 |
9803-0211 |
● |
● |
|
| |
17 |
HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42312-128-2 |
02 |
1 |
0212- |
● |
● |
|
| |
17 |
HUB; FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42312-053-1 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
17 |
HUB; FRT AXLE
FRONT AXLE F049(FS4)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42312-053-1 |
02 |
1 |
9803-0211 |
● |
● |
|
| |
17 |
HUB; FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42312-053-1 |
02 |
1 |
9803-0211 |
|
|
● |
| |
17 |
HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42312-053-1 |
02 |
1 |
0212- |
● |
● |
|
| |
17 |
HUB; FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42312-053-1 |
02 |
1 |
0212- |
|
|
● |
| |
17 |
HUB; FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
|
1-42312-113-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
17 |
HUB; FRT AXLE
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42312-113-0 |
02 |
1 |
9803-0211 |
● |
● |
● |
| |
17 |
HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42312-113-0 |
02 |
1 |
0212- |
● |
● |
|
| |
17 |
HUB; FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
|
1-42312-113-0 |
02 |
1 |
0212- |
|
|
● |
| |
19 |
BEARING; HUB INNER,FRT AXLE
FRONT AXLE F049(FS4)
NSK
|
8-98143-848-0 |
02 |
1 |
0907- |
● |
● |
|
| |
19 |
BEARING; HUB INNER,FRT AXLE
NSK
|
8-98143-848-0 |
02 |
1 |
0907- |
|
|
● |
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
9-00093-114-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
19 |
BEARING; HUB INNER,FRT AXLE
FRONT AXLE F049(FS4)
JTEKT
|
9-00093-114-0 |
02 |
1 |
9803- |
● |
● |
|
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
9-00093-114-0 |
02 |
1 |
9803- |
|
|
● |
| |
19 |
BEARING; HUB INNER,FRT AXLE
FRONT AXLE F063(FS7)
NSK
|
1-09812-142-0 |
02 |
1 |
9803-9809 |
● |
● |
|
| |
19 |
BEARING; HUB INNER,FRT AXLE
FRONT AXLE F063(FS7)
JTEKT
|
1-09812-231-0 |
02 |
1 |
9810- |
● |
● |
|
| |
19 |
BEARING; HUB INNER,FRT AXLE
FRONT AXLE F063(FS7)
JTEKT
|
1-09812-143-0 |
02 |
1 |
9803-9809 |
● |
● |
|
| |
20 |
COVER; HUB BRG INNER
FRONT AXLE F063(FS7)
|
1-42319-039-0 |
02 |
1 |
9803- |
● |
● |
|
| |
21 |
RING; SNAP,HUB
OD=132
|
9-09950-164-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
21 |
RING; SNAP,HUB
FRONT AXLE F049(FS4)
OD=132
|
9-09950-164-0 |
02 |
1 |
9803- |
● |
● |
|
| |
21 |
RING; SNAP,HUB
OD=132
|
9-09950-164-0 |
02 |
1 |
9803- |
|
|
● |
| |
21 |
RING; SNAP,HUB
FRONT AXLE F063(FS7)
|
1-09587-017-0 |
02 |
1 |
9803- |
● |
● |
|
| |
22 |
COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-459-1 |
02 |
1 |
0212- |
|
● |
|
| |
22 |
COVER SET; FRT BRK DRUM
|
1-47151-458-1 |
02 |
1 |
9510-0211 |
● |
● |
● |
| |
22 |
COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-458-1 |
02 |
1 |
0212- |
● |
● |
● |
| |
23 |
DRUM; BRK,FRT
FRONT AXLE F063(FS7)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42315-337-0 |
02 |
1 |
9803- |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42315-336-1 |
02 |
1 |
9803-0211 |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42315-336-1 |
02 |
1 |
0212-0308 |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
|
1-42315-355-0 |
02 |
1 |
0309- |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42315-218-4 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
23 |
DRUM; BRK,FRT
FRONT AXLE F049(FS4)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42315-218-4 |
02 |
1 |
9803-0211 |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42315-218-4 |
02 |
1 |
9803-0211 |
|
|
● |
| |
23 |
DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42315-218-4 |
02 |
1 |
0212- |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
|
1-42315-218-4 |
02 |
1 |
0212- |
|
|
● |
| |
23 |
DRUM; BRK,FRT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
H=195
|
1-42315-208-1 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
23 |
DRUM; BRK,FRT
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
H=195
|
1-42315-208-2 |
02 |
1 |
9803-0211 |
● |
● |
● |
| |
23 |
DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
H=195
|
1-42315-208-2 |
02 |
1 |
0212- |
● |
● |
|
| |
23 |
DRUM; BRK,FRT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
H=195
|
1-42315-208-2 |
02 |
1 |
0212- |
|
|
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
9510-0211 |
● |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
0212- |
● |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M22
|
9-09110-522-0 |
16 |
1 |
9510-9609 |
● |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9904 |
● |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7
.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905-0211 |
● |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC
WHEEL8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0212- |
● |
● |
● |
| |
28 |
SEAL; OIL,FRT HUB
OD=128
|
1-09625-129-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
28 |
SEAL; OIL,FRT HUB
FRONT AXLE F049(FS4)
OD=128
|
1-09625-129-0 |
02 |
1 |
9803- |
● |
● |
|
| |
28 |
SEAL; OIL,FRT HUB
OD=128
|
1-09625-129-0 |
02 |
1 |
9803- |
|
|
● |
| |
28 |
SEAL; OIL,FRT HUB
FRONT AXLE F063(FS7)
OD=140
|
1-09625-041-0 |
02 |
1 |
9803- |
● |
● |
|
| |
33 |
WASHER; LK,DRUM COVER
FRONT AXLE F063(FS7)
ID=16.2
|
9-09150-816-0 |
04 |
1 |
9803-0603 |
● |
● |
|
| |
33 |
WASHER; LK,DRUM COVER
FRONT AXLE F063(FS7)
ID=16.2
|
0-91510-816-0 |
04 |
1 |
0604- |
● |
● |
|
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9510- |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M16X59 FLANGE
|
1-09044-002-2 |
04 |
1 |
0212- |
|
● |
|
| |
35 |
BOLT; DRUM COVER
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9510-0011 |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F049(FS4)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0012-0211 |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
FRONT AXLE F063(FS7)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0012-0211 |
|
● |
|
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F049(FS4)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0212-0603 |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
FRONT AXLE F063(FS7)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0212-0603 |
|
● |
|
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRONT AXLE F063(FS7)
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL
10STUD22.5X7.50 162-12(Q87)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0212-0603 |
|
● |
|
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F049(FS4)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0604-0906 |
● |
● |
|
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F063(FS7)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0604-0906 |
|
● |
|
| |
35 |
BOLT; DRUM COVER
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0604-0906 |
|
|
● |
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F049(FS4)
(B)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907- |
● |
● |
|
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F063(FS7)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907- |
|
● |
|
| |
35 |
BOLT; DRUM COVER
(B)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907- |
|
|
● |
| |
35 |
BOLT; DRUM COVER
(C)
M16X61
|
1-09040-058-1 |
04 |
1 |
9510-9802 |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F049(FS4)
(C)
M16X61
|
1-09040-058-1 |
04 |
1 |
9803- |
● |
● |
|
| |
35 |
BOLT; DRUM COVER
(C)
M16X61
|
1-09040-058-1 |
04 |
1 |
9803- |
|
|
● |
| |
35 |
BOLT; DRUM COVER
(A)
M16X52
|
1-09044-001-2 |
04 |
1 |
9510-0211 |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M16X52
|
1-09044-001-2 |
04 |
1 |
0212-0805 |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M16X52
|
1-09044-120-0 |
04 |
1 |
0806- |
● |
● |
● |
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F063(FS7)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(B)
M10X12
|
1-47159-187-0 |
12 |
1 |
0012-0211 |
● |
● |
|
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(B)
M10X12
|
1-47159-187-0 |
12 |
1 |
0212-0603 |
● |
● |
|
| |
35 |
BOLT; DRUM COVER
FRONT AXLE F063(FS7)
(B)
M10X12
|
1-47159-187-0 |
12 |
1 |
0604- |
● |
|
|
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRONT AXLE F063(FS7)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(B)
M10X12
|
1-47159-187-0 |
12 |
1 |
0604- |
|
● |
|
| |
37 |
WASHER; LK,BACK PLATE
ID=16.2
|
9-09150-816-0 |
08 |
1 |
9510-9802 |
● |
● |
● |
| |
37 |
WASHER; LK,BACK PLATE
FRONT AXLE F049(FS4)
ID=16.2
|
9-09150-816-0 |
08 |
1 |
9803-0603 |
● |
● |
|
| |
37 |
WASHER; LK,BACK PLATE
ID=16.2
|
9-09150-816-0 |
08 |
1 |
9803-0603 |
|
|
● |
| |
37 |
WASHER; LK,BACK PLATE
FRONT AXLE F049(FS4)
ID=16.2
|
0-91510-816-0 |
08 |
1 |
0604- |
● |
● |
|
| |
37 |
WASHER; LK,BACK PLATE
ID=16.2
|
0-91510-816-0 |
08 |
1 |
0604- |
|
|
● |
| |
38 |
NUT; BACK PLATE
M16
|
9-99110-416-0 |
08 |
1 |
9510-9802 |
● |
● |
● |
| |
38 |
NUT; BACK PLATE
FRONT AXLE F049(FS4)
M16
|
9-99110-416-0 |
08 |
1 |
9803-0512 |
● |
● |
|
| |
38 |
NUT; BACK PLATE
M16
|
9-99110-416-0 |
08 |
1 |
9803-0512 |
|
|
● |
| |
38 |
NUT; BACK PLATE
FRONT AXLE F049(FS4)
M16
|
0-91110-516-0 |
08 |
1 |
0601- |
● |
● |
|
| |
38 |
NUT; BACK PLATE
M16
|
0-91110-516-0 |
08 |
1 |
0601- |
|
|
● |
| |
53 |
NUT; DRUM COVER
FRONT AXLE F063(FS7)
M16
|
9-99110-416-0 |
04 |
1 |
9803-9902 |
● |
● |
|
| |
53 |
NUT; DRUM COVER
FRONT AXLE F063(FS7)
M16
|
9-99110-516-0 |
04 |
1 |
9903-0512 |
● |
● |
|
| |
53 |
NUT; DRUM COVER
FRONT AXLE F063(FS7)
M16
|
0-91110-516-0 |
04 |
1 |
0601- |
● |
● |
|
