◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#36225) — 886 parça

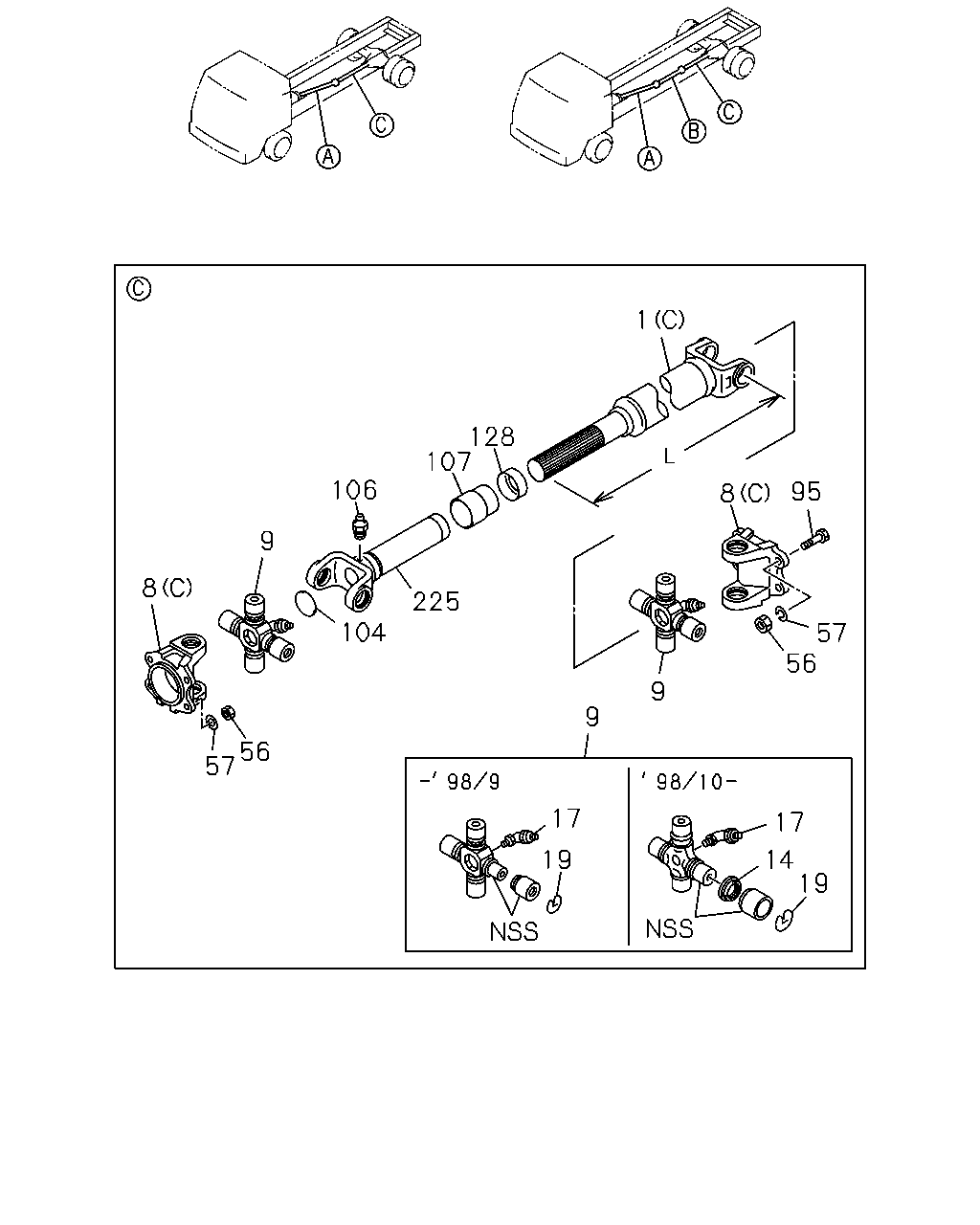

çizim 152218
1 128 107 106 95 8 9 8 225 104 57 56 9 9 56 57 17 17 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
(B) L=1346 		1-37152-057-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 9510- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=616 		1-37151-935-1 01 1 9510- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=516 		1-37152-004-1 01 1 9510- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9510-9810 ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1296 		1-37124-065-1 01 1 9811- ● ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1275 		1-37123-773-1 01 1 9811- ● ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9510-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 0107-1111 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1089 		8-98069-573-0 01 1 1112- ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9510-0106 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 0107- ● ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HE1 TC ENG(57L) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
EXC. A/T<X9D> (B) L=816 		1-37151-390-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HE1 TC ENG(57L) (A) L=621 		1-37151-483-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (A) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005-0607 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0608- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) L=526 		1-37152-007-1 01 1 0608- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6A M/T(X5N) (A) L=1501 		1-37152-231-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7R M/T(X5L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HE1 TCC ENG(76L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1471 		1-37152-788-0 01 1 0005- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 9510-9810 ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1286 		1-37124-066-1 01 1 9811- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 9510- ●
1 SHAFT; PROP
A/T<X9D> (A) L=826 		1-37152-201-1 01 1 9608-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1061 		1-37152-787-0 01 1 0005- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 9811-0106 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 0107- ●
1 SHAFT; PROP
(C) L=1266 		1-37123-424-3 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9510- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 9510-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0107-0607 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0107-0607 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0608-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0608-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) 1ST 		1-37211-054-0 01 1 0608-1111 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		8-98178-052-0 01 1 1112- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) 1ST 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
A/T<X9D> (A) 1ST 		1-37211-056-2 01 1 9608-9802 ●
8 YOKE; FLANGE,PROP SHAFT
AT545 A/T ALLISON(MD1) (A) 1ST 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
AT545 A/T ALLISON(MD1) (A) 1ST 		1-37211-056-3 01 1 0005- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-2 01 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HE1 TC ENG(57L) (B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. A/T<X9D> (B) 2ND 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. A/T<X9D> (B) 2ND 		1-37211-056-3 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) END 		1-37211-056-3 02 1 9510-0106 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) END 		1-37211-056-3 02 1 0107- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98048-925-0 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X>,FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AT545 A/T ALLISON(MD1) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
MIDDLE CHASSIS & STD CAB(FT**MF) FINAL GEAR 15.5"<B2X>,FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
DOUBLE CAB(FT**W*) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0106 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. A/T<X9D> 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0107-1111 ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. A/T<X9D> 2ND,END 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST 		1-37300-102-1 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112-1505 ● ● ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-800-0 04 1 1112-1505 ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-800-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9810-0106 ● ● ● ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 AR 1 0107-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 AR 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. A/T<X9D> 2ND 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 1ST 		1-37319-012-0 04 1 1112-1505 ● ●
14 COVER; DUST,SPIDER
EXC. A/T<X9D> 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0107- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0107- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0107- ● ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9510-0004 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0005-0512 ● ● ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9510-0004 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0005-0603 ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9510-0004 ● ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0005- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9510-0106 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0107- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-0106 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9510-0106 ● ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0107- ● ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9510-9809 ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9810-9810 ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 15.5"<B2X> 		1-37247-015-0 01 1 9811-9811 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9810-9810 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9811-9811 ● ●
128 SEAL; SLEEVE
FINAL GEAR 16.5"<B2Y> 		1-37247-024-0 01 1 9811-9811 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812-0106 ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0107- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-099-1 01 1 9510-9809 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-099-2 01 1 9810-9810 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FINAL GEAR 15.5"<B2X> 		1-37241-099-2 01 1 9811-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-129-0 01 1 9810-9810 ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-129-0 01 1 9811-9811 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FINAL GEAR 16.5"<B2Y> 		1-37241-129-0 01 1 9811-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-129-0 01 1 9812-9902 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-099-2 01 1 9903-0106 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-099-2 01 1 0107- ● ● ● ● ● ●

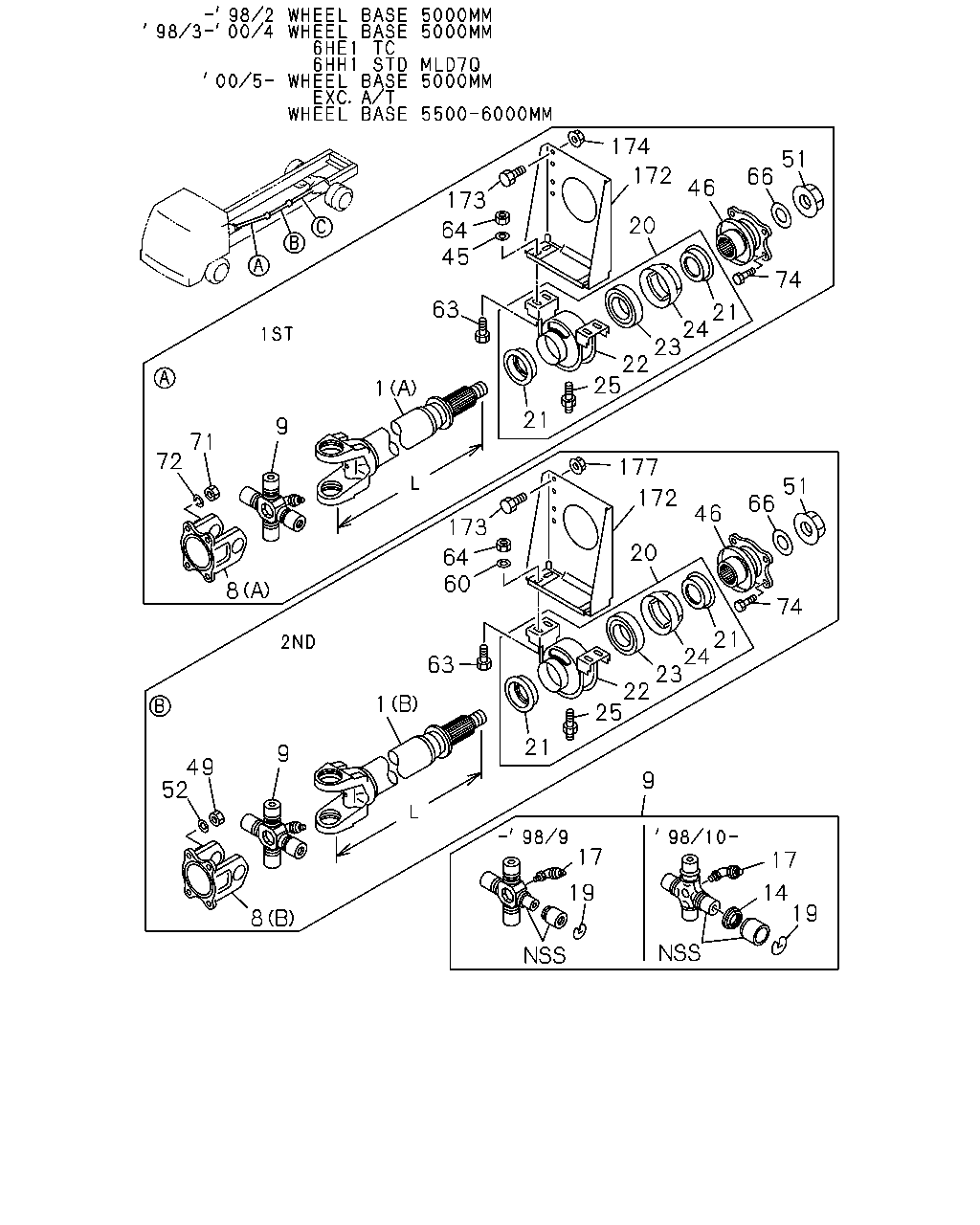

çizim 152225
174 51 66 172 46 173 20 64 45 74 63 21 24 23 22 25 1 21 9 71 72 177 51 66 172 46 173 20 64 60 74 8 21 24 23 22 25 63 1 21 9 49 52 9 17 17 19 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
(B) L=1346 		1-37152-057-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 9510- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=616 		1-37151-935-1 01 1 9510- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=516 		1-37152-004-1 01 1 9510- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9510-9810 ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1296 		1-37124-065-1 01 1 9811- ● ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1275 		1-37123-773-1 01 1 9811- ● ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9510-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 0107-1111 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1089 		8-98069-573-0 01 1 1112- ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9510-0106 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 0107- ● ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HE1 TC ENG(57L) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
EXC. A/T<X9D> (B) L=816 		1-37151-390-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HE1 TC ENG(57L) (A) L=621 		1-37151-483-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (A) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005-0607 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0608- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) L=526 		1-37152-007-1 01 1 0608- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6A M/T(X5N) (A) L=1501 		1-37152-231-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7R M/T(X5L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HE1 TCC ENG(76L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1471 		1-37152-788-0 01 1 0005- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 9510-9810 ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1286 		1-37124-066-1 01 1 9811- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 9510- ●
1 SHAFT; PROP
A/T<X9D> (A) L=826 		1-37152-201-1 01 1 9608-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1061 		1-37152-787-0 01 1 0005- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 9811-0106 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 0107- ●
1 SHAFT; PROP
(C) L=1266 		1-37123-424-3 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9510- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 9510-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0107-0607 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0107-0607 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0608-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0608-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) 1ST 		1-37211-054-0 01 1 0608-1111 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		8-98178-052-0 01 1 1112- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) 1ST 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
A/T<X9D> (A) 1ST 		1-37211-056-2 01 1 9608-9802 ●
8 YOKE; FLANGE,PROP SHAFT
AT545 A/T ALLISON(MD1) (A) 1ST 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
AT545 A/T ALLISON(MD1) (A) 1ST 		1-37211-056-3 01 1 0005- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-2 01 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HE1 TC ENG(57L) (B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. A/T<X9D> (B) 2ND 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. A/T<X9D> (B) 2ND 		1-37211-056-3 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) END 		1-37211-056-3 02 1 9510-0106 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) END 		1-37211-056-3 02 1 0107- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98048-925-0 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X>,FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AT545 A/T ALLISON(MD1) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
MIDDLE CHASSIS & STD CAB(FT**MF) FINAL GEAR 15.5"<B2X>,FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
DOUBLE CAB(FT**W*) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0106 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. A/T<X9D> 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0107-1111 ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. A/T<X9D> 2ND,END 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST 		1-37300-102-1 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112-1505 ● ● ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-800-0 04 1 1112-1505 ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-800-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9810-0106 ● ● ● ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 AR 1 0107-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 AR 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. A/T<X9D> 2ND 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 1ST 		1-37319-012-0 04 1 1112-1505 ● ●
14 COVER; DUST,SPIDER
EXC. A/T<X9D> 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0107- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0107- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0107- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT
6HE1 TC ENG(57L) 		1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0106 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. A/T<X9D> 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0107-0607 ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. A/T<X9D> 		1-37510-105-0 01 1 0107-0607 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0107-0607 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0608-1111 ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37510-105-0 01 1 0608-1111 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0608-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST 		1-37510-105-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. A/T<X9D> 2ND 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
6HH1 STD ENG(65L) MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
6HE1 TC ENG(57L) ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0106 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
EXC. A/T<X9D> ID=54 		1-09625-161-0 02 1 0005-0106 ●

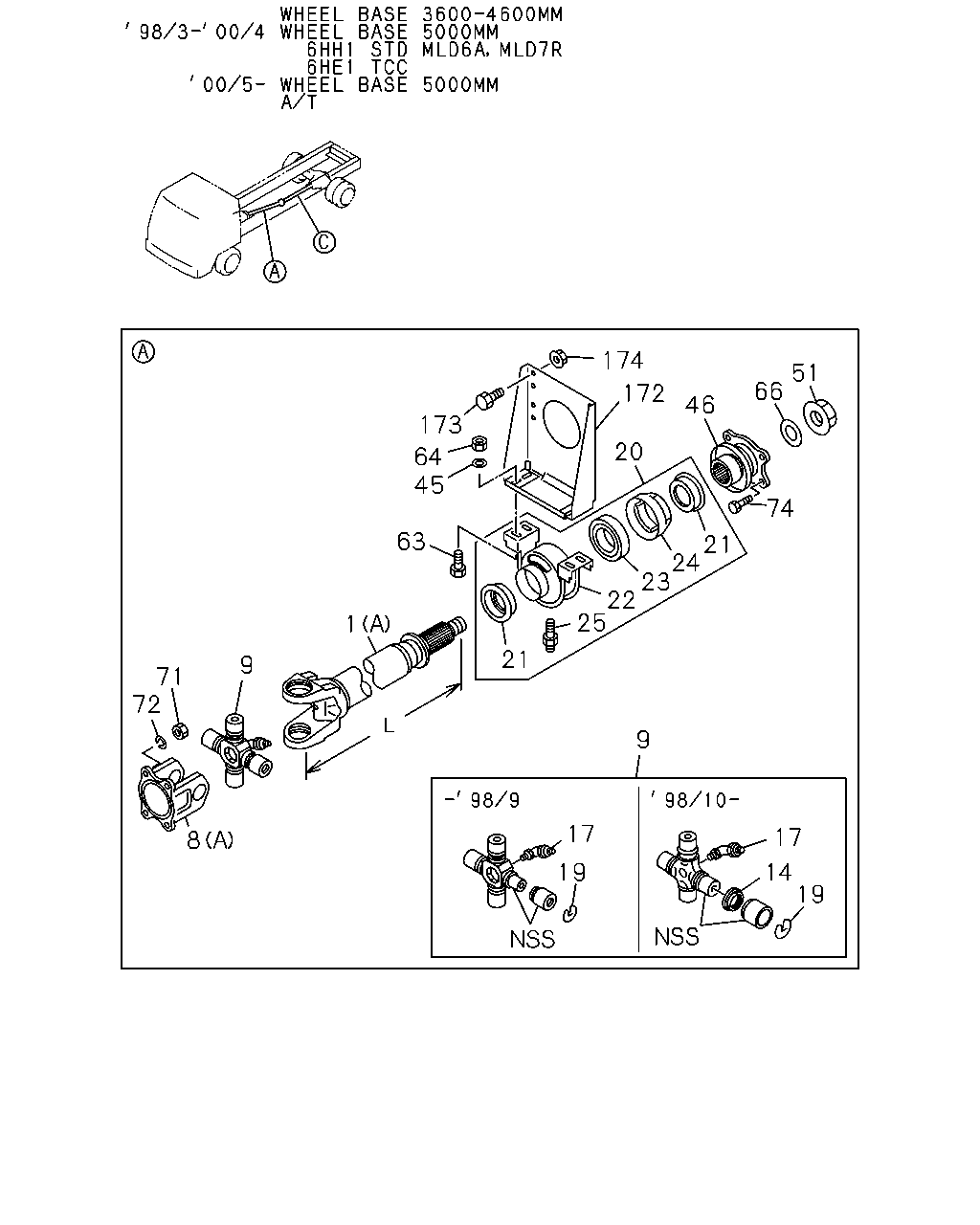

21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0107-0607 ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
EXC. A/T<X9D> ID=54 		1-09625-161-0 02 1 0107-0607 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0107-0607 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0608- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) ID=54 		1-09625-161-0 02 1 0608- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0608- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HE1 TC ENG(57L) 		1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0106 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
EXC. A/T<X9D> 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0107-0607 ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
EXC. A/T<X9D> 		1-37516-059-0 01 1 0107-0607 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0107-0607 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0608- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37516-059-0 01 1 0608- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0608- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT
6HE1 TC ENG(57L) 		9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0106 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
EXC. A/T<X9D> 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0107-0607 ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
EXC. A/T<X9D> 		9-00090-071-0 01 1 0107-0607 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0107-0607 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0608- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		9-00090-071-0 01 1 0608- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0608- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST
6HE1 TC ENG(57L) 		1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0106 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. A/T<X9D> 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0107-0607 ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. A/T<X9D> 		1-37529-068-0 01 1 0107-0607 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0107-0607 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0608-1111 ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37529-068-0 01 1 0608-1111 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0608-1111 ● ●
24 RETAINER; CENTER BRG,1ST
AT545 A/T ALLISON(MD1) 1ST 		1-37529-068-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
EXC. A/T<X9D> 2ND 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HH1 STD ENG(65L) MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
6HE1 TC ENG(57L) MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. A/T<X9D> MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0607 ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. A/T<X9D> MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0607 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0607 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0608- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) MT6 STRAIGHT 		1-09380-006-0 01 1 0608- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0608- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-0004 ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ● ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HE1 TC ENG(57L) 		1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0106 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. A/T<X9D> 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0107-0607 ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. A/T<X9D> 		1-37245-071-0 01 1 0107-0607 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0107-0607 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0608-1111 ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37245-071-0 01 1 0608-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0608-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AT545 A/T ALLISON(MD1) 1ST 		1-37245-071-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. A/T<X9D> 2ND 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9510-9802 ● ●
49 NUT; YOKE
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M14 		9-99110-514-0 04 1 9803-0004 ●
49 NUT; YOKE
6HE1 TC ENG(57L) M14 		9-99110-514-0 04 1 9803-0004 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9803-0004 ●
49 NUT; YOKE
EXC. A/T<X9D> M14 		9-99110-514-0 04 1 0005-0106 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0106 ●
49 NUT; YOKE
EXC. A/T<X9D> M14 		9-99110-514-0 04 1 0107-0512 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0107-0512 ● ●
49 NUT; YOKE
EXC. A/T<X9D> M14 		0-91110-514-0 04 1 0601- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
6HE1 TC ENG(57L) M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0106 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
EXC. A/T<X9D> M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0107-0607 ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
EXC. A/T<X9D> M30 		8-97160-857-0 01 1 0107-0607 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0107-0607 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0608- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) M30 		8-97160-857-0 01 1 0608- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0608- ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9510-9802 ● ●
52 WASHER; LK,YOKE
6HH1 STD ENG(65L) MLD7Q M/T(X5K) ID=14.2 		9-09150-614-0 04 1 9803-0004 ●
52 WASHER; LK,YOKE
6HE1 TC ENG(57L) ID=14.2 		9-09150-614-0 04 1 9803-0004 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9803-0004 ●
52 WASHER; LK,YOKE
EXC. A/T<X9D> ID=14.2 		9-09150-614-0 04 1 0005-0106 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0106 ●
52 WASHER; LK,YOKE
EXC. A/T<X9D> ID=14.2 		9-09150-614-0 04 1 0107-0603 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0107-0603 ● ●
52 WASHER; LK,YOKE
EXC. A/T<X9D> ID=14.2 		0-91510-614-0 04 1 0604- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-9802 ● ●
60 WASHER; PL,RET TO BRKT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0004 ●
60 WASHER; PL,RET TO BRKT
6HE1 TC ENG(57L) ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0004 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9803-0004 ●
60 WASHER; PL,RET TO BRKT
EXC. A/T<X9D> ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ●
60 WASHER; PL,RET TO BRKT
EXC. A/T<X9D> ID=10.5 OD=22 		9-09164-610-0 04 1 0107-0605 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0107-0605 ● ●
60 WASHER; PL,RET TO BRKT
EXC. A/T<X9D> ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HE1 TC ENG(57L) M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
EXC. A/T<X9D> M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
EXC. A/T<X9D> M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
EXC. A/T<X9D> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ● ● ●
64 NUT; RET TO BRKT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
6HE1 TC ENG(57L) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ● ● ● ● ●
64 NUT; RET TO BRKT
EXC. A/T<X9D> M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ● ● ● ● ●
64 NUT; RET TO BRKT
EXC. A/T<X9D> M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ● ●
64 NUT; RET TO BRKT
EXC. A/T<X9D> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9510-9607 ● ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9608-0004 ● ● ● ●
71 NUT; YOKE
EXC. A/T<X9D> M16 FLANGE 		1-09449-065-0 04 1 9608-0004 ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ● ● ●
71 NUT; YOKE
EXC. A/T<X9D> M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
71 NUT; YOKE
A/T<X9D> M14 		9-99110-514-0 04 1 9608-0004 ●
71 NUT; YOKE
A/T<X9D> M14 		9-99110-514-0 04 1 0005-0512 ● ●
71 NUT; YOKE
A/T<X9D> M14 		0-91110-514-0 04 1 0601- ● ●
72 WASHER; LK,YOKE
A/T<X9D> ID=14.2 		9-09150-614-0 04 1 9608-0004 ●
72 WASHER; LK,YOKE
A/T<X9D> ID=14.2 		9-09150-614-0 04 1 0005-0603 ● ●
72 WASHER; LK,YOKE
A/T<X9D> ID=14.2 		0-91510-614-0 04 1 0604- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9803-0004 ● ● ● ● ●
74 BOLT; YOKE,TRANS
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
6HE1 TC ENG(57L) M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0106 ● ● ● ● ●
74 BOLT; YOKE,TRANS
EXC. A/T<X9D> M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
EXC. A/T<X9D> M14X37 		1-09000-121-0 04 1 0107- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ●
172 BRACKET; CENTER BRG
2ND 		1-37515-135-0 01 1 0107- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 9510-0106 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0107- ● ● ●
172 BRACKET; CENTER BRG
4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9510-9802 ● ●
172 BRACKET; CENTER BRG
4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
6HE1 TC ENG(57L) 4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 0005- ●
172 BRACKET; CENTER BRG
EXC. A/T<X9D> 4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 0005- ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) MLD7R M/T(X5L),MLD6A M/T(X5N) 1ST 		1-37515-136-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
6HE1 TCC ENG(76L) 1ST 		1-37515-136-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
AT545 A/T ALLISON(MD1) 1ST 		1-37515-136-0 01 1 0005- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 9510- ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9510-9602 ● ● ● ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9510-9602 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0204 ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0204 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0205-0512 ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0205-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ● ●
174 NUT; BRKT 0-91150-216-0 04 1 9607-9701 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9702-9802 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ●
174 NUT; BRKT
6HH1 STD ENG(65L) MLD7R M/T(X5L),MLD6A M/T(X5N) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
174 NUT; BRKT
6HE1 TCC ENG(76L) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0204 ● ● ●
174 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) M10 FLANGE 		0-91150-210-0 04 1 0005-0204 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ● ● ● ●
174 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
174 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
177 NUT
M10 		9-09110-510-0 04 1 9510-9606 ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ● ●
177 NUT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
177 NUT
6HE1 TC ENG(57L) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
177 NUT
EXC. A/T<X9D> M10 FLANGE 		0-91150-210-0 04 1 0005-0204 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0204 ●
177 NUT
EXC. A/T<X9D> M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ● ●
177 NUT
EXC. A/T<X9D> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
çizim 152232
174 51 66 172 46 173 20 64 45 74 63 21 24 23 22 25 1 21 9 71 72 9 17 17 8 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
(B) L=1346 		1-37152-057-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 9510- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=616 		1-37151-935-1 01 1 9510- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=516 		1-37152-004-1 01 1 9510- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9510-9810 ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1296 		1-37124-065-1 01 1 9811- ● ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1275 		1-37123-773-1 01 1 9811- ● ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9510-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 0107-1111 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1089 		8-98069-573-0 01 1 1112- ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9510-0106 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 0107- ● ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HE1 TC ENG(57L) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
EXC. A/T<X9D> (B) L=816 		1-37151-390-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HE1 TC ENG(57L) (A) L=621 		1-37151-483-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9510-9802 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (A) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005-0607 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0608- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) L=526 		1-37152-007-1 01 1 0608- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6A M/T(X5N) (A) L=1501 		1-37152-231-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7R M/T(X5L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
6HE1 TCC ENG(76L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1471 		1-37152-788-0 01 1 0005- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 9510-9810 ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1286 		1-37124-066-1 01 1 9811- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 9510- ●
1 SHAFT; PROP
A/T<X9D> (A) L=826 		1-37152-201-1 01 1 9608-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=1061 		1-37152-787-0 01 1 0005- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 9811-0106 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 0107- ●
1 SHAFT; PROP
(C) L=1266 		1-37123-424-3 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9510- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9510- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 9510-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0107-0607 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0107-0607 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0608-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		1-37211-054-0 01 1 0608-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) 1ST 		1-37211-054-0 01 1 0608-1111 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		8-98178-052-0 01 1 1112- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 1ST 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) (A) 1ST 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
A/T<X9D> (A) 1ST 		1-37211-056-2 01 1 9608-9802 ●
8 YOKE; FLANGE,PROP SHAFT
AT545 A/T ALLISON(MD1) (A) 1ST 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
AT545 A/T ALLISON(MD1) (A) 1ST 		1-37211-056-3 01 1 0005- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-2 01 1 9510-9802 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HE1 TC ENG(57L) (B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. A/T<X9D> (B) 2ND 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. A/T<X9D> (B) 2ND 		1-37211-056-3 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) END 		1-37211-056-3 02 1 9510-0106 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) END 		1-37211-056-3 02 1 0107- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98048-925-0 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 15.5"<B2X>,FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AT545 A/T ALLISON(MD1) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) MLD7 M/T<X9Z> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
MIDDLE CHASSIS & STD CAB(FT**MF) FINAL GEAR 15.5"<B2X>,FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
DOUBLE CAB(FT**W*) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 16.5"<B2Y> 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9809 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0106 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. A/T<X9D> 		1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0107-1111 ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. A/T<X9D> 2ND,END 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST 		1-37300-102-1 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112-1505 ● ● ● ●
14 COVER; DUST,SPIDER
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-800-0 04 1 1112-1505 ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-800-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9810-0106 ● ● ● ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 AR 1 0107-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 AR 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. A/T<X9D> 2ND 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1506- ●
14 COVER; DUST,SPIDER
AT545 A/T ALLISON(MD1) 1ST 		1-37319-012-0 04 1 1112-1505 ● ●
14 COVER; DUST,SPIDER
EXC. A/T<X9D> 2ND 		1-37319-012-0 04 1 1112-1505 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0107- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0107- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0106 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0107- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT
6HE1 TC ENG(57L) 		1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0106 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. A/T<X9D> 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0107-0607 ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. A/T<X9D> 		1-37510-105-0 01 1 0107-0607 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0107-0607 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0608-1111 ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37510-105-0 01 1 0608-1111 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0608-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AT545 A/T ALLISON(MD1) 1ST 		1-37510-105-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. A/T<X9D> 2ND 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
6HH1 STD ENG(65L) MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
6HE1 TC ENG(57L) ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0106 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
EXC. A/T<X9D> ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0107-0607 ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
EXC. A/T<X9D> ID=54 		1-09625-161-0 02 1 0107-0607 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0107-0607 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0608- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) ID=54 		1-09625-161-0 02 1 0608- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0608- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HE1 TC ENG(57L) 		1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0106 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
EXC. A/T<X9D> 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0107-0607 ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
EXC. A/T<X9D> 		1-37516-059-0 01 1 0107-0607 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0107-0607 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0608- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37516-059-0 01 1 0608- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0608- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT
6HE1 TC ENG(57L) 		9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0106 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
EXC. A/T<X9D> 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0107-0607 ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
EXC. A/T<X9D> 		9-00090-071-0 01 1 0107-0607 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0107-0607 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0608- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		9-00090-071-0 01 1 0608- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0608- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST
6HE1 TC ENG(57L) 		1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0106 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. A/T<X9D> 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0107-0607 ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. A/T<X9D> 		1-37529-068-0 01 1 0107-0607 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0107-0607 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0608-1111 ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37529-068-0 01 1 0608-1111 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0608-1111 ● ●
24 RETAINER; CENTER BRG,1ST
AT545 A/T ALLISON(MD1) 1ST 		1-37529-068-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
EXC. A/T<X9D> 2ND 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HH1 STD ENG(65L) MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
6HE1 TC ENG(57L) MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. A/T<X9D> MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0607 ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. A/T<X9D> MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0607 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0607 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0608- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) MT6 STRAIGHT 		1-09380-006-0 01 1 0608- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0608- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-0004 ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ● ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 1ST 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 1ST 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HE1 TC ENG(57L) 		1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0106 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. A/T<X9D> 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0107-0607 ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. A/T<X9D> 		1-37245-071-0 01 1 0107-0607 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0107-0607 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0608-1111 ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) 		1-37245-071-0 01 1 0608-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0608-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AT545 A/T ALLISON(MD1) 1ST 		1-37245-071-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. A/T<X9D> 2ND 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
6HE1 TC ENG(57L) M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0106 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
EXC. A/T<X9D> M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0107-0607 ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
EXC. A/T<X9D> M30 		8-97160-857-0 01 1 0107-0607 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0107-0607 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0608- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> 6HK1 TCC ENG(81L) M30 		8-97160-857-0 01 1 0608- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0608- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HE1 TC ENG(57L) M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
EXC. A/T<X9D> M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
EXC. A/T<X9D> M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
EXC. A/T<X9D> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ● ● ●
64 NUT; RET TO BRKT
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
6HE1 TC ENG(57L) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ● ● ● ● ●
64 NUT; RET TO BRKT
EXC. A/T<X9D> M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ● ● ● ● ●
64 NUT; RET TO BRKT
EXC. A/T<X9D> M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ● ●
64 NUT; RET TO BRKT
EXC. A/T<X9D> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9510-9607 ● ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9608-0004 ● ● ● ●
71 NUT; YOKE
EXC. A/T<X9D> M16 FLANGE 		1-09449-065-0 04 1 9608-0004 ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ● ● ●
71 NUT; YOKE
EXC. A/T<X9D> M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
71 NUT; YOKE
A/T<X9D> M14 		9-99110-514-0 04 1 9608-0004 ●
71 NUT; YOKE
A/T<X9D> M14 		9-99110-514-0 04 1 0005-0512 ● ●
71 NUT; YOKE
A/T<X9D> M14 		0-91110-514-0 04 1 0601- ● ●
72 WASHER; LK,YOKE
A/T<X9D> ID=14.2 		9-09150-614-0 04 1 9608-0004 ●
72 WASHER; LK,YOKE
A/T<X9D> ID=14.2 		9-09150-614-0 04 1 0005-0603 ● ●
72 WASHER; LK,YOKE
A/T<X9D> ID=14.2 		0-91510-614-0 04 1 0604- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9803-0004 ● ● ● ● ●
74 BOLT; YOKE,TRANS
6HH1 STD ENG(65L) MLD7Q M/T(X5K) M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
6HE1 TC ENG(57L) M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9803-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0106 ● ● ● ● ●
74 BOLT; YOKE,TRANS
EXC. A/T<X9D> M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
EXC. A/T<X9D> M14X37 		1-09000-121-0 04 1 0107- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ●
172 BRACKET; CENTER BRG
2ND 		1-37515-135-0 01 1 0107- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 9510-0106 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0107- ● ● ●
172 BRACKET; CENTER BRG
4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9510-9802 ● ●
172 BRACKET; CENTER BRG
4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
6HE1 TC ENG(57L) 4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) MLD7Q M/T(X5K) 4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 0005- ●
172 BRACKET; CENTER BRG
EXC. A/T<X9D> 4600MM=1ST,5000MM=2ND 		1-37515-071-2 01 1 0005- ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) MLD7R M/T(X5L),MLD6A M/T(X5N) 1ST 		1-37515-136-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
6HE1 TCC ENG(76L) 1ST 		1-37515-136-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
AT545 A/T ALLISON(MD1) 1ST 		1-37515-136-0 01 1 0005- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 9510- ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9510-9602 ● ● ● ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9510-9602 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0204 ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0204 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0205-0512 ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0205-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ● ●
174 NUT; BRKT 0-91150-216-0 04 1 9607-9701 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9702-9802 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ● ● ●
174 NUT; BRKT
6HH1 STD ENG(65L) MLD7R M/T(X5L),MLD6A M/T(X5N) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
174 NUT; BRKT
6HE1 TCC ENG(76L) M10 FLANGE 		0-91150-210-0 04 1 9803-0004 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0204 ● ● ●
174 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) M10 FLANGE 		0-91150-210-0 04 1 0005-0204 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ● ● ● ●
174 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) M10 FLANGE 		0-91150-210-0 04 1 0205-0602 ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
174 NUT; BRKT
6HH1 STD 4VALVE ENG(1A6) AT545 A/T ALLISON(MD1) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
