1 |

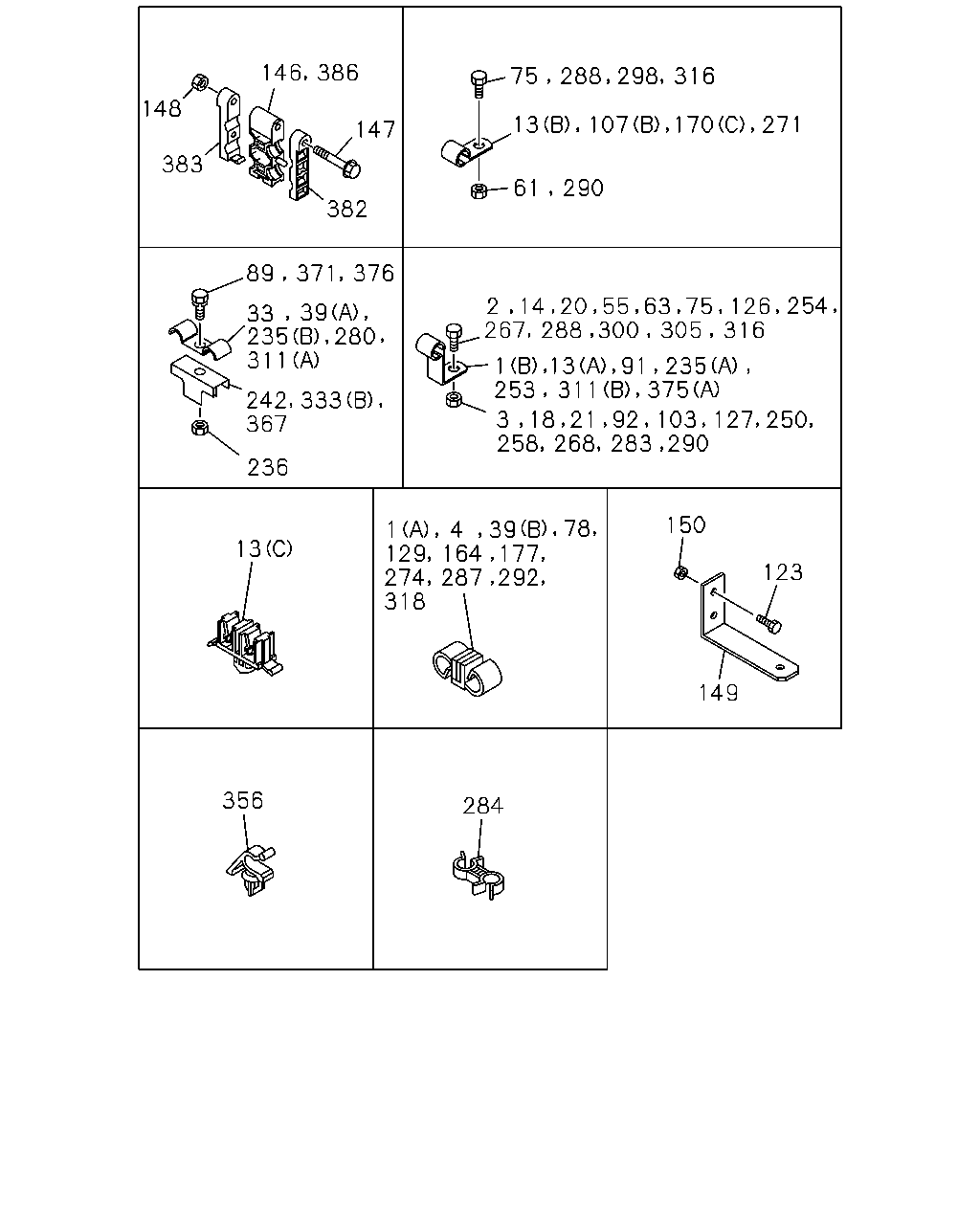

CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
(B)
ID=6 H=20 L=20
|
1-09700-603-0 |
01 |
1 |
0212- |
● |
|
|
| |
1 |
CLIP; AIR PIPE
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9510-9510 |
● |
● |
● |
| |
1 |
CLIP; AIR PIPE
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9511-9511 |
|
● |
● |
| |
1 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9511-9511 |
● |
|
|
| |
1 |
CLIP; AIR PIPE
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9512-9607 |
● |
● |
● |
| |
1 |
CLIP; AIR PIPE
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9608-9802 |
|
● |
● |
| |
1 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9608-9802 |
● |
|
|
| |
1 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0011-0211 |
● |
|
|
| |
1 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
(A)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0212- |
● |
|
|
| |
2 |
BOLT; CLIP FIX
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0212-0512 |
● |
|
|
| |
2 |
BOLT; CLIP FIX
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
● |
|
|
| |
3 |
NUT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0212-0602 |
● |
|
|
| |
3 |
NUT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
| |
4 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10 & 12
|
1-09709-278-1 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
13 |
CLIP; AIR PIPE
6HK1 TCC ENG(81L)
EXHAUST BRAKE<NF8>
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
02 |
1 |
0603- |
● |
|
|
| |
13 |
CLIP; AIR PIPE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
DUAL AIR GAUGE<UG2>
(C)
|
8-94435-553-0 |
02 |
1 |
0301- |
● |
|
|
| |
13 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
(C)
|
8-94435-553-0 |
03 |
1 |
9510-0212 |
● |
● |
|
| |
13 |
CLIP; AIR PIPE
(C)
|
8-94435-553-0 |
03 |
1 |
9510-0212 |
|
|
● |
| |
13 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
(C)
|
8-94435-553-0 |
03 |
1 |
0301- |
● |
● |
|
| |
13 |
CLIP; AIR PIPE
(C)
|
8-94435-553-0 |
03 |
1 |
0301- |
|
|
● |
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9510-9510 |
● |
● |
● |
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9511-9511 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9511-9511 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9512-9607 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9512-9607 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9608-9609 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9608-9609 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9610-0004 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9610-0004 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
0005- |
|
● |
|
| |
13 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
0005- |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
0005- |
|
|
● |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9510-9510 |
● |
● |
● |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9511-9511 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9511-9511 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9512-9607 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9512-9607 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9608-9609 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9608-9609 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9610-0004 |
|
● |
● |
| |
13 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9610-0004 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
0005-0606 |
|
● |
|
| |
13 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
0005-0606 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
0005-0606 |
|
|
● |
| |
13 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
(B)
ID=7 L=40
|
0-95234-675-0 |
01 |
1 |
0607- |
|
● |
|
| |
13 |
CLIP; AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1
STD ENG(65L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=40
|
0-95234-675-0 |
01 |
1 |
0607- |
● |
|
|
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
0-95234-675-0 |
01 |
1 |
0607- |
|
|
● |
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9511-9511 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L)
(B)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9512-9607 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9608-9609 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9610-0602 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
0603-0606 |
● |
|
|
| |
13 |
CLIP; AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
EXHAUST BRAKE<NF8>
(B)
ID=7 L=20
|
0-95234-635-0 |
01 |
1 |
0607- |
● |
|
|
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
|
● |
|
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9702 |
|
● |
|
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9703-9802 |
● |
● |
● |
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
● |
● |
● |
| |
18 |
NUT; CLIP
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0212-0602 |
● |
|
|
| |
18 |
NUT; CLIP
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
| |
20 |
BOLT; CLIP
EXHAUST BRAKE<NF8>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0005-0009 |
● |
|
|
| |
21 |
NUT; CLIP
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0009 |
● |
|
|
| |
33 |
CLIP; BOLT
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9510-0211 |
● |
● |
● |
| |
33 |
CLIP; BOLT
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0212- |
|
● |
● |
| |
33 |
CLIP; BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0212- |
● |
|
|
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(B)
ID=15 & 15
|
1-09709-282-1 |
01 |
1 |
0602- |
● |
|
|
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0212- |
● |
|
|
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212- |
● |
|
|
| |
55 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0212-0512 |
● |
|
|
| |
55 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
● |
|
|
| |
61 |
NUT; CLIP FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
● |
● |
● |
| |
61 |
NUT; CLIP FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
● |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9702 |
● |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9703-9802 |
● |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-9606 |
● |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9802 |
● |
● |
● |
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
● |
● |
|
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
● |
● |
|
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9802 |
● |
● |
|
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9802 |
● |
● |
|
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
● |
● |
|
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
● |
● |
|
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
● |
● |
|
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
● |
● |
|
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0602- |
● |
|
|
| |
89 |
BOLT; PIPE CLIP
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
91 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
5-09700-351-0 |
04 |
1 |
0212-0707 |
● |
|
|
| |
91 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
8-98033-780-0 |
04 |
1 |
0708- |
● |
|
|
| |
92 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
● |
|
|
| |
92 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
103 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
● |
|
|
| |
103 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CAB UP +50MM<W60>
(B)
ID=18 L=28
|
1-09701-067-0 |
02 |
1 |
0603- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
0212- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=18 L=54
|
1-09701-068-0 |
01 |
1 |
0212-0602 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CAB UP +50MM<W60>
(B)
ID=18 L=54
|
1-09701-068-0 |
01 |
1 |
0603- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0212-0602 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CAB UP +50MM<W60>
(B)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0603-0606 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CAB UP +50MM<W60>
(B)
ID=11 L=50
|
0-95235-085-0 |
01 |
1 |
0607- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=250
|
1-09707-126-0 |
36 |
1 |
0212-0601 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=250
|
1-09707-126-0 |
17 |
1 |
0602- |
● |
|
|
| |
123 |
BOLT; PIPE CLIP
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
123 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9801 |
● |
● |
● |
| |
123 |
BOLT; PIPE CLIP
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9802-9802 |
● |
● |
● |
| |
126 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0602- |
● |
|
|
| |
126 |
BOLT; CLIP BRKT
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0602- |
● |
|
|
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0602-0602 |
● |
|
|
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
● |
|
|
| |
127 |
NUT; CLIP BRKT
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0602-0602 |
● |
|
|
| |
127 |
NUT; CLIP BRKT
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
129 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
146 |
CLIP; AIR PIPE
ID=10
|
1-09709-242-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
147 |
BOLT; PIPE CLIP
M8X70 FLANGE
|
0-28080-870-0 |
03 |
1 |
9510-9802 |
● |
● |
● |
| |
148 |
NUT; PIPE CLIP
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
● |
● |
● |
| |
148 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
● |
● |
● |
| |
149 |
BRACKET; PIPE CLIP
|
1-47476-792-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
150 |
NUT; CLIP BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
150 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
● |
● |
● |
| |
164 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=10 & 12
|
1-09709-278-1 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
164 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=10 & 15
|
1-09709-279-1 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |

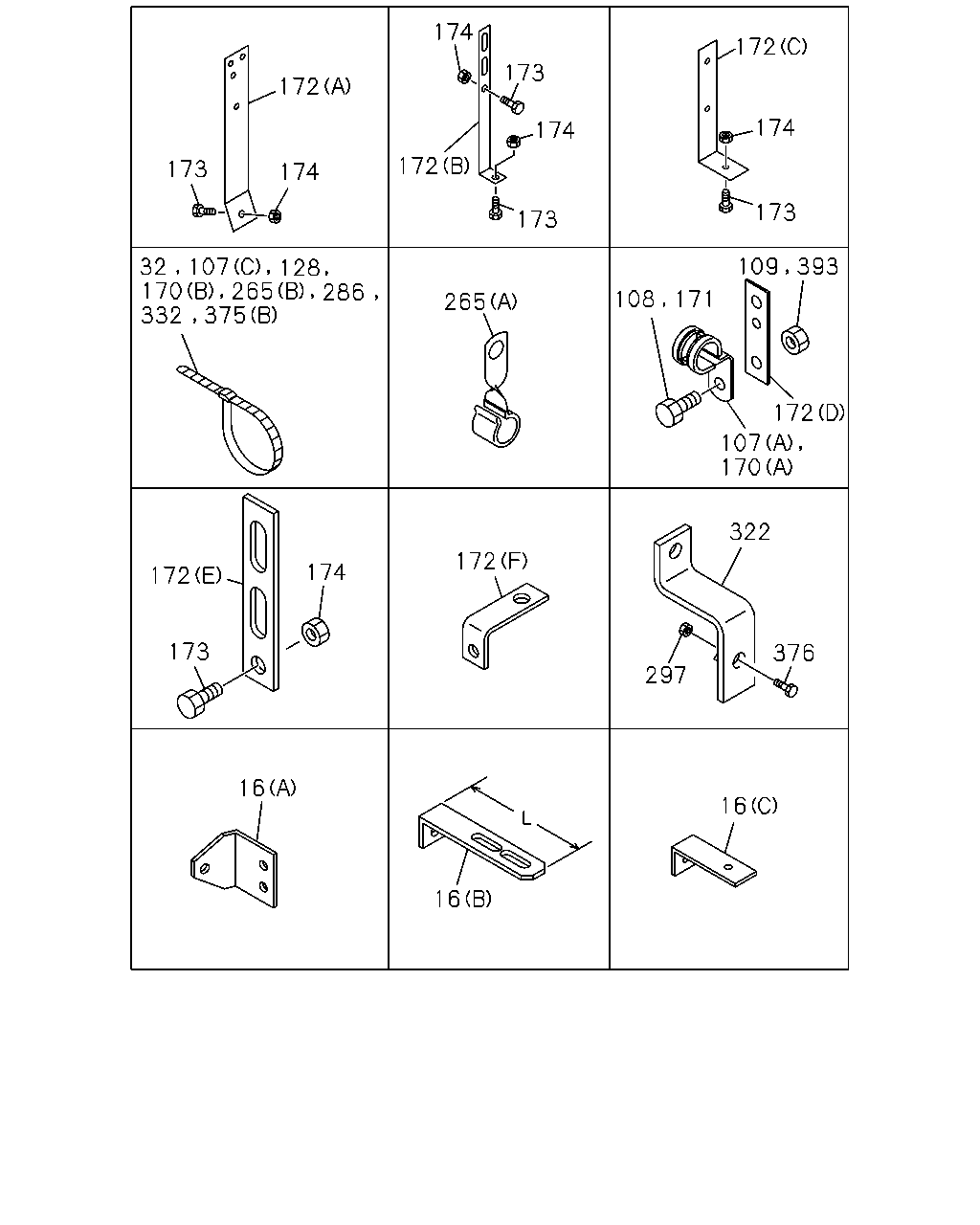

170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,
DRIVER ISRINGHAUSEN SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
02 |
1 |
9806-9807 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
02 |
1 |
9806-9807 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
02 |
1 |
9806-9807 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,
DRIVER ISRINGHAUSEN SEAT<SJA>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
9808-0004 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
9808-0004 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
9808-0004 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0005-0010 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0005-0010 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0005-0010 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0011-0211 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0011-0211 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0011-0211 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0212-0606 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. DUAL AIR GAUGE<UG2>
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0212-0606 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
0212-0606 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(C)
ID=11 L=50
|
0-95235-085-0 |
01 |
1 |
0607- |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. DUAL AIR GAUGE<UG2>
(C)
ID=11 L=50
|
0-95235-085-0 |
01 |
1 |
0607- |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(C)
ID=11 L=50
|
0-95235-085-0 |
01 |
1 |
0607- |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
02 |
1 |
9803-0004 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
0005-0211 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
0212- |
|
● |
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
0212- |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
14 |
1 |
9803-0001 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
17 |
1 |
0002-0004 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0005-0211 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0212-1303 |
|
● |
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0212-1303 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
16 |
1 |
1304- |
|
● |
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
16 |
1 |
1304- |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9804-9807 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE REGULATION ADR<TDU>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9804-9807 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9804-9807 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
|
● |
|
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,
DRIVER ISRINGHAUSEN SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE REGULATION ADR<TDU>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0004 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,
DRIVER ISRINGHAUSEN SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0004 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0004 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0004 |
● |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0005-0010 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0005-0010 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0005-0010 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0005-0010 |
● |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0005-0010 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0108 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0108 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0108 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0108 |
● |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0108 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0109-0211 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0109-0211 |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0109-0211 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0109-0211 |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0109-0211 |
|
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
● |
● |
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. DUAL AIR GAUGE<UG2>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
● |
● |
|
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
|
|
● |
| |
177 |
CLIP; AIR PIPE
ID=10 & 10
|
1-09709-277-1 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
05 |
1 |
9510-9802 |
● |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. AIR SUSP DRIVER SEAT<A56>
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
01 |
1 |
9510-9802 |
|
|
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
● |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9702 |
● |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9703-9802 |
● |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9703-9802 |
● |
● |
● |
| |
242 |
BRACKET; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47475-427-1 |
04 |
1 |
9510-9802 |
● |
● |
● |
| |
250 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
|
● |
|
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
● |
|
|
| |
250 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9802 |
|
● |
|
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9802 |
● |
|
|
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
|
|
| |
250 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
|
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
● |
|
|
| |
250 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
|
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
● |
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
● |
|
● |
| |
253 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
9510-9802 |
|
● |
|
| |
253 |
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
9510-9802 |
● |
|
|
| |
253 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
03 |
1 |
9510-9802 |
● |
● |
● |
| |
253 |
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
03 |
1 |
9510-9802 |
● |
|
|
| |
253 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
03 |
1 |
9510-9802 |
|
|
● |
| |
253 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
02 |
1 |
9510-9802 |
● |
|
|
| |
253 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
02 |
1 |
9510-9802 |
|
|
● |
| |
254 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-9606 |
|
● |
|
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-9606 |
● |
|
|
| |
254 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9802 |
|
● |
|
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9802 |
● |
|
|
| |
254 |
BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
02 |
1 |
9510-0204 |
● |
● |
● |
| |
254 |
BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
02 |
1 |
0205-0205 |
● |
● |
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
● |
|
|
| |
254 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
● |
|
|
| |
254 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
|
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
● |
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
● |
|
● |
| |
258 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
● |
● |
● |
| |
258 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
● |
● |
● |
| |
267 |
BOLT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0109-0211 |
● |
● |
● |
| |
267 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0212-0512 |
● |
● |
|
| |
267 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0212-0512 |
|
|
● |
| |
267 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
|
| |
267 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
|
|
● |
| |
268 |
NUT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0109-0211 |
● |
● |
● |
| |
268 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0212-0602 |
● |
● |
|
| |
268 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0212-0602 |
|
|
● |
| |
268 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
|
| |
268 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
|
● |
| |
271 |
CLIP; AIR PIPE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
9510-0012 |
● |
● |
● |
| |
271 |
CLIP; AIR PIPE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
0101-0211 |
● |
● |
|
| |
271 |
CLIP; AIR PIPE FIX
ID=9
|
9-09524-872-0 |
01 |
1 |
0101-0211 |
|
|
● |
| |
271 |
CLIP; AIR PIPE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
271 |
CLIP; AIR PIPE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
271 |
CLIP; AIR PIPE FIX
ID=9
|
9-09524-872-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
271 |
CLIP; AIR PIPE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
0604- |
|
● |
|
| |
271 |
CLIP; AIR PIPE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
0604- |
● |
|
|
| |
271 |
CLIP; AIR PIPE FIX
ID=9
|
9-09524-872-0 |
01 |
1 |
0604- |
|
|
● |
| |
274 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
02 |
1 |
9510-9802 |
|
● |
|
| |
274 |
CLIP; AIR PIPE
EXC. BRAKE REGULATION ADR<TDU>
ID=6.35 & 10.0
|
1-09709-274-1 |
02 |
1 |
9510-9802 |
● |
|
|
| |
274 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
274 |
CLIP; AIR PIPE
BRAKE REGULATION ADR<TDU>
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9802 |
● |
|
|
| |
274 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9802 |
|
|
● |
| |
280 |
CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
283 |
NUT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
● |
● |
|
| |
283 |
NUT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
● |
● |
|
| |
283 |
NUT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
● |
● |
|
| |
283 |
NUT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
● |
● |
|
| |
284 |
CLIP; FLEX HOSE
ID=18 & 18
|
8-94323-068-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
287 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
9904-0211 |
● |
● |
● |
| |
287 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212- |
|
● |
● |
| |
287 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212- |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9511-9511 |
|
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9511-9511 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9512-9606 |
|
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9512-9606 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9607 |
|
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9607 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9608-9712 |
|
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9608-9712 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9801-0004 |
|
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9801-0004 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
|
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
|
|
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
|
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9511-9511 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9512-9606 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9607-9607 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
EXHAUST BRAKE<NF8>
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9608-9609 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9610-9712 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9801-0512 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0601-0602 |
● |
|
|
| |
288 |
BOLT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
EXHAUST BRAKE<NF8>
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0603- |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0602-0602 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0603-0603 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
M8
|
9-09110-408-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
M8
|
9-09110-408-0 |
02 |
1 |
9511-9511 |
|
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8
|
9-09110-408-0 |
02 |
1 |
9511-9511 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
M8
|
9-09110-408-0 |
02 |
1 |
9512-9606 |
|
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
M8
|
9-09110-408-0 |
02 |
1 |
9512-9606 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9607 |
|
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9607 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9608-0004 |
|
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9608-0004 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
EXHAUST BRAKE<NF8>
M8
|
9-09110-408-0 |
03 |
1 |
9511-9511 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
M8
|
9-09110-408-0 |
03 |
1 |
9512-9606 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9607 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9608-9609 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9610-0601 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0602-0602 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603-0603 |
● |
|
|
| |
290 |
NUT; CLIP,AIR PIPE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC
ENG(81L)
EXHAUST BRAKE<NF8>
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
0603- |
● |
|
|
| |
292 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0602- |
● |
|
|
| |
292 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
9510-9803 |
● |
● |
● |
| |
292 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9804-9903 |
● |
● |
● |
| |
292 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
9904-0211 |
● |
● |
● |
| |
292 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212- |
|
● |
● |
| |
292 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212- |
● |
|
|
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. AIR SUSP DRIVER SEAT<A56>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
|
|
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X35 FLANGE
|
0-28080-835-0 |
01 |
1 |
9510-9606 |
● |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X40 FLANGE
|
0-28680-840-0 |
01 |
1 |
9607-9802 |
● |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X40 FLANGE
|
0-28080-840-0 |
03 |
1 |
9510-9606 |
● |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X45 FLANGE
|
0-28080-845-0 |
03 |
1 |
9607-9802 |
● |
● |
● |
| |
300 |
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
02 |
1 |
0206-0904 |
● |
● |
● |
| |
300 |
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
|
8-98059-720-0 |
02 |
1 |
0905- |
● |
● |
● |
| |
305 |
BOLT; CLIP BRKT
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0212-0512 |
● |
|
|
| |
305 |
BOLT; CLIP BRKT
6HH1 STD 4VALVE ENG(1A6)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXHAUST BRAKE<NF8>
NEW ZEALAND EQUIPMENT(PK5)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
|
|
| |
311 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
(B)
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9510-9802 |
● |
● |
|
| |
311 |
CLIP; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
(B)
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9510-9802 |
● |
● |
|
| |
311 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
(A)
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
311 |
CLIP; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR
GAUGE<UG2>
(A)
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
316 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
9510-0012 |
● |
● |
● |
| |
316 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0101-0211 |
● |
● |
|
| |
316 |
BOLT; CLIP
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0101-0211 |
|
|
● |
| |
316 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0212-0512 |
|
● |
|
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0212-0512 |
● |
|
|
| |
316 |
BOLT; CLIP
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0212-0512 |
|
|
● |
| |
316 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0601-0603 |
|
● |
|
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0601-0603 |
● |
|
|
| |
316 |
BOLT; CLIP
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0601-0603 |
|
|
● |
| |
316 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0604- |
|
● |
|
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0604- |
● |
|
|
| |
316 |
BOLT; CLIP
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0604- |
|
|
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9903 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9904-0211 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0212- |
|
● |
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0212- |
● |
|
|
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 12
|
1-09709-275-1 |
02 |
1 |
9510-9803 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9804-9903 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
9904-0211 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212-0601 |
|
● |
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0212-0601 |
● |
|
|
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0602- |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9804-9903 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
9510-9903 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9904-0211 |
● |
● |
● |
| |
318 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0212- |
|
● |
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0212- |
● |
|
|
| |
333 |
BRACKET; BRK AIR PIPE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
(A)
|
1-79738-846-2 |
01 |
1 |
0212-0601 |
● |
|
|
| |
333 |
BRACKET; BRK AIR PIPE
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>
(A)
|
1-79738-846-2 |
01 |
1 |
0602- |
● |
|
|
| |
333 |
BRACKET; BRK AIR PIPE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
(A)
|
1-79738-846-2 |
01 |
1 |
0602- |
● |
|
|
| |
333 |
BRACKET; BRK AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
|
1-47475-427-1 |
01 |
1 |
0212- |
● |
|
|
| |
333 |
BRACKET; BRK AIR PIPE
(A)
|
1-79738-815-2 |
01 |
1 |
9510-0211 |
● |
● |
● |
| |
333 |
BRACKET; BRK AIR PIPE
(A)
|
1-79738-815-2 |
01 |
1 |
0212-0601 |
|
● |
● |
| |
333 |
BRACKET; BRK AIR PIPE
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
(A)
|
1-79738-815-2 |
01 |
1 |
0212-0601 |
● |
|
|
| |
333 |
BRACKET; BRK AIR PIPE
(A)
|
1-79738-815-2 |
01 |
1 |
0602- |
|
● |
● |
| |
333 |
BRACKET; BRK AIR PIPE
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>,
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
(A)
|
1-79738-815-2 |
01 |
1 |
0602- |
● |
|
|
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9510-9802 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9803-9810 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9803-9810 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9803-9810 |
|
|
● |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,
DRIVER ISRINGHAUSEN SEAT<SJA>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9811-0004 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9811-0004 |
|
|
● |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0005-0010 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0005-0010 |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0005-0010 |
|
|
● |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0011- |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0011- |
● |
● |
|
| |
356 |
CLIP; AIR PIPE
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0011- |
|
|
● |
| |
367 |
BRACKET ASM
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
9510-9702 |
● |
● |
● |
| |
367 |
BRACKET ASM
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
9703-9802 |
● |
● |
● |
| |
367 |
BRACKET ASM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47475-427-1 |
01 |
1 |
9703-9802 |
● |
● |
● |
| |
367 |
BRACKET ASM
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
9803-0211 |
● |
● |
● |
| |
367 |
BRACKET ASM
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
0212- |
|
● |
● |
| |
367 |
BRACKET ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
0212- |
● |
|
|
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0212-0512 |
● |
|
|
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28050-845-0 |
01 |
1 |
0601- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(A)
ID=13 H=75 L=25
|
1-09700-601-0 |
01 |
1 |
0005-0009 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0010-0010 |
● |
● |
|
| |
375 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0010-0010 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0011 |
● |
● |
|
| |
375 |
CLIP; AIR PIPE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0011 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER
ISRINGHAUSEN SEAT<SJA>,A/T<X9D>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0211 |
● |
● |
|
| |
375 |
CLIP; AIR PIPE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0211 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0211 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER
ISRINGHAUSEN SEAT<SJA>,A/T<X9D>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212-0602 |
● |
● |
|
| |
375 |
CLIP; AIR PIPE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212-0602 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER
ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212-0602 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
EXC. NEW ZEALAND EQUIPMENT(PK5)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212-0602 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER
ISRINGHAUSEN SEAT<SJA>,A/T<X9D>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0603- |
● |
● |
|
| |
375 |
CLIP; AIR PIPE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0603- |
|
● |
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER
ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0603- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
EXHAUST BRAKE<NF8>
EXC. NEW ZEALAND EQUIPMENT(PK5)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0603- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
6HK1 TCC ENG(81L)
EXHAUST BRAKE<NF8>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0603- |
● |
|
|
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X40 FLANGE
|
0-28080-840-0 |
01 |
1 |
9510-9606 |
● |
● |
● |
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9607-0211 |
● |
● |
● |
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0212-0512 |
|
● |
● |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0212-0512 |
● |
|
|
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28050-845-0 |
01 |
1 |
0601- |
|
● |
● |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28050-845-0 |
01 |
1 |
0601- |
● |
|
|
| |
376 |
BOLT; BRKT
EXHAUST BRAKE<NF8>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0010-0010 |
● |
|
|
| |
376 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0011-0211 |
|
● |
|
| |
376 |
BOLT; BRKT
EXHAUST BRAKE<NF8>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0011-0211 |
● |
|
|
| |
376 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0212-0512 |
|
● |
|
| |
376 |
BOLT; BRKT
EXHAUST BRAKE<NF8>
EXC. NEW ZEALAND EQUIPMENT(PK5)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0212-0512 |
● |
|
|
| |
376 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601-0602 |
|
● |
|
| |
376 |
BOLT; BRKT
EXHAUST BRAKE<NF8>
EXC. NEW ZEALAND EQUIPMENT(PK5)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601-0602 |
● |
|
|
| |
376 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0603- |
|
● |
|
| |
376 |
BOLT; BRKT
6HK1 TCC ENG(81L)
EXHAUST BRAKE<NF8>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0603- |
● |
|
|
| |
376 |
BOLT; BRKT
EXHAUST BRAKE<NF8>
EXC. NEW ZEALAND EQUIPMENT(PK5)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0603- |
● |
|
|
| |
382 |
CLIP; UPR
ID=10 & 10
|
1-09709-241-0 |
03 |
1 |
9510-9802 |
● |
● |
● |
| |
383 |
CLIP; LWR
ID=10 & 10
|
1-09709-241-0 |
03 |
1 |
9510-9802 |
● |
● |
● |
| |
386 |
CLIP; CENTER
ID=10
|
1-09709-242-0 |
03 |
1 |
9510-9802 |
● |
● |
● |
