Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#36223) — 718 parça

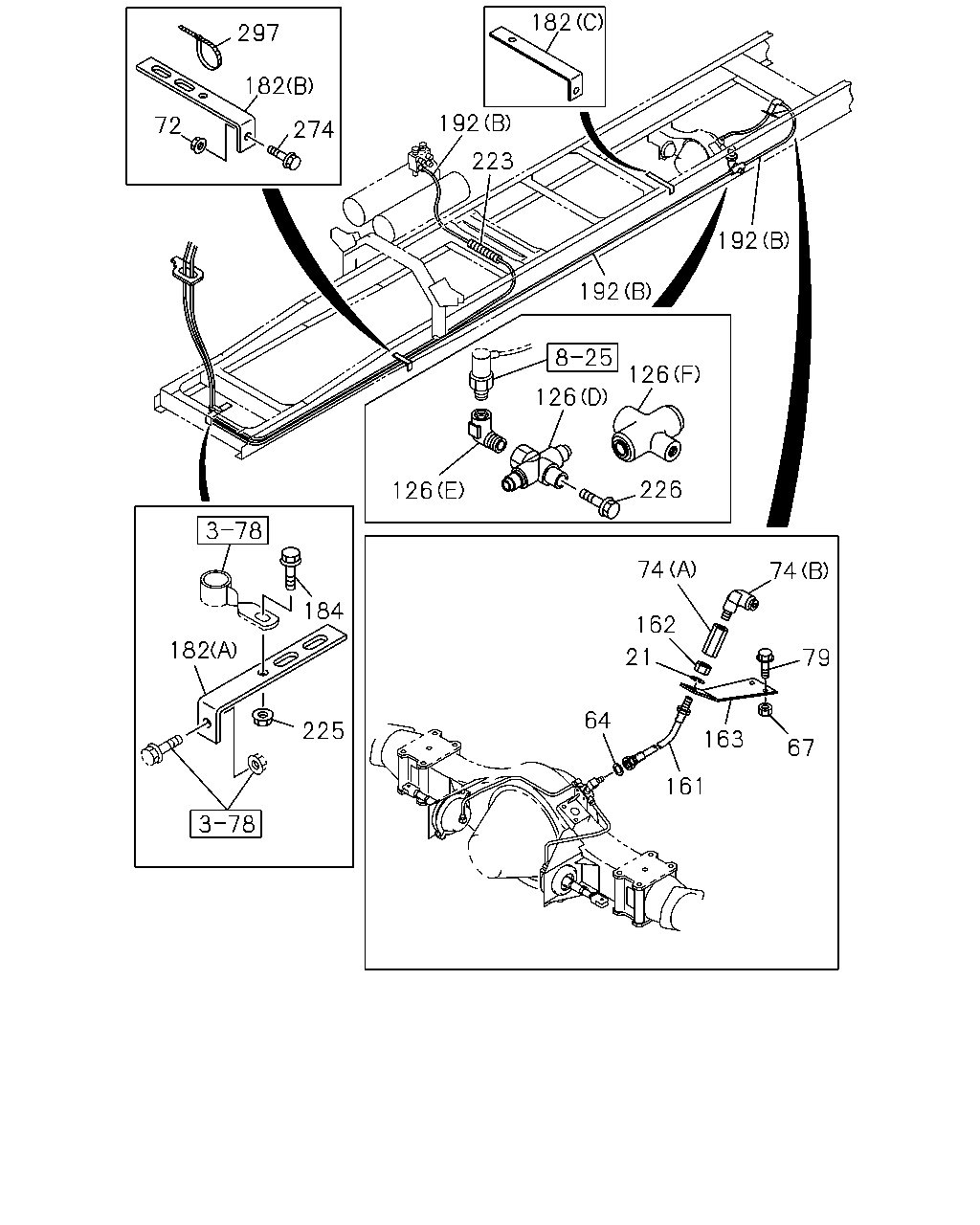

60 91 37 97 162 79 21 97 163 161 67 64 19 175 127 127 97 178 72 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	9510-9802	●	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	9-99111-412-0	01	1	9510-9802	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0005-0211	●	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0211			●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0212-0603	●	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0212-0603			●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-	●	●
21	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-			●
37	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	9510-9802	●	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-0211	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-0211			●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0212-	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0212-			●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0212-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0211	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0211			●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0212-0602	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0212-0602			●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0008-0211		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0212-0602		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	0212-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0211	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0211			●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0212-0512			●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & M16 STRAIGHT	1-09654-316-1	01	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09660-913-1	02	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9510-9802	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0512	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0004	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0005-0211	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-07462-580-1	01	1	0005-0211			●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0212-0605	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-07462-580-1	01	1	0212-0605			●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-57462-580-1	01	1	0606-			●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0004	●	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0005-0211	●	●
162	NUT; FLEX HOSE M14	9-99111-414-0	01	1	0005-0211			●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0212-0512	●	●
162	NUT; FLEX HOSE M14	9-99111-414-0	01	1	0212-0512			●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-	●	●
162	NUT; FLEX HOSE M14	0-91111-514-0	01	1	0601-			●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	0212-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0004	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0005-0211	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0005-0211			●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0212-	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0212-			●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-611-4	01	1	9510-9802	●	●	●

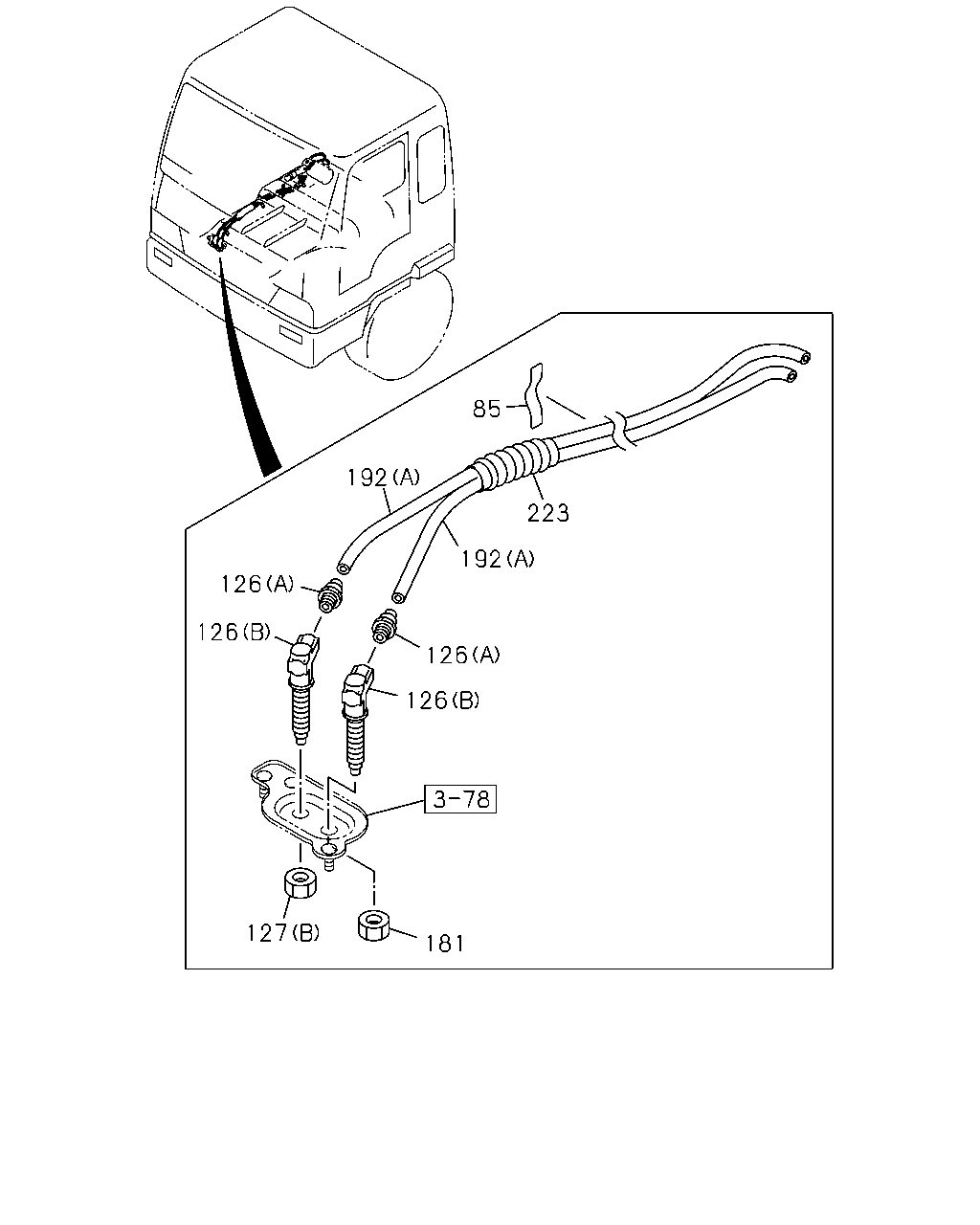

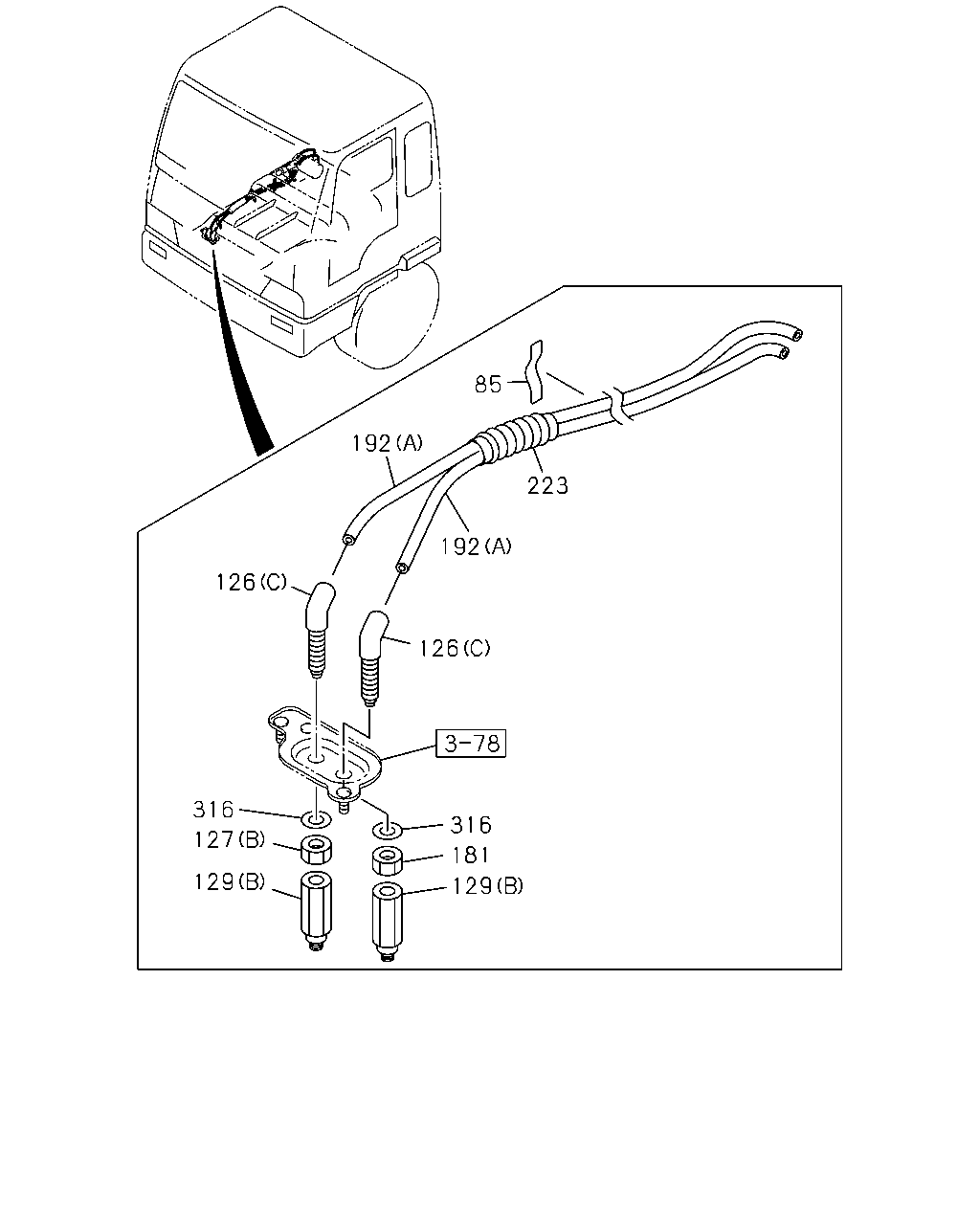

85 192 223 192 126 126 126 126 127 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903	●	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	9904-	●	●	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0211	●	●
126	UNION; NYLON TUBE (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0211			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0212-	●	●
126	UNION; NYLON TUBE (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0212-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0004	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0211	●	●
126	UNION; NYLON TUBE (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0211			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0212-	●	●
126	UNION; NYLON TUBE (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0212-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-0706	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-0707	●	●	●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0708-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9510-9802	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0512	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0512	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-	●	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212	●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-			●
223	TUBE; CORRUGATE WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=22	1-87410-096-0	01	1	0212-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	9803-9804	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	05	1	9805-0005	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	0006-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9805-0004	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9805-0004		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-			●

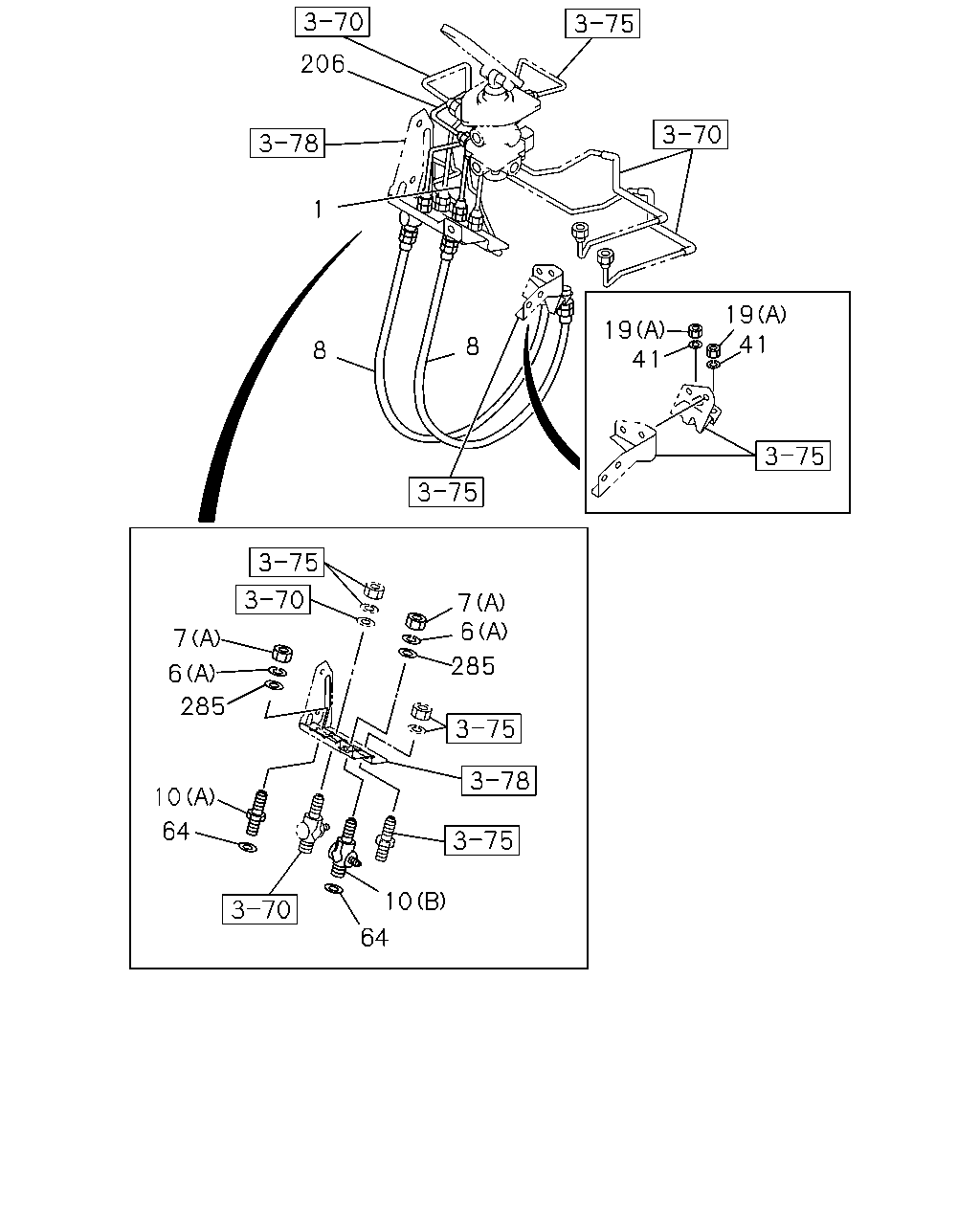

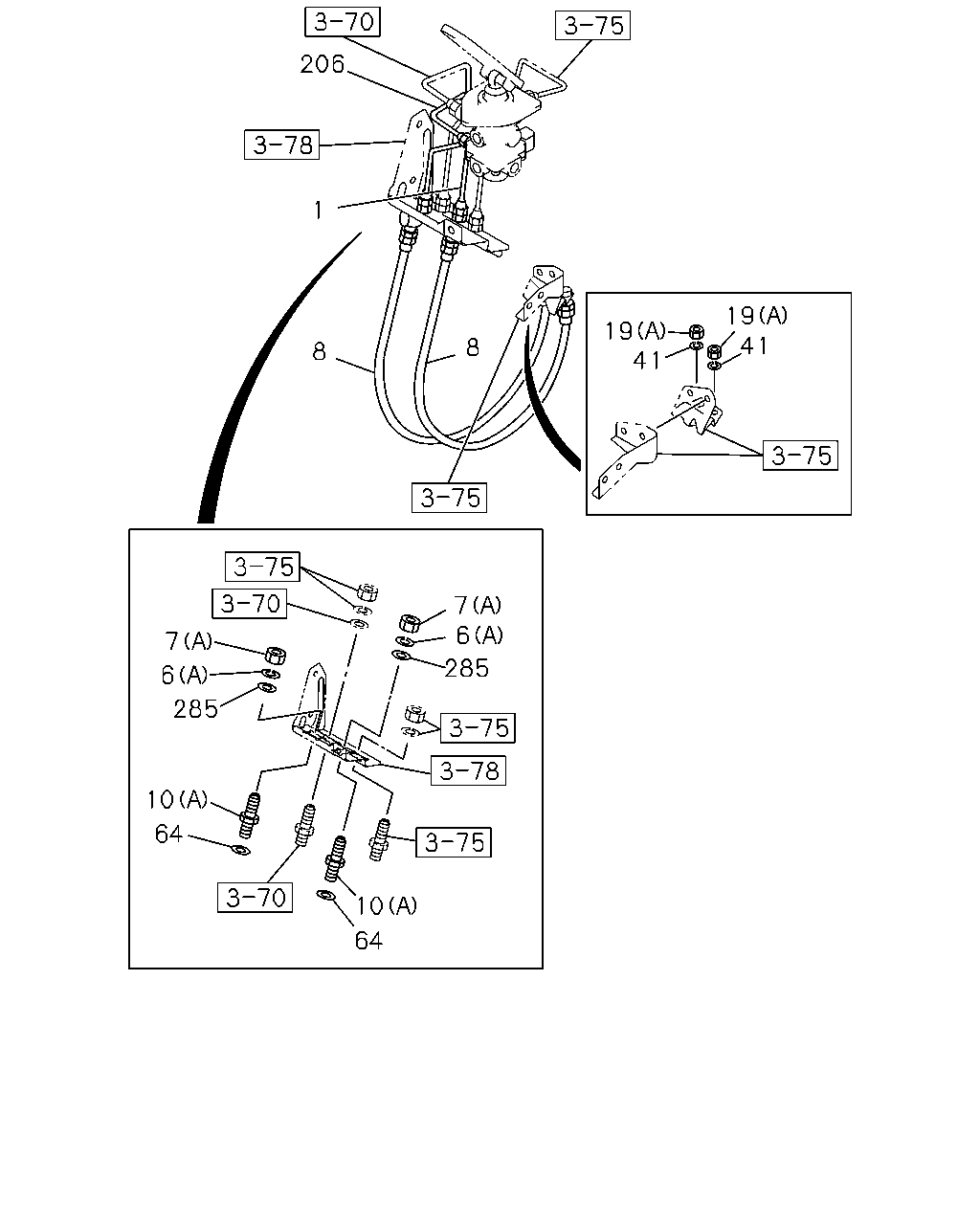

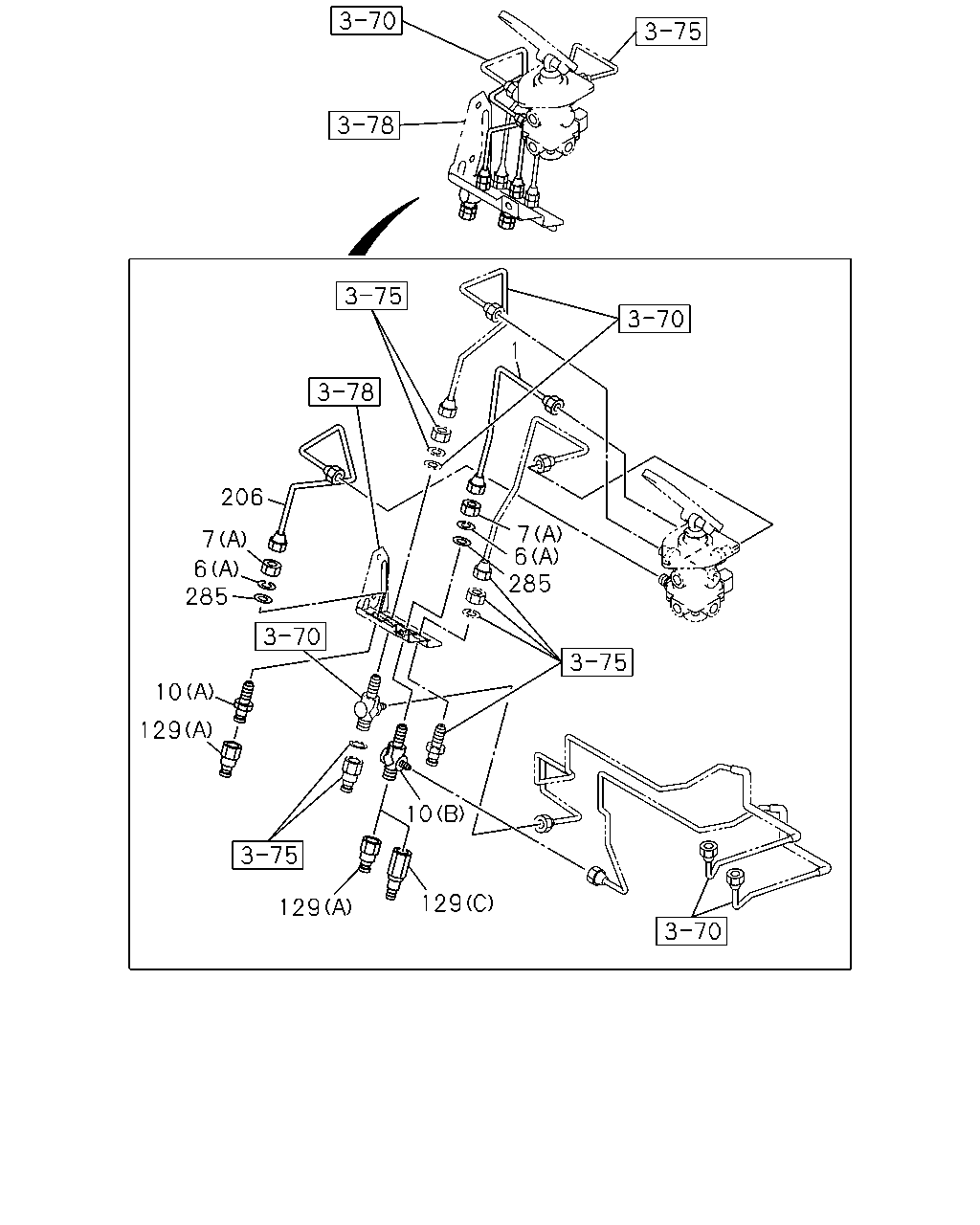

206 1 7 6 7 285 6 285 10 10 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9510-9902	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0212-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0603	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0212-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0512	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-451-1	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-451-1	01	1	9510-9802			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	9803-0103	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-721-0	01	1	9803-0103			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-754-0	01	1	0104-	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-754-0	01	1	0104-			●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0212-0706		●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0211	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9812-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007			●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0211	●	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-			●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9510-	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-0605	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●

254 192 187 144 97 29 144 159 31 192 46 31 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1477 SERVICED BY L=1550	1-47426-390-0	01	1	9510-9802	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2008 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1229 SERVICED BY L=1250	1-47426-388-0	01	1	9510-9802		●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2722 SERVICED BY L=3000	1-47426-397-0	01	1	9510-9802	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1145 SERVICED BY L=1250	1-47426-388-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2049 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2049 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802			●
31	PIPE; AIR,UNION TO UNION (A) L=2714 SERVICED BY L=3000	1-47426-397-0	01	1	9510-9802			●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & M16 STRAIGHT	1-09654-316-1	01	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09660-913-1	02	1	9510-9802	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2701 SERVICED BY L=3000	1-47426-397-0	01	1	9510-9802	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1528 SERVICED BY L=1550	1-47426-390-0	01	1	9510-9802	●	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2693 SERVICED BY L=3000	1-47426-397-0	01	1	9510-9802			●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1945 SERVICED BY L=1950	1-47426-393-0	01	1	9510-9802	●	●	●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-899-0	01	1	9510-9802	●	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212	●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-			●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-898-0	01	1	9510-9802	●	●	●

206 1 19 41 19 41 8 8 7 6 7 285 6 285 10 64 10 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9510-9902	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0212-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0603	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0212-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0512	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-451-1	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-451-1	01	1	9510-9802			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	9803-0103	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-721-0	01	1	9803-0103			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-754-0	01	1	0104-	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-754-0	01	1	0104-			●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	9510-9802	●	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	9-99111-412-0	01	1	9510-9802	●	●	●
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-0211	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-0211			●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0212-	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0212-			●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9510-	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-0605	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●

182 297 192 72 274 223 192 192 126 126 226 126 74 74 184 162 21 79 64 225 163 67 161 182 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0004	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0005-0211	●	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0211			●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0212-0603	●	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0212-0603			●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-	●	●
21	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-			●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-0211	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-0211			●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0212-	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0212-			●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0212-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0211	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0211			●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0212-0602	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0212-0602			●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0008-0211		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0212-0602		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	9803-0004	●	●	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	0005-0211	●	●
74	ADAPTER; UNION TO NYLON TUBE (A)	1-09660-881-0	01	1	0005-0211			●
74	ADAPTER; UNION TO NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	0212-	●	●
74	ADAPTER; UNION TO NYLON TUBE (A)	1-09660-881-0	01	1	0212-			●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0004	●	●	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0211	●	●
74	ADAPTER; UNION TO NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0211			●
74	ADAPTER; UNION TO NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-	●	●
74	ADAPTER; UNION TO NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-			●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	0212-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0211	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0211			●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0212-0512			●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0211	●	●
126	UNION; NYLON TUBE (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0211			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0212-	●	●
126	UNION; NYLON TUBE (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0212-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0004	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0211	●	●
126	UNION; NYLON TUBE (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0211			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0212-	●	●
126	UNION; NYLON TUBE (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0212-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-0706	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-0707	●	●	●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0708-		●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0004	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0005-0211	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-07462-580-1	01	1	0005-0211			●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0212-0605	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-07462-580-1	01	1	0212-0605			●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-57462-580-1	01	1	0606-			●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0004	●	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0005-0211	●	●
162	NUT; FLEX HOSE M14	9-99111-414-0	01	1	0005-0211			●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0212-0512	●	●
162	NUT; FLEX HOSE M14	9-99111-414-0	01	1	0212-0512			●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-	●	●
162	NUT; FLEX HOSE M14	0-91111-514-0	01	1	0601-			●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	0212-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0004	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0005-0211	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0005-0211			●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0212-	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0212-			●
182	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47479-287-0	01	1	0109-0211	●	●	●
182	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47479-287-0	01	1	0212-	●	●
182	BRACKET; TUBE CLIP (C)	1-47479-287-0	01	1	0212-			●
182	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30	1-47477-645-2	01	1	9803-	●	●	●
182	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=150 H=30	1-47477-629-2	02	1	0008-0211		●
182	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=150 H=30	1-47477-629-2	02	1	0212-		●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0211	●	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0211			●
184	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0212-0512	●	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0212-0512			●
184	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212	●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-			●
223	TUBE; CORRUGATE WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=22	1-87410-096-0	01	1	0212-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	9803-9804	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	05	1	9805-0005	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	0006-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9805-0004	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9805-0004		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-			●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0004	●	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0211	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0211			●
225	NUT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0212-0602	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0212-0602			●
225	NUT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-			●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0004	●	●	●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0211	●	●
226	BOLT; UNION M8X20 FLANGE	0-28680-820-0	01	1	0005-0211			●
226	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0212-0512	●	●
226	BOLT; UNION M8X20 FLANGE	0-28680-820-0	01	1	0212-0512			●
226	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
274	BOLT; BRKT WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0008-0211		●
274	BOLT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512		●
274	BOLT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
297	CLIP; BAND WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	02	1	0008-0211		●
297	CLIP; BAND WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	02	1	0212-		●

1 206 7 6 285 7 6 285 10 129 10 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9510-9902	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0212-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0603	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0212-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0512	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-451-1	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-451-1	01	1	9510-9802			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	9803-0103	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-721-0	01	1	9803-0103			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-754-0	01	1	0104-	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-754-0	01	1	0104-			●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0212-0706		●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0211	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9812-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007			●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0211	●	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-			●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9510-	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-0605	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●

206 1 19 41 19 41 8 8 7 6 7 285 6 285 10 64 10 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9510-9902	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0212-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0603	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0212-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0512	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-451-1	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-451-1	01	1	9510-9802			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	9803-0103	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-721-0	01	1	9803-0103			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-754-0	01	1	0104-	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-754-0	01	1	0104-			●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	9510-9802	●	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	9-99111-412-0	01	1	9510-9802	●	●	●
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0004	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-0211	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-0211			●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0212-	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0212-			●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9510-	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9510-0605	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●

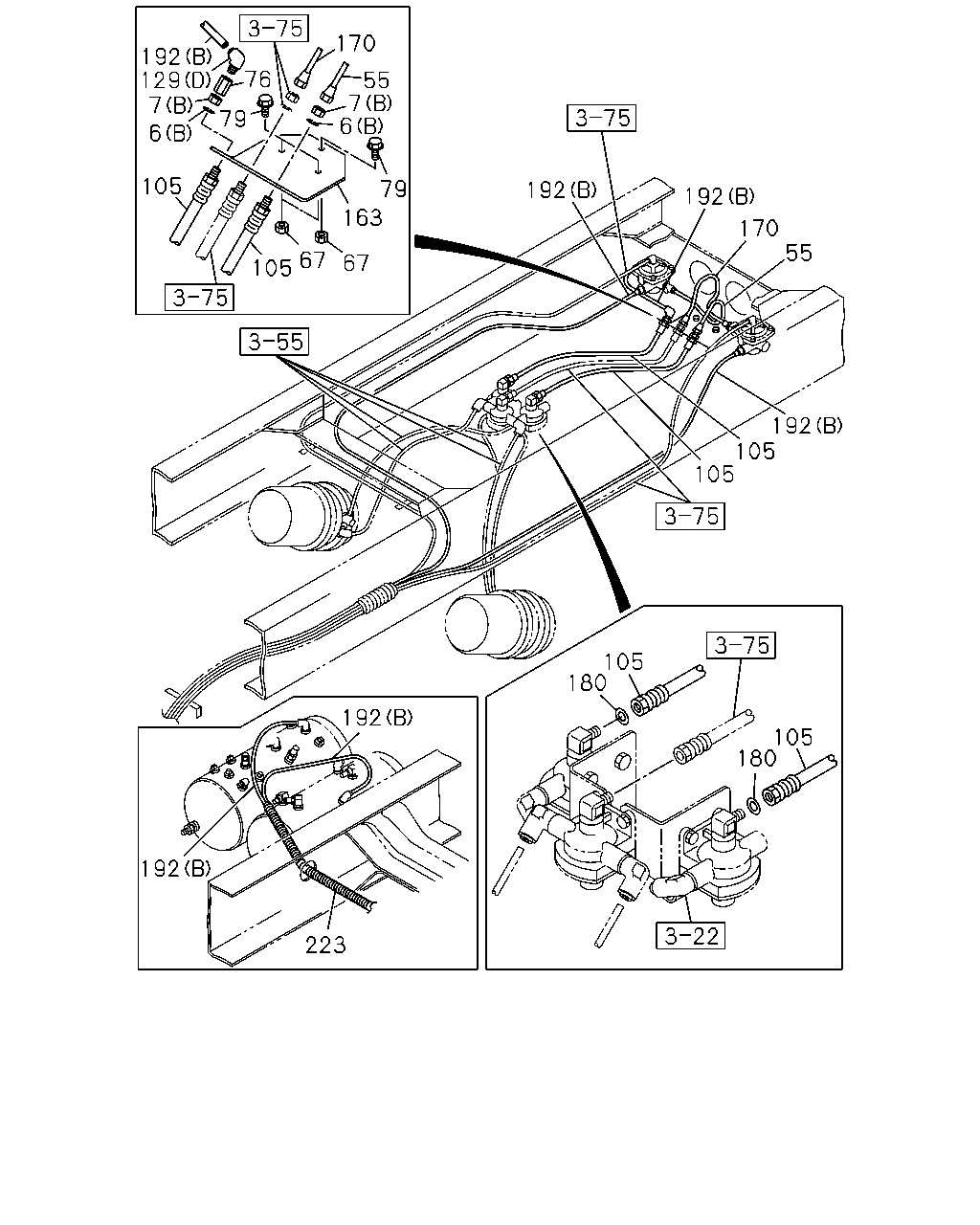

170 192 129 7 6 76 55 7 6 79 105 79 192 192 163 170 55 67 105 67 192 105 105 10 180 192 105 180 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0212-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0603	●	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0212-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0512	●	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-451-1	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-451-1	01	1	9510-9802			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	9803-0103	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-721-0	01	1	9803-0103			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-754-0	01	1	0104-	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-754-0	01	1	0104-			●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9510-9802	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-324-0	01	1	9510-9802	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9803-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=426	1-49118-958-0	01	1	0212-		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0212-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0211	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0211			●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0212-0602	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0212-0602			●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
76	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0212-		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	0212-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0211	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0211			●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0212-0512			●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	02	1	0212-0605		●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-57807-610-1	02	1	0606-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0212-0706		●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0211	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9812-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007			●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0211	●	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-			●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	0212-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0004	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0005-0211	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0005-0211			●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0212-	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0212-			●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=510	1-49118-957-0	01	1	0212-		●
180	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212	●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-			●
223	TUBE; CORRUGATE WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=22	1-87410-096-0	01	1	0212-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	9803-9804	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	05	1	9805-0005	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	0006-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9805-0004	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9805-0004		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-			●

118 59 87 101 114 87 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
59	PIPE; AIR,UNION TO FLEX HOSE L=3272 SERVICED BY L=3300	1-47426-426-0	01	1	9510-9802	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3266 SERVICED BY L=3300	1-47426-426-0	01	1	9510-9802			●
87	PIPE; AIR,AIR TANK TO UNION	1-49116-276-0	01	1	9510-9802	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1221 SERVICED BY L=1250	1-47426-416-0	01	1	9510-9802			●
101	PIPE; AIR,FLEX HOSE TO UNION L=3020 SERVICED BY L=3300	1-47426-426-0	01	1	9510-9802	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3012 SERVICED BY L=3300	1-47426-426-0	01	1	9510-9802			●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> L=527	1-49115-848-0	01	1	9510-9802		●
114	PIPE; AIR,QUICK RELEASE VLV	1-49116-448-0	01	1	9510-9802			●
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-892-0	01	1	9510-9802	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49114-892-0	01	1	9510-9802		●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-849-0	01	1	9510-9802		●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49115-849-0	01	1	9510-9802			●

85 192 223 192 126 126 316 316 127 181 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903	●	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	9904-	●	●	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0211	●	●
126	UNION; NYLON TUBE (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0211			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0212-	●	●
126	UNION; NYLON TUBE (F) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0212-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0004	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0211	●	●
126	UNION; NYLON TUBE (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0211			●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0212-	●	●
126	UNION; NYLON TUBE (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0212-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-0706	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-0707	●	●	●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0708-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9510-9802	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0512	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0212-0706		●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0211	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-	●		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0212-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9803-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	9812-0004	●	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007			●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0211	●	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0212-			●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0512	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-	●	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	02	1	9803-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0004	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0005-0211			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212	●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0212-0212			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0212-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-9804			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9805-0004		●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-0211			●
192	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-		●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0212-			●
223	TUBE; CORRUGATE WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=22	1-87410-096-0	01	1	0212-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	9803-9804	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	05	1	9805-0005	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	03	1	0006-	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	9805-0004	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0212-			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9803-9804			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	9805-0004		●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0005-0211			●
223	TUBE; CORRUGATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	04	1	0212-			●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	9804-0605	●	●	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	0-91610-520-0	02	1	0606-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
