◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#36222) — 309 parça
çizim 152191
65 87 70 1 62 3 77 2 85 89 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION 1-49114-887-0 01 1 9510-9802 ● ● ●
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 02 1 9510-9802 ● ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9510-9802 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2838 SERVICED BY L=2900 		1-47426-425-0 01 1 9510-9802 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2862 SERVICED BY L=2900 		1-47426-425-0 01 1 9510-9802 ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-210-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-211-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 9510-9802 ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-485-0 01 1 9510-9802 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2992 SERVICED BY L=3300 		1-47426-426-0 01 1 9510-9802 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3018 SERVICED BY L=3300 		1-47426-426-0 01 1 9510-9802 ●
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9510-9802 ● ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> 		1-49114-889-0 01 1 9510-9802 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49114-889-0 01 1 9510-9802 ●
87 PIPE; AIR,UNION TO AIR MASTER
L=1189 SERVICED BY L=1250 		1-47426-416-0 01 1 9510-9802 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> L=1189 SERVICED BY L=1250 		1-47426-416-0 01 1 9510-9802 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49114-890-0 01 1 9510-9802 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49114-890-0 01 1 9510-9802 ●

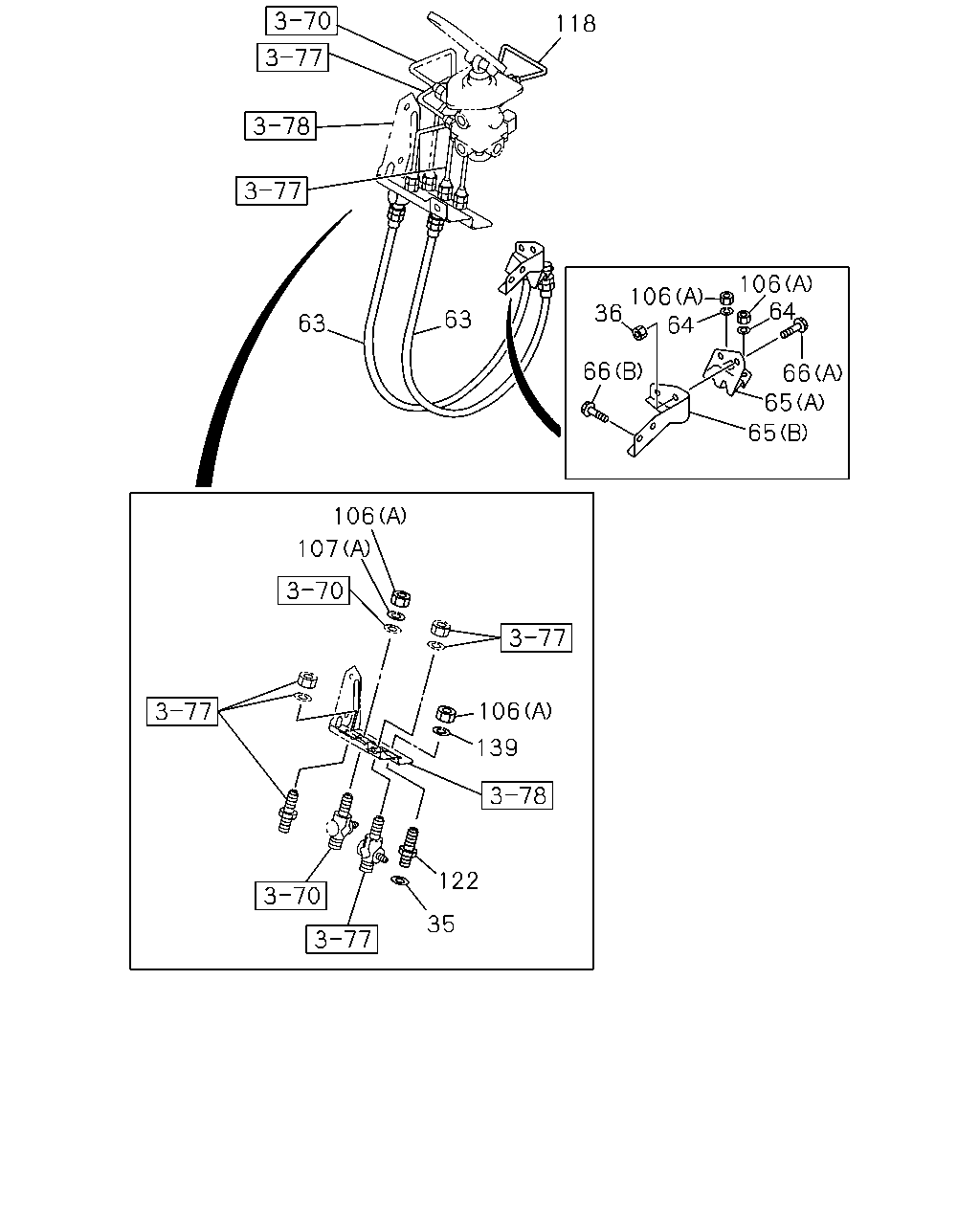

çizim 152192
118 106 64 106 36 64 63 63 66 66 65 65 106 107 106 139 122 35
BalonParca AdiParca NoAdetTipApplied Date A B C
35 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 0212- ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ● ●
36 NUT; HOSE BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=710 		0-07474-710-1 02 1 9510-9802 ● ● ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9510-9802 ● ● ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-210-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-211-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 9510-9802 ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-485-0 01 1 9510-9802 ● ● ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE 		0-28680-825-0 04 1 0212-0512 ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ●
66 BOLT; HOSE BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9802 ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 9510-9802 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 0212-0512 ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601- ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9510-0211 ● ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0212-0512 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-416-0 02 1 0212-0512 ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		0-91111-516-0 02 1 0601- ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604- ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9510-0211 ● ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		0-91510-516-0 02 1 0604- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE 1-49116-428-0 01 1 9510-9512 ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 9601- ● ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09656-638-0 01 1 9510-9802 ● ●
122 CONNECTOR; FLEX HOSE 1-09656-638-0 01 1 9510-9802 ●
122 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-324-0 01 1 9510-9802 ● ●
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-0605 ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●

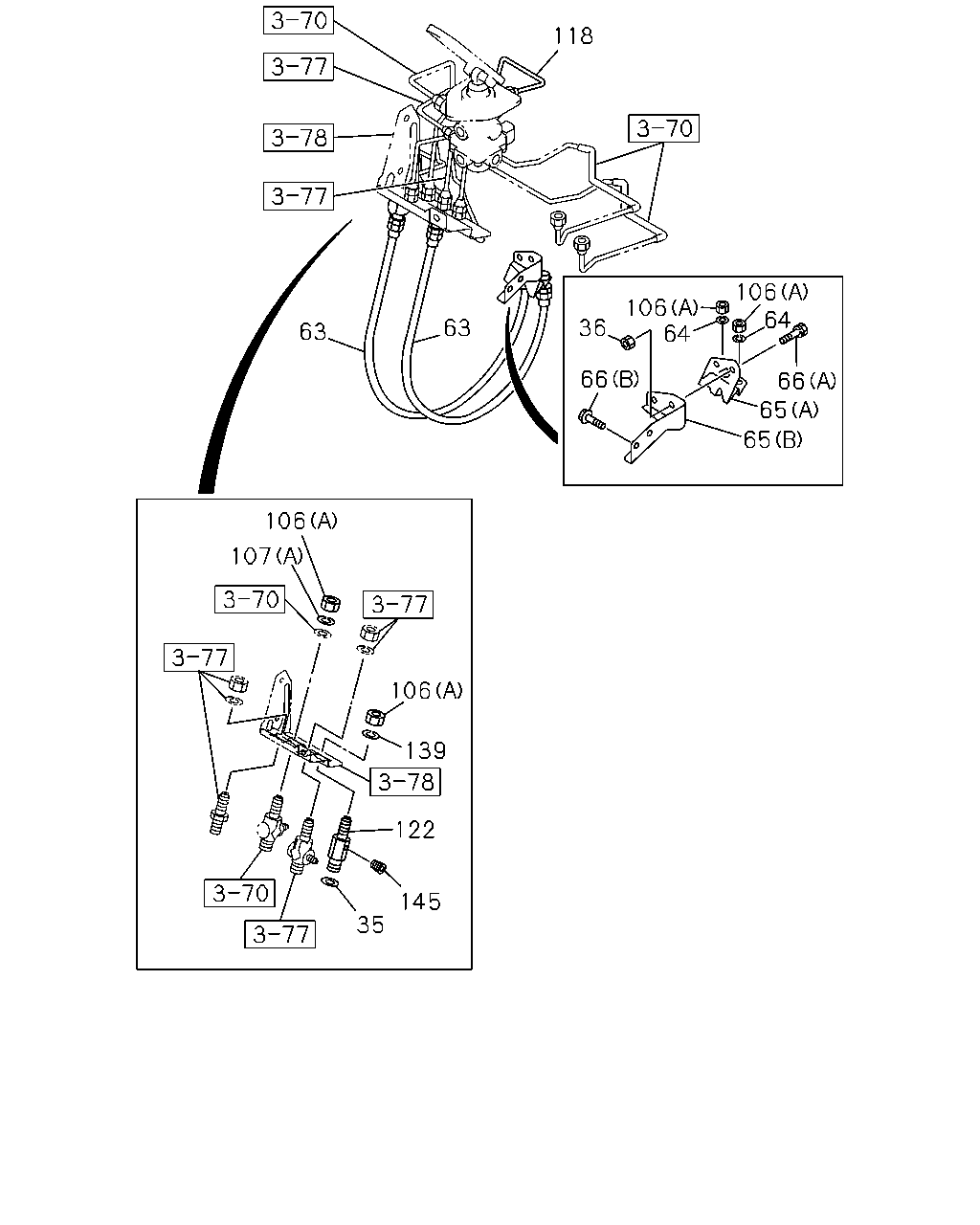

çizim 152194
118 106 64 106 64 36 63 63 66 66 65 65 106 107 106 139 122 145 35
BalonParca AdiParca NoAdetTipApplied Date A B C
35 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 0212- ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ● ●
36 NUT; HOSE BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=710 		0-07474-710-1 02 1 9510-9802 ● ● ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9510-9802 ● ● ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-210-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-211-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 9510-9802 ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-485-0 01 1 9510-9802 ● ● ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE 		0-28680-825-0 04 1 0212-0512 ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ●
66 BOLT; HOSE BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9802 ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 9510-9802 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 0212-0512 ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601- ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9510-0211 ● ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0212-0512 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-416-0 02 1 0212-0512 ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		0-91111-516-0 02 1 0601- ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604- ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9510-0211 ● ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		0-91510-516-0 02 1 0604- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE 1-49116-428-0 01 1 9510-9512 ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 9601- ● ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09656-638-0 01 1 9510-9802 ● ●
122 CONNECTOR; FLEX HOSE 1-09656-638-0 01 1 9510-9802 ●
122 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-324-0 01 1 9510-9802 ● ●
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-0605 ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●
145 PLUG
DUAL AIR GAUGE<UG2> PT1/4 		9-99204-513-0 01 1 9510-9802 ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 9510-9802 ●
çizim 152198
118 106 107 106 139 122 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9803- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 0212-0512 ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601- ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9510-0211 ● ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0212-0512 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-416-0 02 1 0212-0512 ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		0-91111-516-0 02 1 0601- ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604- ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9510-0211 ● ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		0-91510-516-0 02 1 0604- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE 1-49116-428-0 01 1 9510-9512 ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 9601- ● ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09656-638-0 01 1 9510-9802 ● ●
122 CONNECTOR; FLEX HOSE 1-09656-638-0 01 1 9510-9802 ●
122 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-324-0 01 1 9510-9802 ● ●
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-0605 ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●

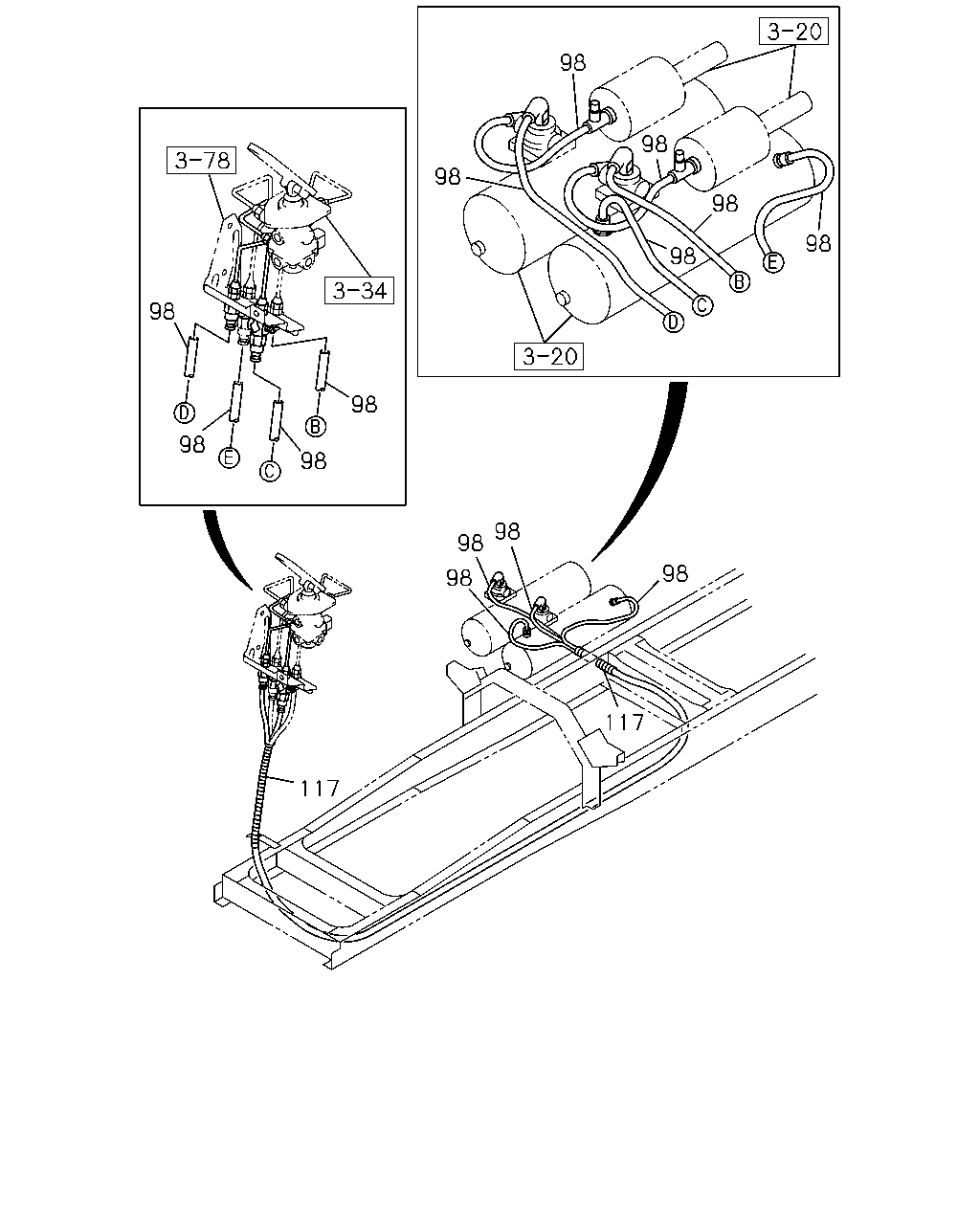

çizim 152219
98 98 98 98 98 98 98 98 98 98 98 98 98 98 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9510- ● ● ●
98 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9803-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9803-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9806-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0212-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0212-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0603- ● ● ●

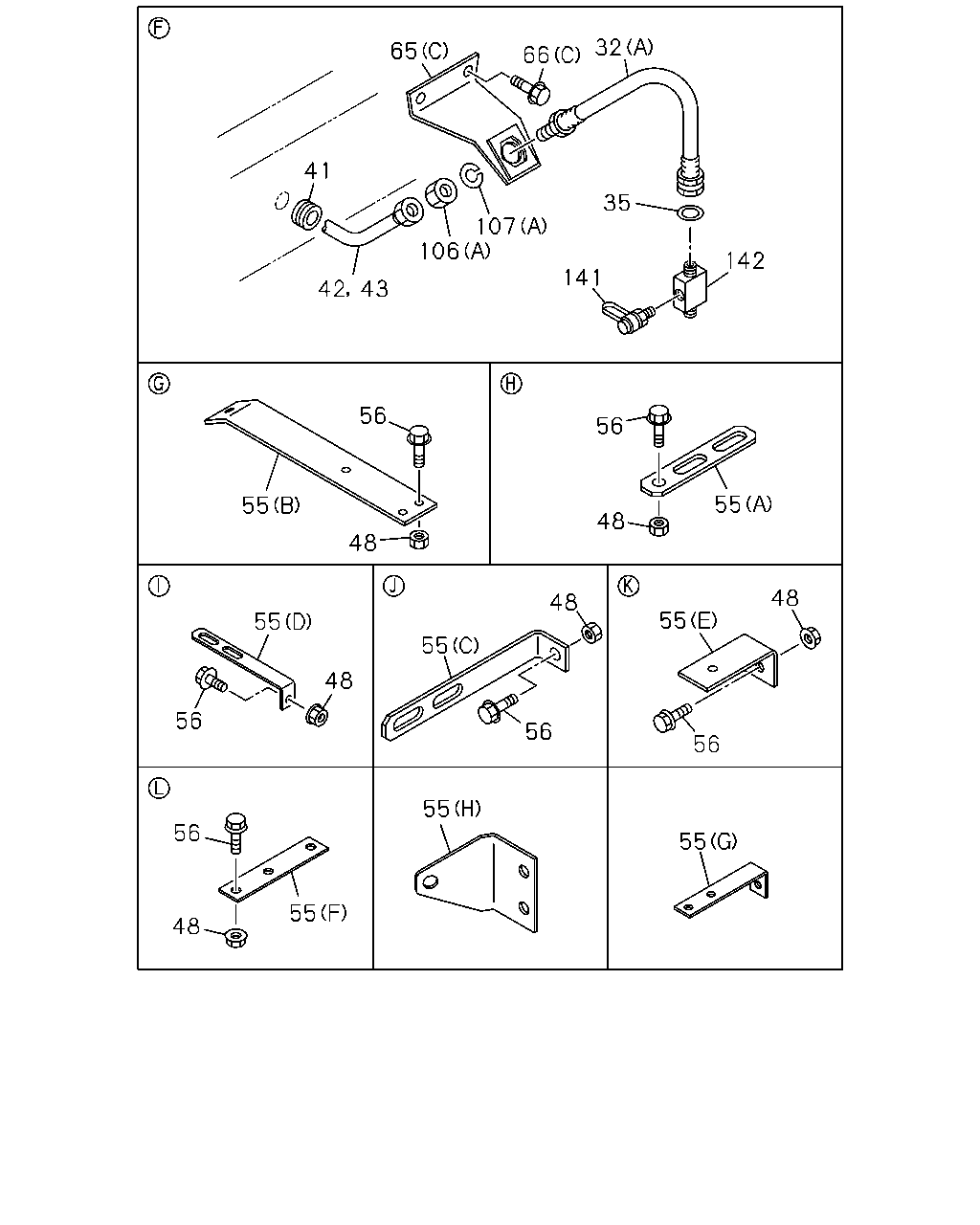

çizim 152452
32 65 66 41 35 107 106 142 141 42 43 56 56 55 55 48 48 48 48 55 55 55 48 56 56 56 55 56 55 55 48
BalonParca AdiParca NoAdetTipApplied Date A B C
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> (A) L=630 		0-07475-630-1 02 1 0603-0605 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> (A) L=630 		0-57475-630-1 02 1 0606- ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520 		0-07475-520-1 02 1 0212-0602 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520 		0-07475-520-1 02 1 0603-0605 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520 		0-57475-520-1 02 1 0606- ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720 		0-07807-720-1 01 1 0212-0605 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720 		0-57807-720-1 01 1 0606- ●
35 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 0212- ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ● ●
41 GROMMET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0212- ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> L=1185 SERVICED BY L=1250 		1-47426-388-0 01 1 0603- ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1199 SERVICED BY L=1250 		1-47428-791-0 01 1 0212-0602 ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> L=1199 SERVICED BY L=1250 		1-47428-791-0 01 1 0603- ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> L=1194 SERVICED BY L=1250 		1-47426-388-0 01 1 0603- ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0212-0602 ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0603- ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> M8 FLANGE 		0-91150-108-0 09 1 0603-0603 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> M8 FLANGE 		0-91180-108-0 09 1 0603-0603 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> M8 FLANGE 		0-91180-108-0 18 1 0603- ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 11 1 0212-0601 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 07 1 0602-0602 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> M8 FLANGE 		0-91180-108-0 07 1 0603-0603 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> M8 FLANGE 		0-91180-108-0 14 1 0603- ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE 		0-91150-108-0 01 1 0212-0602 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CAB UP +50MM<W60> M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CAB UP +50MM<W60> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
48 NUT; UNION BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 0212-0601 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 07 1 0602-0602 ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> M8 FLANGE 		0-91150-108-0 07 1 0603-0603 ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> (D) L=150 H=30 		1-47477-629-2 01 1 0603- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> (E) L=160 B=25 		1-53441-518-0 02 1 0603- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) 		1-47476-699-2 01 1 0212-0601 ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47477-256-1 01 1 0212- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-47477-514-3 03 1 0212- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=100 H=30 		1-47477-645-2 03 1 0212-0601 ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=100 H=30 		1-47477-645-2 02 1 0602- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=225 		1-47477-646-3 01 1 0212-0602 ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (C) L=225 		1-47477-646-3 01 1 0603- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=55 B=25 		1-47478-439-0 01 1 0212-0601 ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) L=59 B=20 		1-47479-048-0 01 1 0212- ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> (F) L=117 		1-47478-116-0 01 1 0212-0602 ●
55 BRACKET; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CAB UP +50MM<W60> (F) L=117 		1-47478-116-0 01 1 0603- ●
55 BRACKET; TUBE UNION
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30 		1-47477-629-2 02 1 0212-0601 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> M8X25 FLANGE 		0-28650-825-0 09 1 0603- ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 13 1 0212-0512 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 13 1 0601-0601 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 07 1 0602-0602 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> M8X25 FLANGE 		0-28650-825-0 07 1 0603- ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE 		0-28680-825-0 01 1 0212-0512 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE 		0-28650-825-0 01 1 0601-0602 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. CAB UP +50MM<W60> M8X25 FLANGE 		0-28650-825-0 01 1 0603- ●
56 BOLT; UNION BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 02 1 0212-0512 ●
56 BOLT; UNION BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0601 ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0602- ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-210-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-47476-211-0 01 1 0212- ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 9510-9802 ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-485-0 01 1 9510-9802 ● ● ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE 		0-28680-825-0 04 1 0212-0512 ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ●
66 BOLT; HOSE BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9802 ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 9510-9802 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 0212-0512 ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601- ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9510-0211 ● ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0212-0512 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-416-0 02 1 0212-0512 ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		0-91111-516-0 02 1 0601- ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604- ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9510-0211 ● ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		0-91510-516-0 02 1 0604- ●
141 CONNECTOR; TEST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0212- ●
142 UNION; 3-WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09660-838-0 01 1 0212-0305 ●
142 UNION; 3-WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09661-592-0 01 1 0306- ●

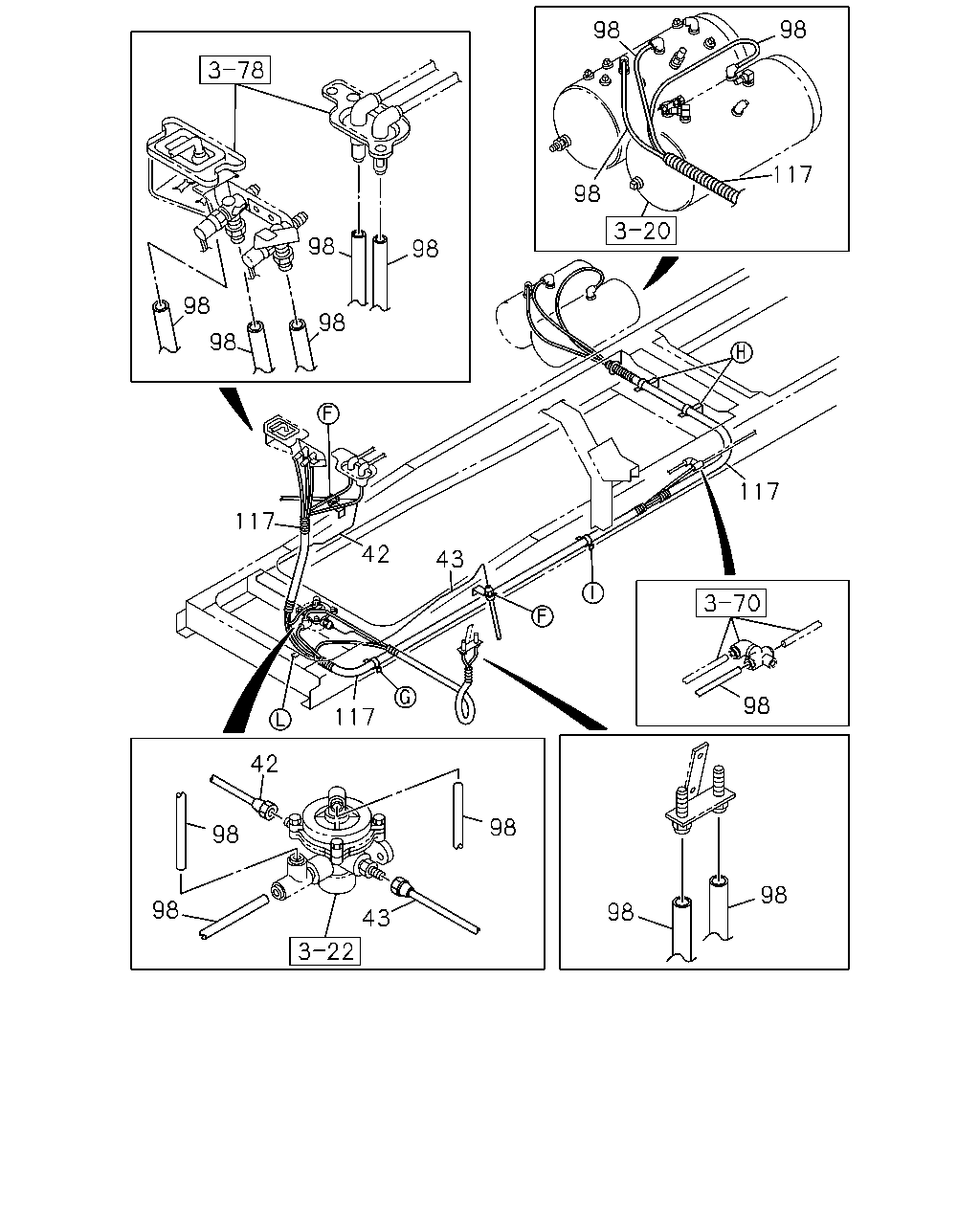

çizim 152454
98 98 117 98 98 98 98 98 98 117 117 42 43 98 117 42 98 98 98 98 98 43
BalonParca AdiParca NoAdetTipApplied Date A B C
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> L=1185 SERVICED BY L=1250 		1-47426-388-0 01 1 0603- ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1199 SERVICED BY L=1250 		1-47428-791-0 01 1 0212-0602 ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> L=1199 SERVICED BY L=1250 		1-47428-791-0 01 1 0603- ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> L=1194 SERVICED BY L=1250 		1-47426-388-0 01 1 0603- ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0212-0602 ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0603- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9510- ● ● ●
98 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9803-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9803-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9806-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0212-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0212-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0603- ● ● ●

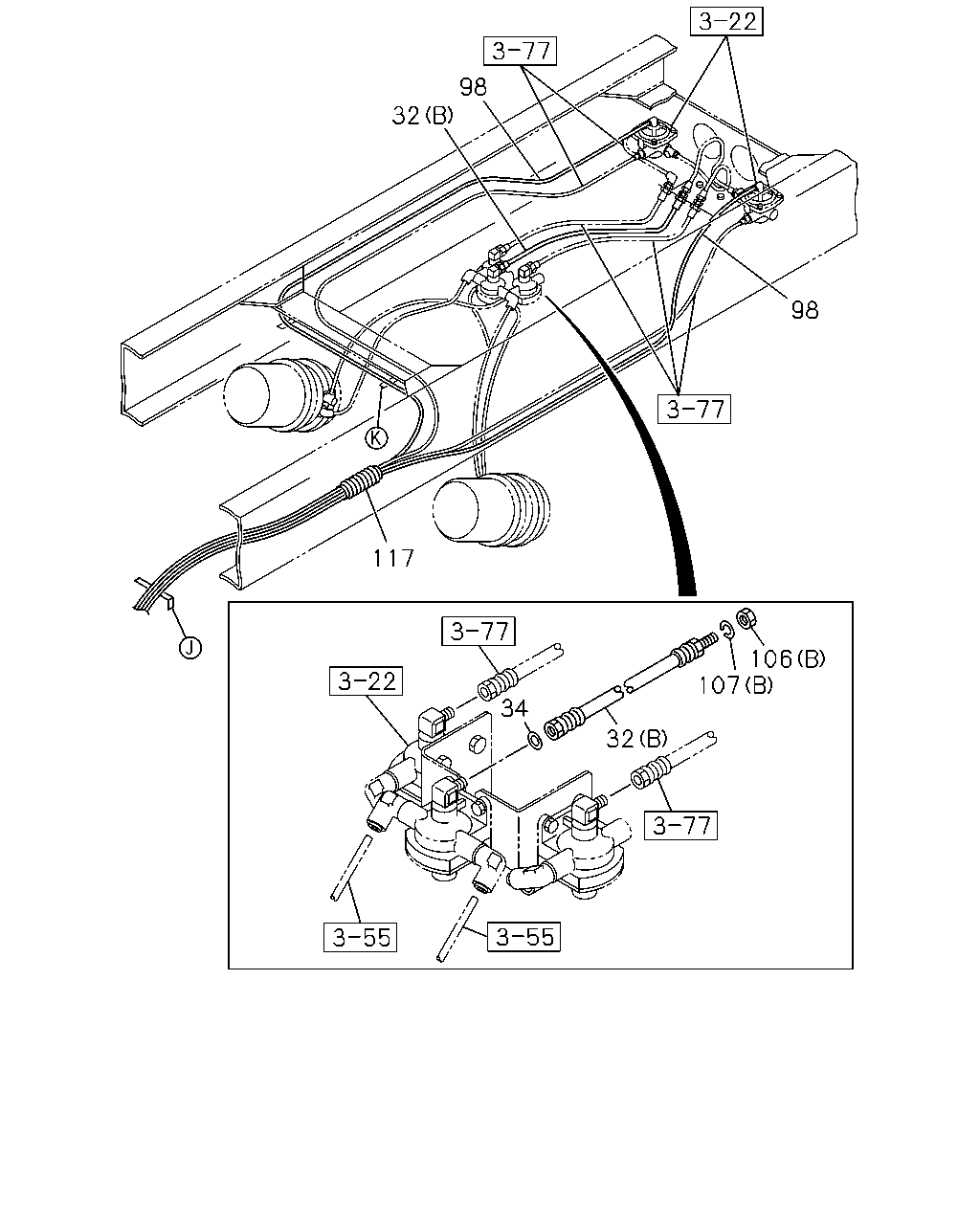

çizim 152459
98 32 98 117 106 107 34 32
BalonParca AdiParca NoAdetTipApplied Date A B C
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> (A) L=630 		0-07475-630-1 02 1 0603-0605 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +50MM<W60> (A) L=630 		0-57475-630-1 02 1 0606- ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520 		0-07475-520-1 02 1 0212-0602 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520 		0-07475-520-1 02 1 0603-0605 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520 		0-57475-520-1 02 1 0606- ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720 		0-07807-720-1 01 1 0212-0605 ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720 		0-57807-720-1 01 1 0606- ●
34 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 01 1 0212- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 9510-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9510- ● ● ●
98 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0212-0602 ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0603- ● ● ●
98 TUBE; NYLON
SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 0603- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 0212-0512 ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601- ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9510-0211 ● ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0212-0512 ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-416-0 02 1 0212-0512 ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		0-91111-516-0 02 1 0601- ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604- ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9510-0211 ● ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		9-09150-516-0 02 1 0212-0603 ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2 		0-91510-516-0 02 1 0604- ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9803-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9803-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9806-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0212-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0212-0602 ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0603- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
