◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#36221) — 1584 parça
çizim 152179
251 222 217 272 250 238 222 217
BalonParca AdiParca NoAdetTipApplied Date A B C
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-49123-769-0 01 1 0212-0302 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-49124-021-0 01 1 0303- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49114-886-0 01 1 9510-9607 ● ●
217 PIPE; VAC,UNION TO MAG VLV 1-49114-886-0 01 1 9608-9802 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-49114-886-0 01 1 9608-9802 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=675 SERVICED BY L=700 		1-47428-811-0 01 1 0011-0103 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=704 SERVICED BY L=700 		1-47428-811-0 01 1 0104-0211 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=704 SERVICED BY L=700 		1-47428-811-0 01 1 0212- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49116-420-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0603- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9511 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9511 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9608-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9608-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9511 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9608-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1047 		1-49113-685-0 01 1 9610-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1077 SERVICED BY L=1100 		1-47428-815-0 01 1 0011-0103 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100 		1-47428-815-0 01 1 0104- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 9512-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005- ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ●
238 PIPE; AIR,UNION TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ●
250 PIPE; AIR,UNION TO FLEX HOSE
AIR SUSP DRIVER SEAT<A56> L=2471 SERVICED BY L=2500 		1-47426-362-0 01 1 9510-9802 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2471 SERVICED BY L=2500 		1-47426-362-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49114-905-0 01 1 9510-9802 ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49114-905-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49114-905-0 01 1 9510-9802 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49114-906-0 01 1 9510-9607 ●
272 PIPE; AIR,MAG VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49114-906-0 01 1 9510-9607 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49114-906-0 01 1 9510-9607 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49114-906-0 01 1 9608-9802 ● ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) 		1-49114-906-0 01 1 9608-9802 ● ●

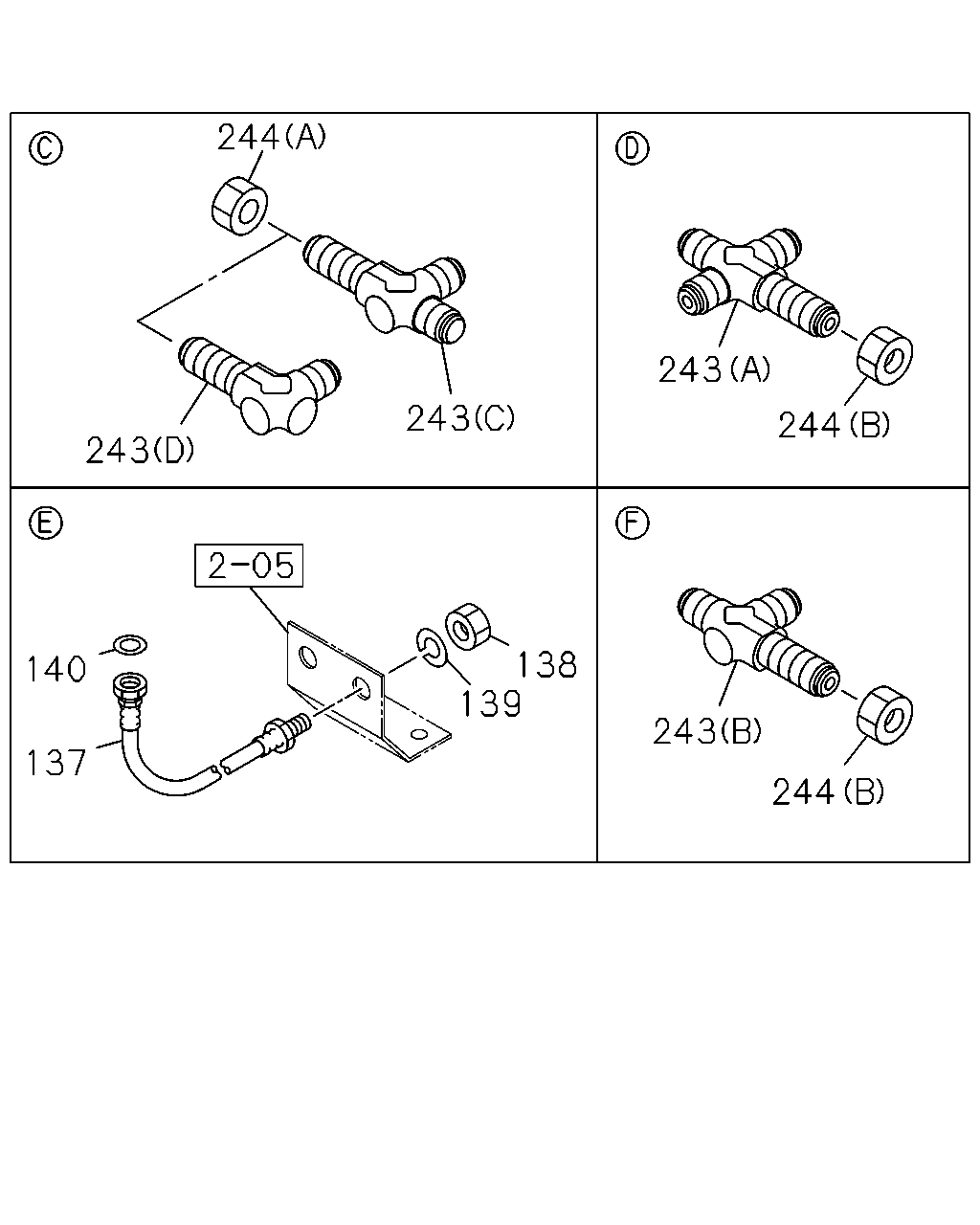

çizim 152180
244 243 243 244 243 138 139 140 243 137 244
BalonParca AdiParca NoAdetTipApplied Date A B C
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
138 NUT; FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> M12 		9-09840-280-0 01 1 9510-9802 ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9510-9802 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> ID=12.2 		9-09150-512-0 01 1 9510-9802 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9607 ● ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9607 ●
243 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9608-9802 ● ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		9-09228-906-1 01 1 9510-0211 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		9-09228-906-1 01 1 0212-0607 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		9-09228-906-1 01 1 0212-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		0-92138-906-0 01 1 0608- ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M12 ELBOW 		9-09225-206-1 01 1 9510-9802 ● ● ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 9803-0211 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0212-0607 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-0211 ● ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 0212- ● ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 01 1 0212- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9607 ● ● ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9608-9802 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> (B) M12 		9-99111-412-0 01 1 9608-9802 ●
çizim 152181
154 14 170 154 34 14 176 171 184 186 185 155 1 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9609 ● ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9610-0004 ● ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9610-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-0602 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0603- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0603- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0004 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CAB UP +50MM<W60> 		1-49124-003-0 01 1 0603- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-775-0 01 1 0212-0602 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49123-775-0 01 1 0603- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9803-0211 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0212-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0212-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9510-0004 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0211 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0212- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0212- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49122-488-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49116-445-0 01 1 9510-9802 ●
34 PIPE; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-169-0 01 1 0602- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49114-878-0 01 1 9510-9802 ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 9803-0211 ● ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 0212- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49118-294-0 01 1 0212- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49116-446-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-166-0 01 1 0602- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-776-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0211 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-381-0 01 1 9911- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9910 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> 		1-49124-962-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0212- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49114-883-0 01 1 9510-9802 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49118-403-0 01 1 9803-9803 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49119-460-0 01 1 9804-9910 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 9911-0211 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0212-0607 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0212-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0608- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49122-149-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-449-0 01 1 9510-9802 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-167-0 01 1 0602- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-884-0 01 1 9510-9802 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49118-297-0 01 1 9803-9803 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-9910 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 9911-0211 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 0212- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0212- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-382-0 01 1 9911- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49116-450-0 01 1 9510-9802 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0602- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 9510-0211 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 0212- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0212- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0101- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9609 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9610-0602 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0603- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●

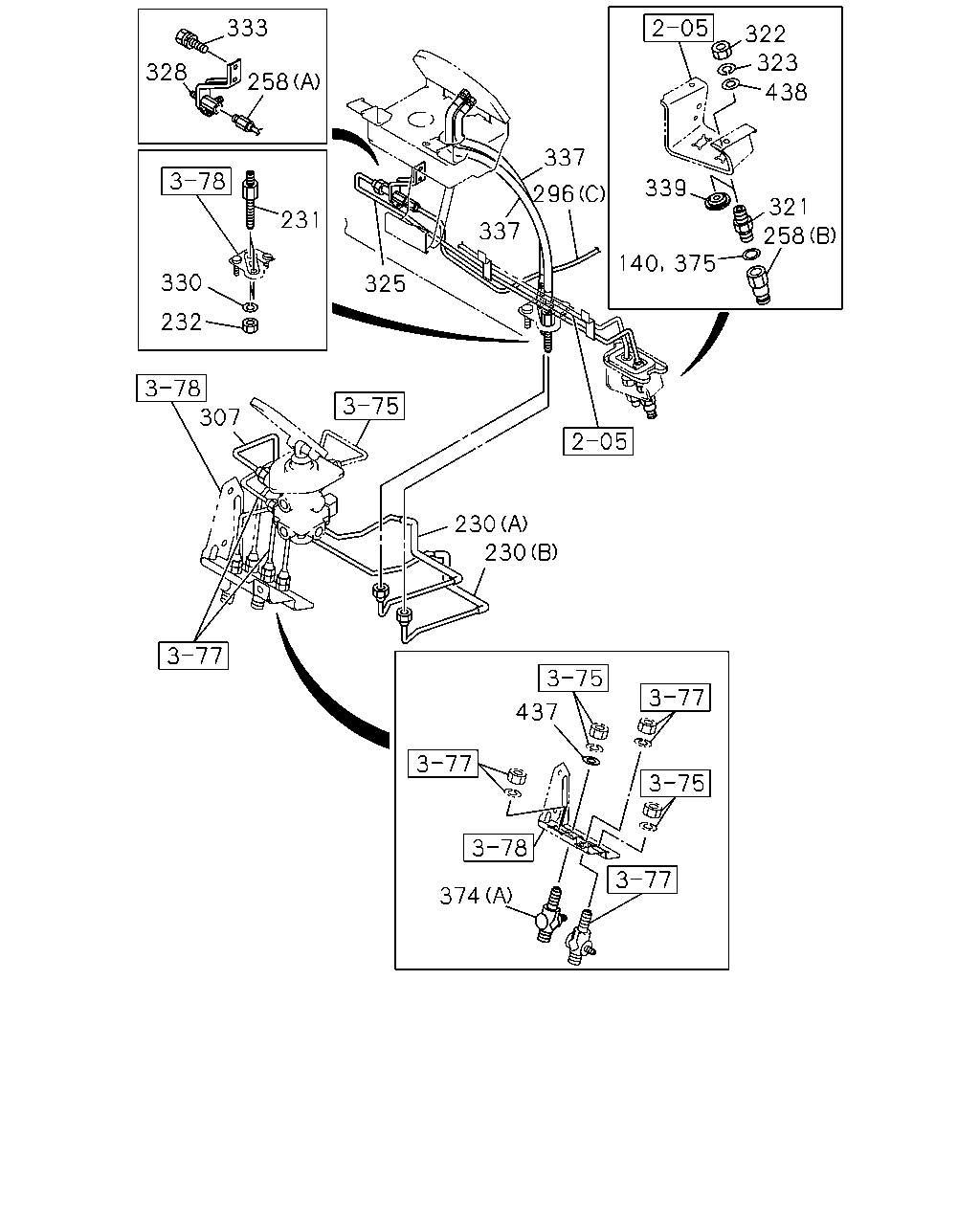

çizim 152187
333 322 323 328 258 438 337 339 296 321 231 337 258 325 330 232 307 230 230 437 374 140 375
BalonParca AdiParca NoAdetTipApplied Date A B C
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (A) 		1-49123-979-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (B) 		1-49123-980-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49116-429-1 01 1 9510-0103 ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9510-0103 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49122-777-0 01 1 0104-0212 ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104-0212 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49122-777-0 01 1 0301- ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0301- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49116-430-1 01 1 9510-0103 ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9510-0103 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49122-778-0 01 1 0104-0212 ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104-0212 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49122-778-0 01 1 0301- ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0301- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> M10 STRAIGHT 		1-09654-361-0 02 1 9510-0004 ● ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> M10 STRAIGHT 		1-09654-361-0 02 1 0005- ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0005- ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9510-0004 ● ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 0005- ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0005- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511-0602 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9510-9810 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ● ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0011-0012 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0101-0211 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0212- ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 06 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-9810 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ● ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●

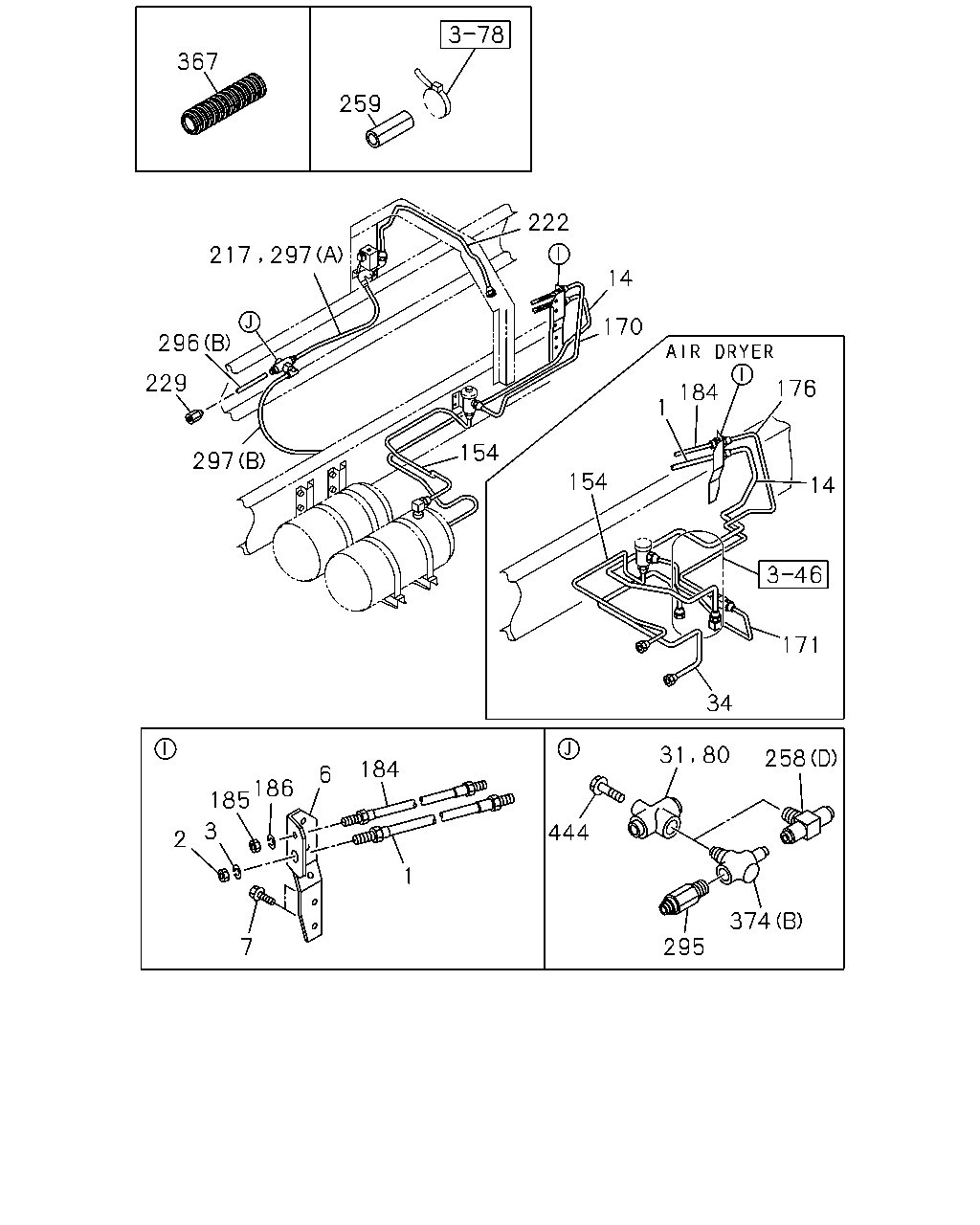

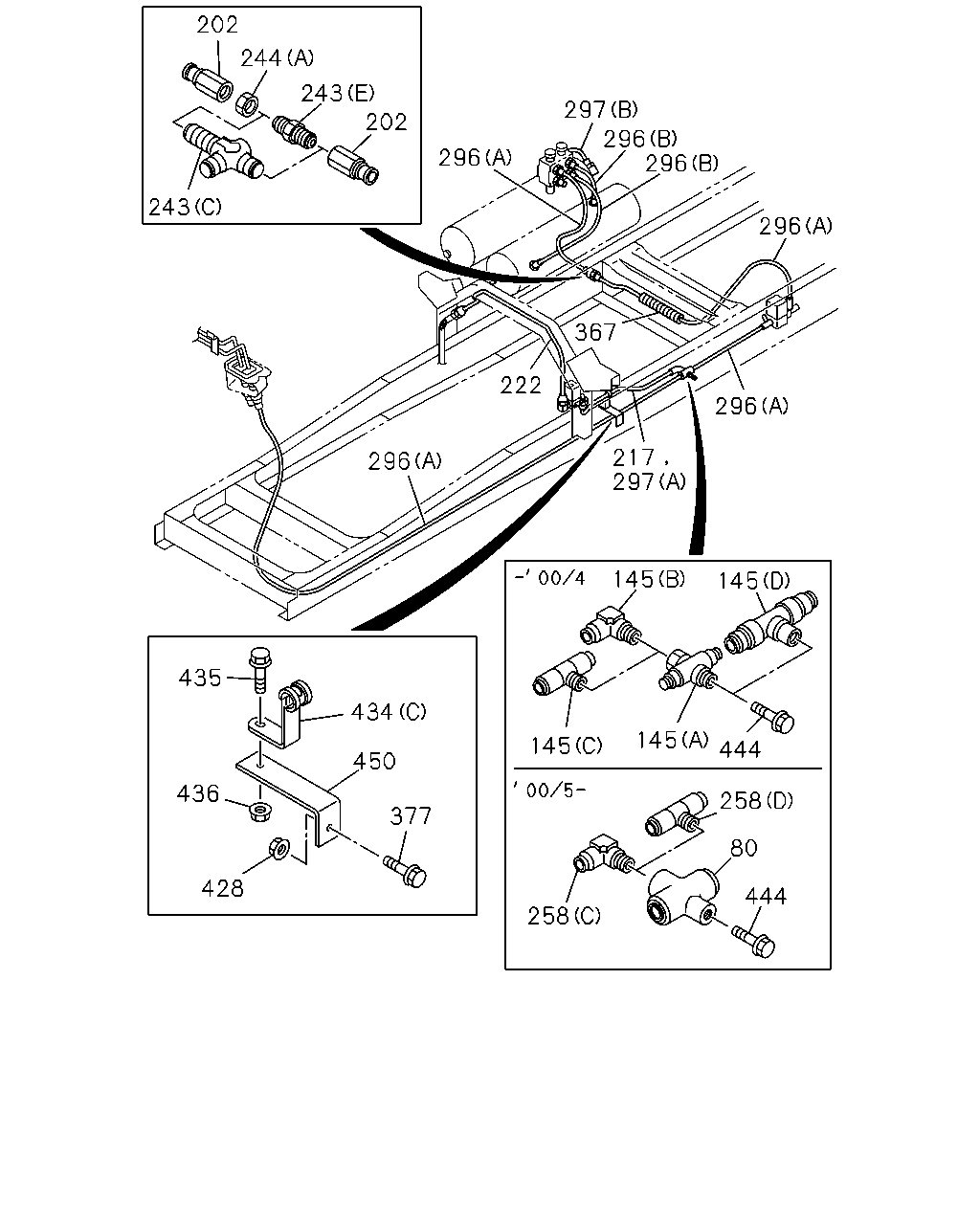

296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
EXC. AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●

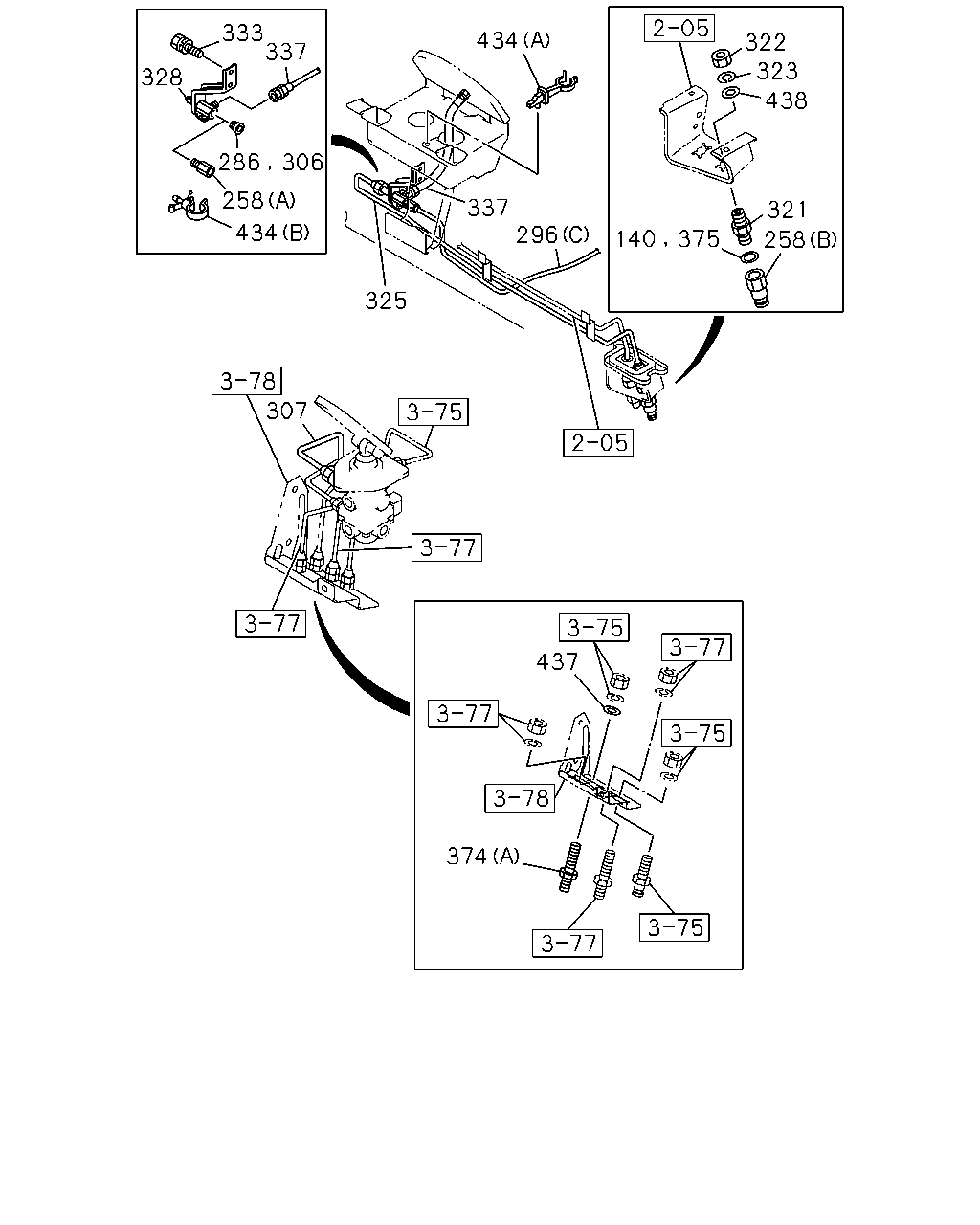

307 PIPE; AIR,FLEX HOSE TO BRK VLV 1-49116-427-0 01 1 9510-9512 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9902 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903- ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9802 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9802 ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9803-9810 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9803-9810 ● ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9803-9810 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9811-9811 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9811-9811 ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09654-362-1 01 1 9811-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-0004 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-0004 ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010 ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005-0010 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0011- ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-9802 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-9802 ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9803-9810 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9803-9810 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9803-9810 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004 ● ●
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 9811-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005-0010 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0011- ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-9802 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-9802 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9803-9810 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9803-9810 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9803-9810 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004 ● ●
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0010 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0011-0603 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9510-9802 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9510-9802 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9803-9810 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9803-9810 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 9803-9810 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 9811-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0005-0010 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0011- ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 0011-0011 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 0011-0011 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 		1-49116-077-0 01 1 0011-0011 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9510-9802 ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9803-9810 ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 9803-9810 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9811-0004 ● ●
328 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 9811-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0005-0010 ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005-0010 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0011- ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0011- ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-362-2 01 1 9510- ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9510-0603 ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9510-0603 ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 02 1 0604- ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-9802 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-9802 ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ● ●
333 BOLT; PIPE UNION
DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9510-0608 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606- ● ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9510-9802 ● ●
339 GROMMET; AIR PIPE
OD=28 		8-94279-720-0 01 1 9510-9802 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> OD=28 		8-94279-720-0 01 1 9803-9810 ● ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004 ● ●
339 GROMMET; AIR PIPE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0005-0010 ● ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 0011- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09656-387-1 01 1 0212-0601 ●
374 CONNECTOR
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09656-387-1 01 1 0602- ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-451-1 01 1 9510-9802 ● ●
374 CONNECTOR
(A) 		1-09656-451-1 01 1 9510-9802 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-721-0 01 1 9803-0103 ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 9803-0103 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-754-0 01 1 0104- ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-324-0 01 1 9510-9802 ● ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ● ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ●
375 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-0605 ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ● ●
438 WASHER; PL,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ●
çizim 152188
358 359 242 238 251 238 251
BalonParca AdiParca NoAdetTipApplied Date A B C
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ●
238 PIPE; AIR,UNION TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ●
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 9510-9802 ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49114-895-0 01 1 9510-9802 ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49114-905-0 01 1 9510-9802 ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49114-905-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-49114-905-0 01 1 9510-9802 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE REGULATION ADR<TDU> 		1-49114-896-0 01 1 9510-9802 ●
358 PIPE; AIR,AIR TANK TO AIR VLV 1-49114-896-0 01 1 9510-9802 ●
359 PIPE; AIR,AIR VLV TO UNION
BRAKE REGULATION ADR<TDU> 		1-49114-897-0 01 1 9510-9802 ●
359 PIPE; AIR,AIR VLV TO UNION 1-49114-897-0 01 1 9510-9802 ●
çizim 152203
14 154 170 34 14 154 176 171 184 186 185 1 5 6 155 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9609 ● ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9610-0004 ● ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9610-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-0602 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0603- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0603- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 9810- ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0004 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CAB UP +50MM<W60> 		1-49124-003-0 01 1 0603- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-775-0 01 1 0212-0602 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49123-775-0 01 1 0603- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9803-0211 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0212-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0212-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9510-0004 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0211 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0212- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0212- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49122-488-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49116-445-0 01 1 9510-9802 ●
34 PIPE; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-169-0 01 1 0602- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49114-878-0 01 1 9510-9802 ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 9803-0211 ● ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 0212- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49118-294-0 01 1 0212- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49116-446-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-166-0 01 1 0602- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-776-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0211 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-381-0 01 1 9911- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9910 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> 		1-49124-962-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0212- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49114-883-0 01 1 9510-9802 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49118-403-0 01 1 9803-9803 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49119-460-0 01 1 9804-9910 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 9911-0211 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0212-0607 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0212-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0608- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49122-149-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-449-0 01 1 9510-9802 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-167-0 01 1 0602- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-884-0 01 1 9510-9802 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49118-297-0 01 1 9803-9803 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-9910 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 9911-0211 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 0212- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0212- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-382-0 01 1 9911- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49116-450-0 01 1 9510-9802 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0602- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 9510-0211 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 0212- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0212- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0101- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9609 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9610-0602 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0603- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
çizim 152207
367 259 222 14 170 296 184 229 176 1 154 297 154 14 171 34 258 184 6 186 185 3 444 2 1 374 295 7 31 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9609 ● ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9610-0004 ● ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9610-0004 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-0602 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0603- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0603- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0004 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CAB UP +50MM<W60> 		1-49124-003-0 01 1 0603- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-775-0 01 1 0212-0602 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49123-775-0 01 1 0603- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9803-0211 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0212-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0212-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9510-0004 ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0211 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0212- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0212- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49122-488-0 01 1 0005- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49116-445-0 01 1 9510-9802 ●
31 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0212-0601 ●
31 UNION; 3 WAY
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0602- ●
34 PIPE; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-169-0 01 1 0602- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49114-878-0 01 1 9510-9802 ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 9803-0211 ● ● ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 0212- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49118-294-0 01 1 0212- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49116-446-0 01 1 9510-9802 ●
80 UNION; 3 WAY
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0010 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0010 ●
80 UNION; 3 WAY
EXC. DUAL AIR GAUGE<UG2>,A/T<X9D> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0211 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0211 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2>,A/T<X9D> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0212- ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-166-0 01 1 0602- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-776-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0211 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0212- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-381-0 01 1 9911- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> 		1-49124-962-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0212- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49114-883-0 01 1 9510-9802 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49118-403-0 01 1 9803-9803 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49119-460-0 01 1 9804-9910 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 9911-0211 ● ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0212-0607 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0212-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0608- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49122-149-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-449-0 01 1 9510-9802 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-167-0 01 1 0602- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-884-0 01 1 9510-9802 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49118-297-0 01 1 9803-9803 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-9910 ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 9911-0211 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 0212- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0212- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-382-0 01 1 9911- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49116-450-0 01 1 9510-9802 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0602- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 9510-0211 ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 0212- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0212- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0101- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9609 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9610-0602 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0603- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0603- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9511 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9511 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9608-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9608-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9511 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9608-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1047 		1-49113-685-0 01 1 9610-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1077 SERVICED BY L=1100 		1-47428-815-0 01 1 0011-0103 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100 		1-47428-815-0 01 1 0104- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 9512-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005- ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ISUZU M/T<X9A> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511-0602 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9510-9810 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ● ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0011-0012 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0101-0211 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0212- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0602- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 02 1 0212- ●
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0212-0601 ●
295 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0602- ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 06 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-9810 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ● ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
EXC. AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0602- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0005-0211 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0301- ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0212-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0602- ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0212-0212 ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0301-0301 ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0302- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9803-0004 ● ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0211 ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0211 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0211 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0212-0212 ● ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5000MM(50W) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0212-0212 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0212-0212 ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0301 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0301 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0301 ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=340 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9803-0004 ●
297 TUBE; NYLON
(B) L=340 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9803-0004 ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0602-0602 ●
367 TUBE; CORRUGATE
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ● ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ● ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ● ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ● ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09656-387-1 01 1 0212-0601 ●
374 CONNECTOR
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09656-387-1 01 1 0602- ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-451-1 01 1 9510-9802 ● ●
374 CONNECTOR
(A) 		1-09656-451-1 01 1 9510-9802 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-721-0 01 1 9803-0103 ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 9803-0103 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-754-0 01 1 0104- ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-324-0 01 1 9510-9802 ● ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001 ● ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004 ● ● ●
444 BOLT; UNION
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28080-820-0 01 1 0005-0010 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0010 ●
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0011-0211 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0011-0211 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0011-0211 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512 ● ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. A/T<X9D> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
çizim 152223
202 244 243 297 202 296 296 296 243 296 367 222 296 217 297 296 145 145 435 434 145 145 444 450 436 258 377 80 428 444 258
BalonParca AdiParca NoAdetTipApplied Date A B C
80 UNION; 3 WAY
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0010 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0010 ●
80 UNION; 3 WAY
EXC. DUAL AIR GAUGE<UG2>,A/T<X9D> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0211 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0011-0211 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2>,A/T<X9D> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0212- ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0212- ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004 ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9805 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9805 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9805 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9806-9807 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9806-9807 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9806-9807 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-0004 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-0004 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9808-0004 ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9805-0004 ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9805-0004 ●
145 UNION; NYLON TUBE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6> (D) 		1-09660-788-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (D) 		1-09660-788-0 01 1 9803-9804 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9803-0004 ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0007 ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0008-0211 ● ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0212- ● ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0212- ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-49123-769-0 01 1 0212-0302 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-49124-021-0 01 1 0303- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49114-886-0 01 1 9510-9607 ● ●
217 PIPE; VAC,UNION TO MAG VLV 1-49114-886-0 01 1 9608-9802 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-49114-886-0 01 1 9608-9802 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=675 SERVICED BY L=700 		1-47428-811-0 01 1 0011-0103 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=704 SERVICED BY L=700 		1-47428-811-0 01 1 0104-0211 ●
217 PIPE; VAC,UNION TO MAG VLV
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=704 SERVICED BY L=700 		1-47428-811-0 01 1 0212- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49116-420-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0603- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9511 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9511 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9608-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9608-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0010 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0011- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9511 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9512-9607 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9608-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1047 		1-49113-685-0 01 1 9610-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1077 SERVICED BY L=1100 		1-47428-815-0 01 1 0011-0103 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) L=1045 SERVICED BY L=1100 		1-47428-815-0 01 1 0104- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 9512-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005- ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (A) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9607 ● ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) M12 2WAY 		1-09654-059-2 01 1 9510-9607 ●
243 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY 		1-09654-059-2 01 1 9608-9802 ● ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		9-09228-906-1 01 1 9510-0211 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		9-09228-906-1 01 1 0212-0607 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		9-09228-906-1 01 1 0212-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		0-92138-906-0 01 1 0608- ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M12 ELBOW 		9-09225-206-1 01 1 9510-9802 ● ● ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 9803-0211 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0212-0607 ● ● ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-0211 ● ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 0212- ● ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 01 1 0212- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9607 ● ● ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9608-9802 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> (B) M12 		9-99111-412-0 01 1 9608-9802 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511-0602 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9510-9810 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ● ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0011-0012 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0101-0211 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0212- ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 06 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-9810 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ● ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
EXC. AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0602- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0601 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0602-0602 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ●
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0005-0211 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0301- ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0212-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0602- ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0212-0212 ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0301-0301 ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0302- ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ● ●
297 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> PTO CONTROL<SV6> EXC. A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0601 ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0602- ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9803-0004 ● ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0211 ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0211 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0211 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0212-0212 ● ●
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5000MM(50W) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0212-0212 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0212-0212 ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0301 ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0301 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0301 ●
297 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302- ●
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=340 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9803-0004 ●
297 TUBE; NYLON
(B) L=340 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9803-0004 ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0602-0602 ●
367 TUBE; CORRUGATE
6HK1 TCC ENG(81L) EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9804-9804 ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ● ●
367 TUBE; CORRUGATE
AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-9805 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ● ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9806-0004 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0010 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ● ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-0211 ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ● ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ● ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0212-0601 ●
367 TUBE; CORRUGATE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,A/T<X9D> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0602- ●
377 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 01 1 9803-0004 ● ●
428 NUT; BRKT
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510- ● ●
434 CLIP
AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ● ●
435 BOLT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 01 1 9803-0004 ● ●
436 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9803-0004 ● ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001 ● ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004 ● ● ●
444 BOLT; UNION
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE 		0-28080-820-0 01 1 0005-0010 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0010 ●
444 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0011-0211 ● ●
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0011-0211 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0011-0211 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512 ● ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. A/T<X9D> M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. A/T<X9D> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
450 BRACKET; CLIP
AUSTRALIA EQUIPMENT(RR3) L=90 B=25 		1-47475-530-0 01 1 9803-0004 ● ●
çizim 152230
333 337 434 322 323 328 438 258 337 296 321 434 258 325 307 437 374 140 375 286 306
BalonParca AdiParca NoAdetTipApplied Date A B C
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511-0602 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
6HK1 TCC ENG(81L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0603- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9510-9810 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004 ● ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010 ● ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9810 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0211 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2>,A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0212- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0011-0012 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0101-0211 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NEW ZEALAND EQUIPMENT(PK5) (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0212- ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9510-9802 ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9803-9810 ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9811-0004 ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 0005-0010 ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 0011- ● ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0212-0212 ●
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 06 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0211 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9510-9810 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004 ● ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ● ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0011- ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9803 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9803-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9803 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
EXC. AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9804-9804 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ● ●
296 TUBE; NYLON
AUSTRALIA EQUIPMENT(RR3) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9805 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9806-0004 ● ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0010 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0211 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ● ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
296 TUBE; NYLON
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>, A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PTO CONTROL<SV6>,A/T<X9D> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9803-0004 ●
306 PLUG; NYLON TUBE
AIR CONTROL SEAT<A60> PT1/8 		1-09605-050-0 01 1 9803-0004 ● ●
306 PLUG; NYLON TUBE
PT1/8 		1-09605-050-0 01 1 9803-0004 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV 1-49116-427-0 01 1 9510-9512 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9902 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903- ● ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9802 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9802 ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9803-9810 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9803-9810 ● ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9803-9810 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9811-9811 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9811-9811 ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09654-362-1 01 1 9811-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-0004 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-0004 ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010 ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005-0010 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0011- ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-9802 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510-9802 ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9803-9810 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9803-9810 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9803-9810 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004 ● ●
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 9811-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005-0010 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0011- ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-9802 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-9802 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9803-9810 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9803-9810 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9803-9810 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004 ● ●
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0010 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0011-0603 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9510-9802 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9510-9802 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9803-9810 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9803-9810 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 9803-9810 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 9811-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0005-0010 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0011- ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 0011-0011 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 0011-0011 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 		1-49116-077-0 01 1 0011-0011 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9510-9802 ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9803-9810 ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 9803-9810 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9811-0004 ● ●
328 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 9811-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0005-0010 ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005-0010 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0011- ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0011- ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-362-2 01 1 9510- ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-9802 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-9802 ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9803-9810 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ● ●
333 BOLT; PIPE UNION
DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9510-0608 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09656-387-1 01 1 0212-0601 ●
374 CONNECTOR
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09656-387-1 01 1 0602- ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-451-1 01 1 9510-9802 ● ●
374 CONNECTOR
(A) 		1-09656-451-1 01 1 9510-9802 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-721-0 01 1 9803-0103 ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 9803-0103 ●
374 CONNECTOR
DUAL AIR GAUGE<UG2> (A) 		1-09656-754-0 01 1 0104- ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-324-0 01 1 9510-9802 ● ●
374 CONNECTOR
EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ● ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9803-9810 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ●
375 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510- ● ●
434 CLIP
AUSTRALIA EQUIPMENT(RR3) (C) D=9 T=45 		5-09700-021-0 01 1 9803-0004 ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9510-0605 ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-9802 ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9803-9810 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ● ●
438 WASHER; PL,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ●
çizim 152445
113 113
BalonParca AdiParca NoAdetTipApplied Date A B C
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9510-9802 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 9803-0012 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 0101-0211 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=501 		1-47498-511-0 01 1 0101-0211 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 0212-0603 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 0212-0603 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=501 		1-47498-511-0 01 1 0212-0603 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 0604- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 0604- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=501 		1-47498-511-0 01 1 0604- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9510-9802 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 9803-0012 ● ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 0101-0211 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=693 		1-47498-510-0 01 1 0101-0211 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 0212-0603 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 0212-0603 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=693 		1-47498-510-0 01 1 0212-0603 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 0604- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 0604- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=693 		1-47498-510-0 01 1 0604- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
