Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#36219) — 145 parça

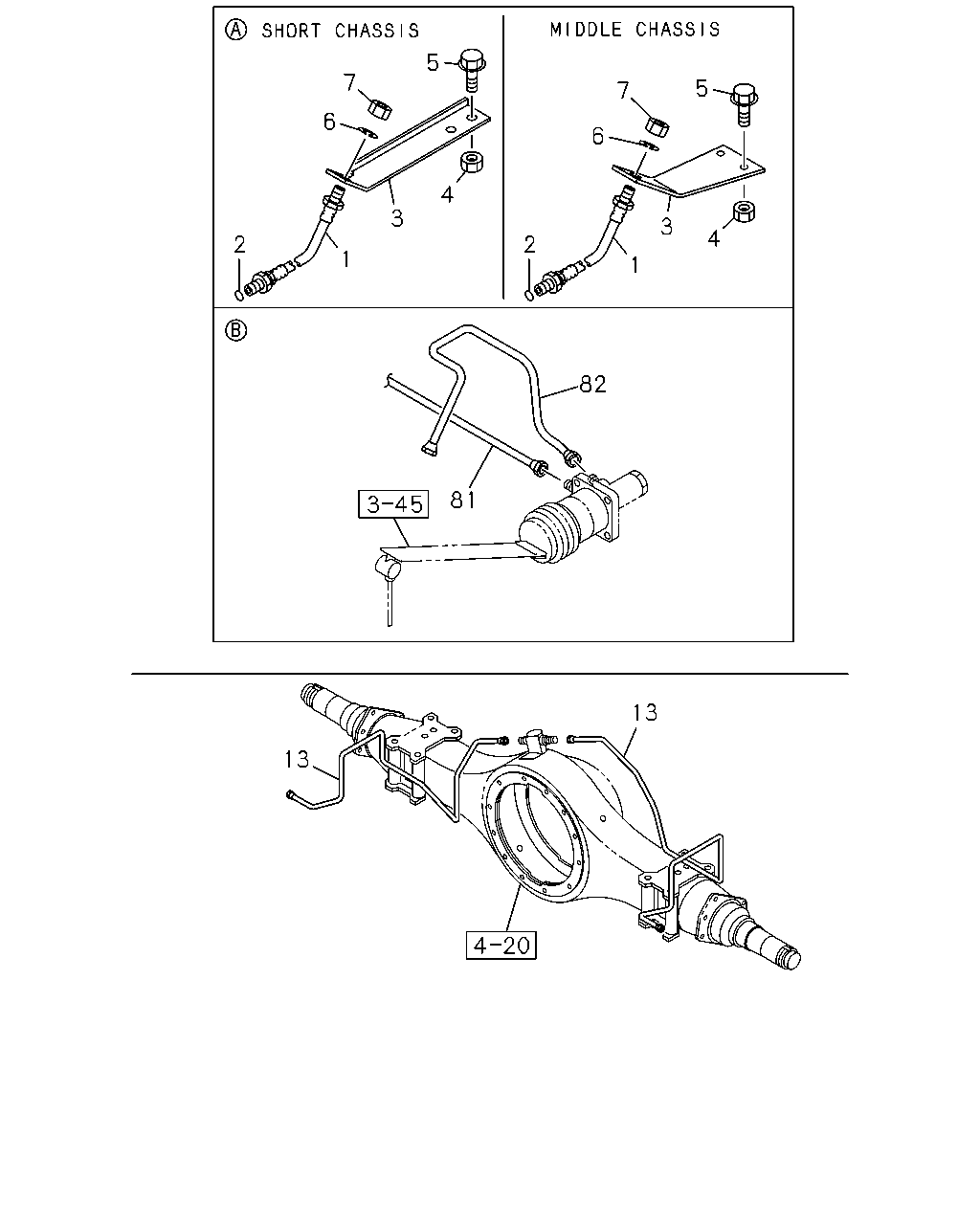

5 7 5 7 6 6 4 3 3 4 2 2 1 1 82 81 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9510-0211	●	●	●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	0212-0907	●		●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700	0-05312-700-0	01	1	0212-0907		●
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	0908-	●		●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700	0-05212-700-0	01	1	0908-		●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9510-0211	●	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0212-	●		●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	01	1	0212-		●
3	BRACKET; FLEX HOSE,RR BRK	1-47475-112-0	01	1	9510-	●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	9510-0211		●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47465-251-0	01	1	0212-		●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	0212-			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9510-9606	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9607-0211	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0212-0602	●		●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0212-0602		●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	9607-0211	●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	0212-0512	●		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512		●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9510-0211	●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0212-0603	●		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	0212-0603		●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	0-91510-512-0	01	1	0604-		●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9510-0211	●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0212-	●		●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	0212-		●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-096-0	01	1	9510-0012	●	●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-096-0	01	1	0101-0211	●	●
13	PIPE; BRK,RR AXLE	1-47429-096-0	01	1	0101-0211			●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-096-0	01	1	0212-0603	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-096-0	01	1	0212-0603		●
13	PIPE; BRK,RR AXLE	1-47429-096-0	01	1	0212-0603			●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-096-0	01	1	0604-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-096-0	01	1	0604-		●
13	PIPE; BRK,RR AXLE	1-47429-096-0	01	1	0604-			●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-095-0	01	1	9510-0012	●	●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-095-0	01	1	0101-0211	●	●
13	PIPE; BRK,RR AXLE	1-47429-095-0	01	1	0101-0211			●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-095-0	01	1	0212-0603	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-095-0	01	1	0212-0603		●
13	PIPE; BRK,RR AXLE	1-47429-095-0	01	1	0212-0603			●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-095-0	01	1	0604-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-095-0	01	1	0604-		●
13	PIPE; BRK,RR AXLE	1-47429-095-0	01	1	0604-			●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	9510-9810	●	●	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	9811-0211	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/615.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	9811-0211		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	0212-0603	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/615.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	0212-0603		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	0604-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-094-0	01	1	0604-		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	9510-9810	●	●	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	9811-0211	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/615.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	9811-0211		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	0212-0603	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/615.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	0212-0603		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	0604-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-093-0	01	1	0604-		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49162-891-0	01	1	0005-0106		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49162-890-0	01	1	0005-0106		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	9811-0004		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PAKISTAN EQUIPMENT(WN3) L=1215	1-47428-959-0	01	1	0005-0106		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	0107-0211		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/716.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	0107-0211		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	0212-0510		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/716.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	0212-0510		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 39/716.5" HYPOID(W3B),FINAL GEAR 43/7 16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) L=1215	1-47428-959-0	01	1	0511-0602		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	0603-0603		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/716.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1215	1-47428-959-0	01	1	0603-0603		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 39/716.5" HYPOID(W3B),FINAL GEAR 43/7 16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) L=1215	1-47428-959-0	01	1	0604-0604		●
13	PIPE; BRK,RR AXLE FINAL GEAR 16.5"<B2Y> L=1215	1-47428-959-0	01	1	0604-		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	9811-0004		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PAKISTAN EQUIPMENT(WN3) L=938	1-47428-958-0	01	1	0005-0106		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	0107-0211		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/716.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	0107-0211		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	0212-0510		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/716.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	0212-0510		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 39/716.5" HYPOID(W3B),FINAL GEAR 43/7 16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) L=938	1-47428-958-0	01	1	0511-0602		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PAKISTAN EQUIPMENT(WN3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	0603-0603		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/716.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=938	1-47428-958-0	01	1	0603-0603		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 16.5" HYPOID(W1L),FINAL GEAR 39/716.5" HYPOID(W3B),FINAL GEAR 43/7 16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) L=938	1-47428-958-0	01	1	0604-0604		●
13	PIPE; BRK,RR AXLE FINAL GEAR 16.5"<B2Y> L=938	1-47428-958-0	01	1	0604-		●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=2231 SERVICED BY L=2350	1-47426-361-0	01	1	9510-0004		●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2231 SERVICED BY L=2350	1-47426-361-0	01	1	0005-0012		●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7) L=531	1-47428-495-0	01	1	9510-0004		●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=531	1-47428-495-0	01	1	0005-0012		●

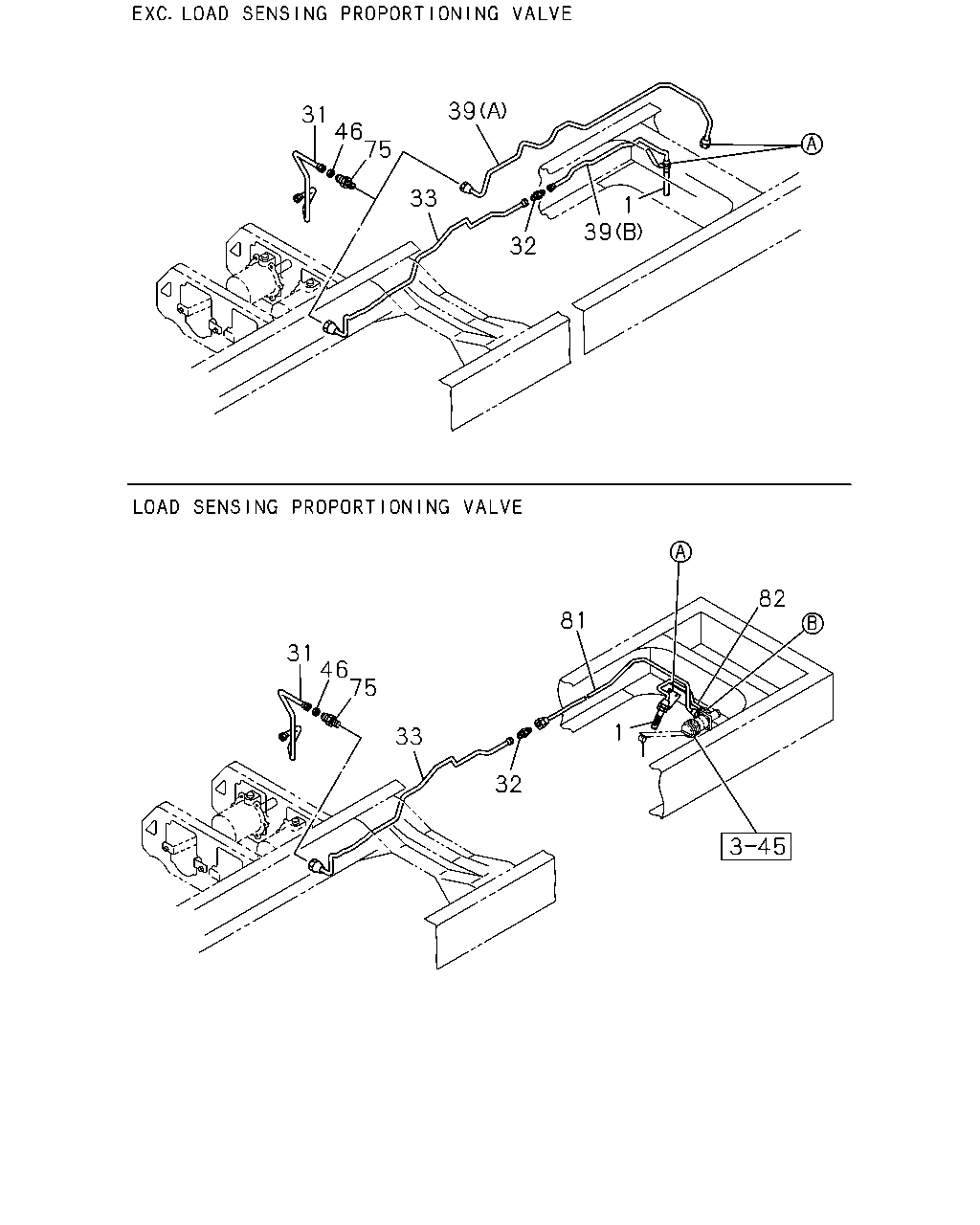

39 31 46 75 33 1 39 32 82 81 31 46 75 1 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9510-0211	●	●	●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	0212-0907	●		●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700	0-05312-700-0	01	1	0212-0907		●
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	0908-	●		●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700	0-05212-700-0	01	1	0908-		●
31	PIPE; OIL,AIR MASTER TO UNION L=415	1-47428-489-0	01	1	9510-9802	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=405	1-49161-102-0	01	1	9803-0211	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=405	1-49161-102-0	01	1	0212-	●		●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=405	1-49161-102-0	01	1	0212-		●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	9510-0106		●	●
32	UNION; OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 L=40	9-09223-006-1	01	1	0107-0211		●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0107-0211			●
32	UNION; OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40	9-09223-006-1	01	1	0212-0607		●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0212-0607			●
32	UNION; OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40	0-92113-006-0	01	1	0608-		●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6000MM(60W) L=2985 SERVICED BY L=3200	1-47426-365-0	01	1	0107-0211		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2985 SERVICED BY L=3200	1-47426-365-0	01	1	0212-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=1180 SERVICED BY L=1200	1-47426-352-0	01	1	9510-0211		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1180 SERVICED BY L=1200	1-47426-352-0	01	1	0212-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) L=1585 SERVICED BY L=1620	1-47426-356-0	01	1	9510-0211		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1585 SERVICED BY L=1620	1-47426-356-0	01	1	0212-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM(50W) L=1985 SERVICED BY L=2000	1-47426-359-0	01	1	9510-0211		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1985 SERVICED BY L=2000	1-47426-359-0	01	1	0212-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) L=2485 SERVICED BY L=2500	1-47426-362-0	01	1	9510-0211		●
33	PIPE; OIL,UNION TO UNION L=2485 SERVICED BY L=2500	1-47426-362-0	01	1	9510-0211			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2485 SERVICED BY L=2500	1-47426-362-0	01	1	0212-		●
33	PIPE; OIL,UNION TO UNION L=2485 SERVICED BY L=2500	1-47426-362-0	01	1	0212-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2860 SERVICED BY L=2900	1-47426-364-0	01	1	9510-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK<RD2> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B) L=2156 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0012		●
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2156 SERVICED BY L=2200	1-47426-360-0	01	1	0101-0211		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2156 SERVICED BY L=2200	1-47426-360-0	01	1	0212-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	9510-0004		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7),HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0012		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0012			●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0101-0211		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0101-0211			●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0212-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0212-			●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9510-0211	●	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0212-	●		●
46	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	0212-		●
75	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	01	1	9510-0211	●	●	●
75	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	01	1	0212-0607	●		●
75	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5	9-09223-306-1	01	1	0212-0607		●
75	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	01	1	0608-	●		●
75	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5	0-92113-306-0	01	1	0608-		●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=2231 SERVICED BY L=2350	1-47426-361-0	01	1	9510-0004		●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2231 SERVICED BY L=2350	1-47426-361-0	01	1	0005-0012		●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7) L=531	1-47428-495-0	01	1	9510-0004		●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=531	1-47428-495-0	01	1	0005-0012		●

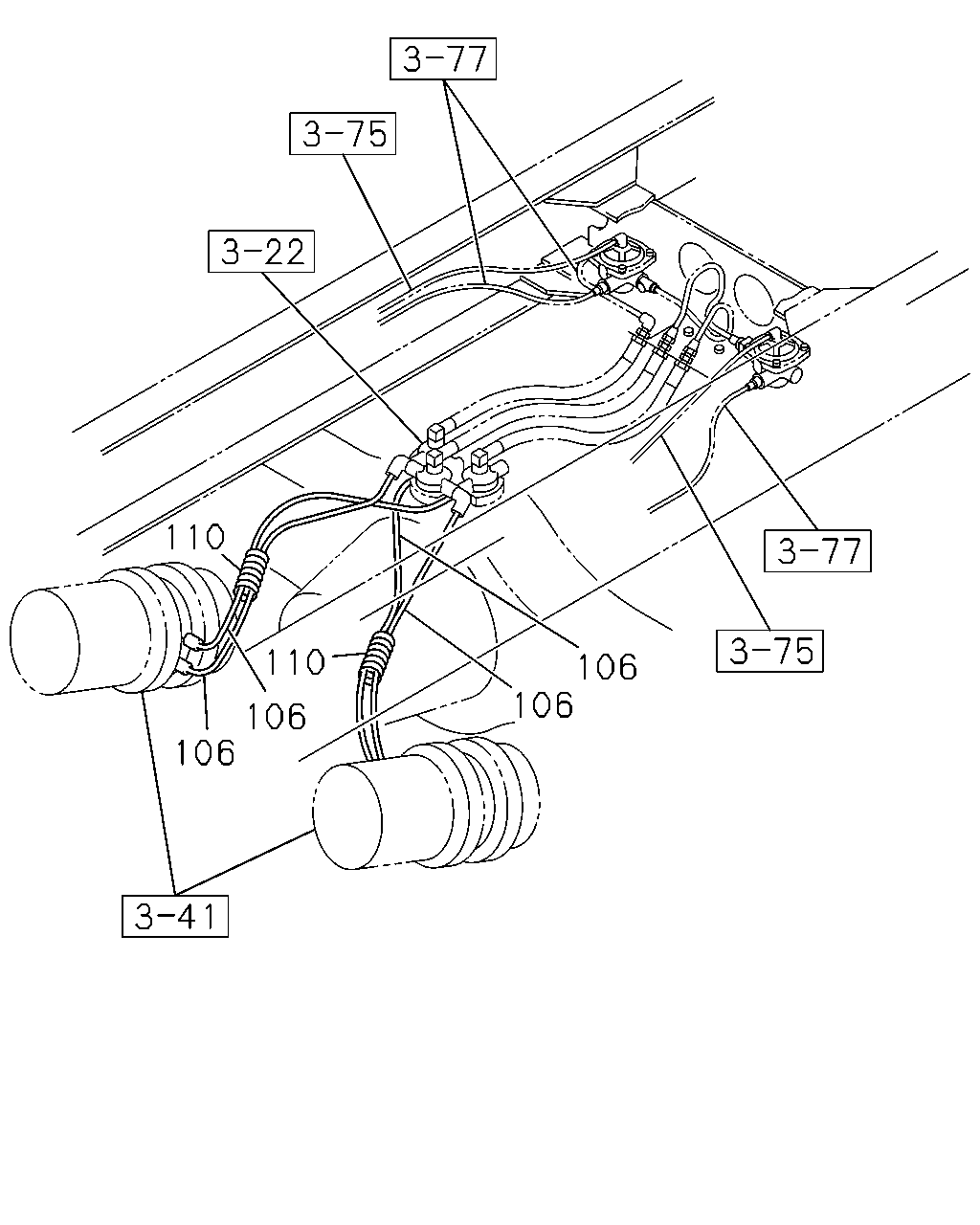

110 110 106 106 106 106

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	04	1	0212-		●
	110	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0212-		●
