Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#36213) — 51 parça
Tümü
A - FTR5MC
B - FTR5MF
C - FTR5WF
◀

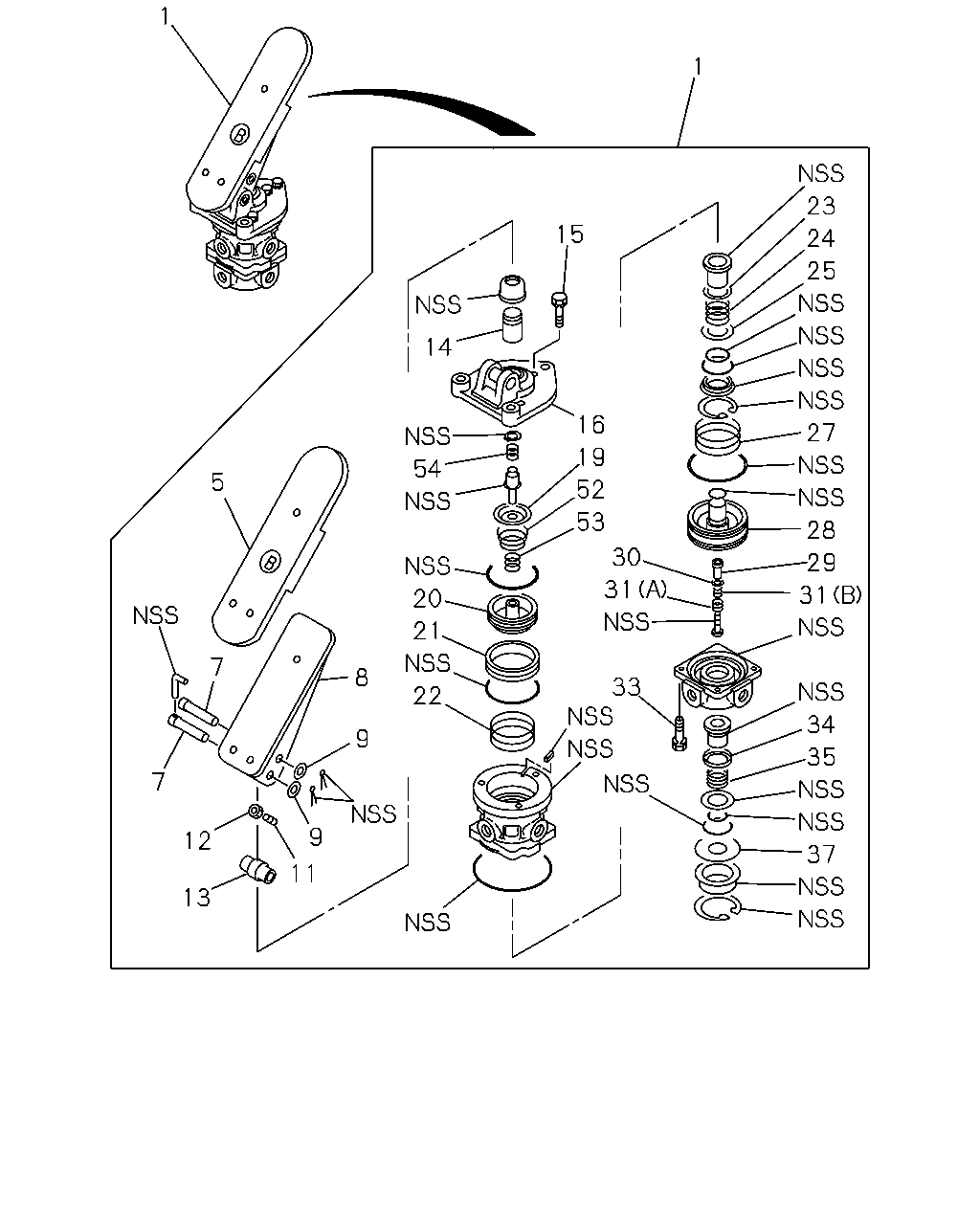

[334A] COMPONENT (47 parça)
[334A] REPAIR KIT (4 parça)
▶
1
1
23
15
24
25
14
16
27
19
54
5
52
53
28
30
29
31
31
20
21
7
8
33
22
34
9
35
7
9
12
37
11
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; BRK
1-48100-727-2
01
1
9510-9606
●
●
●
1
VALVE; BRK
1-48100-775-0
01
1
9607-0201
●
●
●
1
VALVE; BRK
1-48100-844-0
01
1
0202-1211
●
●
●
1
VALVE; BRK
8-98222-791-0
01
1
1212-
●
●
●
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
9510-0201
●
●
●
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0202-
●
●
●
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
9510-0201
●
●
●
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0202-
●
●
●
8
PEDAL; BRK VLV
1-48119-332-0
01
1
9510-0201
●
●
●
8
PEDAL; BRK VLV
1-48119-428-0
01
1
0202-
●
●
●
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
9510-0201
●
●
●
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
9510-0201
●
●
●
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0202-
●
●
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
9510-
●
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
9510-0201
●
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0202-
●
●
●
14
PLUNGER; BRK VLV
1-48119-362-0
01
1
9510-9606
●
●
●
14
PLUNGER; BRK VLV
1-48119-383-0
01
1
9607-0201
●
●
●
14
PLUNGER; BRK VLV
1-48119-561-0
01
1
0202-
●
●
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
9510-
●
●
●
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
9510-0201
●
●
●
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0202-
●
●
●
19
SEAT; SPRING,BRK VLV
1-48123-041-0
01
1
9510-
●
●
●
20
PISTON; UPR,BRK VLV
1-48119-336-0
01
1
9510-9606
●
●
●
20
PISTON; UPR,BRK VLV
1-48119-381-0
01
1
9607-0201
●
●
●
20
PISTON; UPR,BRK VLV
1-48119-560-0
01
1
0202-
●
●
●
21
BUSHING; UPR BODY
1-48119-293-0
01
1
9510-9606
●
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48143-009-0
01
1
9510-9606
●
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48123-071-0
01
1
9607-
●
●
●
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
9510-
●
●
●
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
9510-
●
●
●
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
9510-
●
●
●
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
9510-
●
●
●
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
9510-0201
●
●
●
28
PISTON; LWR,BRK VLV
1-48129-313-0
01
1
0202-
●
●
●
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
9510-
●
●
●
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
9510-
●
●
●
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
9510-
●
●
●
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
9510-
●
●
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
9510-
●
●
●
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
9510-
●
●
●
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
9510-
●
●
●
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
9510-
●
●
●
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-040-0
01
1
9510-9606
●
●
●
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-074-0
01
1
9607-
●
●
●
53
SPRING; PISTON,INNER,BRK VLV
1-48123-068-0
01
1
9510-
●
●
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
9510-
●
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
REPAIR KIT; BRK VLV
1-85576-147-0
01
1
9510-9606
●
●
●
2
REPAIR KIT; BRK VLV
1-85576-182-0
01
1
9607-0201
●
●
●
2
REPAIR KIT; BRK VLV
1-85576-285-0
01
1
0202-1211
●
●
●
2
REPAIR KIT; BRK VLV
8-98222-819-0
01
1
1212-
●
●
●
