13 |
VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48410-659-0 |
02 |
1 |
0212- |
|
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-320-0 |
01 |
1 |
9510-0012 |
● |
● |
● |
| |
13 |
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-320-0 |
01 |
1 |
0101-0109 |
● |
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
(A)
|
1-48410-320-0 |
01 |
1 |
0101-0109 |
|
|
● |
| |
13 |
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-659-0 |
01 |
1 |
0110-0211 |
● |
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
(A)
|
1-48410-659-0 |
01 |
1 |
0110-0211 |
|
|
● |
| |
13 |
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-659-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
13 |
VALVE ASM; QUICK RELEASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-659-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
(A)
|
1-48410-659-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
13 |
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-659-0 |
01 |
1 |
0604- |
● |
|
|
| |
13 |
VALVE ASM; QUICK RELEASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-48410-659-0 |
01 |
1 |
0604- |
|
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
(A)
|
1-48410-659-0 |
01 |
1 |
0604- |
|
|
● |
| |
13 |
VALVE ASM; QUICK RELEASE
BRAKE REGULATION ADR<TDU>
(B)
|
1-48410-234-0 |
02 |
1 |
9510-0004 |
|
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
(B)
|
1-48410-234-0 |
02 |
1 |
9510-0004 |
|
|
● |
| |
13 |
VALVE ASM; QUICK RELEASE
BRAKE REGULATION ADR<TDU>
(B)
|
1-48410-234-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
|
1-48410-234-0 |
02 |
1 |
0212-0701 |
|
● |
|
| |
13 |
VALVE ASM; QUICK RELEASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
|
1-48410-782-0 |
02 |
1 |
0702- |
|
● |
|
| |
15 |
PLUG; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0212- |
|
● |
|
| |
15 |
PLUG; VALVE
BRAKE REGULATION ADR<TDU>
NPTF3/8-18
|
8-94231-272-1 |
02 |
1 |
9510-0004 |
|
● |
|
| |
15 |
PLUG; VALVE
NPTF3/8-18
|
8-94231-272-1 |
02 |
1 |
9510-0004 |
|
|
● |
| |
15 |
PLUG; VALVE
BRAKE REGULATION ADR<TDU>
NPTF3/8-18
|
8-94231-272-1 |
02 |
1 |
0005-0211 |
|
● |
|
| |
15 |
PLUG; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
NPTF3/8-18
|
8-94231-272-1 |
02 |
1 |
0212-0805 |
|
● |
|
| |
15 |
PLUG; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
NPTF3/8-18
|
8-97329-623-0 |
02 |
1 |
0806- |
|
● |
|
| |
26 |
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48110-006-0 |
01 |
1 |
9510-9802 |
● |
● |
● |
| |
26 |
VALVE; AIR
BRAKE REGULATION ADR<TDU>
|
1-48110-006-0 |
01 |
1 |
9510-9802 |
|
● |
|
| |
26 |
VALVE; AIR
|
1-48110-006-0 |
01 |
1 |
9510-9802 |
|
|
● |
| |
26 |
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48110-006-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
26 |
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48110-006-1 |
01 |
1 |
0005-0211 |
● |
|
|
| |
26 |
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48110-006-1 |
01 |
1 |
0005-0211 |
|
● |
|
| |
26 |
VALVE; AIR
|
1-48110-006-1 |
01 |
1 |
0005-0211 |
|
|
● |
| |
26 |
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48110-006-1 |
01 |
1 |
0212- |
● |
|
|
| |
26 |
VALVE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48110-006-1 |
01 |
1 |
0212- |
|
● |
|
| |
26 |
VALVE; AIR
|
1-48110-006-1 |
01 |
1 |
0212- |
|
|
● |
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
● |
|
|
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
● |
|
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-0004 |
● |
|
|
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-0004 |
|
● |
|
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0005-0211 |
● |
|
|
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
27 |
BOLT; AIR VLV
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0005-0211 |
|
|
● |
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0212-0512 |
● |
|
|
| |
27 |
BOLT; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
27 |
BOLT; AIR VLV
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0212-0512 |
|
|
● |
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
|
|
| |
27 |
BOLT; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
● |
|
| |
27 |
BOLT; AIR VLV
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
|
● |
| |
27 |
BOLT; AIR VLV
BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
● |
|
| |
27 |
BOLT; AIR VLV
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
|
● |
| |
27 |
BOLT; AIR VLV
BRAKE REGULATION ADR<TDU>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
|
● |
|
| |
27 |
BOLT; AIR VLV
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
|
|
● |
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
|
|
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
|
● |
|
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0004 |
● |
|
|
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0004 |
|
● |
|
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0211 |
● |
|
|
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
28 |
NUT; AIR VLV
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0211 |
|
|
● |
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
● |
|
|
| |
28 |
NUT; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
|
● |
|
| |
28 |
NUT; AIR VLV
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
|
|
● |
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
28 |
NUT; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
|
| |
28 |
NUT; AIR VLV
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
● |
| |
28 |
NUT; AIR VLV
BRAKE REGULATION ADR<TDU>
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
|
● |
|
| |
28 |
NUT; AIR VLV
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
|
|
● |
| |
28 |
NUT; AIR VLV
BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
|
● |
|
| |
28 |
NUT; AIR VLV
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
1-09650-434-0 |
02 |
1 |
9510-9802 |
● |
● |
● |
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
0005-0211 |
● |
|
|
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
0005-0211 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
0005-0211 |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
0212- |
● |
|
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
0212- |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
0212- |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(A)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
02 |
1 |
9510-9802 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
(A)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
02 |
1 |
9510-9802 |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0005-0211 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0212- |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0212- |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(B)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
(B)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803-0004 |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(B)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0005-0211 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0212- |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0212- |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(C)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
03 |
1 |
9803-0004 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
(C)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
03 |
1 |
9803-0004 |
|
|
● |
| |
29 |
CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU>
(C)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
03 |
1 |
0005-0211 |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
03 |
1 |
0212- |
|
● |
|
| |
29 |
CONNECTOR; AIR VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(C)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
03 |
1 |
0212- |
|
● |
|
| |
30 |

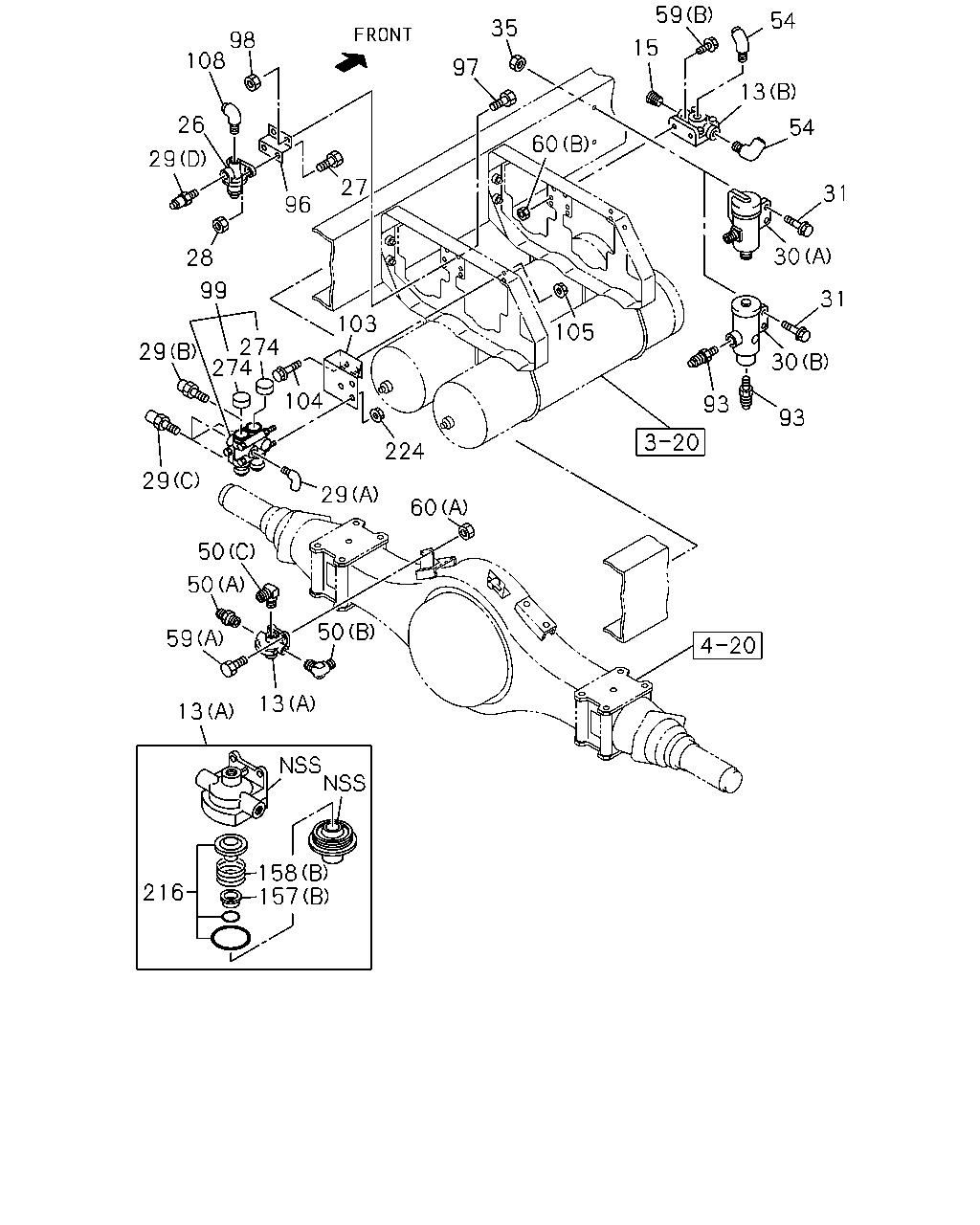

GOVERNOR; AIR CONT
(A)
|
1-48350-059-0 |
01 |
1 |
9510-9910 |
● |
● |
● |
| |
30 |

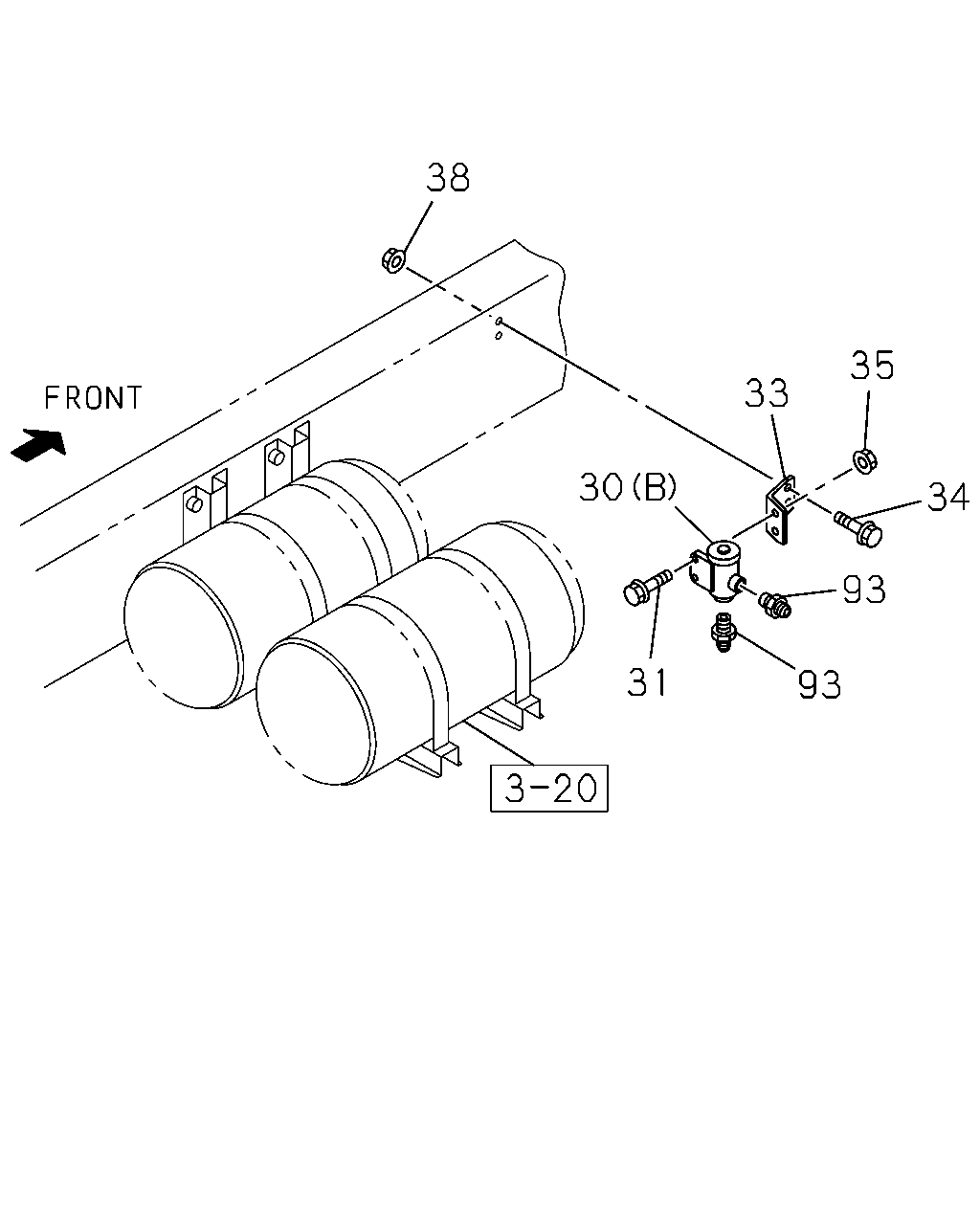

GOVERNOR; AIR CONT
(B)
|
1-48350-063-2 |
01 |
1 |
9911- |
● |
● |
● |
| |
31 |
BOLT; GOV TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
31 |
BOLT; GOV TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
|
● |
|
| |
31 |
BOLT; GOV TO FRAME
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
31 |
BOLT; GOV TO FRAME
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9802 |
● |
● |
● |
| |
31 |
BOLT; GOV TO FRAME
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9803-9911 |
● |
● |
● |
| |
31 |
BOLT; GOV TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9912-0211 |
● |
● |
● |
| |
31 |
BOLT; GOV TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
0212-0512 |
● |
|
● |
| |
31 |
BOLT; GOV TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
31 |
BOLT; GOV TO FRAME
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0601- |
● |
|
● |
| |
31 |
BOLT; GOV TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0601- |
|
● |
|
| |
35 |
NUT; GOV TO FRAME
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
● |
| |
35 |
NUT; GOV TO FRAME
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0602 |
● |
● |
● |
| |
35 |
NUT; GOV TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
| |
50 |

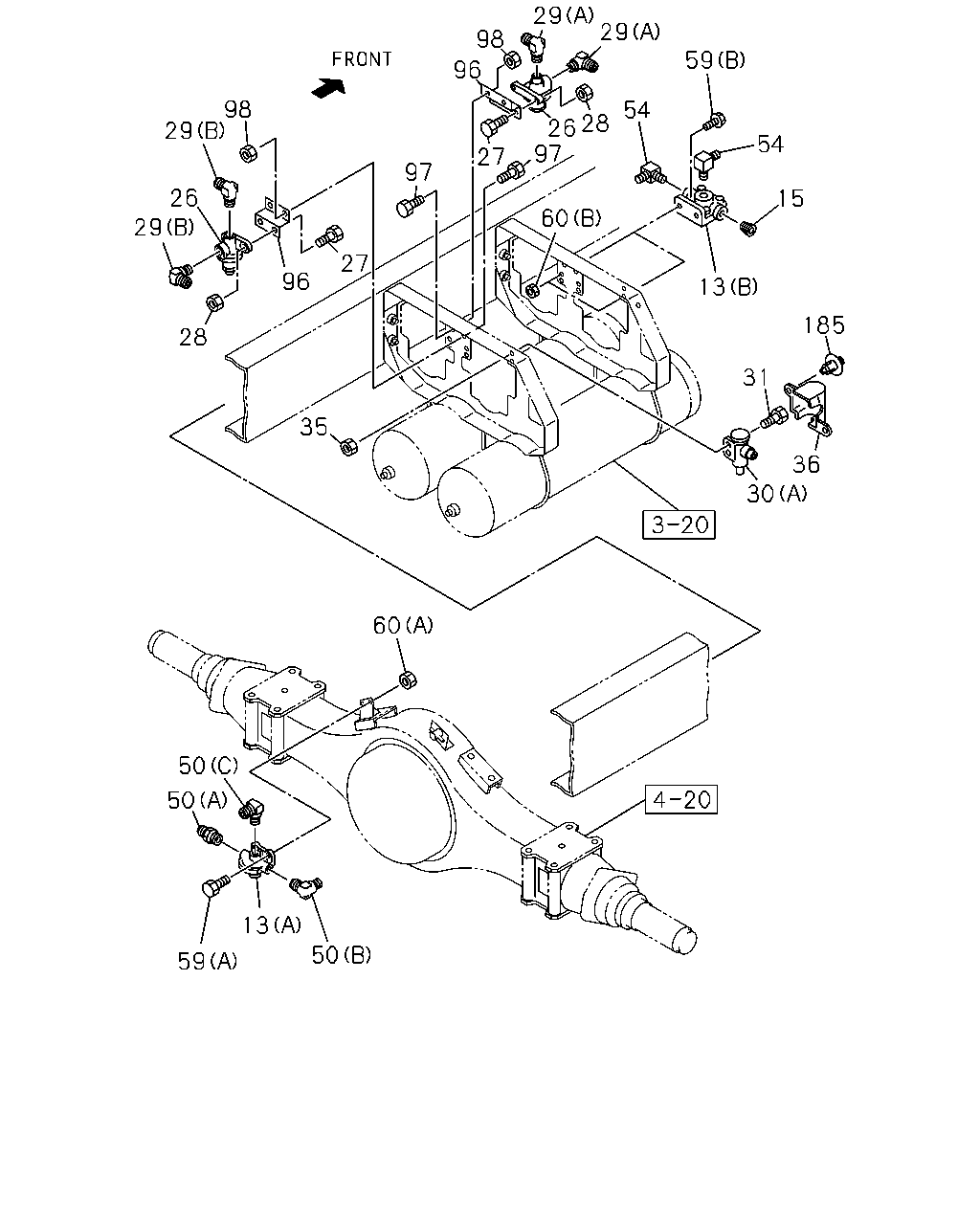

CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
9510-0012 |
● |
● |
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0101-0211 |
● |
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0101-0211 |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0212-0603 |
● |
|
|
| |
50 |
CONNECTOR; RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0212-0603 |
|
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0212-0603 |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0604- |
● |
|
|
| |
50 |
CONNECTOR; RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0604- |
|
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(A)
M14 & PT3/8 STRAIGHT
|
1-09650-085-1 |
01 |
1 |
0604- |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
9510-0012 |
● |
● |
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0101-0211 |
● |
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0101-0211 |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
50 |
CONNECTOR; RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0604- |
● |
|
|
| |
50 |
CONNECTOR; RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0604- |
|
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(B)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
01 |
1 |
0604- |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
9510-0012 |
● |
● |
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0101-0211 |
● |
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0101-0211 |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
50 |
CONNECTOR; RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
50 |
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0604- |
● |
|
|
| |
50 |
CONNECTOR; RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0604- |
|
● |
|
| |
50 |
CONNECTOR; RELEASE VLV
(C)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0604- |
|
|
● |
| |
54 |

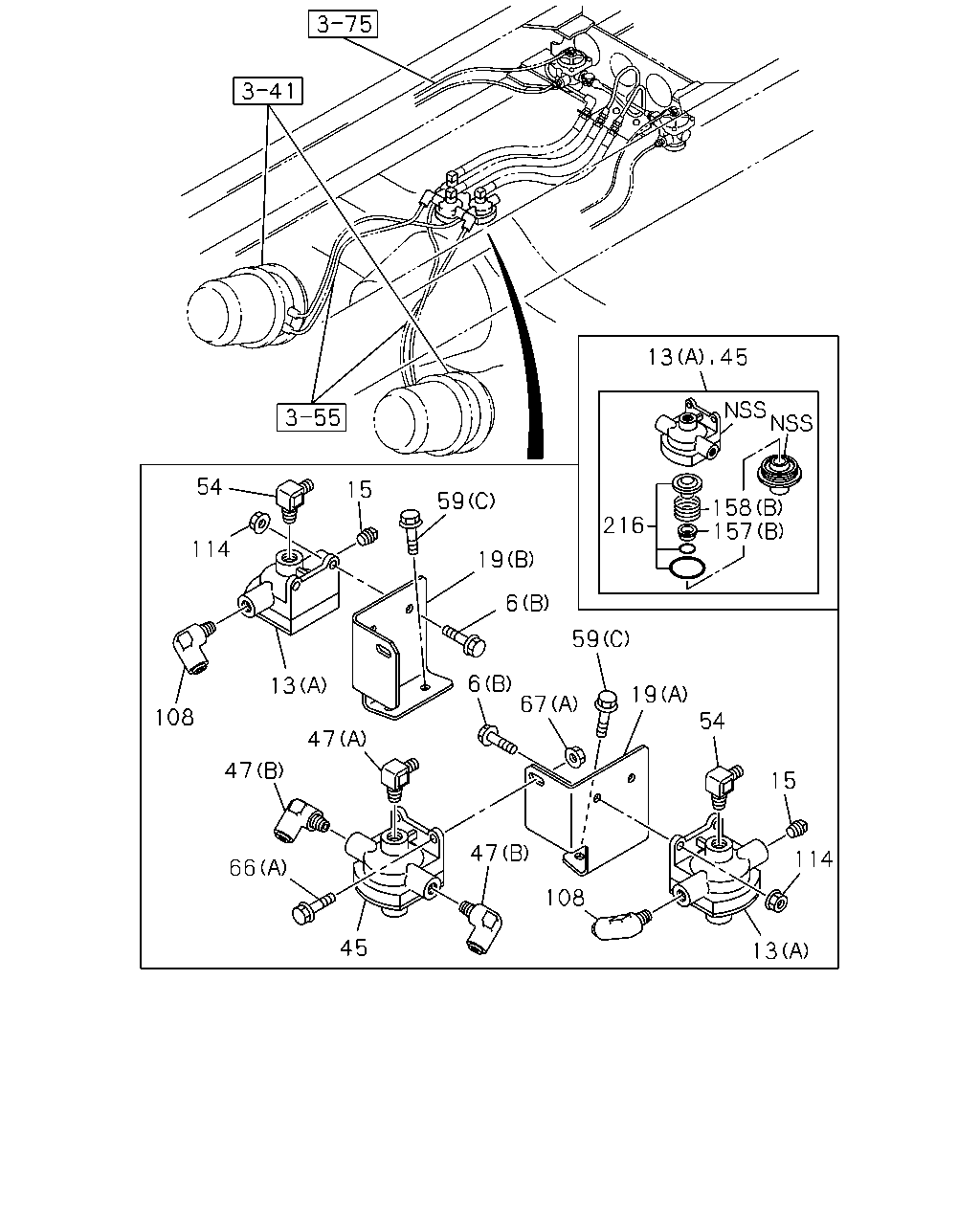

CONNECTOR; QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
02 |
1 |
0212- |
|
● |
|
| |
54 |
CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU>
M16 & NPTF3/8 ELBOW
|
1-09650-447-0 |
04 |
1 |
9510-9802 |
|
● |
|
| |
54 |
CONNECTOR; QUICK RELEASE VLV
M16 & NPTF3/8 ELBOW
|
1-09650-447-0 |
04 |
1 |
9510-9802 |
|
|
● |
| |
54 |
CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU>
DIN12 & NPTF3/8 ELBOW
|
1-09660-962-0 |
04 |
1 |
9803-0004 |
|
● |
|
| |
54 |
CONNECTOR; QUICK RELEASE VLV
DIN12 & NPTF3/8 ELBOW
|
1-09660-962-0 |
04 |
1 |
9803-0004 |
|
|
● |
| |
54 |
CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU>
DIN12 & NPTF3/8 ELBOW
|
1-09660-962-0 |
04 |
1 |
0005-0211 |
|
● |
|
| |
54 |
CONNECTOR; QUICK RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
DIN12 & NPTF3/8 ELBOW
|
1-09660-962-0 |
04 |
1 |
0212- |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0212-0512 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601- |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9510-0012 |
● |
● |
● |
| |
59 |
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0101-0211 |
● |
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0101-0211 |
|
|
● |
| |
59 |
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0212-0603 |
● |
|
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0212-0603 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0212-0603 |
|
|
● |
| |
59 |
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0604-0906 |
● |
|
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0604-0906 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0604-0906 |
|
|
● |
| |
59 |
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50540-820-0 |
02 |
1 |
0907- |
● |
|
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8X20 W/LK WASHER
|
0-50540-820-0 |
02 |
1 |
0907- |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
(A)
M8X20 W/LK WASHER
|
0-50540-820-0 |
02 |
1 |
0907- |
|
|
● |
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE REGULATION ADR<TDU>
(B)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
9510-9801 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
(B)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
9510-9801 |
|
|
● |
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE REGULATION ADR<TDU>
(B)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9802-0004 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
(B)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9802-0004 |
|
|
● |
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE REGULATION ADR<TDU>
(B)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
0005-0211 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
0212-0512 |
|
● |
|
| |
59 |
BOLT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
M8X20 FLANGE
|
0-28050-820-0 |
04 |
1 |
0601- |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-0012 |
● |
● |
● |
| |
60 |
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
9-09110-408-0 |
02 |
1 |
0101-0211 |
● |
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
(A)
M8
|
9-09110-408-0 |
02 |
1 |
0101-0211 |
|
|
● |
| |
60 |
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
9-09110-408-0 |
02 |
1 |
0212-0512 |
● |
|
|
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
9-09110-408-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
(A)
M8
|
9-09110-408-0 |
02 |
1 |
0212-0512 |
|
|
● |
| |
60 |
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
0-91110-508-0 |
02 |
1 |
0601-0603 |
● |
|
|
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
0-91110-508-0 |
02 |
1 |
0601-0603 |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
(A)
M8
|
0-91110-508-0 |
02 |
1 |
0601-0603 |
|
|
● |
| |
60 |
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
0-91110-508-0 |
02 |
1 |
0604- |
● |
|
|
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M8
|
0-91110-508-0 |
02 |
1 |
0604- |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
(A)
M8
|
0-91110-508-0 |
02 |
1 |
0604- |
|
|
● |
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE REGULATION ADR<TDU>
(B)
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
(B)
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
|
|
● |
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE REGULATION ADR<TDU>
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-0004 |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-0004 |
|
|
● |
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE REGULATION ADR<TDU>
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0005-0211 |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0212-0602 |
|
● |
|
| |
60 |
NUT; RELEASE VALVE FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
(B)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
● |
|
| |
93 |
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
02 |
1 |
9911- |
● |
● |
● |
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-053-1 |
01 |
1 |
9510-9802 |
● |
|
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48495-053-1 |
01 |
1 |
9510-9802 |
|
● |
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-201-0 |
01 |
1 |
9803-0001 |
● |
|
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48495-201-0 |
01 |
1 |
9803-0001 |
|
● |
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-224-0 |
01 |
1 |
0002-0004 |
● |
|
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48495-224-0 |
01 |
1 |
0002-0004 |
|
● |
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-224-0 |
01 |
1 |
0005-0211 |
● |
|
|
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48495-224-0 |
01 |
1 |
0005-0211 |
|
● |
|
| |
96 |
BRACKET
|
1-48495-224-0 |
01 |
1 |
0005-0211 |
|
|
● |
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-224-0 |
01 |
1 |
0212- |
● |
|
|
| |
96 |
BRACKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48495-224-0 |
01 |
1 |
0212- |
|
● |
|
| |
96 |
BRACKET
|
1-48495-224-0 |
01 |
1 |
0212- |
|
|
● |
| |
96 |
BRACKET
BRAKE REGULATION ADR<TDU>
|
1-48495-053-1 |
02 |
1 |
9510-9802 |
|
● |
|
| |
96 |
BRACKET
|
1-48495-053-1 |
02 |
1 |
9510-9802 |
|
|
● |
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
● |
|
|
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
|
● |
|
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-0004 |
● |
|
|
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-0004 |
|
● |
|
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0005-0211 |
● |
|
|
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
97 |
BOLT; VLV BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0005-0211 |
|
|
● |
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0212-0512 |
● |
|
|
| |
97 |
BOLT; VLV BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
97 |
BOLT; VLV BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0212-0512 |
|
|
● |
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
|
|
| |
97 |
BOLT; VLV BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
|
● |
|
| |
97 |
BOLT; VLV BRKT
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
|
|
● |
| |
97 |
BOLT; VLV BRKT
BRAKE REGULATION ADR<TDU>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
● |
|
| |
97 |
BOLT; VLV BRKT
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
|
● |
| |
97 |
BOLT; VLV BRKT
BRAKE REGULATION ADR<TDU>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
|
● |
|
| |
97 |
BOLT; VLV BRKT
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
|
|
● |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
|
| |
98 |
NUT; VLV BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
|
|
● |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
● |
● |
|
| |
98 |
NUT; VLV BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
|
|
● |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9803-0004 |
● |
|
|
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9803-0004 |
|
● |
|
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0211 |
● |
|
|
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
98 |
NUT; VLV BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0211 |
|
|
● |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
● |
|
|
| |
98 |
NUT; VLV BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
|
● |
|
| |
98 |
NUT; VLV BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
|
|
● |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
98 |
NUT; VLV BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
|
| |
98 |
NUT; VLV BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
● |
| |
99 |

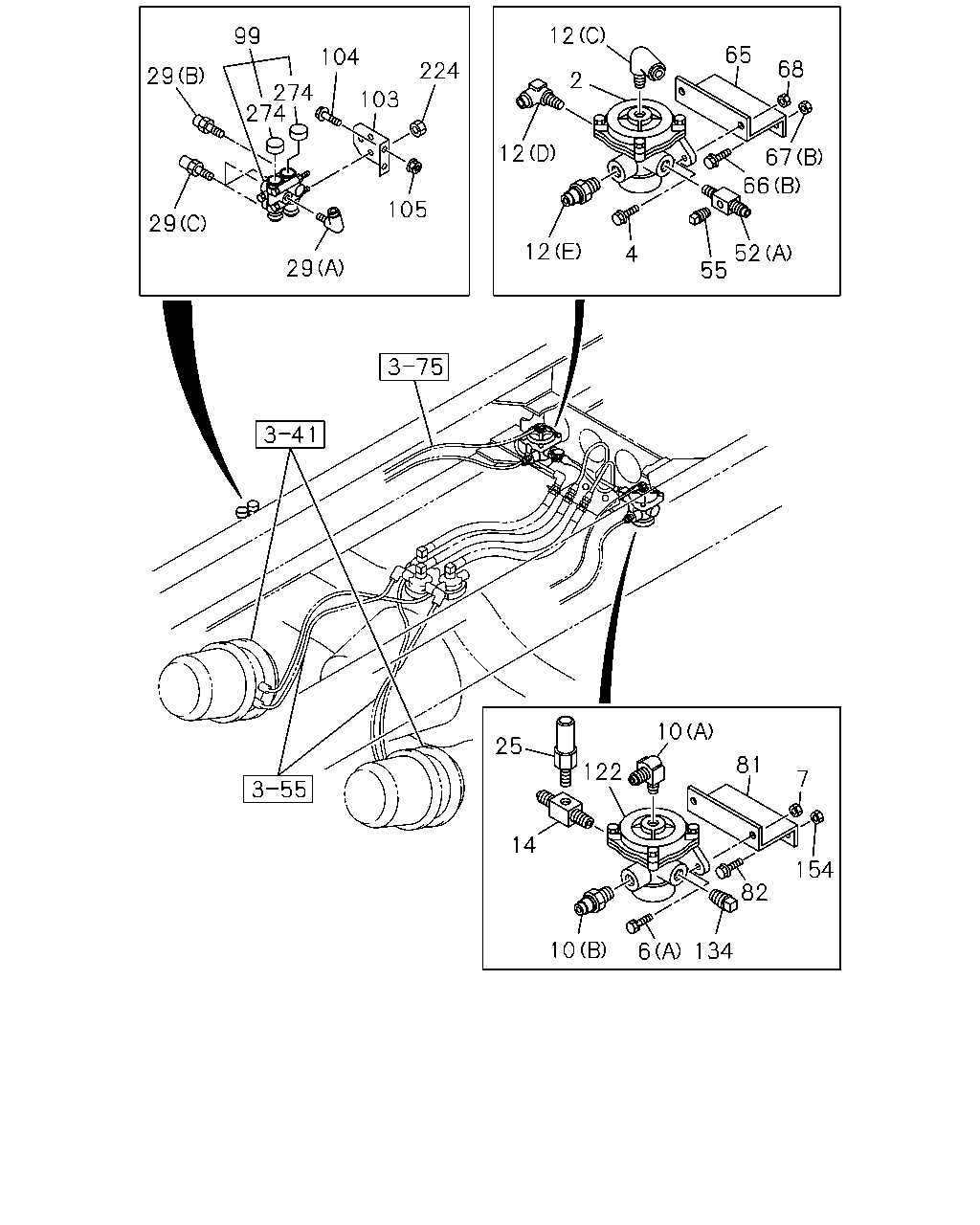

VALVE; PROTECTION
BRAKE REGULATION ADR<TDU>
|
1-48110-113-4 |
01 |
1 |
9803-0004 |
|
● |
|
| |
99 |
VALVE; PROTECTION
|
1-48110-113-4 |
01 |
1 |
9803-0004 |
|
|
● |
| |
99 |
VALVE; PROTECTION
BRAKE REGULATION ADR<TDU>
|
1-48110-113-5 |
01 |
1 |
0005-0211 |
|
● |
|
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48110-113-5 |
01 |
1 |
0212- |
|
● |
|
| |
99 |
VALVE; PROTECTION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
|
1-48110-113-5 |
01 |
1 |
0212- |
|
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47477-860-0 |
01 |
1 |
0212- |
|
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
|
1-47478-057-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
|
1-47478-057-0 |
01 |
1 |
9803-0004 |
|
|
● |
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
|
1-47478-057-0 |
01 |
1 |
0005-0211 |
|
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
|
1-47478-057-0 |
01 |
1 |
0212- |
|
● |
|
| |
104 |
BOLT; BRKT,VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
104 |
BOLT; BRKT,VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
● |
|
| |
104 |
BOLT; BRKT,VALVE
BRAKE REGULATION ADR<TDU>
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9803-0004 |
|
● |
|
| |
104 |
BOLT; BRKT,VALVE
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9803-0004 |
|
|
● |
| |
104 |
BOLT; BRKT,VALVE
BRAKE REGULATION ADR<TDU>
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
104 |
BOLT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0212-0512 |
|
● |
|
| |
104 |
BOLT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0601- |
|
● |
|
| |
105 |

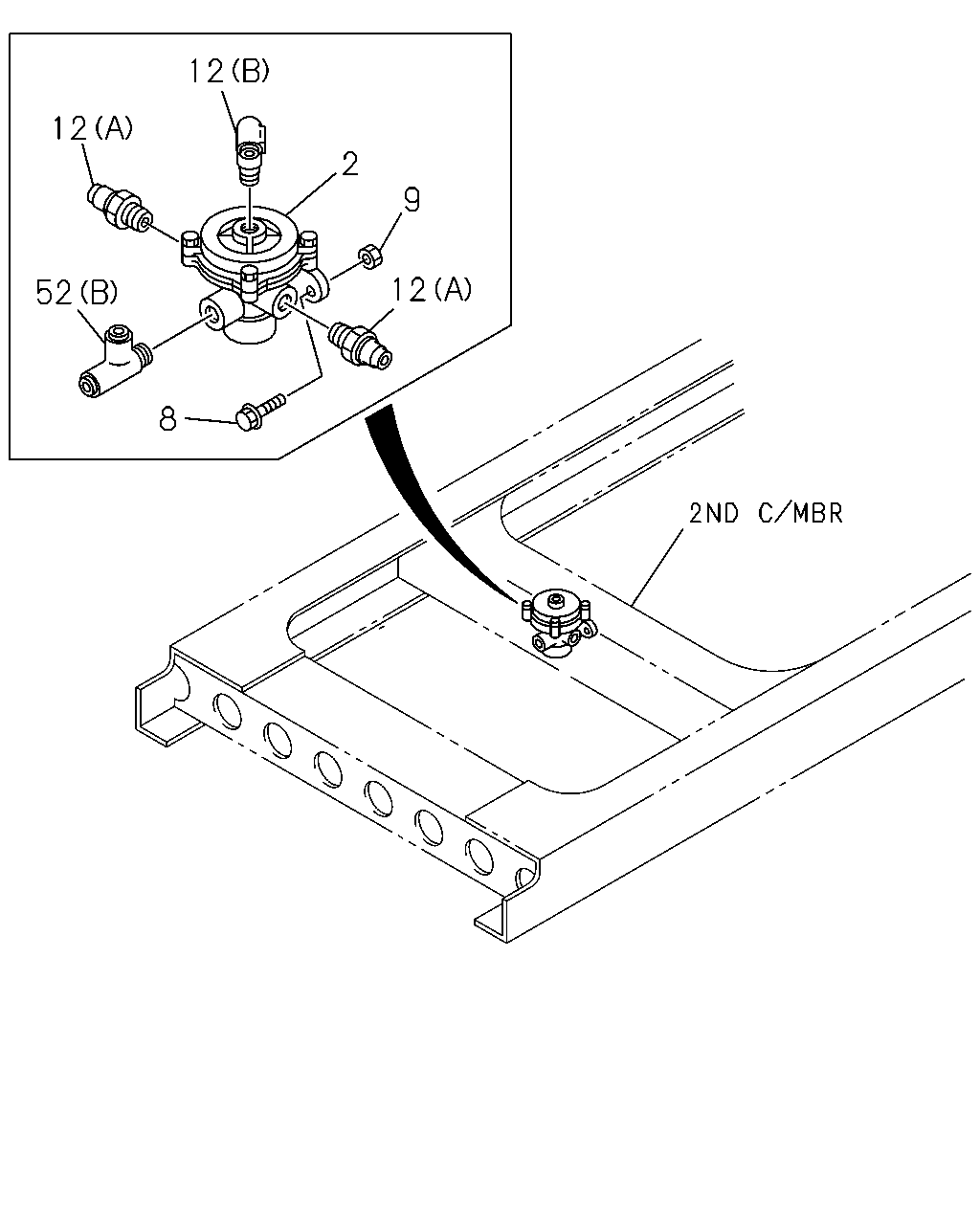

NUT; BRKT,VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0212-0602 |
|
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE REGULATION ADR<TDU>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9803-0004 |
|
● |
|
| |
105 |
NUT; BRKT,VALVE
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9803-0004 |
|
|
● |
| |
105 |
NUT; BRKT,VALVE
BRAKE REGULATION ADR<TDU>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0005-0211 |
|
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0212-0602 |
|
● |
|
| |
105 |
NUT; BRKT,VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
|
● |
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0212- |
|
● |
|
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
9803-0004 |
|
● |
|
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0005-0211 |
● |
|
|
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0005-0211 |
|
● |
|
| |
108 |
CONNECTOR; ELBOW
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0005-0211 |
|
|
● |
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0212- |
● |
|
|
| |
108 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0212- |
|
● |
|
| |
108 |
CONNECTOR; ELBOW
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0212- |
|
|
● |
| |
157 |

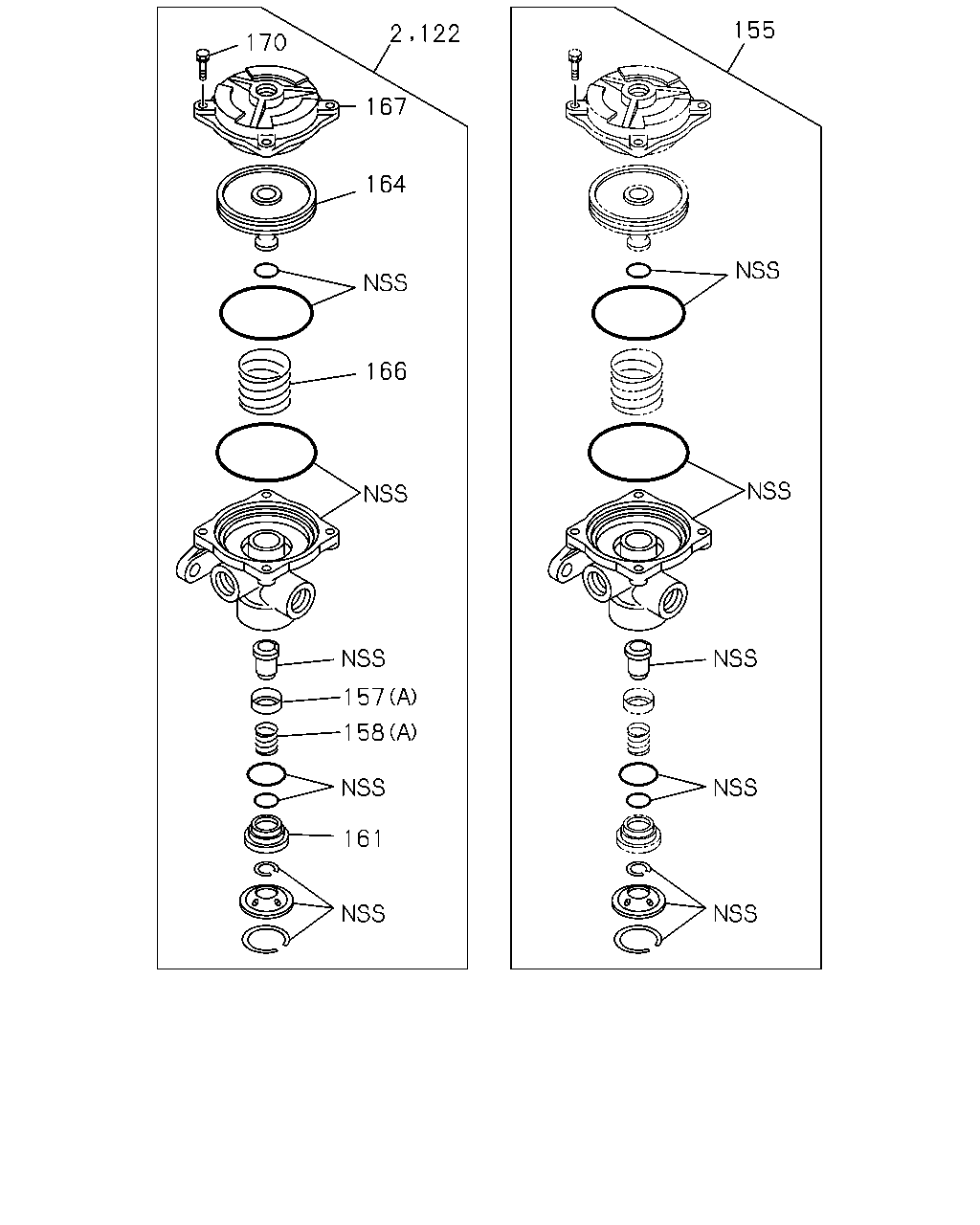

RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-48419-020-0 |
03 |
1 |
0212- |
|
● |
|
| |
157 |
RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-48419-020-0 |
01 |
1 |
0110-0211 |
● |
● |
|
| |
157 |
RETAINER; VALVE
(B)
|
1-48419-020-0 |
01 |
1 |
0110-0211 |
|
|
● |
| |
157 |
RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-48419-020-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-48419-020-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
157 |
RETAINER; VALVE
(B)
|
1-48419-020-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
157 |
RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-48419-020-0 |
01 |
1 |
0604- |
● |
|
|
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-48419-020-0 |
01 |
1 |
0604- |
|
● |
|
| |
157 |
RETAINER; VALVE
(B)
|
1-48419-020-0 |
01 |
1 |
0604- |
|
|
● |
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48213-002-0 |
01 |
1 |
0212-0601 |
|
● |
|
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48213-002-0 |
01 |
1 |
0602- |
|
● |
|
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48213-002-0 |
01 |
1 |
0602- |
|
● |
|
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48213-002-0 |
01 |
1 |
0602- |
|
● |
|
| |
157 |
RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48213-002-0 |
02 |
1 |
0212-0601 |
|
● |
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
9-48419-003-0 |
03 |
1 |
0212- |
|
● |
|
| |
158 |
SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
9-48419-003-0 |
01 |
1 |
0110-0211 |
● |
● |
|
| |
158 |
SPRING; VALVE
(B)
|
9-48419-003-0 |
01 |
1 |
0110-0211 |
|
|
● |
| |
158 |
SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
9-48419-003-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
9-48419-003-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
158 |
SPRING; VALVE
(B)
|
9-48419-003-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
158 |
SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
9-48419-003-0 |
01 |
1 |
0604- |
● |
|
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
9-48419-003-0 |
01 |
1 |
0604- |
|
● |
|
| |
158 |
SPRING; VALVE
(B)
|
9-48419-003-0 |
01 |
1 |
0604- |
|
|
● |
| |
158 |
SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47819-089-0 |
01 |
1 |
0212-0601 |
|
● |
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47819-089-0 |
01 |
1 |
0602- |
|
● |
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47819-089-0 |
01 |
1 |
0602- |
|
● |
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47819-089-0 |
01 |
1 |
0602- |
|
● |
|
| |
158 |
SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47819-089-0 |
02 |
1 |
0212-0601 |
|
● |
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-85576-235-0 |
03 |
1 |
0212- |
|
● |
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-85576-235-0 |
01 |
1 |
0110-0211 |
● |
● |
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
|
1-85576-235-0 |
01 |
1 |
0110-0211 |
|
|
● |
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-85576-235-0 |
01 |
1 |
0212-0603 |
● |
|
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-85576-235-0 |
01 |
1 |
0212-0603 |
|
● |
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
|
1-85576-235-0 |
01 |
1 |
0212-0603 |
|
|
● |
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-85576-235-0 |
01 |
1 |
0604- |
● |
|
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-85576-235-0 |
01 |
1 |
0604- |
|
● |
|
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
|
1-85576-235-0 |
01 |
1 |
0604- |
|
|
● |
| |
224 |
NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9803-0004 |
|
● |
|
| |
224 |
NUT; PROTECTION VALVE
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9803-0004 |
|
|
● |
| |
224 |
NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0005-0211 |
|
● |
|
| |
224 |
NUT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0212-0602 |
|
● |
|
| |
224 |
NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0212-0602 |
|
● |
|
| |
224 |
NUT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
|
| |
224 |
NUT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
|
| |
274 |

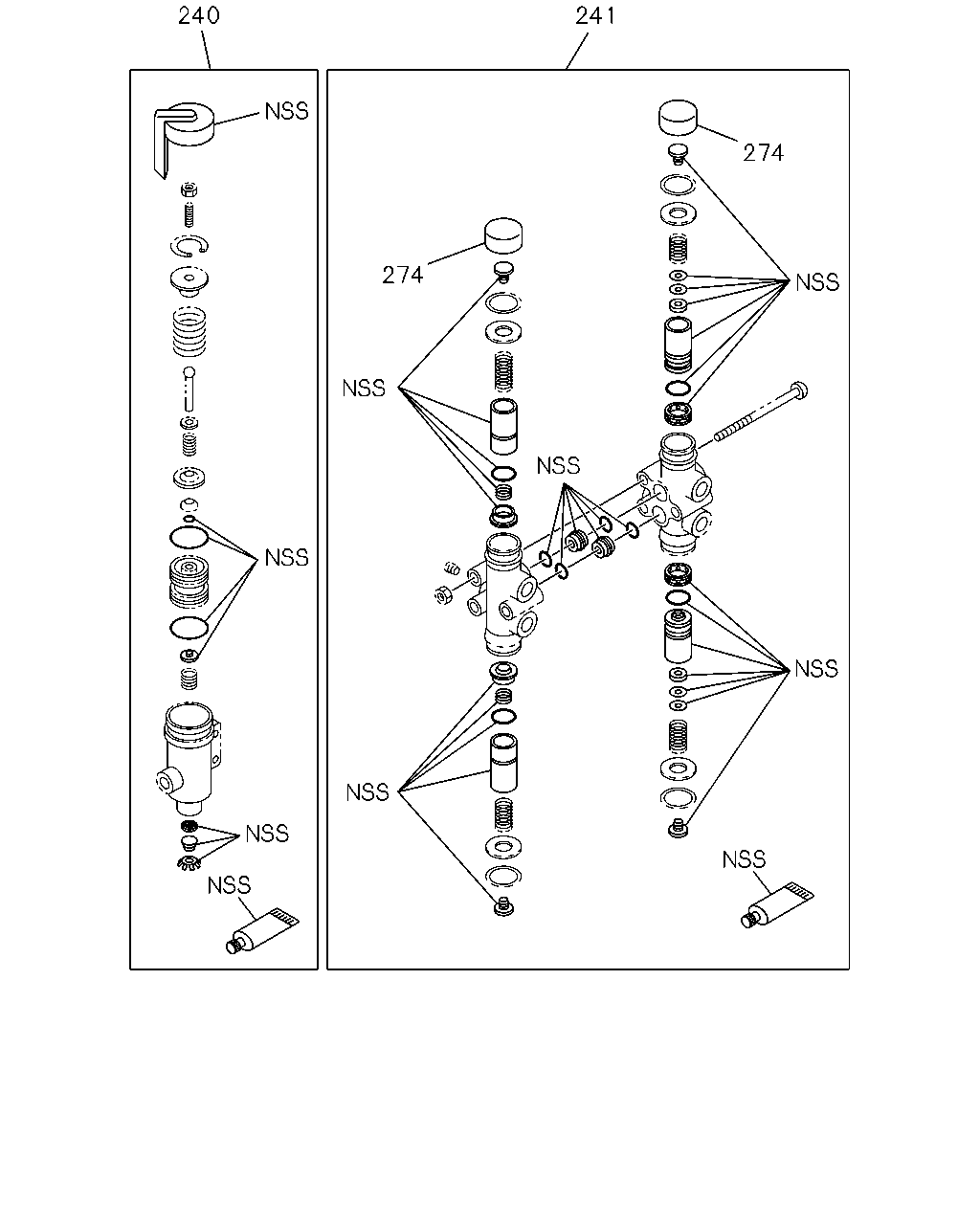

COVER; DUST
BRAKE REGULATION ADR<TDU>
|
1-48119-450-0 |
04 |
1 |
0005-0008 |
|
● |
|
| |
274 |
COVER; DUST
BRAKE REGULATION ADR<TDU>
|
1-48119-450-0 |
02 |
1 |
0009-0211 |
|
● |
|
| |
274 |
COVER; DUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48119-450-0 |
02 |
1 |
0212- |
|
● |
|
| |
274 |
COVER; DUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE REGULATION ADR<TDU>
|
1-48119-450-0 |
02 |
1 |
0212- |
|
● |
|
