◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#36208) — 88 parça
çizim 152171
97 61 324 218 46 45 46 45
BalonParca AdiParca NoAdetTipApplied Date A B C
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9812 ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9901- ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 9510-0606 ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 03 1 0607- ● ●
61 CABLE; PARKING BRK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4518 		1-79996-675-1 01 1 0511- ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4205 		1-79996-234-1 01 1 9510-9601 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-233-1 01 1 9602-9909 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-475-1 01 1 9910-0510 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4305 		1-79996-236-1 01 1 9510-9601 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4205 		1-79996-234-1 01 1 9602-9909 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4494 		1-79996-460-1 01 1 9910-0510 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<THN> L=4394 		1-79996-475-2 01 1 0511- ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<THN> L=4494 		1-79996-460-2 01 1 0511- ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9510-0004 ● ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 0005- ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		8-94279-517-0 02 1 9510-9611 ● ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612- ● ● ●
324 BRACKET 1-79998-750-3 01 1 9510- ● ● ●

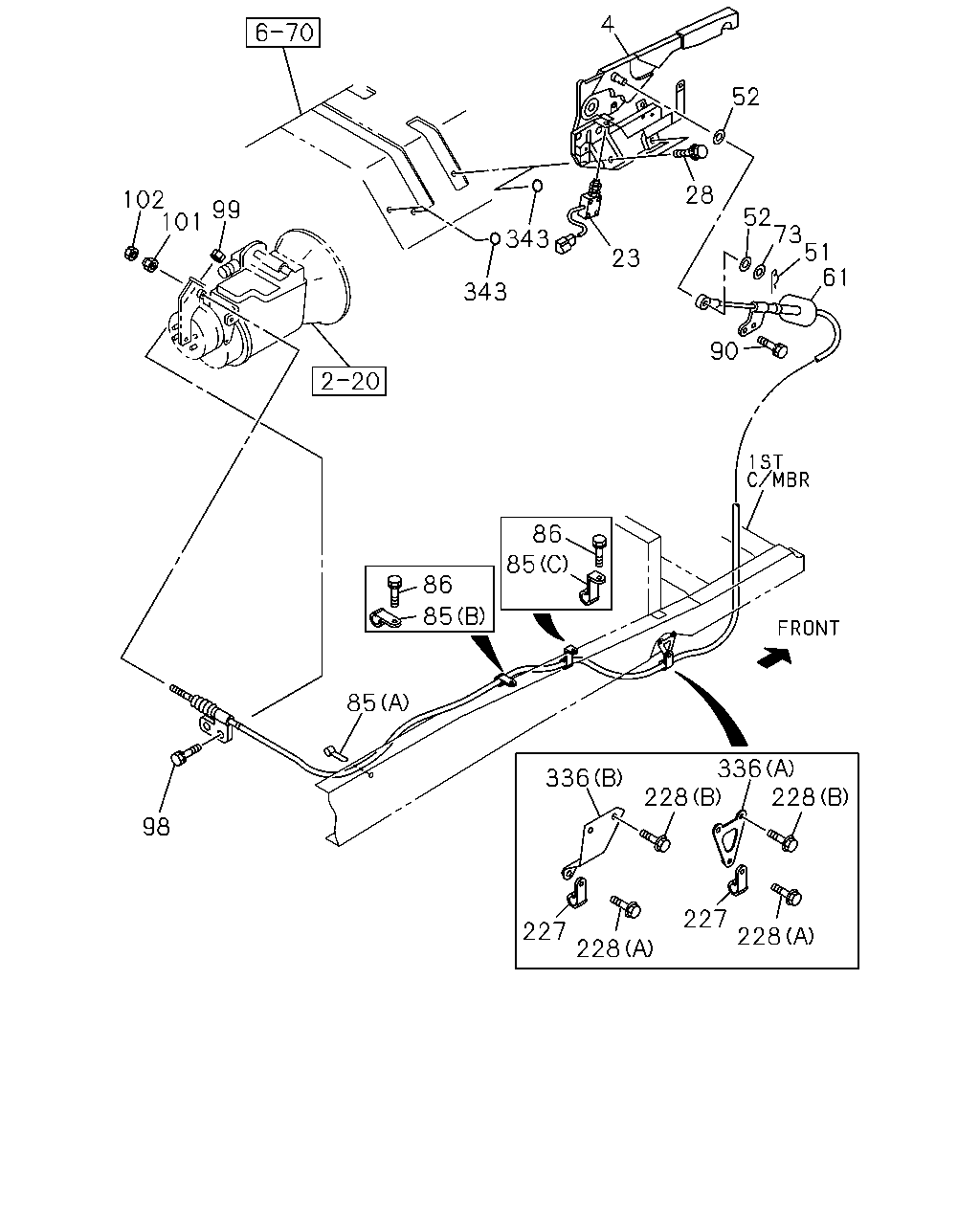

çizim 152204
4 52 28 102 101 99 52 73 51 61 343 23 343 90 86 85 86 85 85 336 228 228 336 98 227 228 227 228
BalonParca AdiParca NoAdetTipApplied Date A B C
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-864-1 01 1 9510-9809 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-419-0 01 1 9810-9908 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-481-0 01 1 9909-9911 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-503-0 01 1 9912-0010 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0011- ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9510- ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904 ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9510- ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9510- ● ●
61 CABLE; PARKING BRK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4518 		1-79996-675-1 01 1 0511- ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4205 		1-79996-234-1 01 1 9510-9601 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-233-1 01 1 9602-9909 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-475-1 01 1 9910-0510 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4305 		1-79996-236-1 01 1 9510-9601 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4205 		1-79996-234-1 01 1 9602-9909 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4494 		1-79996-460-1 01 1 9910-0510 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<THN> L=4394 		1-79996-475-2 01 1 0511- ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<THN> L=4494 		1-79996-460-2 01 1 0511- ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9510-0605 ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9510-9612 ● ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 02 1 9701-0004 ● ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 02 1 0005- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9510-0004 ● ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 0005- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 01 1 9510-0004 ● ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 01 1 0005-1101 ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40 		1-09701-014-0 01 1 1102- ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0601 ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0602- ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004 ● ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0005-0904 ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606 ● ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 9607-0004 ● ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0512 ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0601 ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0602- ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9510-9702 ● ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 9703-0004 ● ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		1-46259-007-0 01 1 9510-0004 ● ● ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		1-46259-007-0 01 1 0005- ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9709 ● ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9710-0004 ● ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 9510-0004 ● ● ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 0005-0606 ● ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		0-95235-235-0 01 1 0607- ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0004 ● ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510-0004 ● ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005- ● ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 9510-0004 ● ● ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-36183-162-1 01 1 0005-0510 ● ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 0511- ●
336 BRACKET; RADIATOR
6HE1 TC ENG(57L) WEST MALAYSIA EQUIPMENT(SEQ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 0511- ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		1-36183-162-1 01 1 0511- ●
336 BRACKET; RADIATOR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0005-0510 ●
336 BRACKET; RADIATOR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) WEST MALAYSIA EQUIPMENT(SEQ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0511- ●
336 BRACKET; RADIATOR
EAST MALAYSIA EQUIPMENT(PM6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0511- ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9510- ● ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 9510- ● ● ●
